Zir-X Zirconia Block -HT (High Translucent)
Zir-X Zirconia Block -HT (High Translucent)
Couldn't load pickup availability

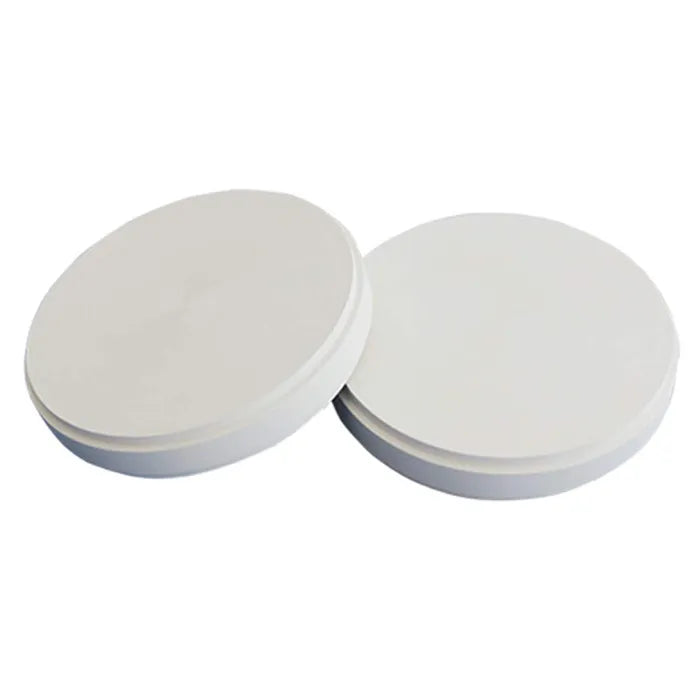

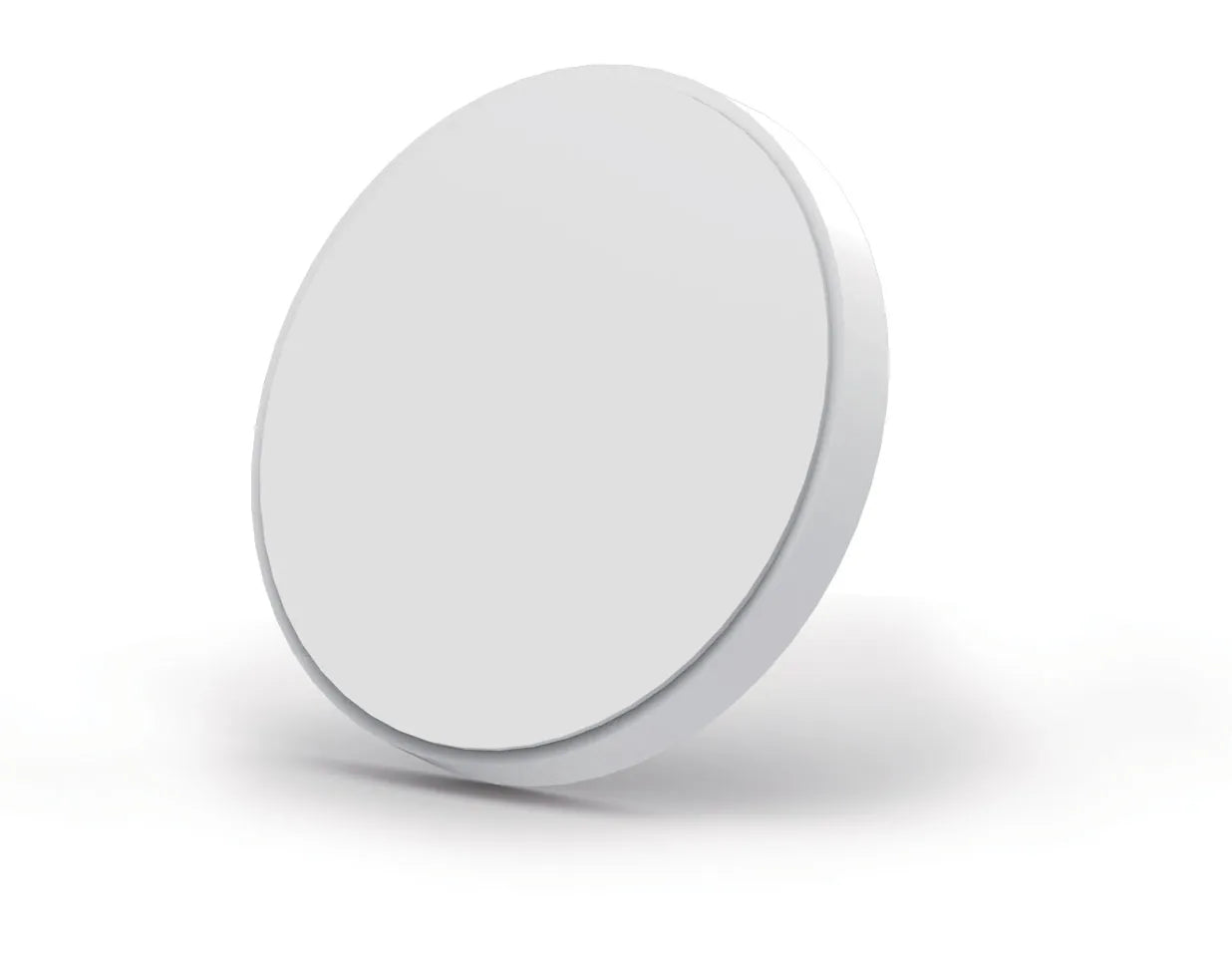

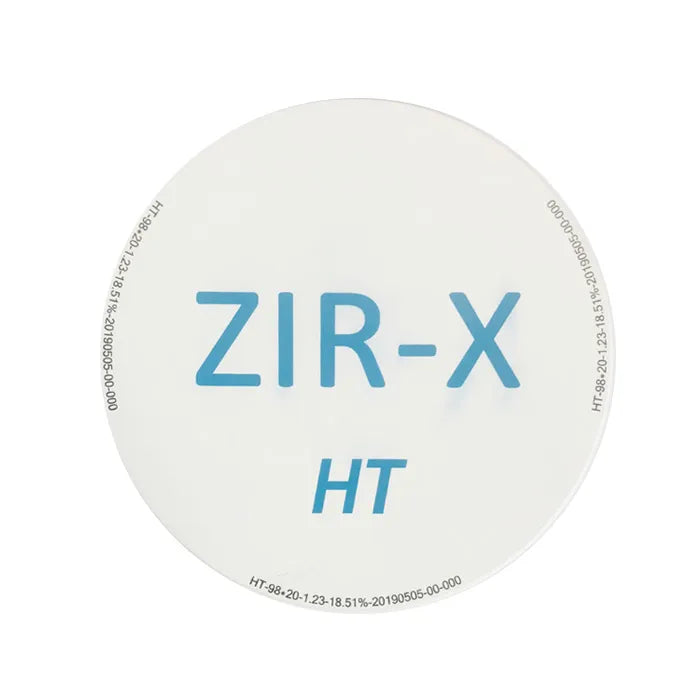

ZIR-X is a circular shaped block made up of Zirconia and Ceramic. It consist of high strength, excellent permeability, low thermal conductivity, and color aesthetic repair effect that is suitable for CAD/CAM system and manual system.
COMPOSITIONS:
- ZrO2(zirconium dioxide) + HfO2(Hafnium dioxide)+ Y2O3(Yttrium oxide) ≥ 99%
- Y2O3:4.5%;~6.0%
- Al2O3(Aluminum oxide) ≤ 0.2%
- Other Oxides ≤0.4%
ADVANTAGES
- Can be easily modified, reshaped and recolored.
- Resemble natural tooth enamel due to their color and translucence.
- Do not require a metal base.
- Do not require as much of the original tooth be removed as with other types of crowns.
- No irritation.
- Good Bio-Compatibility.
- Resist staining better than acrylic or composite ceramic crowns.
- Low thermal conductivity.
- Hot and cold changes do not stimulate the pulp.
- Extremely Durable
FABRICATION OF ZIR-X
- ZIR-X are available in narrow size blocks sent to laboratories.

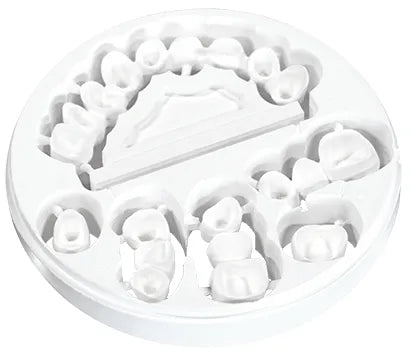

- It is milled into single unit copings or multiple- unit fixed bridge frameworks.
INDICATION
- BRIDGE RESTOR
Features
Features
- A natural white color.
- High hardness.
- High Fracture toughness (Zirconia is difficult to crack).
- Resistance to wear.
- Translucent appearance when sintered (Baked)
Description
Description
Specification
Specification
Durability
- Over 1000 MPa Perturbed strength
Packaging
Packaging
- Pack of 1 Block
Direction to use
Direction to use
- The Burn out Oven and Casting machine have been replaced by “Model Scanning” and CAD / CAM milling machines.
- Keyboard, Monitors and cursors are used instead of wax , Bunsen Burner and Carvers to Fabricate the crown Bridge work.
ZIR_X are Fabricated by CAD/CAM SYSTEM
1.COMPUTER-AIDED DESIGN/COMPUTER-AIDED MANUFACTURING (Cad/Cam) METHOD.
This method of fabricating zirconia single copings and frameworks involves the manipulation of a 3-D design on the computer screen, followed by the automated production by a computer-controlled milling machine. There are three components to the CAD/CAM system: scanning, designing, and milling. All are usually housed at the laboratory.
2. MANUFACTURER -SPECIFIC CLOSED SYSTEM
The method of fabrication used by dental laboratories is scanning the tooth-prepared models, designing the single coping or framework using a particular company’s construction software, and then electronically sending the information to the company’s milling center. This is usually a closed system, which means the scan and design data can only be used at that particular manufacturer’s milling center.
Additional info
Additional info
Warranty
Warranty
Product Related Questions
Product Related Questions
Question : What is the perturbed strength of Zir-X Zirconia Block - HT?
Answer: Zir-X Zirconia Block - HT boasts a perturbed strength of over 1000 MPa, making it highly durable and suitable for dental restorations.
Question : How is Zir-X Zirconia Block - HT fabricated?
Answer: Zir-X Zirconia Blocks are available in narrow size blocks and can be milled into single-unit copings or multiple-unit fixed bridge frameworks. They are often used in dental laboratories.
Question : How is Zir-X Zirconia Block - HT fabricated?
Answer: Zir-X Zirconia Blocks are available in narrow size blocks and can be milled into single-unit copings or multiple-unit fixed bridge frameworks. They are often used in dental laboratories.
Question : What are the advantages of using Zir-X Zirconia Block - HT?
Answer: The advantages include easy modification and reshaping, a natural tooth enamel appearance, no need for a metal base, minimal tooth removal, no irritation, good biocompatibility, resistance to staining, low thermal conductivity, durability, and more.
Question : What is the composition of Zir-X Zirconia Block - HT?
Answer: The composition includes ZrO2 (zirconium dioxide), HfO2 (Hafnium dioxide), Y2O3 (Yttrium oxide), with Y2O3 content ranging from 4.5% to 6.0%. It also contains a small amount of Al2O3 (Aluminum oxide) and other oxides.
Question : What is Zir-X Zirconia Block - HT (High Translucent)?
Answer: Zir-X Zirconia Block - HT is a circular-shaped dental block made from zirconia and ceramic, designed for dental restorations. It offers high strength, excellent permeability, low thermal conductivity, and a color aesthetic repair effect.
