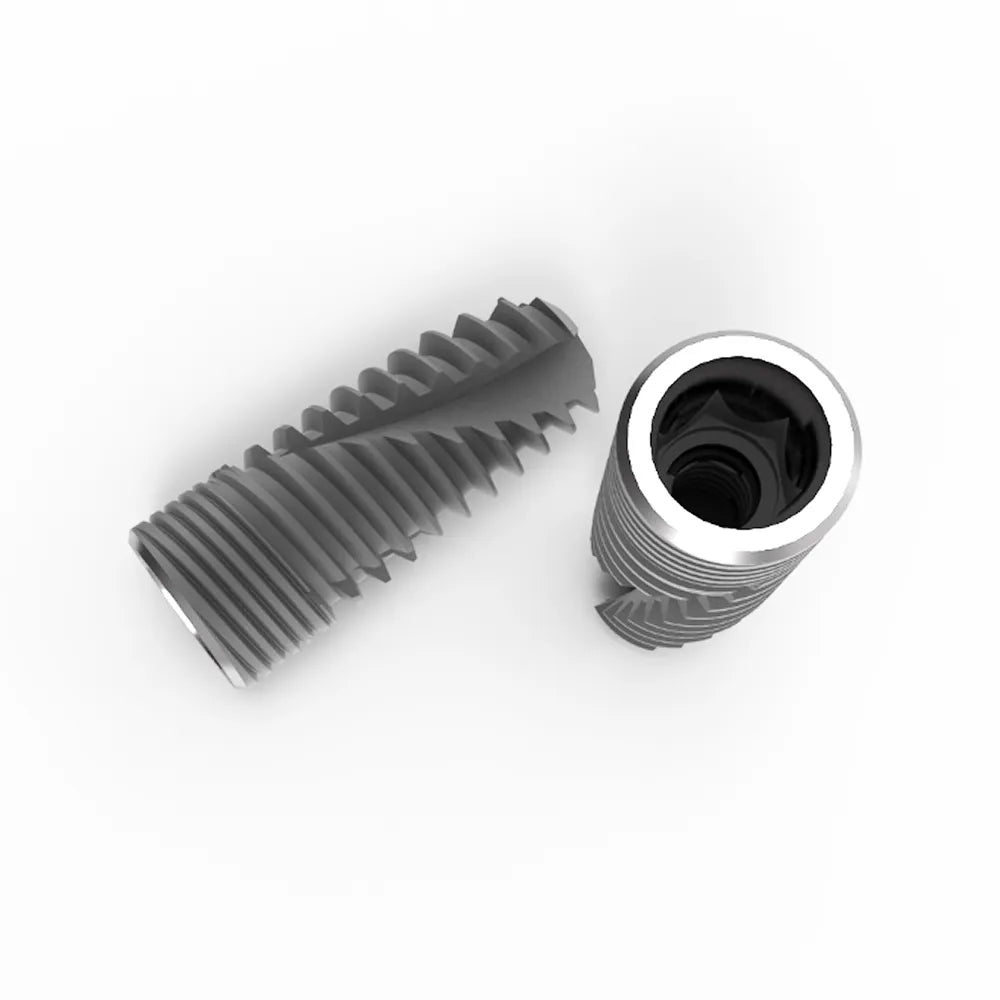

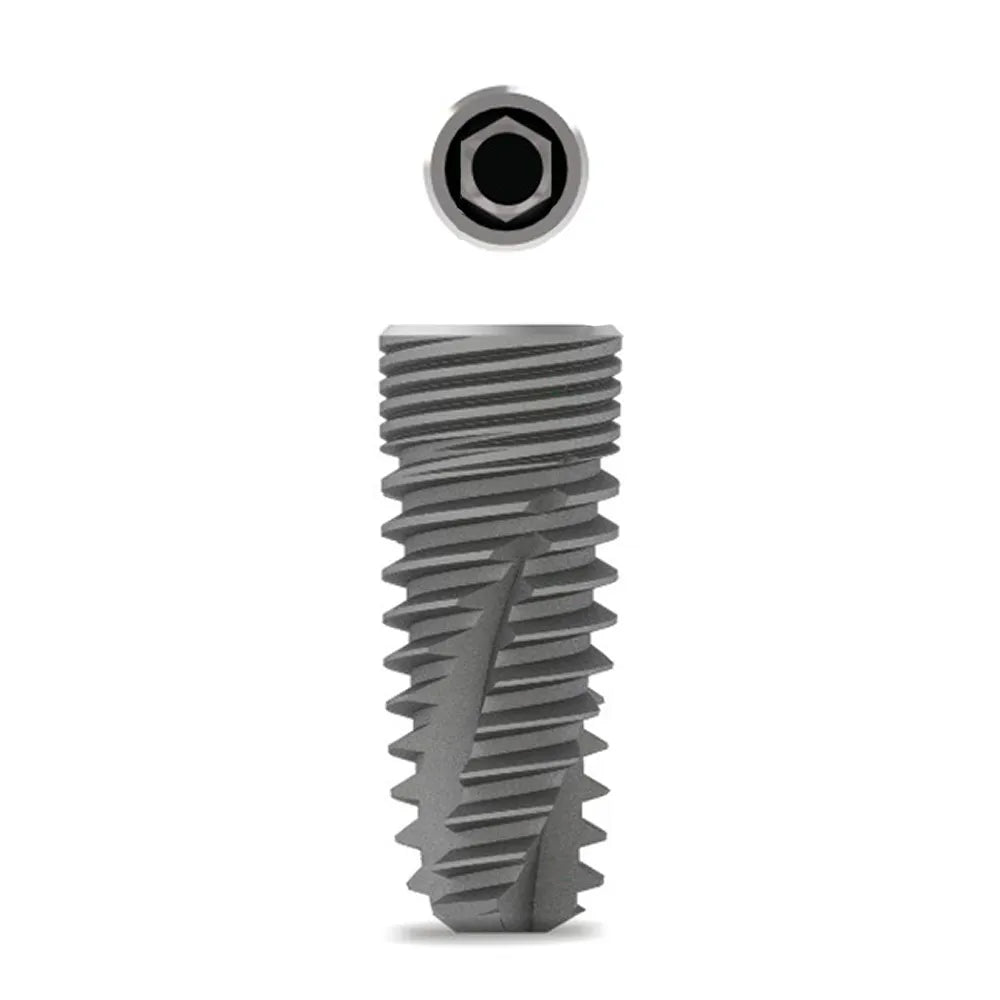

Xcem XE Submerged Dental Implant 5mm

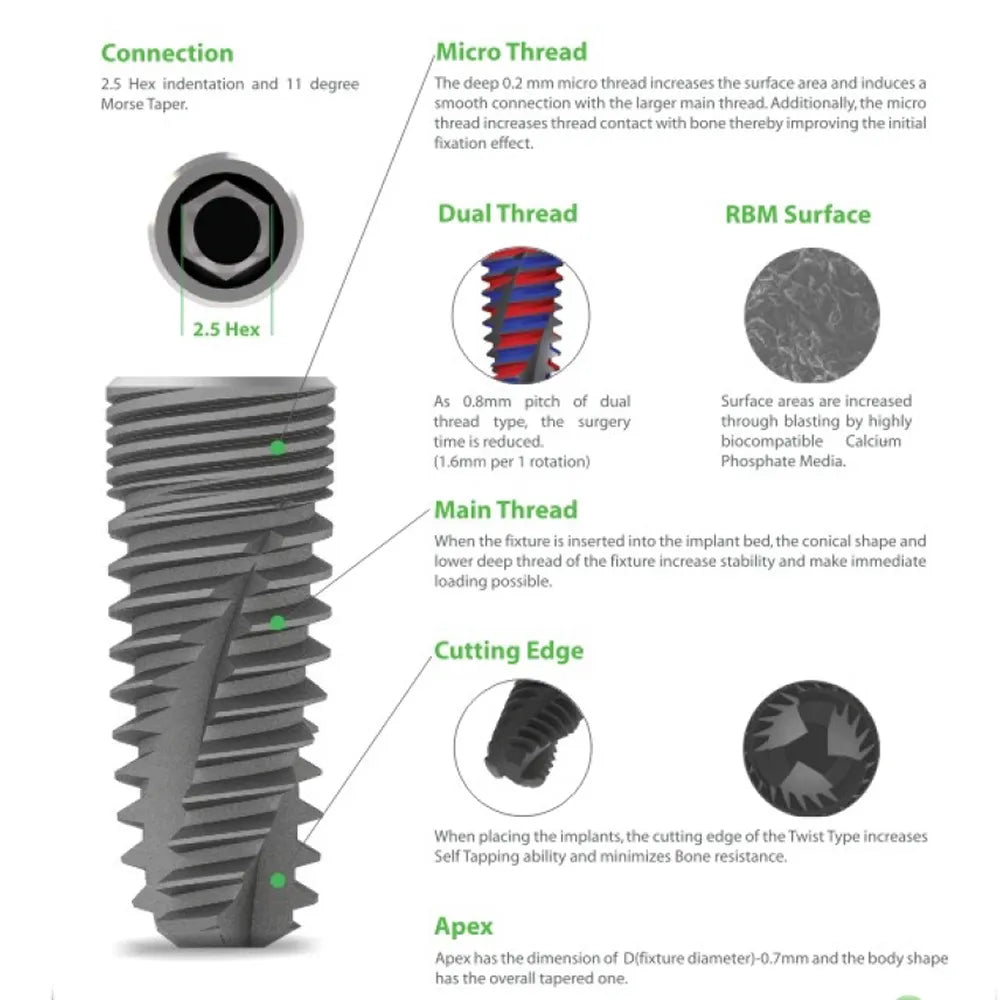

• Micro Thread Design (0.2mm): Enhances surface area, improving initial fixation and facilitating a smooth connection with the main thread.
• Conical Main Thread with Lower Deep Thread: Maximizes stability during insertion into the implant bed, potentially allowing for immediate loading.
• Dual Thread Design (0.8mm Pitch): Reduces surgery time with efficient rotations (1.6mm per 1 rotation), enhancing the speed and effectiveness of implant placement.
• RBM Surface: Treated with highly biocompatible Calcium-Phosphate Media, the surface is blasted to increase surface areas, promoting improved biocompatibility for successful integration.
• Twist Type Cutting Edge: Enhances self-tapping ability during implant placement, minimizing bone resistance and contributing to smoother procedures.
• Versatile 4mm Diameter: Offers versatility for various clinical applications, providing flexibility in treatment planning.
• Apex Design (D-0.7mm): The apex features a tapered body shape, contributing to overall implant stability.
• Potential for Immediate Loading: Depending on achieved stability during insertion, the implant may support immediate loading, providing quicker restoration.

Xcem XE Submerged Dental Implant 5mm

The Xcem XE Submerged Dental Implant (5mm) is a cutting-edge solution designed for precision and stability in dental implantology. With a 5mm diameter, it offers versatility for various clinical applications. The implant features a micro thread design, enhancing the surface area for improved initial fixation and connection with the main thread. Its conical main thread, coupled with a lower deep thread, ensures enhanced stability during insertion, potentially allowing for immediate loading. The dual thread design with a 0.8mm pitch reduces surgery time, promoting efficient implant placement. The RBM surface, treated with highly biocompatible Calcium-Phosphate Media, enhances biocompatibility for successful integration. This implant combines advanced features, including a Twist-type cutting edge, to deliver optimal results in modern dental procedures.

• Diameter: 5mm
• Length: 7mm,8.5mm,10mm,11.5mm,13mm,15mm
• Hex: 2.5mm
• Material: Titanium
• Immediate Loading: Designed for immediate loading procedures
• Condition: Sterilized

• 1 x XE Submerged Dental Implant

Patient Evaluation:

• Before implantation, thoroughly assess the patient's dental and medical history.
• Conduct a comprehensive oral examination, including X-rays and scans to determine the suitability for dental implantation.

Treatment Planning:

• Develop a treatment plan that outlines the implantation procedure, including the location, size, and type of the implant to be used.

Pre-operative Preparations:

• Prepare the patient by explaining the procedure, potential risks, and expected outcomes.
• Ensure that the patient is in good oral health and address any pre-existing dental issues.

Anesthesia:

• Administer local anesthesia to numb the surgical area, ensuring the patient's comfort during the procedure.

Surgical Procedure:

• Create an incision in the gum tissue at the implant site.
• Prepare the bone to receive the implant using appropriate drills and instruments.
• Place the Xcem XE Submerged Dental Implant 5mm securely into the prepared site.
• Suture the incision site as needed.

Healing Period:

• Allow time for the implant to integrate with the bone, a process known as osseointegration. This may take several months.

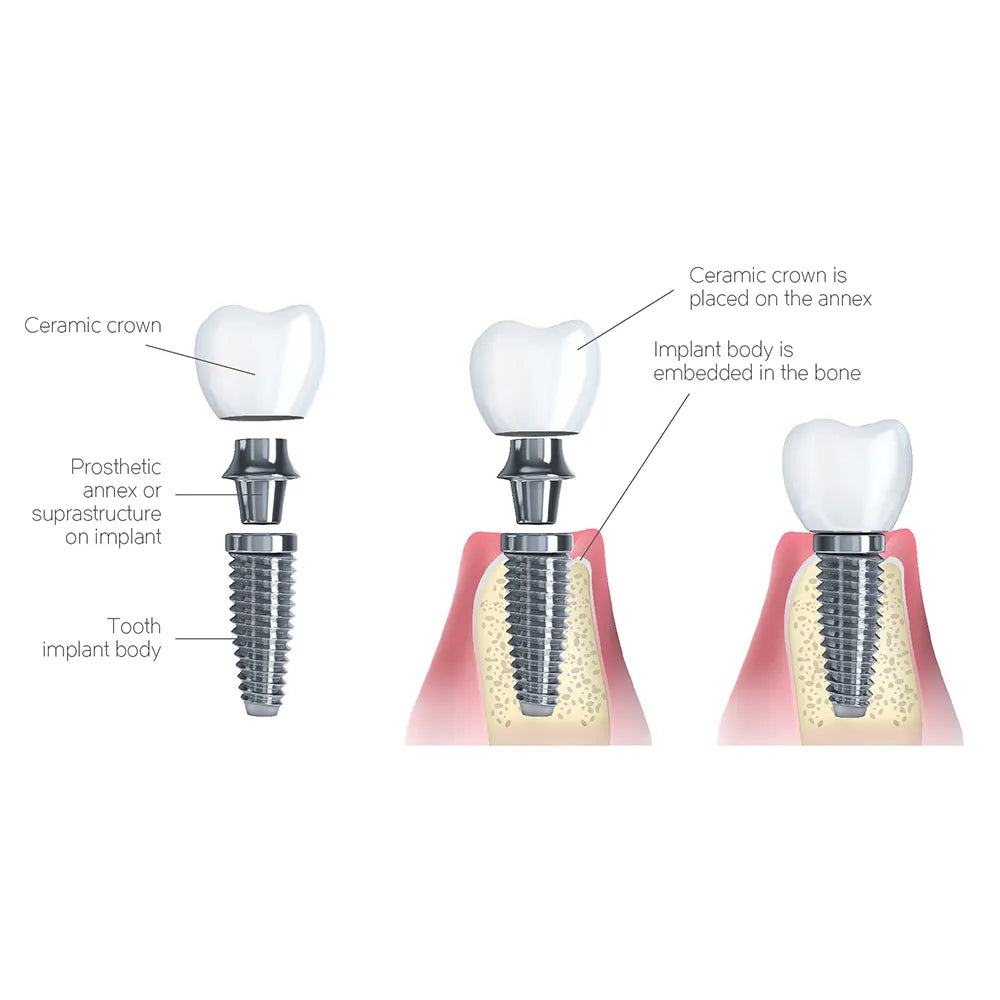

Prosthetic Attachment:

• Once osseointegration is complete, expose the implant by making a small incision.
• Attach an abutment to the implant, which serves as a connector for the final restoration (crown, bridge, or denture).

Final Restoration:

• Create and place the final dental prosthesis (crown, bridge, or denture) onto the abutment.
• Ensure proper alignment and aesthetics.

Post-operative Care:

• Provide the patient with detailed instructions for post-operative care, including oral hygiene, diet, and any medications.
• Schedule follow-up appointments to monitor healing and implant function.

Ongoing Maintenance:

• Instruct the patient on the importance of regular check-ups and maintenance to ensure the longevity and success of the implant.

• Warranty is not applicable for this product.

Question: What is the significance of the 0.2mm micro thread in the Xcem XE Implant?
Answer: The micro thread enhances surface area for improved initial fixation and a smooth connection with the main thread.

Question: Can you explain the dual thread design and its impact on surgery time?
Answer: The dual thread with a 0.8mm pitch reduces surgery time, enabling faster rotations (1.6mm per 1 rotation) for efficient implant placement.

Question: Can the Xcem XE Implant be used in both the upper and lower jaws?
Answer: Yes, the implant is versatile and can be used in both the upper and lower jaws, accommodating various clinical scenarios.
