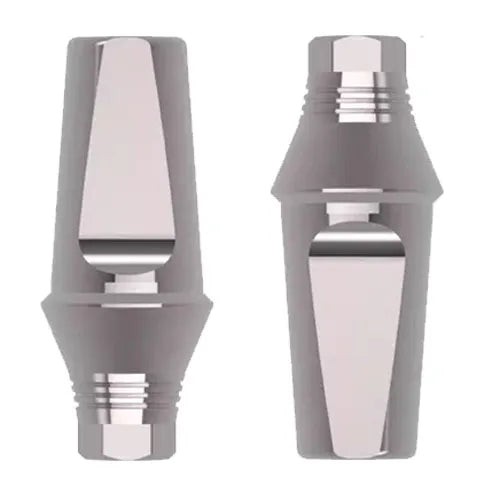

Xcem Dental Implant Transfer Abutment Mini - Hex

• Precision engineering for accurate placement
• Mini size with hexagonal connection
• Compatible with narrow 1.2 hex driver
• Versatile sizing options for different gum dimensions
• Transfer abutment and abutment screw for efficient connectivity
• Designed for conventional cement-retained types
• Sterile and disposable, prioritizing infection control

• Diameter: 4.5mm
• Height: 4mm and 5.5mm
• Gingival Height: 1mm to 5mm

• 1 x Transfer abutment
• 1 x Abutment scrwe

Preparation:

• Ensure the healing period for osseointegration (3-6 months post-fixture insertion).
• Remove the cover screw and connect the healing abutment after osseointegration.
• Wait for the healing period of soft tissue.

Impression Phase:

• After soft tissue healing, take an impression using suitable materials.
• Decide on abutment type and size based on X-ray and adjacent tooth relationship.

Sterilization:

• Sterilize the abutment before installation using an autoclave (121°C for at least 30 minutes).

Installation:

• Set the abutment in the mouth.
• Take the final impression after placing the abutment.
• If the selected abutment is cemented, wax up for restoration.

Restoration Phase:

• After the restoration, place the fixture or abutment in the mouth.
• Check occlusion with upper and lower surfaces.

Torque Recommendations:

• The recommended torque is 30-35N/cm² when connecting the abutment with the fixture.
• Recommended torque is 8-10N/cm² when connecting the healing abutment and cover screw.

Question: What is the lifespan of the Mini-Hex Abutment?
Answer: It is a single-use device; do not reuse it for patient safety.

Question: What is the recommended torque for connecting the abutment?
Answer: 30-35N/cm² is recommended for connecting the abutment with the fixture.

Question: Can the abutment be reused?
Answer: No, it is a sterile, disposable medical device intended for single use.

Question: How is the abutment sterilized before installation?
Answer: It should be sterilized using an autoclave at 121°C for at least 30 minutes.

Question: Are there size options available for different gum dimensions?
Answer: Yes, the abutment comes in various sizes to accommodate diverse patient needs.

Question: Is the abutment compatible with a narrow hex driver?
Answer: Yes, it is designed for compatibility with a narrow 1.2 hex driver.

Question: What is the purpose of the Mini-Hex Abutment?
Answer: It facilitates precise prosthetic restoration in dental implant procedures.
