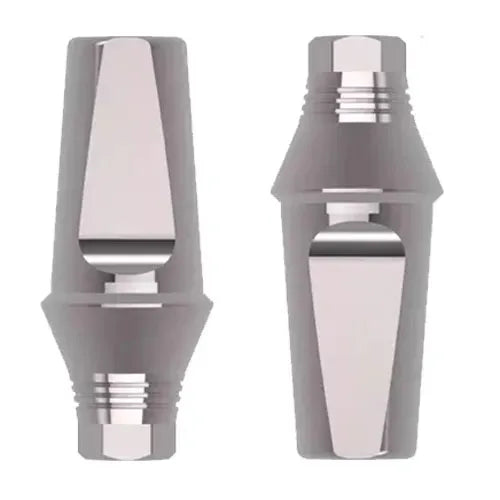

Xcem Dental Implant Transfer Abutment 5.5mm - Hex

• Hexagonal Design: Ensures rotational stability.
• Versatile Torque: 20Ncm for initial engagement, 25~30Ncm for secure attachment.
• Size Variety: Available in multiple sizes for a customized fit.
• Cement-Retained: Designed for conventional cement-retained abutments.
• Disposable and Sterilized: Adheres to strict hygiene standards.
• Compatibility: Works with a 1.2 hex driver for convenience.
• Single Crown Focus: Ideal for single crown applications, combining precision and hygiene.

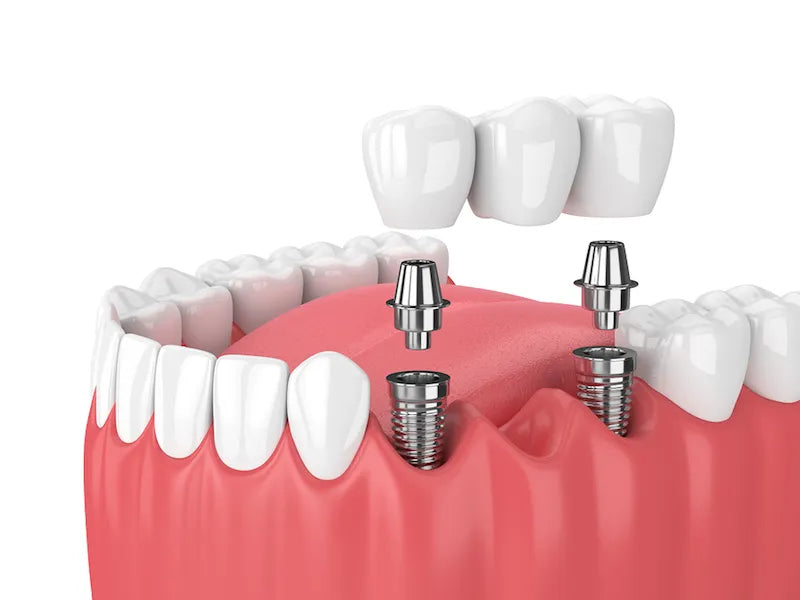

Xcem Dental Implant Transfer Abutment (5.5mm - Hex) is a crucial component in prosthetic restoration for lost teeth. Designed for a one-time use, this disposable, sterilized medical device connects to the fixture with a 1.2 hex driver. The abutment offers versatility with hex and non-hex compositions based on surgical needs, providing options for conventional cement-retained abutments. Joining torque specifications vary, with a narrow setting at 20Ncm and regular/wide/ultra-wide at 25~30Ncm. The product includes a transfer abutment and abutment screw, available in multiple sizes to accommodate diverse gum dimensions. The detailed directions cover pre-use preparation, healing periods, impressions, sterilization, and torque recommendations. Contraindications and storage guidelines emphasize the importance of skilled professional use and adherence to specific conditions, ensuring optimal performance and patient safety.

• Diameter: 5.5mm
• Height: 4mm, 5.5mm and 7mm
• Gingival Height: 1mm to 5mm

• 1 x Transfer abutment
• 1 x Abutment screw

Proper Preparation:

• Adhere to the recommended healing period after fixture insertion (3-6 months).
• Remove the cover screw and connect the healing abutment post-osseointegration.

Accurate Impressions:

• Take impressions using appropriate materials after soft tissue healing.
• Determine abutment type and size based on X-rays and adjacent tooth relationship.

Sterilization Protocol:

• Autoclave the non-sterile product for a minimum of 30 minutes at 121°C before installation.

Careful Abutment Placement:

• Set the abutment in the mouth following proper procedures for precise positioning.

Final Impression and Restoration:

• Capture a final impression after abutment installation.
• For cemented-type abutments, wax up using a plaster cast for subsequent restoration.

Occlusion Verification:

• Confirm proper occlusion by checking the alignment of upper and lower surfaces post-restoration.

Torque Application:

• Apply recommended torque values during the connection process:
• Abutment with Fixture: 30-35N/cm²
• Healing Abutment and Cover Screw: 8-10N/cm²

Single-Use and Disposal:

• Use the abutment only once, and avoid reuse for hygiene and safety reasons.
• Discard appropriately after use.

Storage and Preservation:

• Store in a cool, shaded, well-ventilated room within recommended temperature and humidity ranges.

FAQs

• Warranty is not applicable for this product.

Question: What is the Xcem Dental Implant Transfer Abutment used for?
Answer: The abutment is a crucial component in prosthetic restoration for lost teeth, providing a connection between the fixture and the prosthetic structure.

Question: Is the Xcem Dental Implant Transfer Abutment reusable?
Answer: No, it is designed for one-time use to ensure optimal performance and adherence to sterilization standards.

Question: What sizes are available for the abutment?Answer: The abutment comes in a 5.5mm diameter with height options of 4mm, 5.5mm, and 7mm. Gingival height ranges from 1mm to 5mm.

Question: How does the abutment connect to the fixture?
Answer: It connects to the fixture using a 1.2 hex driver, providing secure and precise attachment.

Question: Are there options for different compositions based on surgical needs?
Answer: Yes, the abutment offers versatility with hex and non-hex compositions to meet various surgical requirements, including conventional cement-retained abutments.
