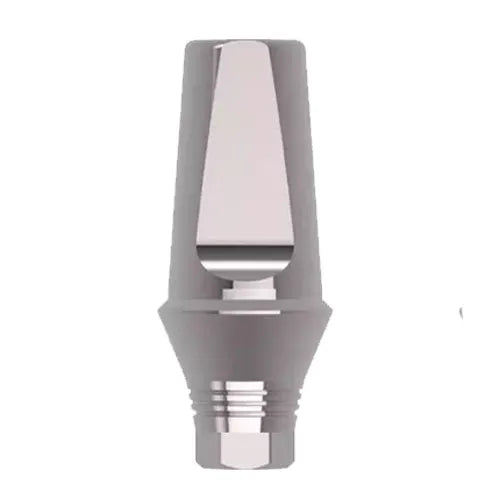

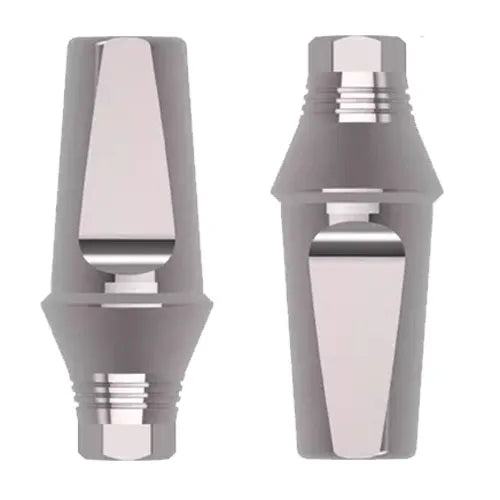

Xcem Dental Implant Transfer Abutment 4.5mm - Hex

• Single-Use Design: One-time use, ensuring hygiene and patient safety.
• Versatility: Available in hex and non-hex compositions for diverse surgical applications.
• Cement-Retained: Designed for cement-retained applications, providing procedural flexibility.
• Torque Specifications: Precise joining torque specifications for secure implant connections (20Ncm for narrow, 25-30Ncm for regular/wide/ultra-wide).
• Comprehensive Kit: Includes transfer abutment and abutment screw in various sizes for gum accommodation.
• Detailed Usage Instructions: Comprehensive guidelines covering healing periods, impressions, sterilization, and torque recommendations.
• Professional Emphasis: Designed for use by skilled dentists, with attention to contraindications for safe application.

Xcem Dental Implant Transfer Abutment (4.5mm - Hex)is a crucial component in prosthetic restoration for lost teeth. Designed for a one-time use, this disposable, sterilized medical device connects to the fixture with a 1.2 hex driver. The abutment offers versatility with hex and non-hex compositions based on surgical needs, providing options for conventional cement-retained abutments. Joining torque specifications vary, with a narrow setting at 20Ncm and regular/wide/ultra-wide at 25~30Ncm. The product includes a transfer abutment and abutment screw, available in multiple sizes to accommodate diverse gum dimensions. The detailed directions cover pre-use preparation, healing periods, impressions, sterilization, and torque recommendations. Contraindications and storage guidelines emphasize the importance of skilled professional use and adherence to specific conditions, ensuring optimal performance and patient safety.

• Diameter: 4.5mm
• Height: 4mm, 5.5mm and 7mm
• Gingival Height: 1mm to 5mm

• 1 x Transfer abutment
• 1 x Abutment screw

Proper Preparation:

• Adhere to the recommended healing period after fixture insertion (3-6 months).
• Remove the cover screw and connect the healing abutment post-osseointegration.

Accurate Impressions:

• Take impressions using appropriate materials after soft tissue healing.
• Determine abutment type and size based on X-rays and adjacent tooth relationship.

Sterilization Protocol:

• Autoclave the non-sterile product for a minimum of 30 minutes at 121°C before installation.

Careful Abutment Placement:

• Set the abutment in the mouth following proper procedures for precise positioning.

Final Impression and Restoration:

• Capture a final impression after abutment installation.
• For cemented-type abutments, wax up using a plaster cast for subsequent restoration.

Occlusion Verification:

• Confirm proper occlusion by checking the alignment of upper and lower surfaces post-restoration.

Torque Application:

• Apply recommended torque values during the connection process:
• Abutment with Fixture: 30-35N/cm²
• Healing Abutment and Cover Screw: 8-10N/cm²

Single-Use and Disposal:

• Use the abutment only once, and avoid reuse for hygiene and safety reasons.
• Discard appropriately after use.

Storage and Preservation:

• Store in a cool, shaded, well-ventilated room within recommended temperature and humidity ranges.

Question: What is the purpose of the Xcem Dental Implant Transfer Abutment?
Answer: The abutment connects to fixtures, supporting prosthetic restoration of lost teeth.
