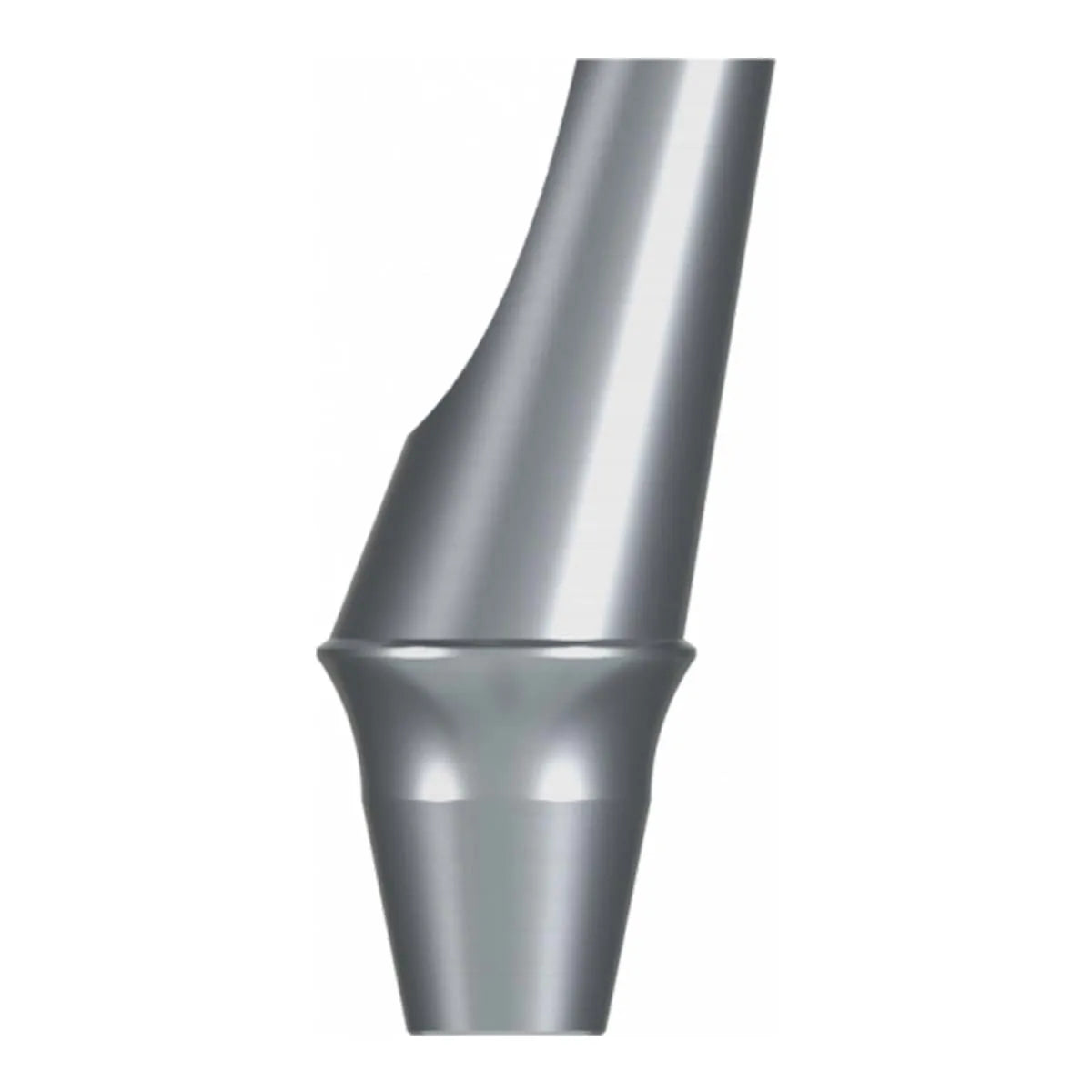

Xcem Dental Implant Angled Abutment Mini 4.5mm - Non Hex

• Compact 4.5mm diameter for versatile use

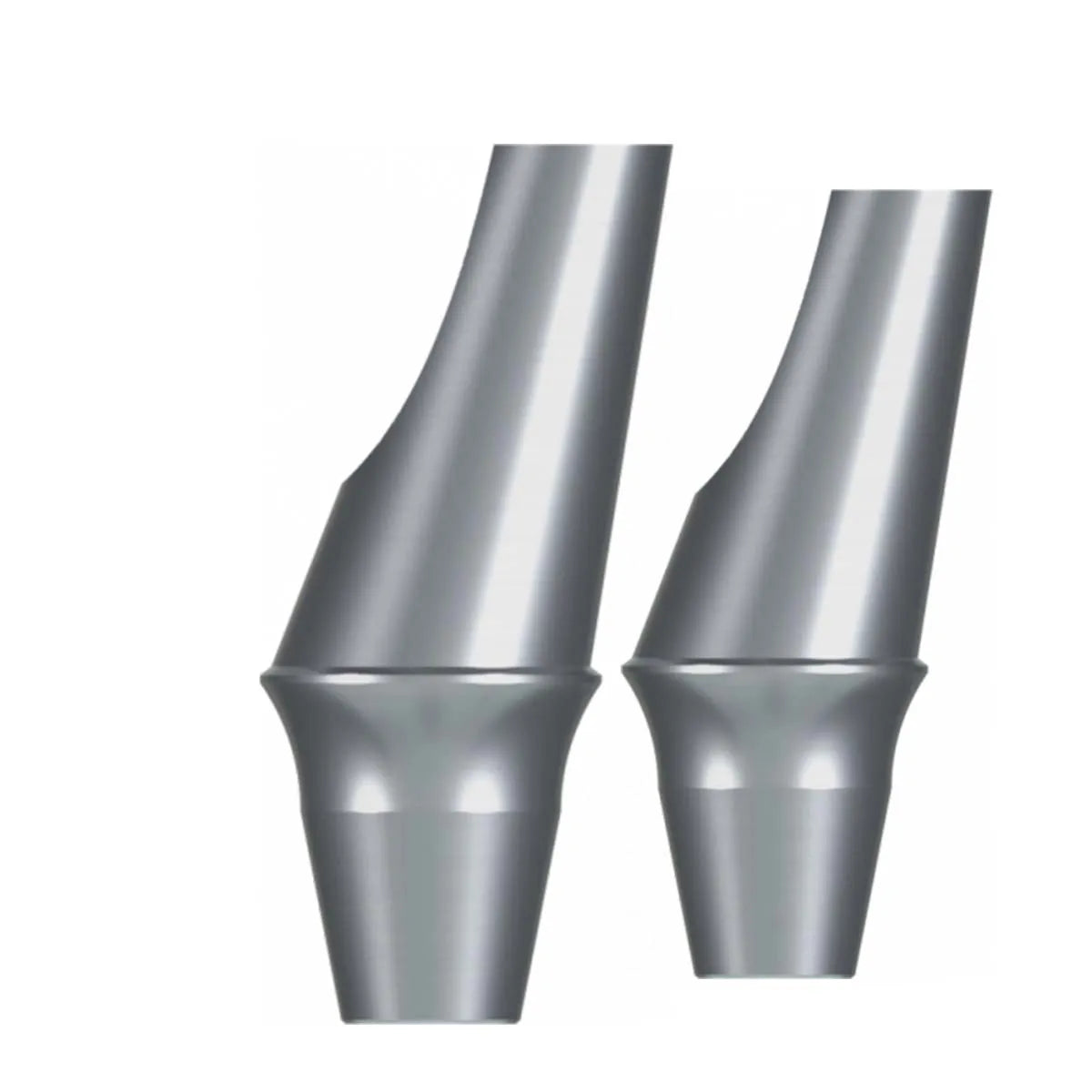

• Angulated design: 15° and 25° options
• Non-hex for simplified prosthetic connections
• Mimics natural anatomy for aesthetic results
• High-precision implant-abutment connection for stability
• Suitable for various cases, including limited spaces
• Miniature size available for incisor, canine, premolar, molar types
• Compatible with a 1.2 hex driver for convenience
• Autoclave sterilization ensures hygiene
• Single-use policy prioritizes safety and cleanliness

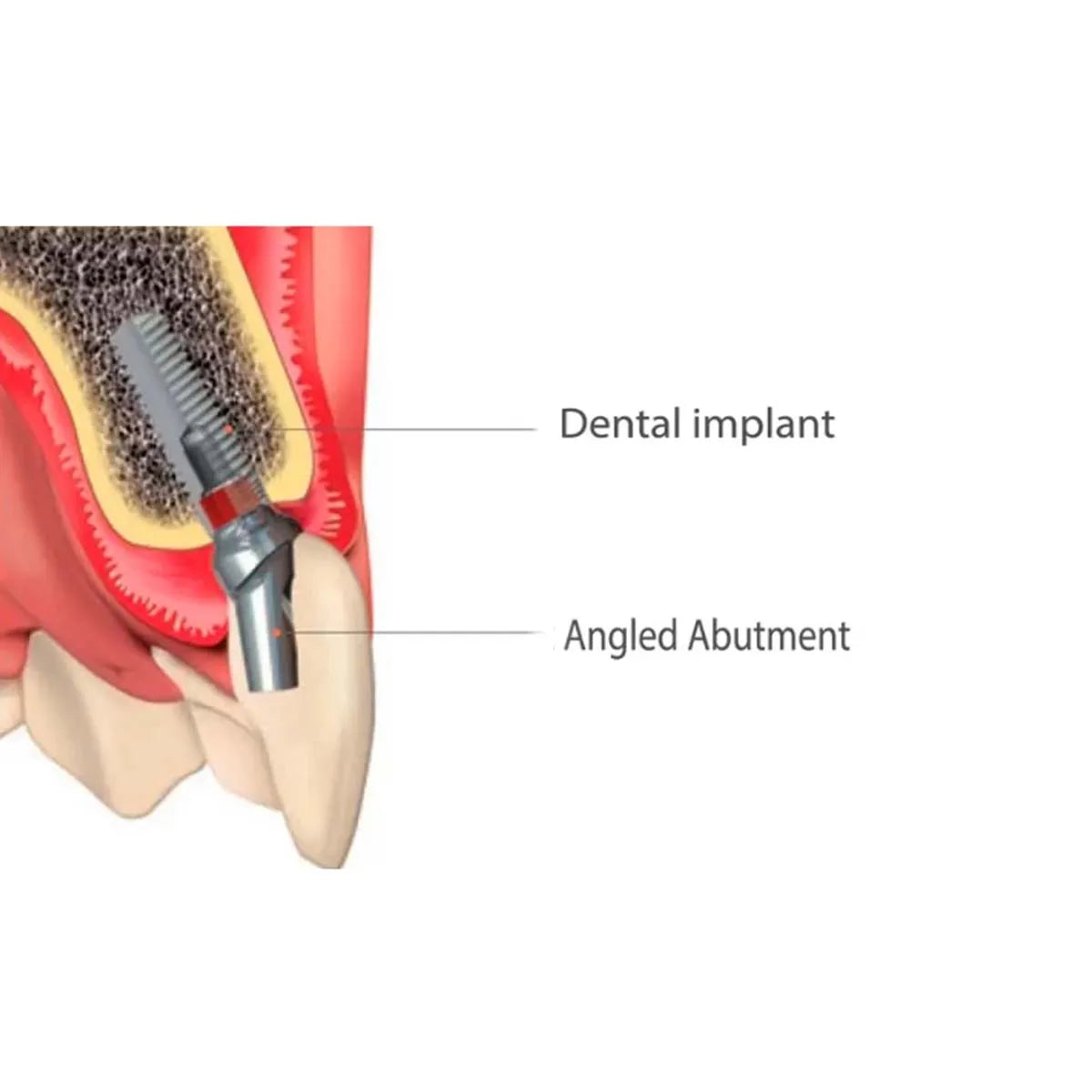

Xcem Dental Implant Angled Abutment Mini 4.5mm- Non Hex is an innovative dental solution designed for precision in implant procedures. With a compact 4.5mm diameter and a non-hex design, this abutment facilitates secure connections for dental prosthetic units, particularly in instances requiring a smaller footprint. The angulated design, available in 15° and 25° options, ensures adaptability for diverse clinical scenarios, ranging from single-tooth replacements to partially or totally edentulous cases. Mimicking the natural anatomical shape, the abutment promotes consistent gingival volume and features scalloped edges for enhanced aesthetic results. The high-precision implant-abutment connection guarantees stability, while the miniaturized size caters to space constraints. This versatile product is compatible with a 1.2 hex driver and undergoes autoclave sterilization, emphasizing hygiene. Intended for single-use, it aligns with safety protocols, and proper storage in a controlled environment between 12°C to 28°C with humidity between 0% to 80% ensures product integrity.

• Design Features: Angulated design, 4.5mm mini diameter, non-hex, scalloped edges
• Angulation Options: 15° and 25°
• Use Cases: Versatile use in various clinical scenarios
• Compatibility: Dental prosthetic units, especially in limited space
• Diameter: 4.5mm
• Torque Specifications: 1.2 hex driver, narrow (20Ncm) for joining torque, regular/wide/ultra-wide (25~30Ncm) for joining torque
• Recommended Torque: 30-35N/cm² for connecting abutment with fixture, 8-10N/cm² for connecting healing abutment and cover screw

1 x Angled Abutment 1 x Abutment screw

Directions for Using Xcem Dental Implant Angled Abutment Mini 4.5mm - Non Hex:

Impression Taking

• After soft tissue healing, take an impression using appropriate materials.
• Consider X-ray findings and the relationship with adjacent teeth to determine the abutment type and size.

Sterilization:

• Autoclave the abutment before installation in the mouth.
• Use a dental clinic autoclave at temperatures above 121°C for a minimum of 30 minutes.

Setting the Abutment in the Mouth:

• Follow specific instructions for placing the mini abutment in the mouth.

Taking Final Impression:

• Capture the final impression after setting the mini abutment in the mouth.

Restoration (If Applicable):

• If the selected abutment is of the cemented type, create a wax-up on a plaster cast for the restoration process.

Occlusion Check:

• After placing the mini abutment, meticulously check occlusion with the upper and lower surfaces.

Recommended Torque:

Adhere to recommended torque values during the connection process.

• For connecting the mini abutment with the fixture: 30-35N/cm².
• For connecting the healing mini abutment and cover screw: 8-10N/cm².

Storage and Handling After Use:

• The mini abutment is for single-use only; do not reuse.
• Preserve the product in a cold, shaded, well-ventilated room with temperatures between 12°C to 28°C and humidity between 0% to 80%.
• Avoid storage in rooms with chemicals, gas issues, or potential infection sources.

• Warranty is not applicable for this product.

Question: What is the purpose of the mini-sized abutment?
Answer: The mini-sized abutment is designed for use in limited spaces, providing secure and precise prosthetic connections.

Question: Can the abutment be used in various clinical cases?
Answer: Yes, it is suitable for a range of cases, including single-tooth replacements and instances with limited space constraints.

Question: What angulation options are available for this abutment?
Answer: The abutment comes with angulation options of 15° and 25°, offering versatility in different clinical scenarios.

Question: Is the mini abutment compatible with a specific driver?
Answer: Yes, it is compatible with a 1.2 hex driver, ensuring convenient and user-friendly handling during the procedure.

Question: How should the abutment be sterilized before use?
Answer: The abutment should be autoclaved at temperatures above 121°C for at least 30 minutes to ensure proper sterilization.

Question: Can the mini abutment be reused?
Answer: No, the abutment is intended for single-use only to adhere to hygiene and safety standards.

Question: What sizes are available for the mini abutment?
Answer: The mini abutment is available in various sizes, catering to different tooth types, including incisor, canine, premolar, and molar.
