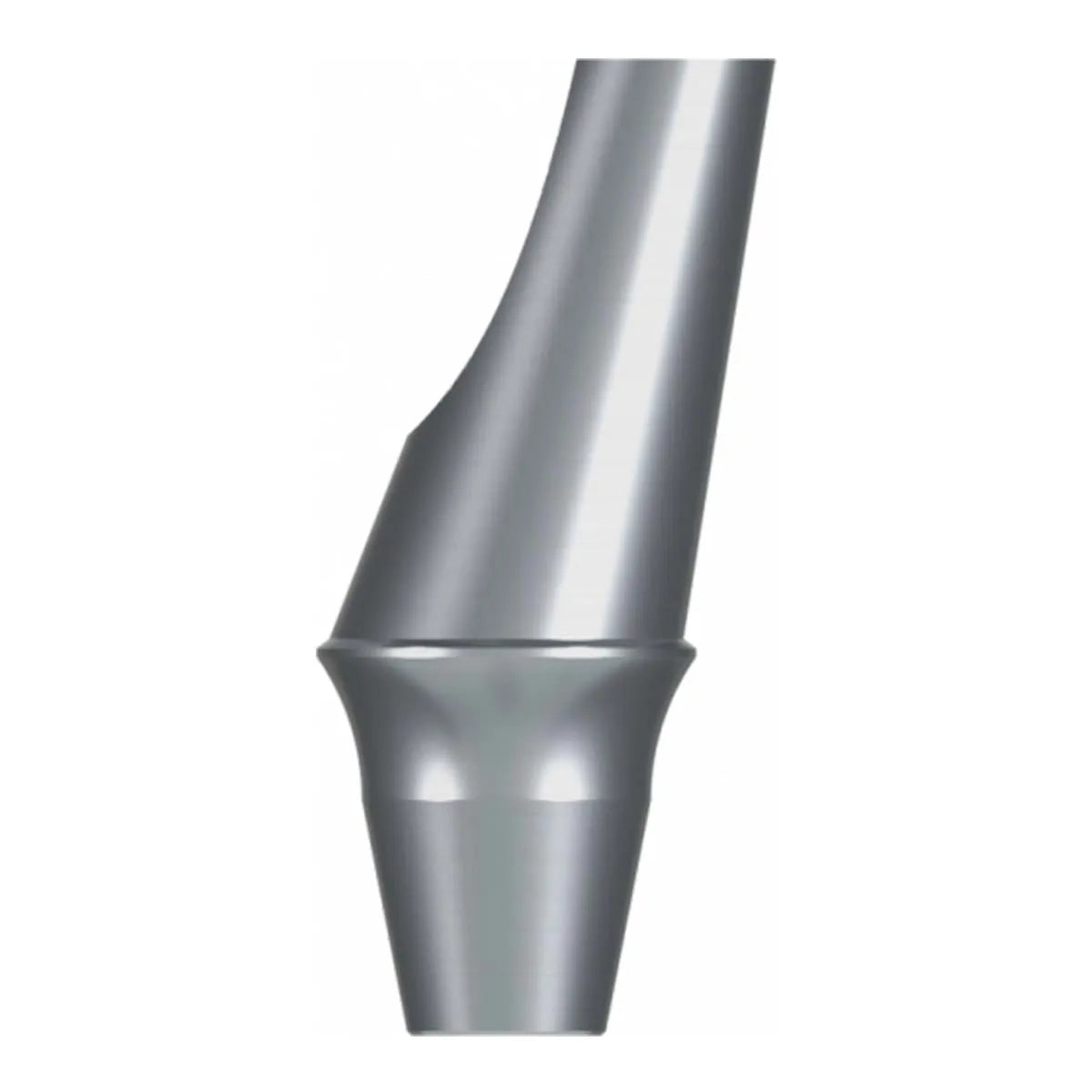

Xcem Dental Implant Angled Abutment 5mm - Non Hex

• 5mm diameter for secure foundation

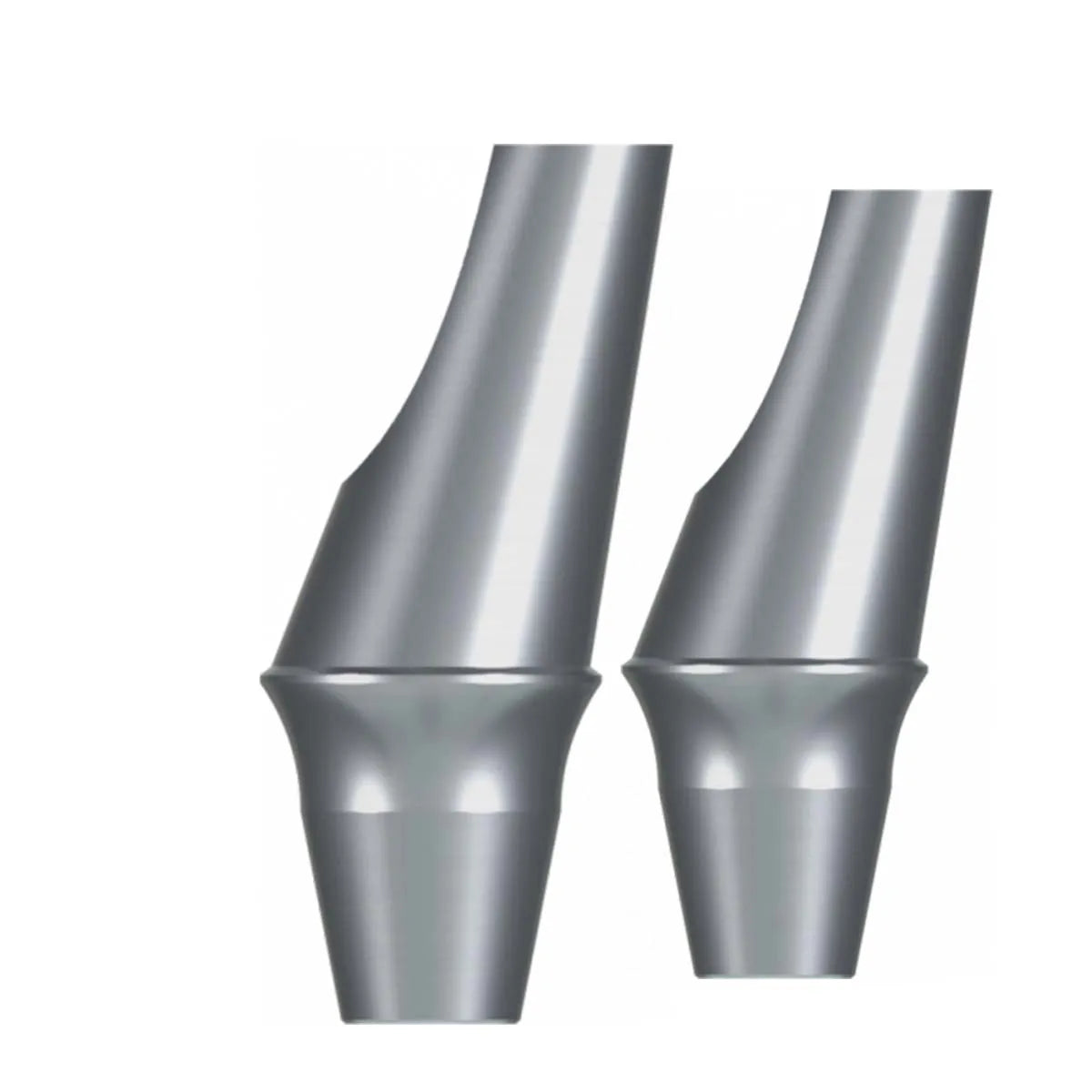

• Angulated design: 15° and 25° options
• Non-hex for connecting prosthetic units
• Anatomic shape for natural appearance
• High-precision implant-abutment connection
• Versatile use: single-tooth to edentulous cases
• User-friendly 1.2 hex driver compatibility
• Simple autoclave sterilization process
• Single-use policy for hygiene and safety

Xcem Dental Implant Angled Abutment 5mm - Non Hex is a highly specialized dental solution designed to address the intricacies of implant placement when dealing with non-parallel angles to adjacent teeth. Featuring a 5mm diameter, this abutment, categorized as non-hex, is particularly suitable for seamlessly connecting dental prosthetic units, making it an ideal choice for bridge applications. Its angulated design, available in 15° and 25° angles, provides versatility for use in both single-tooth replacements and partially or totally edentulous cases, simplifying the fabrication of prostheses. The anatomic design closely mimics natural teeth, promoting consistent anatomic gingival volume with scalloped edges that match the gingival contour. With a high-precision implant-abutment connection, it ensures stability and longevity. The 5mm diameter offers a secure foundation, while various size options, including incisor, canine, premolar, and molar types, cater to diverse clinical needs.

• Design Features: Angulated design, 5mm diameter, non-hex, anatomic shape, scalloped edges
• Angulation Options: 15° and 25°
• Compatibility: Dental prosthetic units, bridge applications

• Diameter: 5mm
• Implant-Abutment Connection: High-precision for stability and longevity
• Torque Specifications: 1.2 hex driver, narrow (20Ncm) for joining torque, regular/wide/ultra-wide (25~30Ncm) for joining torque
• Recommended Torque: 30-35N/cm² for connecting abutment with fixture, 8-10N/cm² for connecting healing abutment and cover screw

1 x Angled Abutment 1 x Abutment screw

Impression Taking:

• After soft tissue has healed (for one-stage surgery, this can be done right after removing the healing abutment), take an impression using appropriate materials.
• Consider X-ray findings and the relationship with adjacent teeth to determine the type and size of the abutment needed.

Sterilization:

• Since the product is not sterile, it must be autoclaved before installation in the mouth.
• Use a dental clinic autoclave at a temperature higher than 121°C for at least 30 minutes.

Setting the Abutment in the Mouth:

• Follow specific instructions for placing the abutment in the mouth.

Taking Final Impression:

• Take the final impression after the abutment has been set in the mouth.

Restoration (If Applicable):

• If the selected abutment is of the cemented type, wax it up on a plaster cast to facilitate the restoration process.

Occlusion Check:

• After placing the fixture or abutment in the mouth, carefully check the occlusion with the upper and lower surfaces.

Recommended Torque:

Adhere to recommended torque values during the connection process.

• For connecting the abutment with the fixture: 30-35N/cm².
• For connecting the healing abutment and cover screw: 8-10N/cm².

Storage and Handling After Use:

• The abutment is intended for single-use only. Do not reuse.
• Preserve the product in a cold, shaded, well-ventilated room with temperatures between 12°C to 28°C and humidity between 0% to 80%.
• Avoid storing it in rooms with chemicals, gas issues, or potential infection sources.

• Warranty is not applicable for this product.

Question: What is the purpose of an angulated abutment?

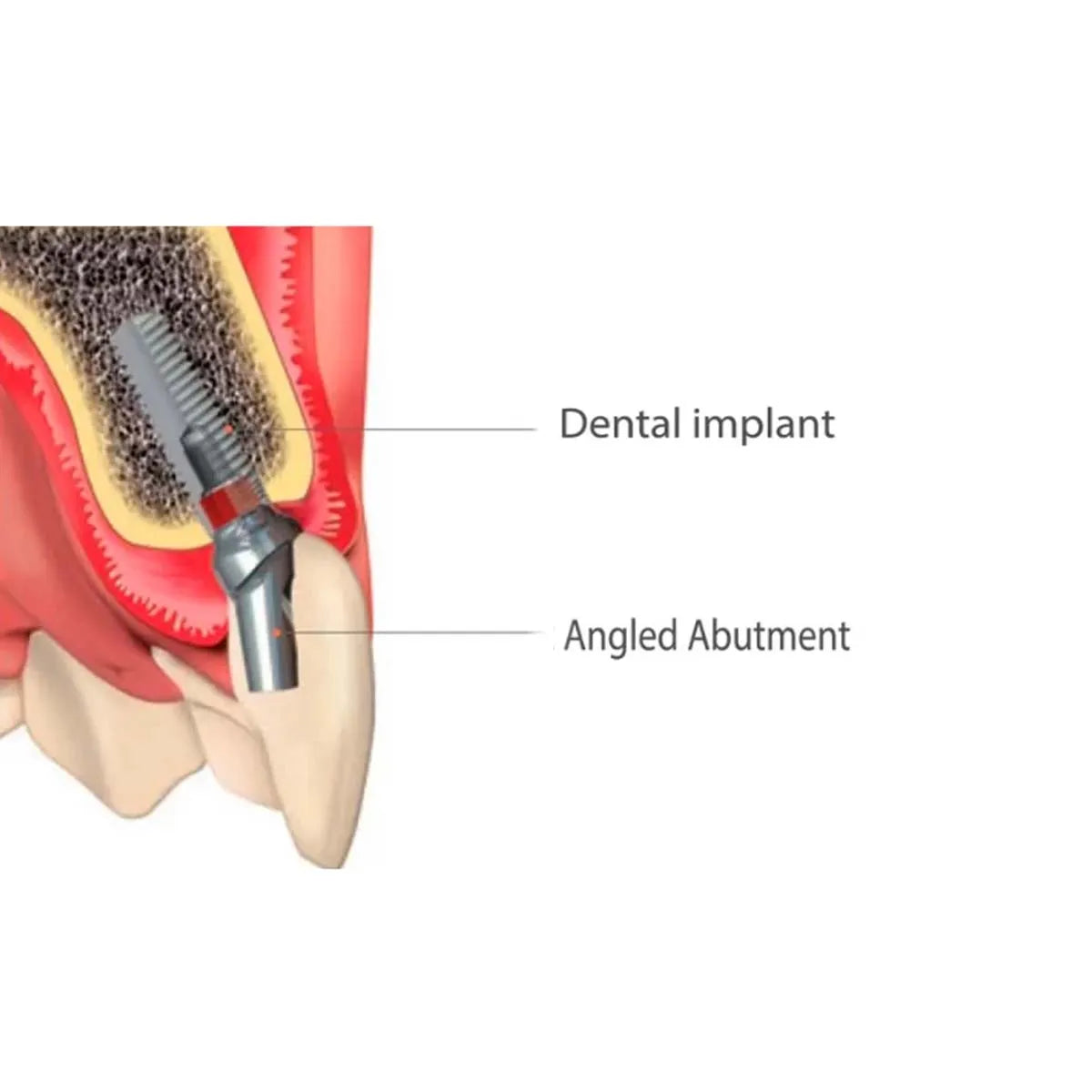

Answer: Angulated abutments are used when implants are placed at an angle, not parallel to adjacent teeth.

Question: Why choose the Xcem Dental Implant Angled Abutment?
Answer: The 5mm non-hex design provides versatility and precision for secure prosthetic connections in various clinical scenarios.

Question: In which situations can this abutment be used?
Answer: It is suitable for single-tooth replacements and partially or totally edentulous cases.

Question: What angles are available for the abutment?
Answer: The abutment is available in angles of 15° and 25° to accommodate different clinical requirements.

Question: Can it be used in bridge applications?Answer: Yes, the non-hex design makes it suitable for connecting dental prosthetic units, especially in bridge constructions.

Question: How should the abutment be sterilized?Answer: Autoclave in a dental clinic at temperatures higher than 121°C for at least 30 minutes.

Question: What torque is recommended for connecting abutments with fixtures?
Answer: The recommended torque is 30-35N/cm² for a secure and stable connection.
