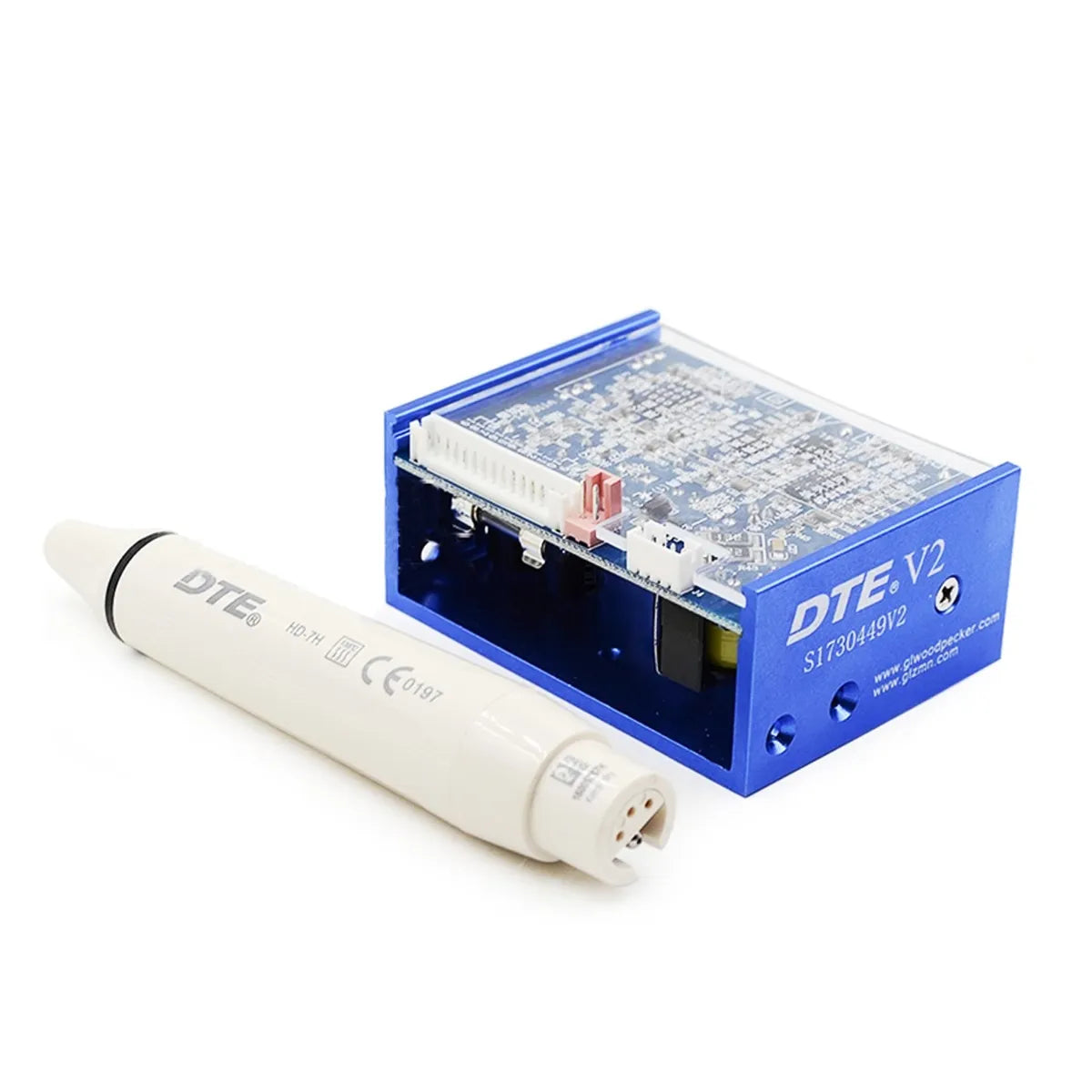

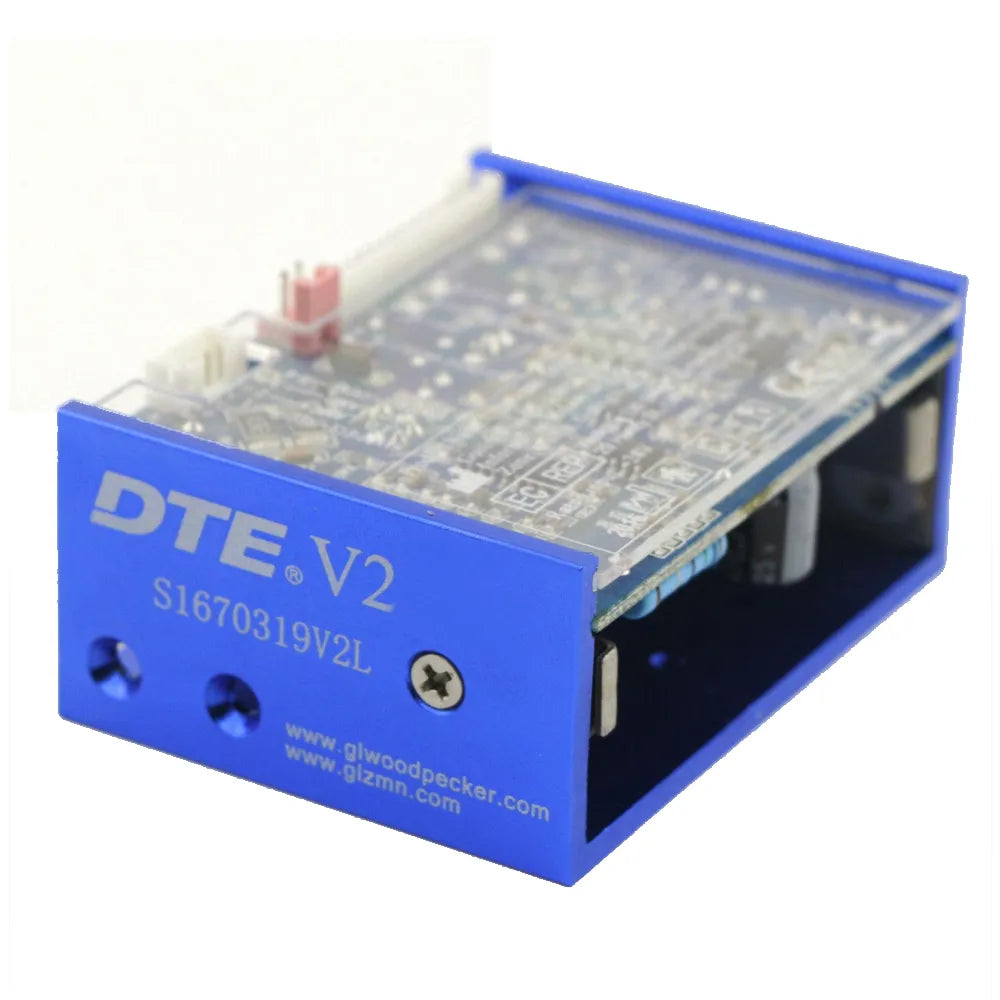

Woodpecker V2 Inbuilt Scaler

• Three operating modes: Scaling, perio, and endo, providing versatility for different dental procedures.
• Detachable handpiece: Allows for easy sterilization at 135°C, ensuring optimal infection control.
• Five different tips: Offers a range of options for specific treatment requirements.
• Durable and efficient construction: Made with a special material for enhanced durability and efficiency.
• Adjustable power output: Allows precise control of scaling intensity, ranging from 3W to 20W.
• Frequency control: Operates at 28kHz ± 3kHz for consistent and effective vibrations.
• Compact and lightweight design: Provides ergonomic handling and reduced hand fatigue.
• User-friendly interface: Clear control buttons and mode selector switch for easy operation.

• Main unit input: 24V~ 50Hz
• Output power: 3W ~ 20W
• Frequency: 28kHz ± 3kHz
• Water pressure: 0.1bar ~ 5bar (0.01MPa ~ 0.5MPa)
• Main unit weight: 0.2kg
• Dimensions: 74mm × 56mm × 38mm

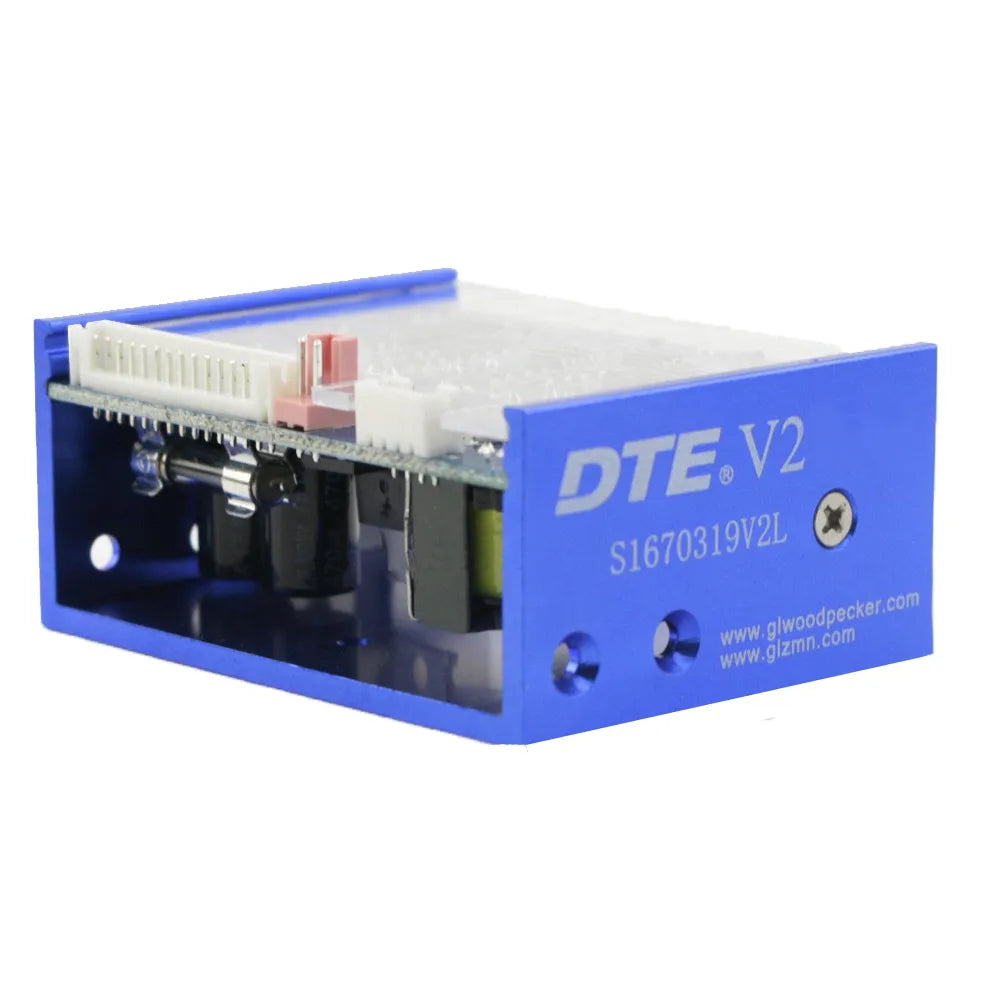

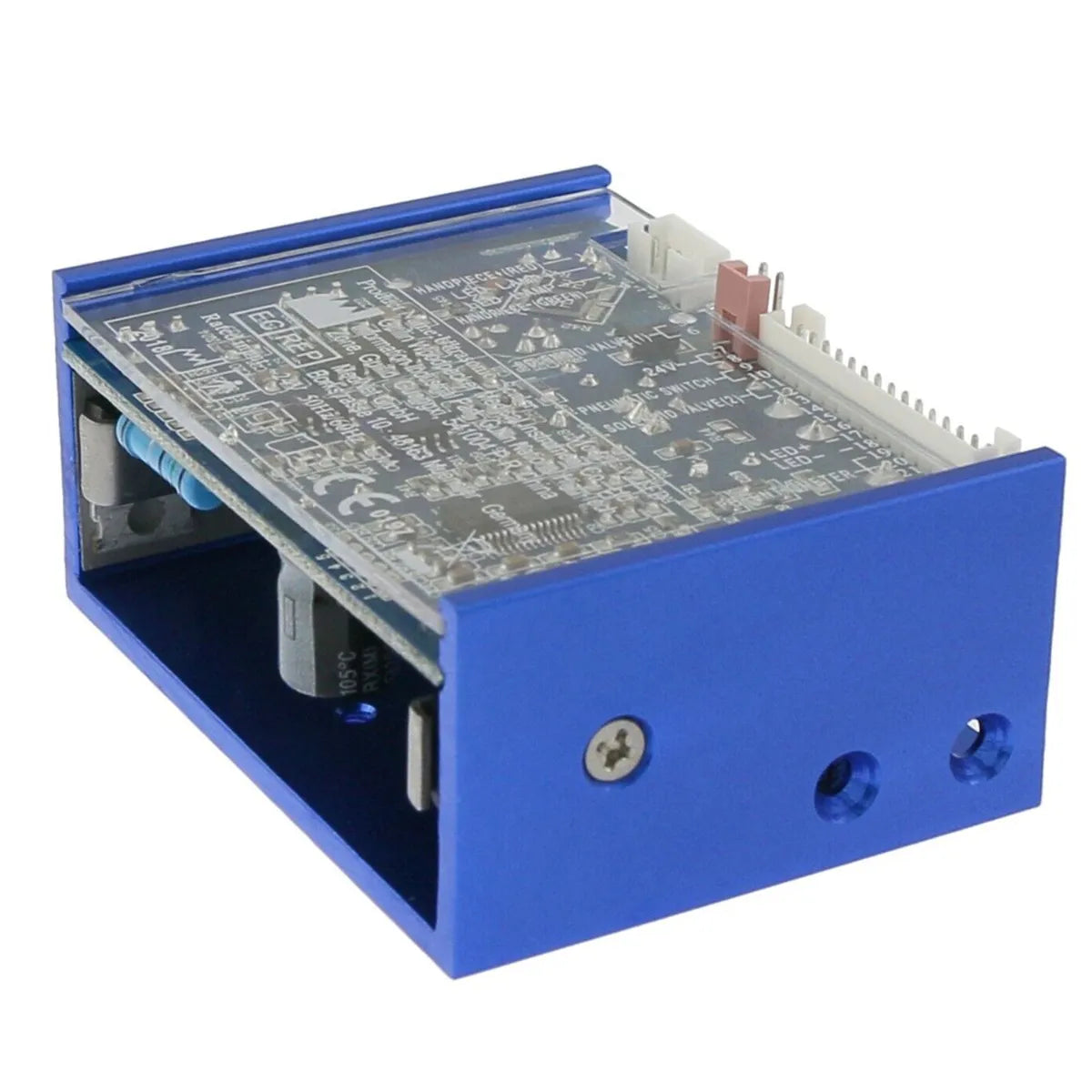

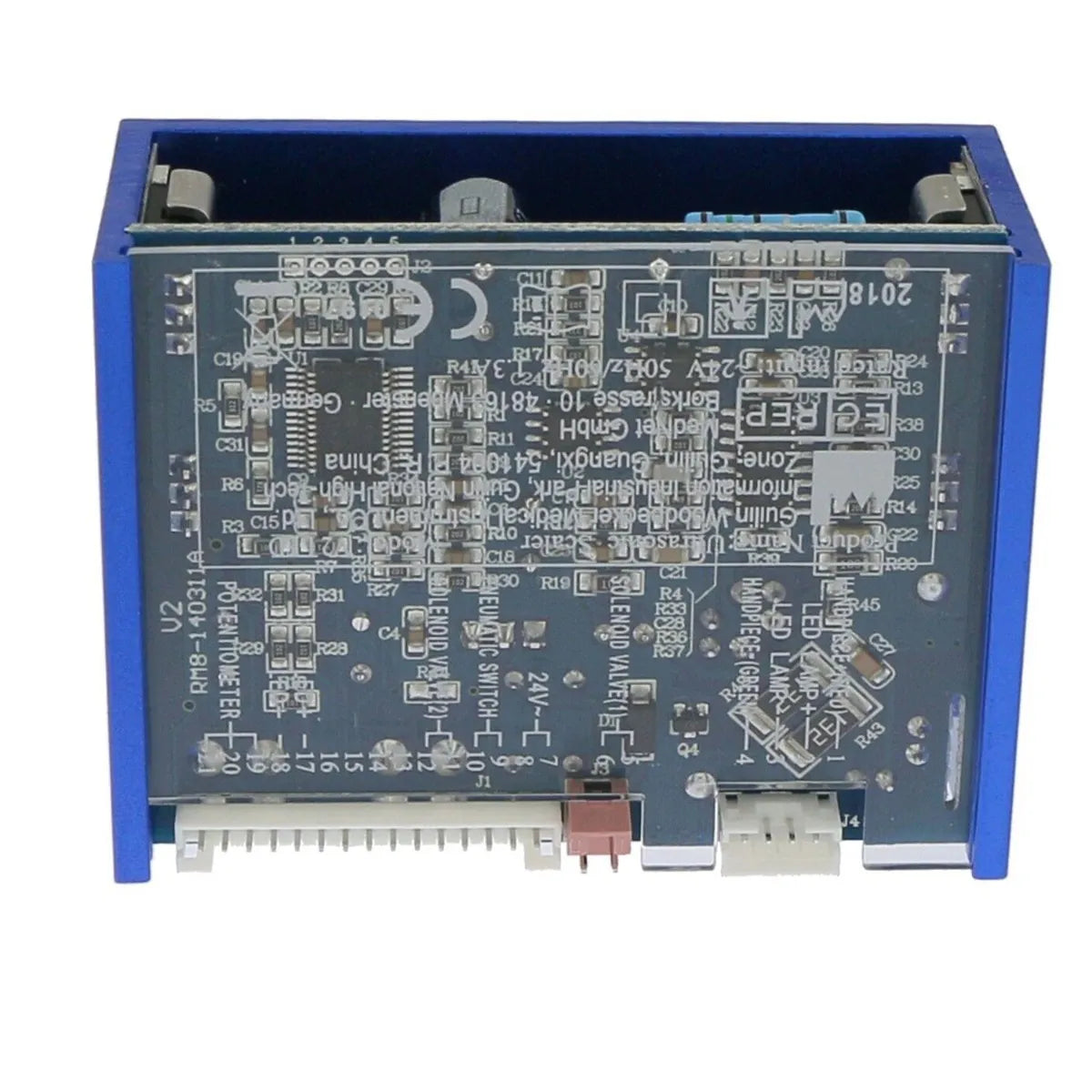

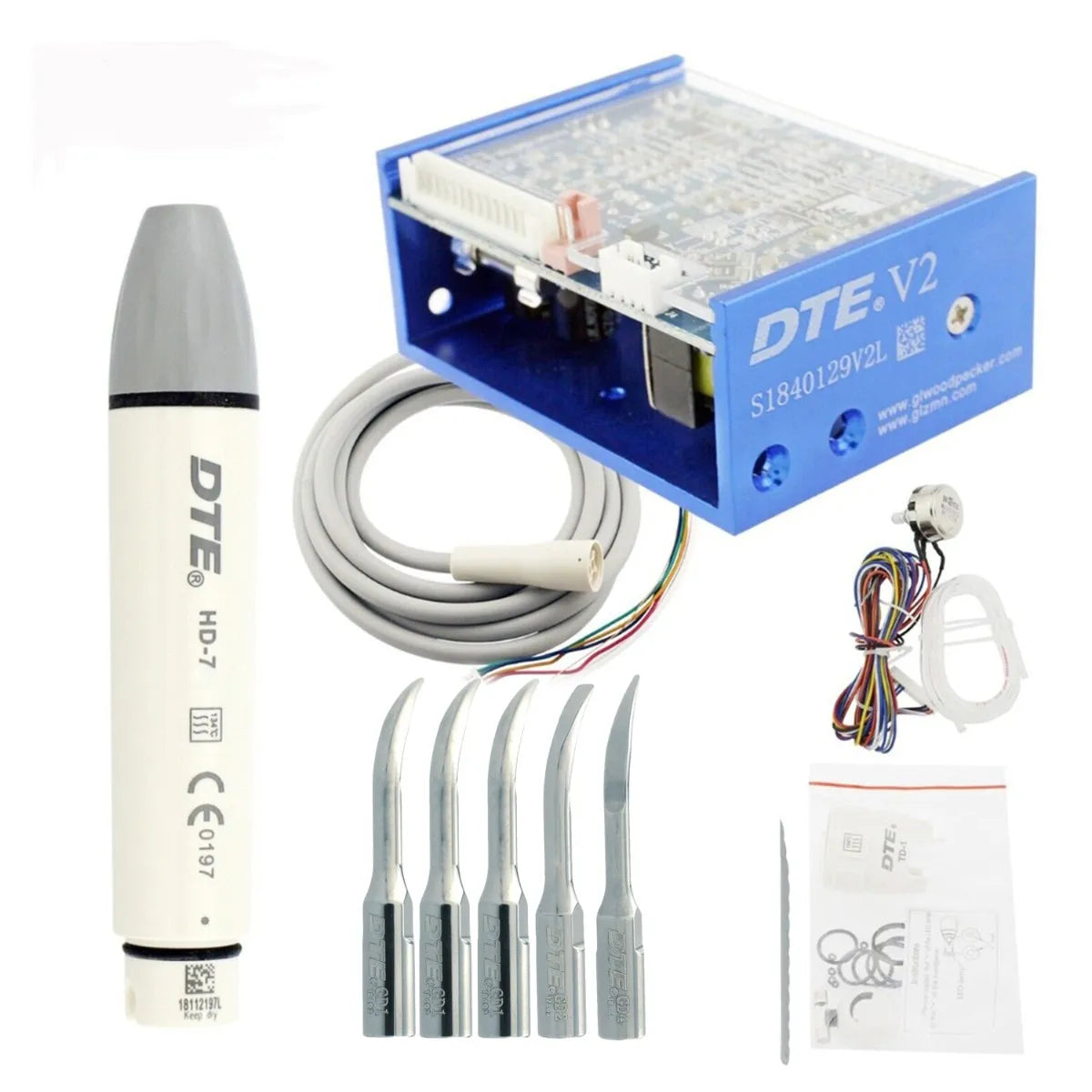

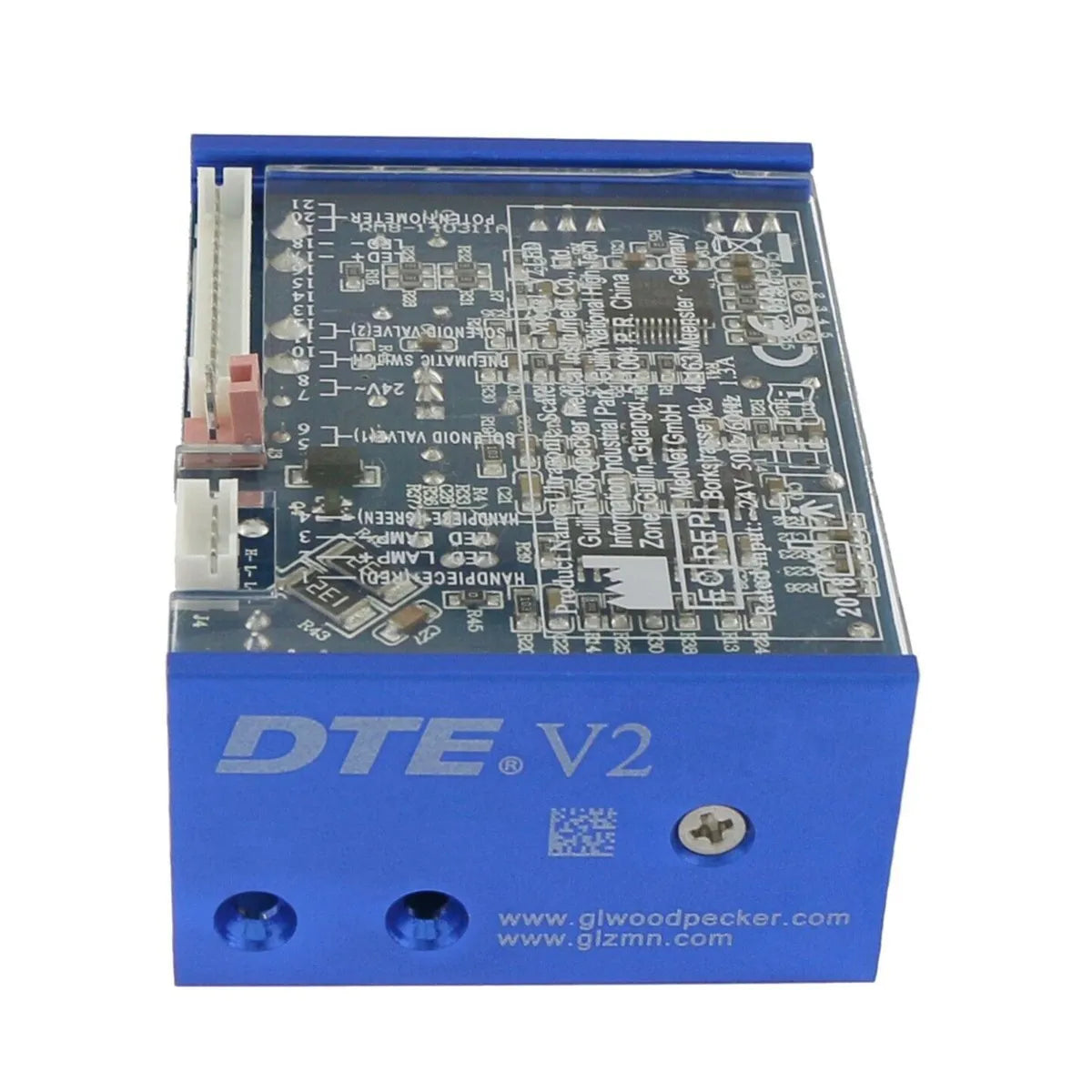

• 1 x Main Unit

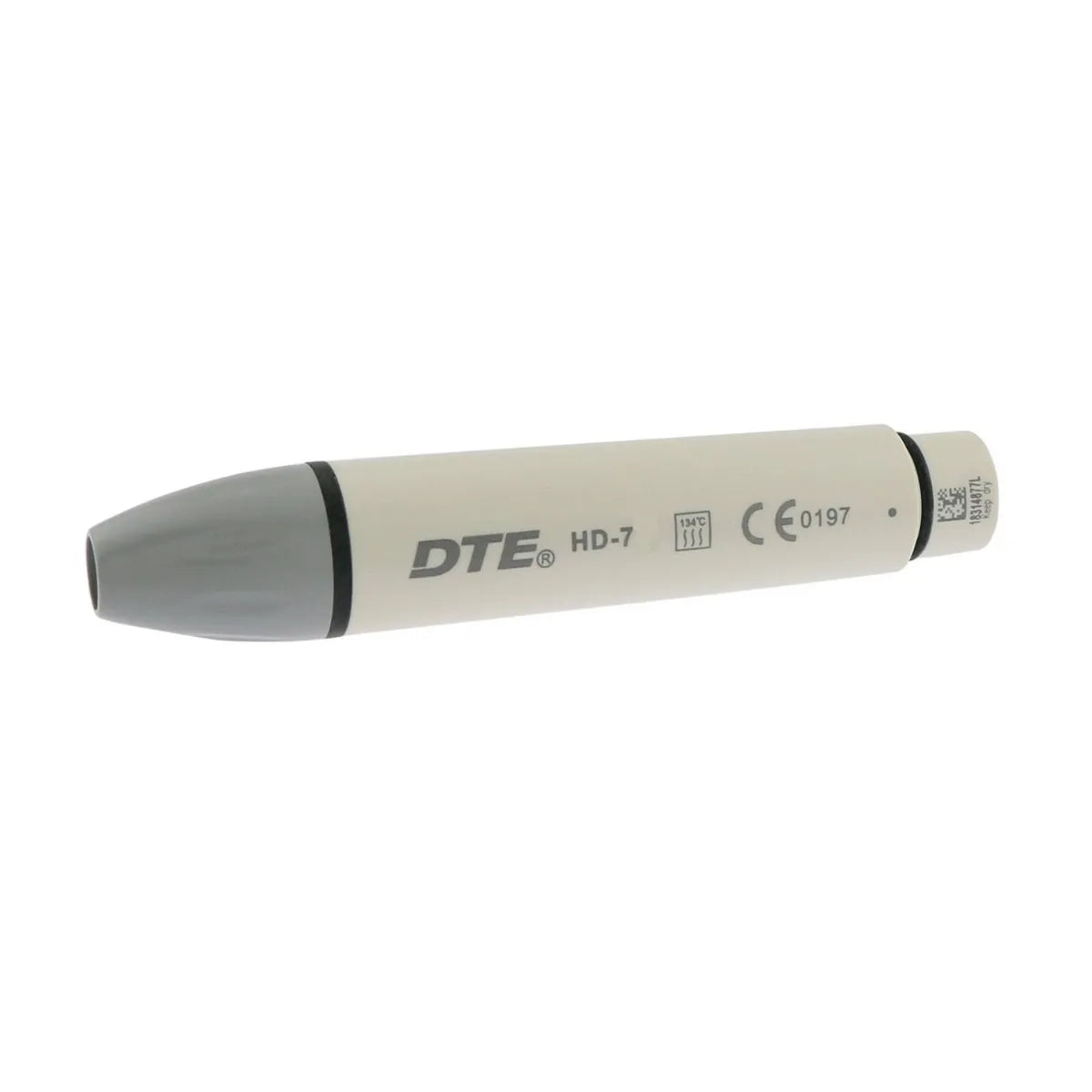

• 1 x Detachable Handpiece
• 1 x Cable

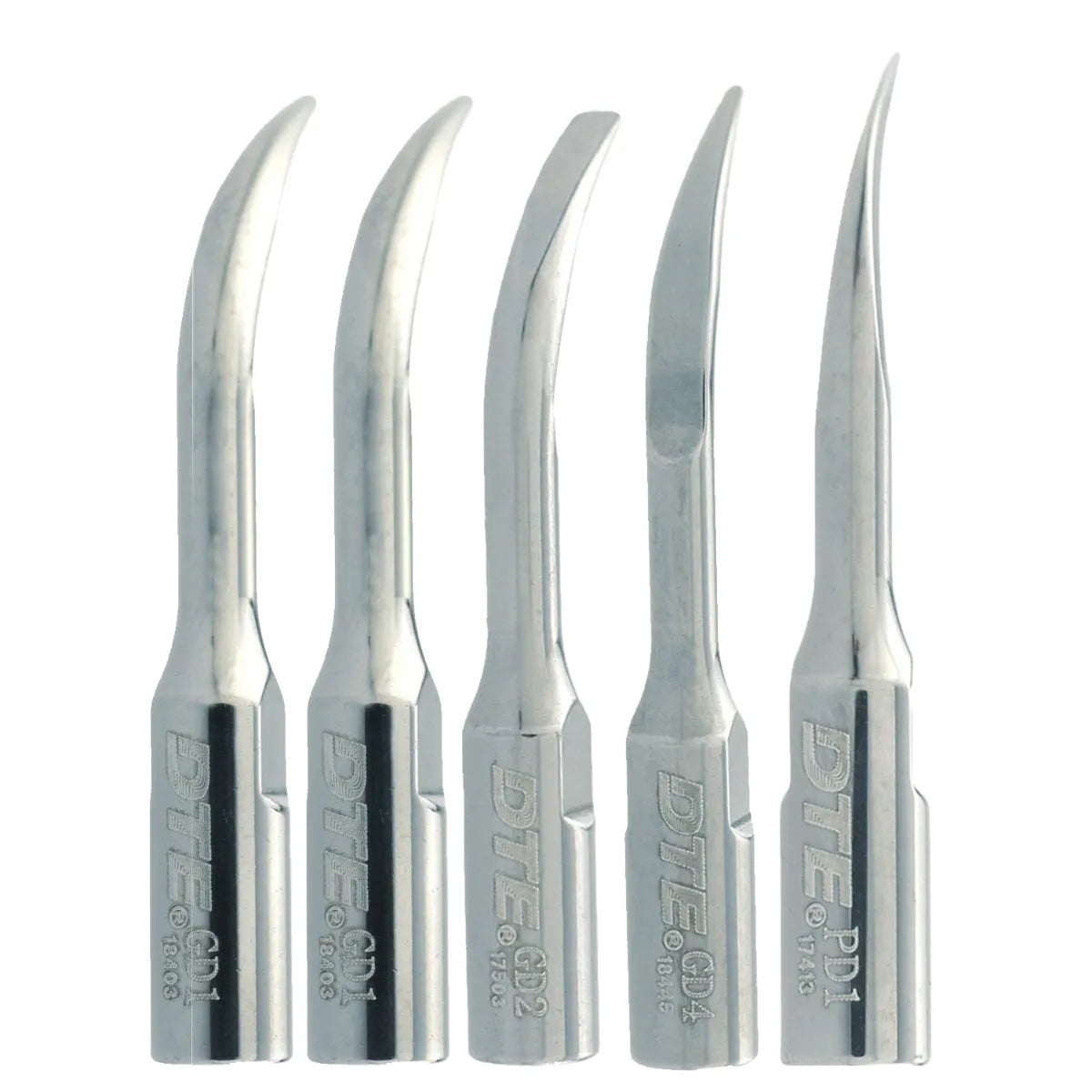

• 2 x Scaling Tip GD1
• 1 x Scaling Tip GD2
• 1 x Scaling Tip GD4
• 1 x Scaling Tip PD1
• 1 x Torque Wrench
• 1 x Water Pipe

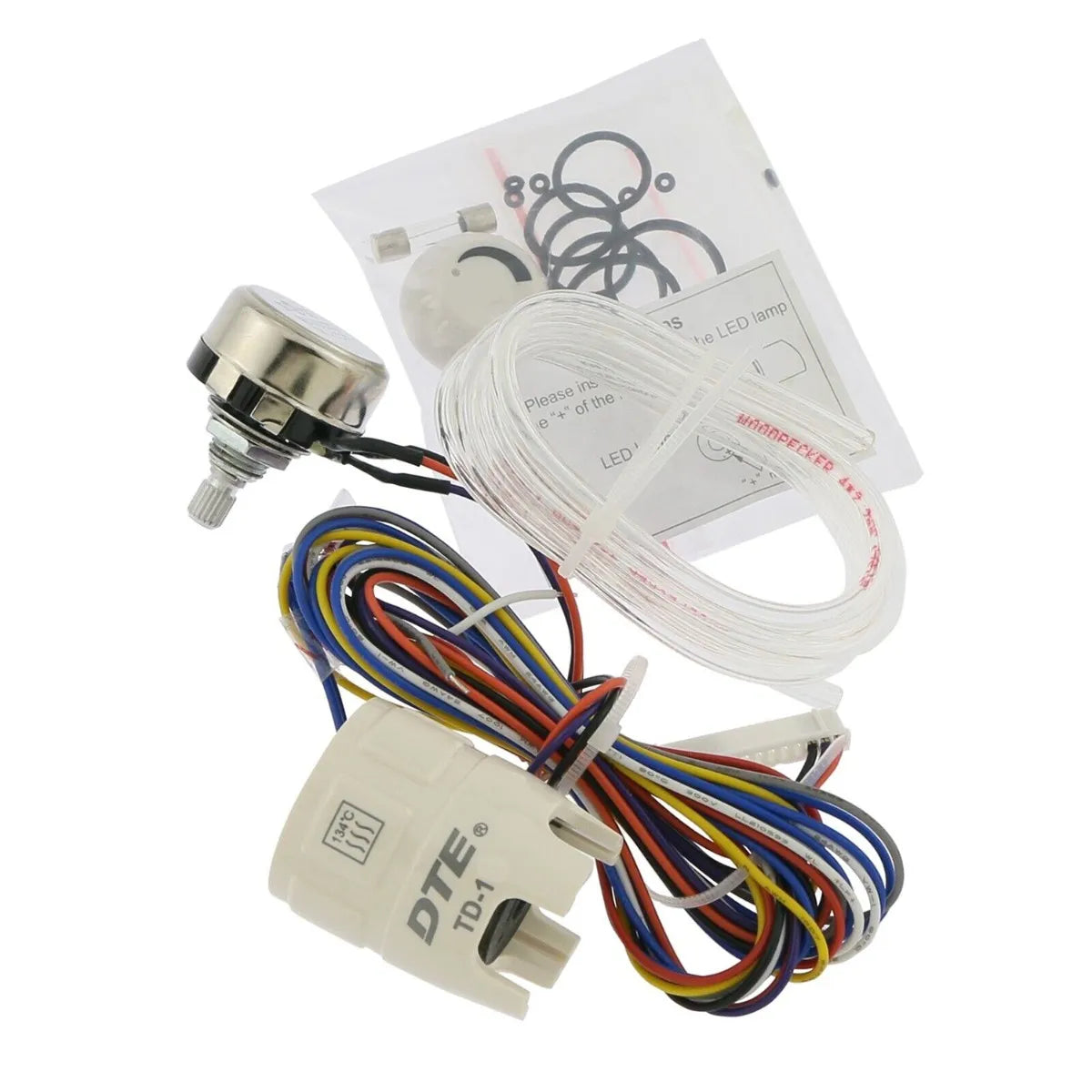

• 1 x Potentiometer and Electronic Pipe
• 1 x Potentiometer Knob
• 1 x Cutting Sleeve (For Handpiece)
• 6 x Waterproof "o" Ring
• 3 x Handpiece Decorative Ring
• 1 x Two Sided Adhesive Foam
• 3 x Nylon Cable Tie
• 1 x Instruction Manual
• 1 x Qualified Certification
• 1 x Packaging List
• 1 x Transformer (Optional)

Preparing the Scaler:

• Ensure that the main unit is connected to a power source with the input voltage ranging from 100V to 240V~ 50Hz/60Hz.
• Make sure the water supply is connected to the scaler and the water pressure is within the range of 0.1bar to 5bar (0.01MPa to 0.5MPa).

Attaching the Handpiece:

• Take the detachable handpiece and insert it into the main unit until it clicks securely in place.
• Ensure that the handpiece is properly aligned and fully inserted.

Selecting the Operating Mode:

• The Woodpecker Inbuilt Scaler V2 offers three different operating modes: scaling, perio, and endo.
• Use the mode selector switch on the main unit to choose the desired mode for your specific procedure.

Adjusting the Power Output:

• The scaler allows you to adjust the power output according to your requirements.
• Use the power control knob on the main unit to increase or decrease the power level within the range of 3W to 20W.

Selecting the Tip:

• The handpiece is equipped with five different tips (3 S, 2 P) for various dental treatments.
• Choose the appropriate tip based on the procedure and gently insert it into the handpiece until it is securely in place.

Initiating the Procedure:

• Once all the preparations are complete, press the foot pedal to activate the scaler.
• Gradually bring the tip in contact with the tooth surface, applying the scaler's vibrations to perform the desired treatment.

Monitoring and Adjusting:

• While using the scaler, monitor the patient's comfort and adjust the power level and tip movement accordingly to ensure optimal results.

Sterilization:

• After each use, detach the handpiece from the main unit and sterilize it at a temperature of 135°C to maintain strict infection control measures.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 5-year Warranty (from the date of invoice) on PCB (Power Circuit Board) and 12 months warranty is applicable on all the parts of the product excluding physical damage as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or does not tamper as the case may be.

Question: Who will install this scaler on dental chair?
Answer: Installation of the Woodpecker V2 Inbuilt Scaler on a dental chair should be carried out by a qualified dental chair technician. They have the expertise and knowledge to ensure proper installation and integration with the dental chair.

Question: Is there any vibration speed control or it works on one standard speed? Can we control the water flow?
Answer: Yes, the Woodpecker V2 Inbuilt Scaler allows control of vibration speed through the dental chair switch/knob. Additionally, water flow can also be controlled for optimal usage.

Question: Can I use the Woodpecker Inbuilt Scaler V2 for endodontic procedures?
Answer: Yes, the scaler offers an endo mode specifically designed for endodontic treatments.

Question: Are additional tips available for the scaler?
Answer: The Woodpecker Inbuilt Scaler V2 comes with five different tips initially. If you require additional tips, you can check with Woodpecker or authorized distributors for availability.

Question: Is the Woodpecker Inbuilt Scaler V2 compatible with different electrical systems?
Answer: Yes, the scaler's power input is designed to be versatile and can accept voltages ranging from 100V to 240V~ 50Hz/60Hz. This ensures compatibility with a wide range of electrical systems.

Question: Can I adjust the power output of the scaler?

Answer: Yes, the scaler allows you to adjust the power output according to your needs. The power control knob on the main unit enables you to increase or decrease the power level within the range of 3W to 20W.
