Woodpecker Uds-N2 Piezo Ultrasonic Scaler With Tips

• Water spray function for cooling and debris removal
• Lightweight (0.2kg) and ergonomic design
• Continuous operation mode
• Class II protection against electric shock

• Power input: With transformer - 220-240V~ 50Hz/60Hz 150mA, Without transformer - 24V~ 50Hz/60Hz 1.3A
• Output primary tip Vibration excursion: <100pm
• Output half-excursion force: <2N
• Output tip Vibration frequency: 28kHz+3kHz
• Output power: 3W to 20W
• Water pressure: 0.01MPa to 0.5MPa
• Weight of the main unit: 0.2kg
• Operating mode: Continuous operation
• Type of protection against electric shock: Class II

The working conditions for the equipment are as follows:

• Environment temperature: +5°C to +40°C
• Relative humidity: 30% ~ 75%
• Atmospheric pressure: 70kPa to 106kPa
• Water inlet temperature: not higher than +25°C

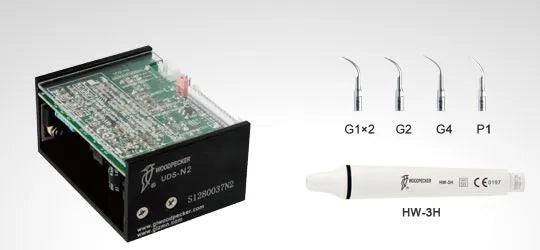

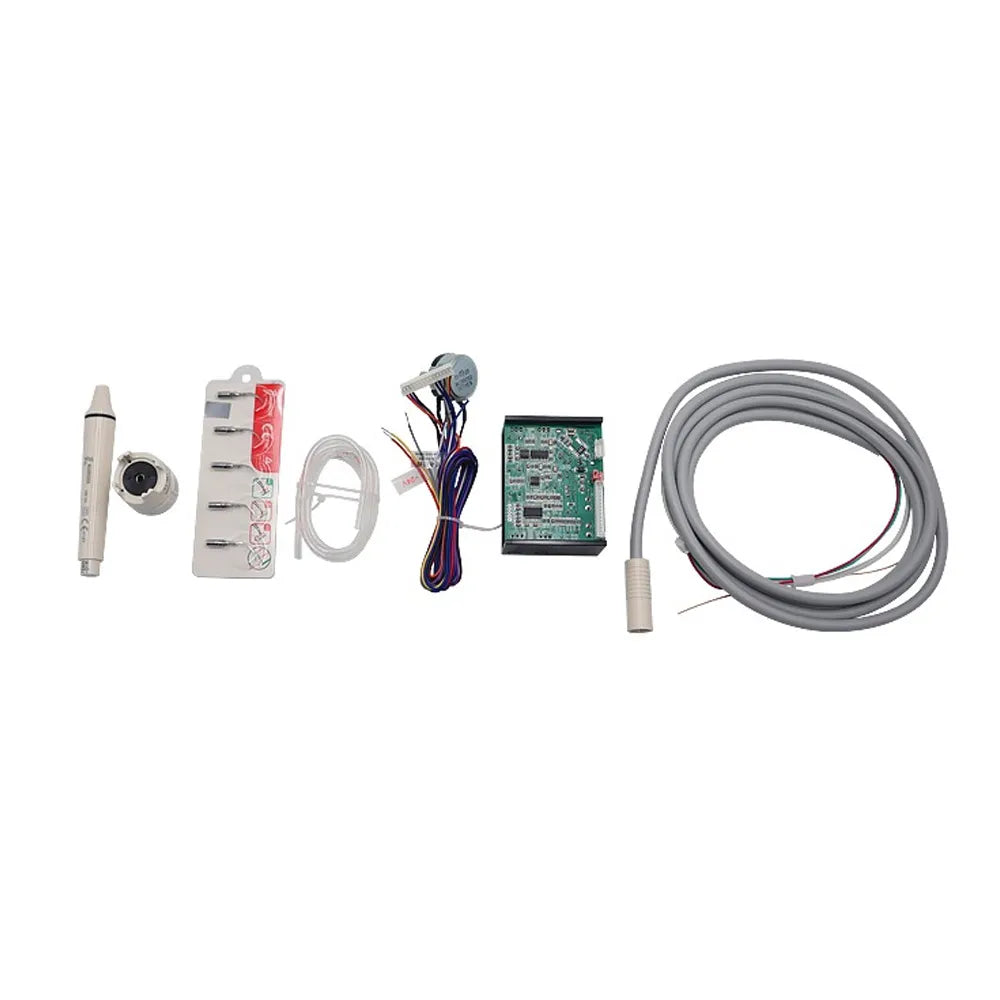

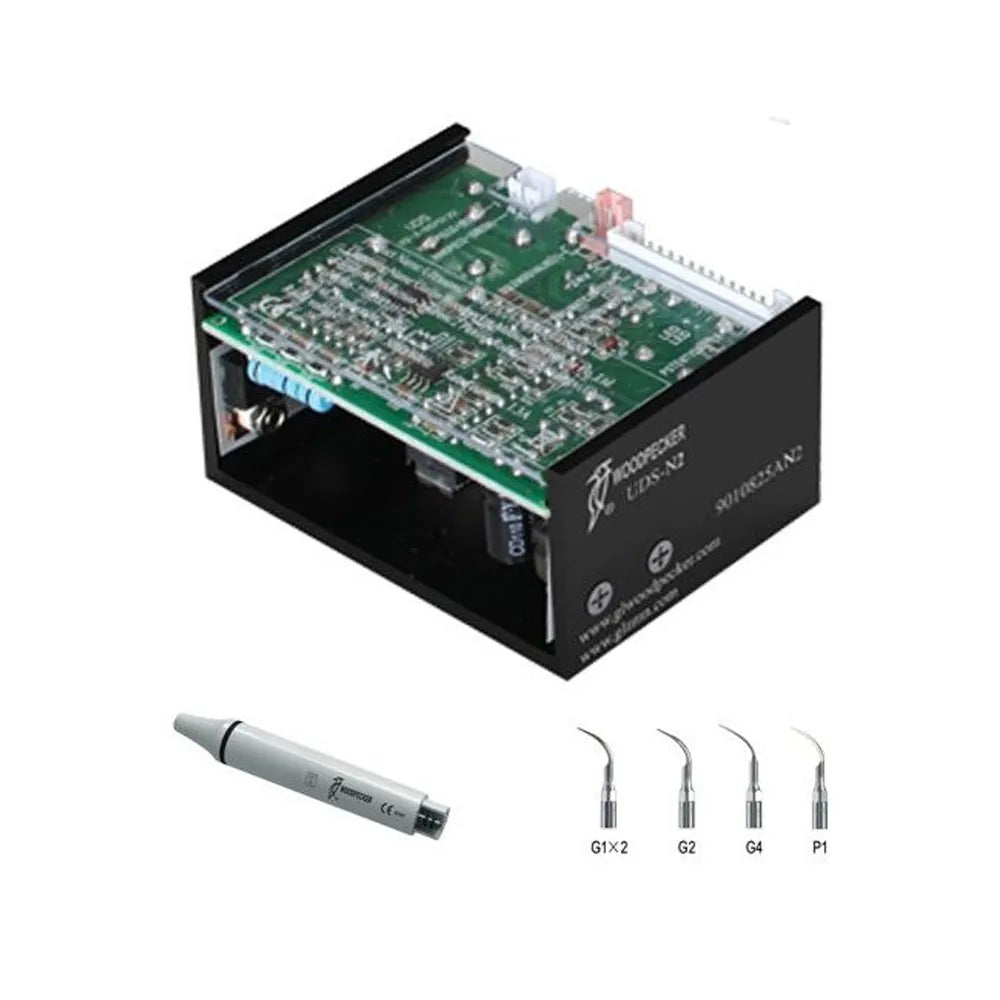

• 1 x Ultrasonic Scaler
• 5 x Tips

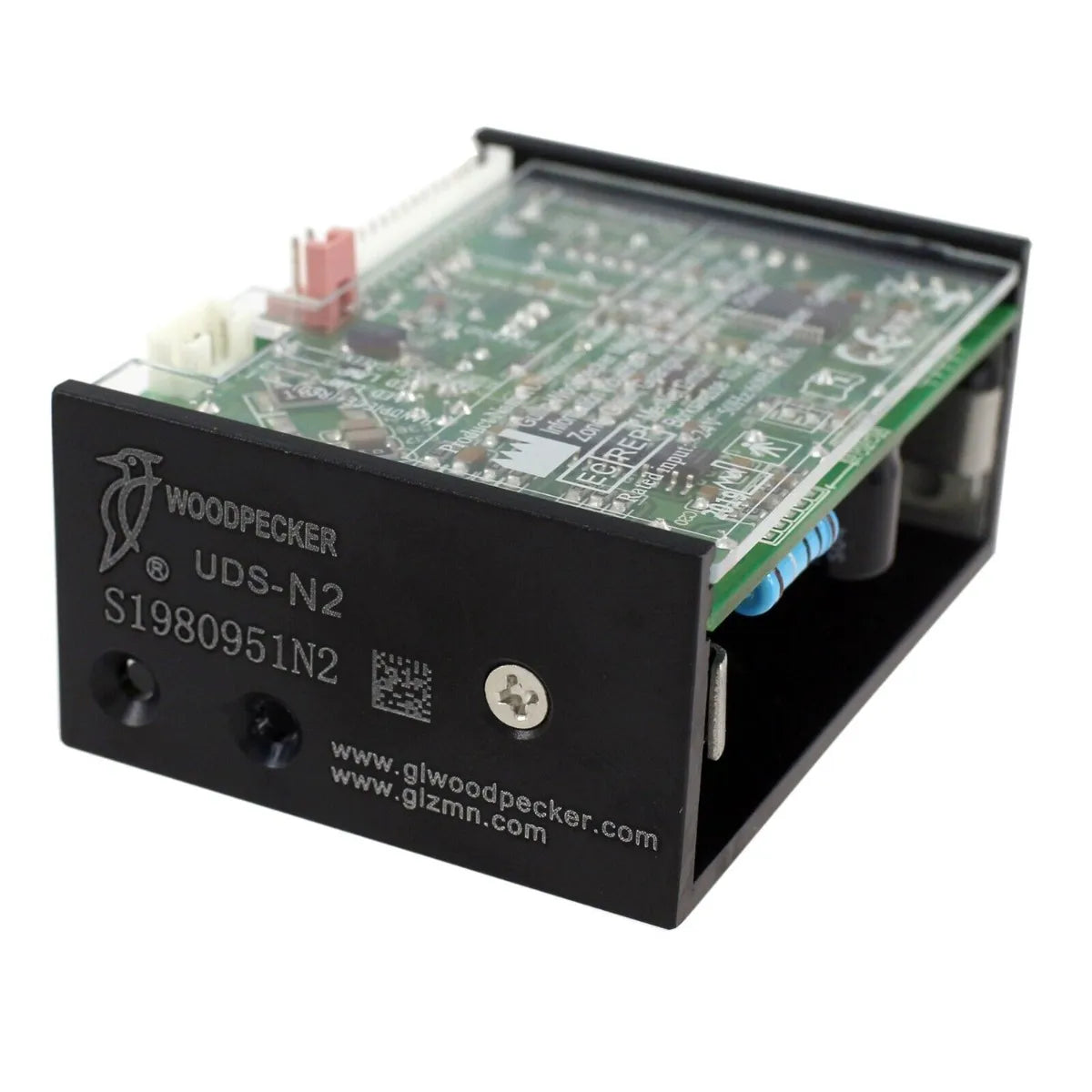

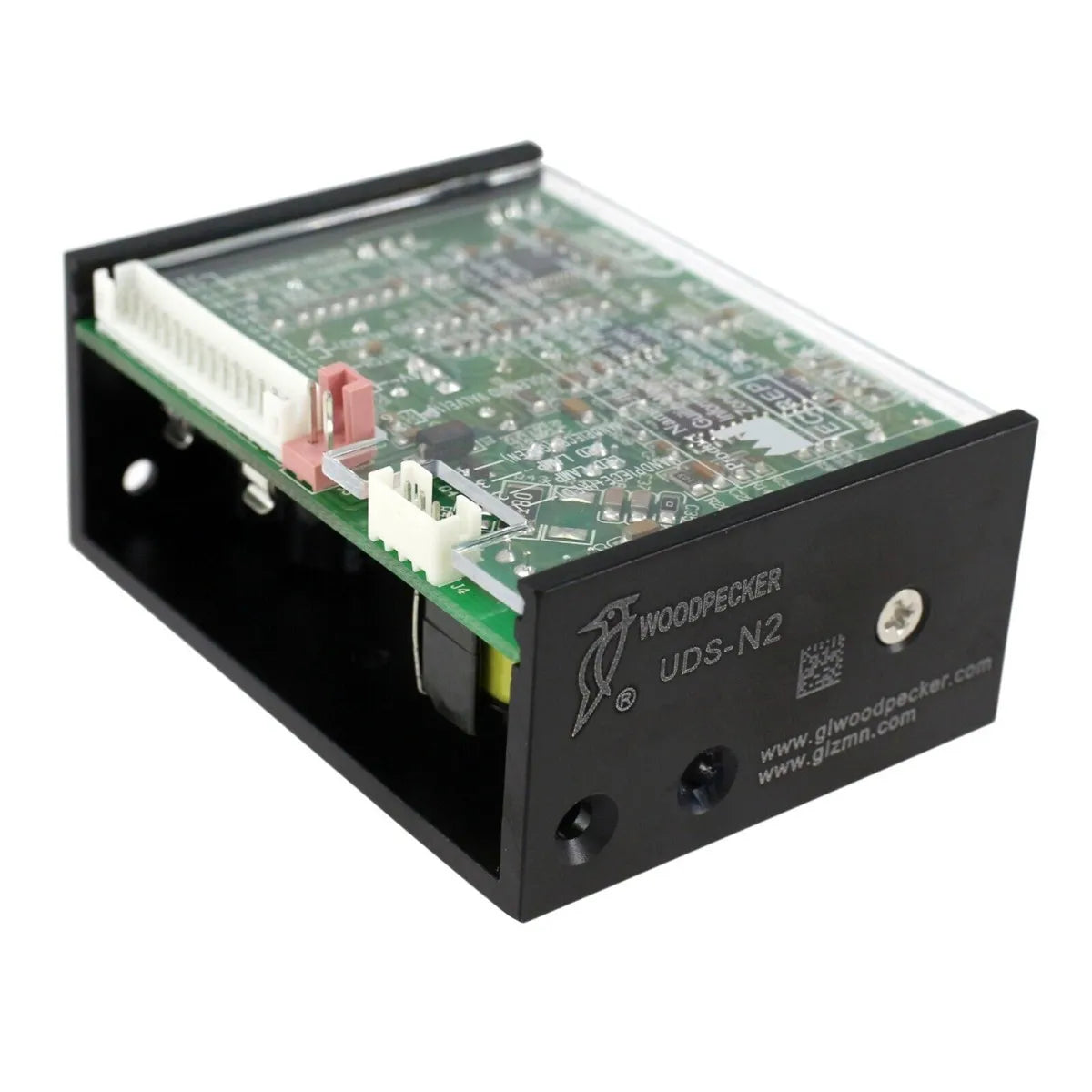

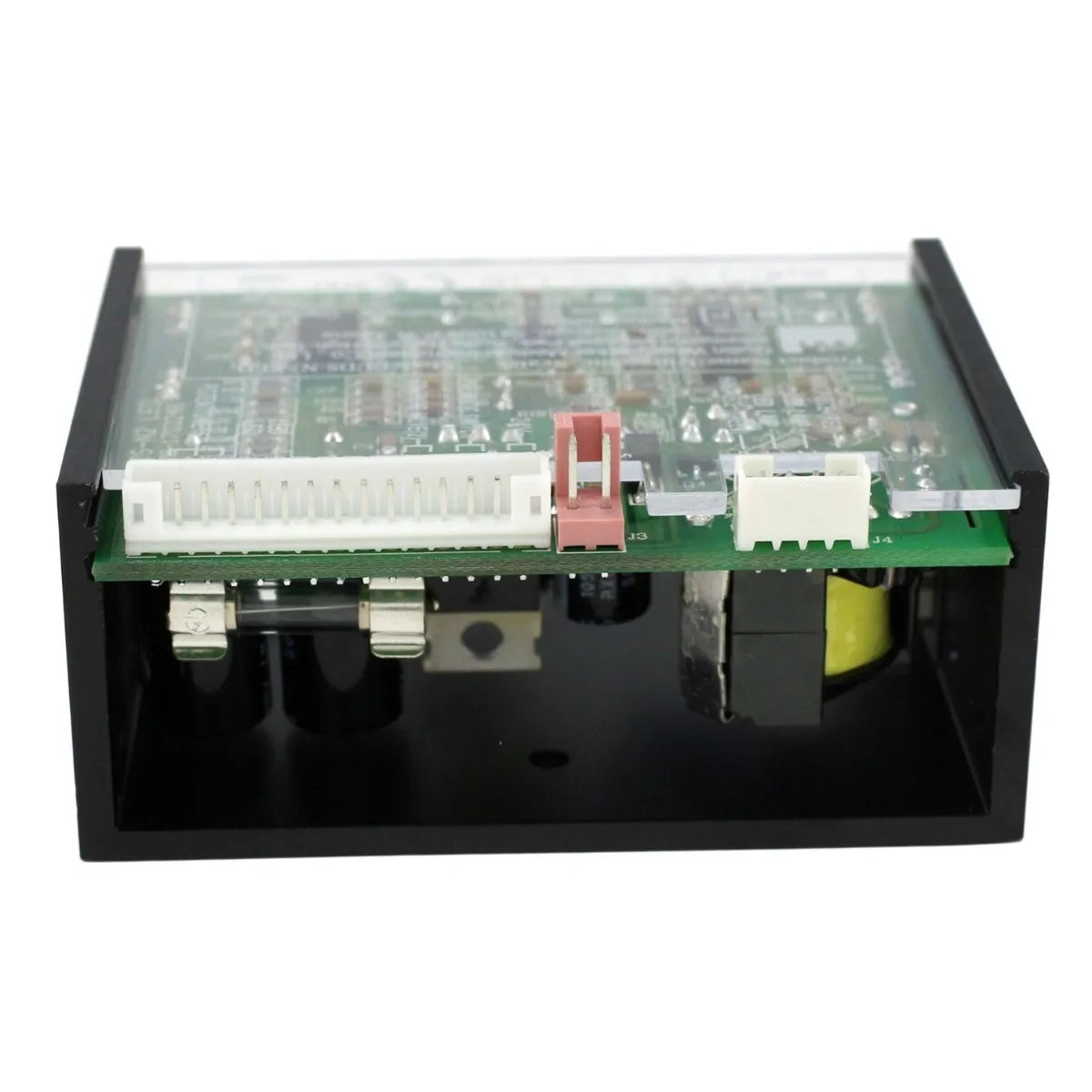

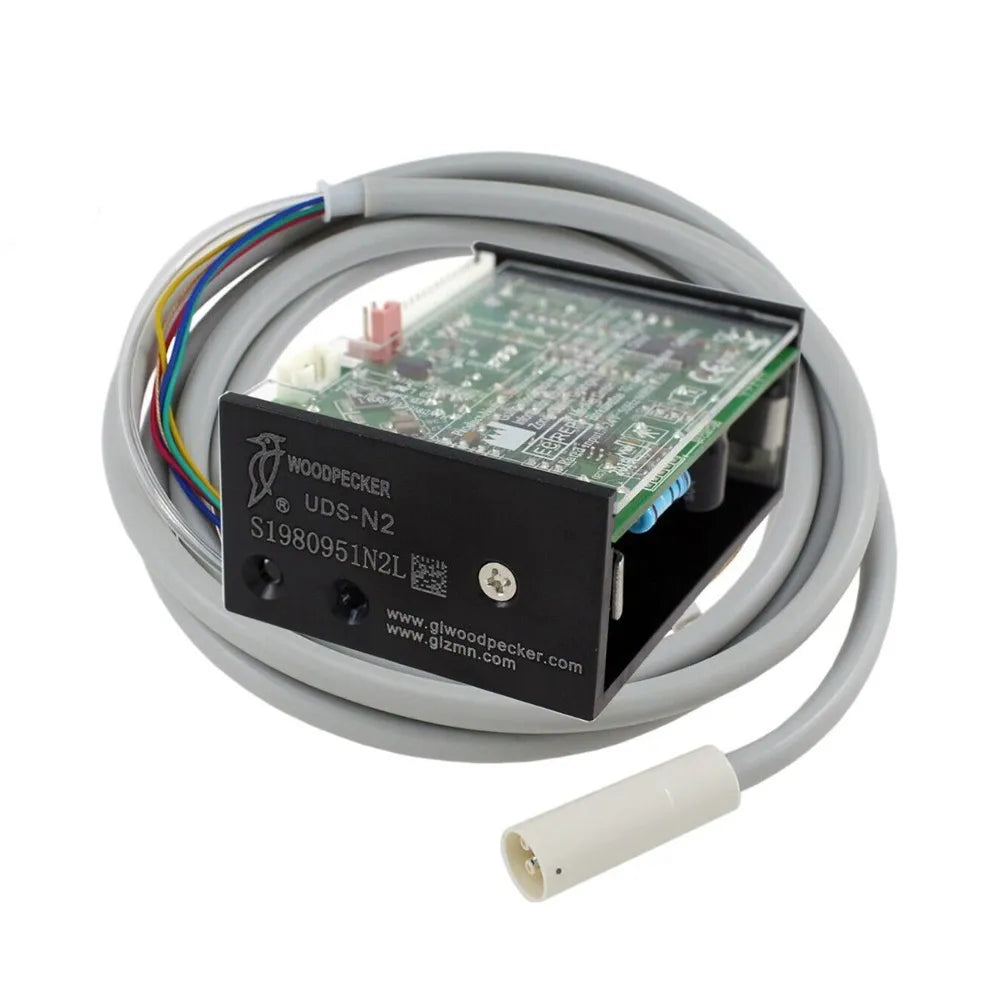

• 1 x Main Unit
• 1 x Torque Wrench
• 1 x Operation Manual
• 1 x Tube

Preparation:

• Ensure the device is connected to the appropriate power supply: 220-240V~ 50Hz/60Hz with 150mA using a transformer, or 24V~ 50Hz/60Hz drawing 1.3A without a transformer.
• Attach the desired non-led tip securely to the handpiece.
• Connect the water supply to the device, ensuring the water inlet temperature is not higher than +25°C.

Environmental Conditions:

• Before use, check the operating environment temperature, which should be within the range of +5°C to +40°C.
• Ensure the relative humidity falls between 30% to 75%.
• Confirm the atmospheric pressure is between 70kPa to 106kPa.

Safety Precautions:

• As this device is classified as Class II protection against electric shock, ensure that all safety guidelines are followed to prevent any electrical hazards.
• Only qualified dental professionals should operate the device.
• Prior to use, inspect the handpiece and cables for any damage or wear. Do not use if any issues are found.

Treatment Procedure:

• Gently place the non-led tip on the tooth surface to be treated. Avoid exerting excessive pressure to prevent patient discomfort.
• Power on the device and set the desired power output level, typically ranging from 3W to 20W, according to the specific treatment requirements.
• The device will produce ultrasonic vibrations at a frequency of 28kHz+3kHz to effectively remove dental plaque, calculus, and stains.
• Utilize the water spray function to cool the treatment area, reduce discomfort, and flush away debris and bacteria for a hygienic cleaning process.
• Operate the UDS-N2 in continuous mode during the treatment for seamless and uninterrupted scaling.

Post-Treatment Care:

• After the procedure, power off the device and disconnect it from the power supply.
• Thoroughly clean and sterilize the handpiece and non-led tips according to the manufacturer's instructions to maintain optimal hygiene standards.
• Store the device and accessories in a clean and dry environment, ensuring they are protected from physical damage.

Maintenance and Cleaning:

• Regularly inspect the device for any signs of wear or malfunction. If any issues are found, seek professional maintenance or repair services.
• Clean the external surfaces of the device with a soft, damp cloth to remove any dirt or residue.
• Avoid using harsh chemicals or abrasive materials during cleaning, as they may damage the device.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 5 year Warranty (from the date of invoice) on PCB (Power Circuit Board) and 12 months warranty is applicable on all the parts of the product excluding physical damage as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Does this scaler include LED light?
Answer: Yes, the Woodpecker UDS-N2 Piezo Ultrasonic Scaler does include an LED light in the handpiece. This feature enhances visibility during dental procedures, aiding in precise treatment and ensuring patient comfort by illuminating the treatment area effectively.

Question: Water solonoid is also provided with the kit?

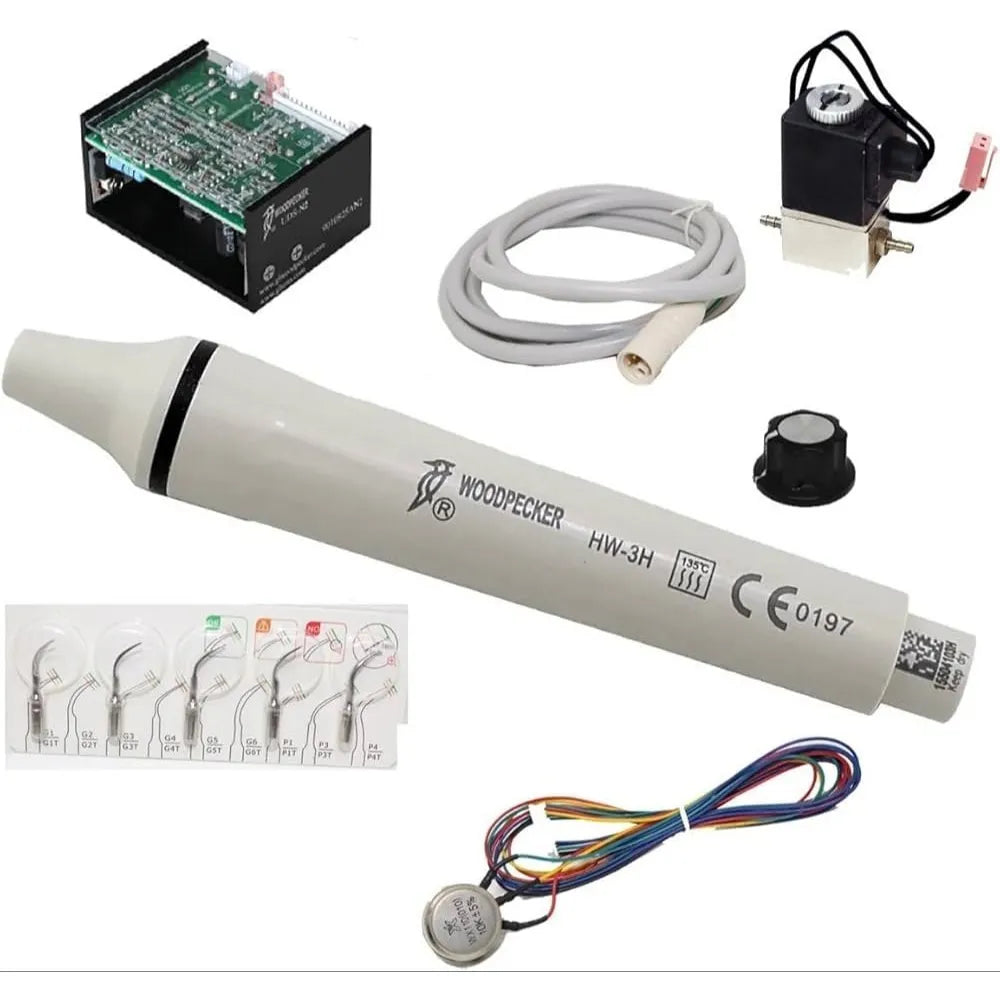

Answer: Yes, the Woodpecker Uds-N2 Piezo Ultrasonic Scaler kit includes a water solenoid. This component is essential for controlling the flow of water during dental procedures, ensuring proper irrigation and cooling during scaling.

Question: Is the scaler durable?
Answer: Yes, the scaler is constructed using high-quality materials, making it durable and reliable for long-term use in dental practices. It is designed to withstand the demands of professional dental procedures.

Question: What is an ultrasonic scaler, and how does it work?
Answer: An ultrasonic scaler is a dental instrument that uses high-frequency vibrations to remove plaque, tartar, and stains from teeth. These vibrations help break down and dislodge the buildup, allowing for effective cleaning.
