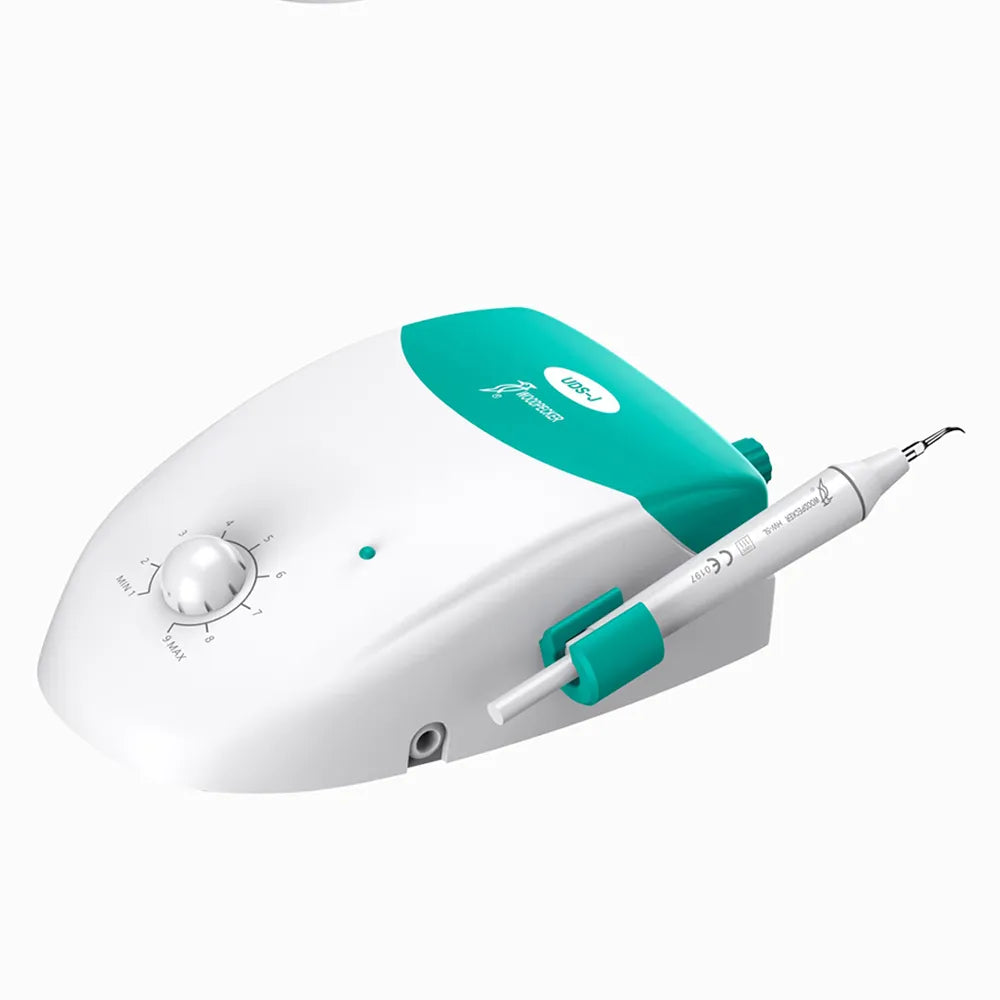

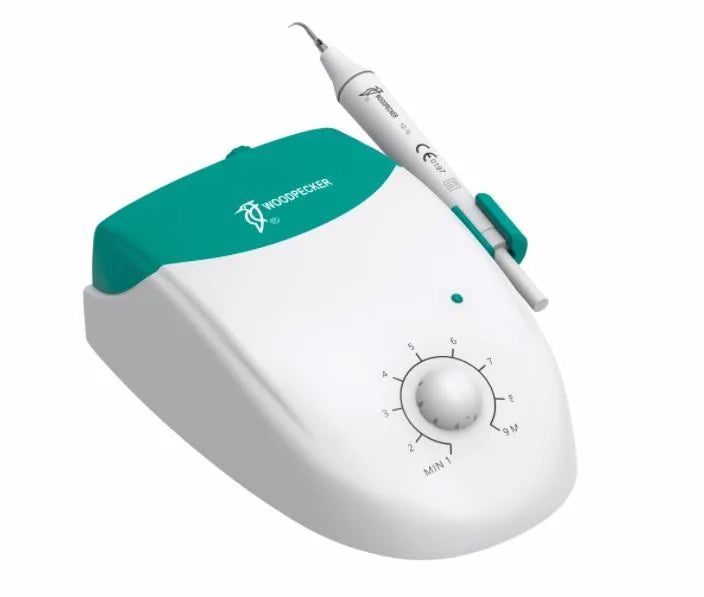

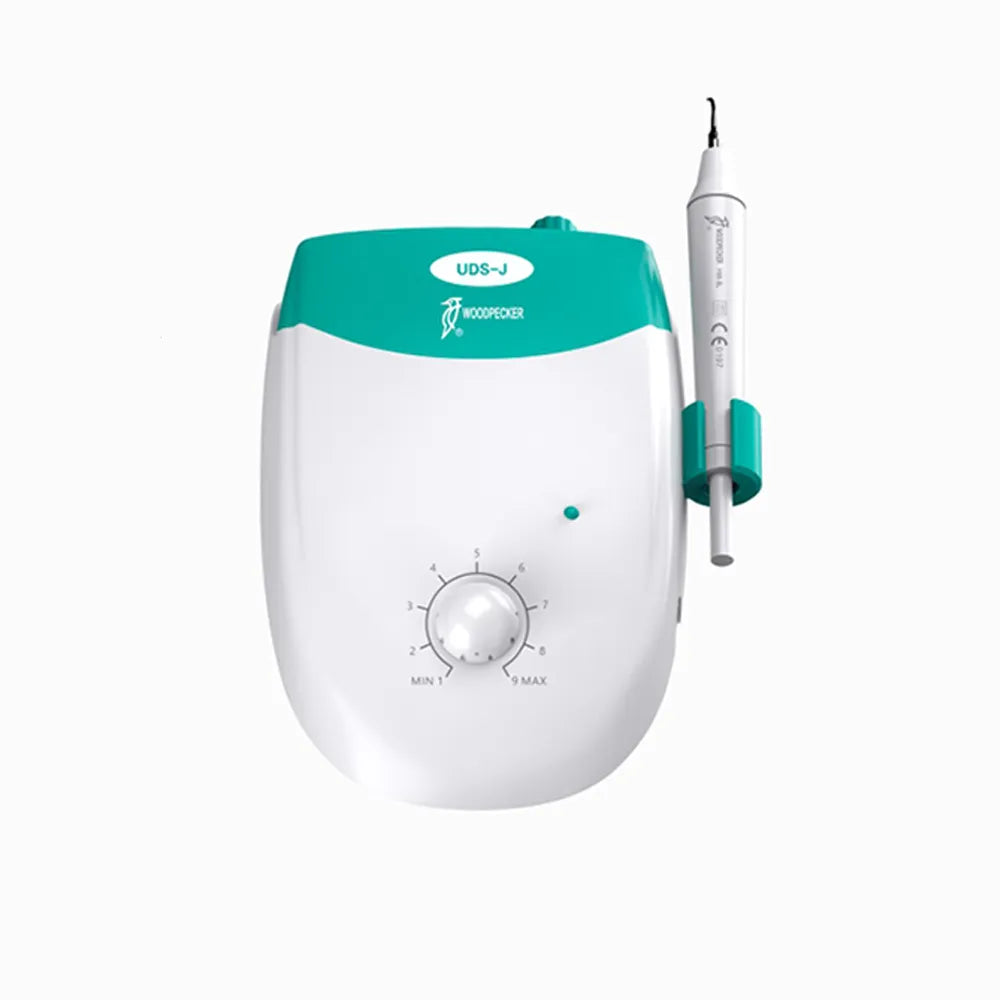

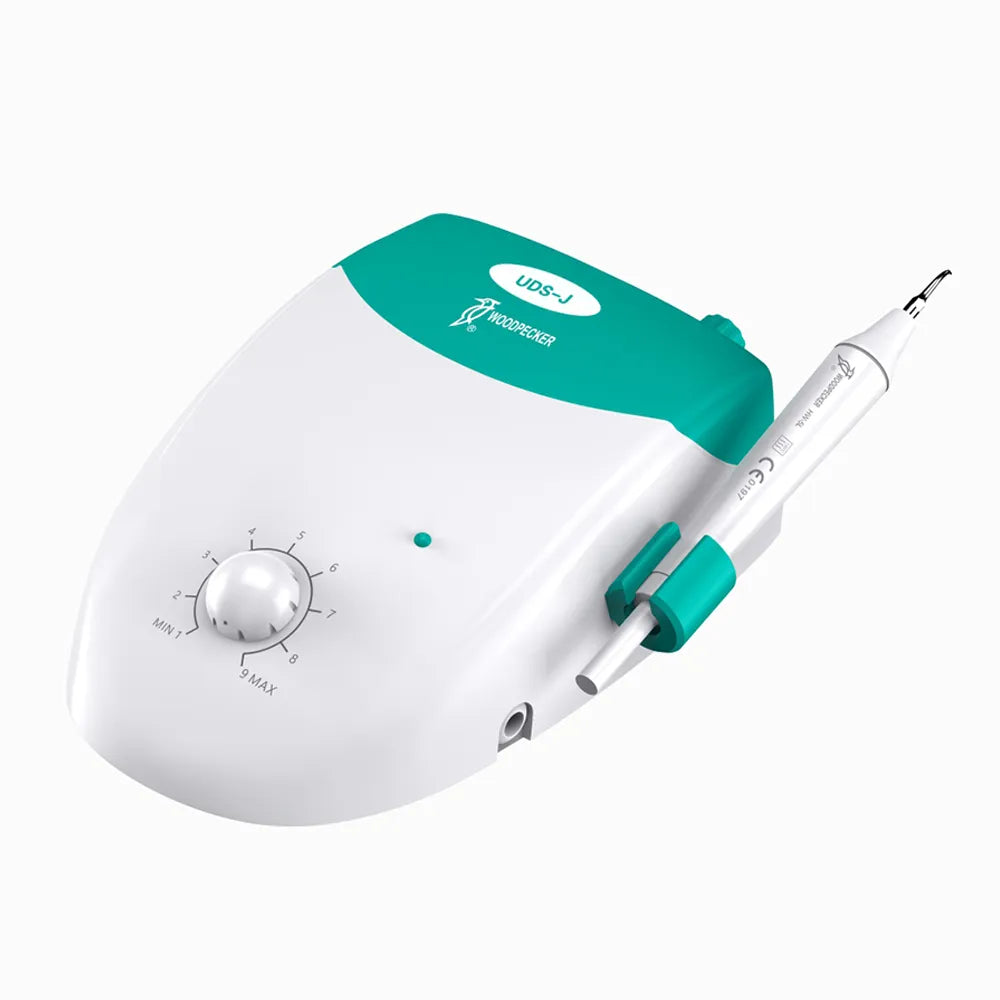

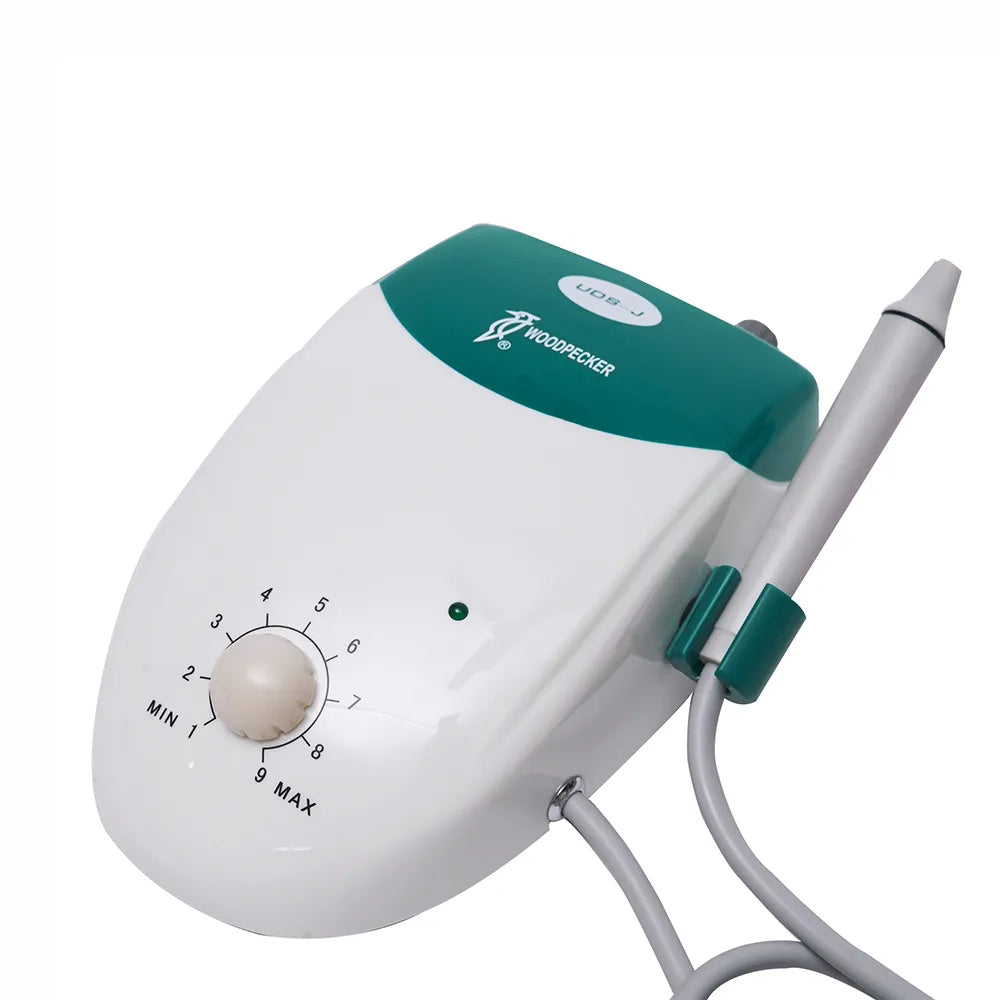

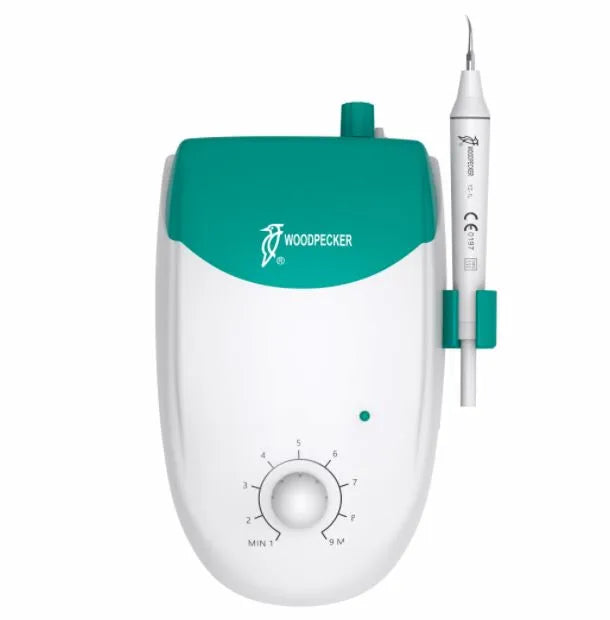

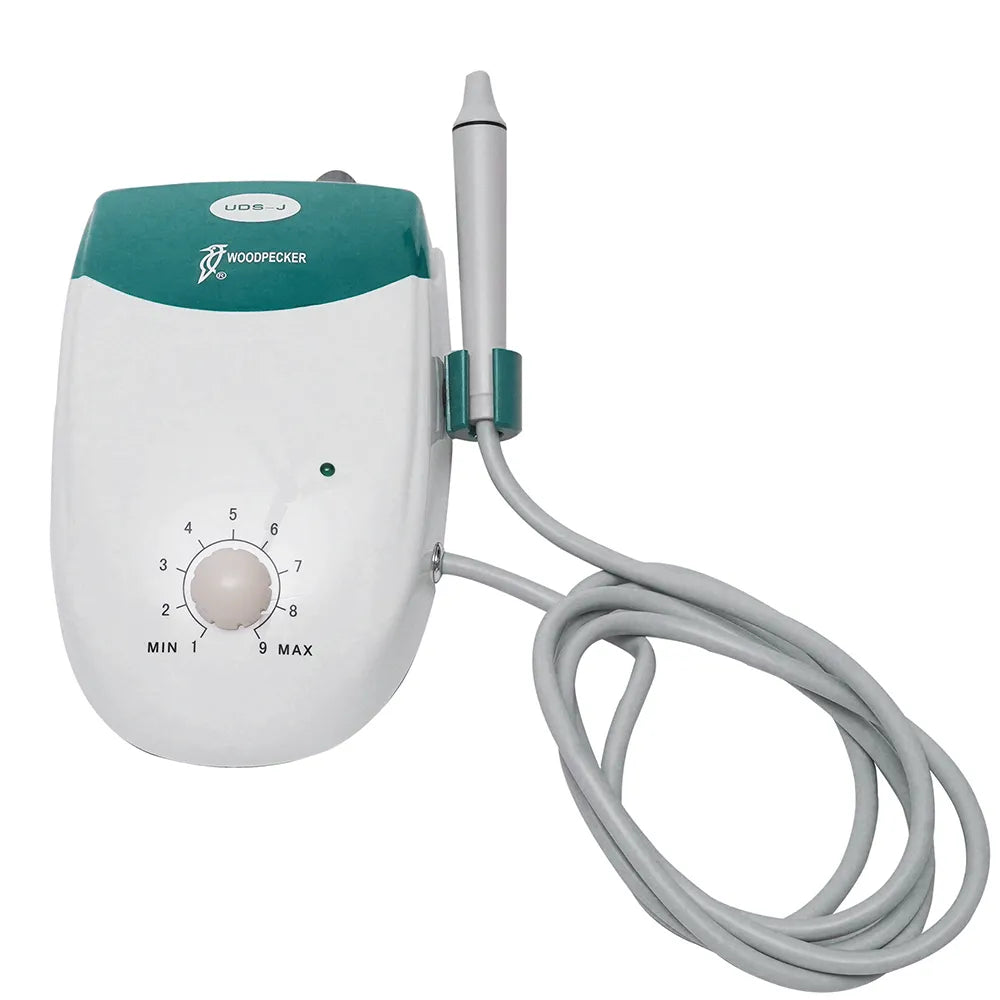

Woodpecker UDS-J Ultrasonic Scaler (5 scaler Tips FREE)

• Efficient plaque and tartar removal
• Adjustable power levels for personalized treatment
• Water cooling and irrigation for patient comfort
• Variety of interchangeable tips for different procedures
• Easy to use with ergonomic design
• Easy maintenance and cleaning
• Compact and portable for convenience
• Safety features for reliable operation
• Compatible with standard power outlets
• User-friendly interface for intuitive operation

Technical Parameter Value
Ultrasonic Frequency 28 kHz
Power Output Adjustable, 10-50W
Scaling Tips Compatible with standard tips
Water Supply External water supply or built-in water container
Handpiece Material Aluminum alloy
Handpiece Cable Length 2.5 meters
Operating Mode Continuous or intermittent
Power Input 100-240V AC, 50/60Hz
Dimensions (L x W x H) 200mm x 130mm x 75mm

• 1x Main unit
• 1 x Handpiece
• 1 x Footswitch

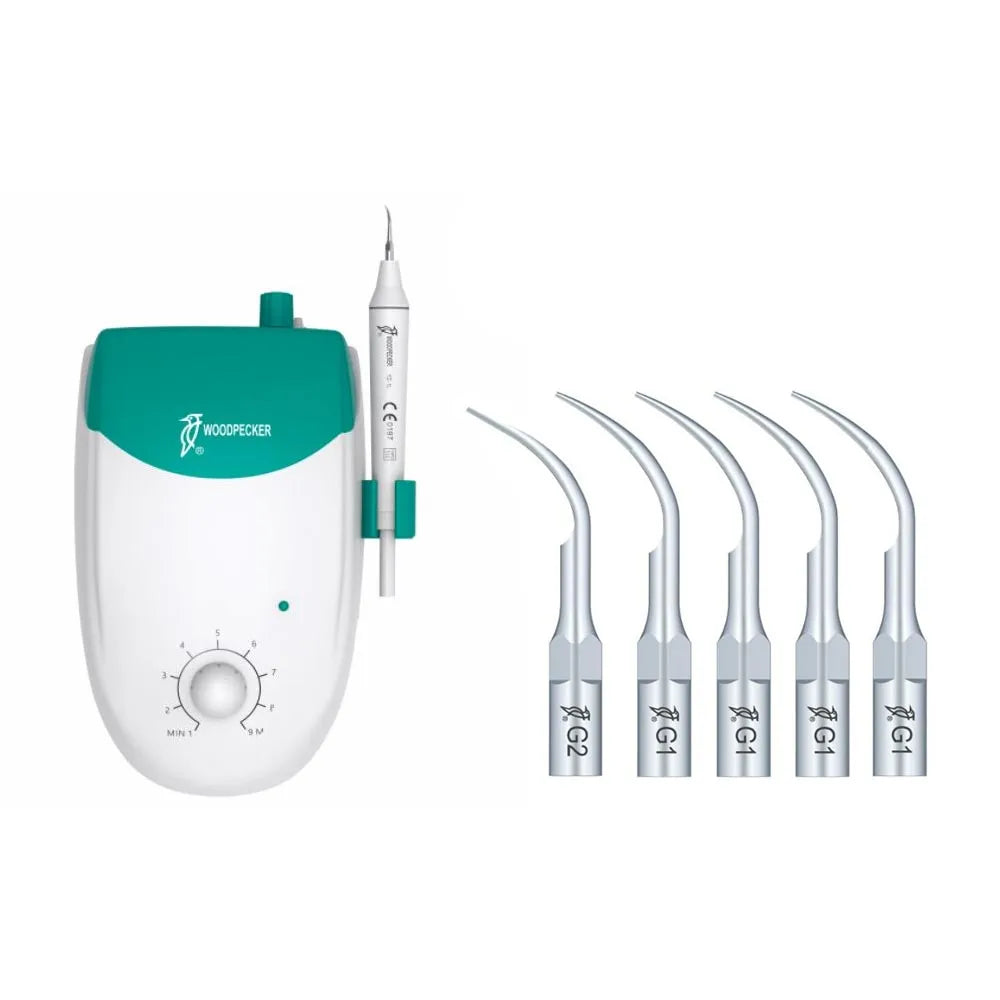

• 5 x Tips (3 x G1, 1 x G2, 1 x P1)
• 1 x Adapter
• 1 x Torque wrench
• 1 x Operation manual

Setup and Preparation:

• Ensure all components are present according to the packing list.
• Place the main unit on a stable surface in front of the operator.
• Turn the water control knob to the maximum in a clockwise direction.
• Adjust the potentiometer to a suitable position by aligning the pit of the potentiometer with the "1" dial on the corner.
• Connect the foot switch to its socket.
• Attach one end of the water pipe to the water entrance and connect the other end to a clean water source.
• Connect the power supply output to the main unit and plug it into a power outlet.
• Press the power switch on the main unit, and the power indicator will illuminate.

Operating the Ultrasonic Scaler:

• Put on appropriate personal protective equipment, such as gloves and eyewear.
• Select the desired tip for the specific dental procedure, referring to the separate instruction manual for tips.

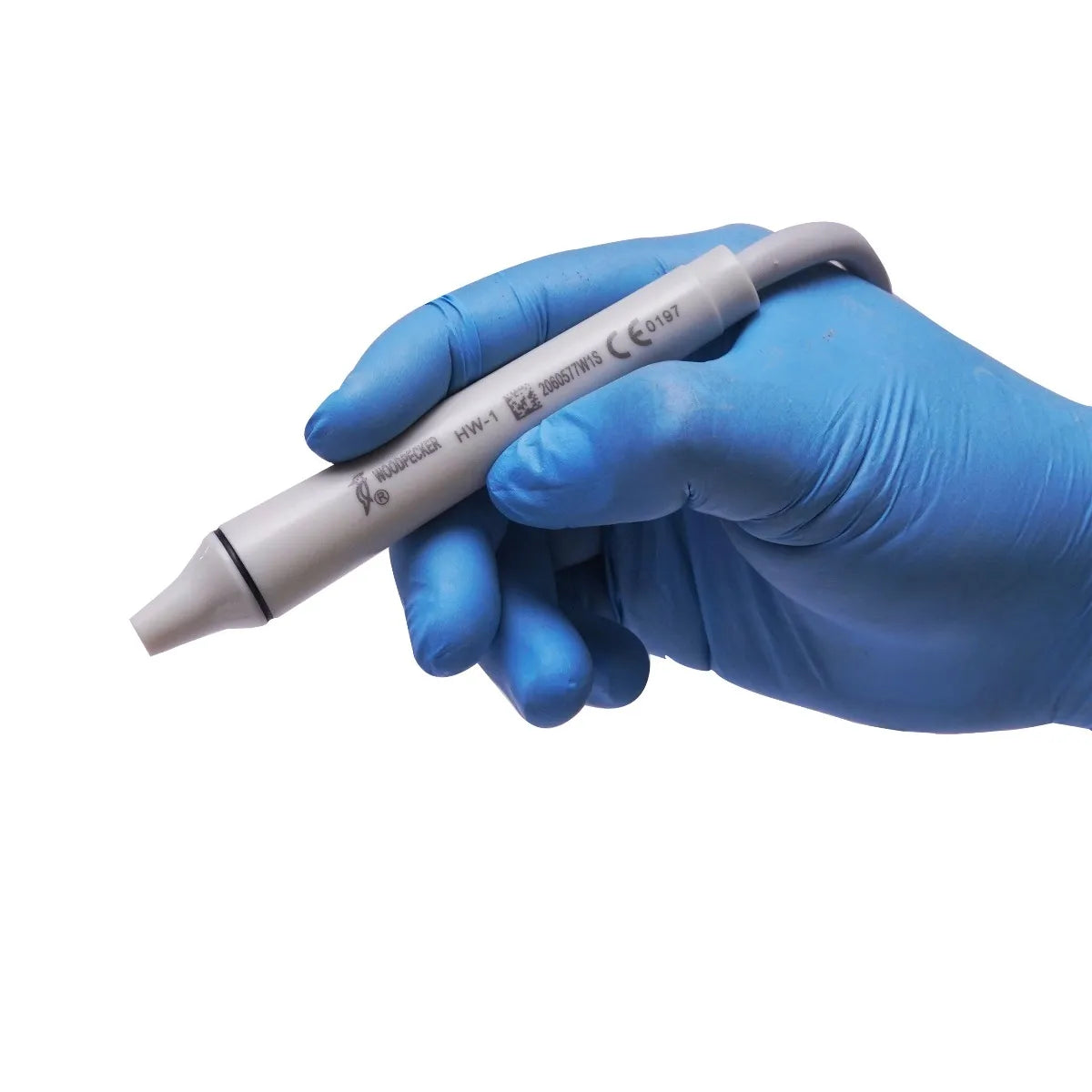

• Gently hold the handpiece with a firm grip.
• Position the tip perpendicular to the tooth surface or subgingival area to be treated.
• Adjust the power level using the power adjustment knob on the main unit.
• Activate the ultrasonic scaler by pressing the foot switch. The scaler will start vibrating, and water will flow through the tip to cool and irrigate the treatment area.
• Move the tip in a controlled and sweeping motion along the tooth surface, removing plaque, tartar, or stains.
• Maintain a consistent and appropriate power level during the procedure, adjusting as needed for different treatment areas.
• Periodically rinse the treatment area with water to remove debris and improve visibility.
• After completing the scaling procedure, release the foot switch to deactivate the scaler.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board).
• Physical damage is not cover in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: can it be connected to chair for water source?
Answer: Yes, the Woodpecker UDS-J Ultrasonic Scaler (5 scaler Tips FREE) can be connected to the dental chair for its water source. This setup ensures a consistent and reliable water supply during scaling procedures, enhancing the efficiency and effectiveness of the scaler.

Question: Does it include led?
Answer: The Woodpecker UDS-J Ultrasonic Scaler does not feature LED lighting.

Question: Can we buy scaler tips separately?
Answer: Yes, scaler tips for the Woodpecker UDS-J Ultrasonic Scaler can be purchased separately. To buy you need to search for Woodpecker Scaler Tip for UDS & EMS Scalers on Oralkart.

Question: Can I buy only handpiece unit ?
Answer: The Woodpecker UDS-J Ultrasonic Scaler is available as a complete kit, which includes the main unit of the scaler along with the handpiece unit.

Question: How do we connect the pressure line of compressor., will there be any T joint for the connection ?
Answer: The Woodpecker UDS-J Ultrasonic Scaler facilitates connection to the dental chair water supply via a T-joint. This streamlined setup ensures seamless integration with existing chair-side infrastructure, optimizing workflow efficiency and enabling precise control over water delivery during dental procedures.

Question: Can we use this without compressor?
Answer: Yes, the Woodpecker UDS-J Ultrasonic Scaler can be used without a compressor, but it will require a water pump like the Woodpecker Water Pump for Ultrasonic Scaler to provide pressurized water for operation.

Question: Is the scaler key or torque wrench for tightening tip included in packaging ?Answer: Yes, the Woodpecker UDS-J Ultrasonic Scaler (5 scaler Tips FREE) includes a scaler key or torque wrench for tightening the tip in the packaging.

Question: Can this use in patient with pacemaker?
Answer: Due to the potential electromagnetic interference (EMI) generated by ultrasonic scalers, such as the Woodpecker UDS-J, and ultrasonic baths, there may be a risk for patients with pacemakers. It is advisable to exercise caution and consult with the patient's cardiologist or healthcare provider before using these devices on individuals with pacemakers to ensure patient safety and compliance with medical guidelines.

Question: Is woodpecker endodontic scaler tips package professional kit compatible with this ?
Answer: No, the Woodpecker UDS-J Ultrasonic Scaler does not have an endo mode, and it is not recommended to use endodontic scaler tips with this scaler. Using the appropriate scaler tips is crucial for effective and safe dental procedures.

Question: Is the foot paddle included in packaging?
Answer: Yes, the foot pedal is included in the packaging of the Woodpecker UDS-J Ultrasonic Scaler.

Question: Does this come with Chuck?
Answer: Yes, the Woodpecker UDS-J Ultrasonic Scaler comes with a torque wrench/chuck in the packaging. This tool is provided to securely attach scaler tips, ensuring they are properly and safely fixed to the scaler during dental procedures.

Question: Is the ultrasonic scaler safe to use?
Answer: Yes, when used correctly, the ultrasonic scaler is safe to use. However, it is essential to follow the manufacturer's instructions and take necessary precautions, such as wearing appropriate personal protective equipment and using the scaler at suitable power levels.

Question: Can the ultrasonic scaler damage the teeth or gums?
Answer: When used properly by a trained professional, the ultrasonic scaler should not cause damage to the teeth or gums. The scaler's vibrations are focused on the targeted area, minimizing the risk of harm. However, excessive pressure or incorrect technique can potentially cause discomfort or damage, so it's important to use the scaler with care.

Question: Can the ultrasonic scaler be used on patients with sensitive teeth?
Answer: Yes, the ultrasonic scaler can be used on patients with sensitive teeth. The power level can be adjusted to a lower setting, and the water irrigation helps cool and reduce sensitivity during the procedure. It's always recommended to communicate any sensitivity concerns with the dental professional.

Question: How often should the tips be replaced?Answer: The frequency of tip replacement depends on several factors, including the intensity of use and the specific procedure being performed. Generally, tips should be inspected regularly for signs of wear and replaced when they show signs of deterioration or become less effective.
