The Woodpecker TFRK (Terauchi File Removal Kit) is a complete endodontic retrieval system developed in collaboration with world-renowned endodontist Dr. Yoshi Terauchi. Designed for clinical precision and reliability, this kit contains all the essential rotary drills, micro-explore instruments, ultrasonic tips, and loop snaring devices needed to expose, bypass, loosen, and retrieve broken file fragments from within root canals.

Made from high-grade martensitic NiTi and surgical stainless steel, all instruments are robust, flexible, and fully autoclavable. Compatible with standard Woodpecker/EMS ultrasonic scaler handpieces, the kit is organized inside a compact autoclavable cassette organizer for simplified clinical workflows and sterile storage.

Features

  • Dr. Terauchi Signature Design: Developed in collaboration with Dr. Yoshi Terauchi to offer a complete clinical protocol for retrieving broken instruments.
  • Specialized TFRK-Loop (Yoshi Loop): Features a 0.5mm microtube loop device with 0.08mm and 0.12mm wire loops to snare files longer than 4.5mm.
  • Tough Micro Trephine Bur: Includes a 0.5mm inner diameter micro trephine bur to create a precise trough and expose the top of separated files.
  • Ultrasonic Retrieval Tips: Comes with three specialized ultrasonic tips (E87, E88, E89) compatible with Woodpecker/EMS scalers to safely loosen fragments.
  • Martensitic NiTi K-Endo File: Highly flexible rotary file to shape and enlarge root canals coronally around file obstructions.

Description

Specification

  • Brand: Woodpecker
  • Product Name: TFRK Terauchi File Removal Kit
  • Ultrasonic System Compatibility: EMS / Woodpecker Scalers
  • Material: Martensitic NiTi & Surgical Stainless Steel

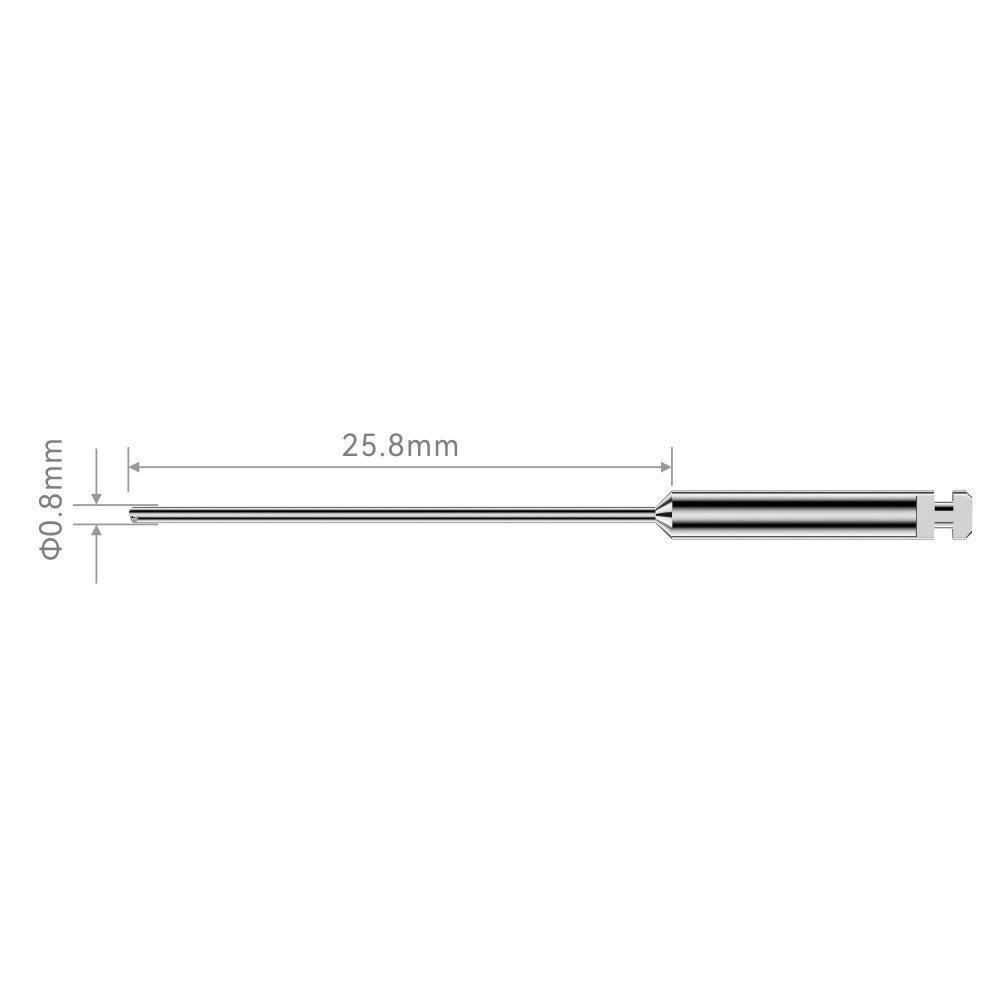

  • Micro Trephine Bur Specs: Inner diameter 0.5 mm, outer diameter 0.8 mm, length 25.8 mm
  • TFRK-Loop Wire Sizes: 0.08 mm (for narrow canals) & 0.12 mm (for wider canals)
  • SKU / Item Code: WOOXX00243
  • Sterilization: Cassette and all instruments are fully autoclavable at 134°C

Packaging

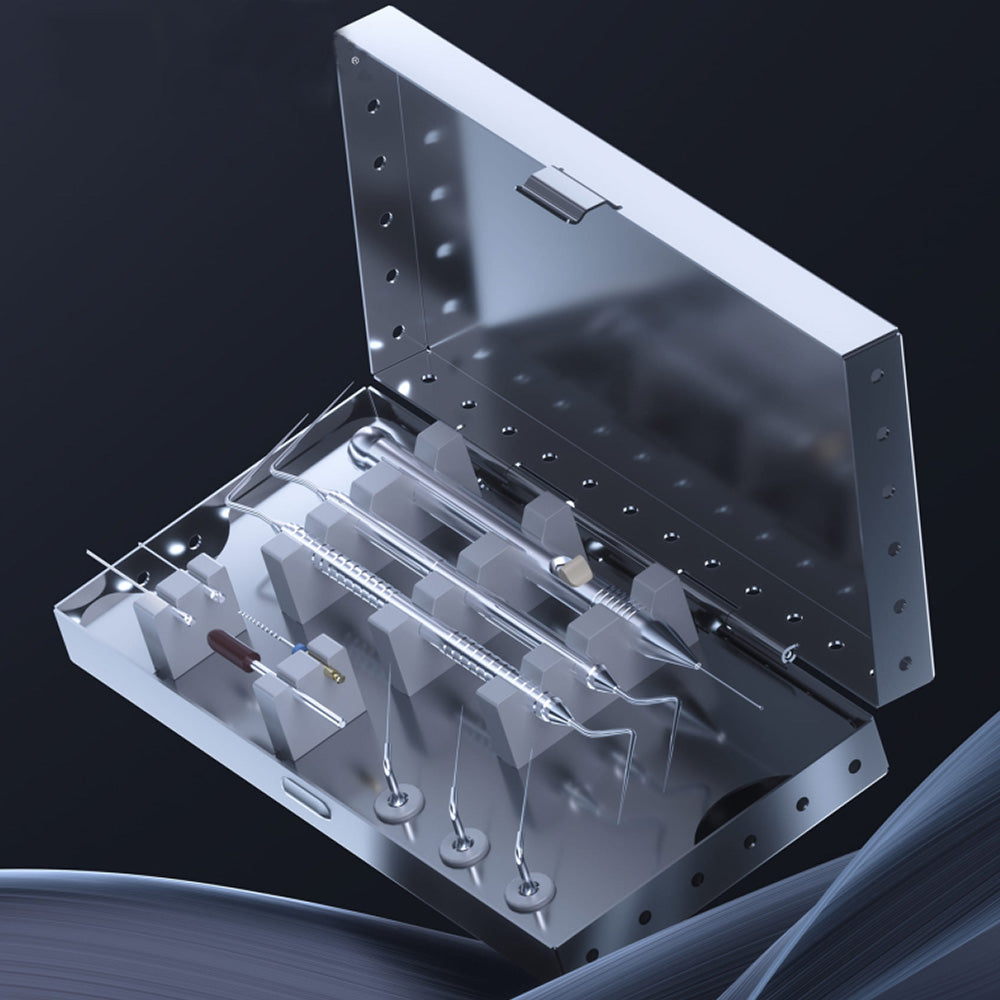

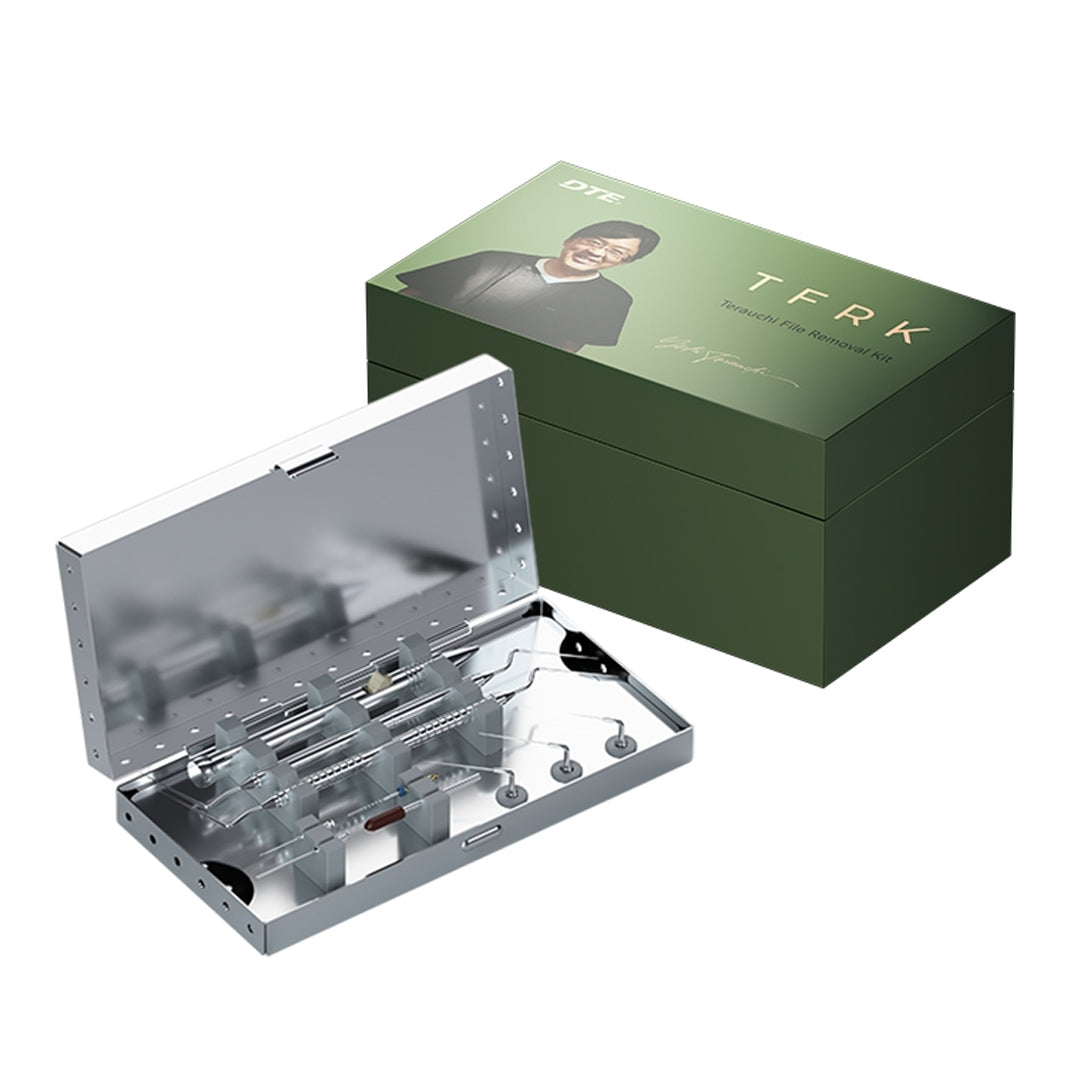

  • 1 x Autoclavable Cassette Organizer Case

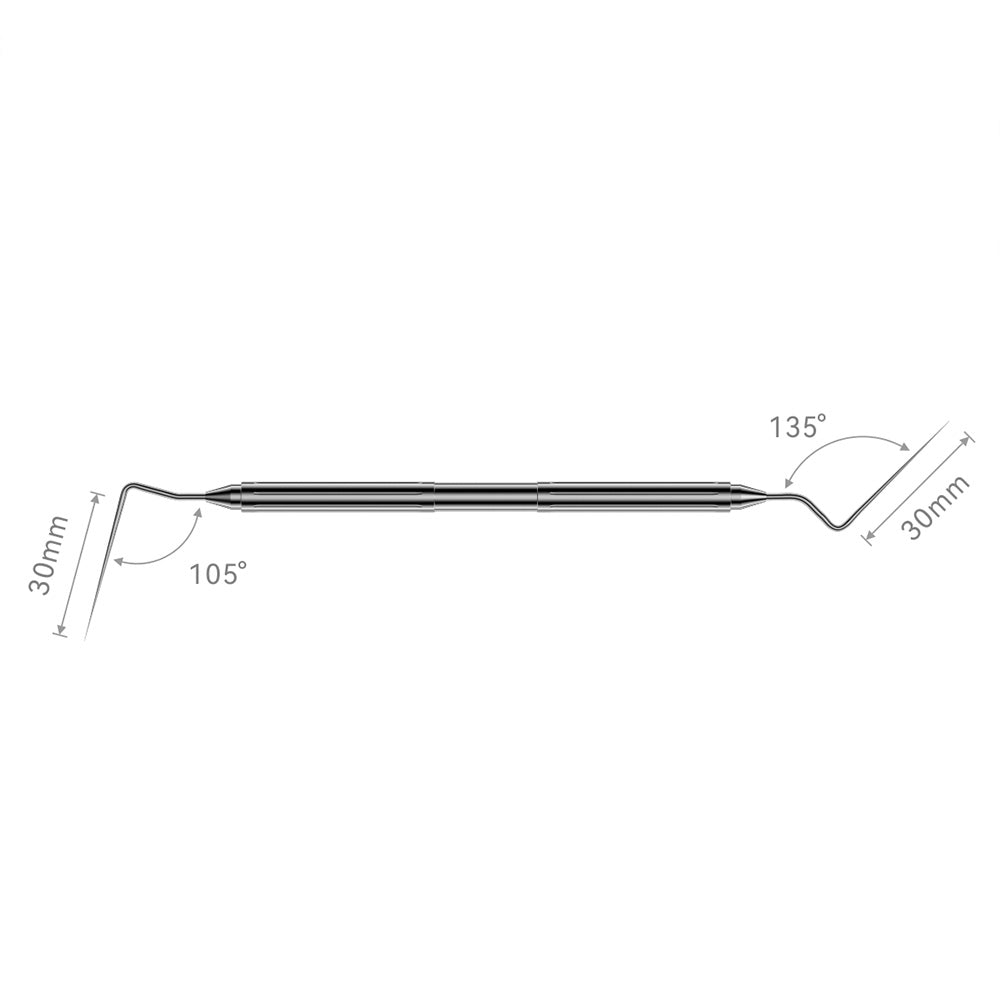

  • 1 x Gutta-Percha Removal Instrument (TFRK-GPR)
  • 1 x Micro Trephine Bur (TFRK-MT)

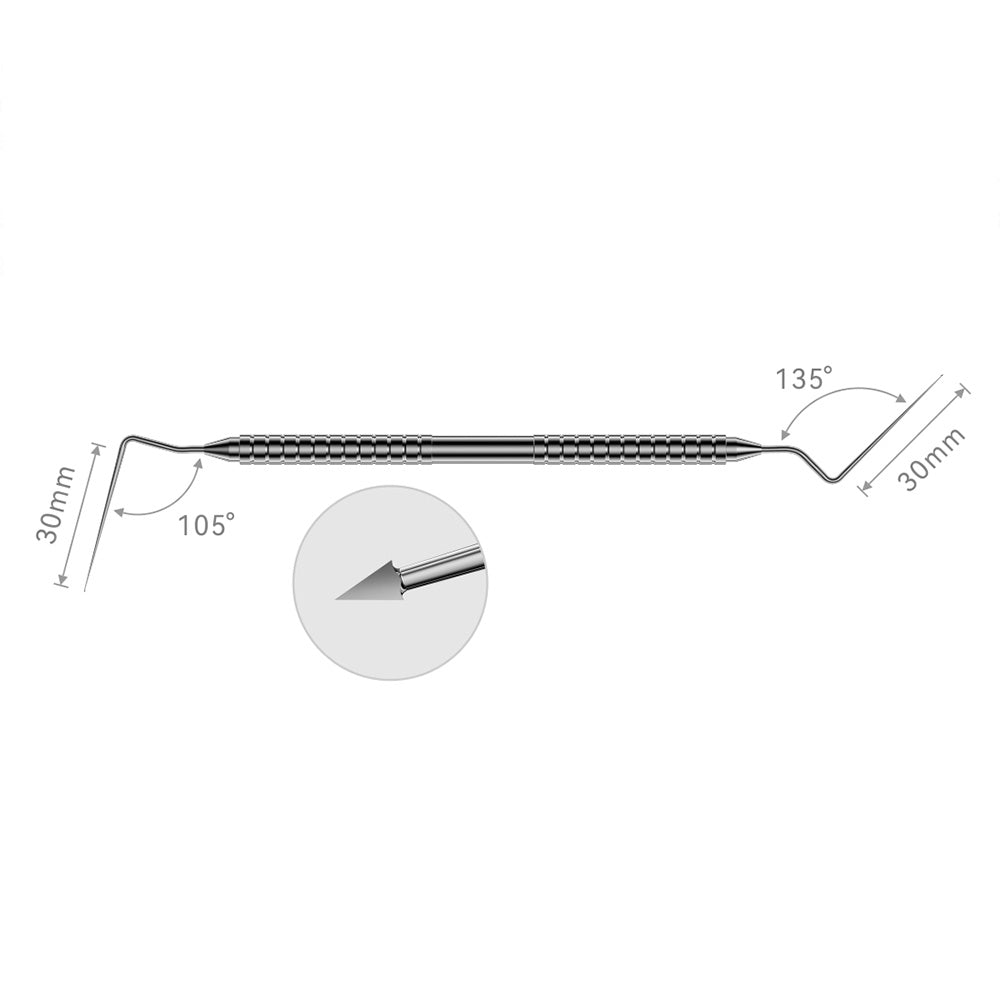

  • 1 x Micro Explorer (TFRK-ME)

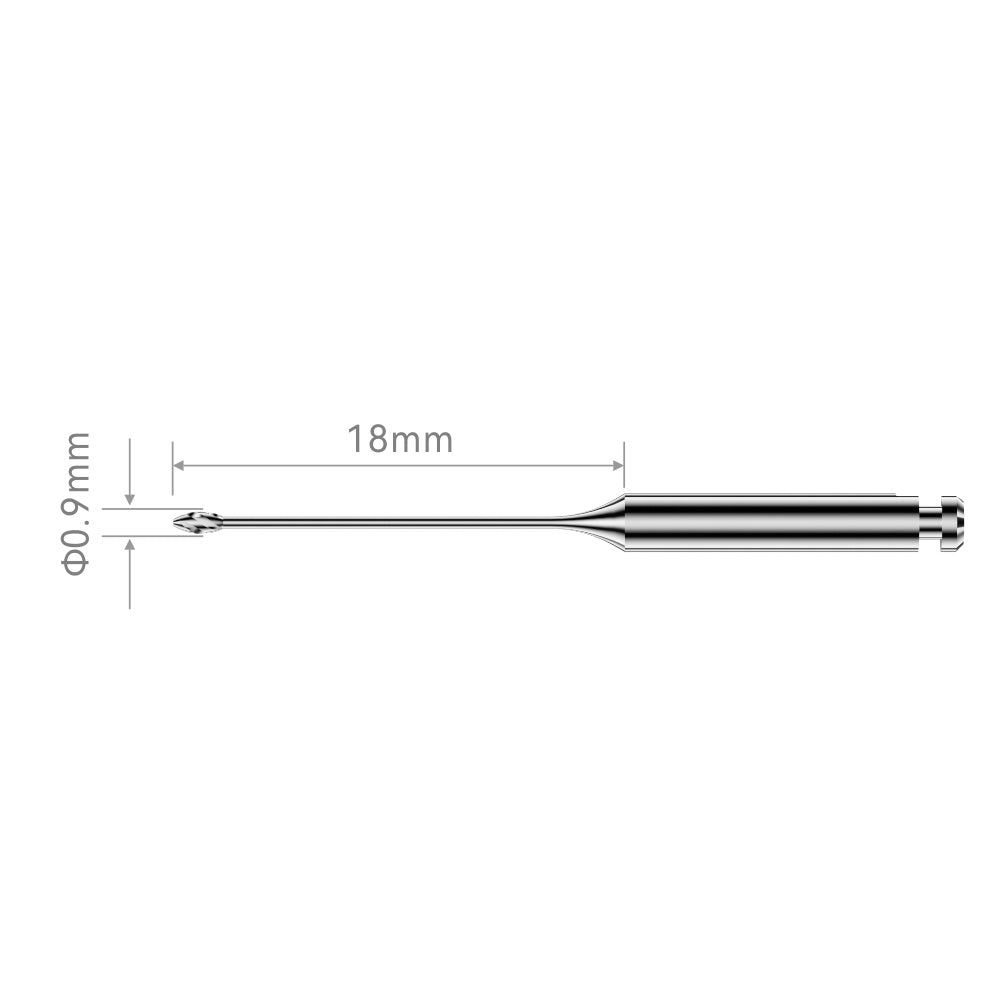

  • 1 x Modified Gates Glidden Drill #3 (MGG #3)
  • 1 x K-Endo Rotary File (K6 N60 2% L25)
  • 1 x TFRK-Loop Device (TFRK-L)
  • 3 x Ultrasonic File Removal Tips (E87, E88, E89)
  • 1 x Brownie Polishing Point (TFRK-P)

Direction to use

  • Coronal Prep: Use the MGG #3 and K-Endo rotary files to enlarge the canal pathway coronal to the separated file fragment.
  • Troughing: Mount the TFRK-MT trephine bur on a low-speed handpiece and drill around the top of the file to create a 0.5mm deep trough.
  • Ledge Bypassing: Utilize the 0.1mm fine tip of the TFRK-ME explorer to locate bypass paths around the ledge.
  • Ultrasonic Activation: Attach the E87, E88, or E89 tip to the scaler. Place the tip against the exposed fragment and activate on low power in counter-clockwise motions to loosen it.
  • Retrieval (Loop Snaring): For fragments longer than 4.5mm, thread the 0.08mm or 0.12mm loop wire through the TFRK-L microtube, capture the file head, pull the wire tight, and pull it out.
  • Sterilization: Pre-clean and autoclave the cassette holding all instruments at 134°C prior to clinical use.
