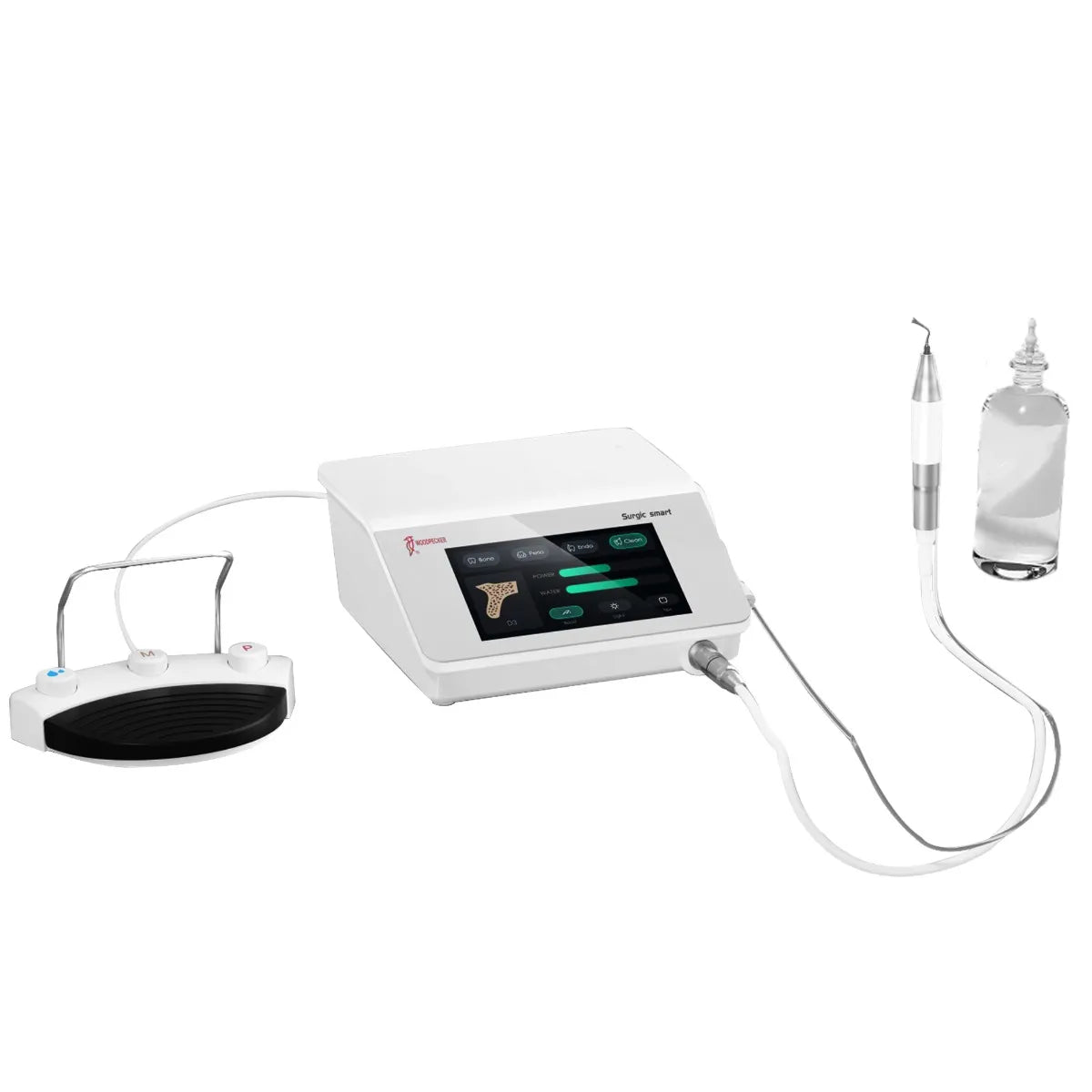

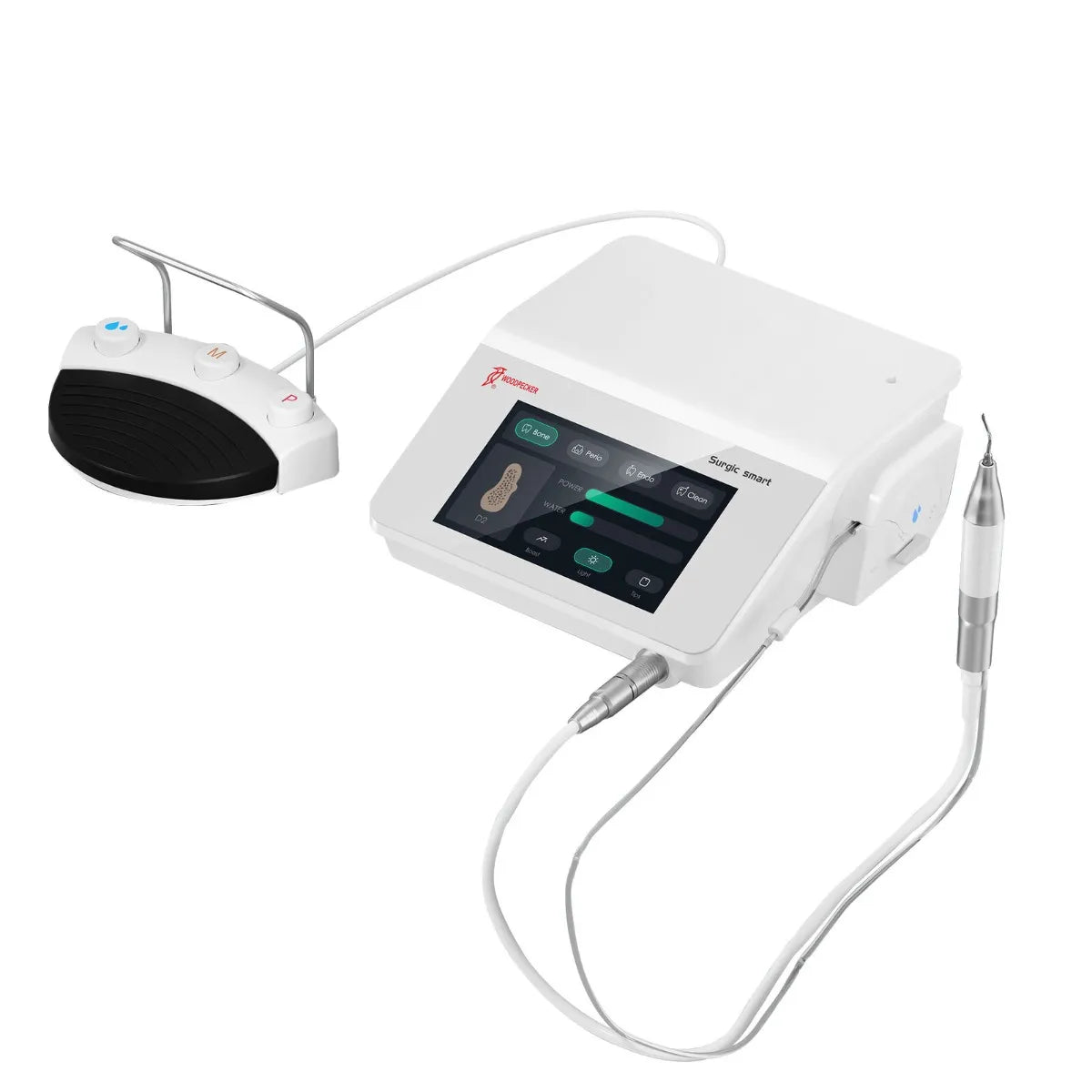

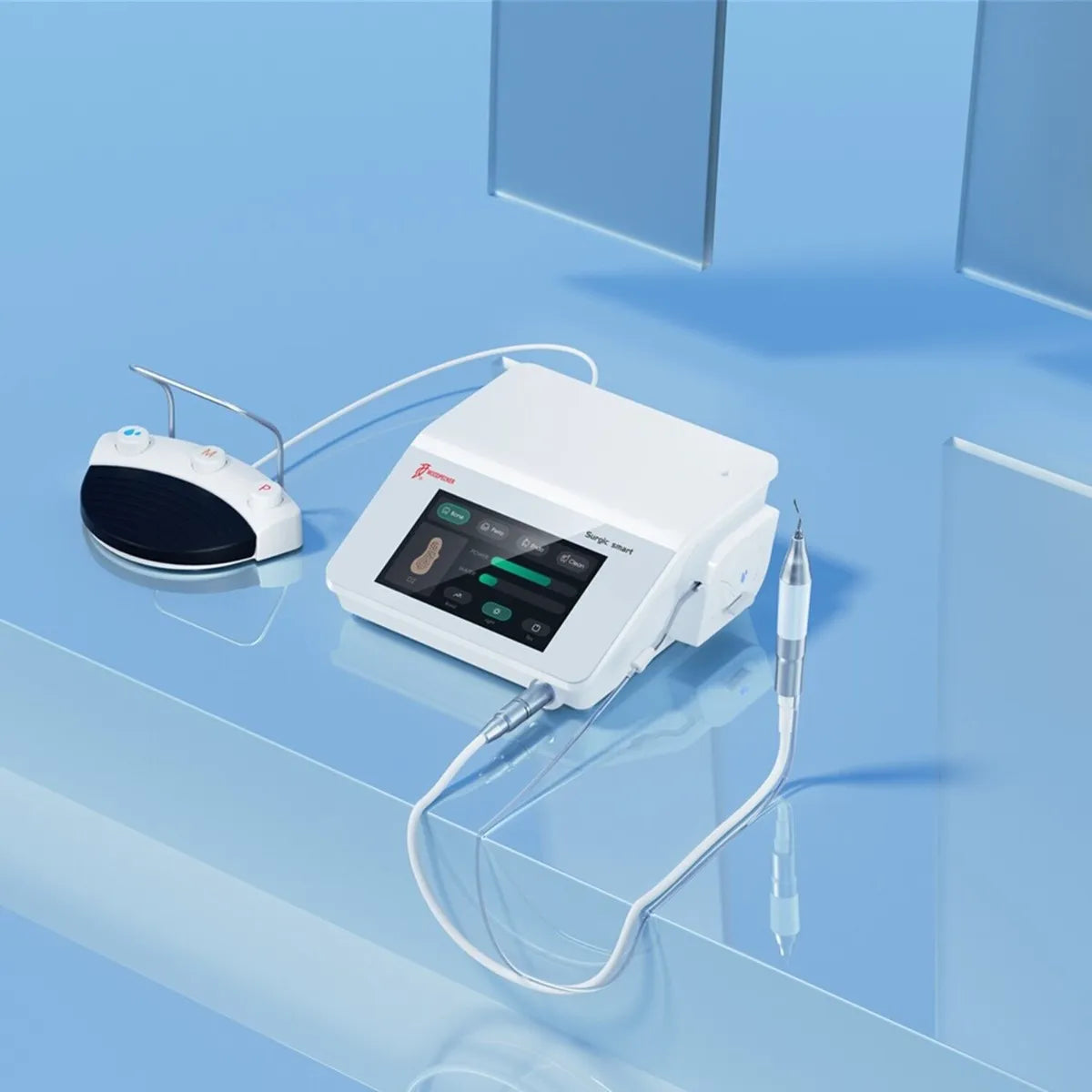

Woodpecker Surgic Smart Piezosurgery Unit

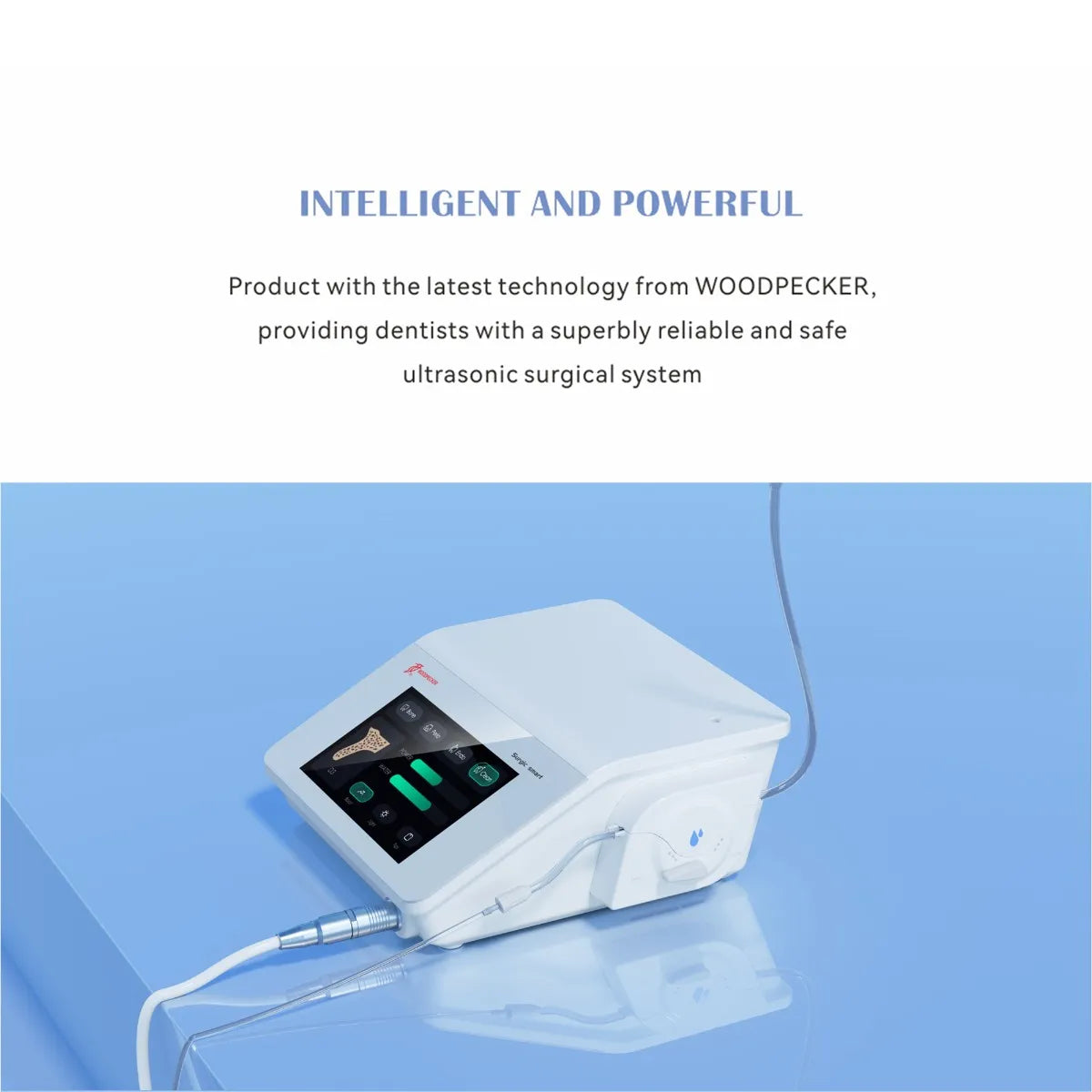

• Intelligent Design: Smartly engineered for precise and efficient dental surgical procedures.

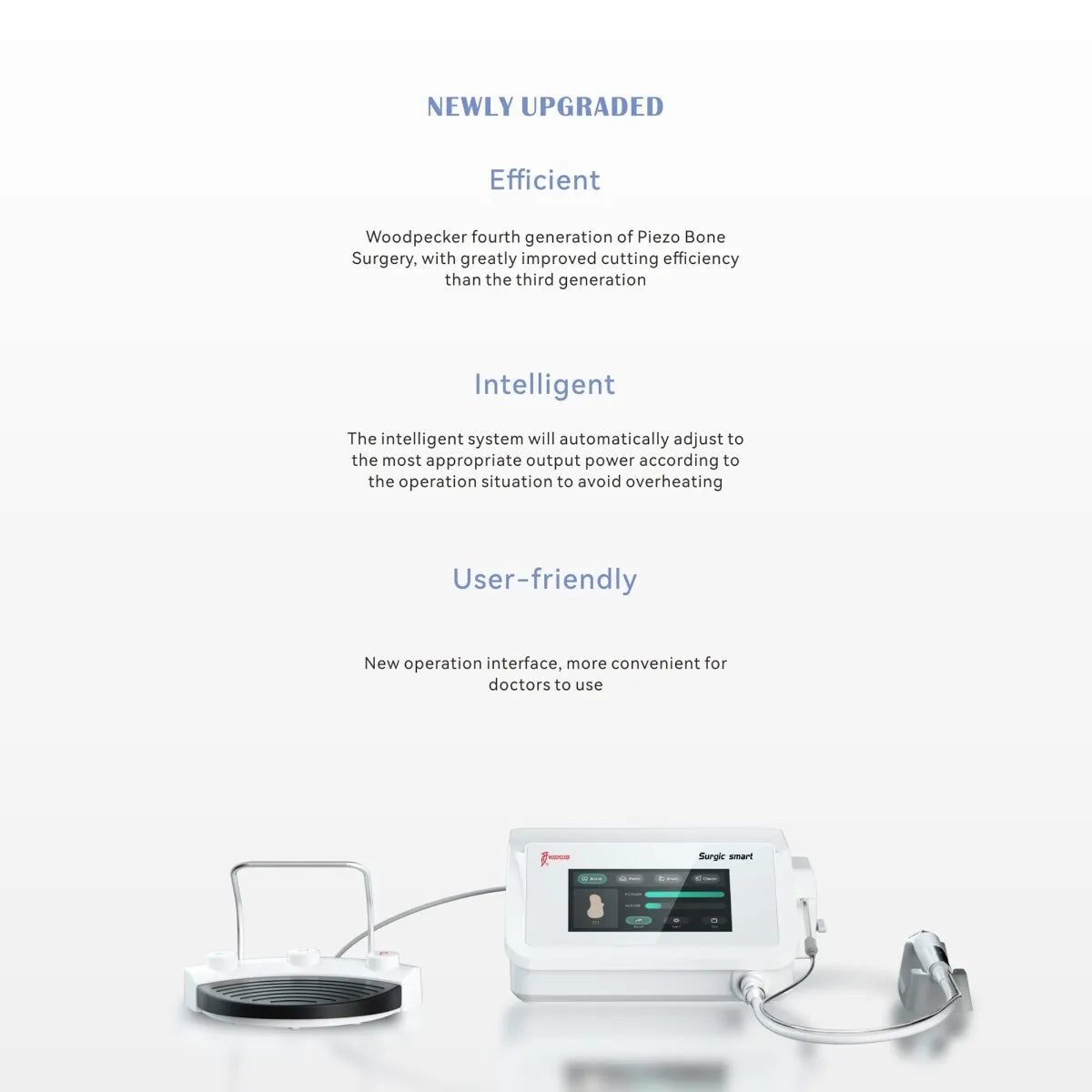

• Upgraded Performance: Newly enhanced for increased power and effectiveness in clinical applications.
• Reliable Operation: Demonstrates unwavering dependability, ensuring consistent surgical outcomes.
• Sterilizable Water Pipe: Equipped with a sterilizable water pipe for a hygienic surgical environment.
• Multi-Function Foot Pedal: Allows for intuitive control, facilitating seamless operation.
• Ultra-Quiet Peristaltic Pump: Minimizes operational noise, ensuring a calm and comfortable experience.
• Compliance and Safety: Meets European Directive 93/42EEC, ensuring adherence to high medical device standards.
• Versatile Voltage Range: Compatible with power supplies ranging from ~100V to 240V at 50Hz/60Hz.
• Variable Flow Rate: Offers a flow rate range of 25 to 110ml per minute for precise surgical control

• Compliance: Directive 93/42EEC
• Ingress Protection Rating: Device: IPX1, Foot Pedal: IPX6 (EN60529)
• Software Version: BoneSurgical4-V1.0.0
• Operation Cycle: 60 seconds ON, 10 seconds OFF
• Power-Supply Voltage: ~100V-240V, 50Hz/60Hz
• Power Consumption: 170VA
• Fuses: 2×1.6AT, 250V
• Working Frequency: 24kHz~36kHz
• Flow: 25~110ml/min
• Applied Parts: Tips
• Additional Features: Sterilizable water pipe, Multi-function foot pedal, Ultra-quiet peristaltic pump

• 1 x Device
• 1 x Multi-function foot pedal
• 2 x Brine bottle connector
• 1 x Hook
• 8 x Pump tube
• 1 x Peristaltic pump

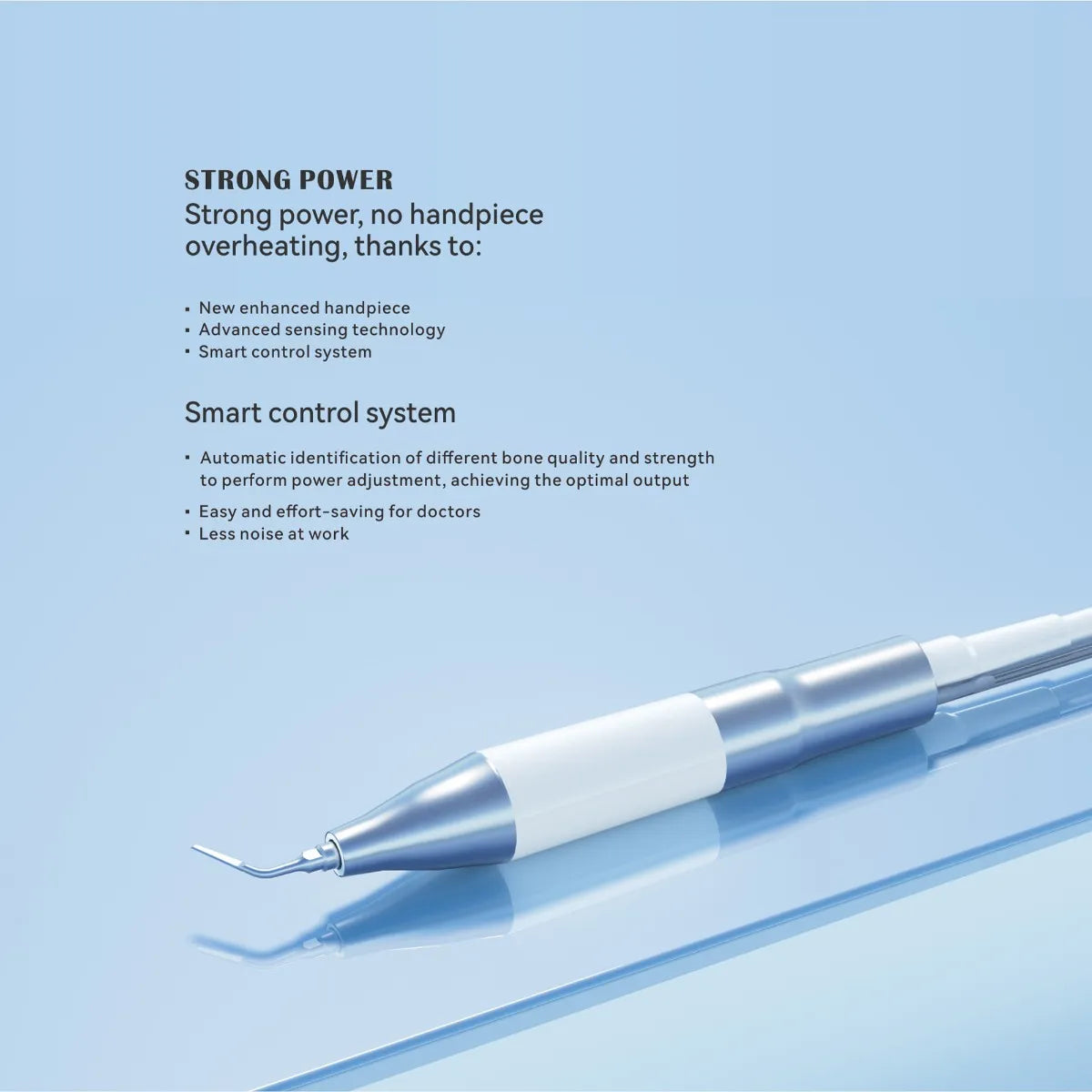

• 2 x Surgic smart handpiece
• 2 x Silicone handpiece holder
• 4 x Connection for the cord and tube of the peristaltic pump
• 1 x Torque wrench
• 2 x Sterilize box
• 1 x Power-supply cable

Setup and Preparations:

• Ensure the unit is placed on a stable surface near the dental workstation.
• Connect the power supply to the unit and plug it into a suitable electrical outlet (100V-240V, 50Hz/60Hz).
• Check that the foot pedal is connected securely to the unit.
• Fill the water reservoir with a suitable sterile saline solution.
• Insert the desired tip securely into the handpiece.

Power On:

• Switch on the Surgic Smart Piezosurgery Unit using the power button.
• Verify that the unit displays the correct software version (BoneSurgical4-V1.0.0).

Adjust Settings:

• Set the desired operational mode on the control panel, if applicable.
• Adjust the power level using the appropriate controls.

Sterilization:

• Ensure that the applied parts (tips) are properly sterilized before use. Follow recommended sterilization protocols.

Positioning and Operation:

• Position the handpiece with the selected tip in the desired area for the surgical procedure.
• Use the multi-function foot pedal for control. Press to activate and release to deactivate.

Perform the Procedure:

• Apply gentle pressure and move the handpiece in a controlled manner over the target area.
• Monitor the progress of the procedure and adjust settings as needed.

Monitor Water Flow:

• Ensure a steady flow of water to the tip for cooling and irrigation during the procedure. Adjust as necessary.

Post-Procedure:

• After completing the procedure, switch off the unit using the power button.
• Disconnect the handpiece and remove the used tip for proper disposal or re-sterilization.

Cleaning and Maintenance:

• Clean the handpiece and unit according to the manufacturer's guidelines.
• Empty and clean the water reservoir after each use.

Shutdown:

• Switch off the Surgic Smart Piezosurgery Unit and unplug it from the electrical outlet.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer Warranty of 2 Year for main unit and 1 year Warranty from the date of purchase for the handpiece with its cord (from the date of invoice)
• Physical damage is not cover in any case
  Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What is the working frequency range of the Surgic Smart Unit?
Answer: The Surgic Smart Unit operates within a working frequency range of 24kHz to 36kHz, providing precision and control during surgical procedures.

Question: Are the tips used with the Surgic Smart Unit reusable?
Answer: The tips are applied parts and should be properly sterilized before each use. Refer to recommended sterilization protocols.

Question: How can I adjust the power level of the Surgic Smart Unit?
Answer: The power level can be adjusted using the appropriate controls on the unit's control panel.

Question: Can the Surgic Smart Unit be used with different power supplies?
Answer: Yes, the Surgic Smart Unit is compatible with power supplies ranging from ~100V to 240V at 50Hz/60Hz, offering versatility in different settings.

Question: How quiet is the peristaltic pump in the Surgic Smart Unit?
Answer: The peristaltic pump is ultra-quiet, minimizing operational noise to create a calm and comfortable environment for both the dentist and the patient.

Question: What is the purpose of the multi-function foot pedal?
Answer: The multi-function foot pedal allows for intuitive control of the unit, enabling seamless activation and deactivation of the surgical handpiece during procedures.

Question: How does the sterilizable water pipe benefit the surgical process?
Answer: The sterilizable water pipe ensures a consistently clean and hygienic surgical environment by providing continuous irrigation and cooling during procedures.
