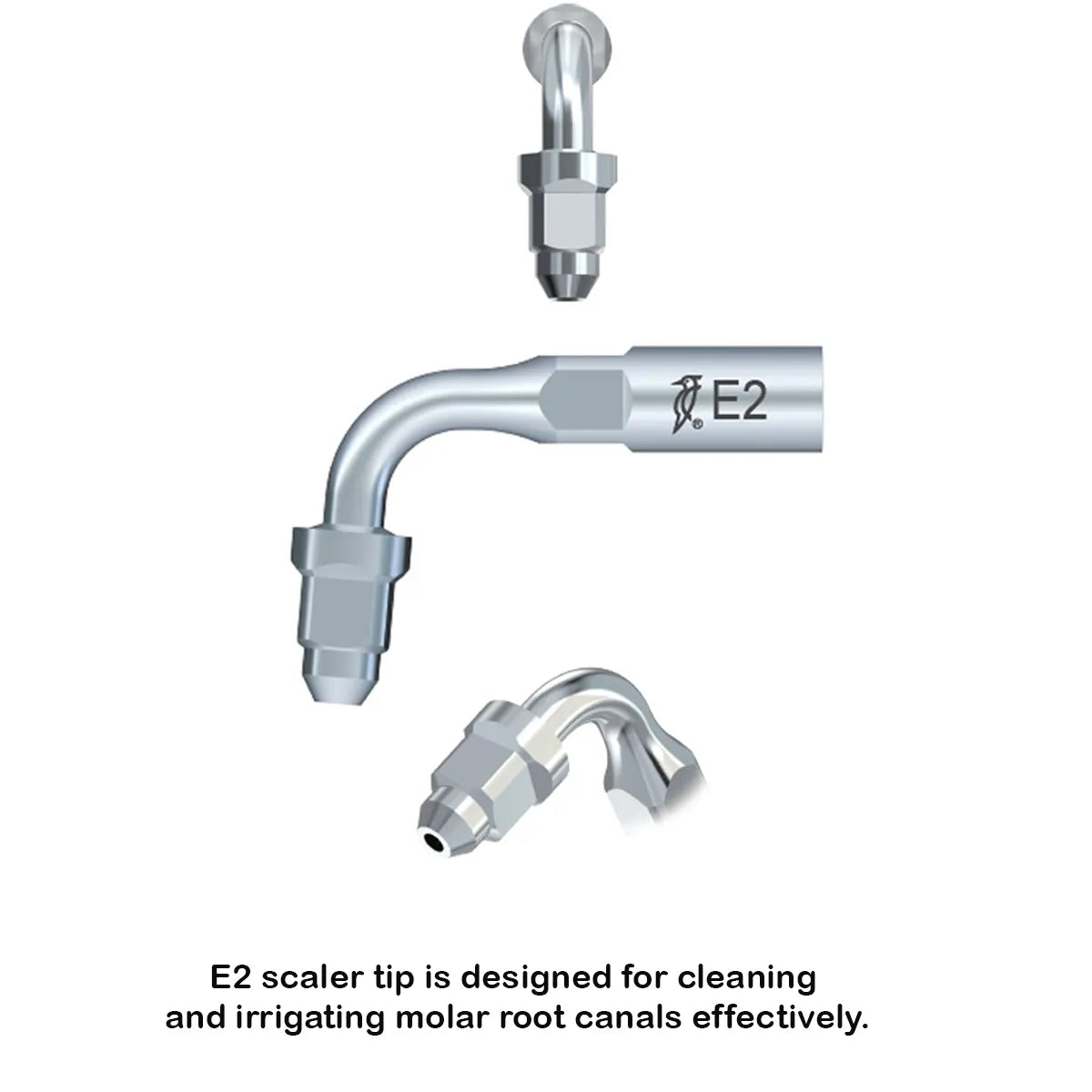

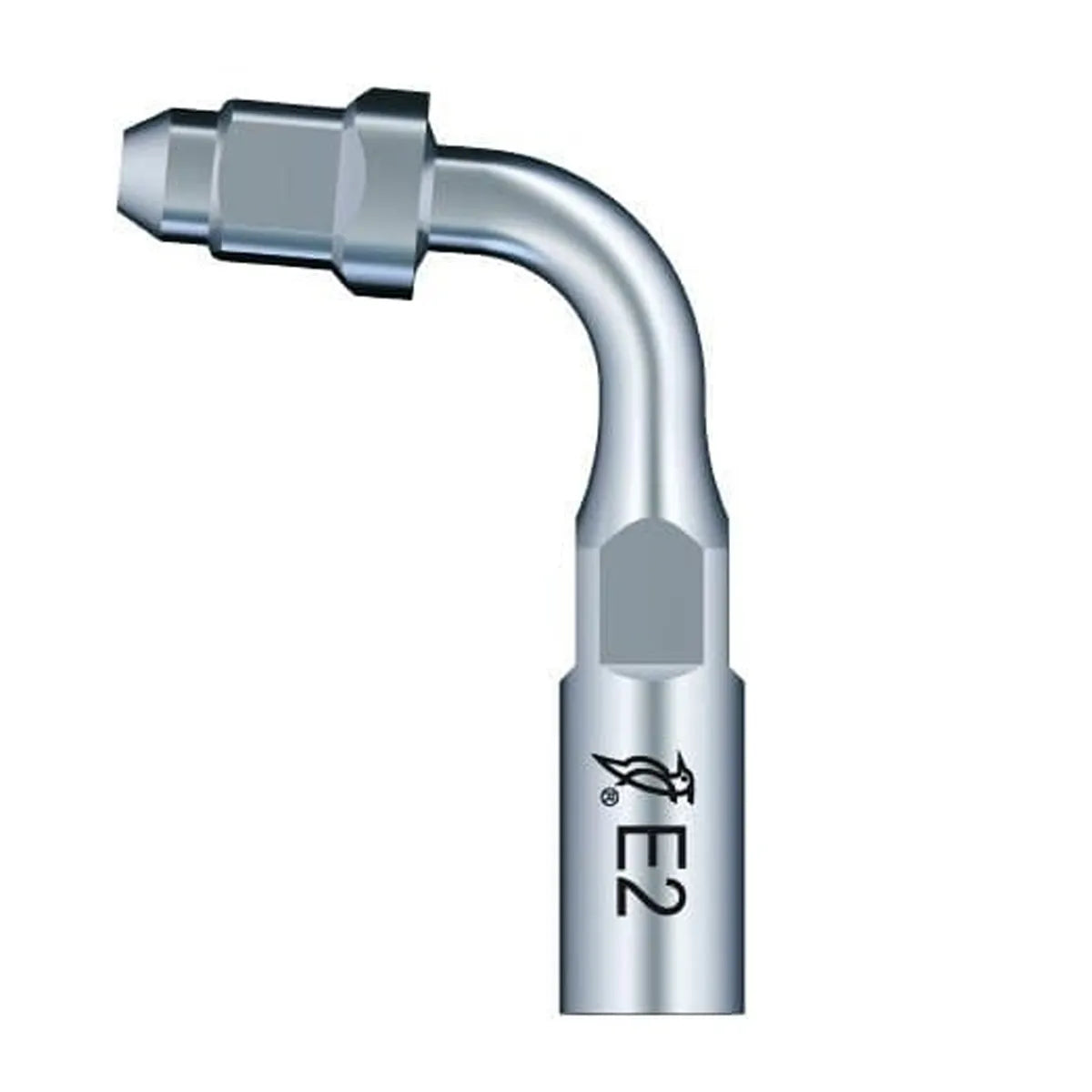

Woodpecker Scaler Tip E2 for UDS & EMS Scalers

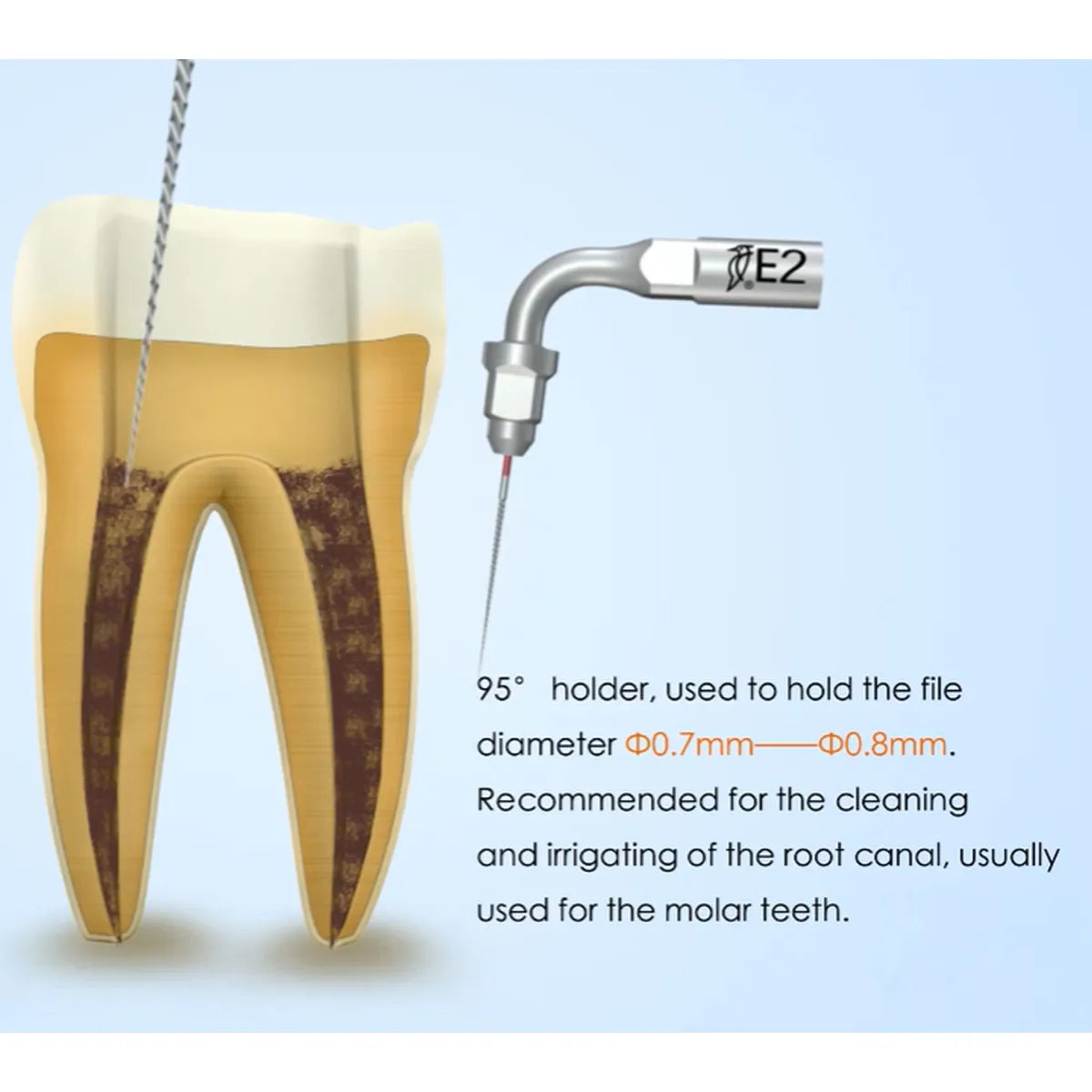

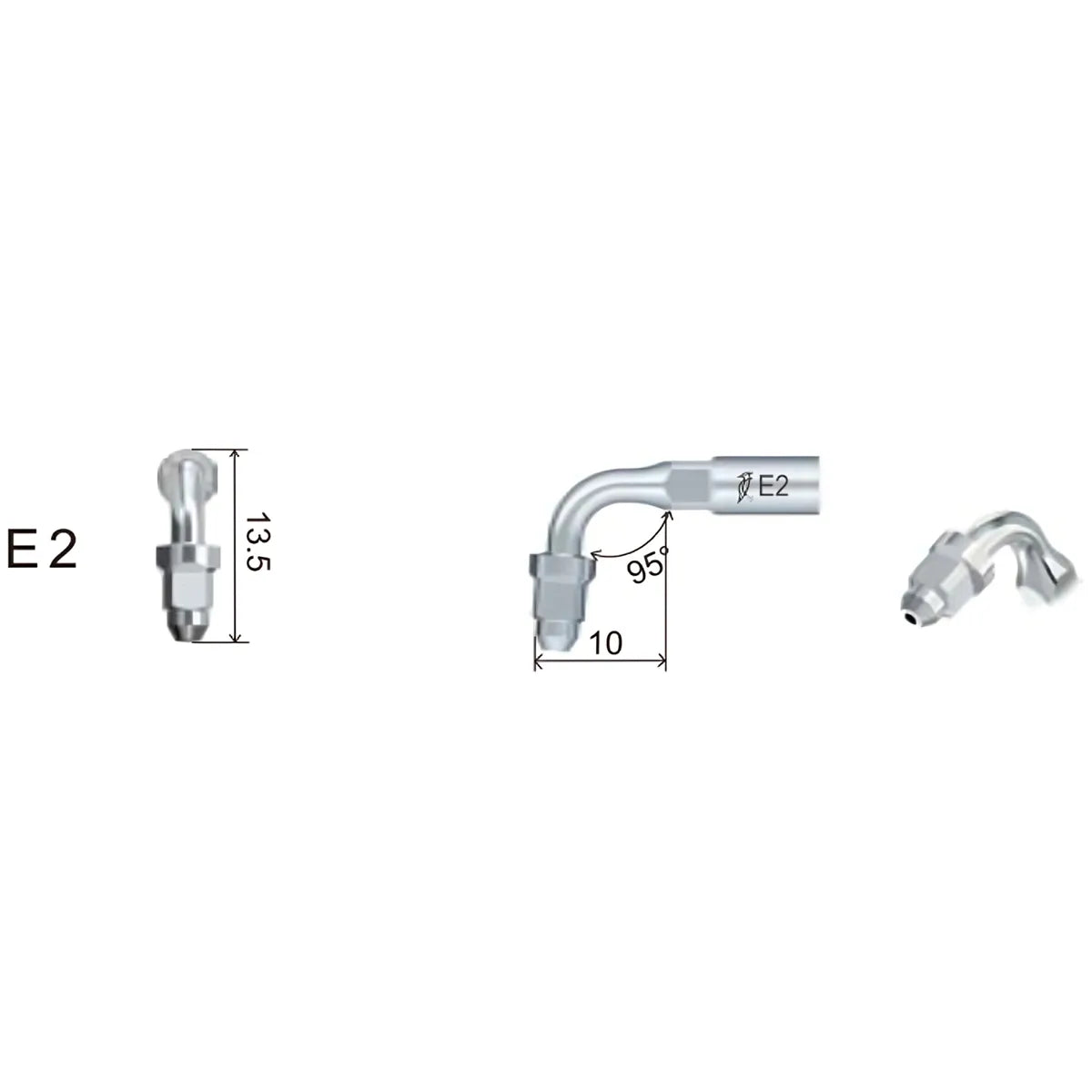

• Holder Angle: 95° holder for enhanced maneuverability during molar root canal procedures
• File Compatibility: Designed to hold file diameters of Ф0.7mm or Ф0.8mm
• Functionality: Recommended for cleaning and irrigating root canals, particularly in molar teeth
• Material: Constructed from high-quality materials for durability and effective performance
• Application: Ideal for accessing and treating molar root canal systems, facilitating thorough cleaning
• Compatibility: Compatible with UDS and EMS ultrasonic scalers, ensuring versatility in dental practices
• Weight: Lightweight design for ease of handling during procedures

• Compatibility: Compatible with EMS and UDS ultrasonic scalers
• Material: High-quality stainless steel
• Function: cleaning and irrigating root canals
• Ultrasonic Oscillation: Provides efficient scaling with micro-oscillations
• Easy Attachment: Quick and secure installation mechanism
• Sterilization: Easy to maintain and sterilize

• 1 x Scaler Tip

Preparation:

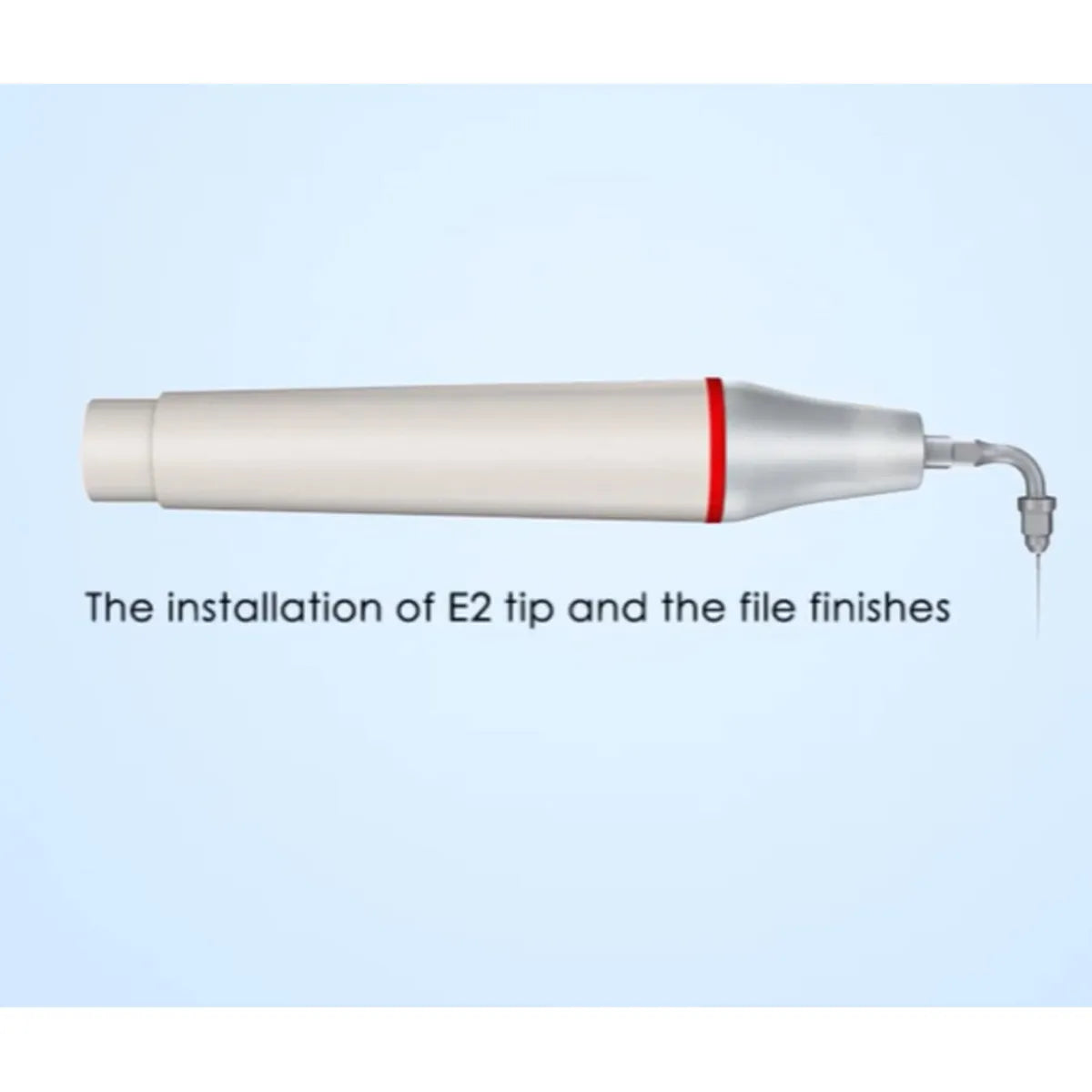

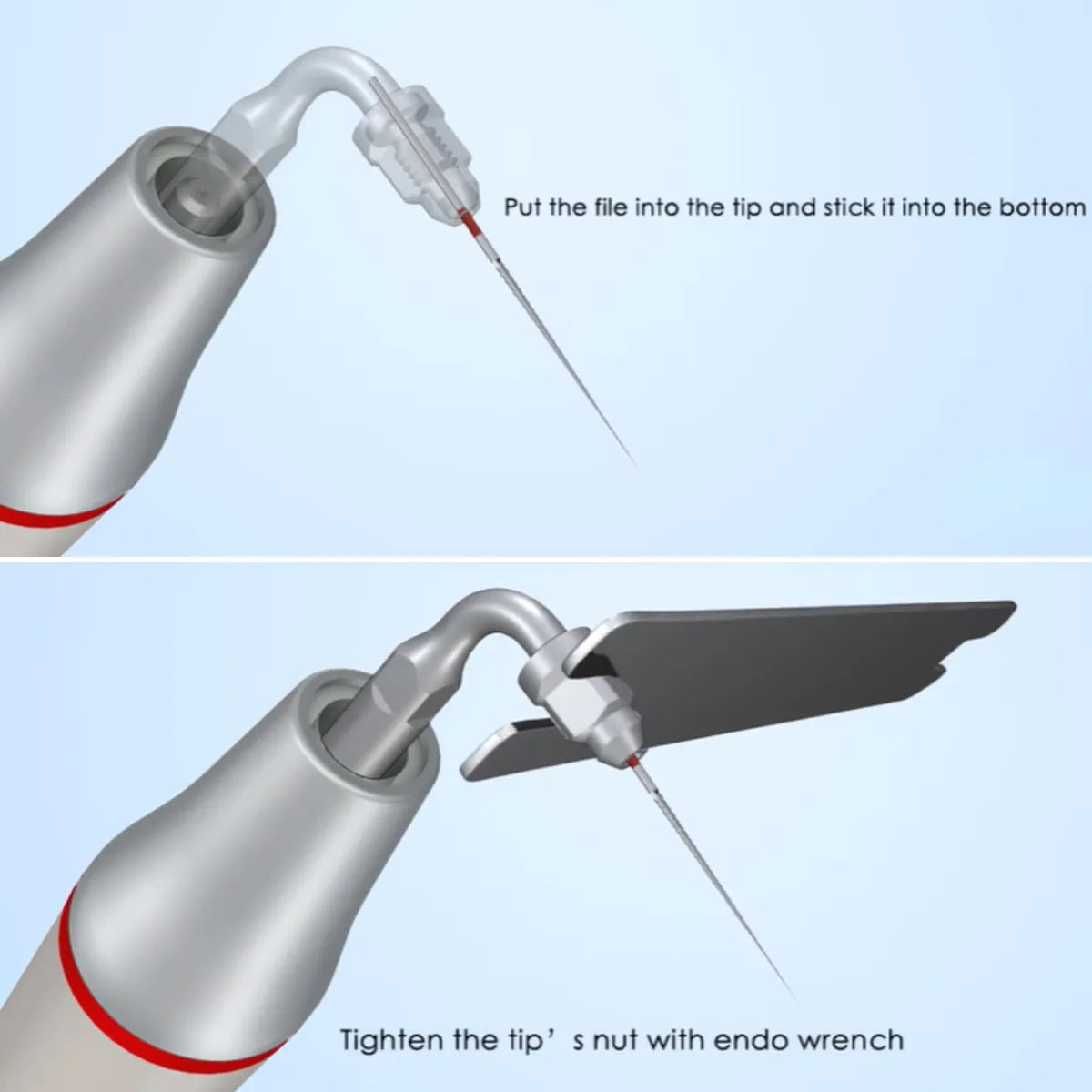

• Securely attach the E2 scaler tip to a compatible ultrasonic scaler (UDS or EMS)

Initial Settings:

• Adjust the ultrasonic scaler to a low-power setting to ensure patient comfort before increasing as needed

Patient Positioning:

• Position the patient comfortably to provide optimal access to the molar teeth

Water Flow:

• Set the water flow to ensure adequate cooling of the scaler tip during use, typically around 20 ml/min

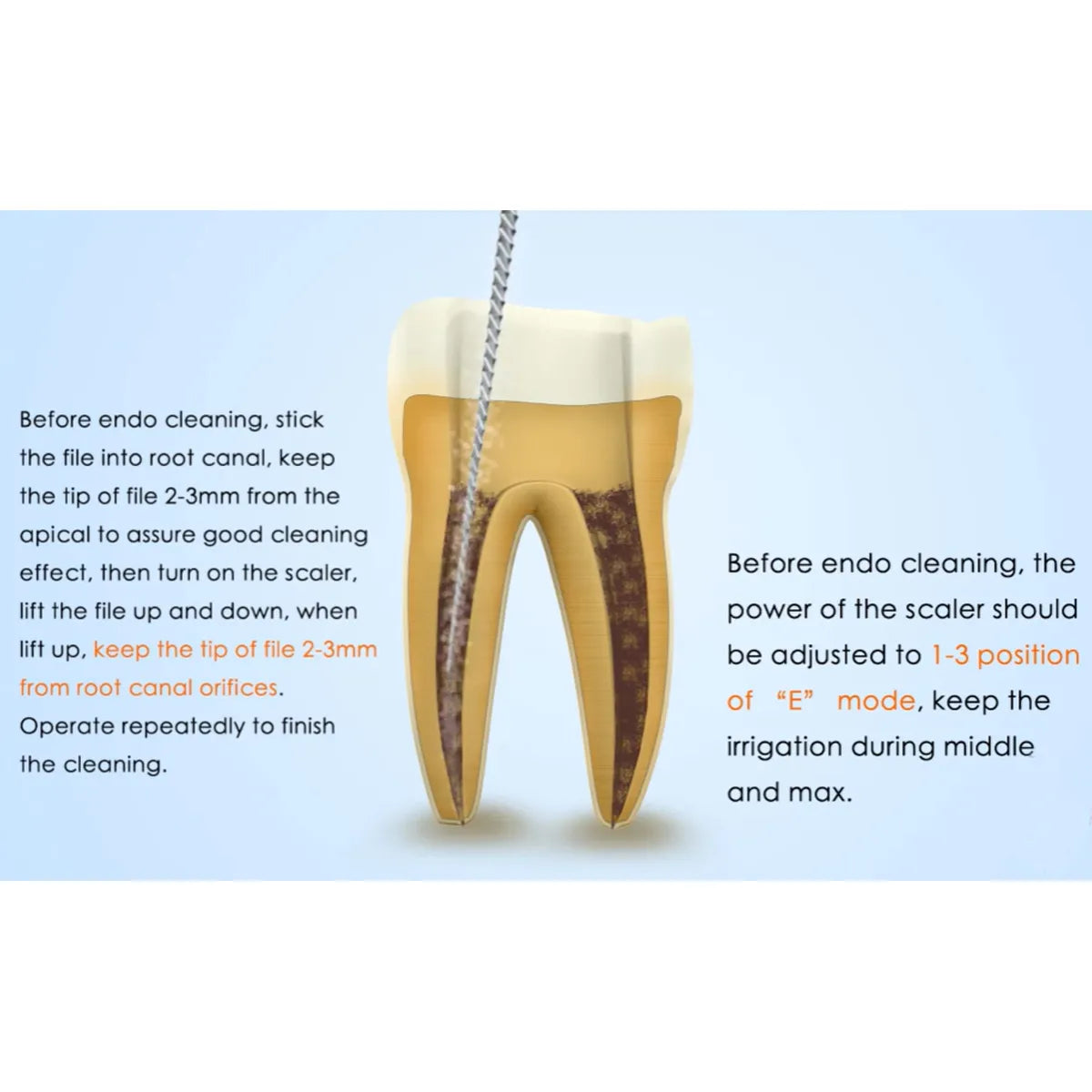

Application Technique:

• Gently insert the scaler tip into the molar root canal. Use a light, sweeping motion to clean and irrigate the canal system thoroughly. Focus on removing debris and ensuring effective irrigation

Safety:

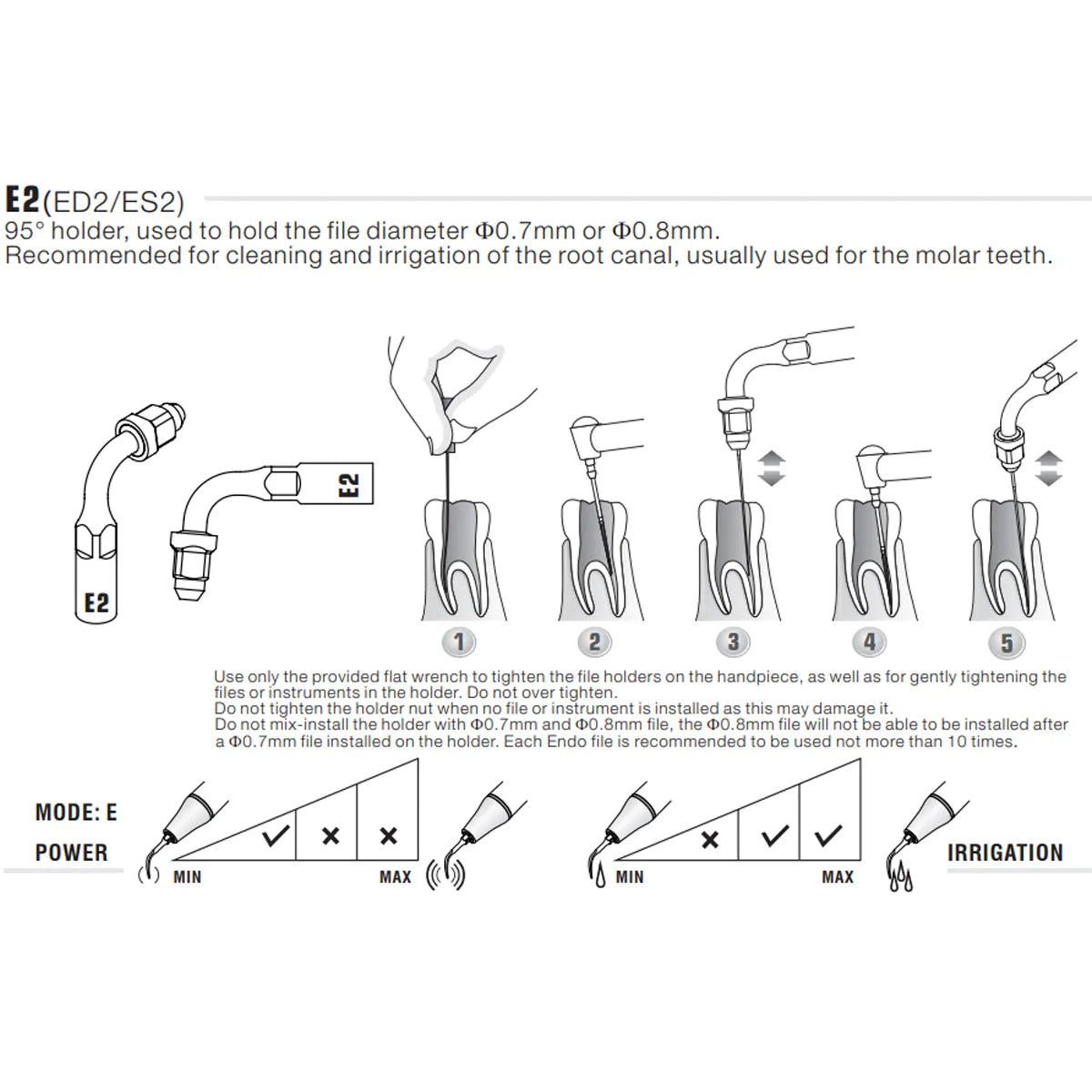

• Use only the provided flat wrench to tighten the file holders on the handpiece, and gently tighten the files or instruments in the holder. Avoid over-tightening, and do not tighten the holder nut when no file or instrument is installed to prevent damage

Cleaning:

• After each use, rinse the scaler tip to remove any debris and prevent blockages

Post-Use Care:

• Clean and sterilize the scaler tip according to standard protocols to ensure it is ready for the next use

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Warranty is not applicable for this product

Question: What is the primary use of the E2 scaler tip?
Answer: E2 scaler tip is designed for cleaning and irrigating root canals, specifically in molar teeth.

Question: What is the holder angle of the E2 tip?
Answer: E2 tip features a 95° holder, allowing for better access during molar procedures.

Question: Which file diameters is the E2 tip compatible with?
Answer: It is compatible with file diameters of Ф0.7mm and Ф0.8mm.

Question: How should the files be tightened in the holder?
Answer: Use only the provided flat wrench to gently tighten the files in the holder, avoiding over-tightening.
