Woodpecker Ultrasonic Scaler Handpiece - HD

• High-Frequency Ultrasonic Vibrations: All models deliver high-frequency vibrations for effective removal of plaque and calculus from teeth
• Ergonomic Design: The handpieces are designed for comfort, allowing clinicians to perform extended procedures without discomfort
• Integrated Water Spray System: This feature aids in cooling the handpiece and flushing away debris, enhancing visibility during scaling
• Autoclavable: All models are suitable for sterilization, ensuring hygiene and preventing cross-contamination
• Easy Maintenance: Detachable models allow for quick tip replacement and efficient cleaning processes

• Power Source Input: ~190V-230V
• Output Primary Tip Vibration Excursion: 1μm~100μm
• Output Tip Vibration Frequency: 28kHz±3kHz
• Output Half-Excursion Force: 0.1N~2N
• Tip's Output Power: 3W~20W
• Water Pressure: 0.01MPa~0.5MPa
• Environmental Temperature: +5°C~+40°C
• Relative Humidity: 30%~75%
• Atmospheric Pressure: 70kPa~106kPa
• Autoclavable: Yes, suitable for sterilization

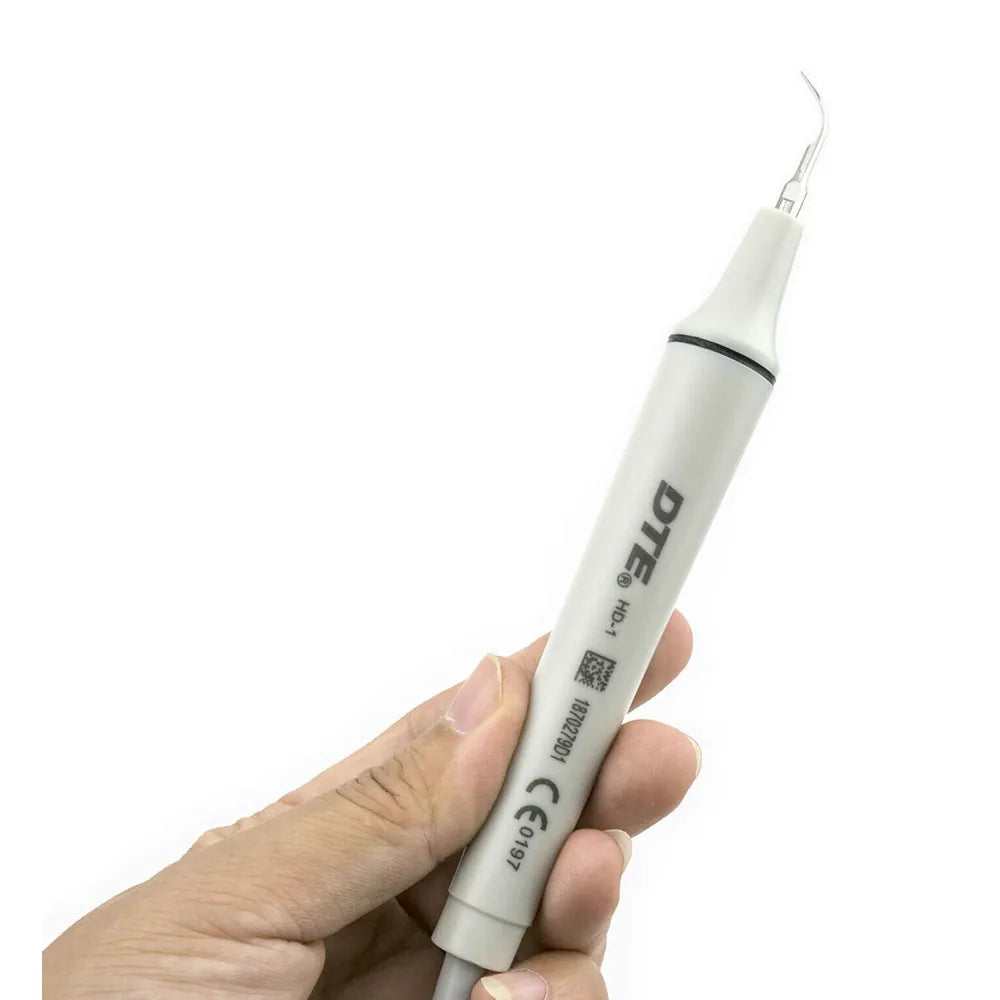

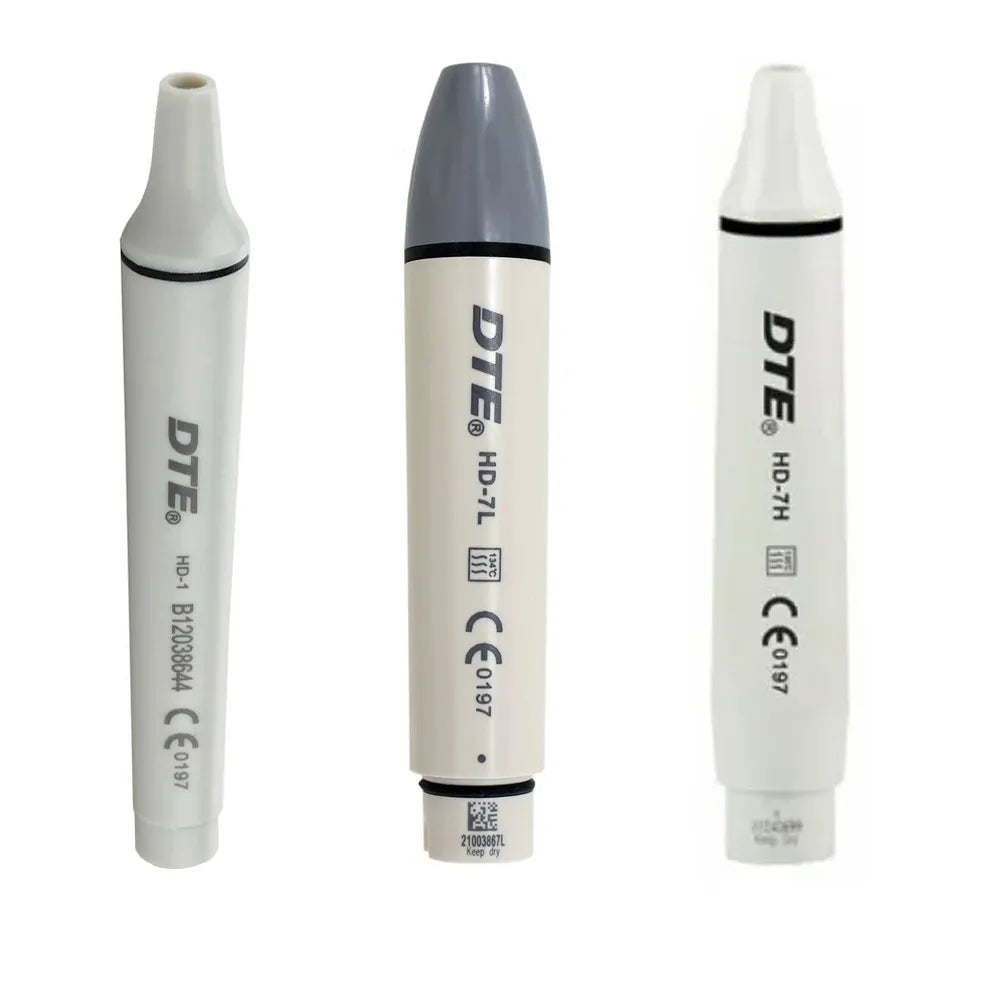

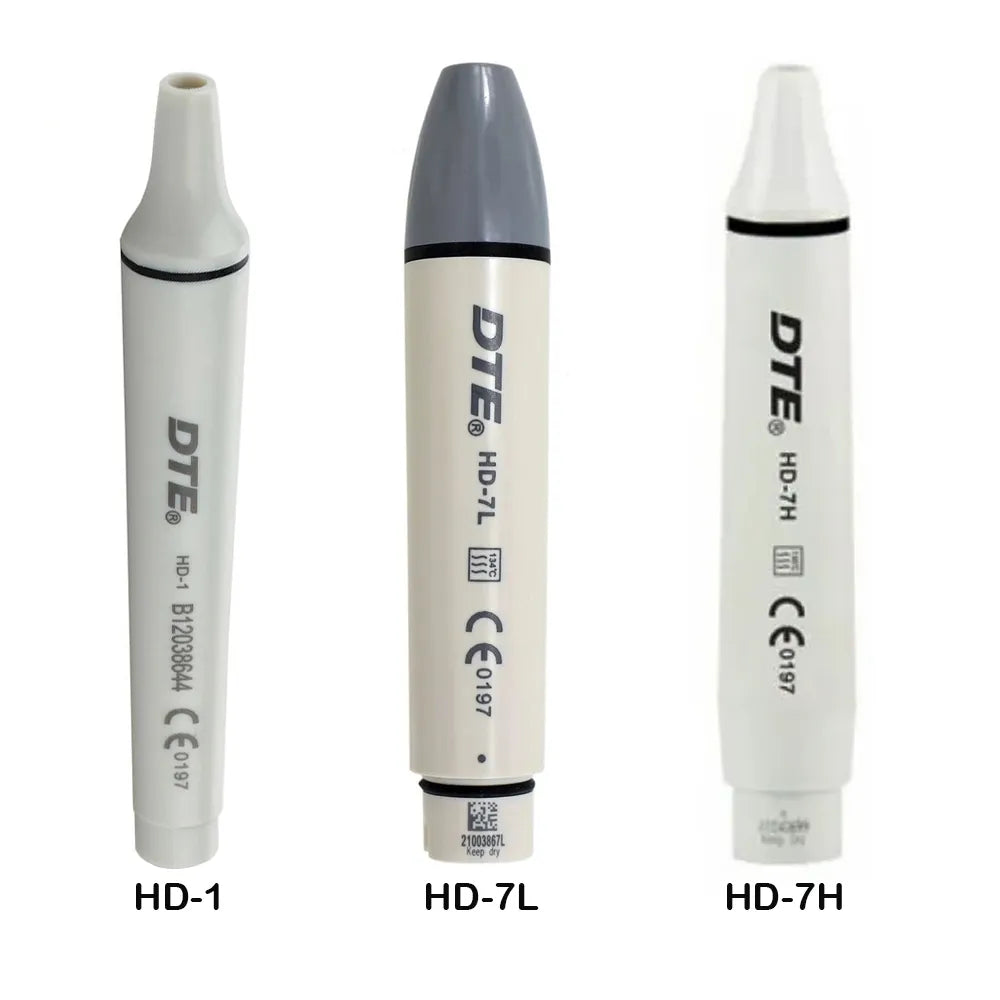

HD-1 Scaler Handpiece

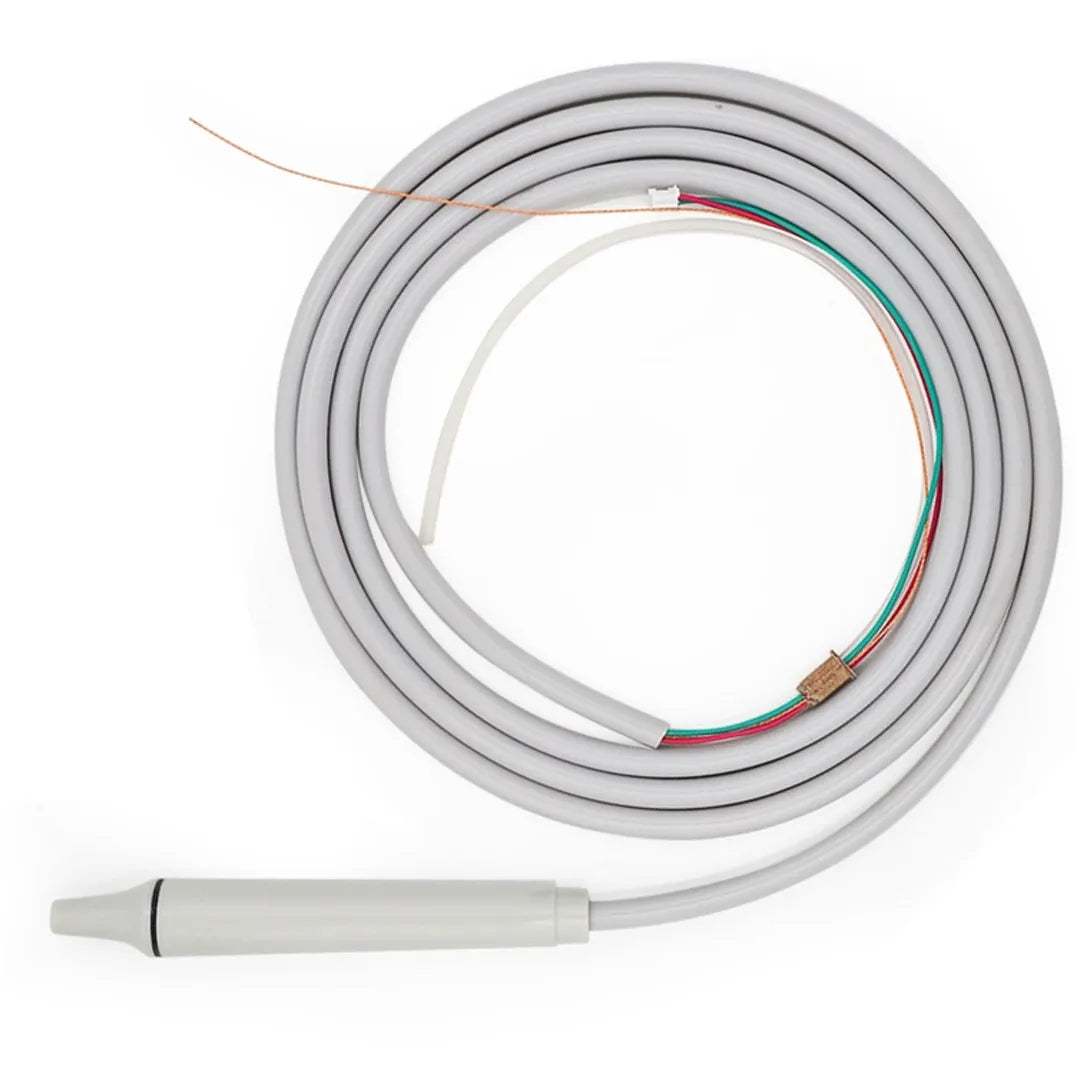

• Type: Non-detachable ultrasonic scaler handpiece
• Compatibility: Woodpecker RTA D1 Ultrasonic Scaler will also fit in DTE D3 Ultrasonic Scaler With Fixed H/P With 5 Tips
• Weight: 124g
• Length: 126mm
• Diameter: 18mm

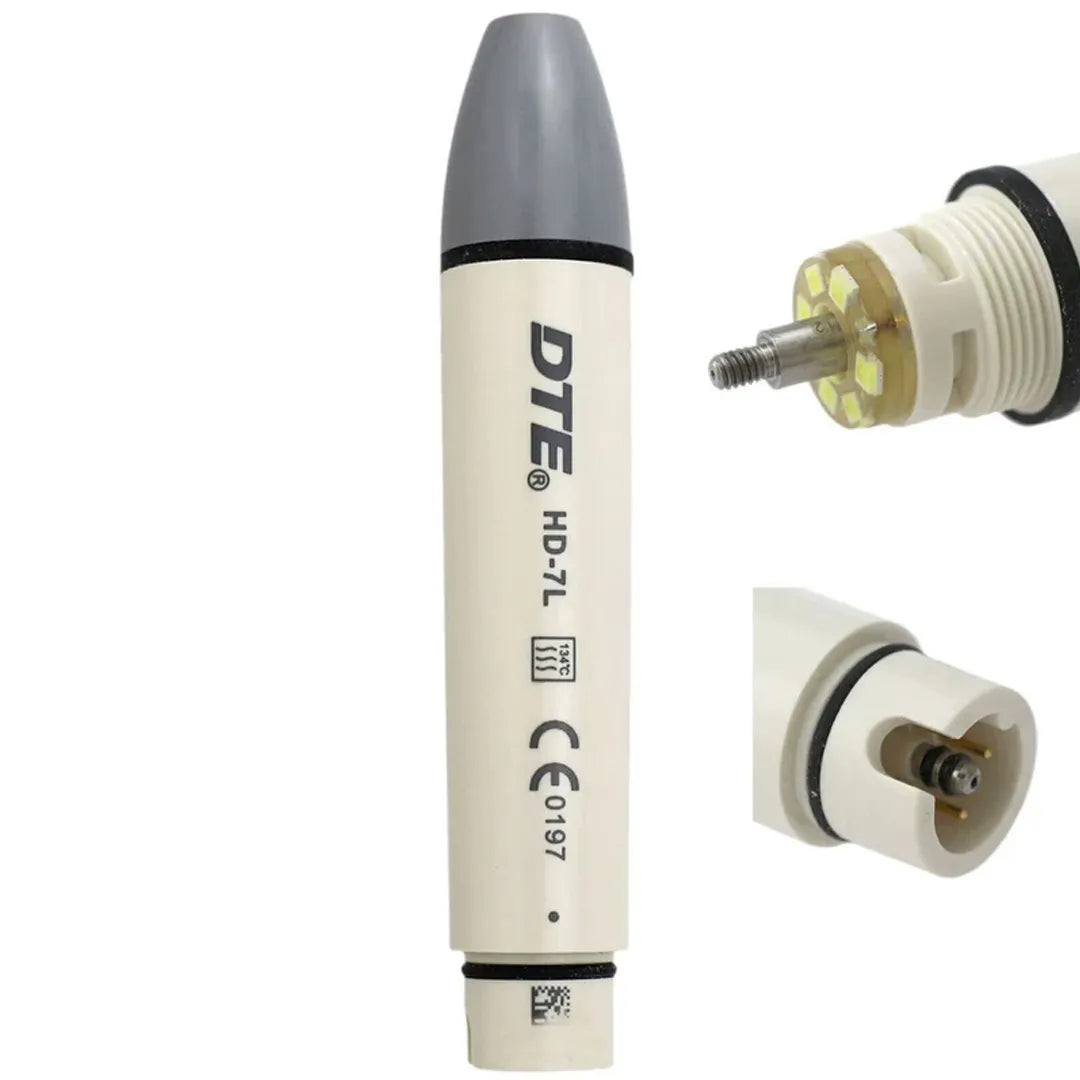

HD-7L Scaler Handpiece

• Type: Detachable ultrasonic scaler handpiece
• Compatibility: Woodpecker Dte D5 Scaler With Optic
• Weight: 57g
• Length: 111mm
• Diameter: 20.5mm

D3 Ultrasonic Scaler Handpiece (HD-7H)

• Type: Detachable ultrasonic scaler handpiece
• Compatibility: Woodpecker D3 Scaler
• Dimension: 117mmxΦ21mm
• Weight: 57g

• 1 x Scaler handpiece

• Prepare the Handpiece: Ensure that the handpiece is clean and in good working condition before starting.
• Attach the Scaling Tip: Select the appropriate scaling tip for the procedure. Align the tip with the handpiece’s threaded connection. Gently screw the tip clockwise until it is securely attached. Avoid overtightening to prevent damage.
• Connect to the Power Source: Plug the handpiece into the compatible Woodpecker scaler unit, ensuring a secure connection.
• Adjust Settings: Set the power and water flow levels according to the patient’s needs and the procedure type. For the HD-6L and HD-7L Optic model, ensure the LED light is functioning properly.
• Activate the Handpiece: Press the foot pedal to activate the handpiece. Begin scaling by using smooth, gentle motions to remove plaque, tartar, or calculus from the teeth.
• Maintain Proper Technique: Hold the handpiece with a firm, yet relaxed grip. Keep the scaling tip angled correctly against the tooth surface to avoid damaging the enamel or surrounding tissues.
• Rinse and Suction: Continuously use water spray to cool the tip and rinse debris. Utilize suction to keep the working area clear.
• Detach and Clean: After the procedure, carefully unscrew and remove the scaling tip.Clean the handpiece and tip thoroughly to remove any debris or residue.
• Sterilize: Sterilize the handpiece and tips according to the guidelines to maintain hygiene and prevent cross-contamination.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 year as applicable for this product.
• Physical Damage is not covered in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Does the Woodpecker Scaler Handpiece HD-7L come with LED?
Answer: Yes, indeed, the Woodpecker Scaler Handpiece HD-7L includes LED lighting, providing enhanced visibility during procedures for improved precision and comfort.

Question: How is the Woodpecker HD handpiece used for scaling procedures?
Answer: The handpiece is attached to a compatible scaler unit and equipped with a scaling tip. It is then used to remove plaque, calculus, and stains from the teeth by applying ultrasonic vibrations to the tooth surface.

Question: Is the handpiece compatible with all Woodpecker scaler units?
Answer: Yes, the HD series handpieces are compatible with Woodpecker scaler units, but it's advisable to check the specific model compatibility.

Question: Is the HD handpiece suitable for all types of scaling procedures?
Answer: Yes, the HD handpiece is versatile and can be used for various scaling procedures, including removing plaque, calculus, and stains.
