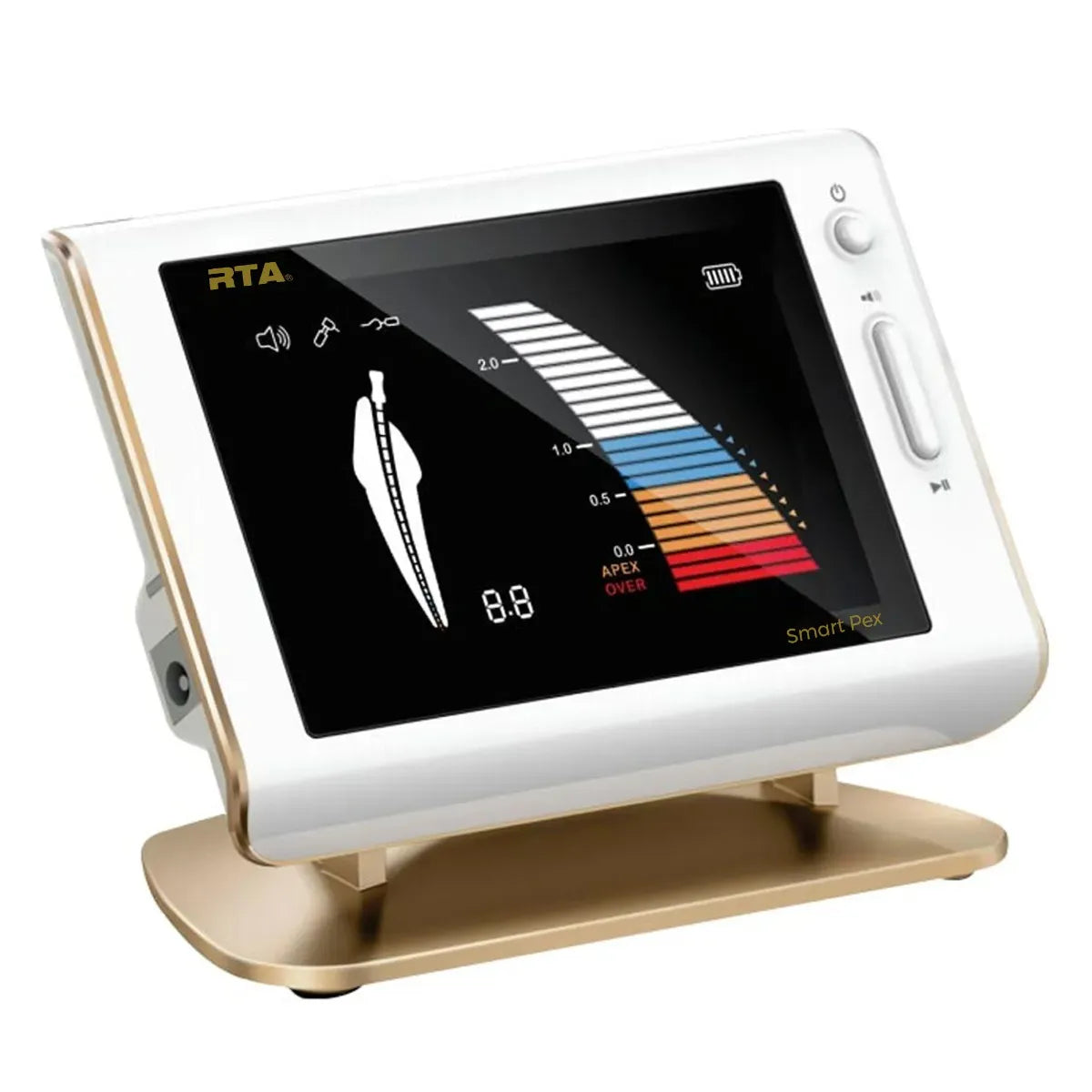

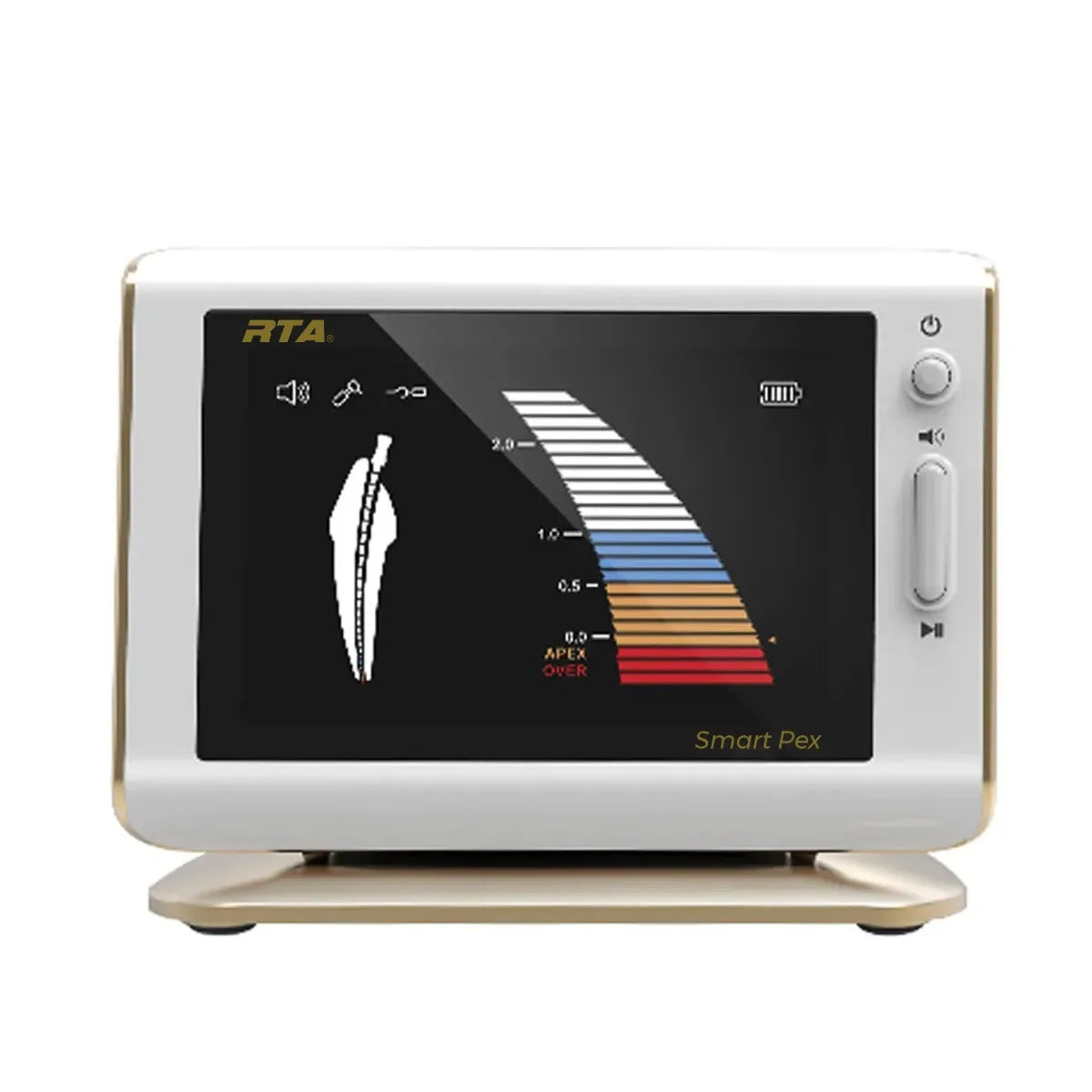

Woodpecker RTA Smart-Pex Apex Locator

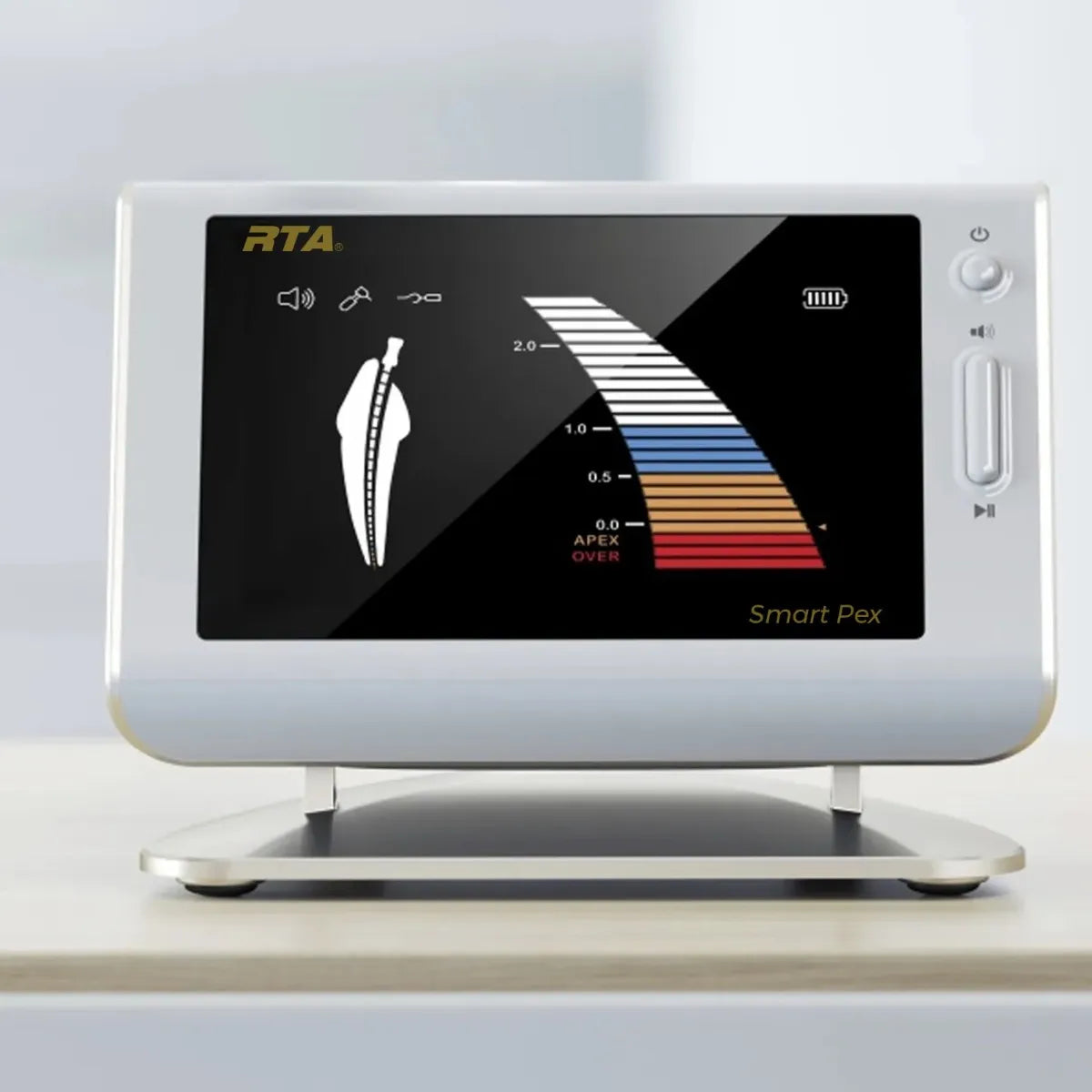

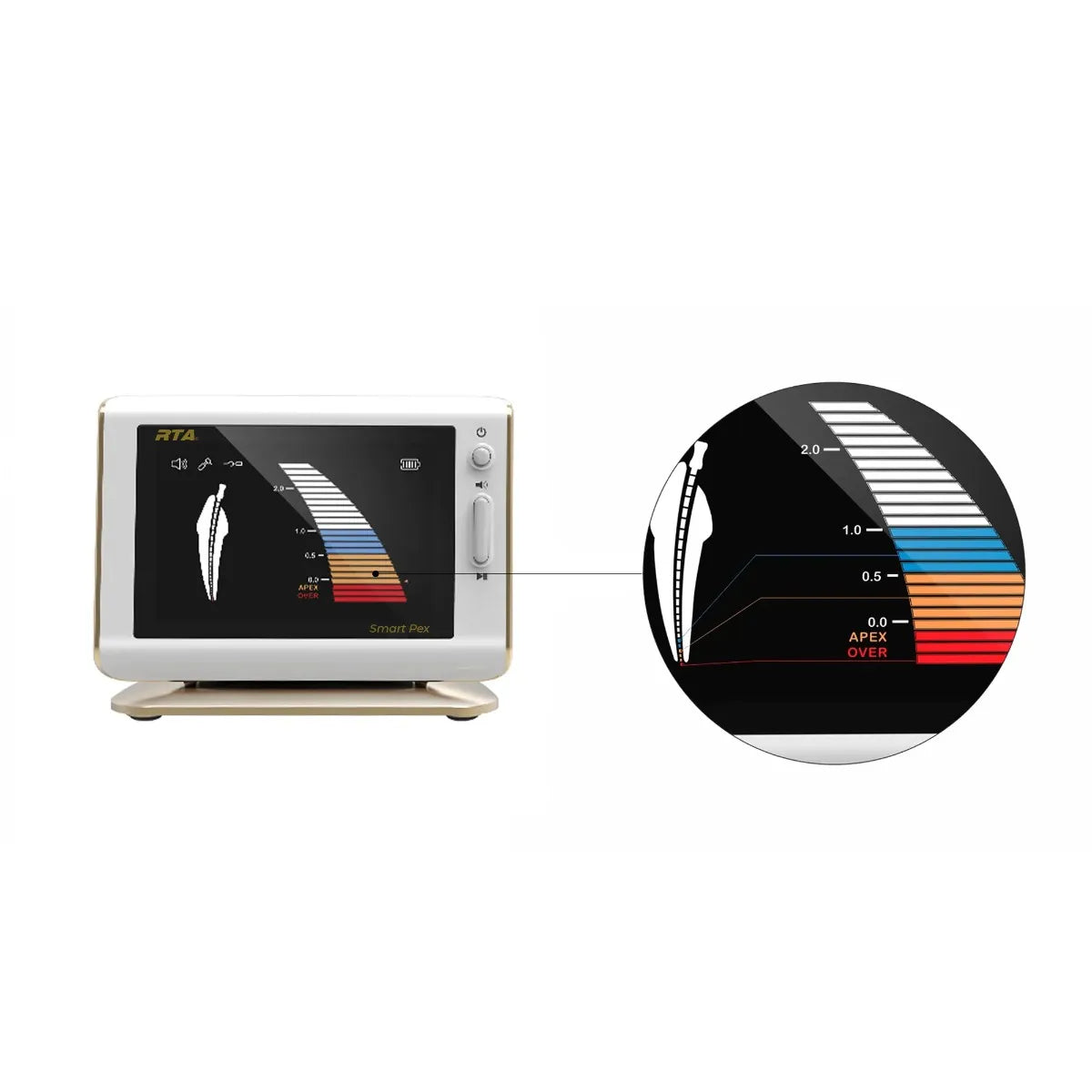

• Clear bright LCD for a clear image & different colors to clearly shape the trajectory of the file
• Multi-frequency apical position technology for accurate measurement
• Accurate reading even in the presence of blood or residual pulp in the root canal
• Measurement will not be affected by the tooth type
• Based on advanced multiple-frequency network impedance measurement technology and automatic calibration ensures that the measurements are accurate
• Autoclavable file clip, lip hook, file probe
• Avoiding cross-infection effectively
• When doing the measurement, the changes in the sound can indicate the position of the file in the root canal

• Battery: 3.6V/750mAh
• Dimensions: 185mm x 160 x 105mm
• Main unit weight: 385gm
• Input: 100V-240V 50Hz/60Hz 0.4A Max
• Output: 5V___1A
• Screen: 4.5" LCD

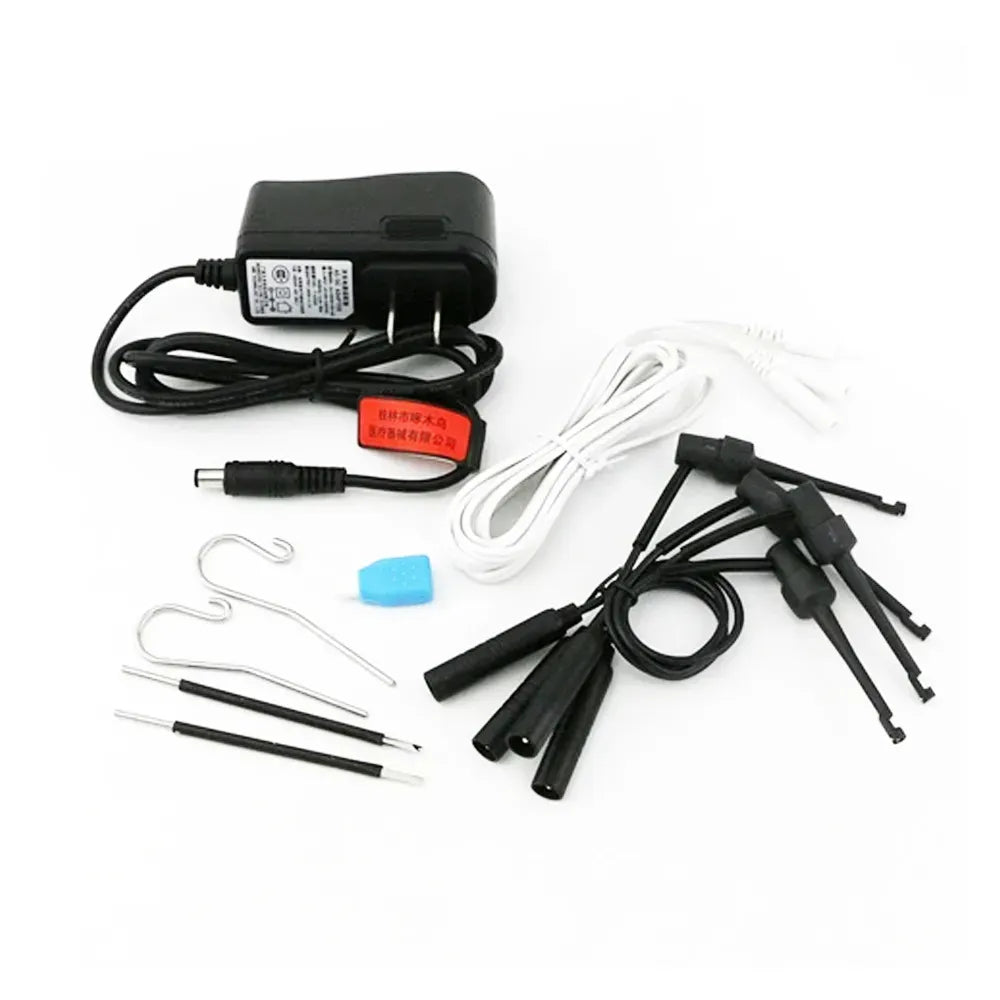

• 1 x Main Unit
• 1 x Measuring Wire
• 2 x File Clip
• 2 x Lip Hook
• 2 x Measuring File
• 1 x Adapter
• 1 x Tester
• 1 x Battery
• 1 x Instruction Manual
• 1 x Qualified Certificate
• 1 x Warranty Card
• 1 x Packing List

Preparation:

• Ensure the device is fully charged or connected to a power source
• Attach and autoclave the necessary accessories for sterilization
• Clean the LCD screen for clear visibility

Patient Preparation:

• Inform the patient about the procedure and obtain consent
• Confirm absence of contraindications such as pacemakers or metal allergies
• Administer appropriate anesthesia

Device Setup:

• Turn on the apex locator and allow initialization
• Adjust screen brightness as needed

Apical Positioning:

• Select suitable file size for treatment
• Gently insert the file into the root canal until reaching the apical constriction
• Attach the file clip and secure with the lip hook

Measurement Procedure:

• Observe real-time display on the LCD screen
• Listen for sound changes indicating file position

Reading and Recording:

• Note measurement once apex reached
• Carefully remove file and record working length

Post-Procedure:

• Clean and disinfect accessories
• Turn off device and store safely

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 year as applicable for this product including on PCB (Power Circuit Board)
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What generation is the apex locator in the Woodpecker RTA Smart-Pex Apex Locator?
Answer: The apex locator in the Woodpecker Smart-Pex system is a 5th generation apex locator. This advanced technology enhances accuracy in root canal procedures, improving clinical outcomes and patient care.

Question: Is the device suitable for all types of root canals?
Answer: Yes, the Fifth Generation Apex Locator is designed to be compatible with various types of root canals, providing accurate measurements regardless of canal anatomy or conditions.

Question: How long does the battery last on a single charge?
Answer: The battery life of the Fifth Generation Apex Locator depends on usage, but it typically lasts for multiple procedures before needing to be recharged.

Question: How often should the device be calibrated?

Answer: The Fifth Generation Apex Locator typically requires calibration according to manufacturer guidelines, which may vary depending on usage and environmental factors. Regular calibration ensures accurate and reliable measurements.
