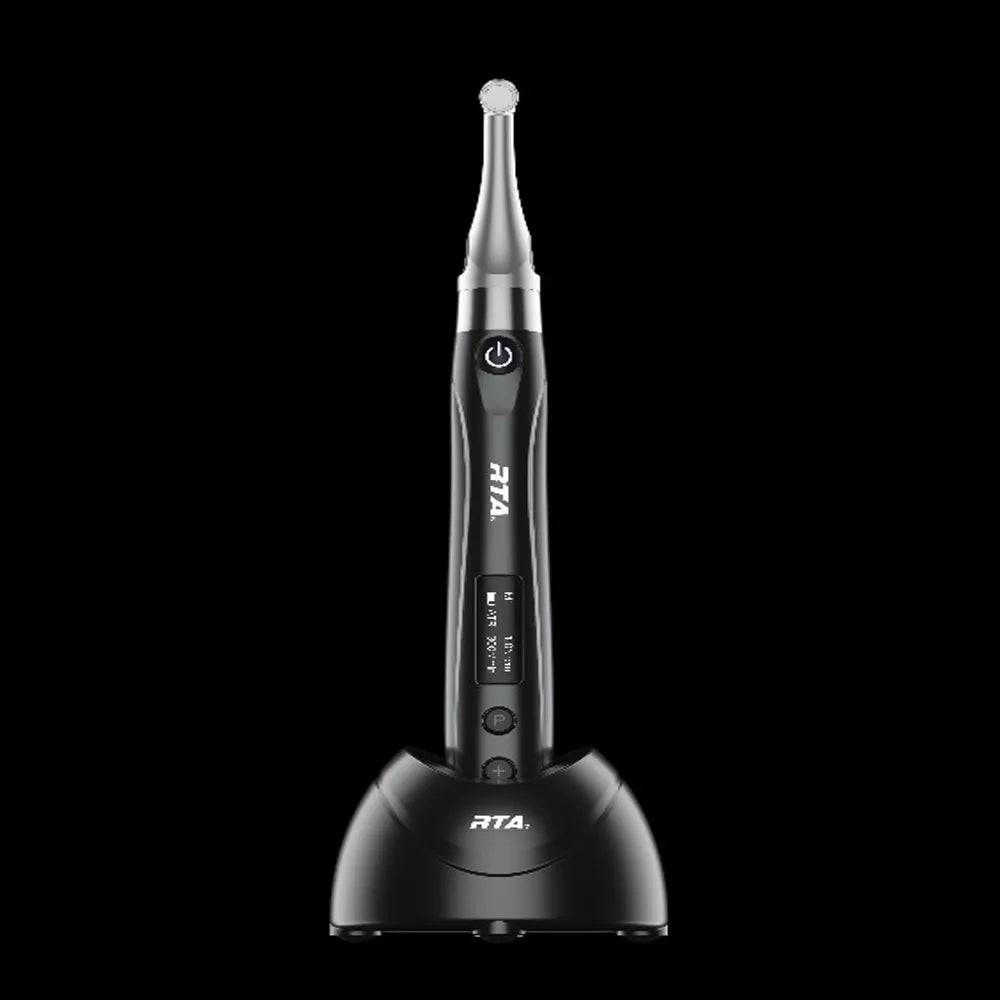

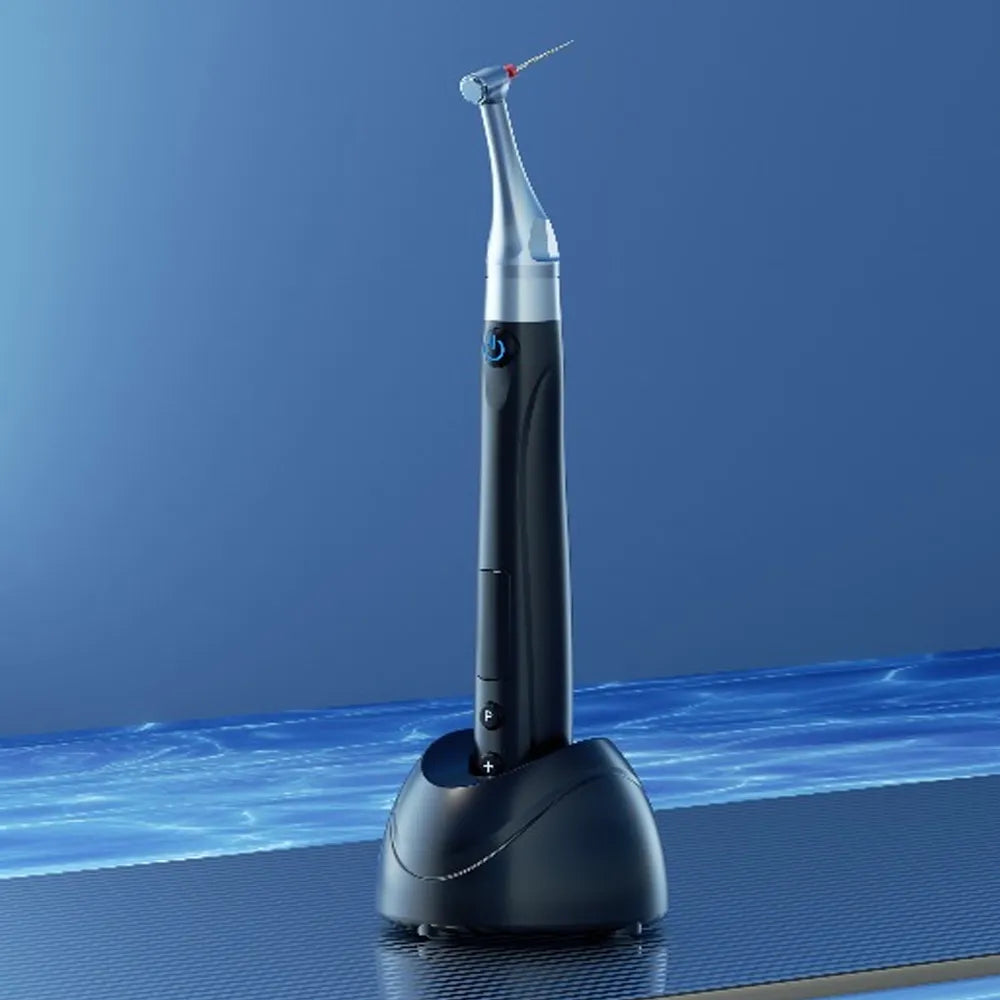

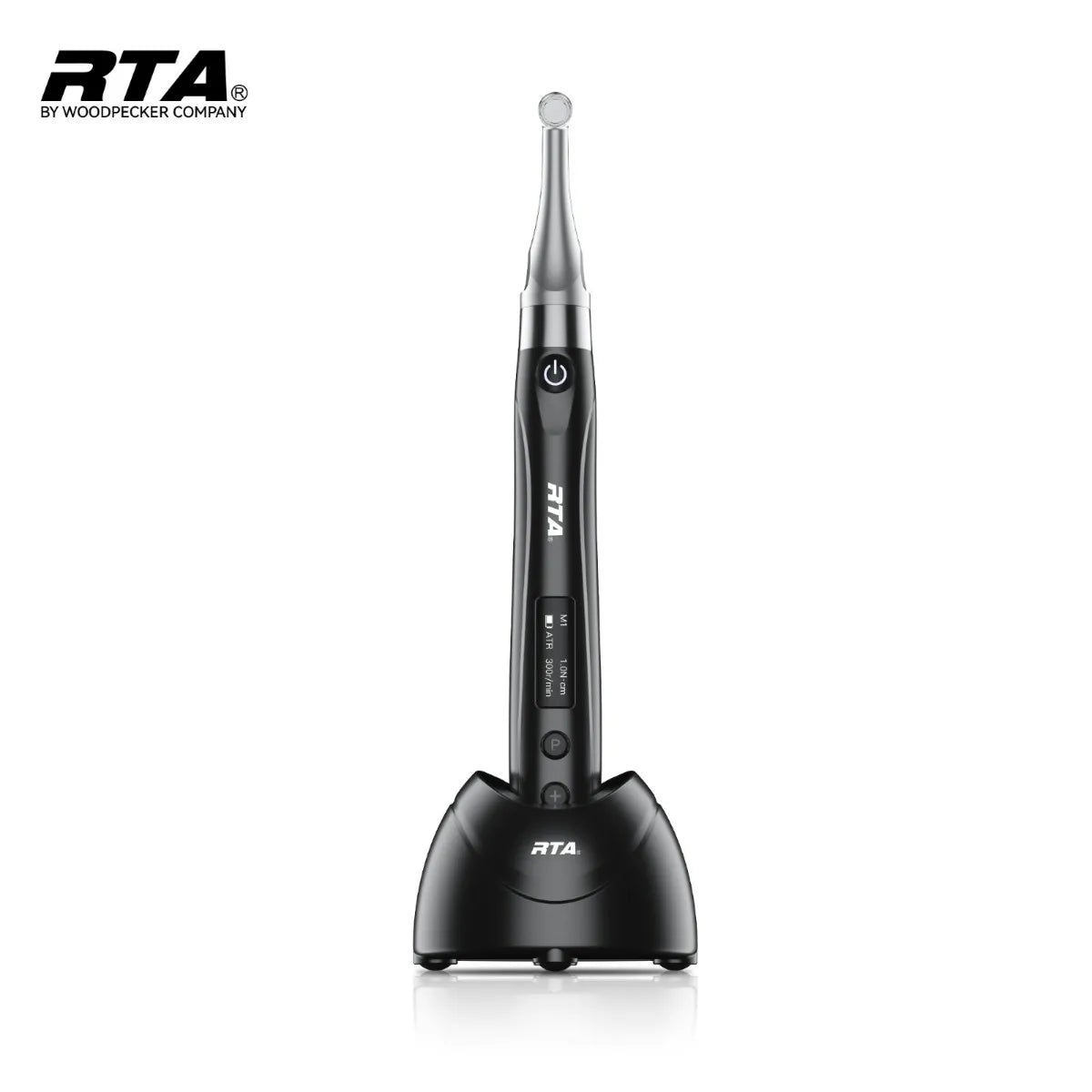

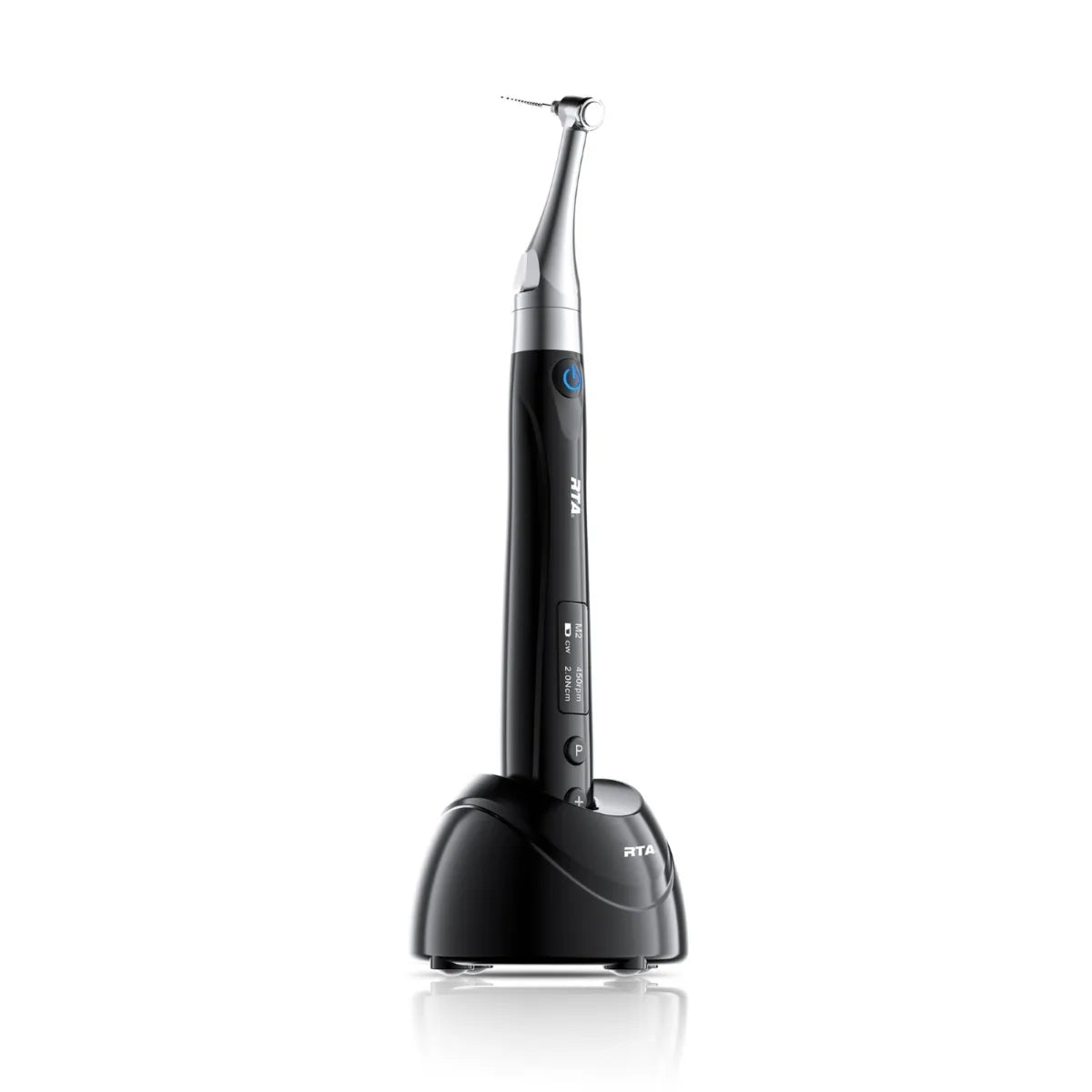

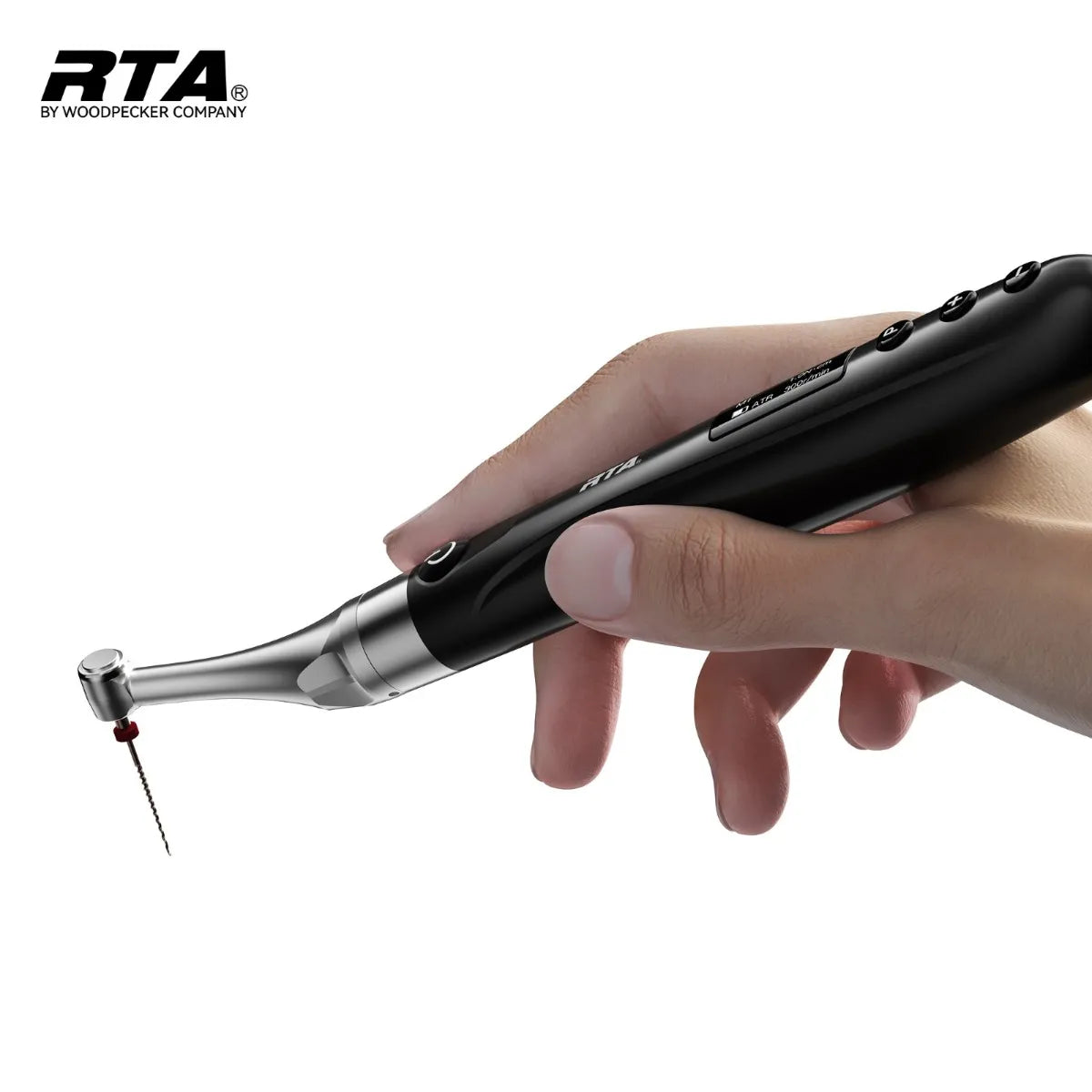

Woodpecker RTA MiniMotor Brushless Endomotor

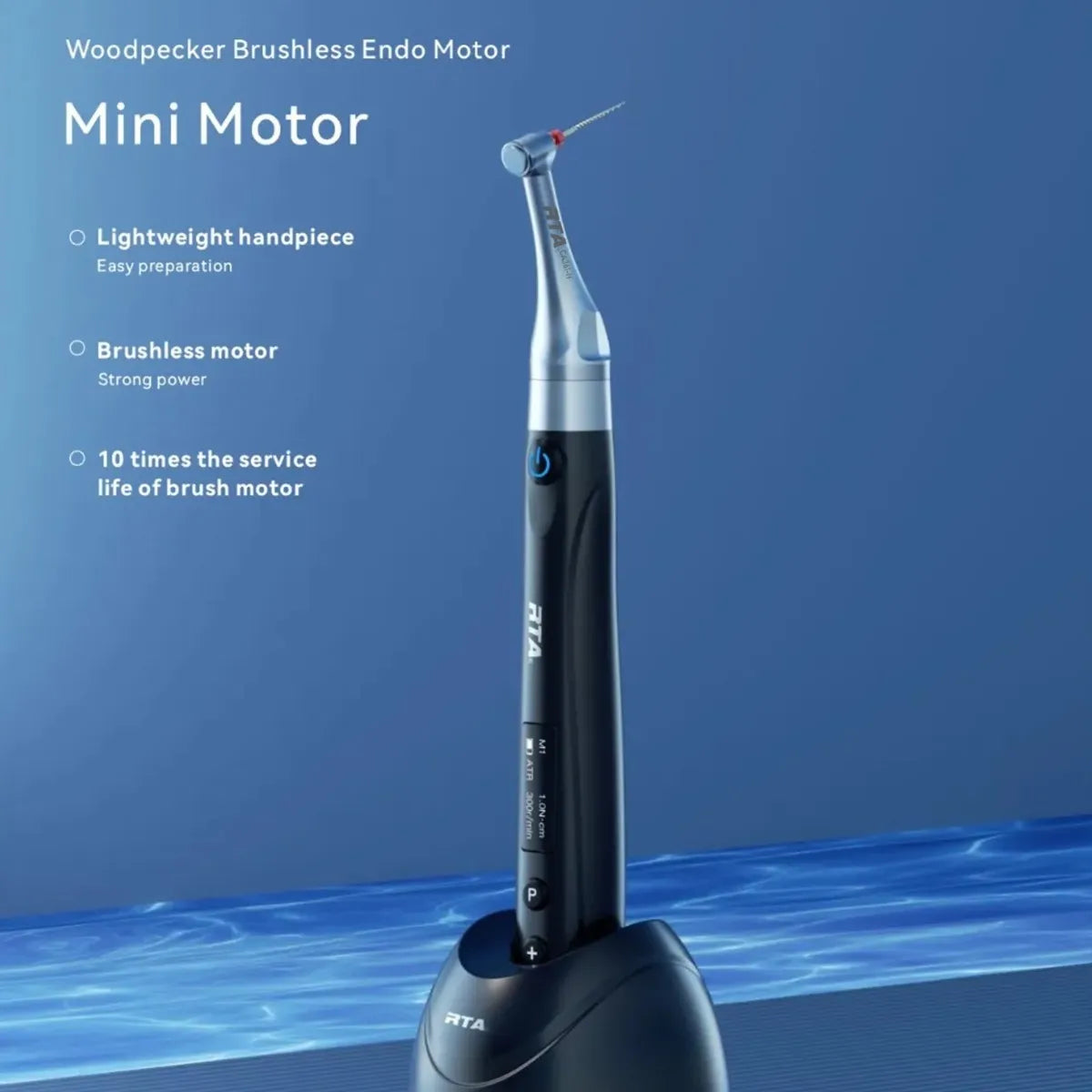

• High-performance brushless motor for strong power.
• Extended service life, 10 times longer.
• Low wear and heat for durability.
• Adjustable reciprocating angle for precision.

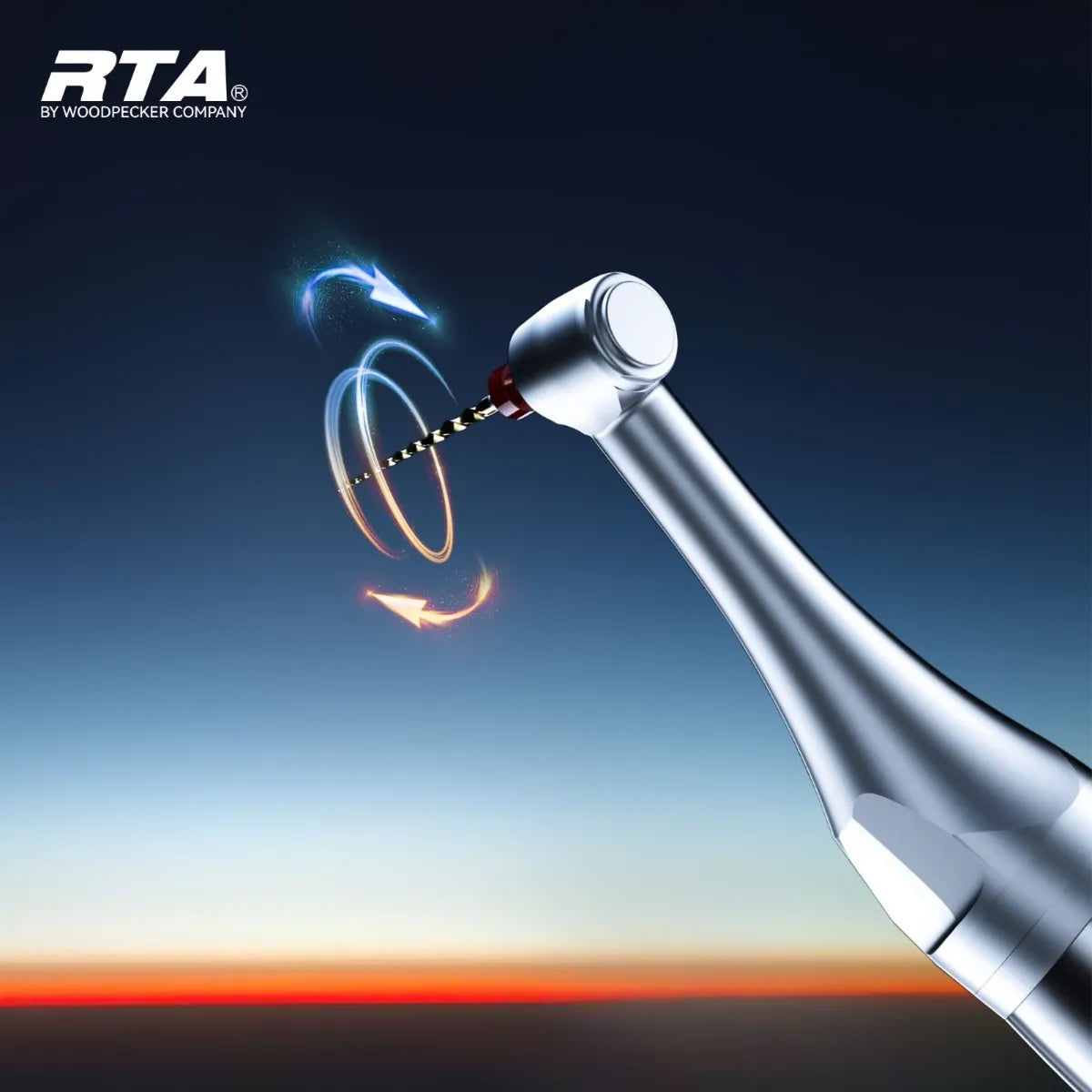

• Compact 6:1 contra-angle for flexibility.
• Wireless, cordless operation for convenience.
• Four working modes for versatile use.
• Apex Locator compatible for enhanced accuracy.

• Motor Type: Brushless motor
• Speed Range: 100r/min - 1500r/min
• Torque Range: 0.4N·cm - 4.2N·cm
• Service Life: 10 times longer than brush motors
• Rotation: Smoother, lower noise

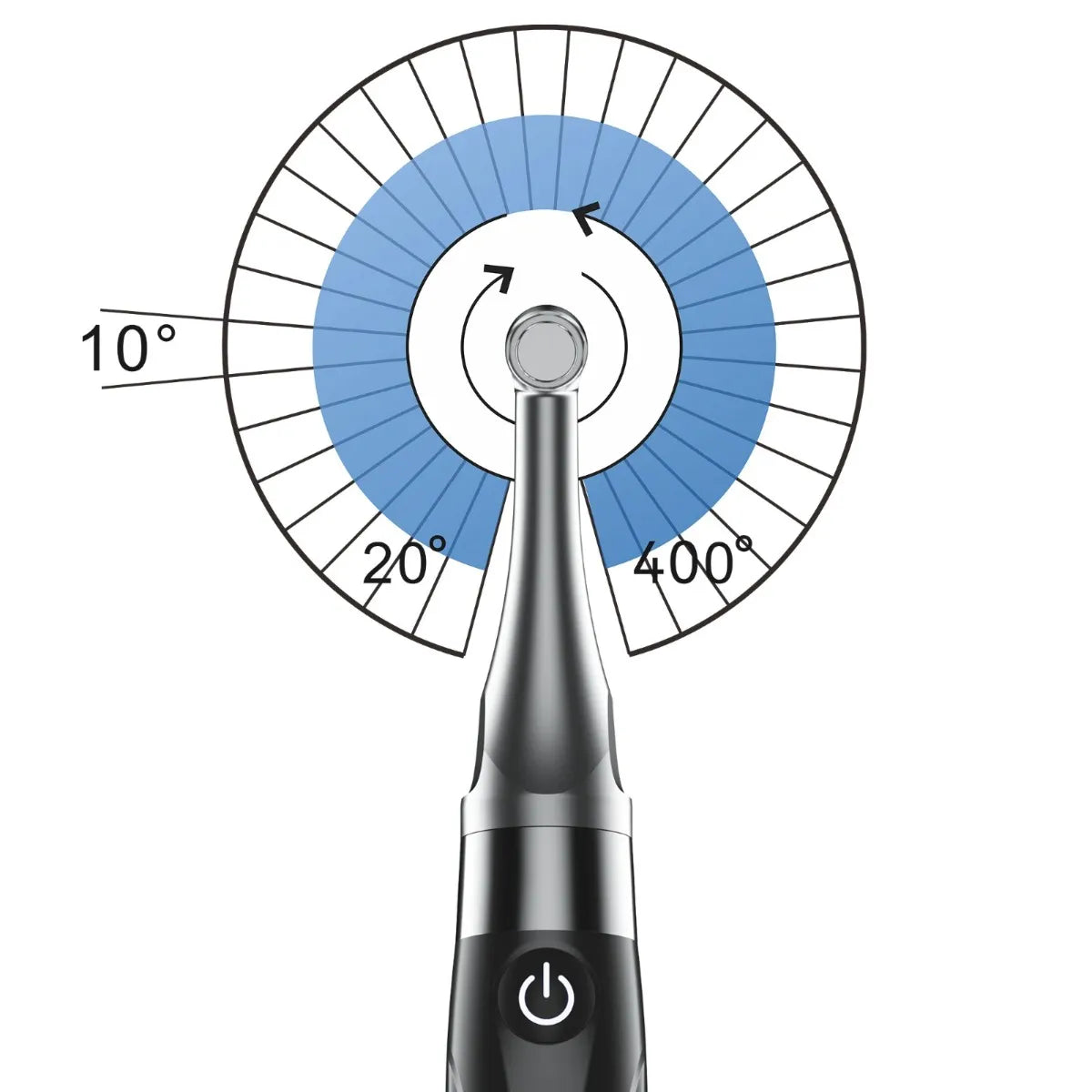

• Adjustable Reciprocating Angle: 10° intervals
• Forward & Reverse Reciprocating Angle: 20° - 400°
• Speed Ratio: 6:1
• Head Height: 9.7mm
• Head Diameter: 8mm
• Neck Diameter: 6mm
• Contra-angle Rotation: 360° rotatable
• Working Modes: Forward, Reverse, Reciprocating, ATR
• Control: Wireless
• Operation Field: Broader with 6:1 speed ratio
• Apex Locator Compatibility: Yes

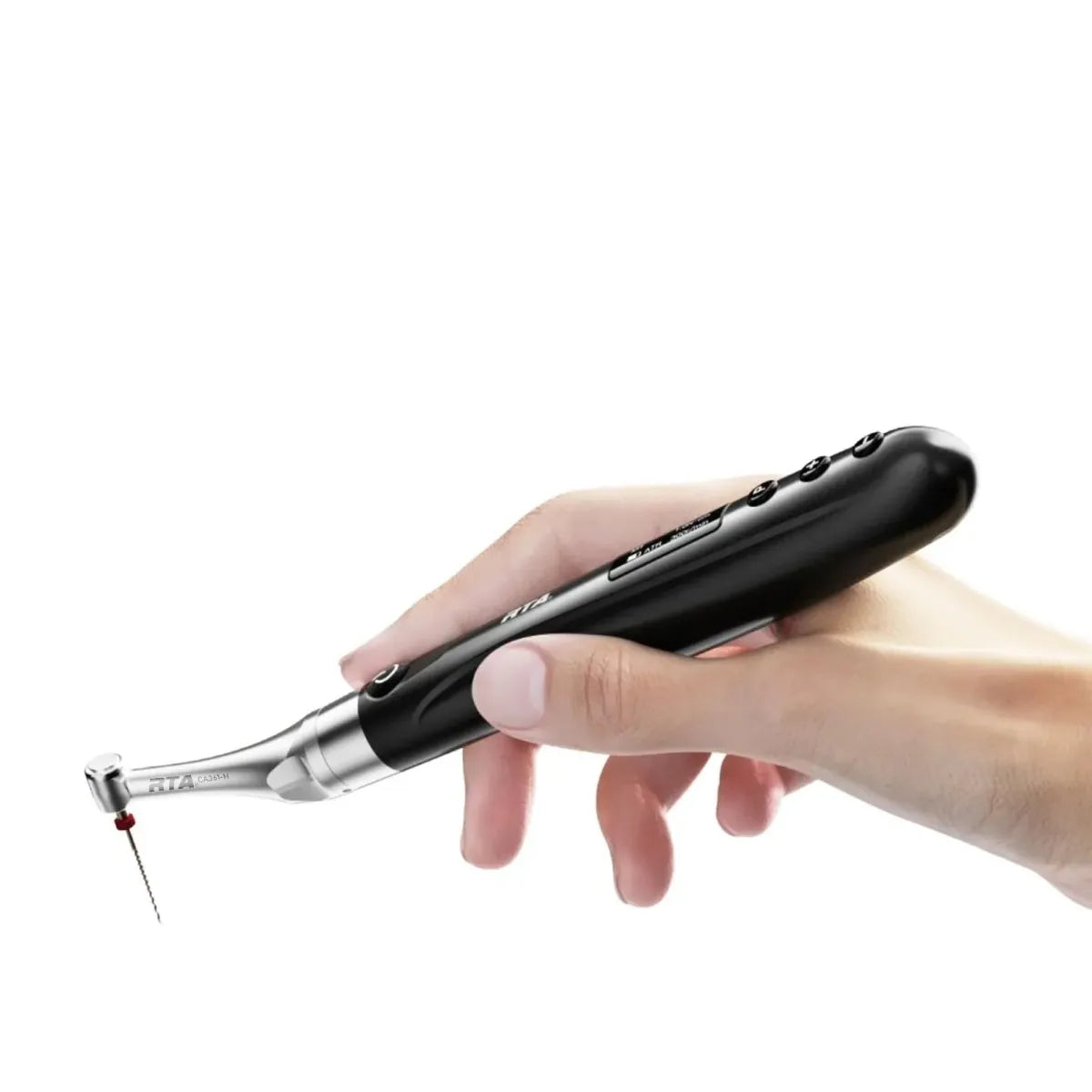

• Design: Lightweight, cordless, well-balanced
• Preparation Efficiency: High torque and fast response
• Safety Features: Accurate angle control, reduced instrument separation risk.

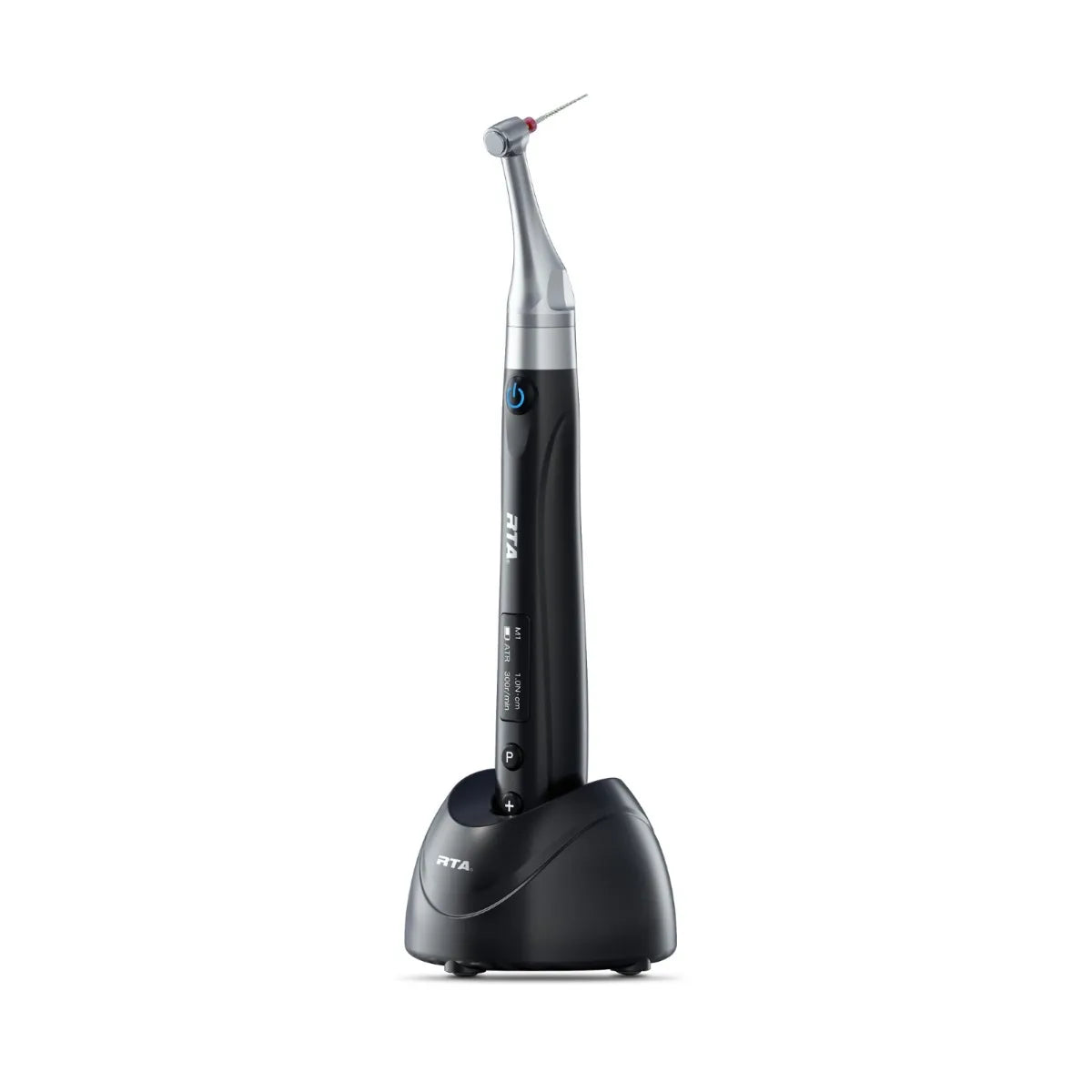

• 1 X Base
• 1 X Motor Handpiece
• 1 X Contra angle head
• 1 X Spray nozzle
• 1X Adapter
• 1 X Disposable insulation sleeves
• 2 X Protective silicone cover
• 1 X Cable
• 1 X Instruction Manual

 Preparation:

• Ensure the handpiece is fully charged before use.
• Connect the handpiece to the Apex Locator if needed.

Assembly:

• Attach the 6:1 mini contra-angle to the handpiece securely.
• Insert the desired file into the contra-angle head.

Power On:

• Press the power button to turn on the handpiece.
• Select the desired working mode (Forward, Reverse, Reciprocating, ATR) using the mode selector.

Speed and Torque Settings:

• Adjust the speed between 100r/min to 1500r/min as required for the procedure.
• Set the torque between 0.4N·cm to 4.2N·cm according to the specific needs of the preparation.

Reciprocating Angle Adjustment:

• Use the adjustment control to set the reciprocating angle within the range of 20° to 400°.
• Adjust in 10° intervals for precise control.
• Operation:
• Position the handpiece at the desired tooth location.
• Use the well-balanced design and 360° rotatable contra-angle for better maneuverability and accessibility.
• Apply gentle pressure and allow the high torque motor to perform the cutting.

Safety:

• Monitor the torque and speed settings to ensure they remain within safe limits.
• In ATR mode, the file will reciprocate at the set angle after reaching the preset torque, reducing the risk of instrument separation.

Post-Procedure:

• Turn off the handpiece and detach the contra-angle.
• Clean and sterilize the handpiece and contra-angle according to the manufacturer's guidelines.

Storage:

• Store the handpiece in a clean, dry place.
• Ensure the handpiece is fully charged before storing to maintain battery health.

• Country of Origin: Made in PRC

Question: Does it have inbuilt apex locator, also will file stop upon reaching apex ?

Answer: No, it does not have an inbuilt apex locator. It features ATR (Automatic Torque Reversal) mode and file reciprocates upon reaching the preset torque, aiding in safe endodontic procedures.

Question: What is battery capacity of the endomotorWhat is the battery capacity of the Woodpecker RTA MiniMotor Brushless Endomotor?
Answer: The Woodpecker RTA MiniMotor Brushless Endomotor is equipped with a 3.6V lithium battery that has a capacity of 750mAh. This battery offers sufficient power for extended use during endodontic procedures, ensuring consistent performance throughout the treatment without the need for frequent recharging

Question: What is the available range of speed and torque for the Woodpecker RTA MiniMotor brushless endomotor?
Answer: The Woodpecker RTA MiniMotor brushless endomotor features a speed range of 100 r/min to 1500 r/min and a torque range of 0.4 N·cm to 4.2 N·cm. This versatile range allows dental professionals to tailor the endomotor's performance to various endodontic procedures, ensuring efficiency and precision.

Question: What are the key differences between brushless motors and traditional brushed endodontic motors in dental applications?
Answer: Brushless motors, such as the Woodpecker RTA MiniMotor, operate without brushes and commutators, utilizing electronic controllers for enhanced efficiency (85-90%) and reduced heat generation. They offer longer lifespans and require less maintenance compared to traditional brushed motors, which rely on carbon brushes and operate at lower efficiency (75-80%). While brushed motors are generally less expensive upfront, their higher maintenance needs and shorter lifespan can lead to increased long-term costs. In endodontics, the precision and reliability of brushless motors make them the superior choice.

Question: What is the gear ratio of the contra-angle head for the Woodpecker RTA MiniMotor Brushless Endomotor?

Answer: The gear ratio of the contra-angle head for the Woodpecker RTA MiniMotor Brushless Endomotor is 6:1. This ratio ensures optimal performance by providing a stable rotation with increased torque, making it ideal for precise dental preparation, especially in narrow or curved canal systems. The efficient design enhances control and accuracy during endodontic procedures.

Question: What is the weight of the Woodpecker RTA MiniMotor Brushless Endomotor?
Answer: The weight of the Woodpecker RTA MiniMotor Brushless Endomotor is 107 grams. This lightweight design enhances ease of handling and maneuverability during endodontic procedures, contributing to greater comfort for both the clinician and the patient.

Question: What is the head diameter of the contra angle head included with the Woodpecker RTA MiniMotor Brushless Endomotor?
Answer: The head diameter of the contra angle head included with the Woodpecker RTA MiniMotor Brushless Endomotor is 8 mm. This design allows for enhanced accessibility and precision during endodontic procedures.

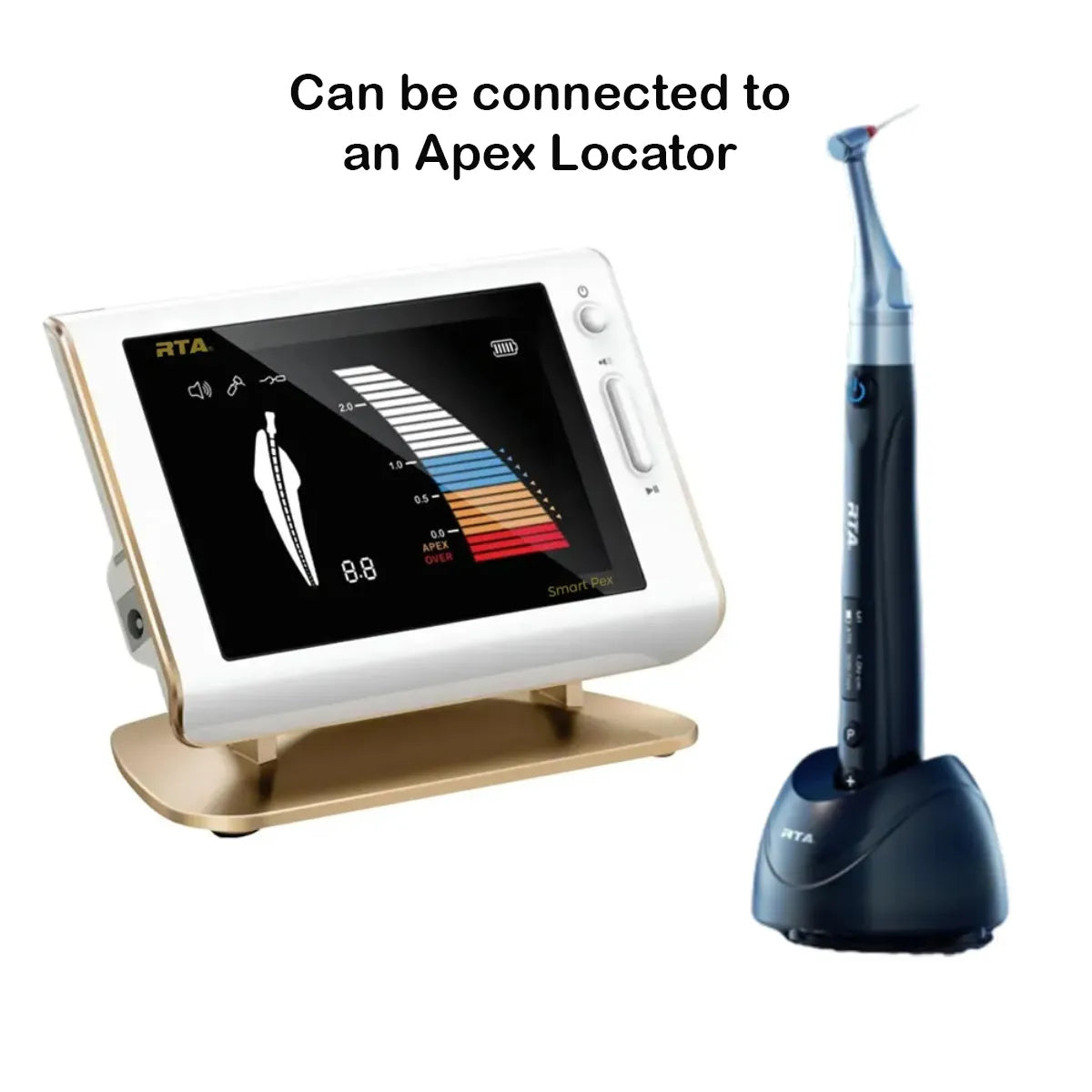

Question: Is the Woodpecker RTA MiniMotor Brushless Endomotor compatible with Smartpex?
Answer: Yes, the Woodpecker RTA MiniMotor Brushless Endomotor is compatible with the Waldent Smartpex apex locator. This compatibility allows for streamlined integration in endodontic procedures, enhancing the efficiency and effectiveness of your workflow.
