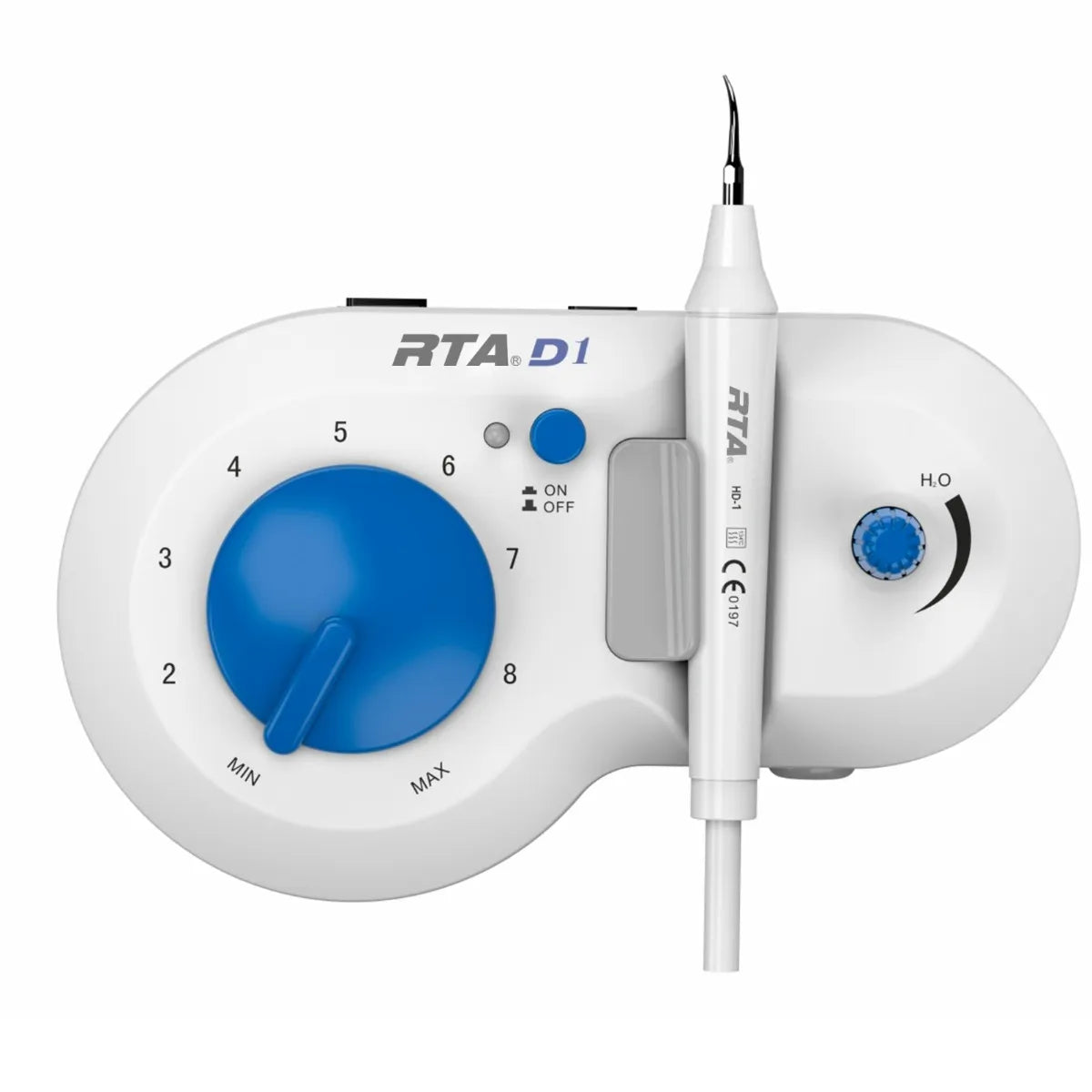

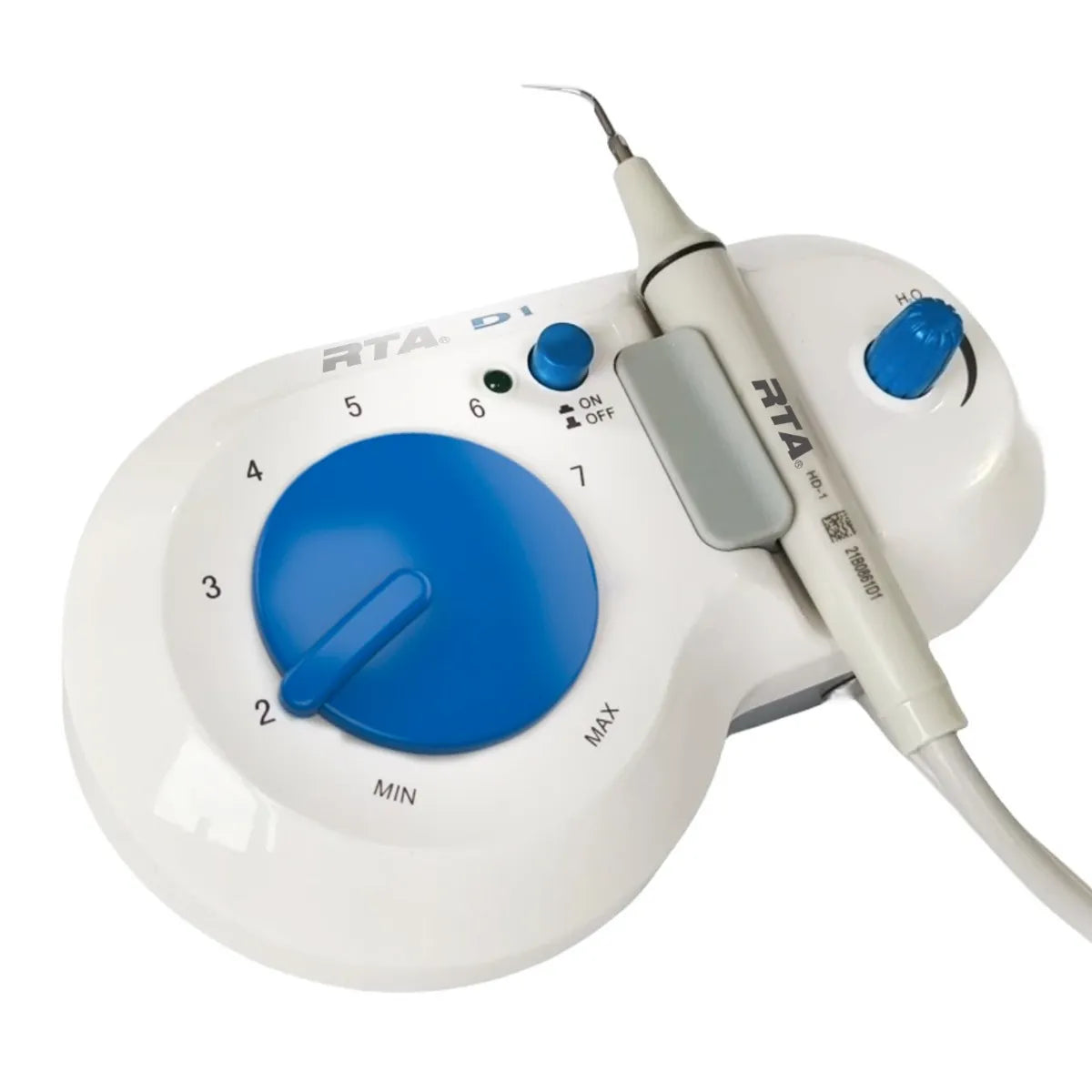

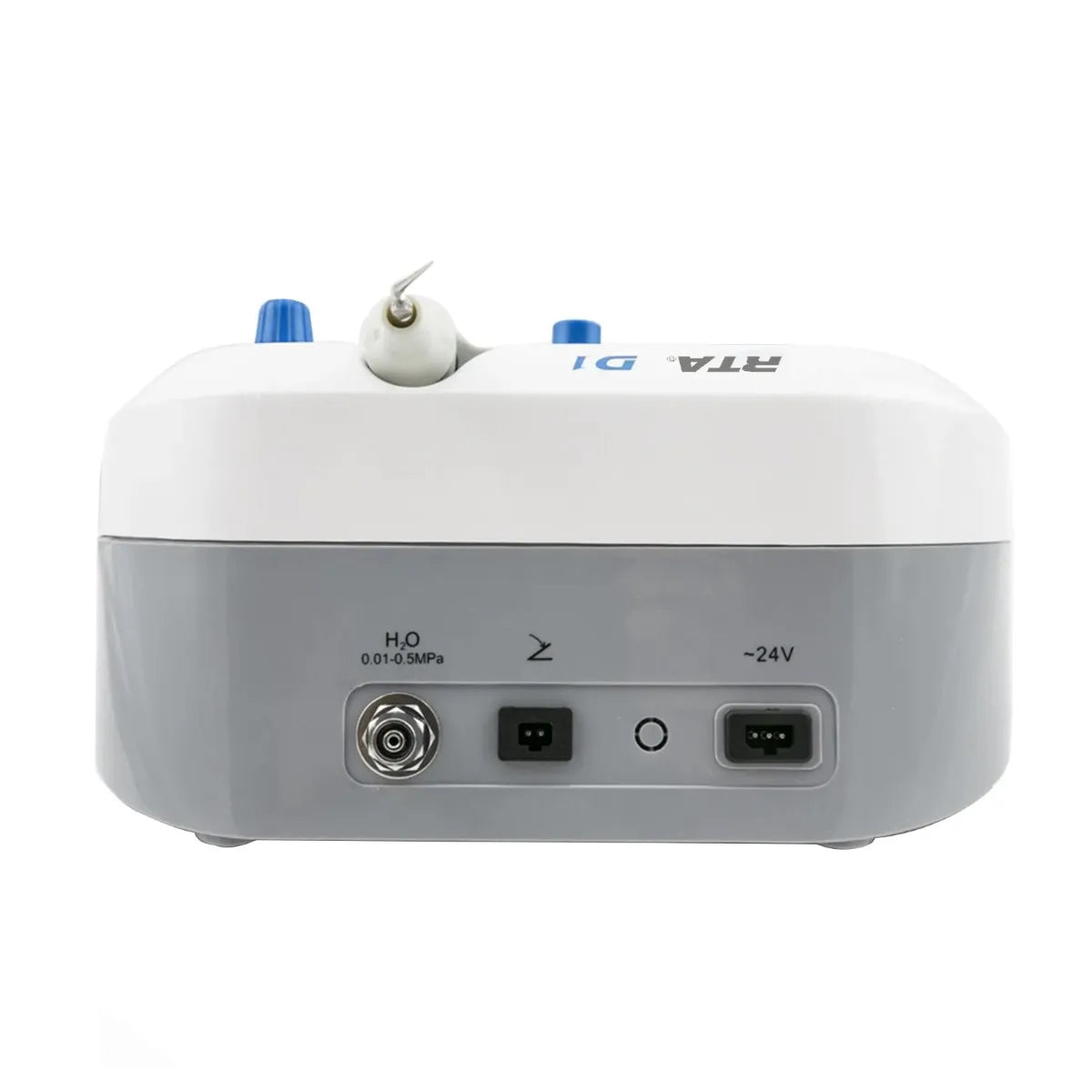

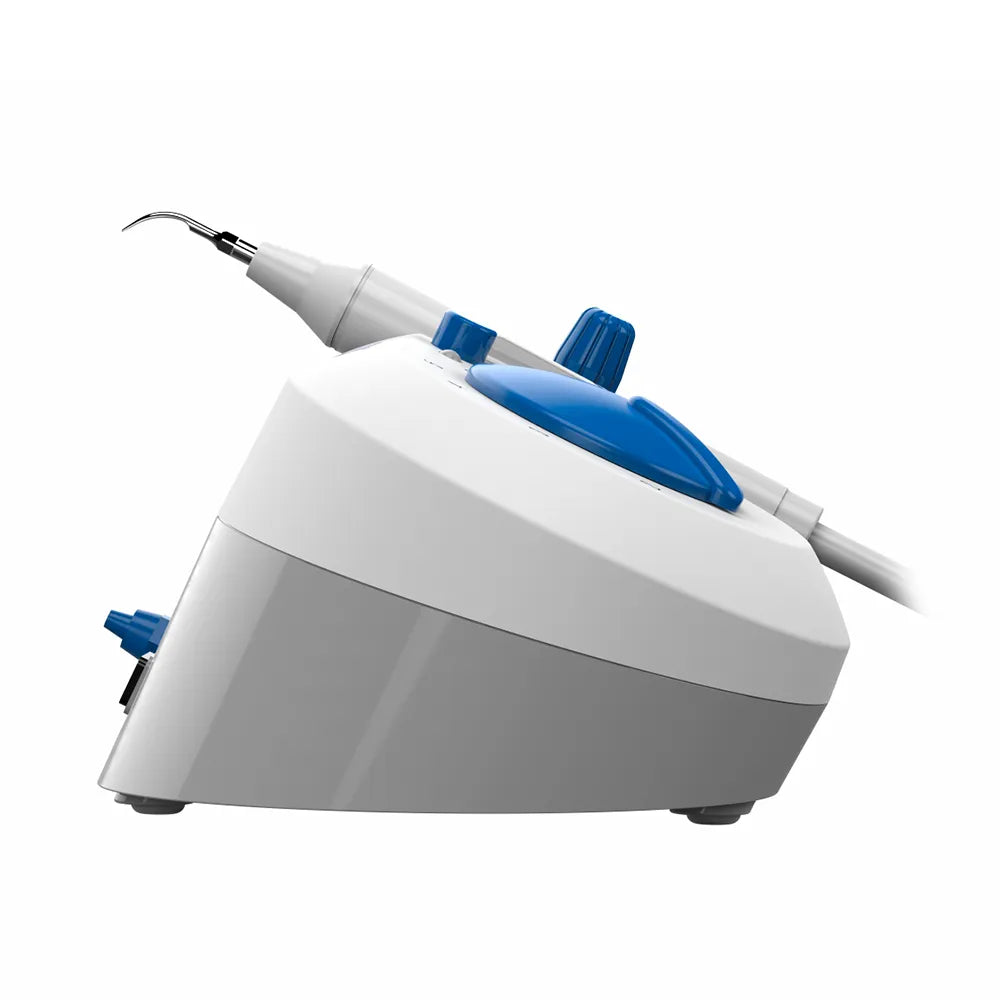

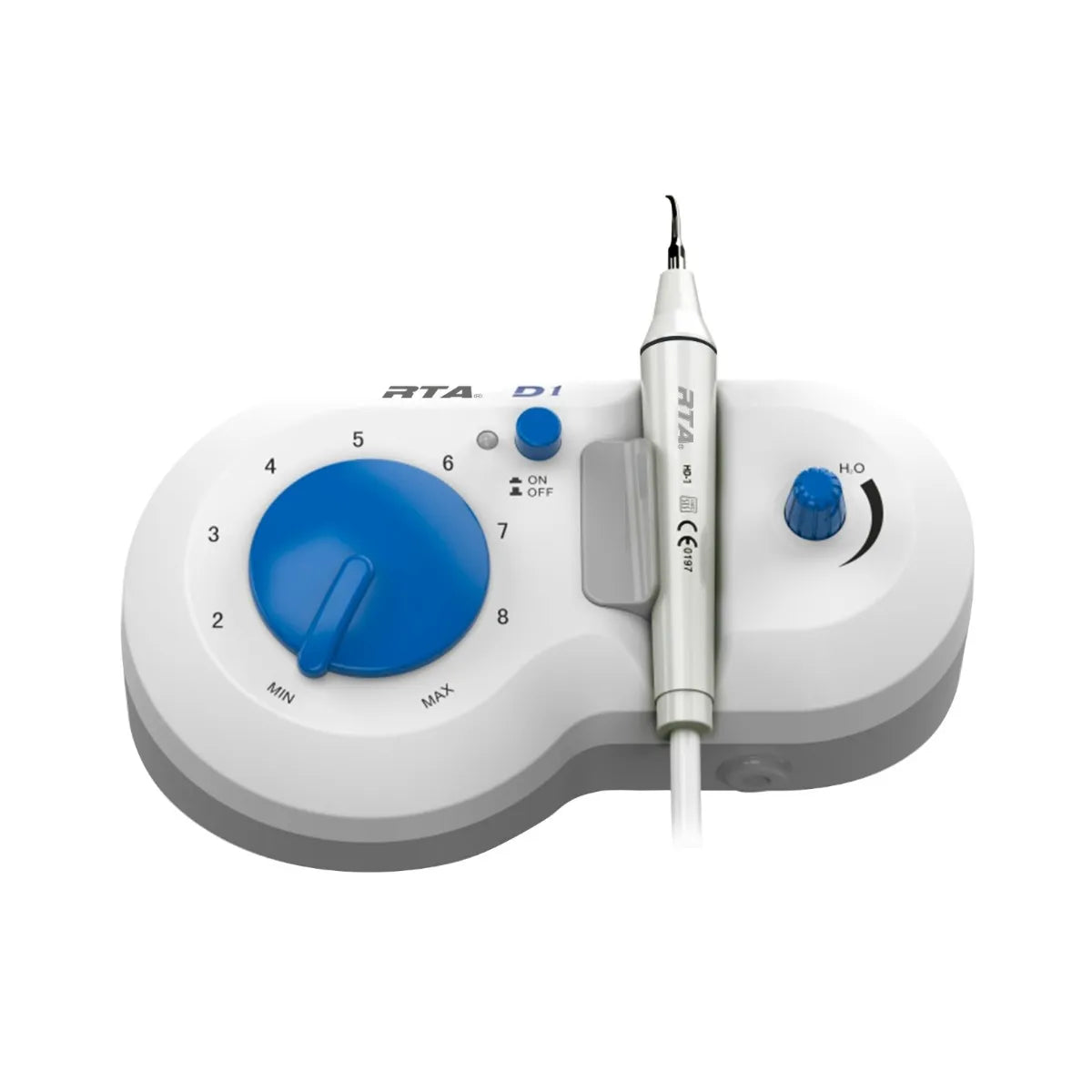

Woodpecker RTA D1 Ultrasonic Scaler

• Sealed Handpiece: The handpiece is cast from Titanium alloy to ensure sound mechanical function and durability
• Automatic Frequency Tracking System: Automatically searches for the best working frequency, ensuring the machine always operates at the optimal frequency for steady performance
• Automatic Degenerative Feedback: Provides a constant power output for more comfortable scaling
• Soft and Durable Cable: The cable is made from silica gel tube, which is soft and durable
• Special Tip Material: The scaling tip is made of a special material. The cavitation produced at the end of the scaling tip helps in easy cleaning of the teeth as well as killing germs
• Eliminates Dental Calculus, Bacterial Plaque and Stains: Quickly removes dental calculus, bacterial plaque and tea stains on the teeth without hurting the gum or the enamel
• Wide Adjustment Range of Amplitude: The adjustment range of the amplitude is much wider than before
• Convenient Water Control Switch: The new water control switch makes the adjustment of the water more convenient

• Power supply Input: 220-240V~ 50Hz/60Hz l50mA
• Main unit input: 24V~ l.3A
• Output primary tip Vibration excursion: ≤100μm
• Output half-excursion force:<2N
• Output tip Vibration frequency: 28kHz±3kHz
• Output power: 3W to 20W
• Main unit fuse: T l.6AL 250V
• Power supply fuse: T0.5AL 250V
• Water pressure: 0.lbar to 5bar (0.01MPa to 0.5MPa)
• Weight of main unit: 0.62kg

• 1 x Main unit
• 1 x Handpiece
• 1 x Footswitch

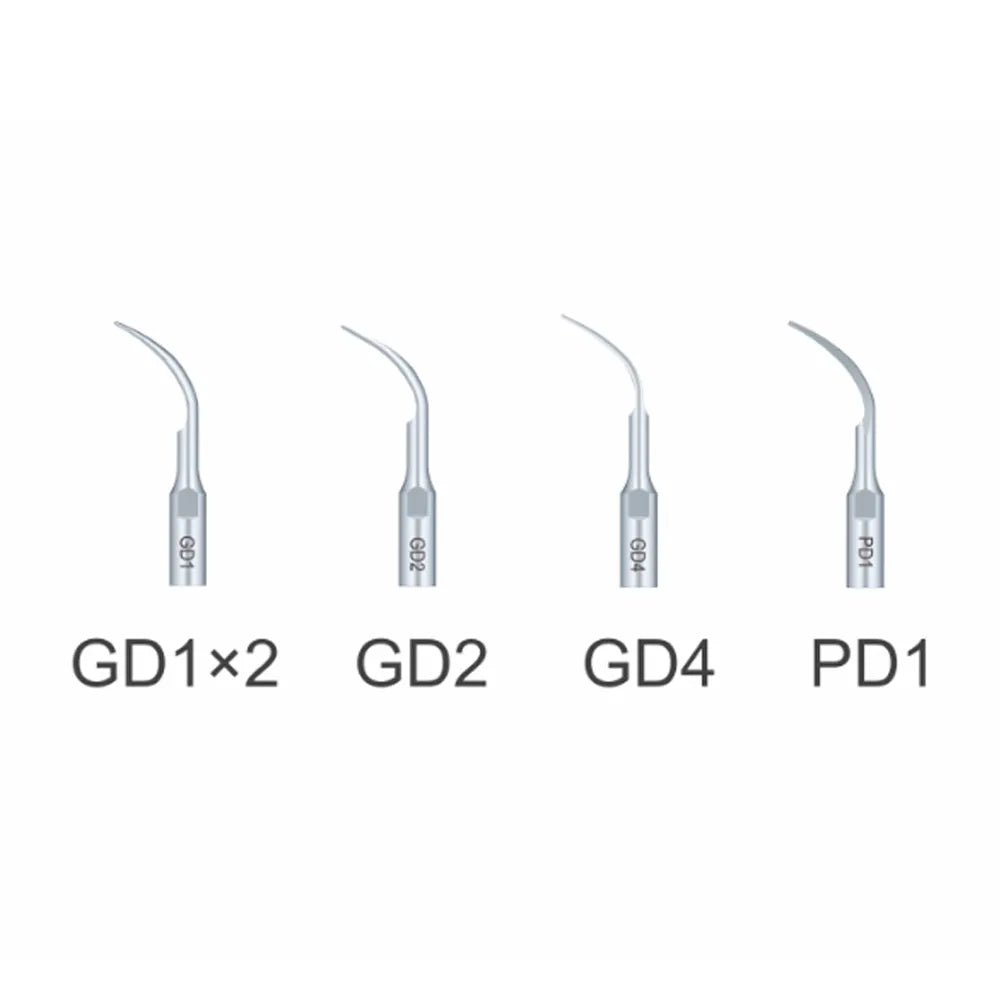

• 5 x Tips (2 X GD1, 1 X GD2, 1 X GD4, 1 X PD1)
• 1 x Adapter
• 1 x Torque wrench
• 1 x Operation manual

Setup

• Unpack the Device: Open the packing box and verify that all parts and accessories are complete according to the packing list
• Position the Unit: Remove the main unit from the box and place it on a stable surface
• Water Control: Turn the water control knob to the maximum setting as indicated in the manual
• Foot Switch Connection: Insert the plug of the foot switch into its designated socket
• Water Supply Connection: Connect one end of the water pipe to the water entrance on the unit and the other end to a pure water source
• Power Connection: Insert the plug of the power supply into its socket and connect it to a power source
• Power On: Switch on the main unit; the power indicator light should illuminate

Operation

• Select Scaling Tip: Choose an appropriate scaling tip for your procedure and securely attach it to the handpiece using a torque wrench
• Normal Frequency Use: Under normal working conditions with 45 scaling tips, apply light pressure and a gentle to-and-fro motion to effectively remove tartar without generating excessive heat. Avoid overexertion or prolonged contact
• Adjust Vibration Intensity: Set the vibration intensity by turning the knob; a middle setting is generally recommended. Adjust according to patient sensitivity and tartar rigidity during treatment
• Water Volume Adjustment: Activate the foot switch to begin tip vibration, then adjust the water control switch to achieve a fine spray for cooling the handpiece and cleaning teeth
• Handpiece Handling: Hold the handpiece as you would a pen, ensuring comfortable maneuverability

Safety Precautions

• Avoid Vertical Contact: Do not allow the tip's end to touch teeth vertically, and avoid excessive pressure on tooth surfaces to prevent damage to both teeth and tips

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board).
• Physical damage is not cover in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Does the Woodpecker RTA D1 Ultrasonic Scaler have an LED handpiece?
Answer: No, the Woodpecker RTA D1 Ultrasonic Scaler does not include an LED handpiece.

Question: What is an ultrasonic scaler?
Answer: An ultrasonic scaler is a dental instrument that uses high-frequency vibrations to remove plaque, tartar, and stains from teeth.

Question: How many scaling tips are included with the unit?
Answer: The unit comes with five scaling tips: two GD1, one GD2, one GD4, and one PD1.

Question: Is the handpiece of the Woodpecker DTE D1 Ultrasonic Scaler autoclavable?
Answer: Yes, the handpiece is designed to be detachable and can be sterilized through autoclaving.

Question: What types of tips are used with ultrasonic scalers?
Answer: There are various tips designed for different applications, including scaling tips for plaque removal and perio tips for deep cleaning in periodontal pockets.

Question: What are the benefits of using an ultrasonic scaler?
Answer: Ultrasonic scalers provide efficient plaque removal, reduce treatment time, minimize operator fatigue, and can reach difficult areas that manual tools may miss.
