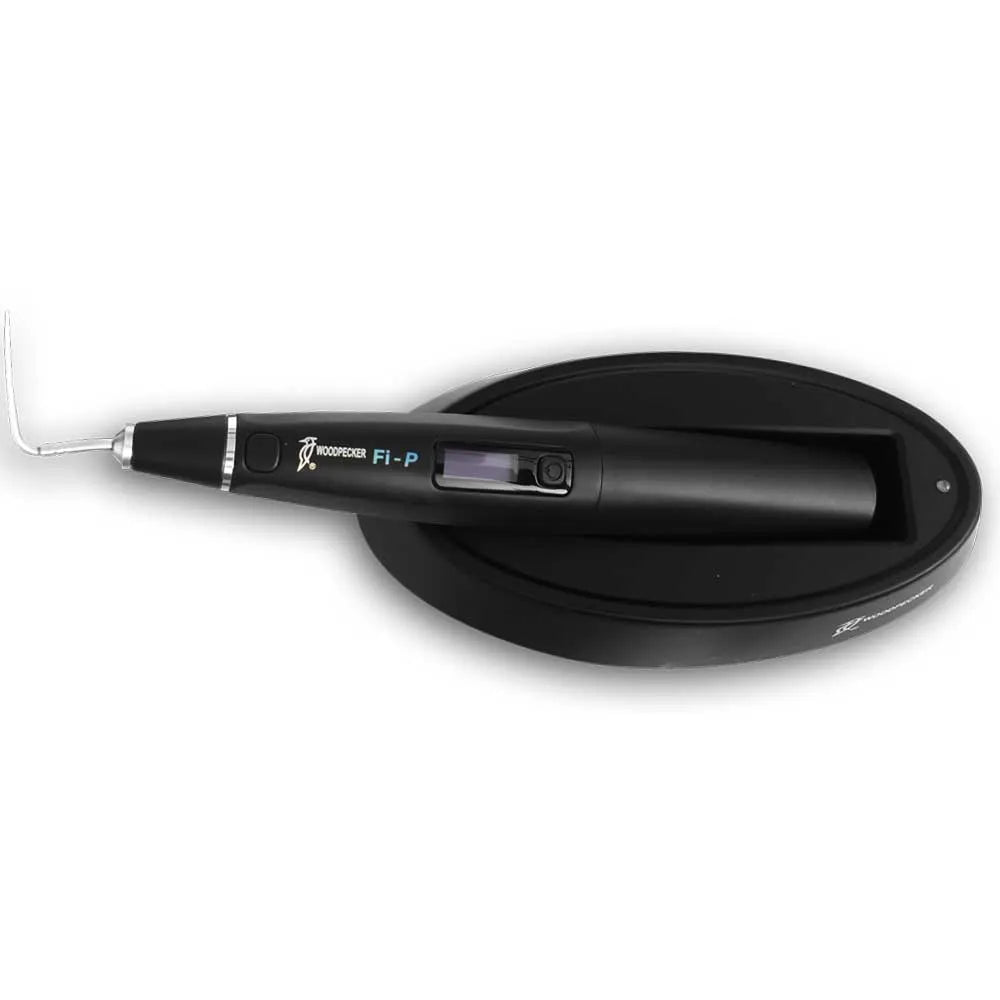

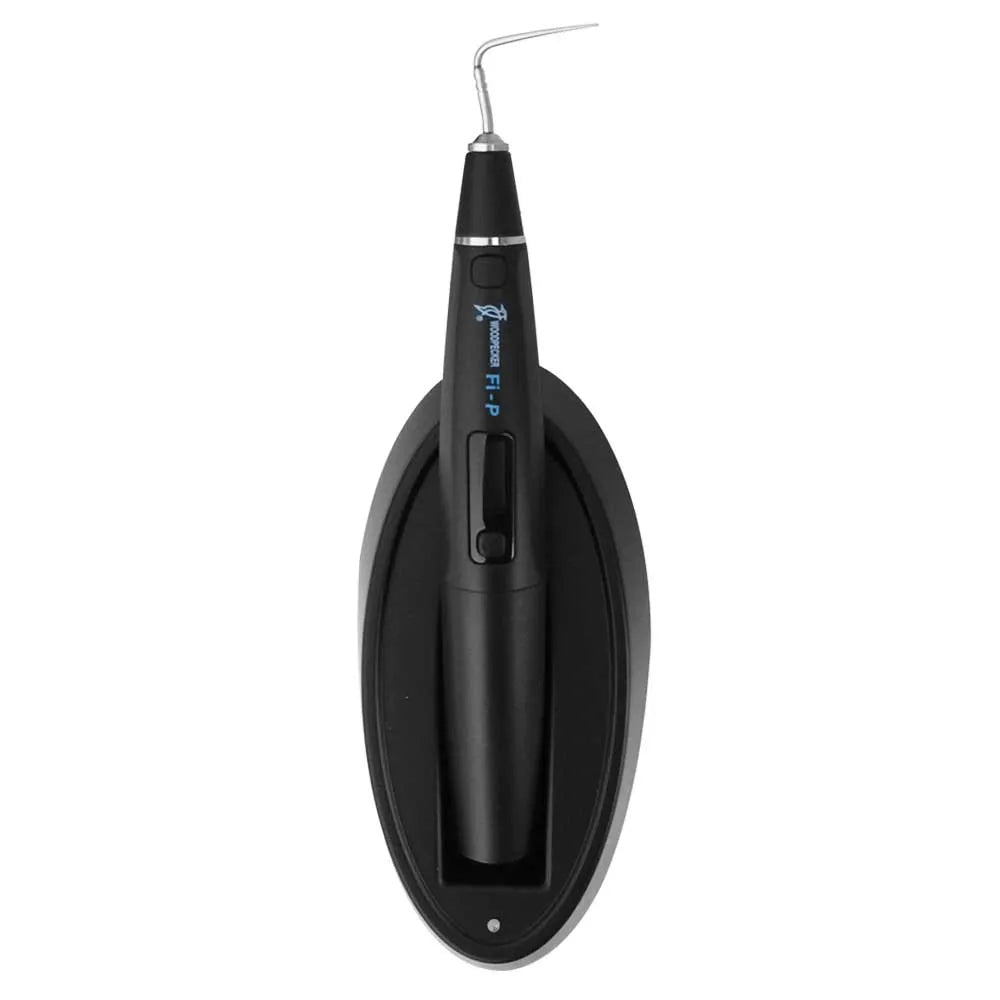

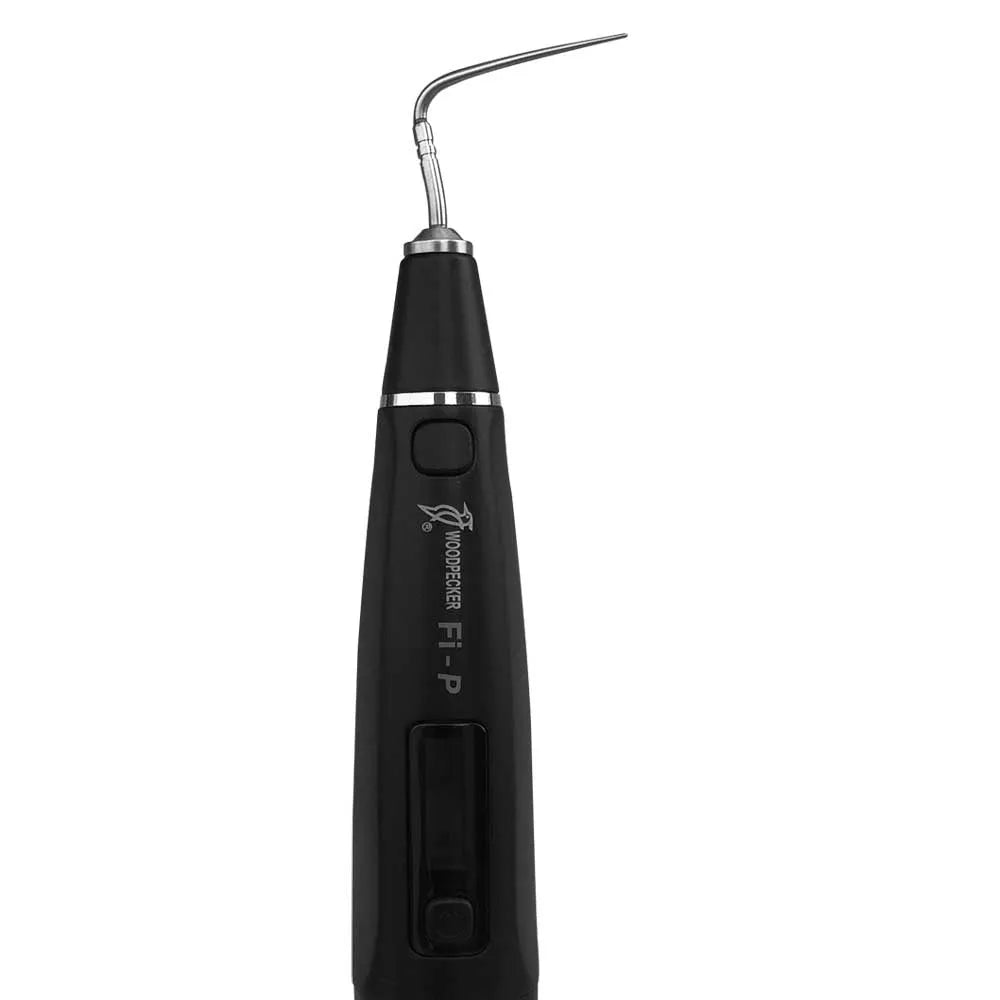

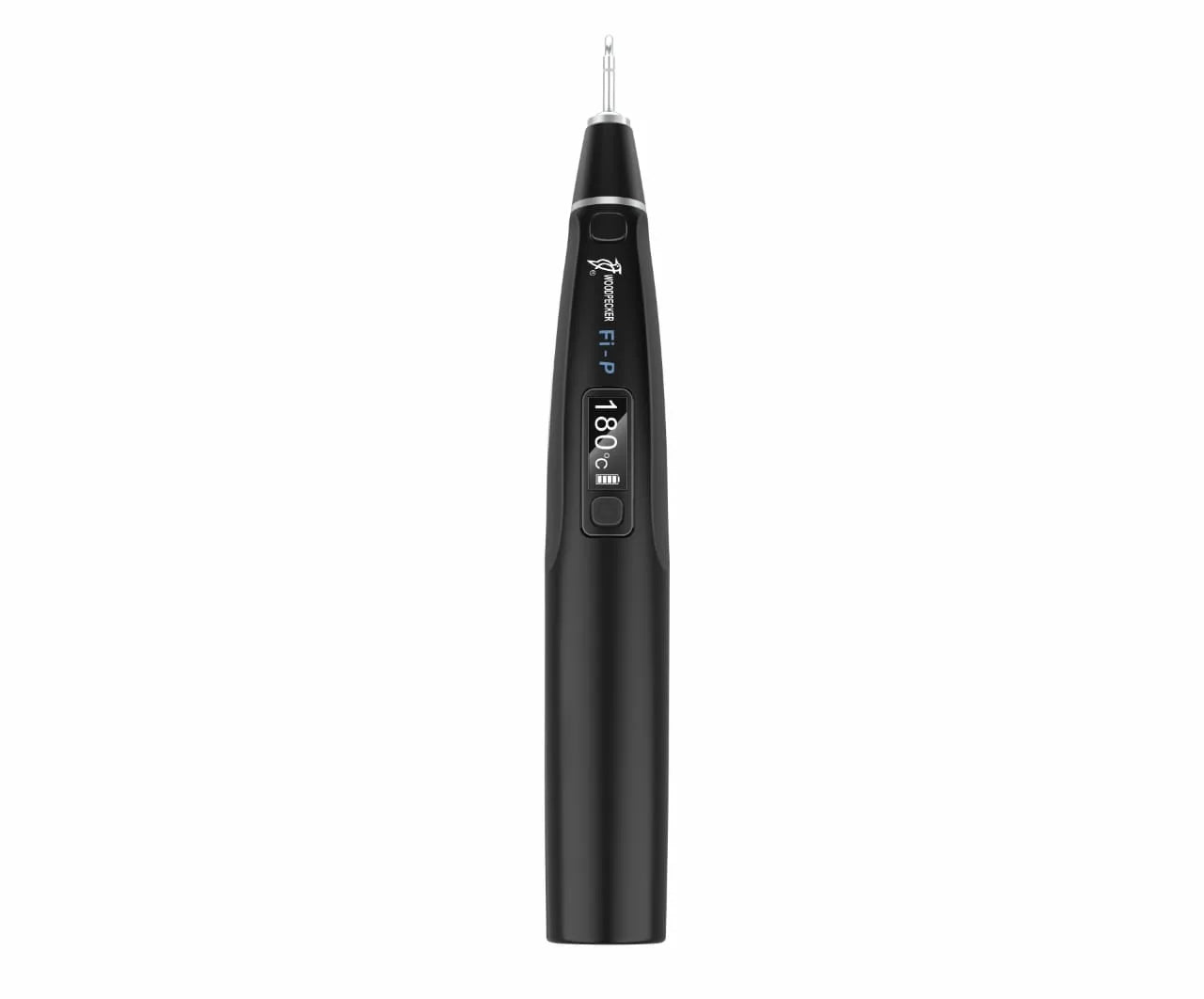

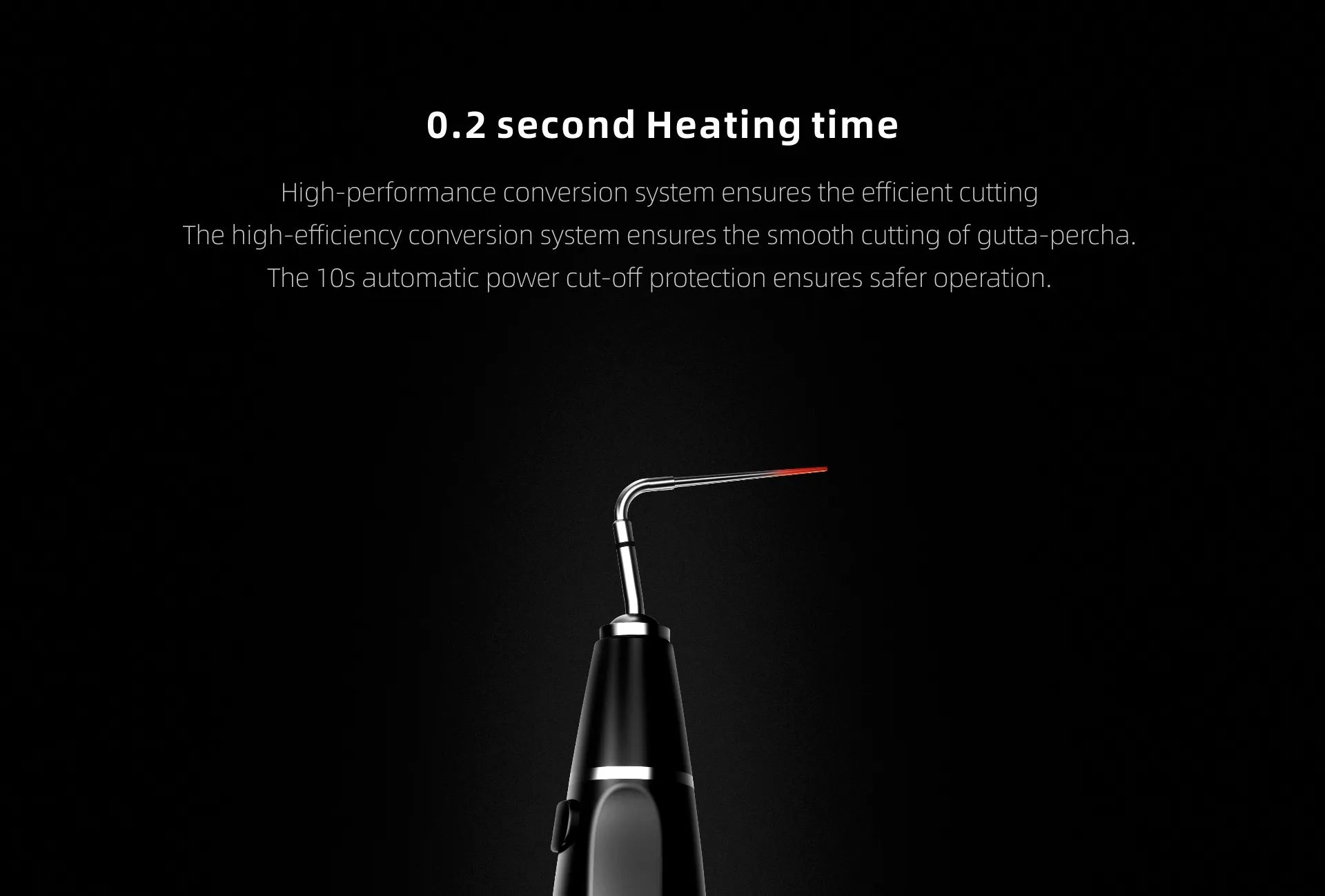

Woodpecker Obturation Pen System

• Precise and efficient heating for optimal root canal filling.
• Optional preset temperatures for customizable heating.
• Intuitive interface with user-friendly controls.
• Portable and rechargeable design for convenience.

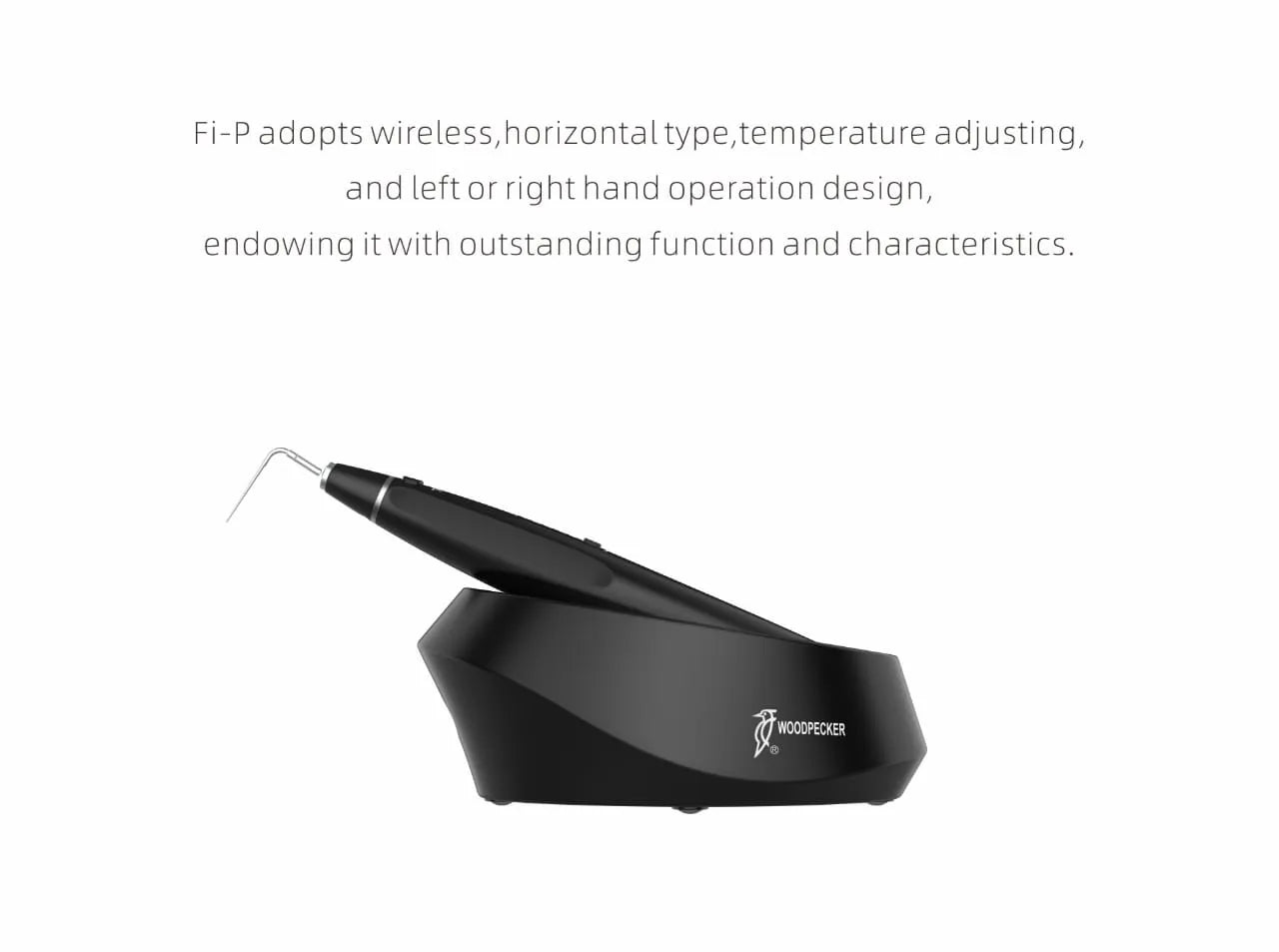

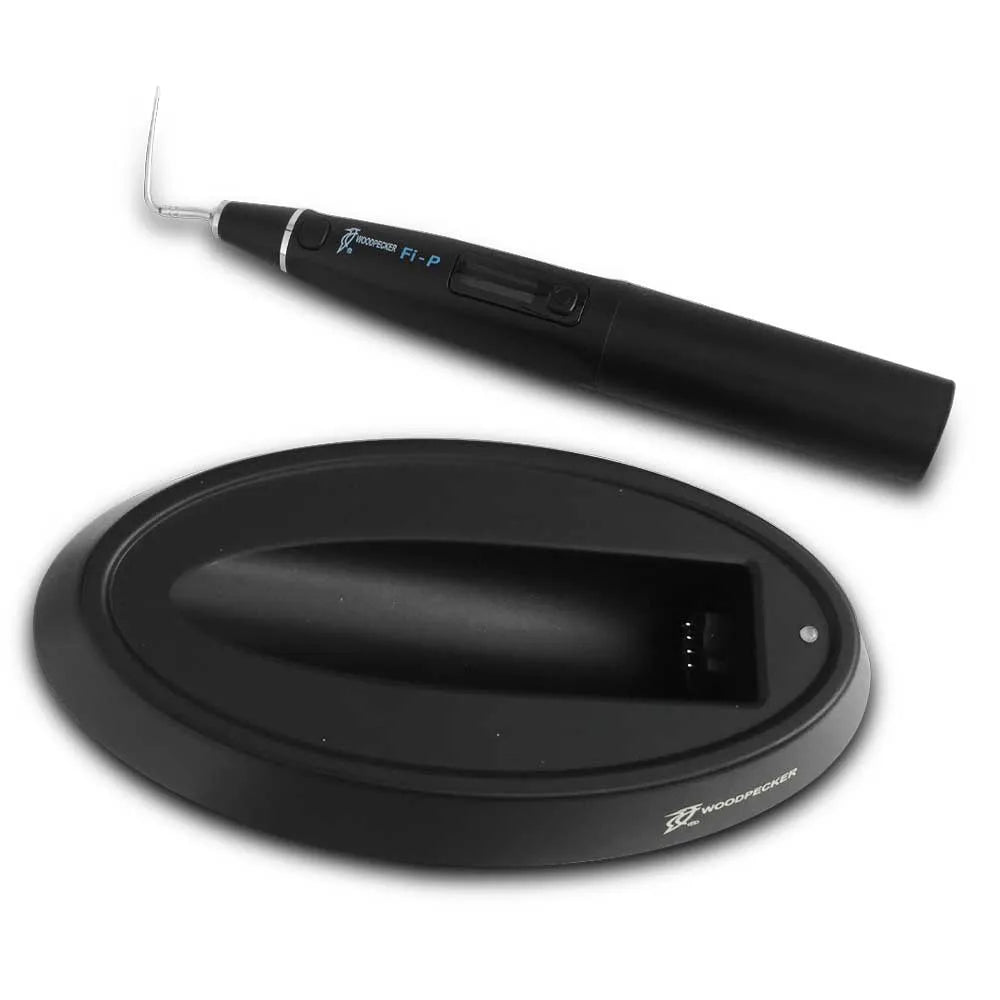

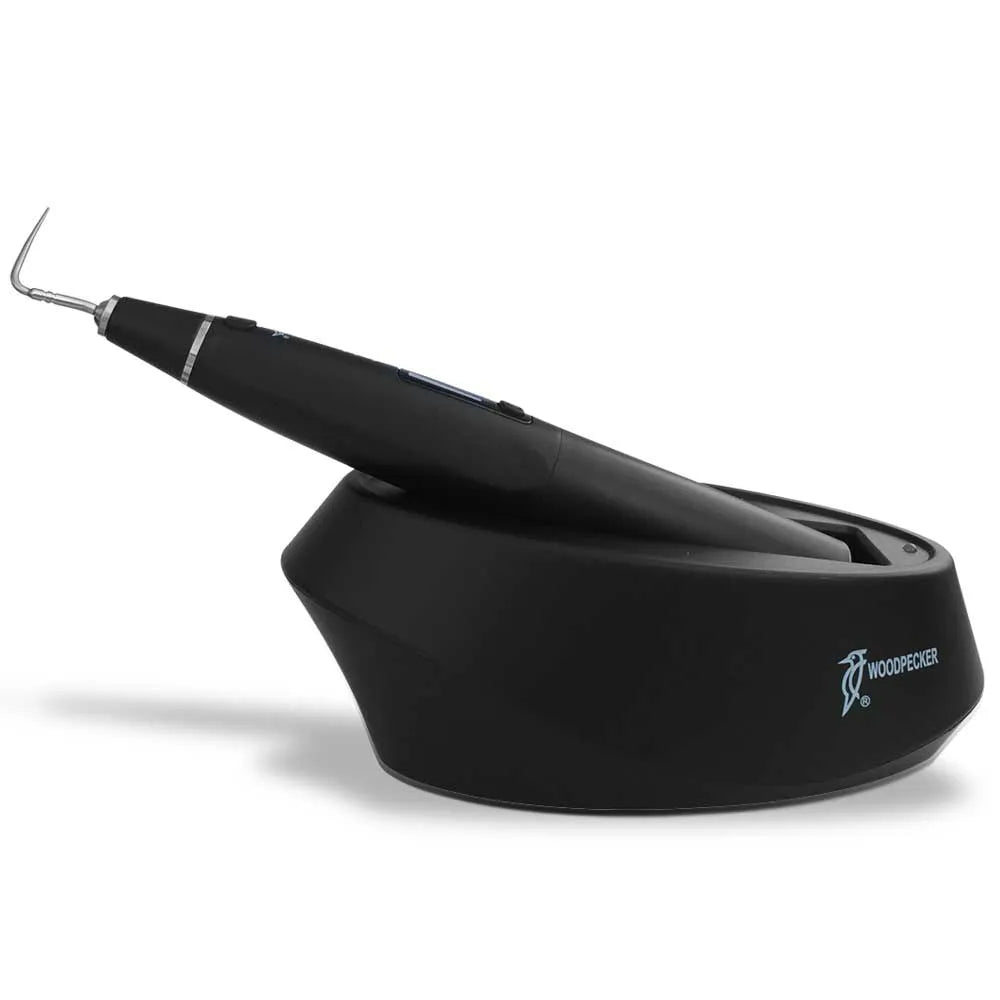

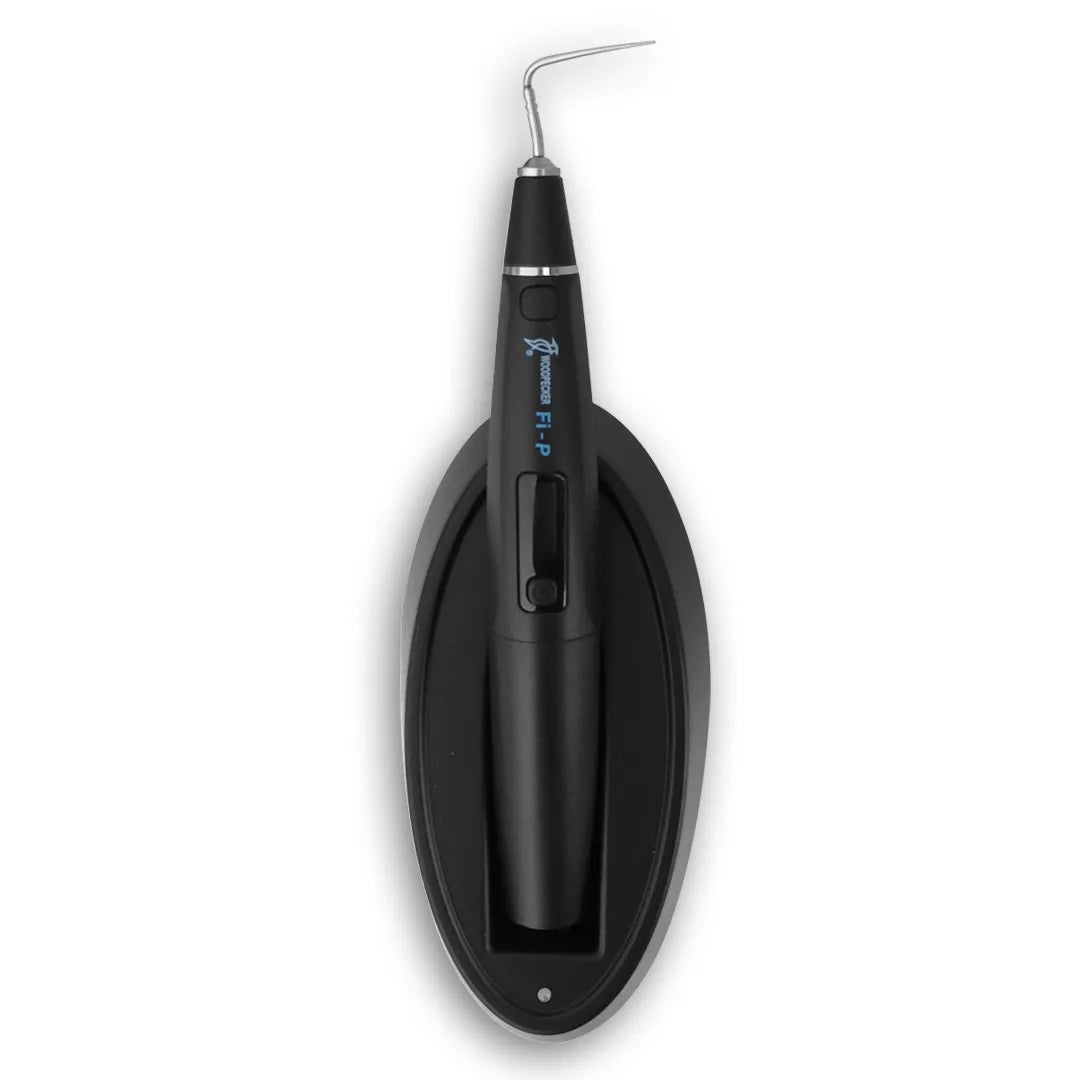

• Dedicated charging base for secure storage and charging.
• Safety classification and durable construction.
• Versatile application for various endodontic procedures.

Size:

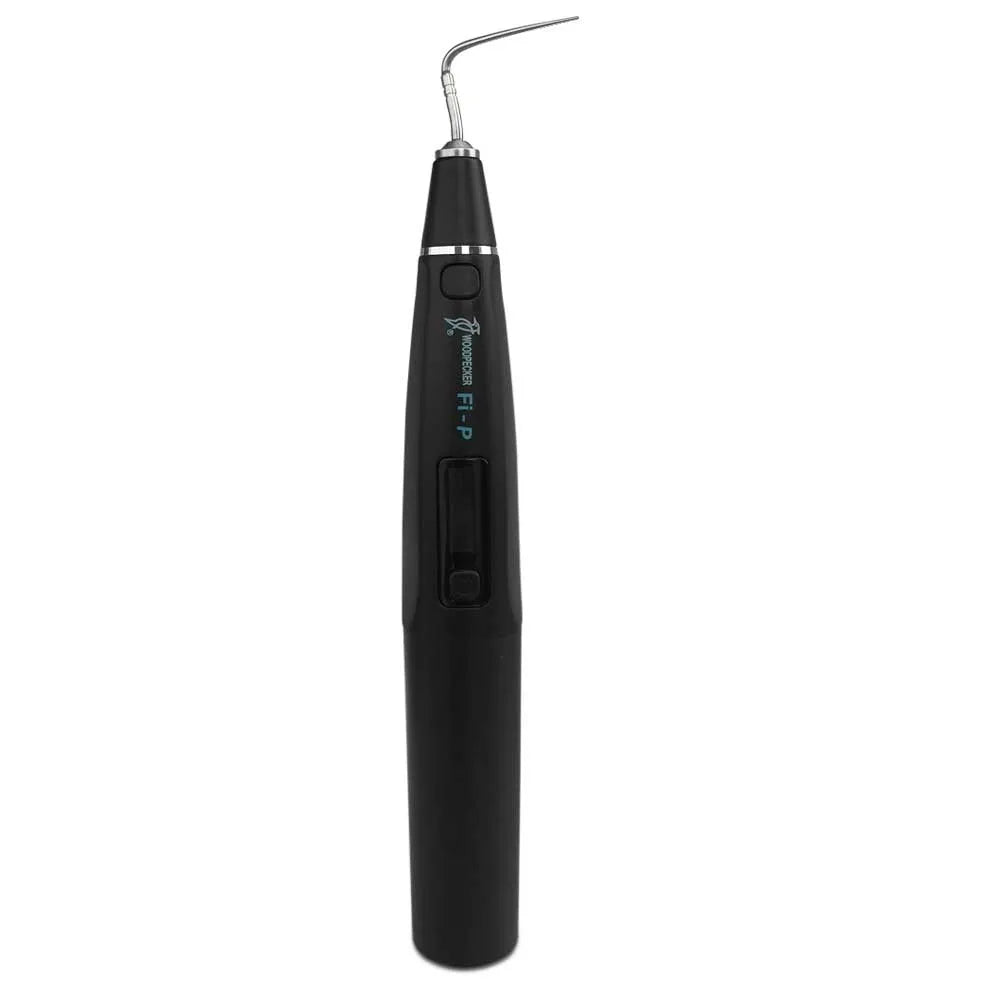

• Heating and Packing Instrument: 23.8mm × 158.3mm × 23.8mm
• Charging base: 75.5mm × 149.7mm × 62.6mm

Weight:

• Heating and Packing Instrument: 80g
• Charging base: 195g
• Power adapter: 167g

Technical Parameters:

• Classification: Class Ⅱ (AC/DC power adapter)

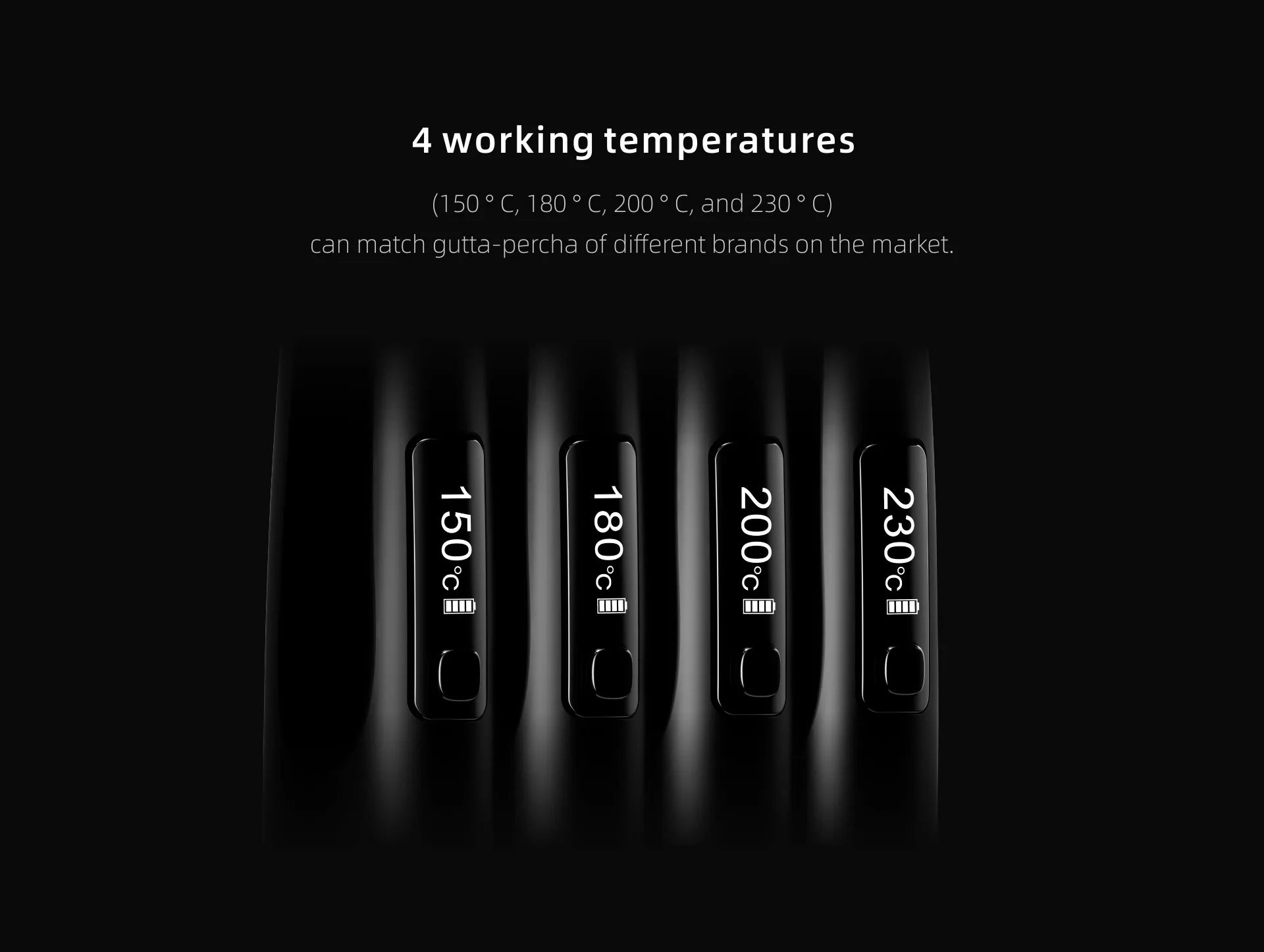

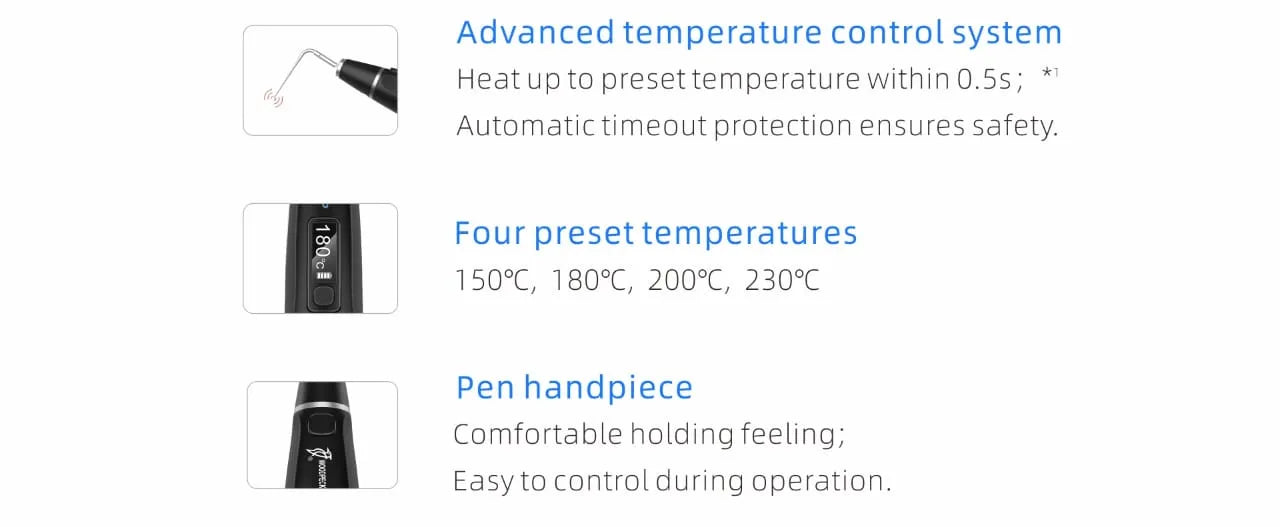

• Optional preset temperatures: 150℃ → 180℃ → 200℃ → 230℃
• Time consumption for charging: About 2.5 hours
• Power supply:

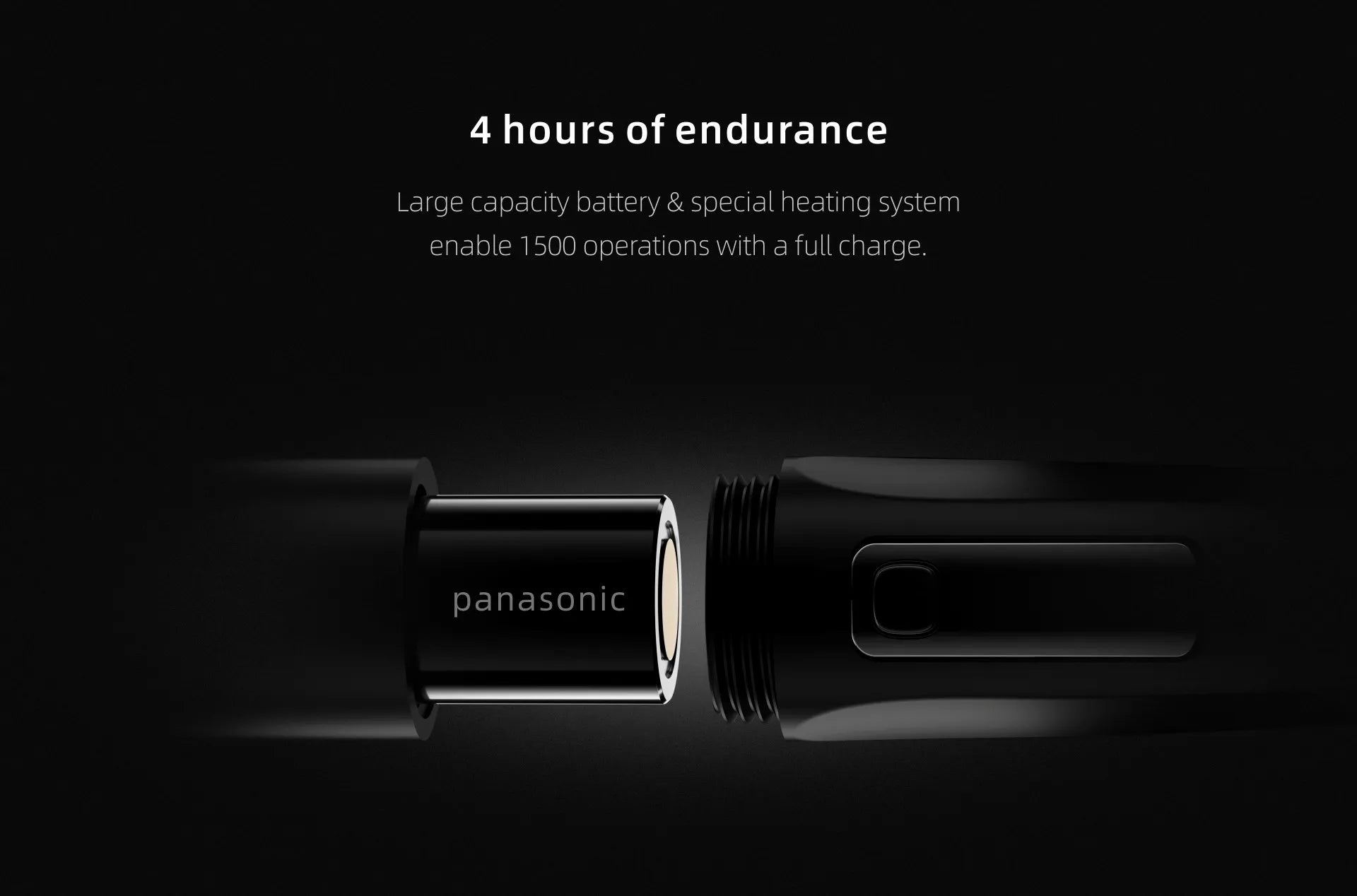

• Battery capacity: Chargeable battery with 2000mAh capacity

• 1 x Main unit
• 1 x Charging stand
• 1 x Power adapter
• 1 x WP4004 tip (Taper 4%)
• 1 x WP4504 tip (Taper 4%)
• 1 x WP5506 tip (Taper 6%)
• 1 x WP5508 tip (Taper 8%)
• 4 x Heat insulation sleeve of tips
• 1 x Instruction manual

Charging:

• Connect the power adapter to the charging base.
• Plug the power adapter into a power outlet.
• Place the Heating and Packing Instrument onto the charging base. Ensure it is properly aligned for charging.
• Allow the instrument to charge for approximately 2.5 hours until fully charged. The charging indicator will show when the charging is complete.

Powering On:

• Once the instrument is fully charged, remove it from the charging base.
• Press and hold the power button on the instrument to power it on. The display will illuminate, indicating that it is ready for use.

Temperature Selection:

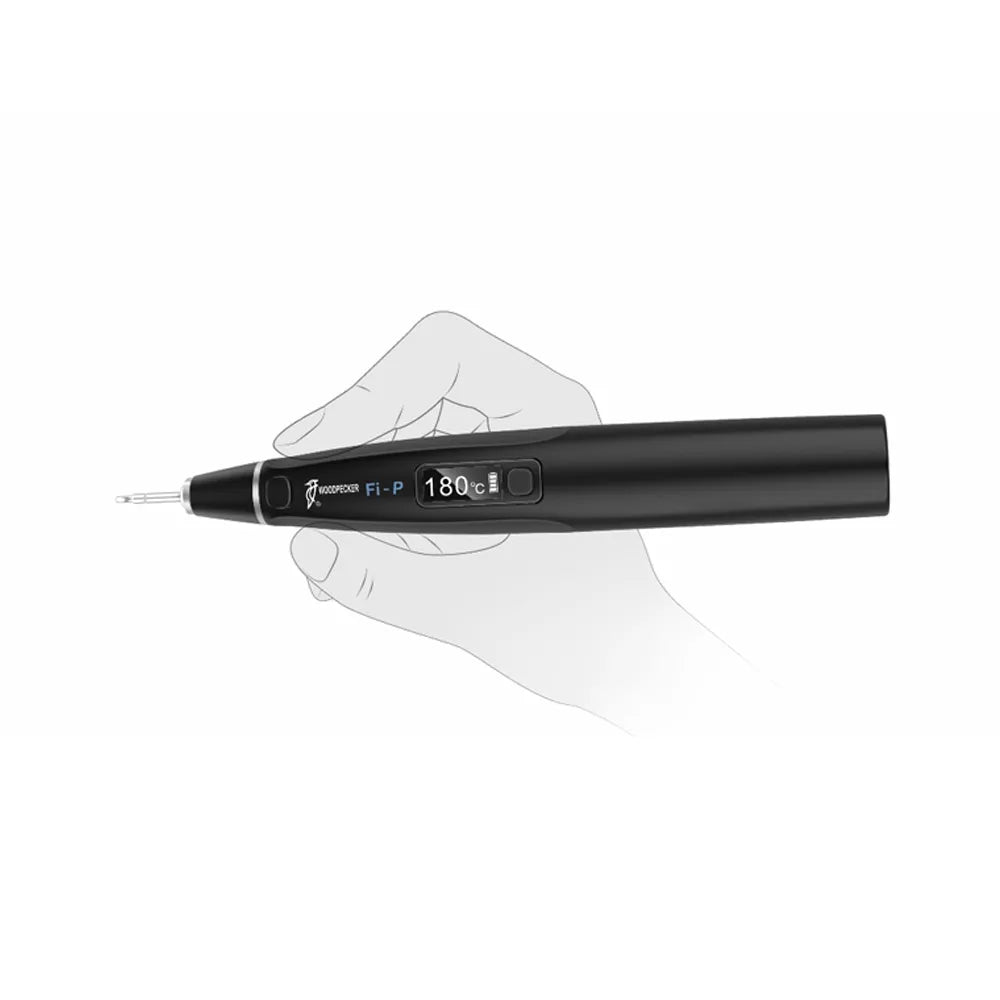

• Use the temperature control buttons to select the desired temperature. The optional preset temperatures are 150℃, 180℃, 200℃, and 230℃.
• Press the temperature control buttons to increase or decrease the temperature. The selected temperature will be displayed on the screen.

Obturation Procedure:

• Ensure that the instrument's heating tip is clean and free from any debris or material remnants.
• Insert the heated tip into the obturation material, such as gutta-percha.
• Allow the tip to heat the material for a few seconds to soften it.
• Carefully apply the softened material into the root canal, using a gentle and controlled motion.
• Continue the obturation process, filling the canal as required. Adjust the temperature if necessary, based on the specific requirements of the procedure.

Powering Off and Cleaning:

• After completing the obturation procedure, press and hold the power button to turn off the instrument.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 6 months as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Can we get only the heating tips?
Answer: Yes, you can acquire only the heating tips for the Woodpecker Obturation Pen System. The Endoking Dental Obturation Pen Tips are compatible with this system, and you can easily find these tips by searching on Oralkart, ensuring convenient replacement and maintenance of your obturation equipment.

Question: Can we use this obturation pen for intra canal hypo heating?
Answer: The Woodpecker Obturation Pen System, particularly the Fi-P Obturation Pen, is not intended for use in intra-canal irrigant heating. Its primary function is to soften, diffuse, cut, and press gutta-percha during root canal treatment. Therefore, it is not suitable for the specific application of intra-canal irrigant heating.

Question: How does the Woodpecker Obturation Pen System work?
Answer: The Woodpecker Obturation Pen System uses precise heating technology to facilitate the root canal filling process. It applies controlled heat to the obturation material, allowing it to flow and fill the root canal effectively.

Question: How long does it take to charge the device?
Answer: The device takes approximately 2.5 hours to charge fully. Once charged, it can be used for multiple procedures before requiring another charge.

Question: Is the Woodpecker Obturation Pen System portable?
Answer: Yes, the system is designed to be portable and lightweight, allowing for easy transportation between different dental clinics or operatory rooms.

Question: Is the Woodpecker Obturation Pen System suitable for all endodontic procedures?
Answer: Yes, the system is versatile and can be used for various endodontic procedures, including root canal filling, post space preparation, and sealer placement.
