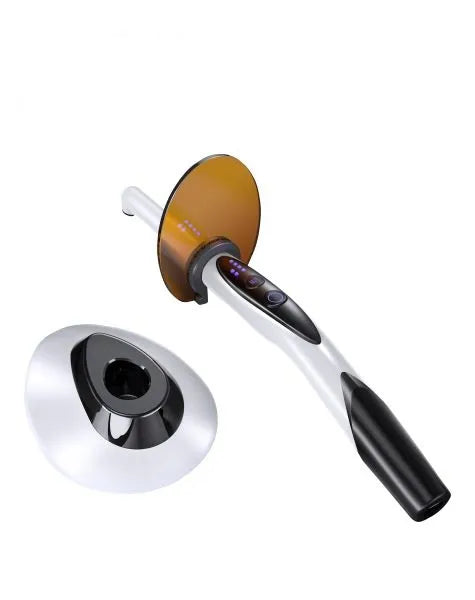

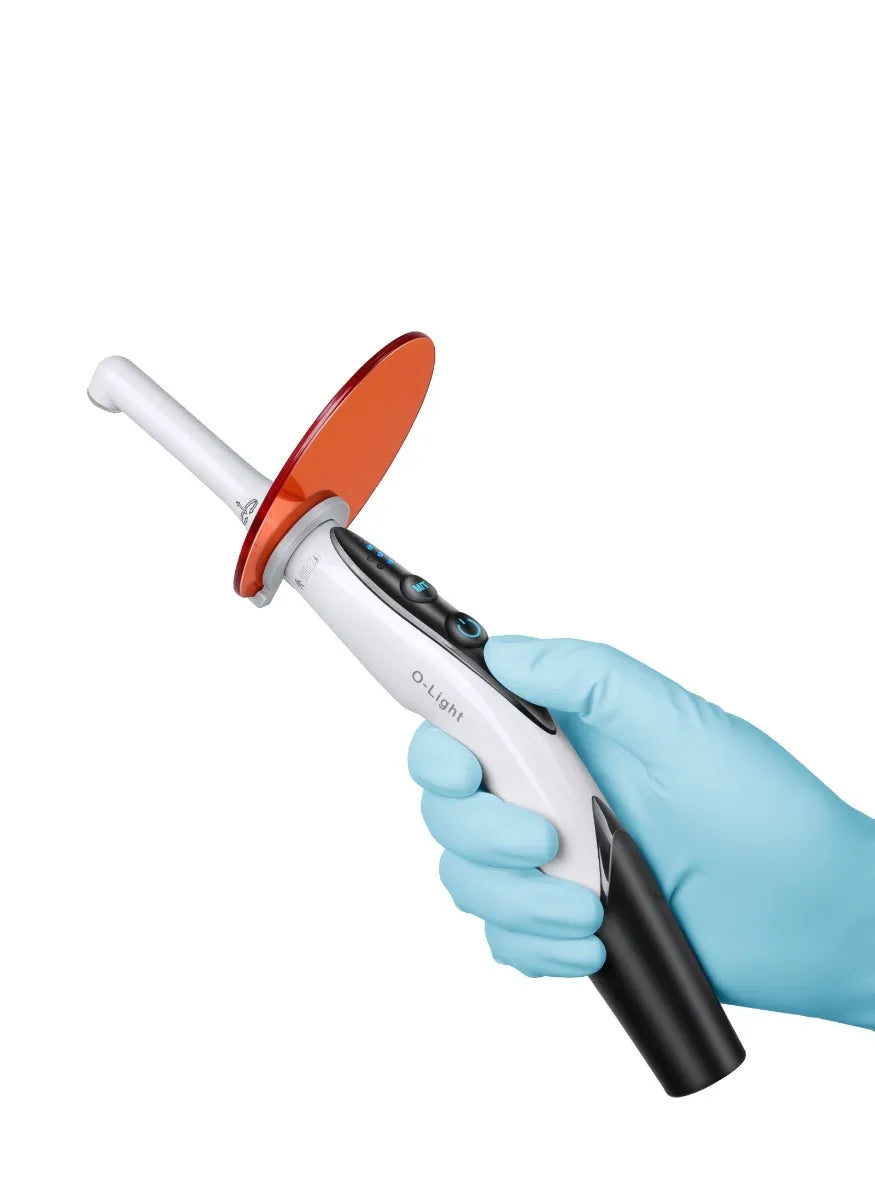

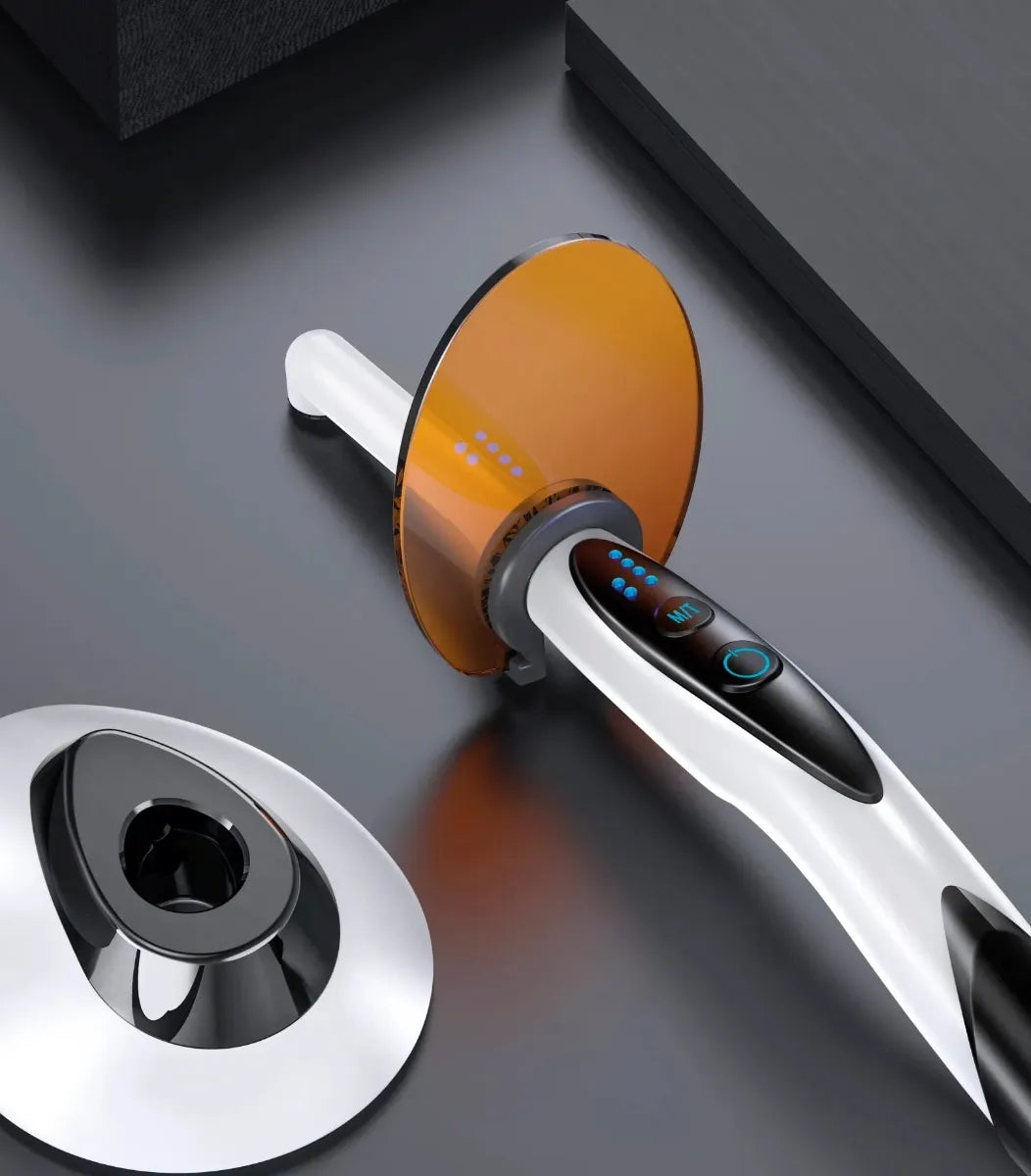

Woodpecker O Light 1 second Curing Light

• Two working modes: HIGH & NORMAL
• Time Setting: Constant light intensity. Solidification effect is not affected by the consumption of remaining power.
• O-Light adopts the principle of ray radiation to solidify the light-sensitive resin by shooting at in a short time

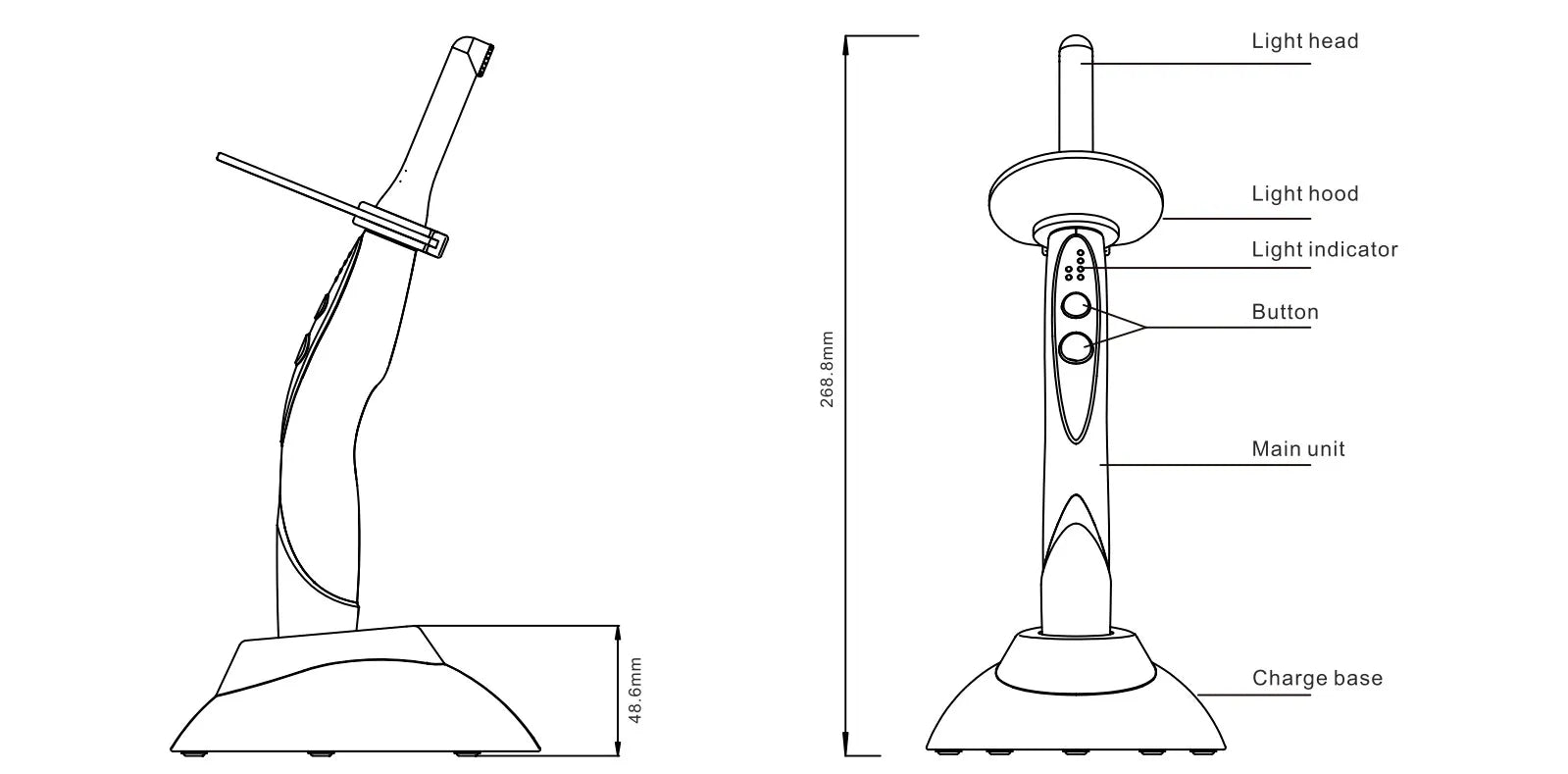

• Size: 268.8mmx26.1mmx31.8mm
• Net Weight: 259g
• Class: Class I
• Adapter Input: AC100-240V 50Hz/60Hz
• Output: DC5V 1A
• Built in fuse: T1a250V
• Battery model: ICR18490
• Battery capacity: 1400mAh
• Light source Wavelength: 420nm-490nm
• High power blue light LED:5W

• 1 x  Main Unit of the LED
• 1 x Light Hood
• 1 x Adapter

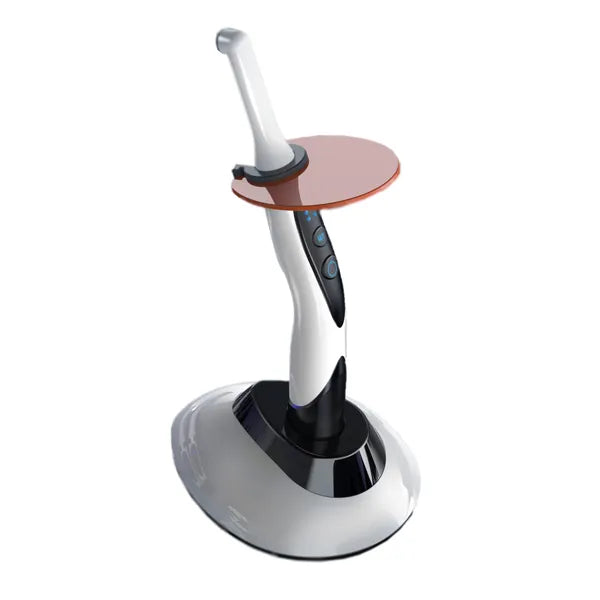

• 1 x Pedestal Charger
• 1 x Instruction Manual

• Ensure the Woodpecker O-Light 1-Second Curing Light Unit is fully charged or has fresh batteries.
• Attach the light hood securely to the front connector of the unit.
• Select the desired mode (high or standard) based on the specific dental procedure.
• Position the curing light at a suitable distance from the area requiring resin polymerization. Note that there is no distance limit due to the strong penetration capability of the light.
• Press the power button to activate the curing light. The device will emit a high-intensity focused light.
• Keep the light directed at the resin material and maintain the recommended curing time, which is typically 1 second for a 2mm thickness of resin.
• Move the curing light evenly across the surface of the resin material, ensuring all areas receive adequate light exposure for effective polymerization.
• After the recommended curing time, deactivate the curing light by pressing the power button again.
• Clean the light hood and the device's surface using a soft, lint-free cloth or a disinfectant wipe to maintain hygiene standards.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 2 years on the device, 1 year on the battery, excluding the light guide and light hood as applicable for this product.
• The warranty does not apply against any physical damage to the product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Can it be used in bleaching?
Answer: No, The Woodpecker O Light can be used in conjunction with some bleaching procedures, like curing a composite after a whitening treatment. However, it isn't specifically designed for teeth whitening. For the best results in bleaching, dedicated whitening lights or lasers are recommended.

Question: Does it really cure in 1 second?
Answer: Yes, the Woodpecker O-Light 1 second Curing Light can cure 2mm of resin in just 1 second due to its high-intensity output.

Question: How long does it take to cure resin using the Woodpecker O-Light 1-Second Curing Light Unit?
Answer: The Woodpecker O-Light can cure 2mm of resin in just 1 second, thanks to its high-intensity output.

Question: What is the light intensity range of the Woodpecker O-Light?
Answer: The Woodpecker O-Light offers two modes: high mode with a light intensity range of 2300-2500 mw/cm² and standard mode with a range of 1000-1200 mw/cm².

Question: Is the light intensity affected by battery consumption?
Answer: No, the Woodpecker O-Light maintains a constant current output, ensuring that the light intensity remains consistent even as the battery is consumed.

Question: Can the Woodpecker O-Light be used for orthodontics and porcelain veneer procedures?
Answer: Yes, the high mode of the Woodpecker O-Light, with its higher light intensity, is more suitable for orthodontics, porcelain veneer, and post-core restoration.

Question: Is the Woodpecker O-Light safe to use?
Answer: Yes, the Woodpecker O-Light features a specially designed light hood made of high-quality materials to protect against blue-ray injury, ensuring safety for both the dentist and the patient.

Question: Does the Woodpecker O-Light have any distance limitations for curing?
Answer: No, the Woodpecker O-Light offers strong light penetration, allowing for curing without distance limitations.

Question: Can the Woodpecker O-Light reach hard-to-access areas?
Answer: Yes, the Woodpecker O-Light has a front connector that can rotate 360°, making it easy to reach areas that were previously hard to access, including posterior teeth.

Question: How do I clean the Woodpecker O-Light?
Answer: You can clean the light hood and the surface of the device using a soft, lint-free cloth or a disinfectant wipe to maintain hygiene standards.
