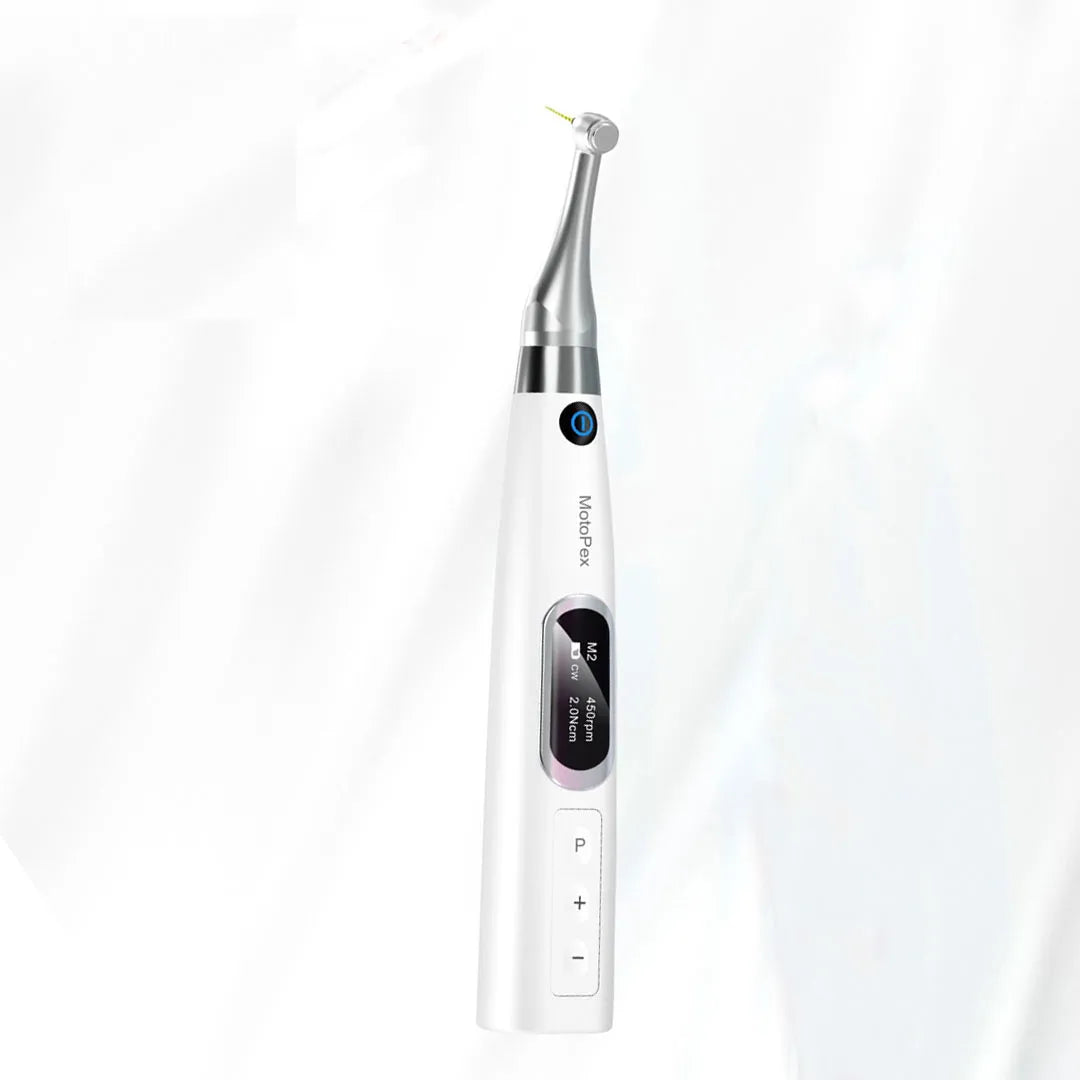

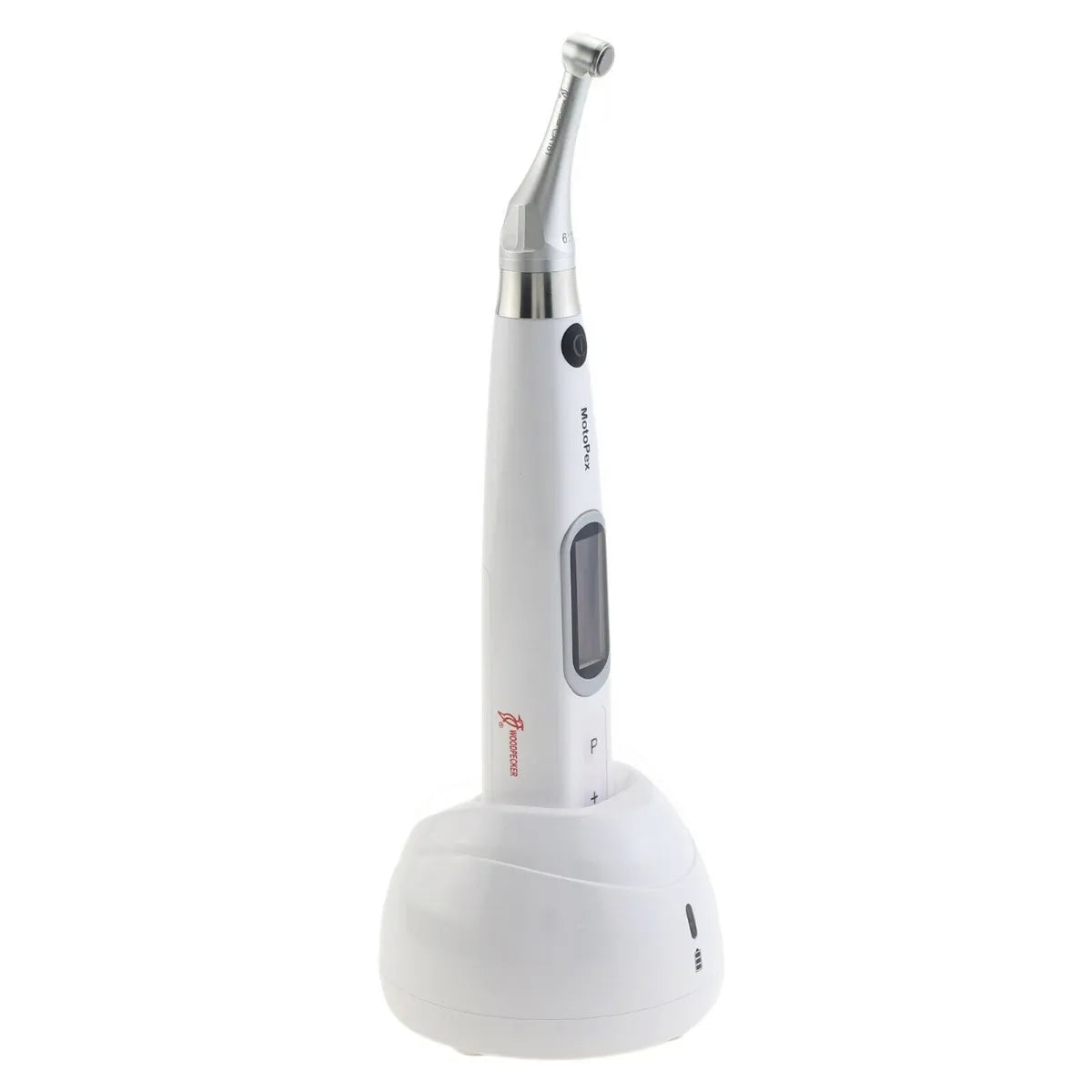

Woodpecker Motopex Brushless Endomotor

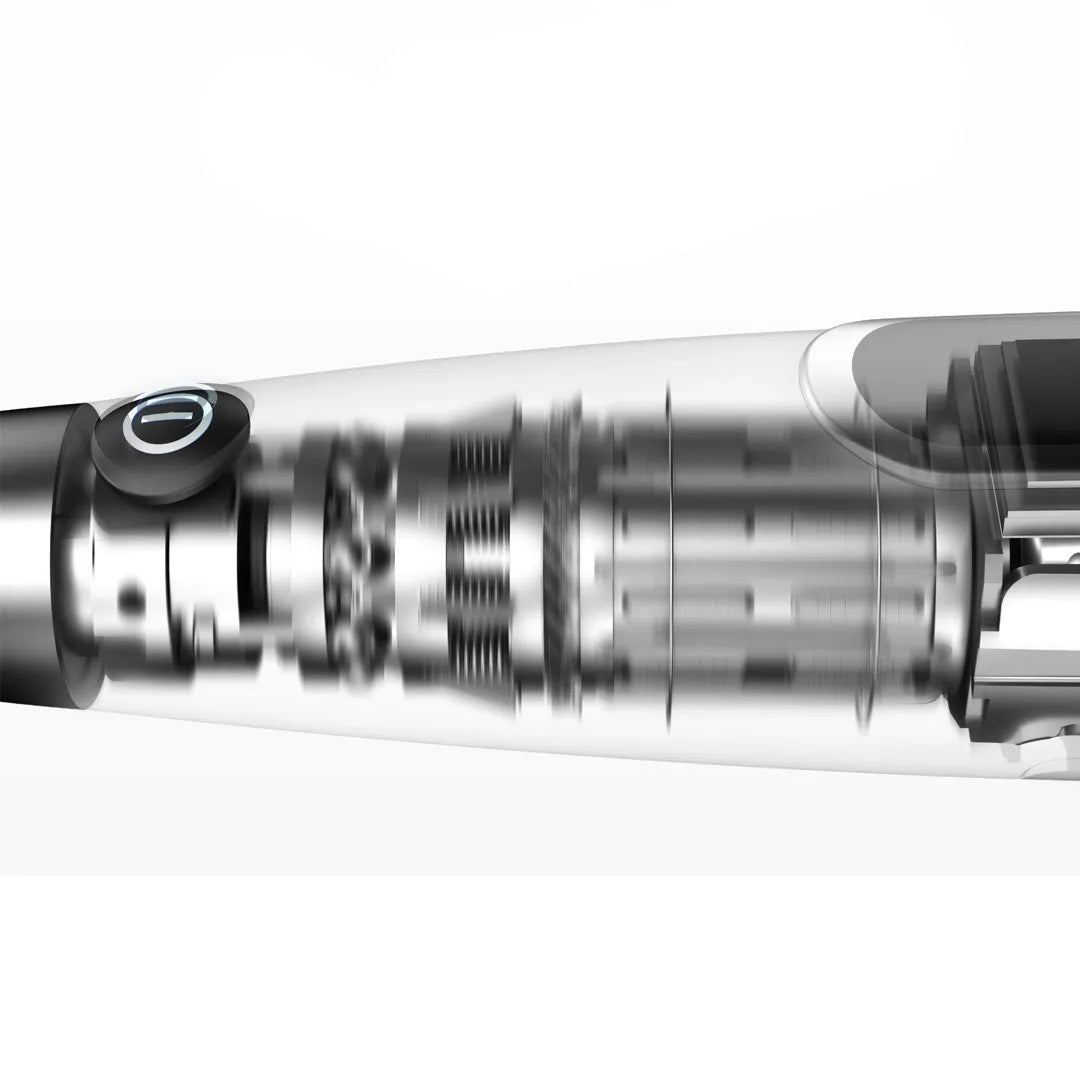

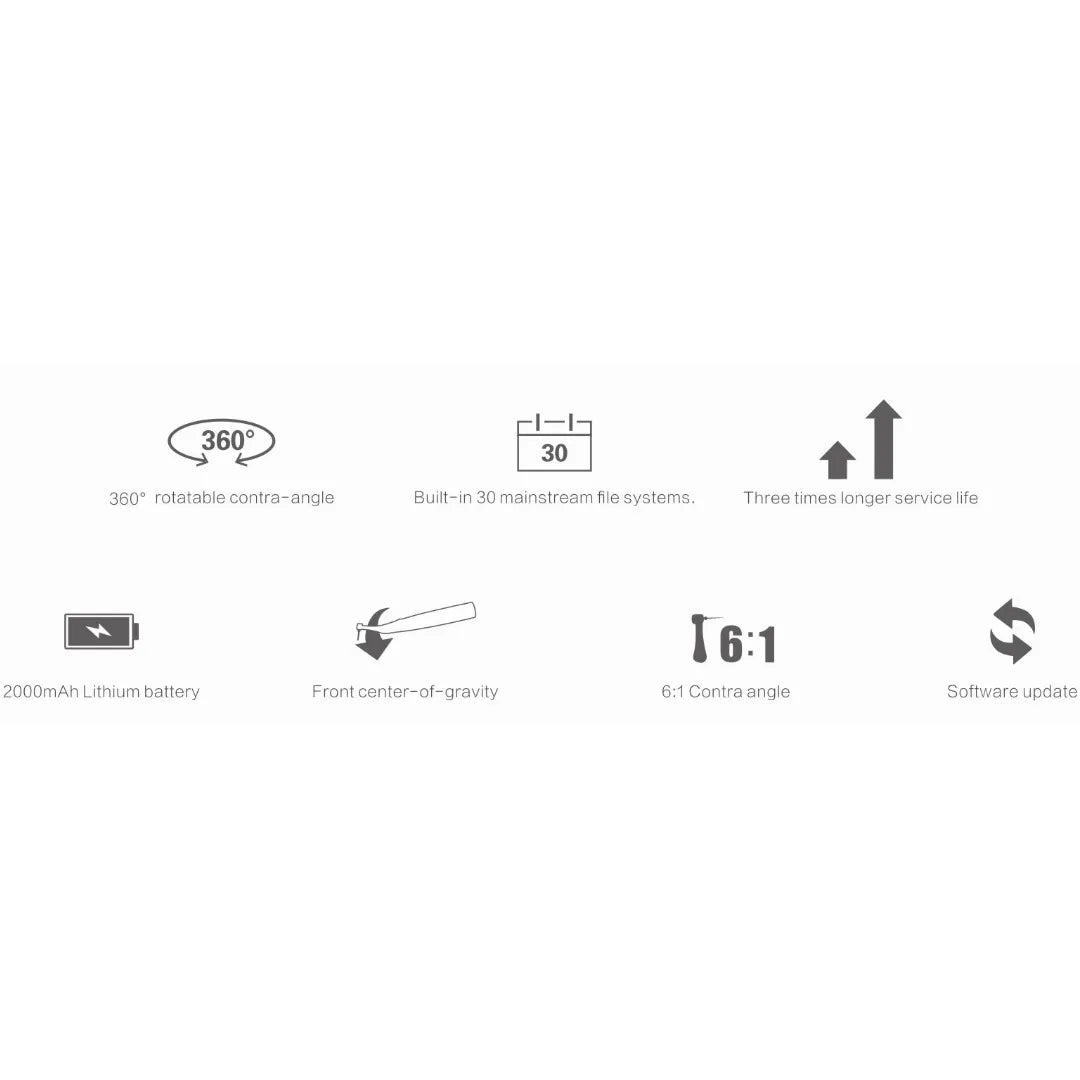

• Efficient brushless motor, low noise, long service life.
• Cordless portable endo motor with combined length determination.

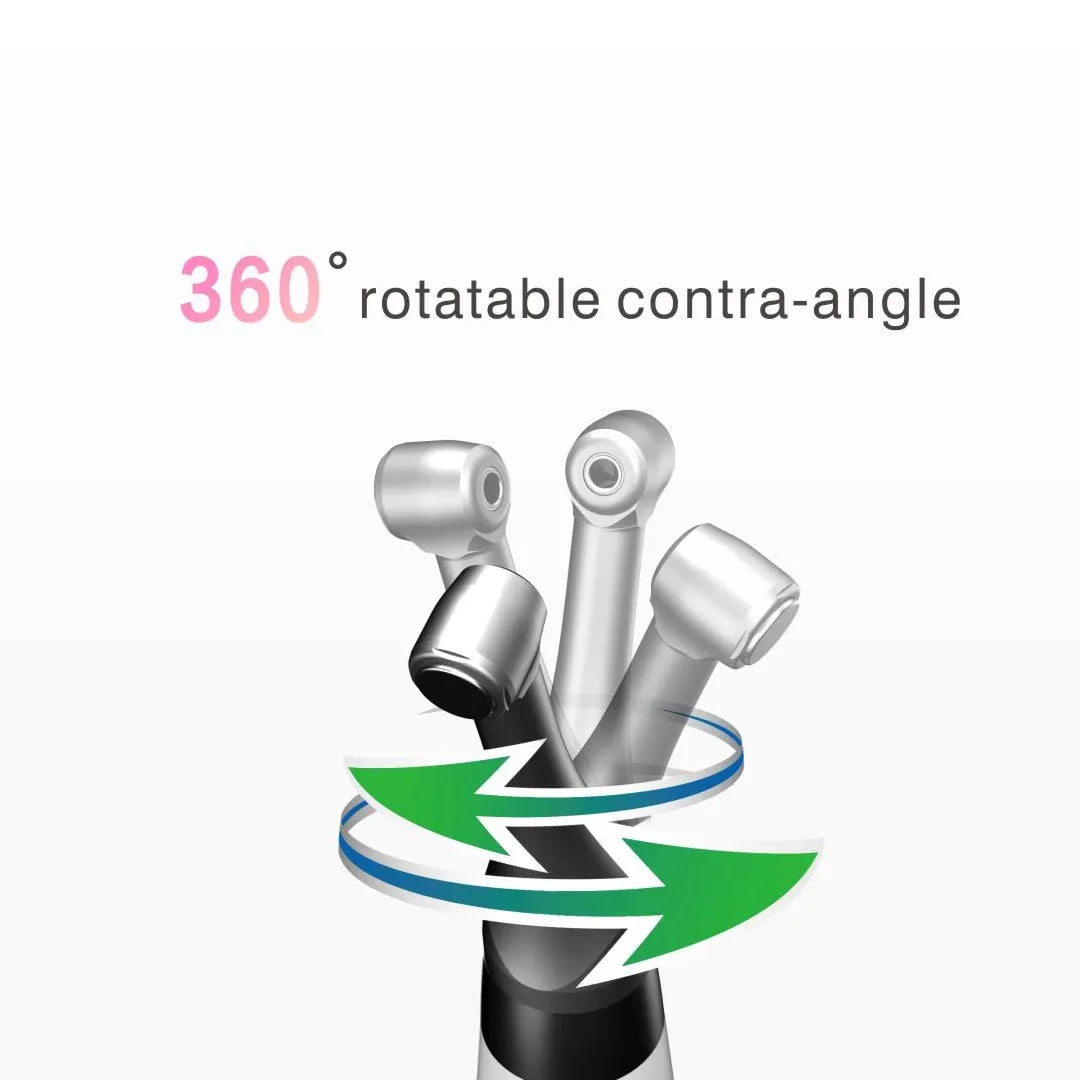

• 360 degrees rotation of contra-angle.
• Real-time feedback technology and dynamic torque control to prevent file separation.

Environment temperature: +5℃ ~ +40℃
Relative humidity: 30% ~ 75%
Atmospheric pressure: 70kPa ~ 106kPa
Speed rang: 100rpm~1200rpm
Battery: Lithium battery in motor handpiece: 3.7V /2000mAh
Power adapter: Input: ~100V-240V 50Hz/60Hz 400mA Max
Torque rang: 0.4Ncm-5.0Ncm（4mNm ~ 50mNm

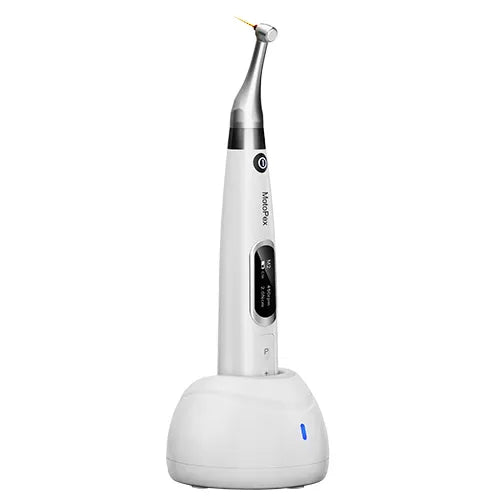

• 1 x Endo motor Unit
• 1 x Charging Unit
• 1 x Power Adapter
• Instruction manual

Select the appropriate mode: Depending on the specific task you need to perform, choose the mode that best suits your requirements. Refer to the previous response for an overview of the different modes available.
Prepare the handpiece: Attach the appropriate endodontic handpiece to the motor. Ensure it is securely connected and properly aligned.
Set the speed and torque: Adjust the speed and torque settings according to the specific procedure and file system being used. These settings may vary based on the manufacturer's recommendations and the requirements of the case.
Perform canal measurement: If you need to measure the canal, select the EAL (Electronic Apex Locator) mode. The handpiece will not rotate in this mode. Follow the instructions for using the apex locator integrated into the endo motor or use a separate apex locator if required.

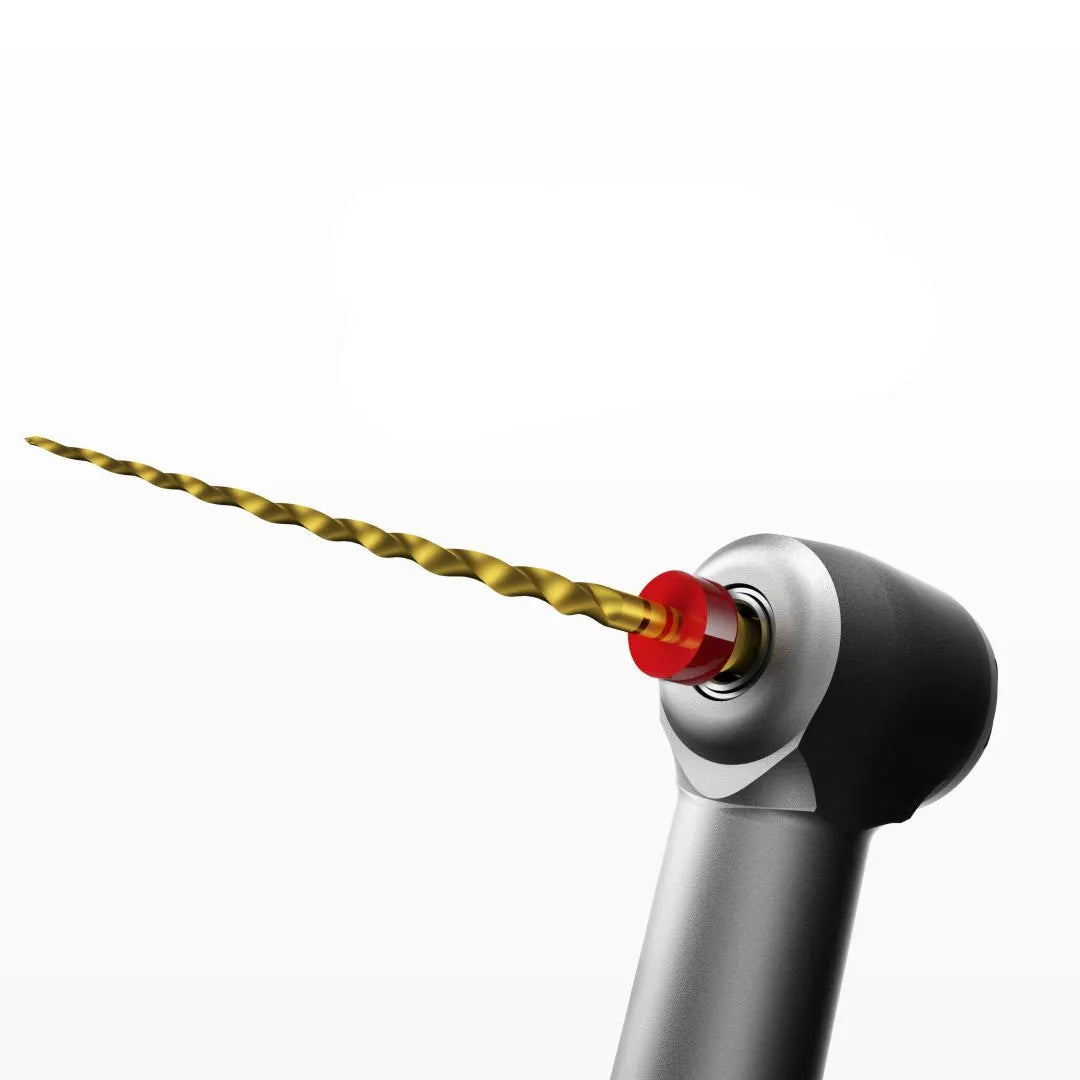

Rotary instrumentation: For rotary instrumentation using files like Waldent Wal-flex Gold Rotary Files -Refills or WOODPECKER W3-Pro, select the CW (clockwise) mode. Ensure the file is properly inserted into the canal and gently advance it while the handpiece rotates in a clockwise direction. Follow the recommended speed and torque settings for the specific file system.
Medicament placement: If you need to place medicaments like calcium hydroxide into the canal, select the CCW (counterclockwise) mode. The handpiece will rotate in a counterclockwise direction. Follow the instructions provided by the manufacturer or your endodontic protocol for accurate placement.

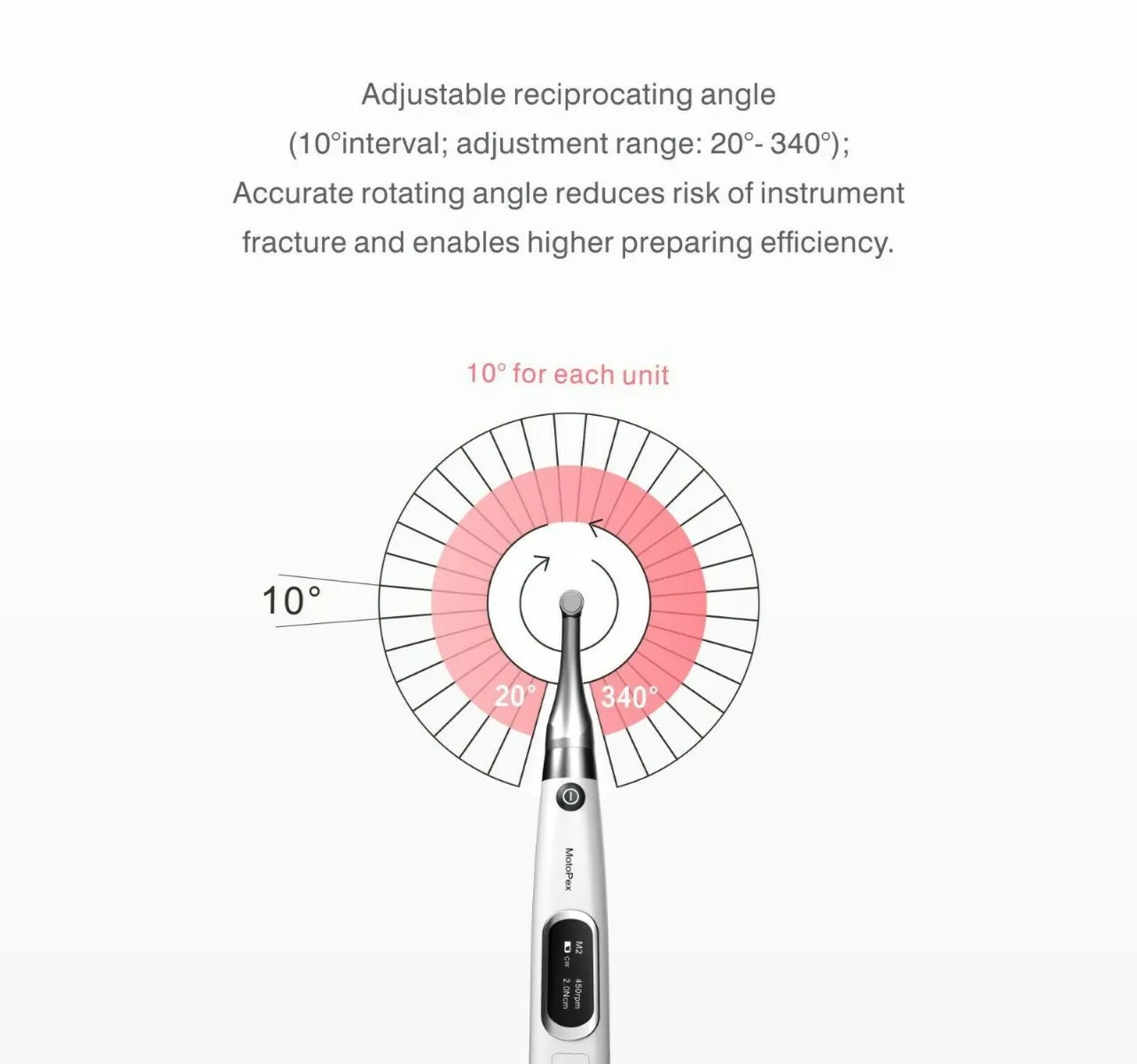

Reciprocating motion: For reciprocating motion using files like DENTSPLY WAVEONE or WOODPECKER W3-ONE, select the REC mode.
Adaptive Torque Reverse (ATR) function: If you want continuous forward rotation with alternating torque reversal, select the ATR mode. Adjust the angle and torque settings based on your requirements and the file system being used.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 Year as applicable for this product.
• (NO WARRANTY on UV Light, Glass or other internal electrical parts)
• Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services only available in Delhi/NCR )
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Is training required to use the MotoPex endo motor?
Answer: While the basic operation of the MotoPex endo motor can be intuitive, it is beneficial to undergo training or seek guidance from a qualified dental professional experienced in using the device. Training can help ensure proper technique, enhance safety, and maximize the benefits of the endo motor.

Question: How do I clean and maintain an endo motor?
Answer: Follow the instructions provided in the user manual for cleaning and maintaining your endo motor. Generally, it involves wiping the external surfaces with a soft, damp cloth and using a mild disinfectant. Avoid using harsh chemicals or immersing the motor in liquids unless specified in the manual.

Question: Does it autostops if apex is reached?
Answer: Yes, the Woodpecker Motopex Brushless Endomotor features an "Apical Action" function that provides automatic responses when the file tip reaches the apex of the canal. This function includes three options: "Stop" where the motor halts rotation when the reference point is reached, "Reverse" which reverses the rotation upon reaching or passing the reference point, and "OFF" which disables the apical action function. You can adjust these settings using the "Adjusting" button for optimal control during endodontic procedures.
