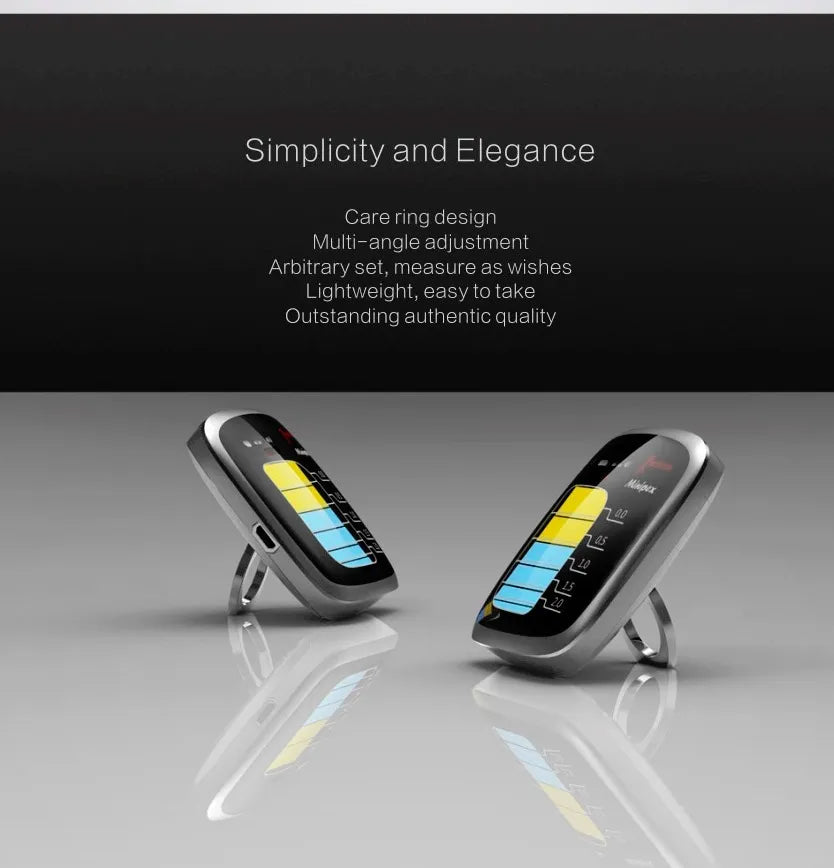

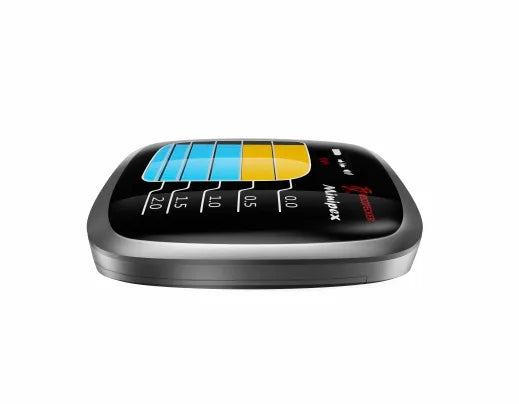

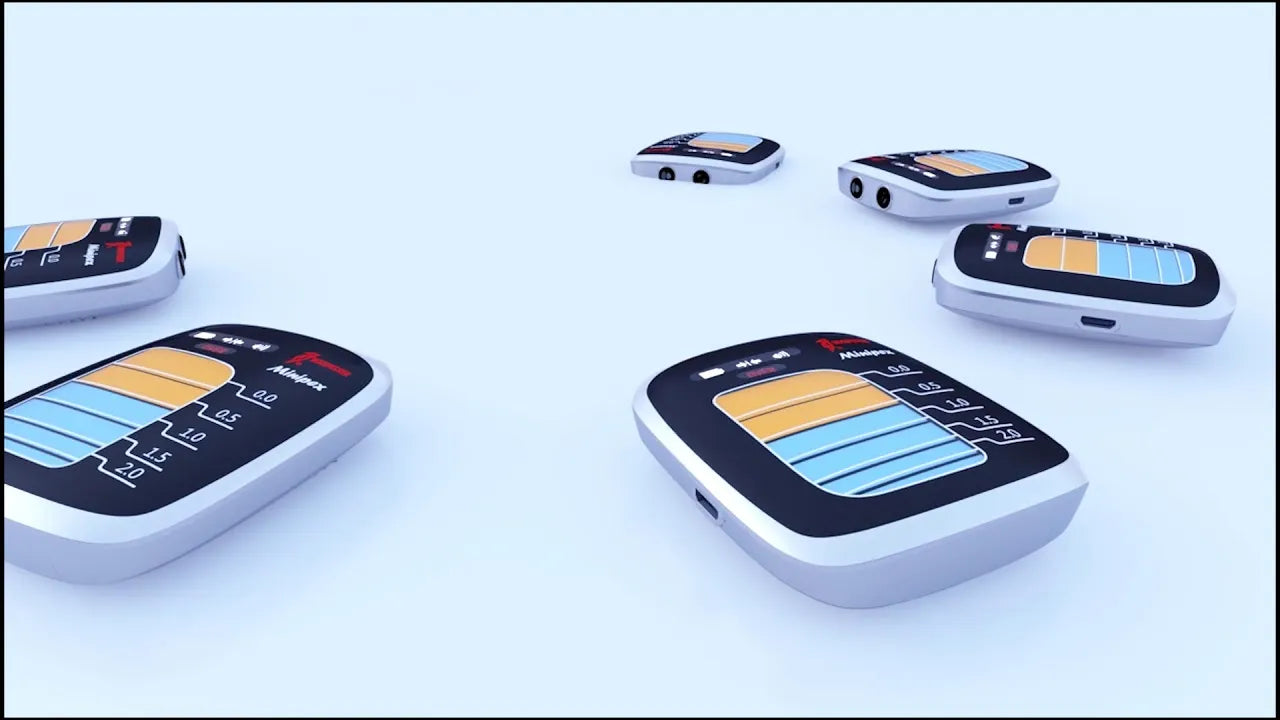

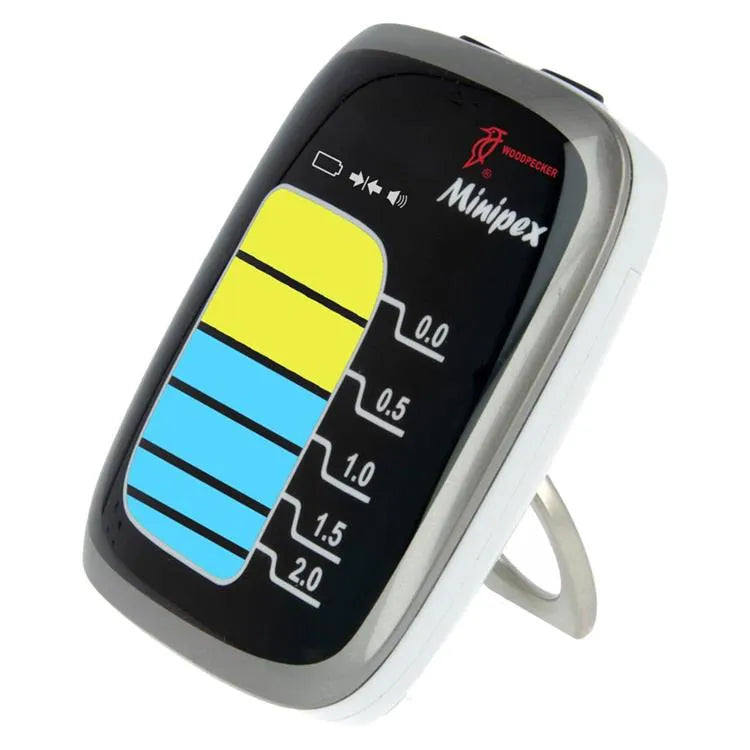

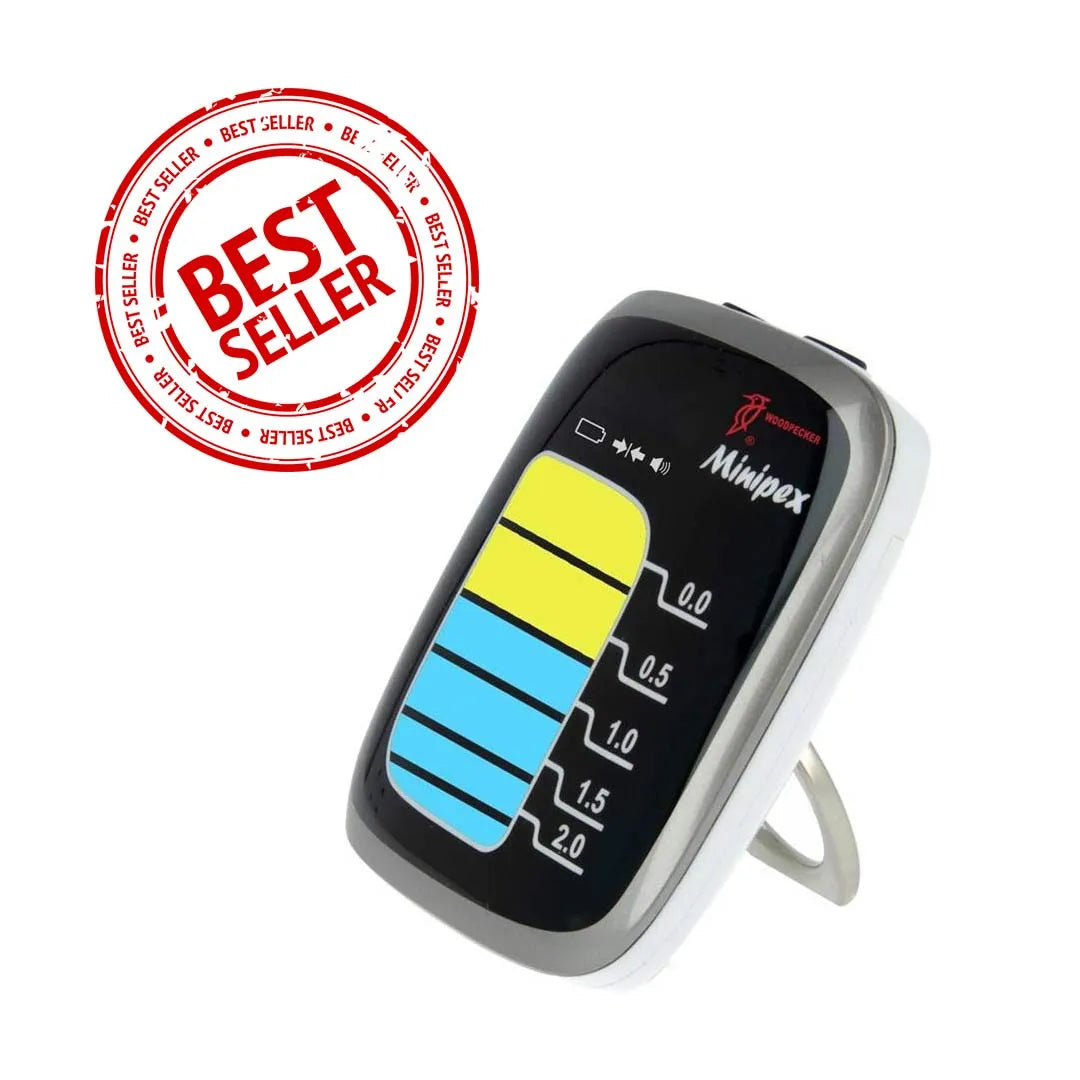

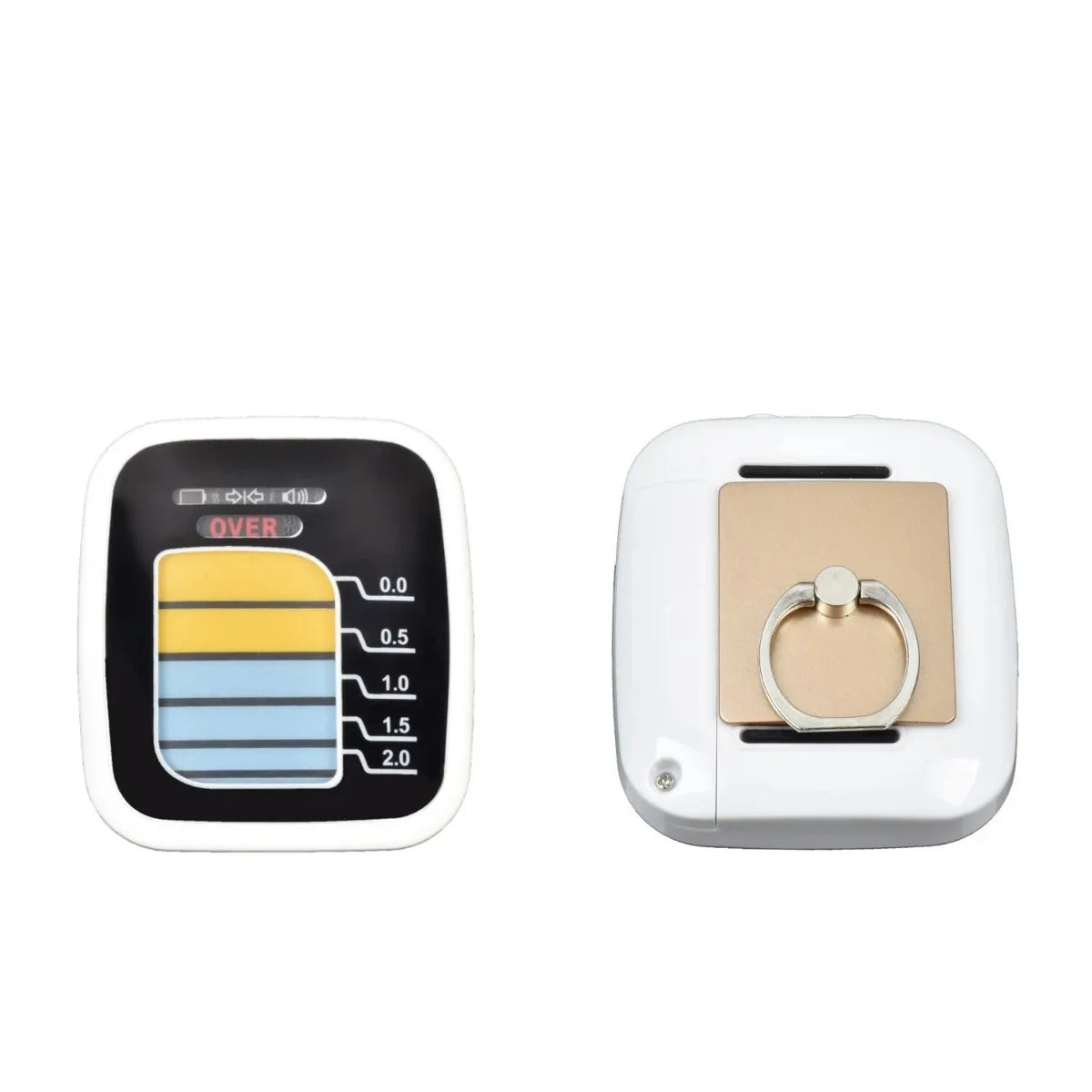

Woodpecker Minipex Apex locator

• Small and light but powerful
• 100% automatic digital calibration, with no decrease in measurement accuracy
• Light body together with stable performance
• Clinical data Fitting
• Measurement accuracy up to 97.71%
• Update chip, real-time response, double sensibility
• Innovation algorithm, intelligent anti-interference
• 2.4" LCD Screen
• Clear interface, see only at a glance
• Various colors, segment display the trace of touch probe in root canal
• Soft color, Light distribution with no glare, comfortable vision
• Surface design
• IMD mold injection shell, avoiding scratch, resistant to wipe

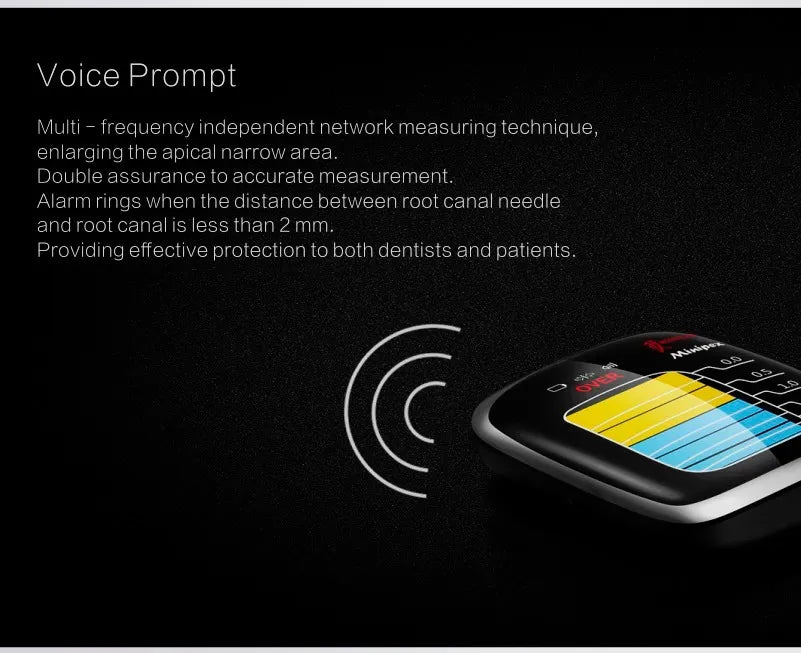

• Multi frequency-independent network measuring technique
• The alarm rings when the distance between the root canal needle and the root canal is less than 2 mm

• Weight: 71g
• Dimension: 70mm X 62mm X 20mm

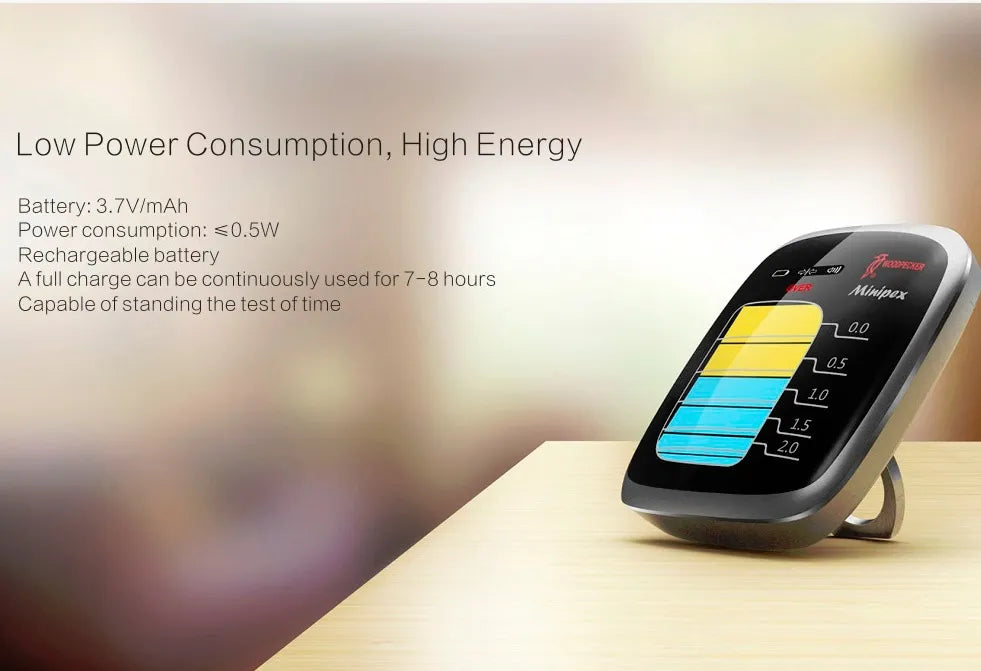

• Battery: 3.7V/mAh
• Power consumption:≤ 0.5W
• Adapter: ~100V-240V 50Hz/60Hz
• Consumption power: ≤0.5W
• Screen: Segment digital tube
• Environment temperature: +5℃～+40℃
• Relative humidity: 30% ～75%
• Atmosphere pressure: 70kPa～106kPa

• 1 Unit Minipex Apex Locator
• 2 x File clips
• 1 x Lip hooks
• 2 x Touch probe
• 1 x Adapter
• 1 x Stand Holder
• Instruction Manual

• Prepare the tooth: Begin by performing the initial root canal preparation according to standard protocols. Ensure that the tooth is isolated and dry.
• Power on the Apex Locator: Turn on the device using the designated power button or switch. Ensure that the battery is adequately charged or connected to a power source.
• Select the correct file clip: Choose the appropriate file clip that matches the file size you will be using during the measurement. Attach the file securely to the clip.
• Attach the file clip: Connect the file clip to the Apex Locator device using the designated port. Ensure a tight and secure connection to avoid any interference during measurements.
• Insert the file into the root canal: Gently insert the file into the prepared root canal, making sure it reaches the working length. Take care not to force the file, as it may cause damage or inaccurate measurements.
• Observe the LCD screen: Look at the 2.4" LCD screen to view the measurement results. The screen will display the length of the file in the root canal.
• Follow the color indicators: Pay attention to the various colors and segment displays on the screen. They indicate the trajectory of the file within the root canal, helping you navigate the canal accurately.
• Monitor the alarm function: Stay alert to the alarm feature of the Apex Locator. If the distance between the root canal needle and the root canal becomes less than 2 mm, the alarm will ring, indicating potential risks. Take appropriate precautions in such situations.
• Complete the measurement: Once you have obtained the desired measurements and confirmed the file's position, carefully remove it from the root canal.
• Evaluate and record the results: Compare the measurements obtained from the Apex Locator with other diagnostic tools, such as X-ray images, for confirmation. Record the accurate measurement for future reference and treatment planning.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 year as applicable for this product, 5 year warranty on PCB (Power Circuit Board)
• Service and Warranty are handled by the manufacturer/importer directly for this product (Currently On Spot Services only available in Delhi/NCR )
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Which generation apex locator is this one?
Answer: Minipex apex locator is a fifth-generation device. It incorporates advanced multiple frequency network impedance measurement technology, which enhances its precision and effectiveness in measuring working length. This technology allows for more accurate and clear measurements, making it a valuable tool for dental professionals.

Question: Is an Apex Locator accurate?

Answer: Yes, Apex Locators are designed to provide accurate measurements of root canal length. However, it's important to note that factors such as moisture, blood, or other interferences can affect the accuracy. Proper technique, calibration.

Question: How long does it take to measure the root canal length using an Apex Locator?
Answer: The measurement time can vary depending on factors such as the type of tooth, canal complexity, and operator proficiency. Generally, obtaining a measurement with an Apex Locator is a quick process and can be done within seconds to a few minutes.

Question: Is it necessary to take a radiograph (X-ray) along with Apex Locator measurements?
Answer: While an Apex Locator provides a reliable estimate of the root canal length, it is still recommended to confirm the measurements with a radiograph. X-rays help visualize the root canal anatomy, verify the file's position, and ensure accurate treatment planning.

Question: How does an Apex Locator work?
Answer: An Apex Locator works by measuring the electrical resistance between the file in the root canal and the surrounding tissues. This measurement helps determine the position of the file's tip and provides an estimate of the root canal length.

Question: Can an Apex Locator be used on all tooth types?
Answer: Yes, Apex Locators can be used on most tooth types. They are compatible with anterior teeth, premolars, molars, and multi-rooted teeth. However, it's essential to select the appropriate file clip and ensure proper placement within the root canal for accurate measurements.
