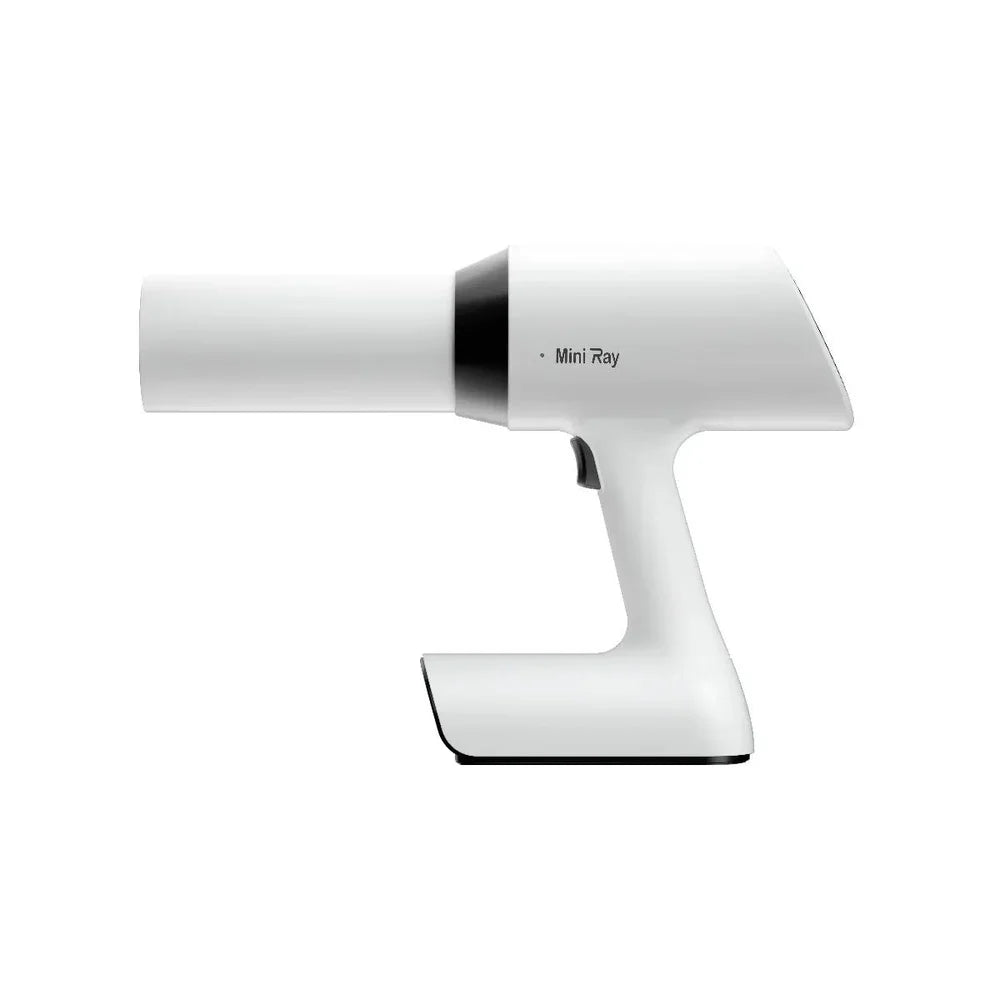

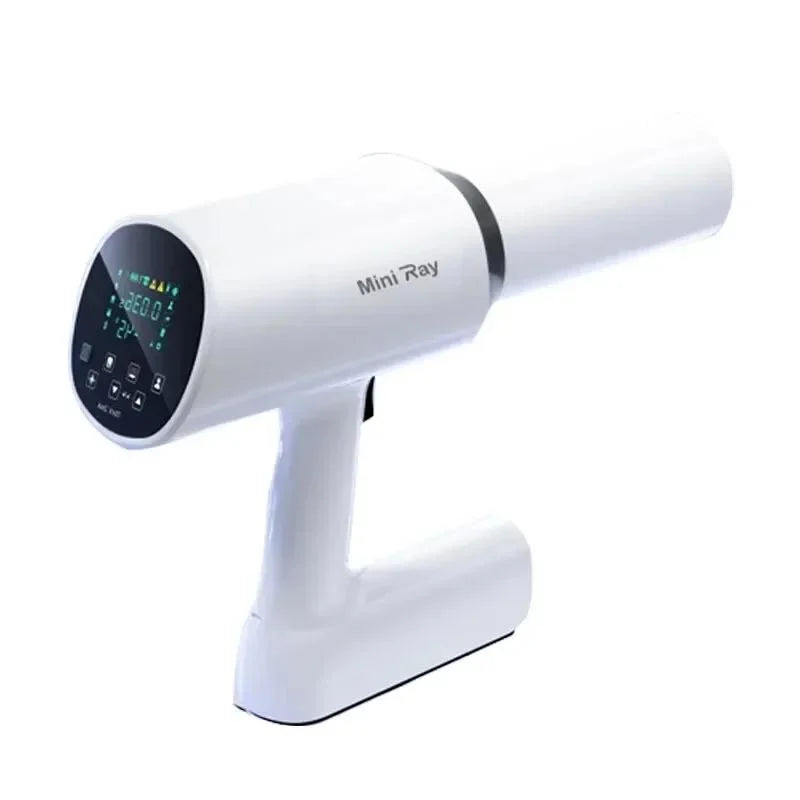

Woodpecker Mini Ray Portable X-Ray Machine

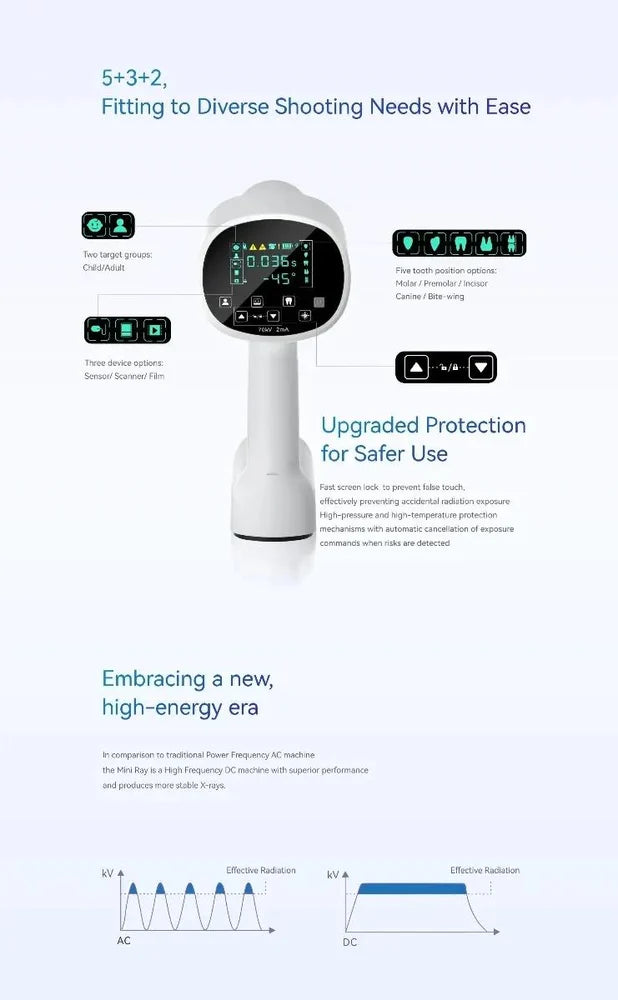

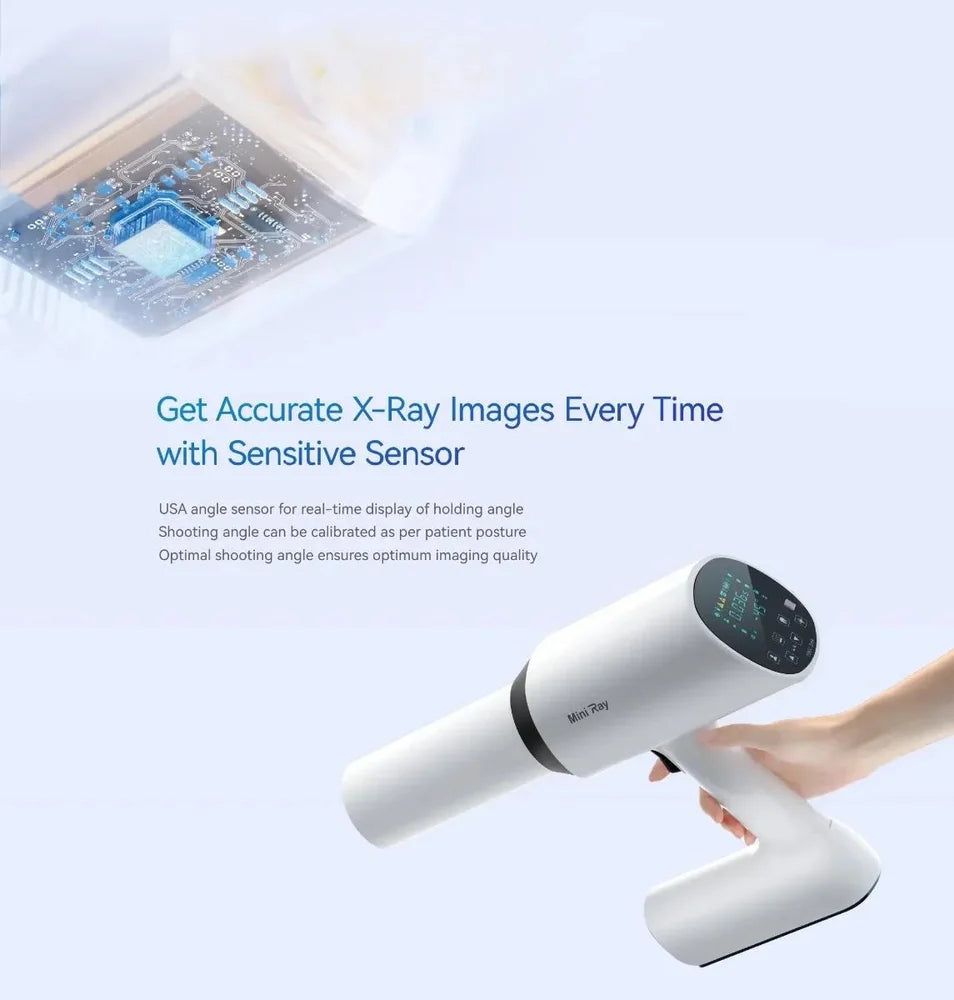

• Radiation Protection:Complies with international standards.Radiation leakage ≤ 0.05mGy/h (CE safety standard).99.9% pure lead shielding in the oil tank and beam limiter.Efficient Shooting:50k tube wattage for enhanced penetration.2mA tube current for precise exposures.140W output power for diverse clinical needs.Powerful "CHIP" Technology:Advanced chip for stable output.Mitigates low battery impact on image quality.Long-lasting Battery:1800ml x 35 lithium battery.506 shots on full charge.2-hour fast full charge.Accurate Imaging Sensor:USA angle sensor for real-time display.Shooting angle calibration based on posture.Durable Build:60,000+ exposure times.High-frequency X-ray tube for extended service life.Focused Imaging:0.4mm focus for clear high-resolution images.User-Friendly Design:2.8" HD digital screen.Intuitive interface, ultra-sensitive buttons.Compact and lightweight for one-hand operation.Adaptable to Diverse Needs:Two target groups: Child/Adult.Three device options: Sensor/Scanner/Film.Five tooth position options.Upgraded Safety Measures:Fast screen lock to prevent false touch.High-pressure and high-temperature protection.Automatic exposure command cancellation.High-frequency DC Machine:Superior performance, stable X-rays.

Type Portable

Brand Woodpecker

Model Name/Number Mini Ray

Dimension 338mmx112mmx247mm

Tube Voltage 70 kV

Tube current 2mA

Battery Capacity 2500mAh 3S

Weight 2.2 Kg
