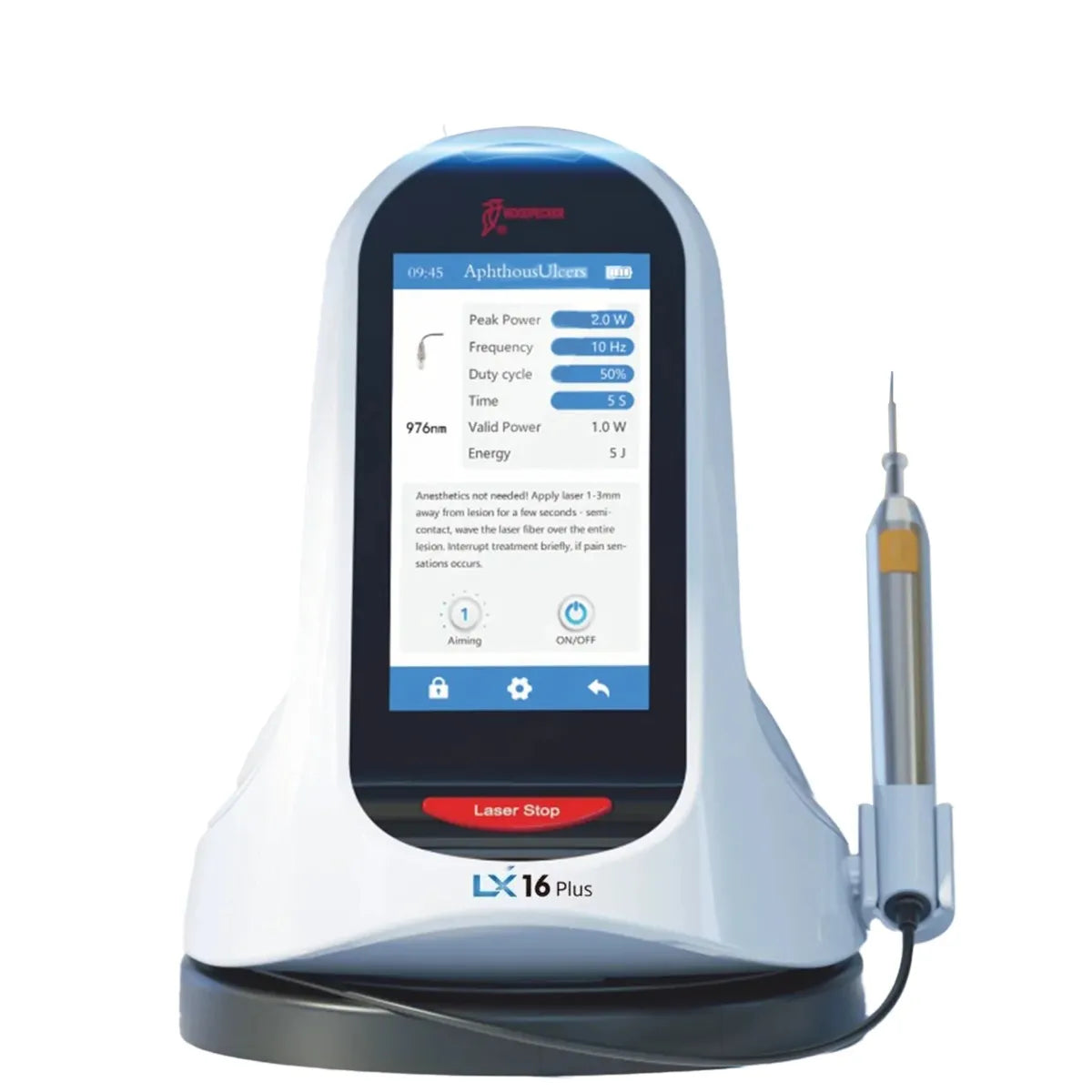

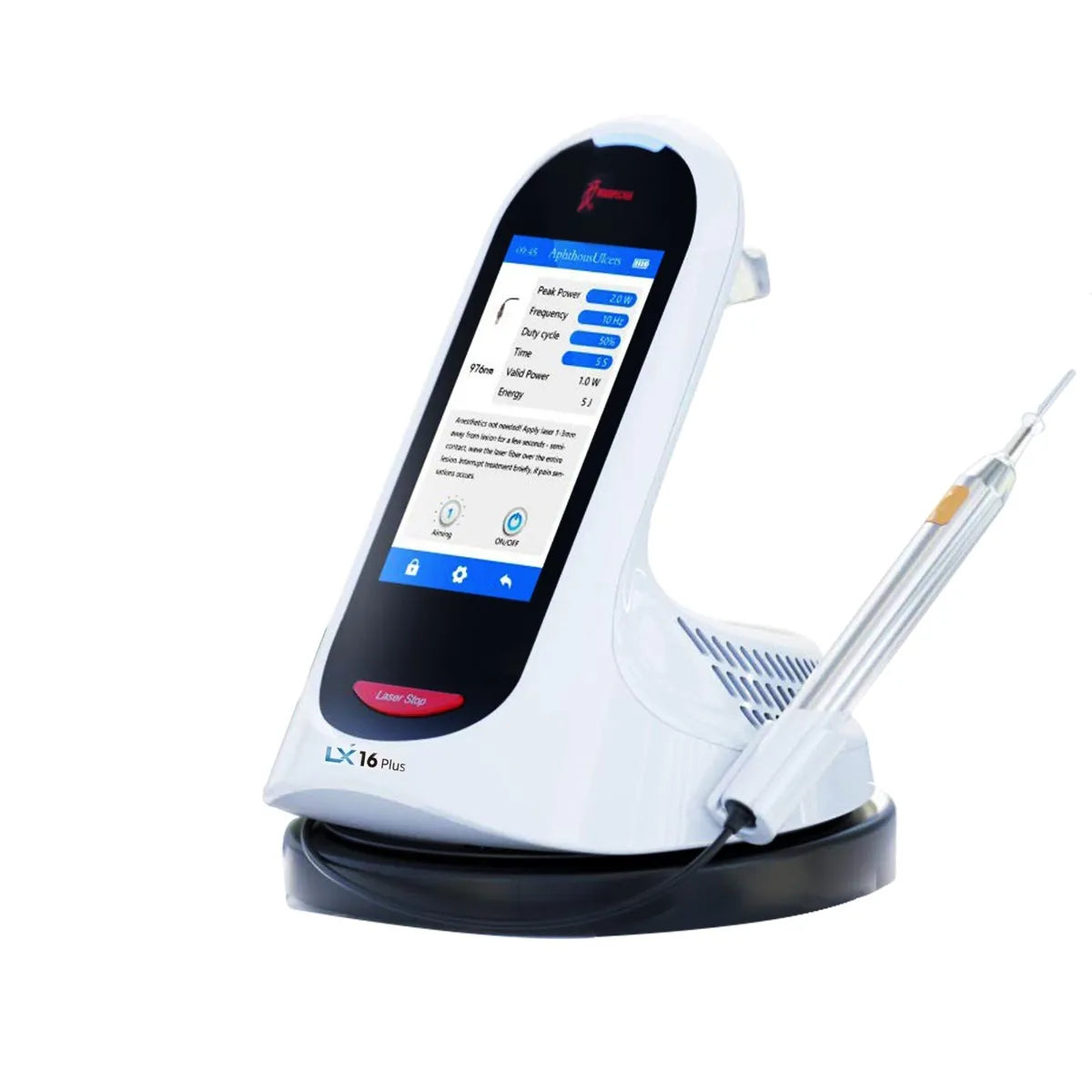

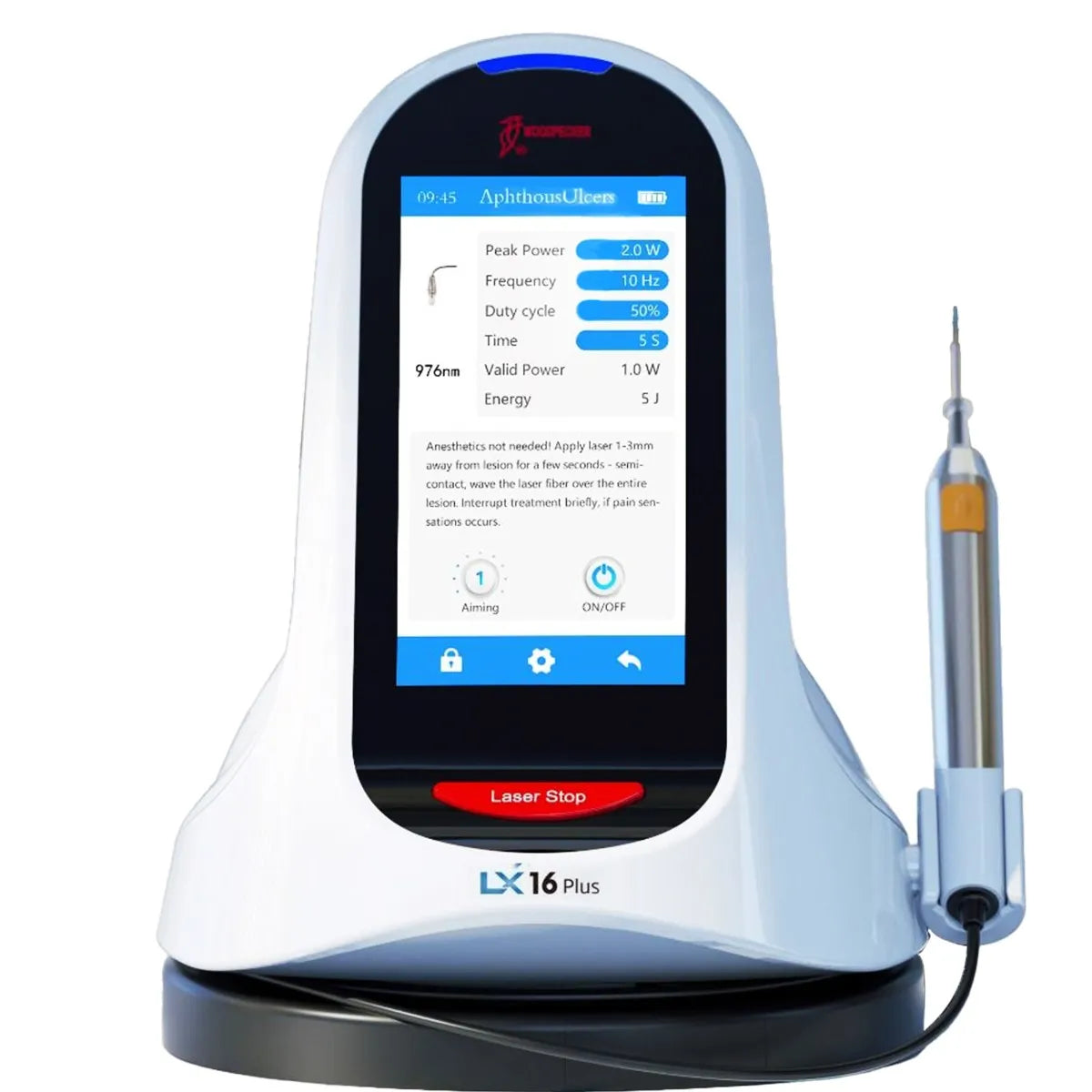

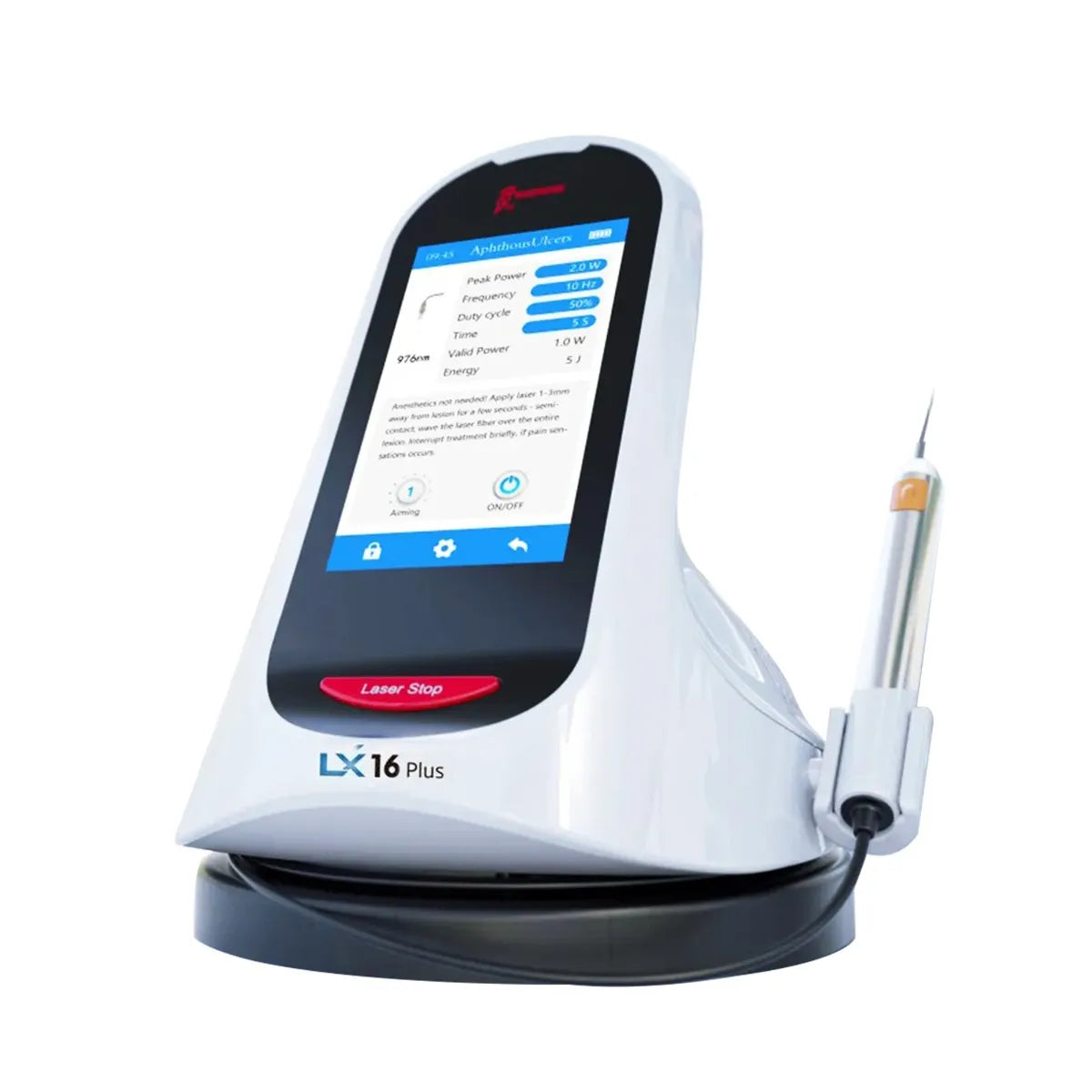

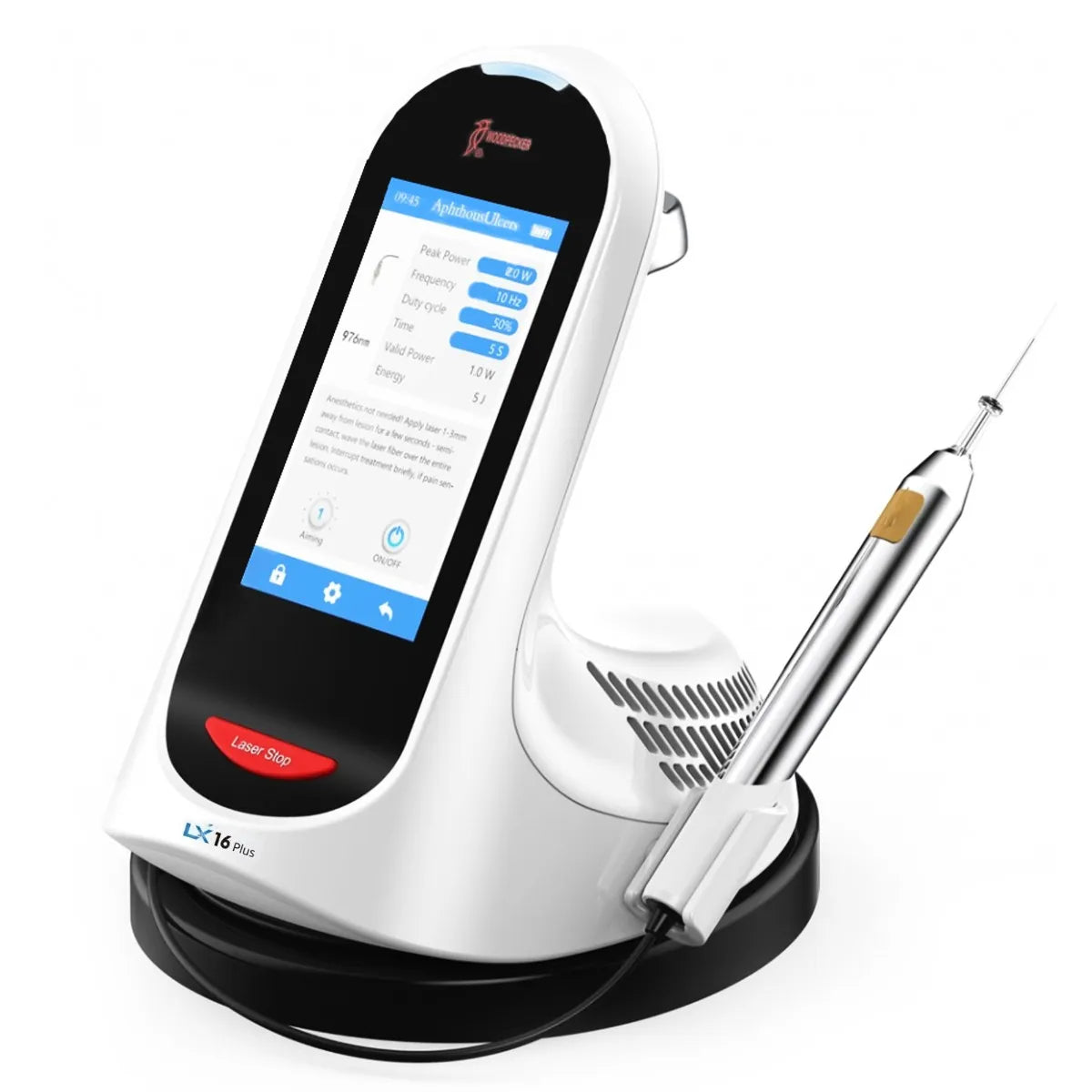

Woodpecker LX16 Plus Dental Diode Laser

• Capacitive touch screen for easy operation
• Built-in rechargeable lithium battery
• Autoclavable handpiece sleeve for hygiene
• Preset treatment procedures for ease
• Automatic shutdown after inactivity
• Remote interlocking for safety
• Diverse treatment options for oral diseases

• Power adapter input：100-240Vac，50/60Hz，2.5A
• Main unit input：15V 6.0A

Wavelength and power:

• 976± 20nm ：  0.2W-4W(CW), Peak Power 5W chopped 1Hz to 20KHz
• chopped mode :5us – 0.9S
• 650± 20nm ：  25mW-200mW(CW)
• 450± 20nm ：  0.2W-3W(CW) chopped 1Hz to 20KHz
• chopped mode : 5us – 0.9S

Laser classification:

• 976 nm: Class 4
• 650 nm: Class 2
• 450 nm: Class 4
• Aiming beam: 650 ± 20 nm / Pmax<5mW (class 1 )
• Aiming beam:   650 ± 20 nm /Pmax<5mW
• Divergence:12.7°(According to IEC 60825-1: 2014)
• Rechargeable battery:   11.1V/2600mAh x2 (57.7Wh)
• Time consumption for charging: about 4h (5 hours for first charging)
• Diverging half angle: 0.22 mad/ 12.6 °
• size: 22 cm x 20cm x 23cm
• Weight: 1.5kg

• 1 x Laser
• 1 x Handle shell
• 2 x MF2-14
• 1 x MF2-20
• 3 x MF3-4
• 3 x MF3-9
• 3 x MF4-4
• 3 x MF4-9
• 3 x Goggles
• 1 x DT15-Tip
• 1 x DT20-Tip
• 1 x DT30-Tip
• 1 x BT8-Tip
• 1 x Whitening-Tip
• 1 x Bending tool
• 1 x Articulating paper
• 1 x Cutting Pen
• 1 x Remote control interlock
• 1 x Adapter
• 1 x Foot Switch
• 1 x Instruction manual

Here are the directions for using the Woodpecker LX16 Plus Dental Diode Laser:

Unboxing and Setup:

• Carefully remove all parts from the packaging, ensuring no damage occurs.
• Install the device in the designated area with ample space around it to prevent damage to the fiber handpiece wire.
• Ensure there are no obstructions blocking the device's air outlet.

Installation of Power Adapter:

• Connect the provided power adapter and power supply cable as indicated in the instructions.

Installation and Removal of Dustproof Plug:

• Remove the dustproof plug on the handpiece counterclockwise when ready to use.
• Tighten the dustproof plug clockwise when the device is not in use to prevent dust from entering the handpiece tip.

Installation and Removal of Handpiece Sleeve:

• Carefully insert the handpiece sleeve into the handpiece, ensuring it is securely in place.
• Press the handpiece switch to remove the sleeve when disassembling.

Storage of Handpiece Tail Cord:

• Handle the handpiece tail cord delicately to avoid damage.
• Store the cord as shown in the instructions to prevent bending or squeezing.

Operation:

• Turn on the device by pressing the "ON/OFF" button at the back.
• Enter the user password (initial password: "8888") on the display screen and press OK.
• Select a preset program or customize treatment parameters as needed.

Laser Emission:

• Ensure the aiming beam is working properly before each treatment.
• Press the pedal to observe the indicator light and initiate laser emission.
• Monitor the device during laser emission and observe safety protocols.

Charging and Control Modes:

• Charge the device using the provided power adapter.
• Switch between footswitch control mode and handpiece control mode as needed.
• Pair the footswitch with the main unit if necessary.

Troubleshooting:

• Refer to the troubleshooting guide provided if encountering operational issues.
• Contact the dealer or manufacturer for assistance if problems persist.

• Country of Origin: PRC
• Manufacturer: Woodpecker

Question: What are the key differences between the Woodpecker LX16 and LX16 Plus Dental Diode Lasers?
Answer: The Woodpecker LX16 operates at a single wavelength of 976 nm, suitable for various dental procedures, whereas the LX16 Plus offers three wavelengths (450 nm, 650 nm, and 976 nm), enhancing its versatility for applications like periodontal treatment and teeth whitening. The LX16 has a maximum output of 16 watts, while the LX16 Plus features variable power settings across its wavelengths. Additionally, the LX16 Plus includes a user-friendly touch screen interface and autoclavable tips, making it more efficient and hygienic for clinical use.

Question: Can the Woodpecker LX16 Plus be used for both soft and hard tissue procedures?
Answer: Yes, the LX16 Plus is suitable for a wide range of dental procedures, including both soft and hard tissue treatments.

Question: What is the divergence angle of the aiming beam?
Answer: The aiming beam has a divergence of 12.7 degrees, adhering to safety standards outlined in IEC 60825-1: 2014.

Question: Is protective eyewear necessary when using the laser?
Answer: Yes, it's crucial to ensure both the operator and patient wear protective eyewear to safeguard against laser exposure.

Question: How long does it take to charge the battery?
Answer: The rechargeable battery takes approximately 4 hours to fully charge, with the initial charge taking up to 5 hours.

Question: How does the chopping mode work?
Answer: The chopping mode allows you to adjust the frequency of the laser pulses. It can be set between 1Hz to 20KHz, providing flexibility for various treatments.

Question: What are the key wavelengths of the Woodpecker LX16 Plus Dental Diode Laser?
Answer: The Woodpecker LX16 Plus offers three key wavelengths: 976nm, 650nm, and 450nm, allowing for a wide range of dental procedures.
