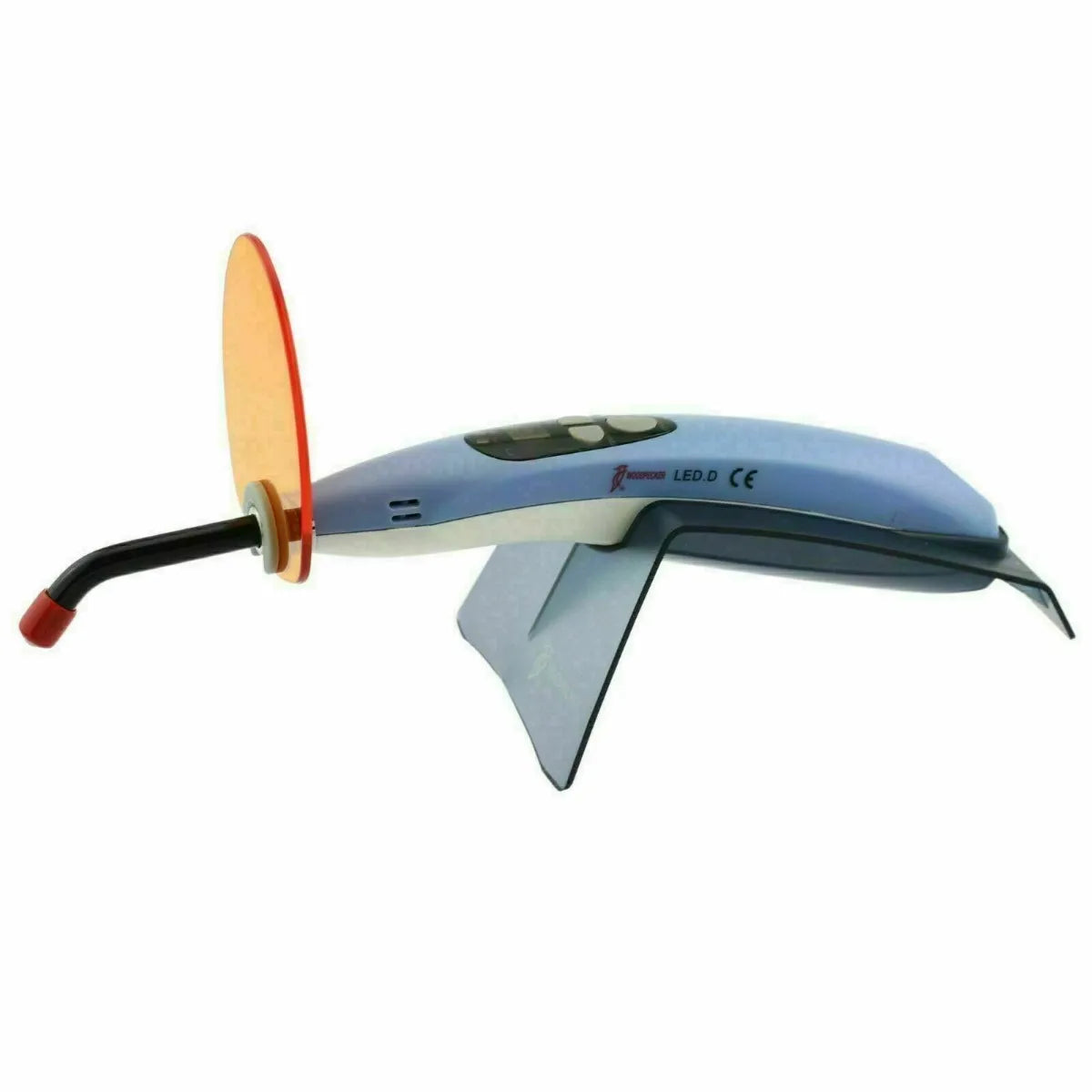

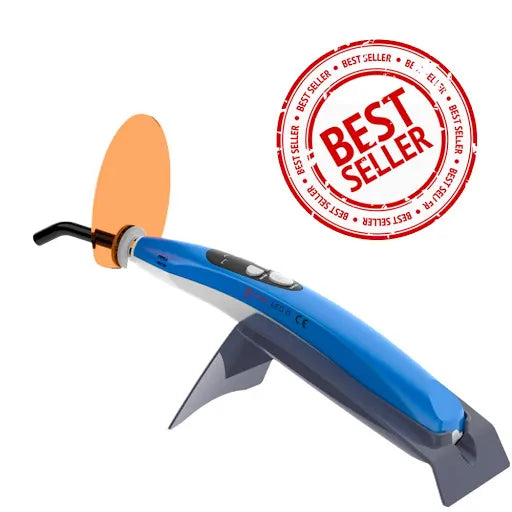

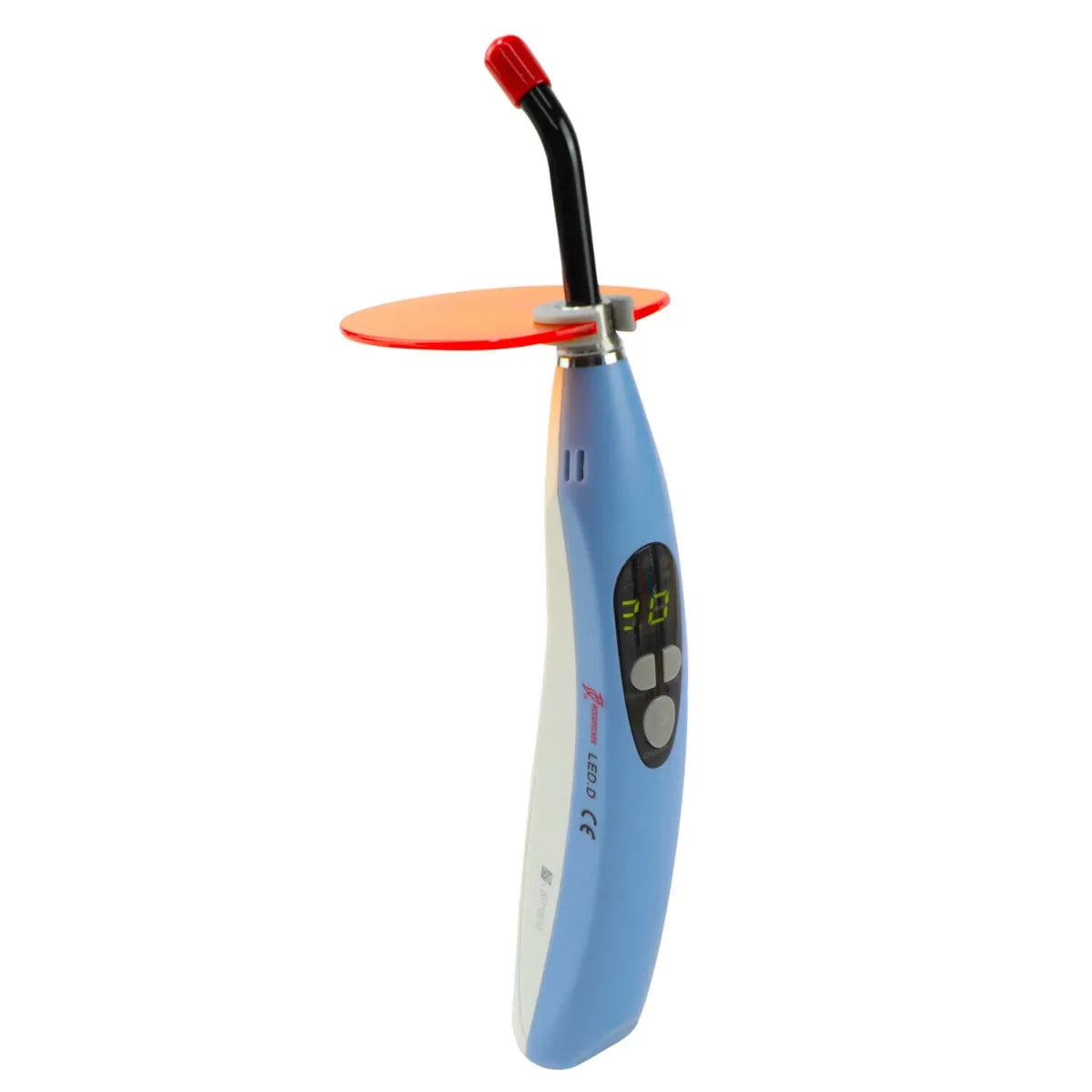

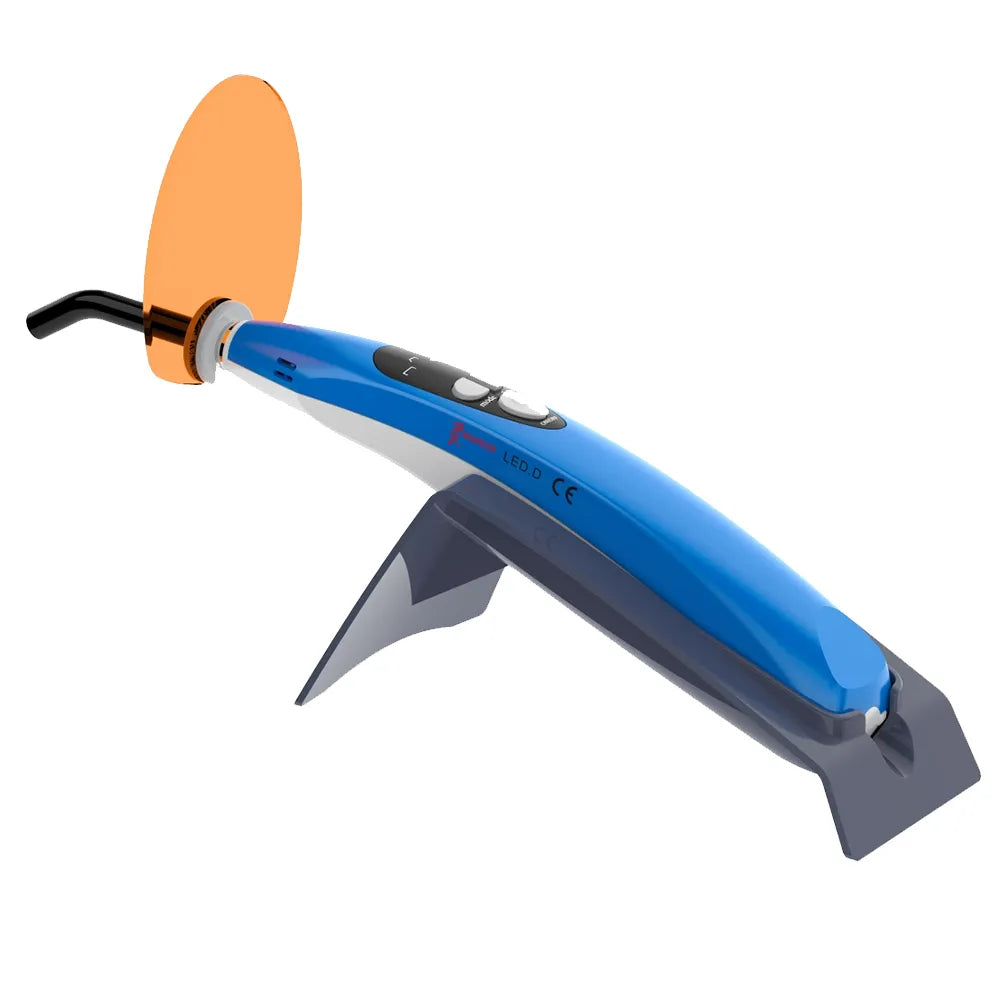

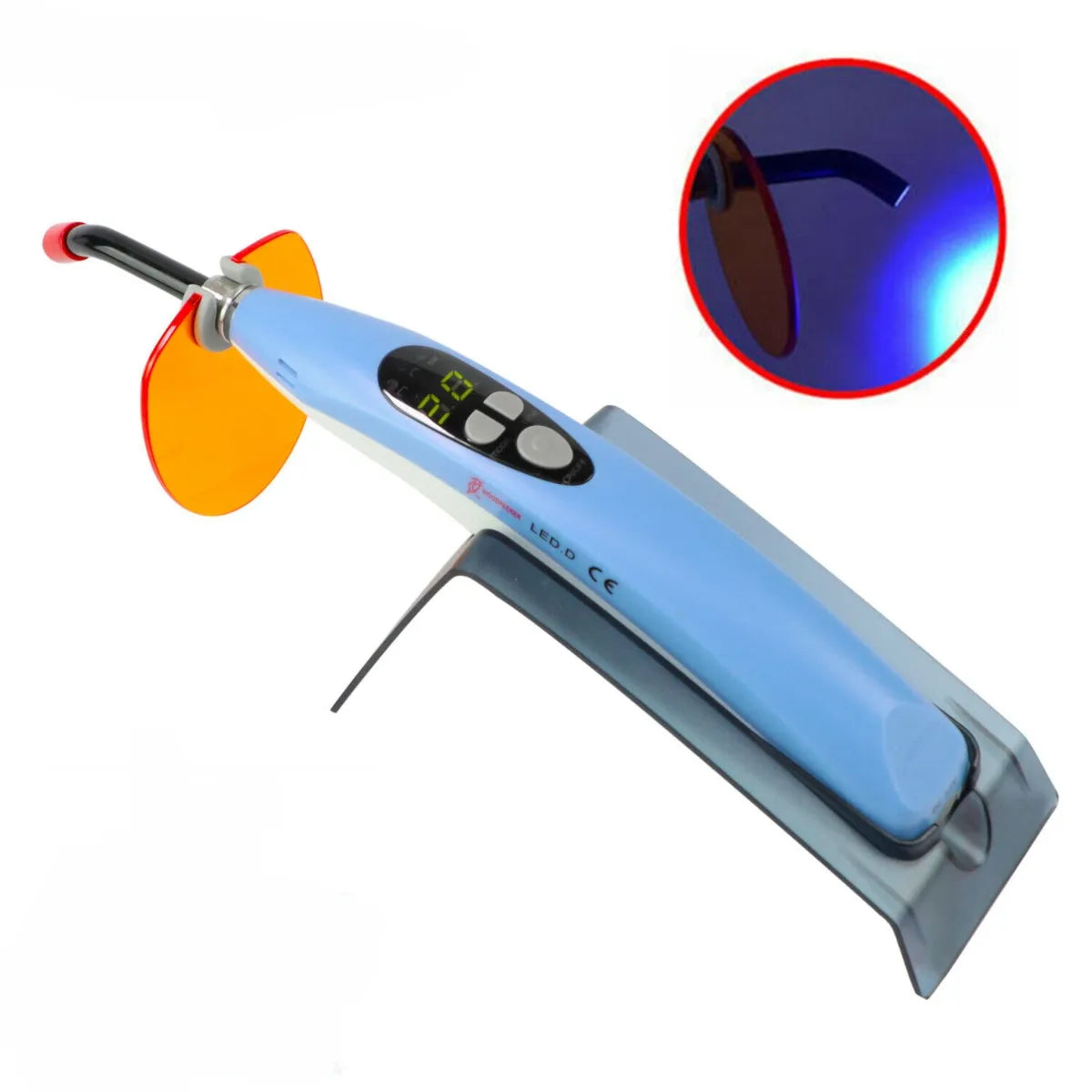

Woodpecker LED D Curing Light Unit

• Wireless
• Three working modes:- Full, Ramping, Pulse.
• Time setting:- 5s, 10s, 15s, 20s, 25s, 30s, 35s, 40s.
• A full charge can be used for over 400 times. (10s/time)
• Constant light intensity, the solidification effect is not affected by the consumption of remaining power.
• With wire or wireless. It can run directly on commercial power supply if the battery runs out.

• Rechargeable Lithium battery: ICR18490, 3.7V, 1400mAh
• Adapter: Input - AC100V-240V 50Hz/60Hz, Output - DC5.0V/1A
• Wavelength: 420nm-480nm
• Light intensity: 1000mW/cm²~1700mW/cm²
• Environment temperature: +5°C~+40°C
• Relative humidity: 30%~75%
• Atmosphere pressure: 70kPa to 106kPa

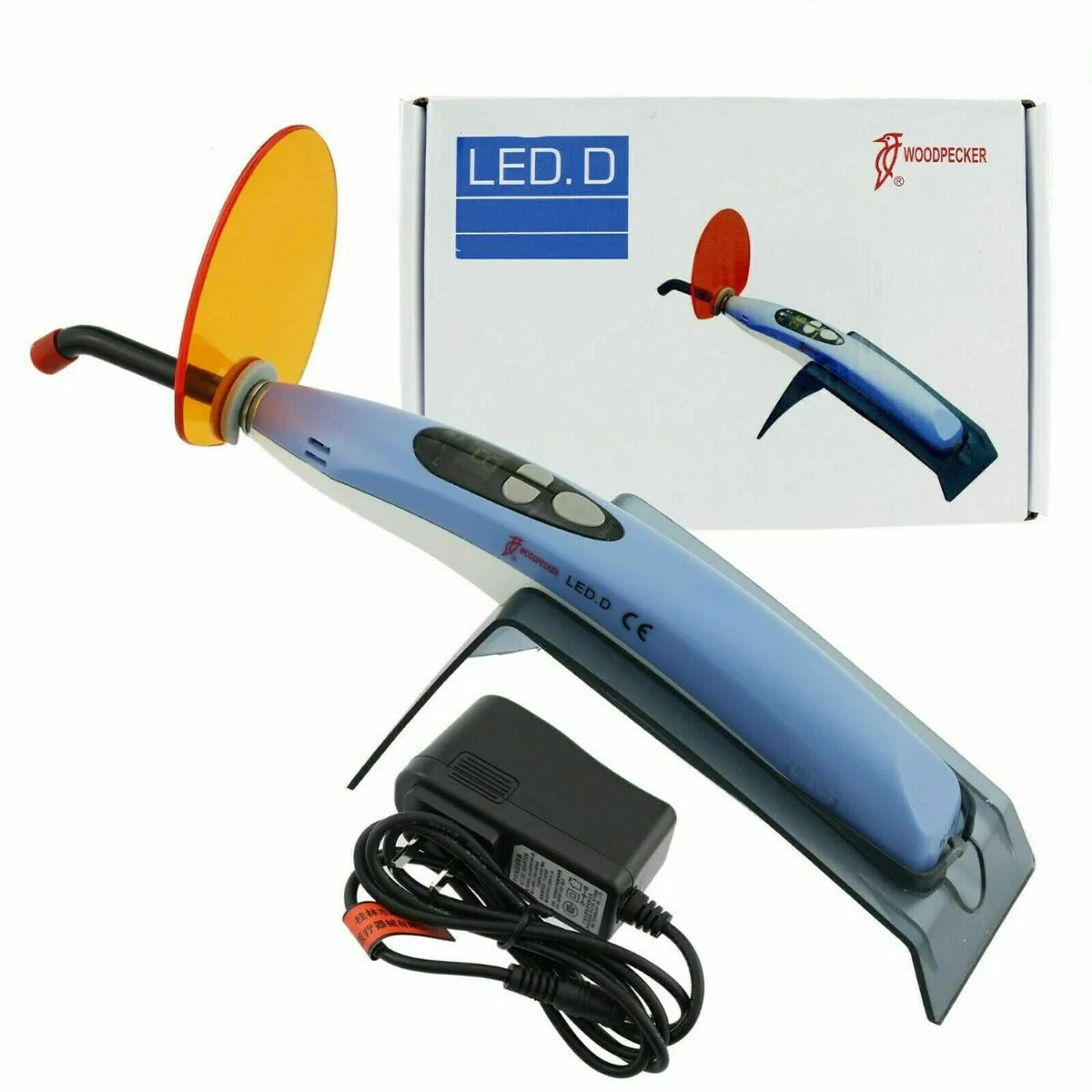

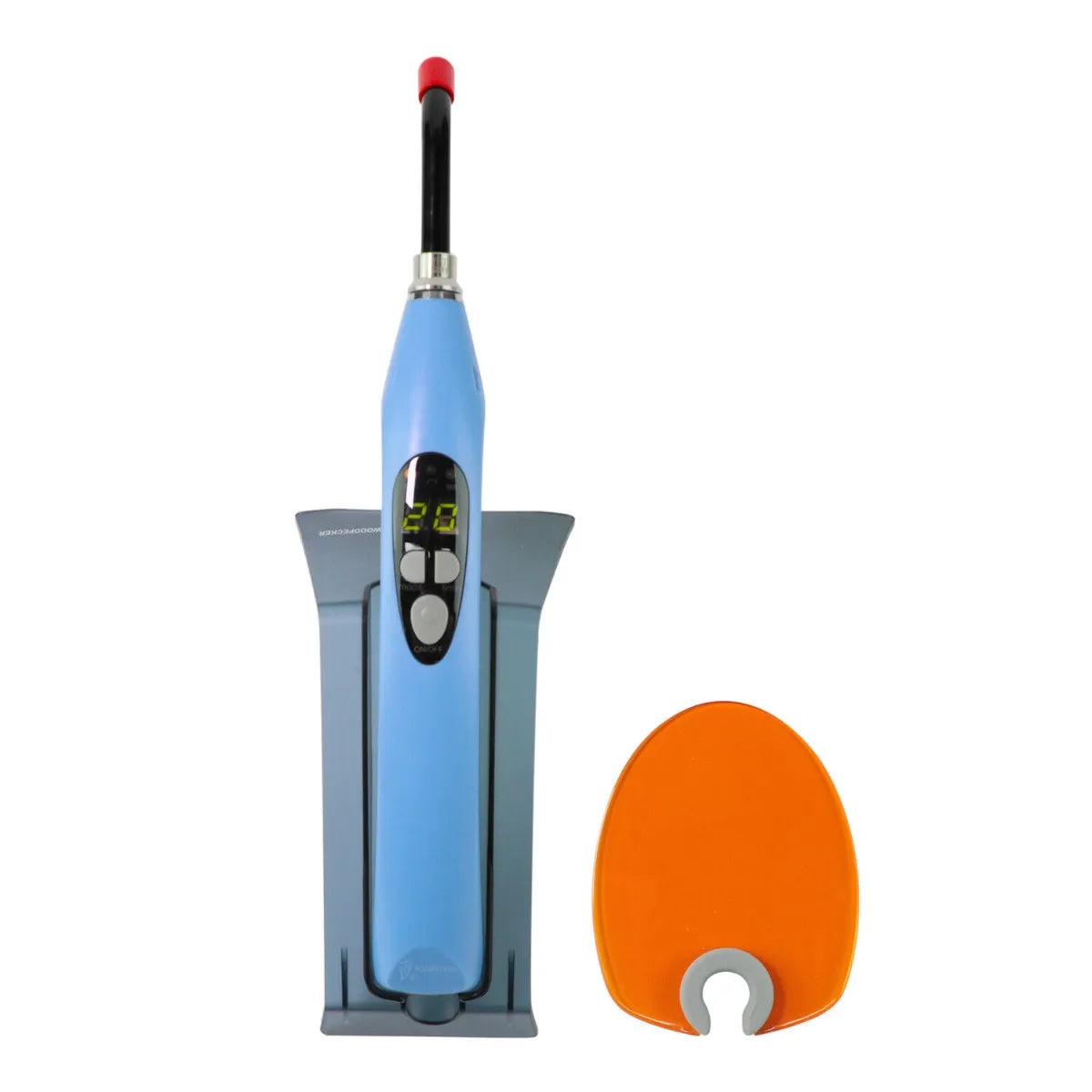

• 1 x curing light unit
• 1 x stand

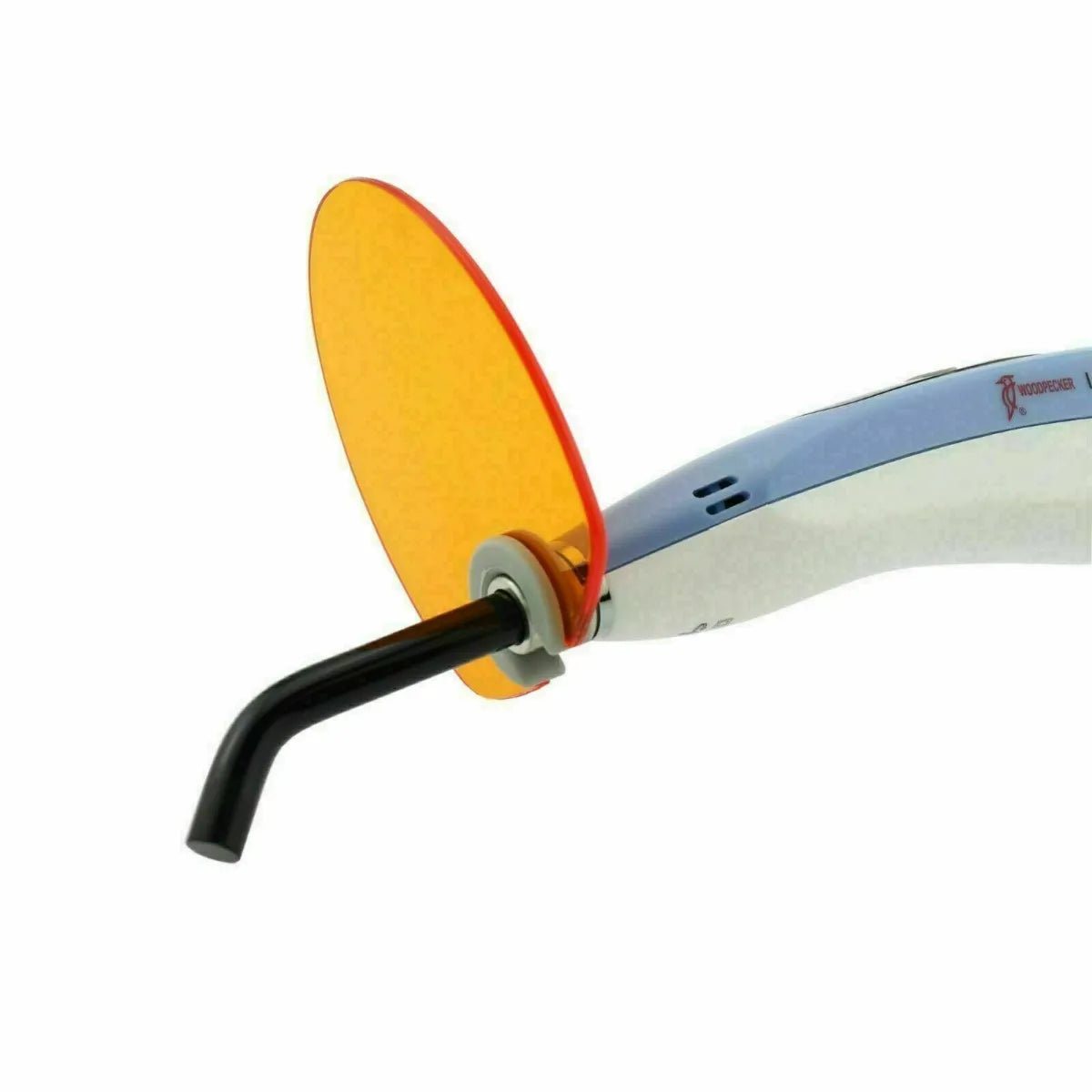

• 1 x light protector
• 1 x charger
• 1 x optic probe
• 1 x instruction manual

Start by fully charging the device. Recharge the battery for at least 4 hours before the first-time usage.

Familiarize yourself with the basic operation techniques and read the instruction manual carefully. Ensure that you have a general knowledge of dental restoration, dental treatment, and dental whitening.

Install the components of the LED.D curing light as follows:

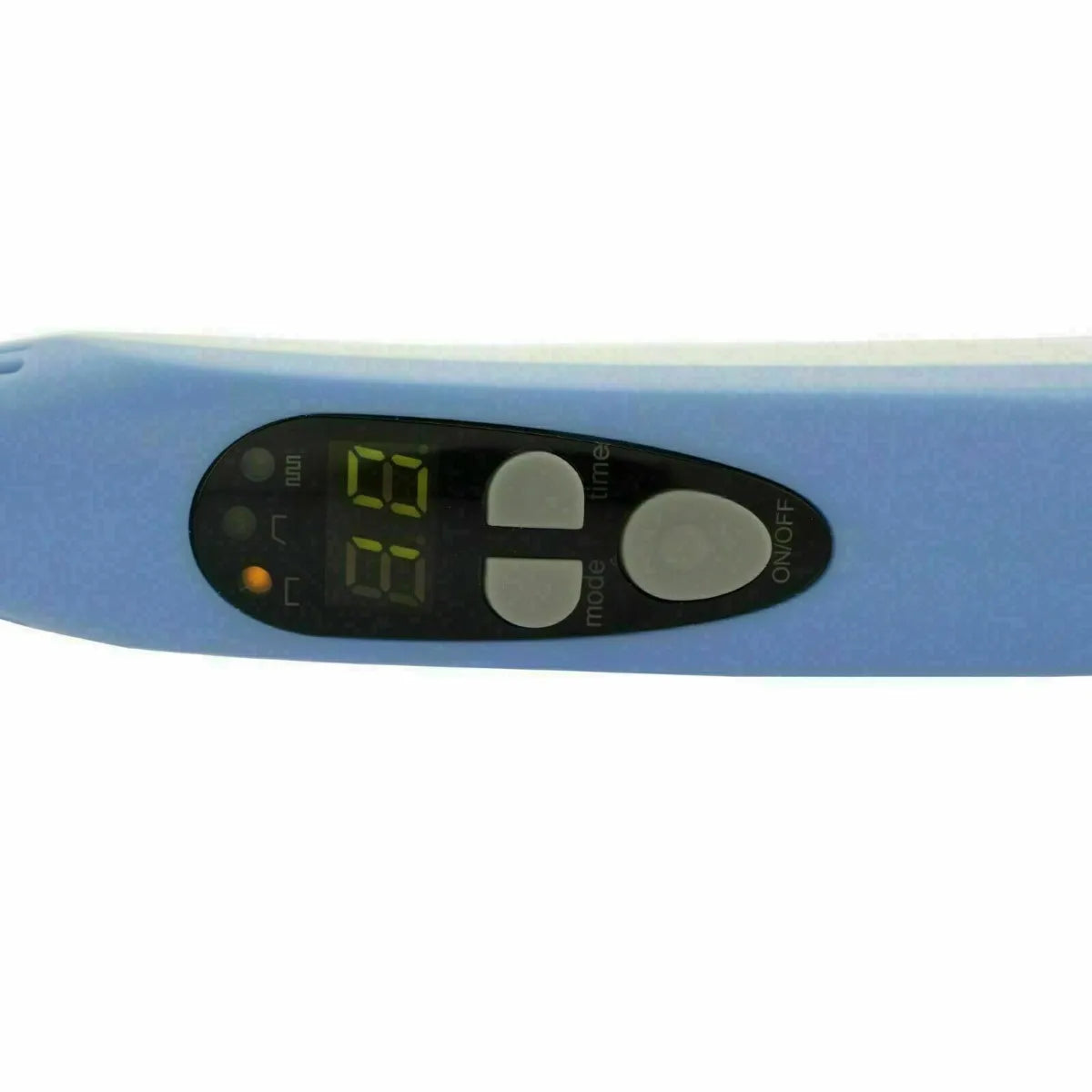

Set the working mode by pressing the mode button on the device. The corresponding indicator will turn on to indicate the selected mode. There are three working modes available:

• Full power mode: In this mode, the blue light radiates at full power.
• Ramping mode: The blue light power gradually increases and reaches its highest power 5 seconds later.
• Pulse mode: The blue light works in a pulsating pattern.

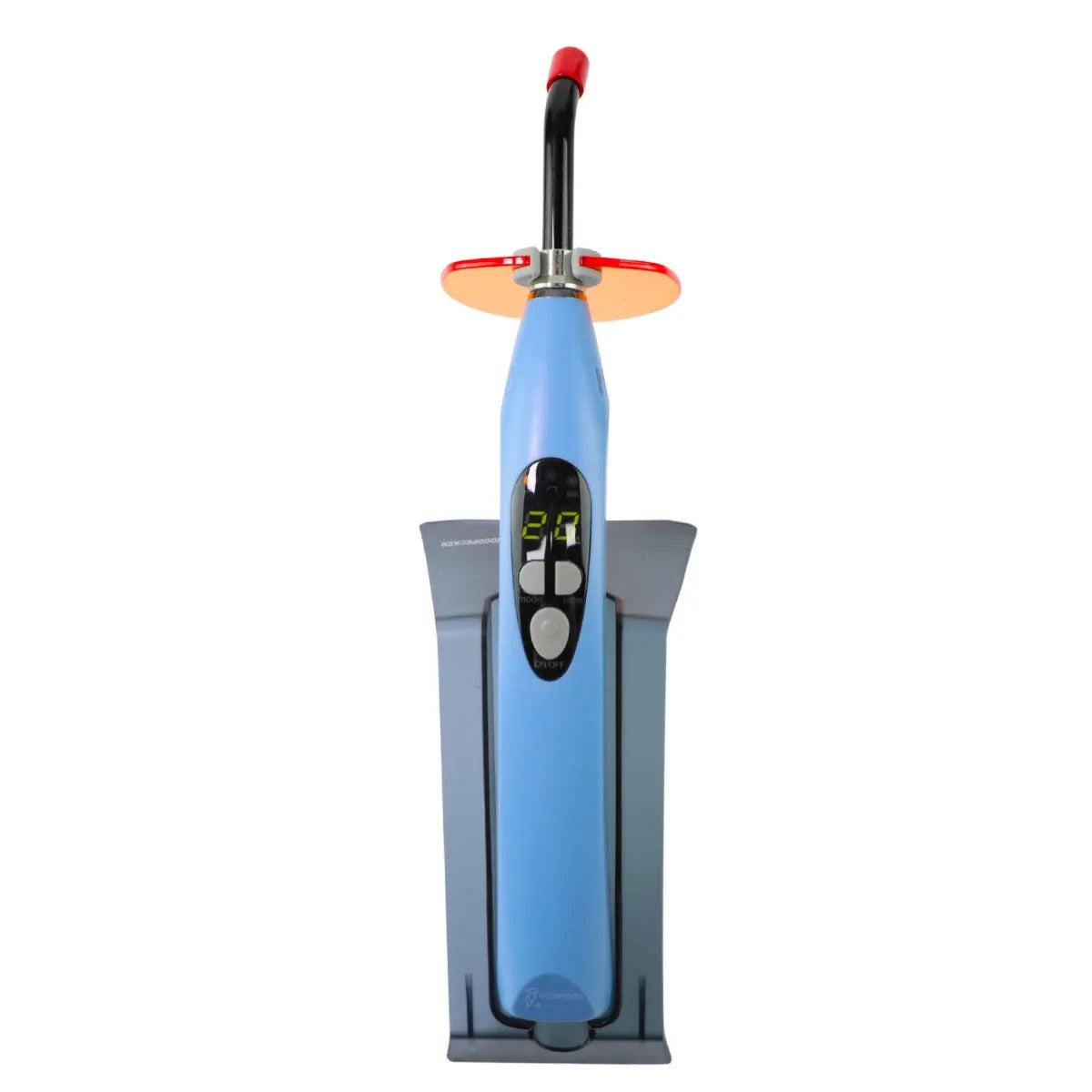

Set the solidifying time by pressing the time button on the device. You can choose from 8 different working times: 5, 10, 15, 20, 25, 30, 35, or 40 seconds.

If you select 5 seconds, the blue light will shine at a higher intensity (1500mW/cm² to 1700mW/cm²).

If you select 10, 15, 20, 25, 30, 35, or 40 seconds, the blue light will shine at a slightly lower intensity (1000mW/cm² to 1200mW/cm²).

• To start or stop emitting the blue light, aim the optical fiber at the desired position and press the power button on the device.
• During the operation, you can stop the blue light at any time by pressing the power button.
• The LED.D curing light is equipped with a battery detect circuit. If low power is detected, the indicator on the device will blink, indicating the need for charging. Please charge the device promptly to ensure uninterrupted usage.
• After use, clean the optical fiber with a calico to remove any remaining resin and maintain its effectiveness.
• The LED.D curing light will automatically turn off if no action occurs within 2 minutes. You can turn it back on by pressing any button.
• Please note that the LED.D curing light emits a high-intensity blue light, so avoid direct irradiation to the eyes. Take precautions to protect the patient's eyes and wear appropriate eye protection when necessary.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 5 year Warranty (from the date of invoice) on PCB (Power Circuit Board) and 12 months warranty is applicable on all the parts of the product excluding physical damage as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What is a LED curing light?
Answer: A LED curing light is a dental device that emits a high-intensity blue light used to cure or harden dental restorative materials such as composite resin. It is an essential tool in modern dentistry.

Question: What are the different working modes of a LED curing light?
Answer: LED curing lights typically offer different working modes, such as full power mode, ramping mode, and pulse mode. Full power mode emits a constant high-intensity light, ramping mode gradually increases the light intensity, and pulse mode emits light in a pulsating pattern.

Question: How long should I cure a dental material using a LED curing light?
Answer: The recommended curing time varies depending on the type and thickness of the dental material being used. It is important to follow the recommended curing time provided by the dental material manufacturer. Typically, curing times range from 5 to 40 seconds.

Question: How often should I charge the LED curing light?
Answer: The frequency of charging depends on the specific device and its battery capacity. It is advisable to fully charge the LED curing light before each use to ensure uninterrupted operation. Some devices may require charging after multiple uses, while others have longer battery life and can be used for several sessions before charging.

Question: What should I do if my LED curing light malfunctions?
Answer: If you encounter any issues or malfunctions with your LED curing light, refer to the troubleshooting section in the user manual provided with the device. If the problem persists, contact the authorized service center or customer support for further assistance or repairs.
