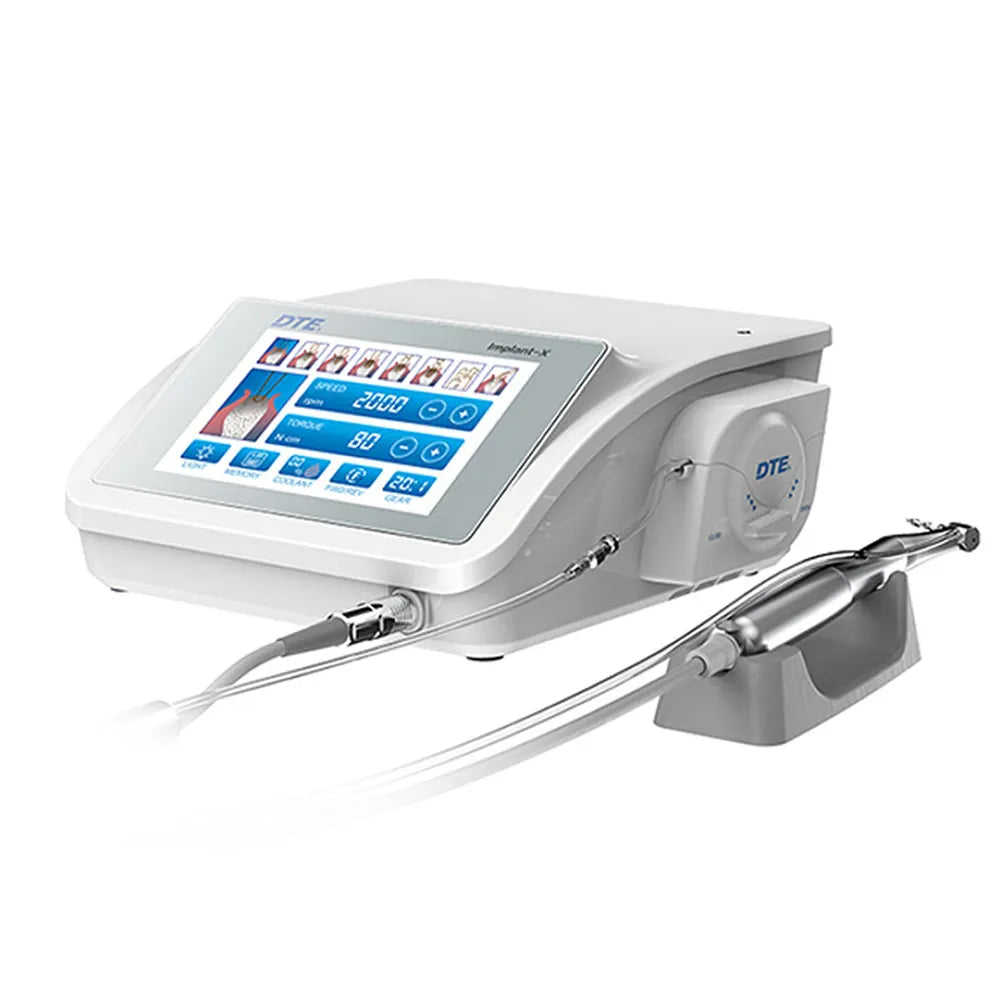

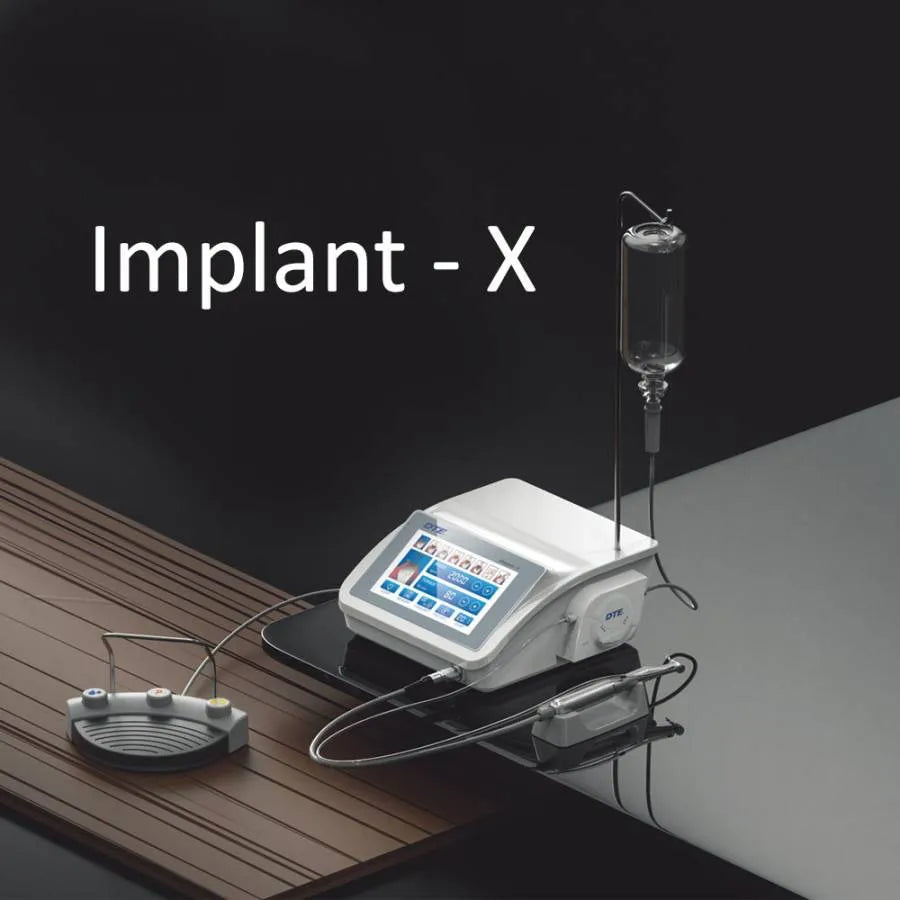

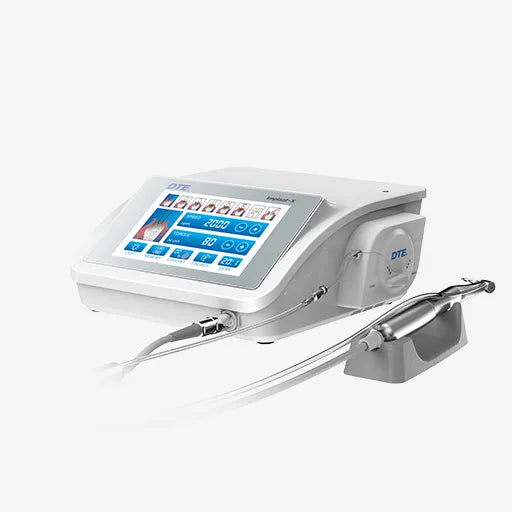

Woodpecker Implant Motor Implant - X

• Perfect Balance : Balance between weight of contra angle & motor guarantees & reduces fatigue in complex surgeries
• Outstanding Quality : Implant X adopts a noiseless motor imported from Swiss
• Advance FOC (Field of Current) : Blends low speed performance with high speed performance

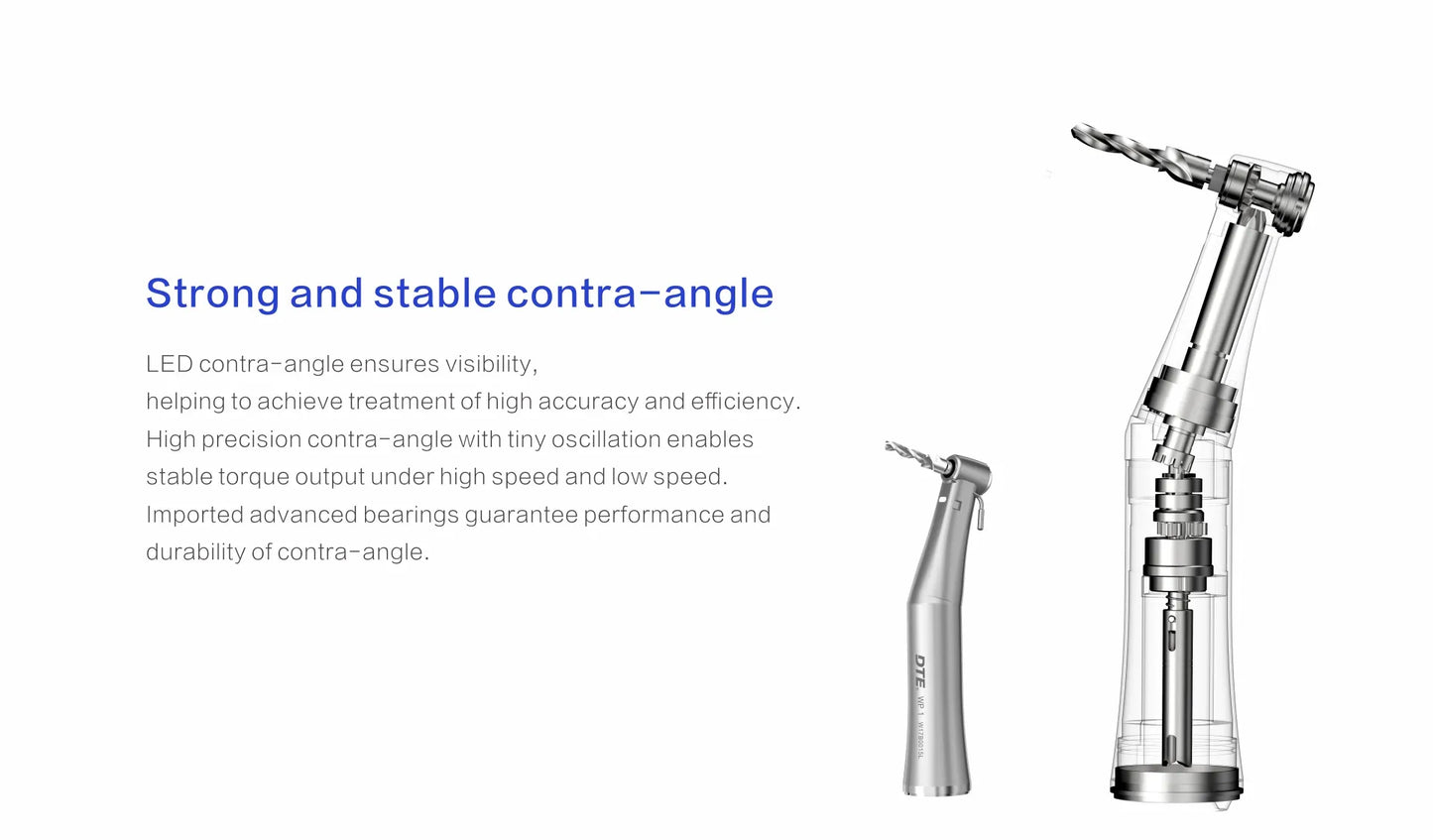

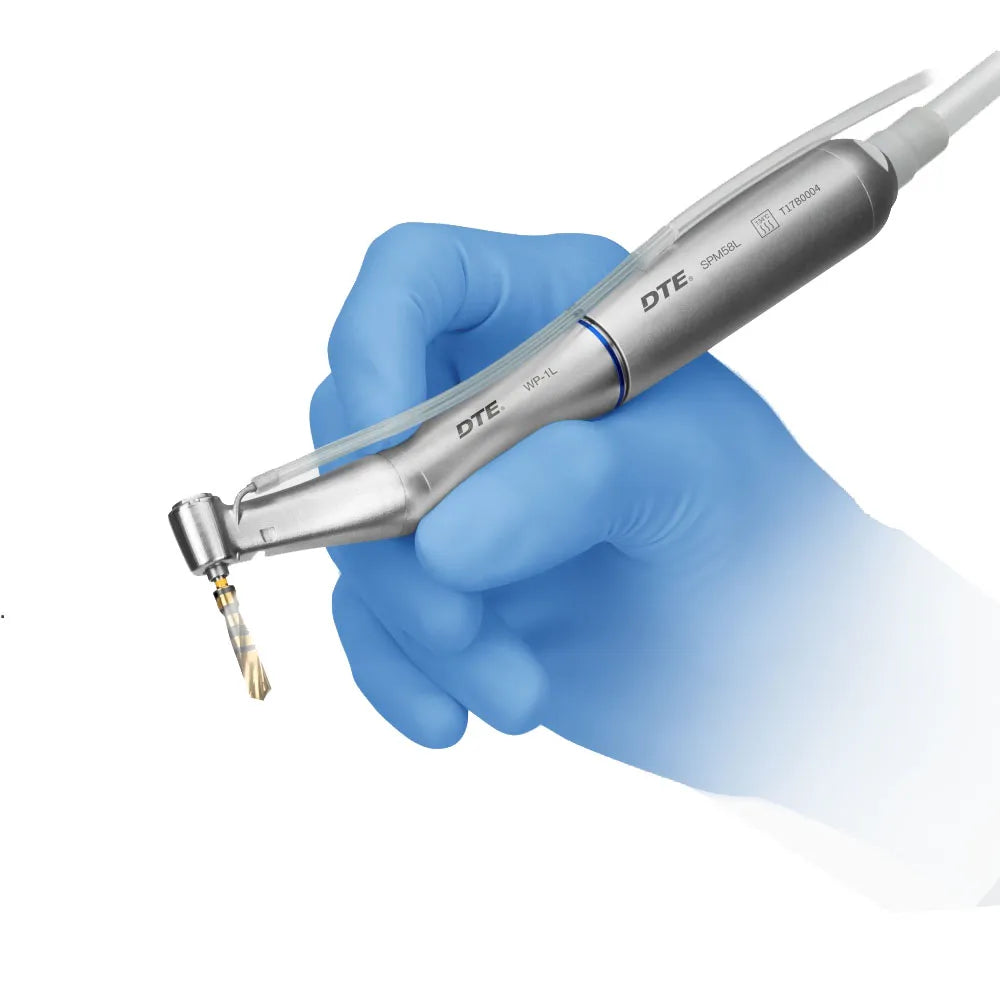

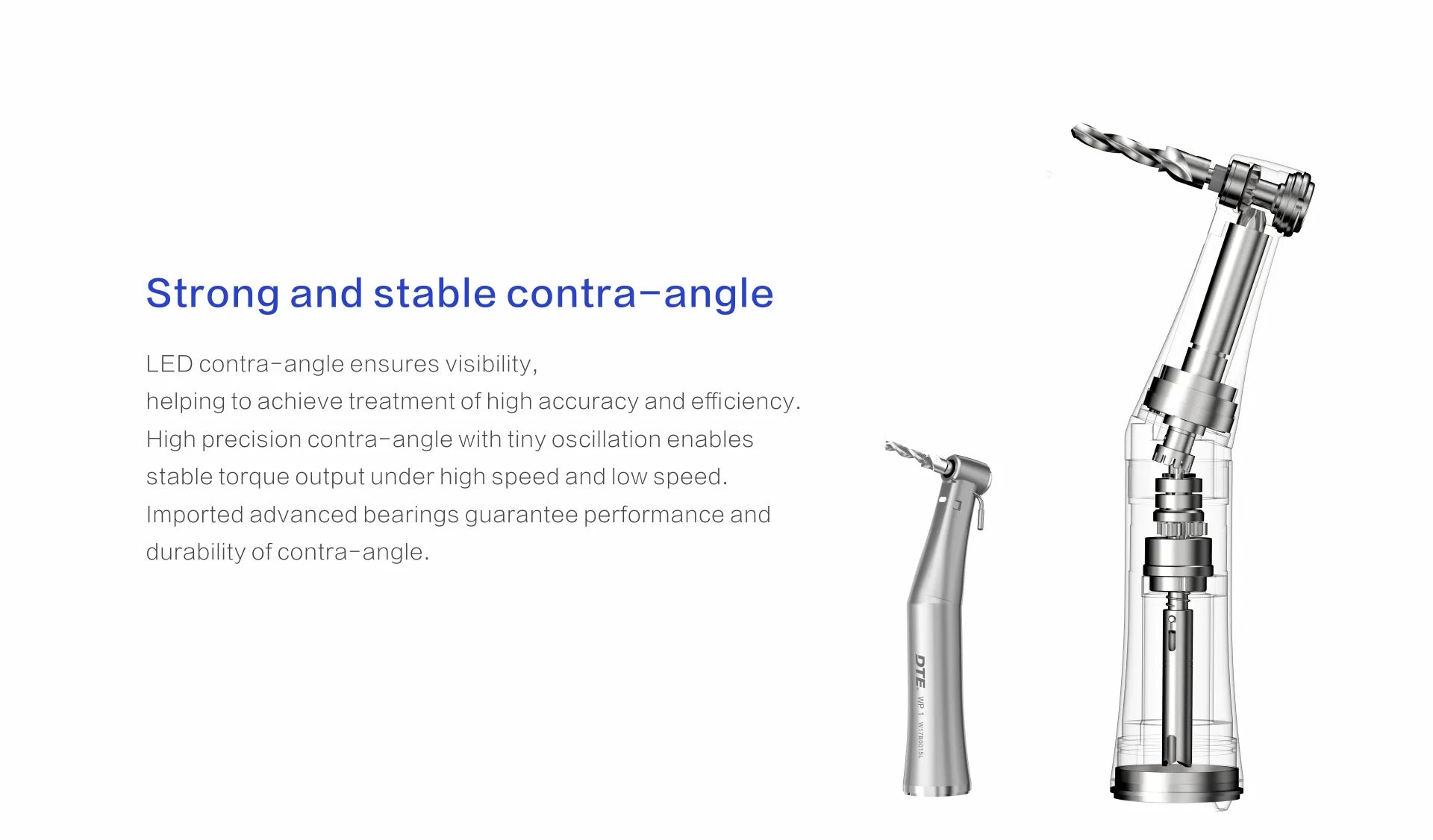

• Strong & Stable Contra-Angle LED handpiece: High precision LED handpiece with less vibrations enables stable torque output under high & low speed ensures visibility, high accuracy & efficiency
• GRW Handpiece Bearings: Guarantees performance & durability of Contra angle
• Intuitive User Interface: Large color touch screen displays every procedure in Implant surgery with pre set parameters eliminating setting process
• Mute Peristaltic Pump: Easy to connect & compatible with disposable water tubings
• Color Touch Screen with Glass Surface: Easy to clean with disinfectants ensuring safety
• Flexible Multi-Function Foot Pedal: For aseptic operations

TECHNICAL SPECIFICATIONS:

Rotation Speed Range 300-40,000 rpm

Torque Range/ Gear  20:1 5Ncm-80Ncm

Max Pump Output 110ml/min

Main UnitDimensions 276mm*267mm*110mm

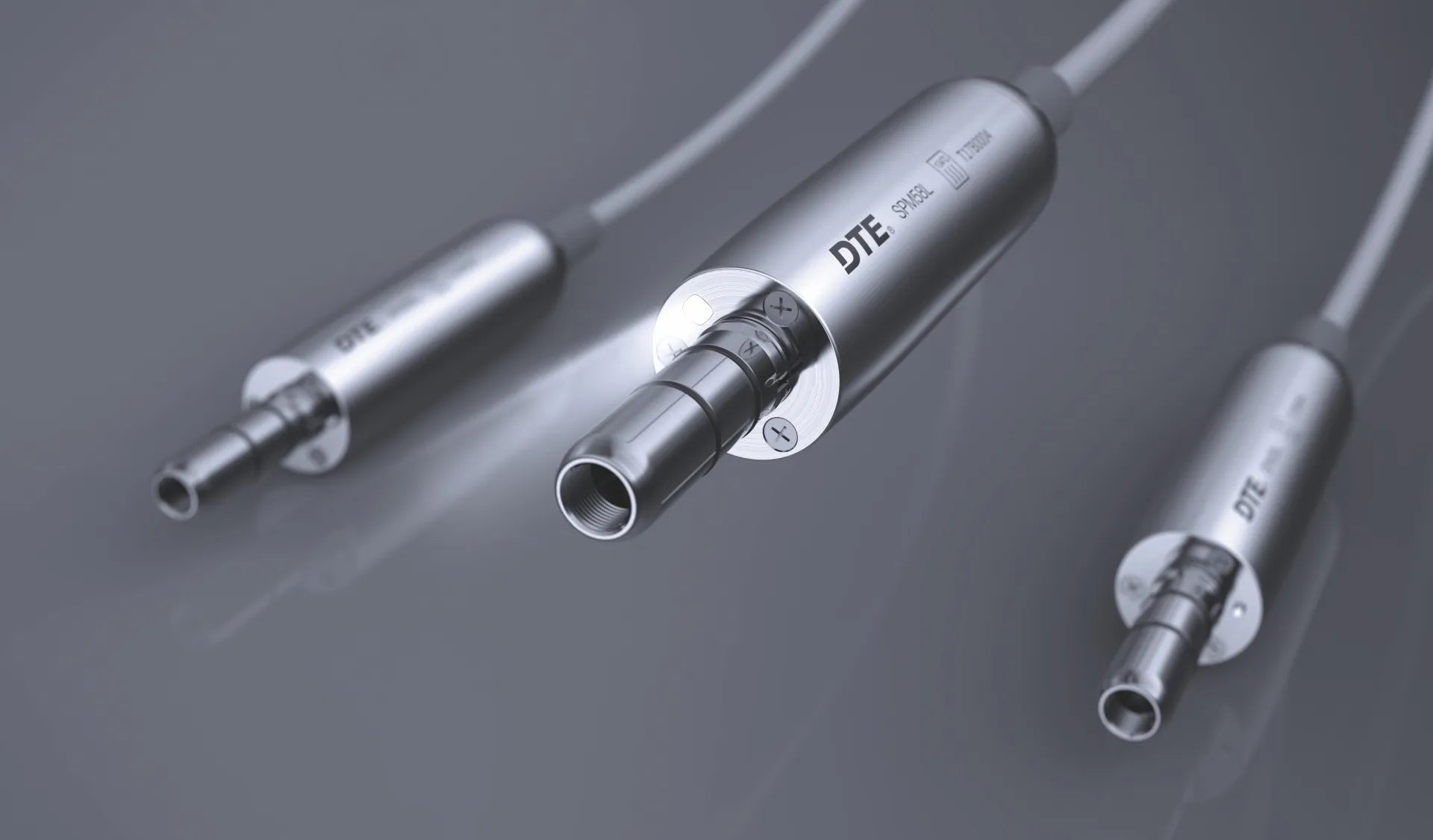

Motor Dimensions φ 23.4mm*L91mm

Motor Weight 140g

Power Supply AC220V 50/60Hz

Woodpecker Implant Motor Implant - X

• 1 x Main Unit
• 1 x Power Cord
• 1 x Handpiece Holder
• 4 x Disposable Water Pipe
• 1 x Infusion Bottle Holder
• 2 x Disinfection Plug
• 10 x Pipe Clamp
• 4 x O Ring Motor
• 1 x Foot Pedal
• 1 x Motor Handpiece
• 1 x Contra Angle Kit
• 2 x Spare Fuse
• 1 x Instruction Manual
• 1 x Qualified Certificate
• 1 x Instruction Card

Connection and Installation:

• Connect the foot pedal plug to the foot pedal socket and tighten the fixing screws.
• Plug the power cord output into the power supply socket.

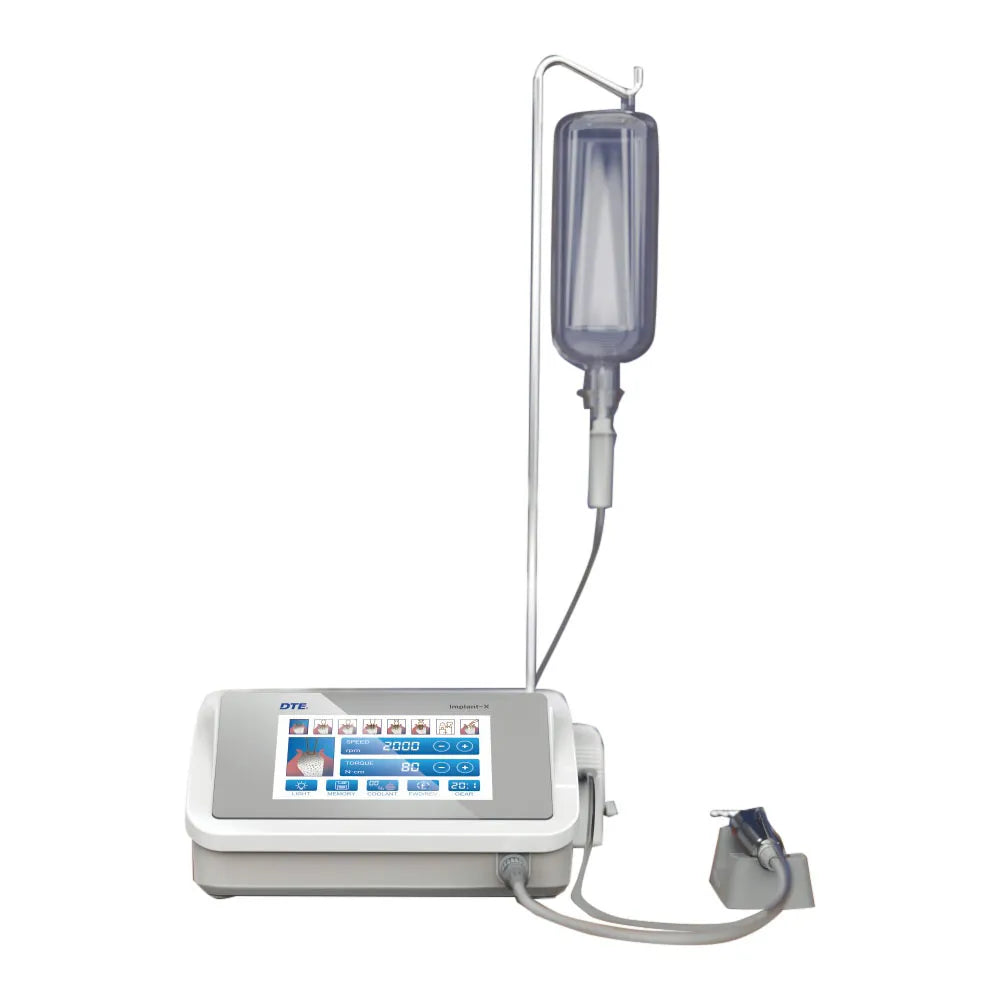

• Insert the infusion bottle holder into the fixing hole on the right rear of the shell.
• Hang the infusion bottle on its holder.
• Plug the motor's tail cord into the output socket on the front of the device, aligning the red marking point.

Switching On and Starting the Machine:

• Press the switch button to turn on the machine.
• Set the desired parameters (speed, torque, water).
• Step on the foot pedal to start the machine.

Program Selection:

• Choose a program using either the icons on the screen or the "Program switchover" button on the foot pedal.

Program Adjustment:

• Adjust parameters (speed, torque, speed ratio, water output) within the specified range for the selected program.

Maximum Speed Adjustment:

• Use the "Speed" (+, -) key to adjust the motor's maximum speed.
• Long-press the "Speed" key for faster adjustment.

Stopping the Machine:

• Release the foot pedal to stop the machine from working.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 Year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Who is the manufacturer of the Woodpecker Implant Motor Implant - X, and what warranty is offered with the product?
Answer: The Woodpecker Implant Motor Implant - X is manufactured by Woodpecker Medical, a well-regarded company in dental technology. This product comes with a one-year manufacturer/importer warranty, ensuring support and reliability for dental professionals utilizing this device in their practice.

Question: Does the Woodpecker Implant Motor Implant - X come packaged in a briefcase?
Answer: Yes, the Woodpecker Implant Motor Implant - X comes packed in a briefcase.

Question: Is the handpiece fibre optic?
Answer: Yes, the handpiece of the Woodpecker Implant Motor Implant - X is equipped with fiber optic technology, providing enhanced visibility and illumination during dental implant procedures.

Question: What gear ratio is typically used in implant procedure and what is this product gear ratio ?
Answer: A typical gear ratio used in implant procedures is 20:1, and the Woodpecker Implant Motor Implant - X is equipped with this gear ratio for precise and efficient performance during implant procedures.

Question: Does it support 1:1 gear ratio?
Answer: Yes, the Woodpecker Implant Motor Implant-X does support a 1:1 gear ratio. However, it's important to note that this ratio is not typically used for implant procedures.

Question: Where do I insert the infusion bottle holder?
Answer: Insert the infusion bottle holder into the fixing hole located on the right rear of the machine's shell.

Question: How do I switch on the machine?
Answer: Press the switch button, usually located on the machine, to turn it on.

Question: How do I start the machine after setting the parameters?
Answer: Step on the foot pedal after properly configuring the parameters, and the machine will start working.

Question: Can I adjust the machine's parameters?
Answer: Yes, you can adjust parameters such as speed, torque, water output, and speed ratio within the specified range for each program.

Question: How do I stop the machine?
Answer: Release the foot pedal to stop the machine from working.

Question: How do I connect the foot pedal to the machine?
Answer: Plug the foot pedal plug into the foot pedal socket on the machine and tighten the fixing screws to secure it in place.

Question: How do I install the power cord?
Answer: Plug the power cord output into the power supply socket of the machine.
