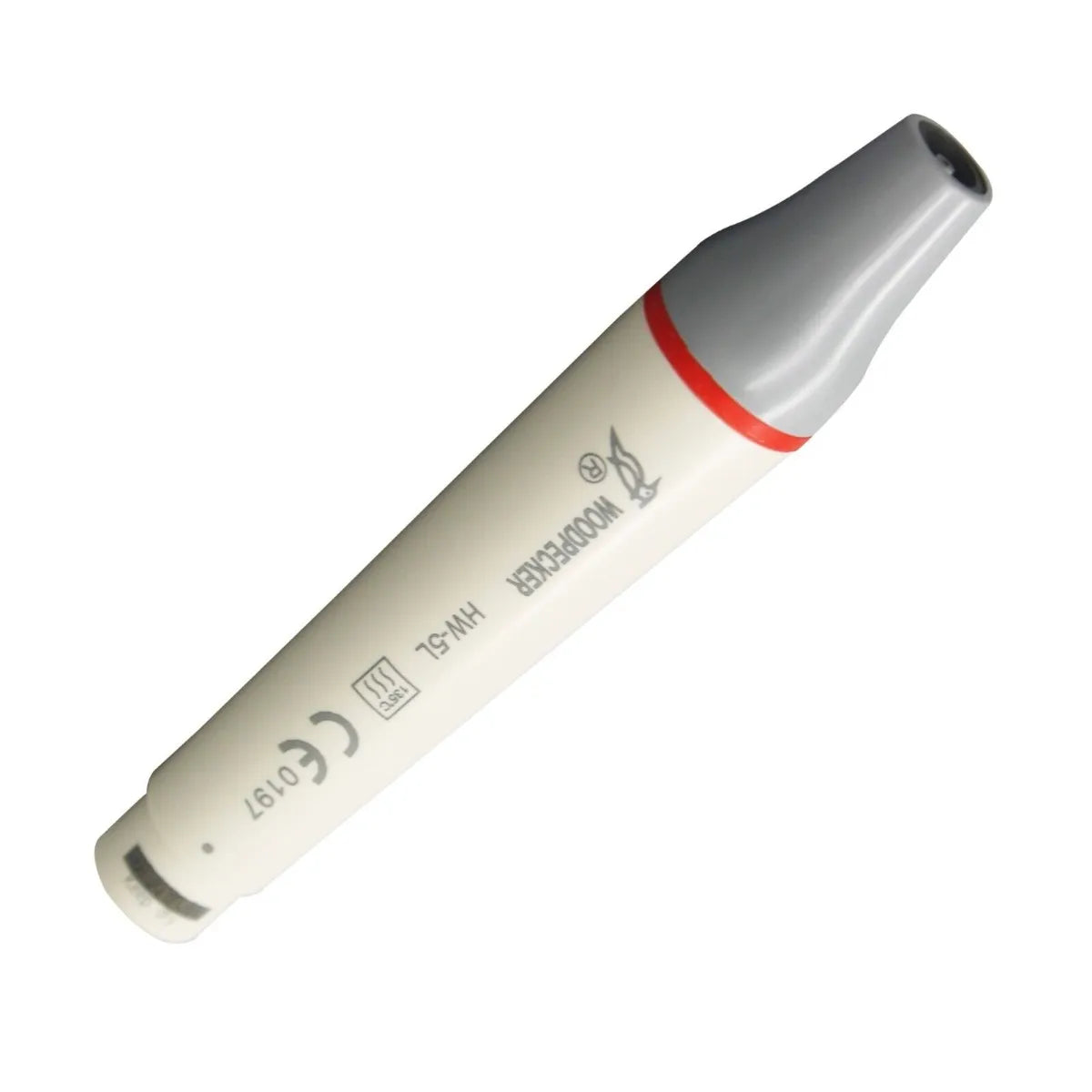

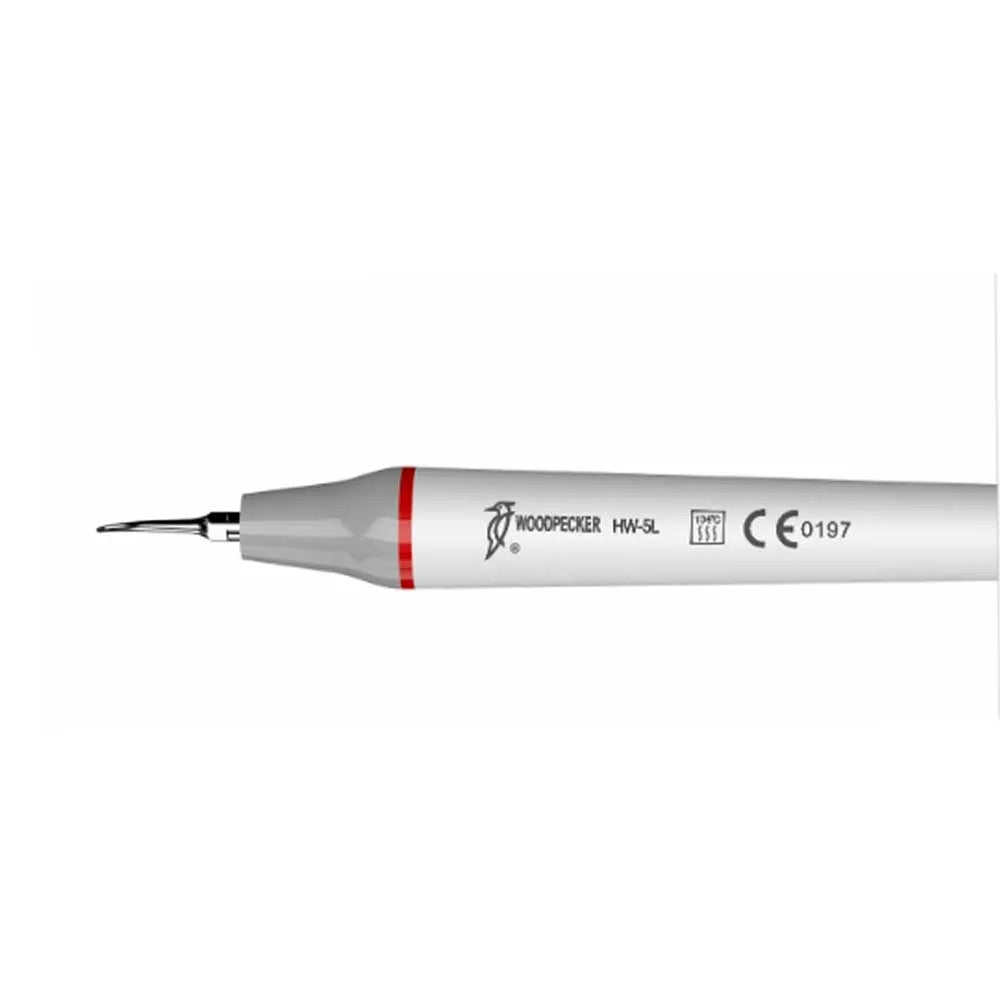

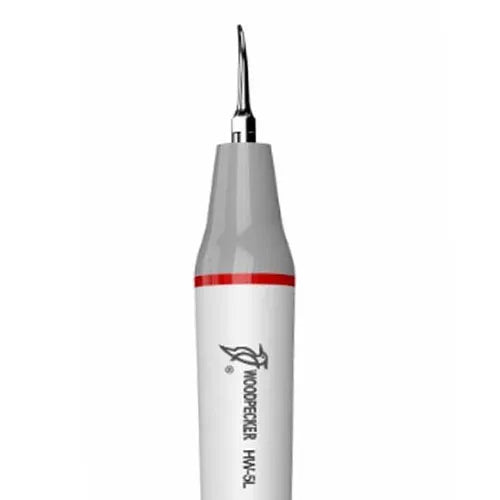

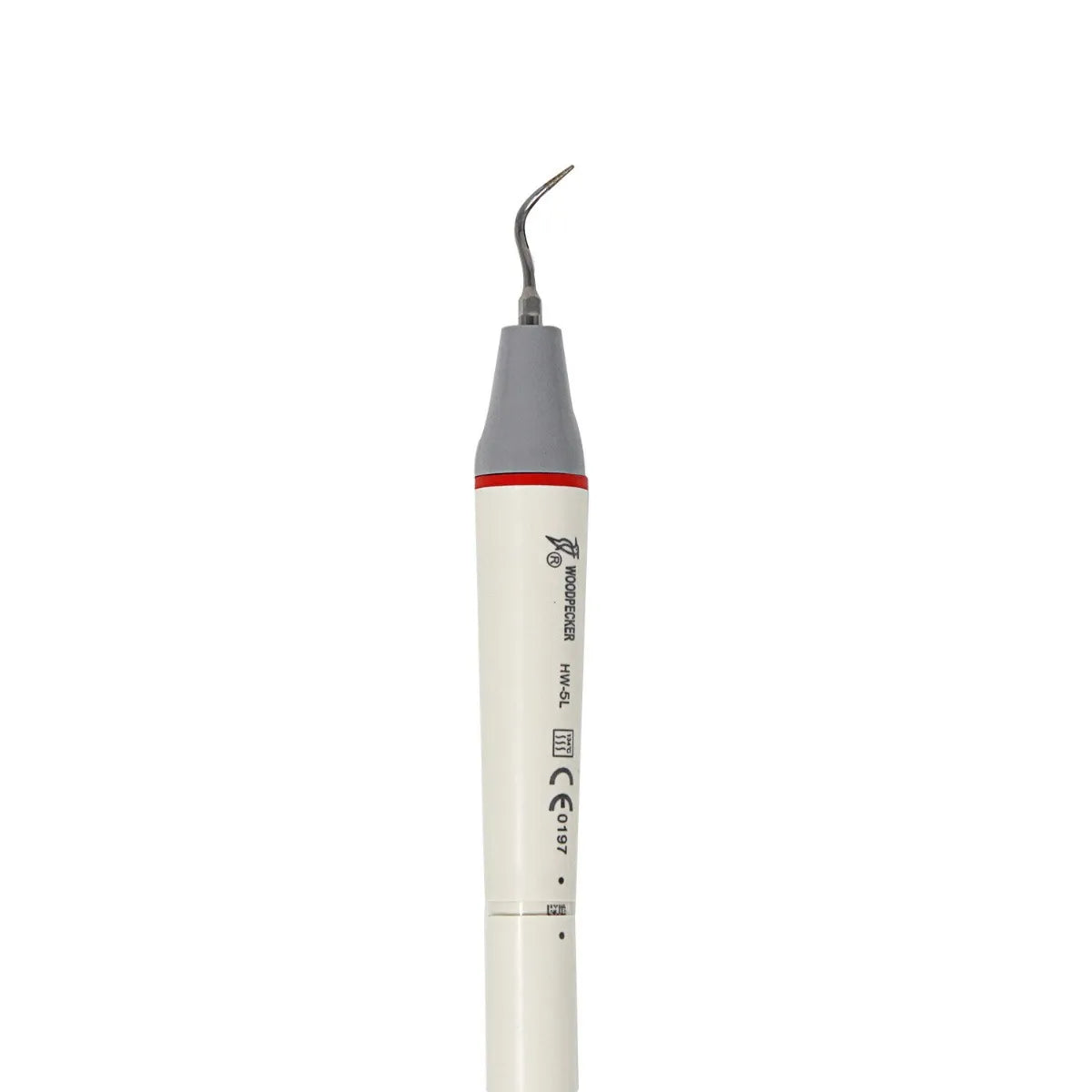

Woodpecker Hw-5l Optic Scaler Handpiece

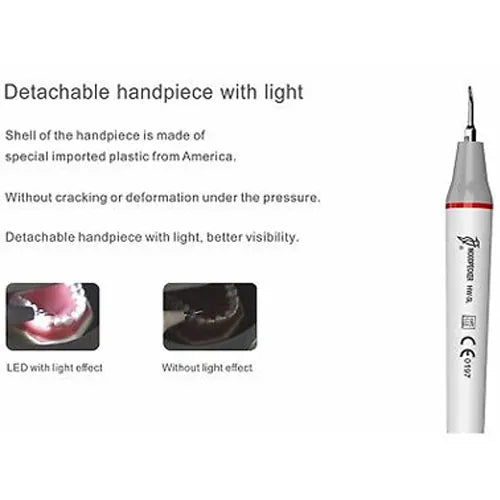

• LED Function: The HW-5L handpiece is equipped with an LED function that illuminates the oral cavity, providing enhanced visibility during dental procedures and facilitating precise removal of dental calculus.
• Compatibility: This handpiece is specifically designed to be compatible with the WOODPECKER brand Ultrasonic scalers, ensuring seamless integration and optimal performance.
• Piezoceramic Technology: The HW-5L handpiece utilizes advanced piezoceramic technology to convert electrical energy into mechanical energy, resulting in efficient and effective dental calculus elimination.
• Compact and Lightweight Design: With dimensions of 105mm (length) and 18.9mm (diameter), and weighing approximately 45g, the HW-5L handpiece offers a comfortable and ergonomic grip, reducing hand fatigue during extended treatment sessions.
• Durable and Reliable: The handpiece operates in continuous mode, has a water protection degree of IPX1, and is designed to withstand the demands of dental procedures, ensuring durability and reliability.
• Easy Maintenance: Proper cleaning, disinfection, and sterilization procedures are recommended to maintain the performance and hygiene of the HW-5L handpiece, ensuring its longevity and optimal functionality.

• Power Source Input: ~190V-230V
• Length: 105mm
• Diameter: 18.9mm
• Weight: 45gm
• Output Primary Tip Vibration Excursion: 1μm~100μm
• Output Tip Vibration Frequency: 28kHz±3kHz
• Output Half-Excursion Force: 0.1N~2N
• Tip's Output Power: 3W~20W
• Water Pressure: 0.01MPa~0.5MPa
• Environmental Temperature: +5°C~+40°C
• Relative Humidity: 30%~75%
• Atmospheric Pressure: 70kPa~106kPa

• Pack Of 1

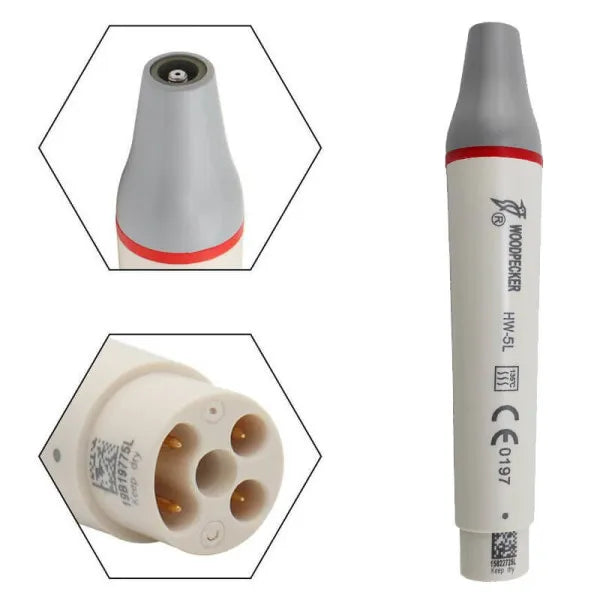

• Install the handpiece by correctly connecting it to the cable connector of the main unit of the scaler. Ensure a secure connection.
• Adjust the water and vibration intensity to a suitable level before starting the procedure. This can be done using the controls on the scaler unit.
• Hold the handpiece like a pen in your hand, adopting a comfortable grip.
• Choose an appropriate scaling tip for the desired treatment and securely screw it onto the handpiece using the provided torque wrench.
• During the clinical treatment, make sure that the tip of the handpiece does not touch the teeth vertically to avoid any potential damage.
• Use gentle and controlled movements while performing the dental calculus elimination. Avoid applying excessive force that may harm the teeth or damage the tip.
• After completing the operation, keep the machine working for 30 seconds with a water supply to effectively clean the handpiece and scaling tip.

• Country of Origin: Made in PRC

Question: Hw-5l can be used in replacement of Hw-6l?
Answer: Yes, the Woodpecker Hw-5l Optic Scaler Handpiece can be used as a replacement for the Hw-6l.

Question: Is it compatible with uds j scaler ?
Answer: No, the Woodpecker HW-5L Optic Scaler Handpiece is not compatible with the UDS J scaler. The UDS J scaler has a non-detachable handpiece, and the Woodpecker HW-5L is designed for compatibility with Woodpecker EMS-type scalers where the handpiece is removable.

Question: Does this work with DTE D5?
Answer: No, the Woodpecker HW-5L Optic Scaler Handpiece is not compatible with DTE D5. It is designed to work with Woodpecker EMS-type scalers, ensuring proper functionality and compatibility.

Question: Is the HW-5L handpiece compatible with other scaler brands or only WOODPECKER series scalers?
Answer: The HW-5L handpiece is specifically designed to be compatible with WOODPECKER brand Ultrasonic scalers. It is recommended to use it with WOODPECKER scaler models for optimal performance and compatibility.

Question: What is the recommended frequency for the vibration of the handpiece?
Answer: The HW-5L handpiece operates at a vibration frequency of 28kHz±3kHz. This frequency has been found to be effective for dental calculus elimination.

Question: Are there any contraindications or precautions for using the HW-5L handpiece?
Answer: Yes, there are contraindications to consider. The HW-5L handpiece should not be used by individuals with hemophilia or heart pacemakers. It is also advised to exercise caution when using the handpiece on patients with heart diseases, pregnant women, and children.
