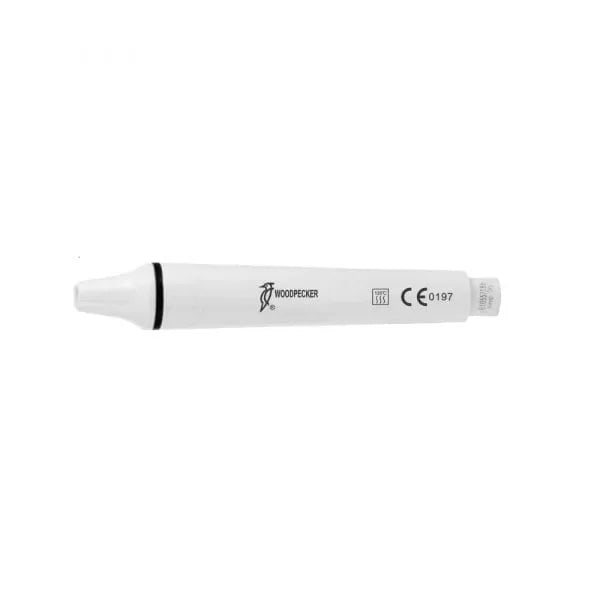

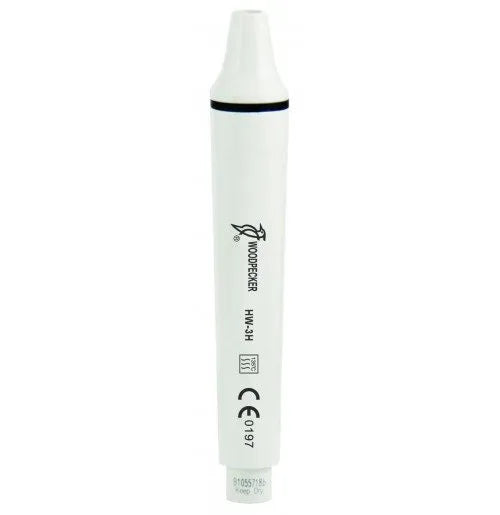

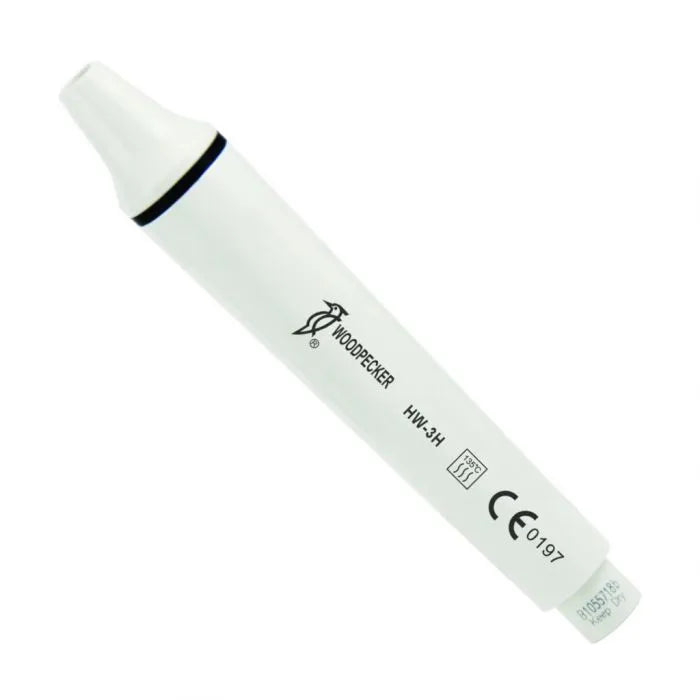

Woodpecker HW-3H Scaler Handpiece

Name: Woodpecker HW-3H Scaler Handpiece
Brand: Woodpecker
Price: 3997.00 INR
Availability: InStock

Rs. 3,997.00

~~Rs. 6,650.00~~ Rs. 3,997.00

Sale Sold out

Quantity

The Handpiece of Ultrasonic Scaler HW-3H is a meticulously designed handheld accessory compatible with the WOODPECKER series, incorporating advanced piezoceramic technology to seamlessly convert electric energy into powerful mechanical vibrations, thereby enabling effective and precise removal of dental calculus, while adhering to stringent safety measures, offering a compact and ergonomic design for comfortable handling, and boasting a versatile range of applications including root canal cleaning, all supported by its durable structure, optimal dimensions, and a comprehensive set of technical specifications such as vibration frequency, excursion force, and water pressure, ensuring exceptional performance and reliability in dental procedures, while also considering environmental aspects by being easy to clean, sterilize, and maintain, and packaged with clear installation instructions, making it an indispensable tool for dental professionals seeking efficient calculus elimination, enhanced patient care, and a seamless integration with the WOODPECKER brand's ultrasonic scaler systems, providing an all-inclusive solution for advanced dental treatments and contributing to overall oral health and well-being.

Features

Detachable scaler handpiece
Compatible with EMS ultrasonic scaler
Autoclavable

Description

Specification

Model: HW-3H
Length - 11 7 m m
Diameter - 18mm
Weight - 47g
Output tip Vibration frequency -28kHz±3kHz
Water pressure - 0.01MPa ~0.5MPa

Packaging

1 x Woodpecker HW-3H Scaler Handpiece

Direction to use

Before installing the handpiece, ensure it is dry and properly connected to the cable.
Connect the handpiece to the scaler unit, adjusting water and vibration intensity to suitable levels.
Hold the handpiece in a pen-like grip during use.
Select the appropriate scaling tip and securely screw it onto the handpiece using the torque wrench.
Avoid vertical contact of the tip with teeth during treatment.
Do not exert excessive pressure on teeth or tip surfaces.
After completing the operation, run the machine with a water supply for 30 seconds to clean the handpiece and tip.
For endodontic function, securely fix the end chuckto the handpiece using the provided tools.
Carefully insert the ultrasonic file into the patient's root canal, adjusting power gradually as needed.
Sterilize the handpiece and endo chuck using the recommended autoclave settings after each use.
Store the equipment in a cool, dry, and ventilated place away from combustible or hazardous materials.
Follow local regulations for proper disposal or recycling of the equipment.
Clean and sterilize the handpiece after using it.
Autoclaved under high temperature, pressure, time: 134°C, 2.0bar~2.3bar (0.20MPa~0.23MPa), 4min;
Clear the cleaning liquid in the handpiece with three-way syringe before sterilisation.

Additional info

Country of Origin: Made in PRC

Warranty

Product Related Questions

Question: Which scaling tips are compatible with this ?
Answer: EMS type ultrasonic scaler tips are compatible with the Woodpecker HW-3H Scaler Handpiece. You can use scaler tips designed for EMS-type ultrasonic scalers with this specific handpiece for effective scaling procedures.

Question: Can it be used with or compatible with dte d5 scaler ?
Answer: No, the Woodpecker HW-3H Scaler Handpiece is not compatible with the DTE D5 scaler.

Question: Can it be used in UDS P scaler ?
Answer: Yes, the Woodpecker HW-3H Scaler Handpiece is compatible with the UDS P non-led ultrasonic scaler.

Question: Can this handpiece be used with satelac p5 scaler ?
Answer: No, the Woodpecker HW-3H Scaler Handpiece is specifically designed for use with EMS/UDS type Woodpecker non-LED scalers and is not compatible with the Satelac P5 scaler.

Question: Can the HW-3H handpiece be used for both dental calculus elimination and root canal cleaning?
Answer: Yes, when compatible with specific WOODPECKER scaler models (UDS-L, UDS-M, UDS-N3, UDSA, UDS-P, UDS-E), the HW-3H handpiece can be used for both dental calculus elimination and root canal cleaning.

Question: Can I adjust the vibration intensity and water flow of the handpiece?
Answer: Yes, you can adjust the vibration intensity and water flow levels to suit your preference and treatment requirements.

Question: How should I clean and sterilize the handpiece?

Answer: Before sterilization, clean the handpiece with pure water using a three-way syringe. Autoclave the handpiece at 134°C, 2.0-2.3 bar (0.20-0.23 MPa) for 4 minutes. Ensure the handpiece is completely dry before storage or reuse.

Question: Can the handpiece be sterilized using an ultrasonic cleaner?
Answer: No, the handpiece should not be put into an ultrasonic cleaner for cleaning.

Question: What is the warranty period for the HW-3H handpiece?
Answer: The equipment comes with a one-year warranty for free repairs, as stated on the warranty card. Repairs should be performed by a professional technician.

Question: How should I store the HW-3H handpiece?
Answer: Store the handpiece in a cool, dry, and well-ventilated place, away from sources of vibration. Avoid storing it together with combustible, poisonous, caustic, or explosive materials.

Question: Are there any contraindications for using the HW-3H handpiece?
Answer: Yes, patients with hemophilia, heart pacemakers, heart disease, pregnant women, and children should exercise caution or avoid using this equipment. Additionally, doctors with heart pacemakers should not use the equipment.
