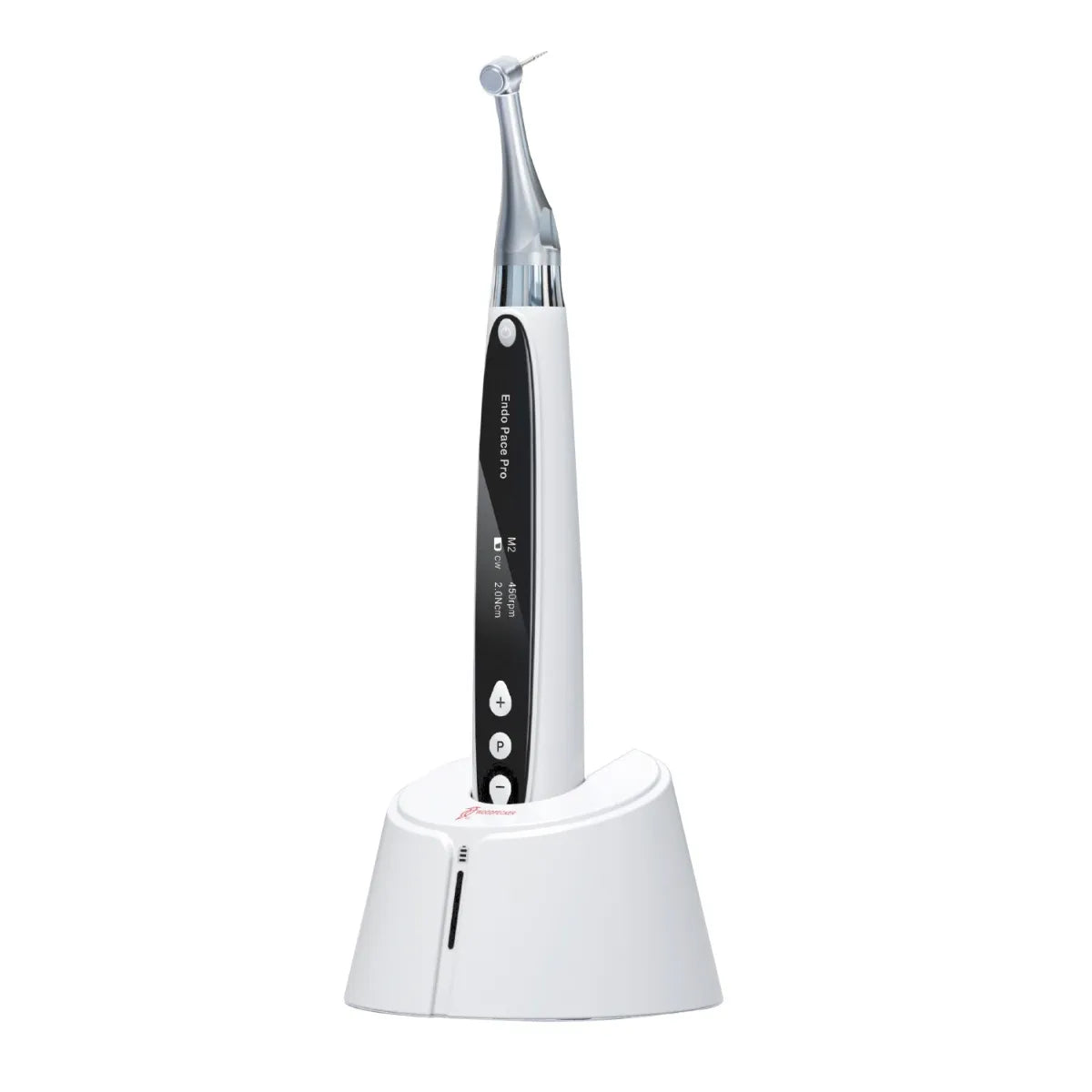

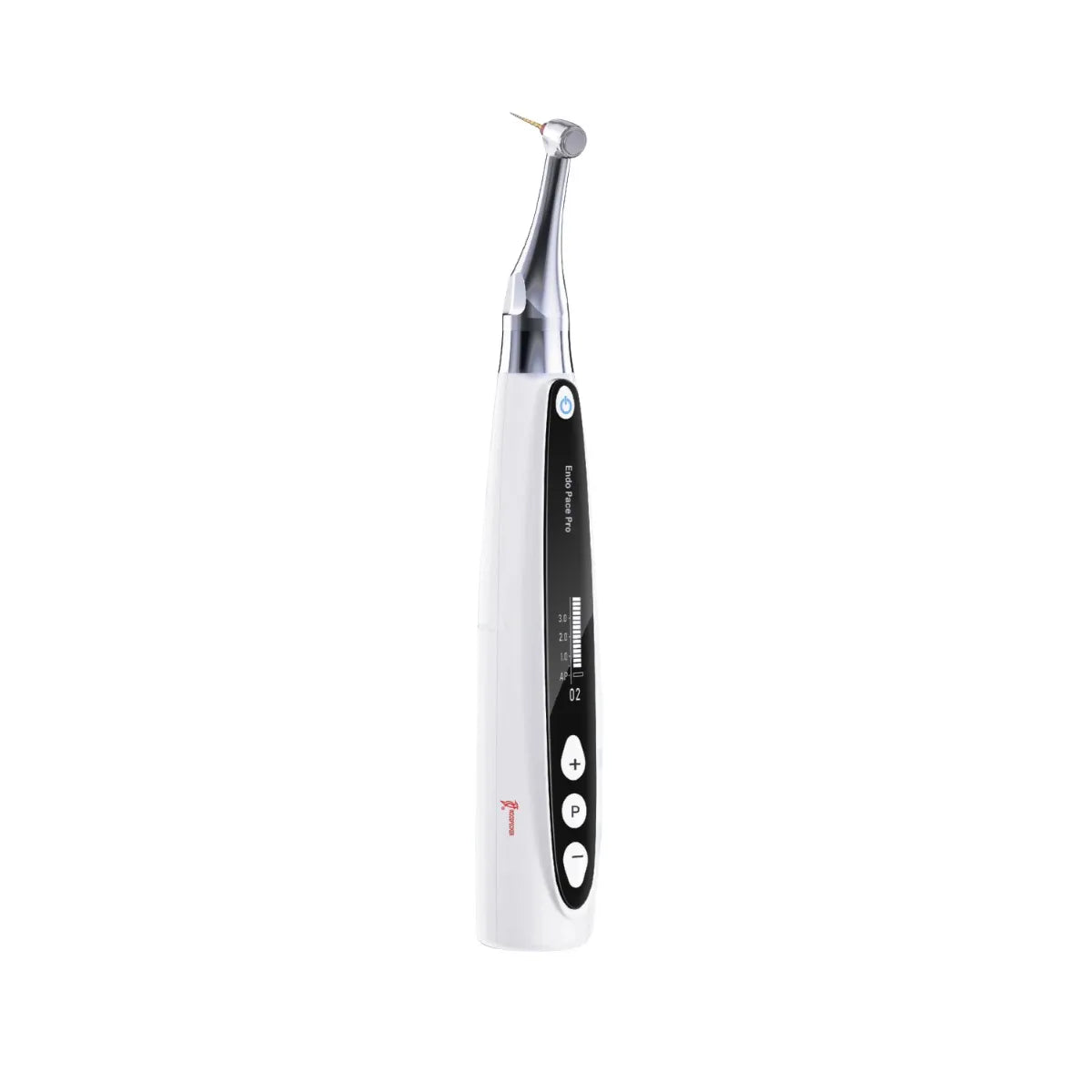

Woodpecker Endopace Pro Brushless Endomotor with In-built Apex Locator

• Lightweight Handpiece
• Adjustable reciprocating angle
• Accurate control of rotation angles ensures safety
• 360-degree rotatable contra handpiece for more flexible operation

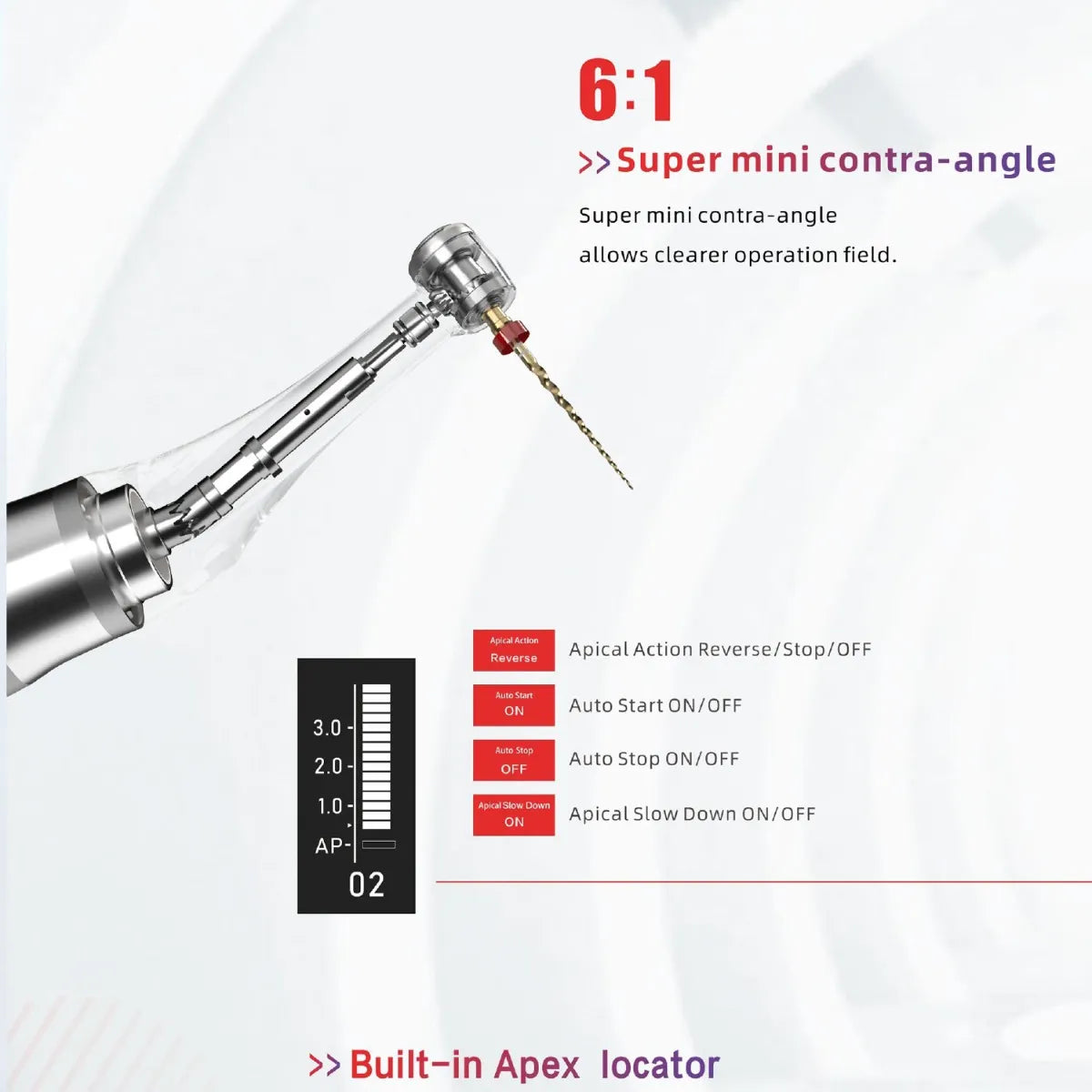

• A compact and powerful 6:1 contra-angle handpiece ensures low speed and stable rotation
• 4 working modes- Forward rotation mode/ reverse rotation mode/reciprocating mode/ATR MODE
• Inbuilt Apex Locator for safer and more efficient treatment.

• Rotate speed:- 100-1200 rpm, 1000-1500 rpm
• Torque:- 0.4-4.2ncm, 0.4-5 ncm, 4 Ncm
• Weight:- 106g
• Handpeice dimensions:- 9.7mm*8mm*6mm
• 2000 mAh Lithium battery

• 1 X  Endopace Pro

Preparation:

• Ensure that the device is fully charged or connected to a power source.
• Attach the wireless 6:1 super mini contra-angle handpiece to the motor unit securely.

Powering On:

• Press the power button located on the Endopace Pro motor unit to turn it on.
• The device will initiate and display the available working modes on the screen.

Selecting the Working Mode:

• Use the mode selection buttons on the motor unit to choose the desired working mode:
• Forward Rotation Mode: Enables rotation of the file in a single forward direction.
• Reverse Rotation Mode: Enables rotation of the file in a single reverse direction.
• Reciprocating Mode: Enables back-and-forth reciprocating motion of the file.
• ATR Mode: Activates the unique Auto Torque Reverse mode for file reciprocation at a set angle.

Adjusting the Reciprocating Angle:

• If using the reciprocating mode or ATR mode, adjust the reciprocating angle as needed.
• Use the angle adjustment buttons on the motor unit to set the desired angle within the 20-340 degree range.

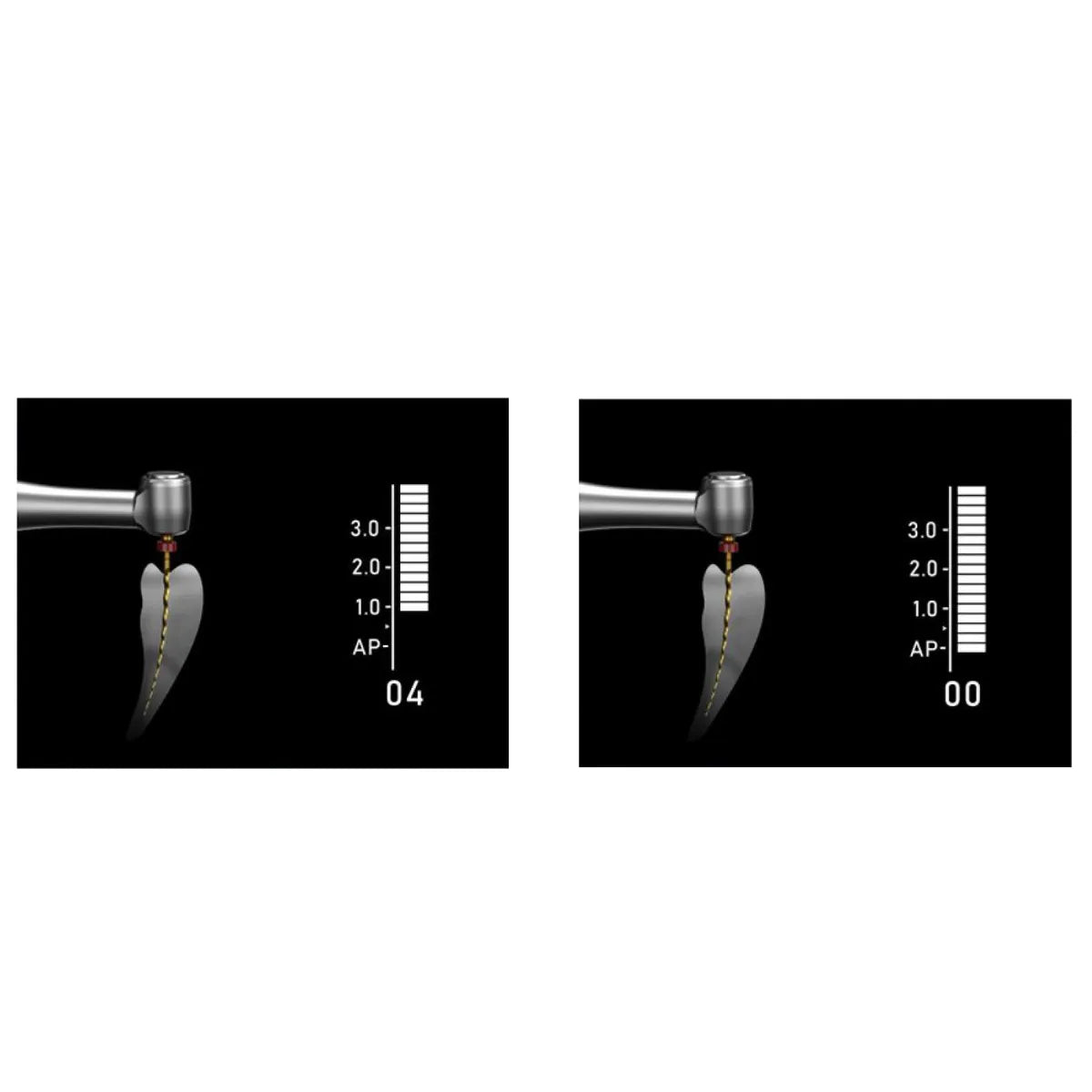

Apex Localization:

• If determining the apex length, make sure the apex locator feature is activated.
• Follow the instructions provided by the manufacturer for apex localization.
• The inbuilt apex locator will assist in accurately determining the length for more precise treatment.

Performing the Procedure:

• Sterilize the contra-angle handpiece and file before use according to standard protocols.
• Position the contra-angle handpiece in the patient's mouth and guide the file into the root canal.
• Maintain a steady and controlled grip on the contra-angle handpiece during the procedure.
• Monitor the device's screen for real-time information, including torque, speed, and length (if applicable).
• Follow proper endodontic techniques and protocols while utilizing the Endopace Pro.

Powering Off:

• After completing the procedure, press and hold the power button on the motor unit to turn it off.
• Disconnect the contra-angle handpiece from the motor unit.
• Clean and disinfect the contra angle handpiece and file thoroughly before storage.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty for Woodpecker Endopace Pro 1 year and as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of the original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or does not tamper as the case may be.

Question: Does it have inbuilt apex locator?

Answer: Yes, the Woodpecker Endopace Pro does have an inbuilt apex locator.

Question: What is a brushless motor, and why is it beneficial?
Answer: A brushless motor is an electric motor that operates without the mechanical brushes and commutator of a traditional brush motor. It offers several advantages such as higher efficiency, longer lifespan, smoother rotation, and lower noise. Brushless motors provide more accurate, stable, and efficient outputs, making them ideal for endodontic procedures.

Question: How do I adjust the reciprocating angle in the reciprocating and ATR modes?
Answer: The reciprocating angle can be adjusted using the angle adjustment buttons on the motor unit. The device offers a range of 20 to 340 degrees, with 10-degree interval adjustment options. This allows for customization based on the specific requirements of the procedure.

Question: How do I power on and off the Endopace Pro?
Answer: To power on the Endopace Pro, simply press the power button located on the motor unit. Press and hold the power button to turn off the device. It is recommended to follow proper sterilization procedures for the contra-angle handpiece and file before and after each use.

Question: What is the function of the supermini contra-angle handpiece?

Answer: The super mini contra-angle handpiece included with the Endopace Pro is a compact and powerful attachment used for low-speed and stable rotation. It allows for precise control during root canal preparations and features a 360-degree rotatable design, enabling access to teeth at different angles.
