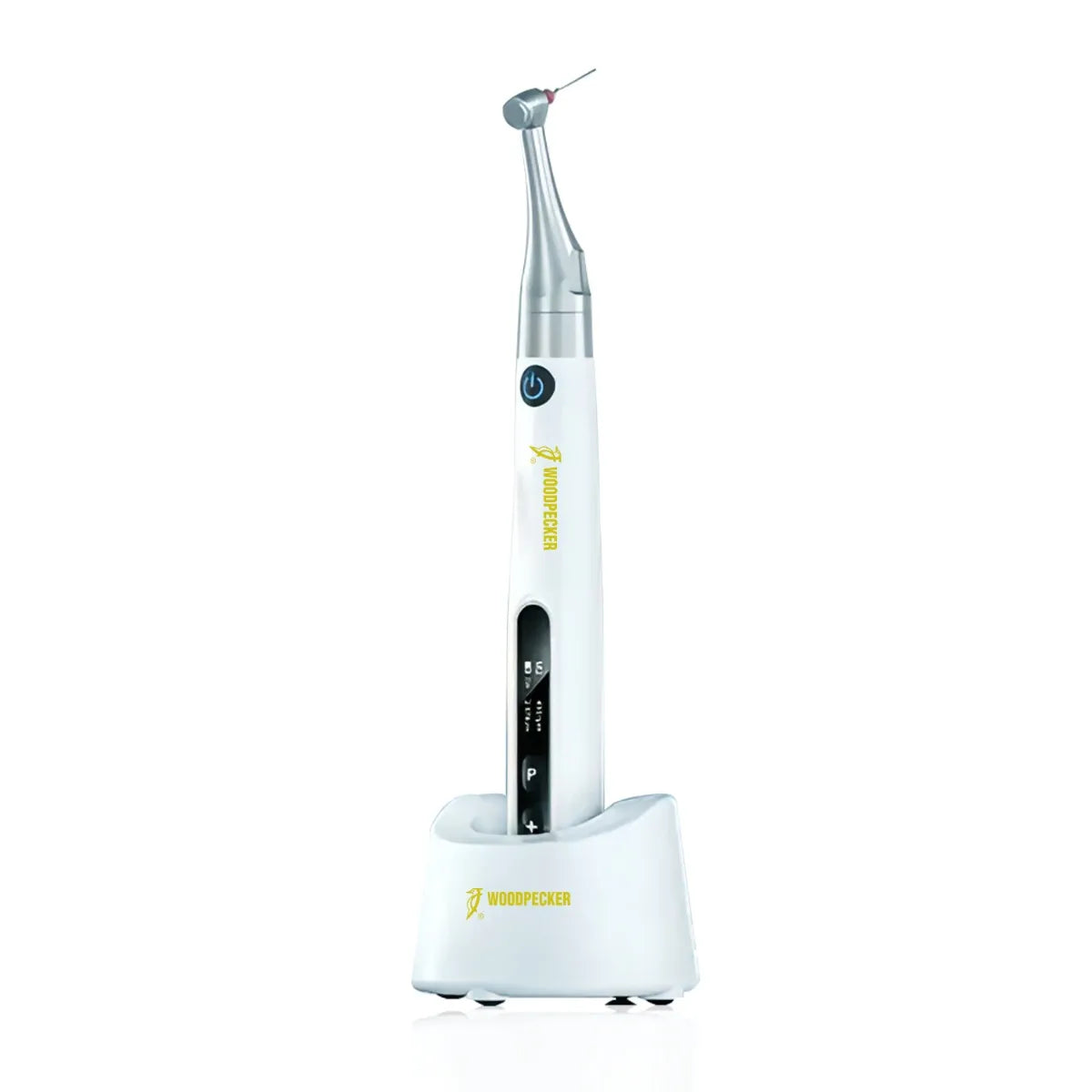

Woodpecker Endopace Brushless Endomotor

• The device operates wirelessly, providing freedom of movement during procedures.

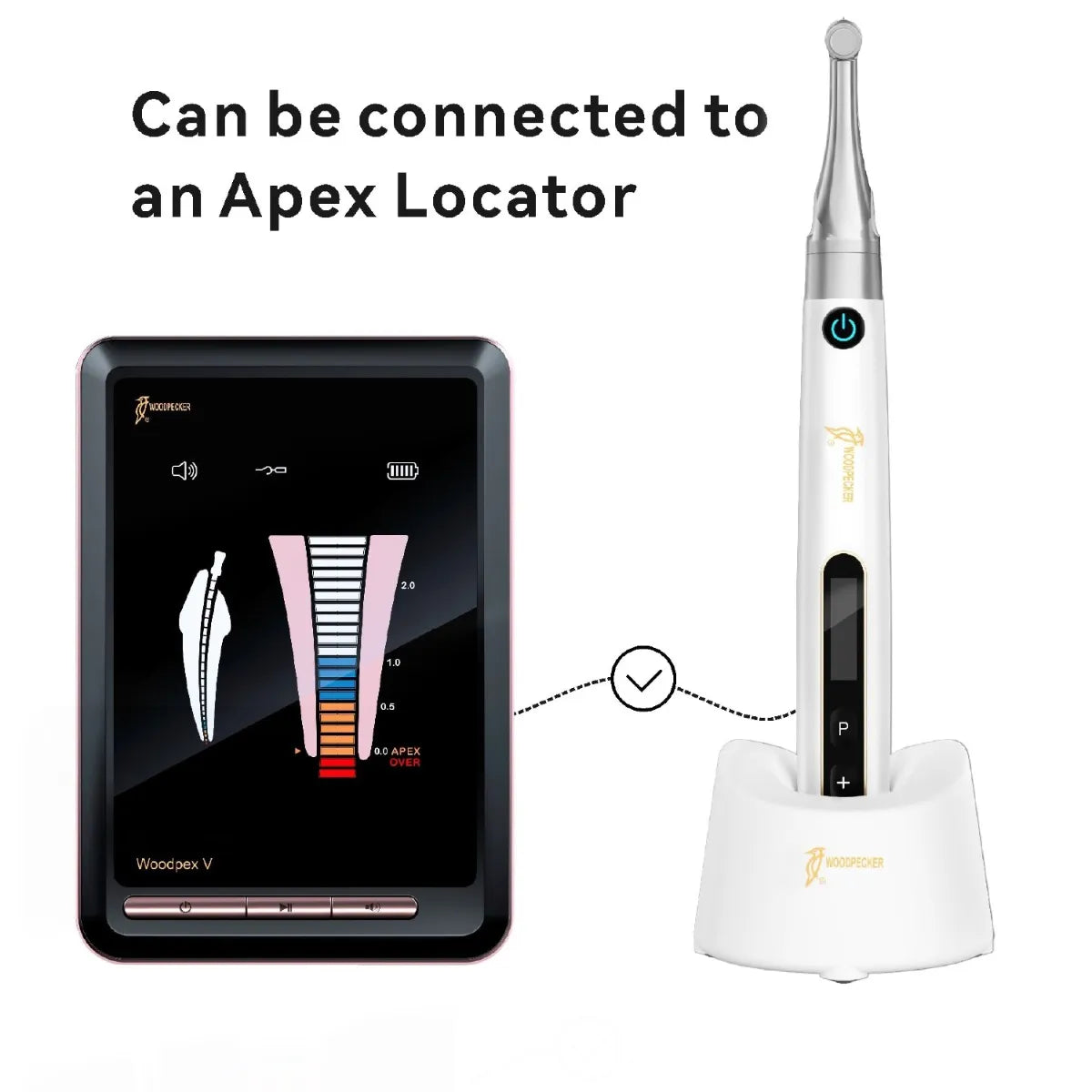

• It can be connected to a matched Apex locator, allowing for real-time monitoring of file position.
• Features like Apical Slow Down adjust motor speed for enhanced safety and precision.
• Provides low noise levels and extended service life for reliable performance.

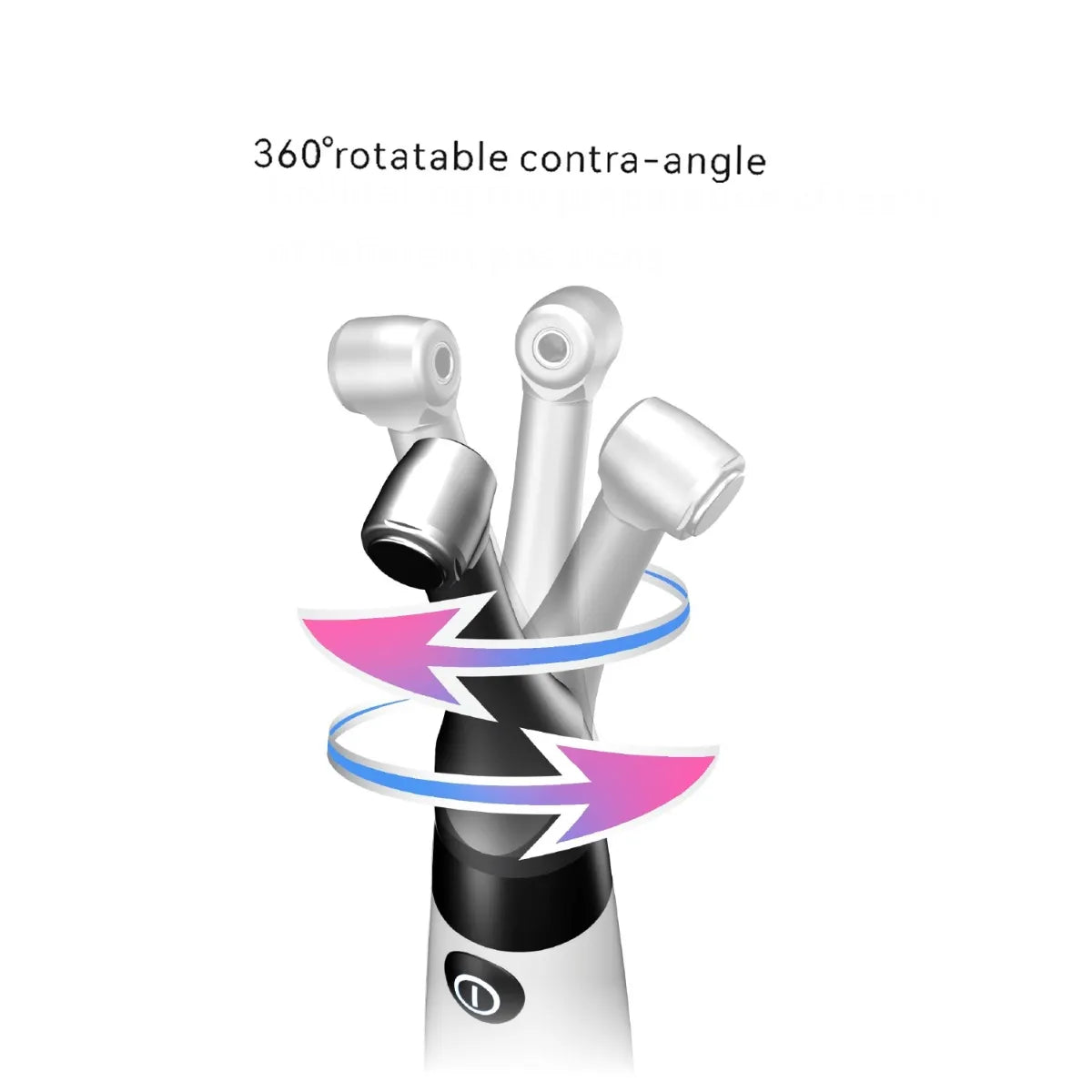

• 360-degree rotatable contra handpiece offers exceptional maneuverability and access to root canals.

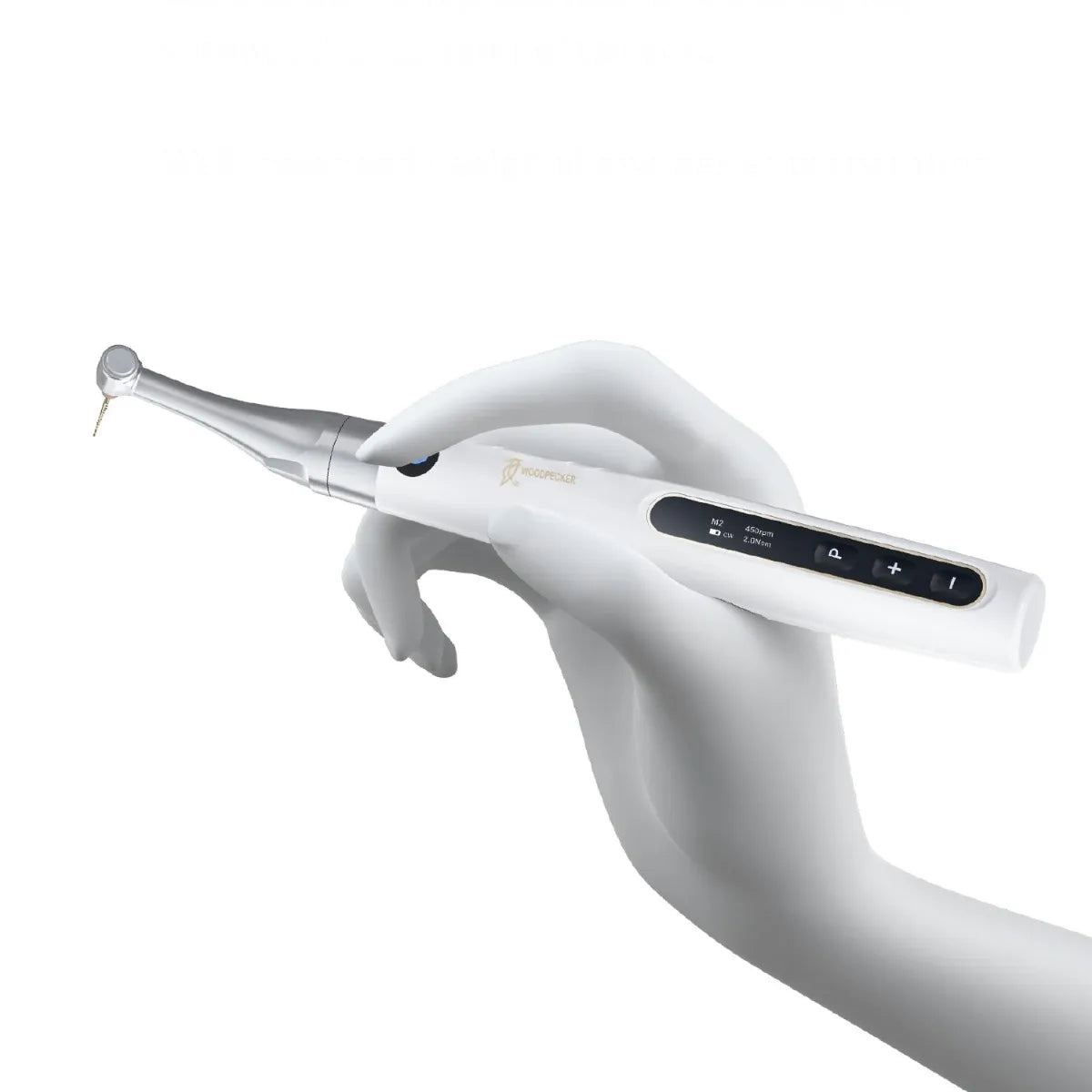

• Easy to carry and handle, improving overall convenience for dental professionals.
• A compact and powerful 6:1 contra-angle handpiece ensures low speed and stable rotation.

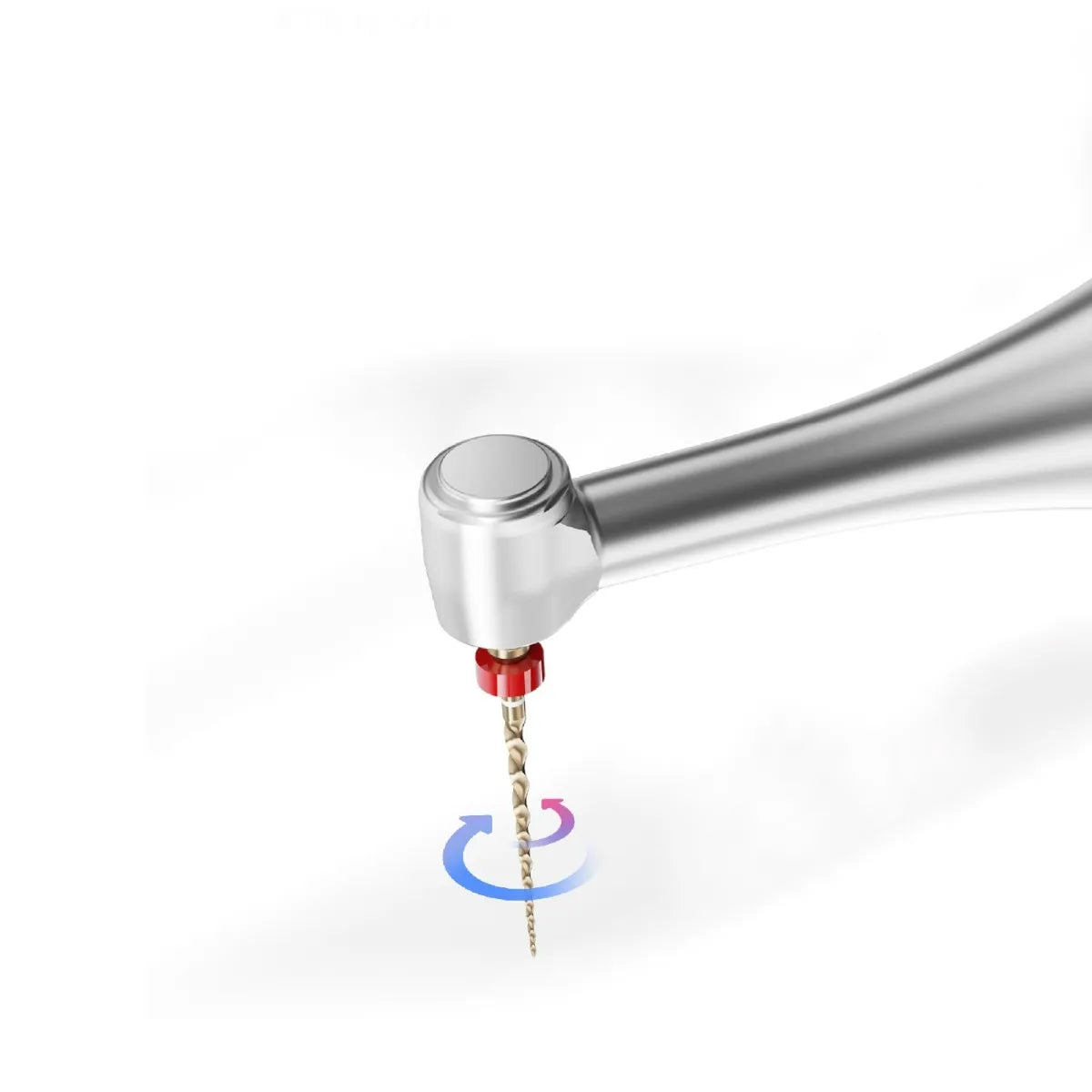

• 4 Working modes - Forward rotation mode/ reverse rotation mode/ reciprocating mode/ ATR mode.
• Adjustable reciprocating angle.

• Lithium battery in motor handpiece: 3.6V /850mAh
• Power Adapter Input: 100V-240V 50Hz/60Hz 0.4A Max
• Power Adapter Output: DC5V/1A
• Rotate speed: 100-1500 rpm
• Torque : 0.4-4.2ncm, 4 Ncm
• Weight: 106g
• Handpiece dimensions: 9.7mm*8mm*6mm

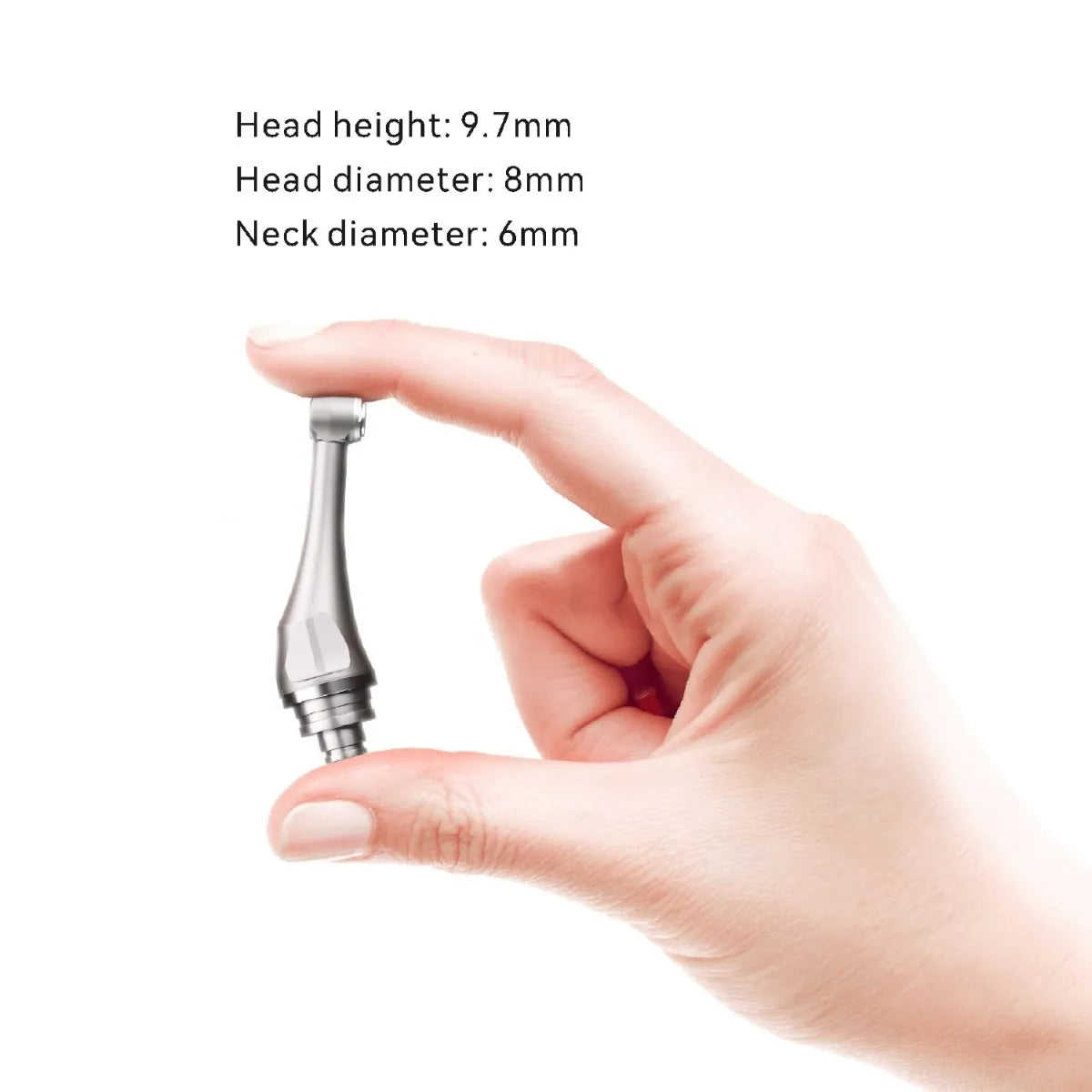

• Head height: 9.7mm
• Head diameter: 8mm
• Neck diameter: 6mm

• 1 x Motor Handpiece
• 1 x Contra Angle
• 1 x Base
• 1 x Power Adapter
• 1 x USB Wire
• 1 x Nozzle
• 1 x Instruction Manual

Preparation:

• Ensure that the device is fully charged or connected to a power source, depending on whether it is a wireless or wired model.
• Check that the contra-angle handpiece is securely attached to the motor unit.
• Make sure you have the necessary endodontic files and accessories ready for use.

Power On:

• Turn on the Woodpecker Endomotor Endopace by pressing the power button located on the motor unit. If it is a wireless model, ensure the battery is charged and turned on.

Adjusting Settings:

• Use the control panel or buttons on the motor unit to adjust the desired torque and speed settings. The torque can typically be adjusted within a range of 0.4 to 4.2 Ncm, and the speed can be set between 100 and 1500 rpm.
• Set the reciprocating angle according to your preference or the specific requirements of the procedure. The Woodpecker Endomotor Endopace allows adjustable reciprocating angles in 10-degree intervals, ranging from 20 to 340 degrees for forward and reverse reciprocating.

Instrument Insertion:

• Attach the appropriate endodontic file to the contra-angle handpiece. Ensure it is securely fastened to prevent any slippage during the procedure.
• Adjust the contra-angle handpiece as needed for comfortable access and proper visibility. The 360-degree rotatable feature allows for flexible operation and facilitates access to teeth from different angles.

Root Canal Preparation:

• Gently insert the endodontic file into the root canal, applying light pressure. Allow the Woodpecker Endomotor Endopace to rotate the file in a smooth and controlled manner.
• Maintain a steady and controlled motion while navigating the root canal. The high-performance brushless motor provides stable cutting even in narrow and curved apices.
• Take advantage of the fast response and accurate control of rotation angles to minimize the risk of instrument breakage and ensure safety and efficiency during the root canal preparation process.

Monitoring and Adjustments:

• Continuously monitor the progress of the procedure and make any necessary adjustments to the speed, torque, or reciprocating angle as required.
• Pay attention to the feedback provided by the patient and any changes in the sound or sensation during the operation.

Power Off:

• Once the root canal procedure is complete, power off the Woodpecker Endomotor Endopace by pressing the power button or disconnecting it from the power source.
• Clean and disinfect the contra-angle handpiece and motor unit according to the manufacturer's instructions and recommended guidelines.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services are only available in Delhi/NCR).
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer.
• Oralkart and the Buyer acknowledge that the Products purchased/used are the subject matter of the original Manufacturer/Importer’s warranties only.
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered with as the case may be.

Question: What is the weight of the endomotor with handpiece?
Answer: The weight of the Woodpecker Endopace endomotor with the handpiece is approximately 108.6 grams.

Question: What are the file systems that can be used? Supports single file system?

Answer: The Woodpecker Endopace is compatible with a wide range of file systems available in the market, including single reciprocating file systems. This versatility allows for flexibility in endodontic procedures, catering to different preferences and techniques used by dental professionals.

Question: Does it pair with apex locator with insulation sleeves on body for real time measure ?
Answer: The Woodpecker Endopace Endomotor can be paired with a compatible apex locator, such as the Woodpecker Woodpex V. To ensure a seamless connection and real-time measurements, it's important to use insulation sleeves on the contra-angle. These silicone sleeves help maintain the integrity of the connection and enhance the accuracy of measurements during endodontic procedures.

Question: What is the Woodpecker Endomotor Endopace?
Answer: The Woodpecker Endomotor Endopace is a lightweight brushless endo motor designed for dental professionals. It is used for root canal preparation and features a high-performance brushless motor with adjustable torque and speed settings.

Question: Can I adjust the reciprocating angle with the Endomotor Endopace?

Answer: Yes, the Endomotor Endopace allows for adjustable reciprocating angles. It offers a 10-degree interval adjustment range from 20 to 340 degrees for both forward and reverse reciprocating motions.

Question: What are the advantages of a brushless motor?
Answer: A brushless motor operates without the mechanical brushes and commutators found in traditional brush motors. This design offers several advantages, including smoother rotation, lower noise levels, increased stability, and improved efficiency.

Question: What are the torque and speed ranges of the Endomotor Endopace?

Answer: The Woodpecker Endomotor Endopace offers a torque range of 0.4 to 4.2 Ncm and a speed range of 100 to 1500 rpm. These adjustable settings allow for precise control and customization during root canal procedures.
