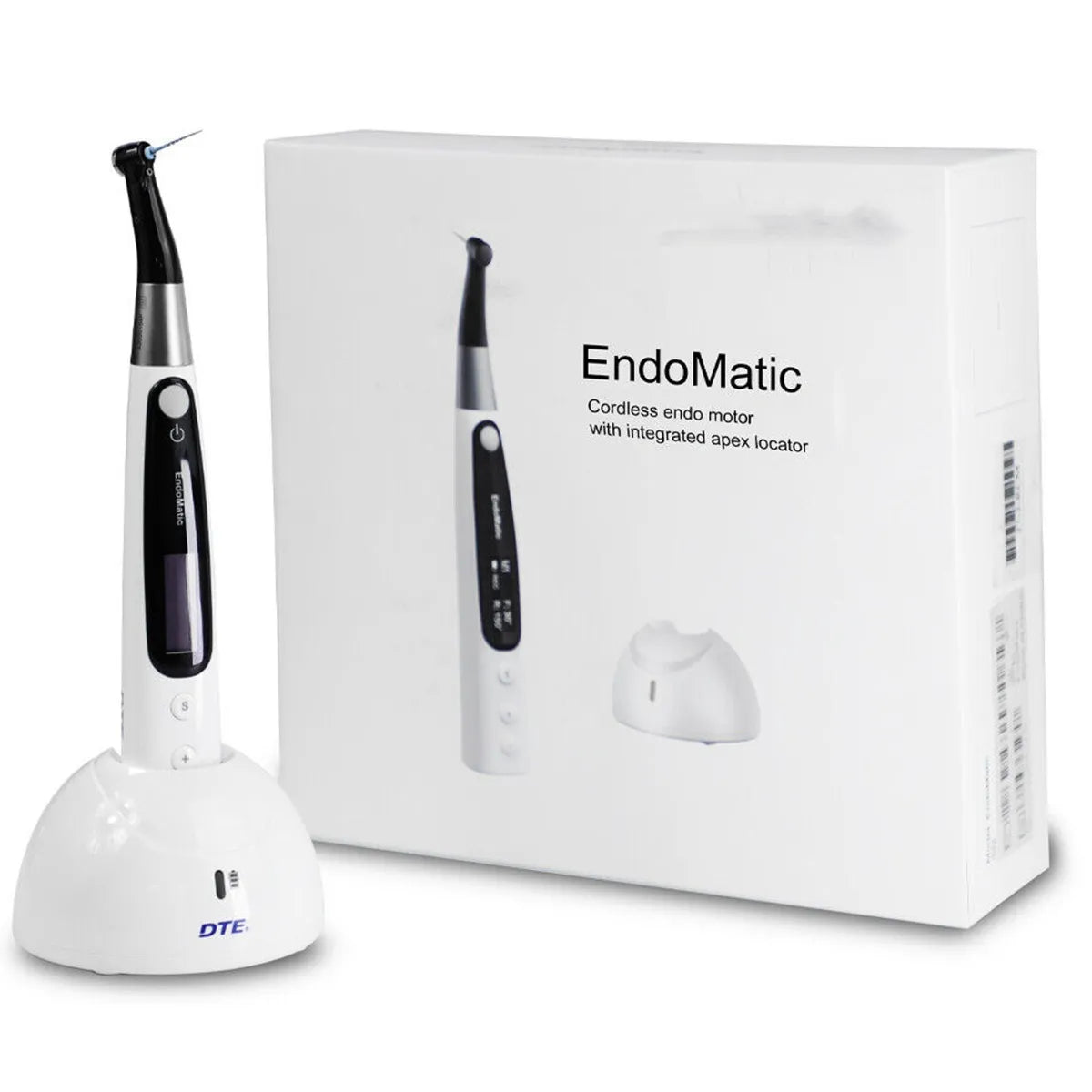

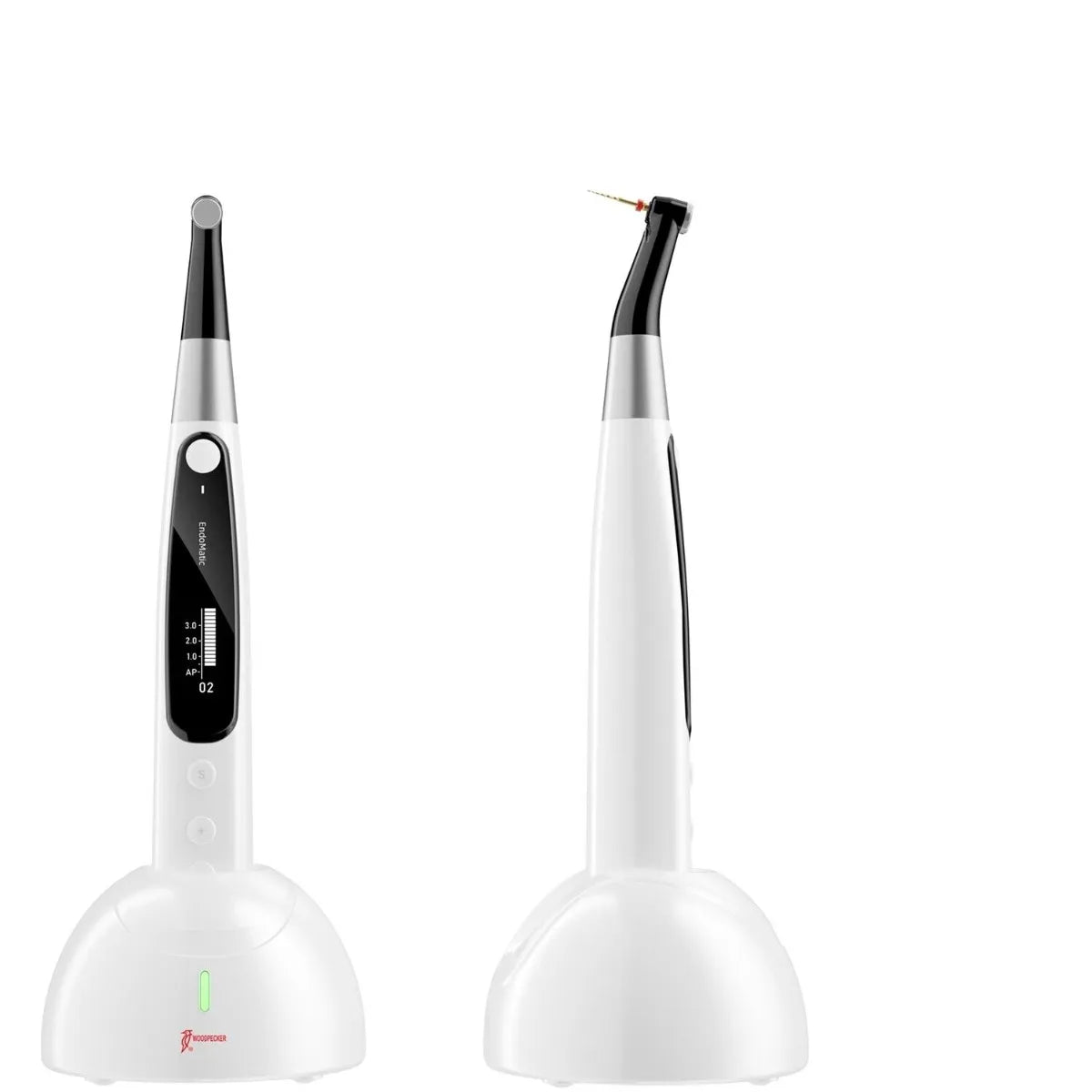

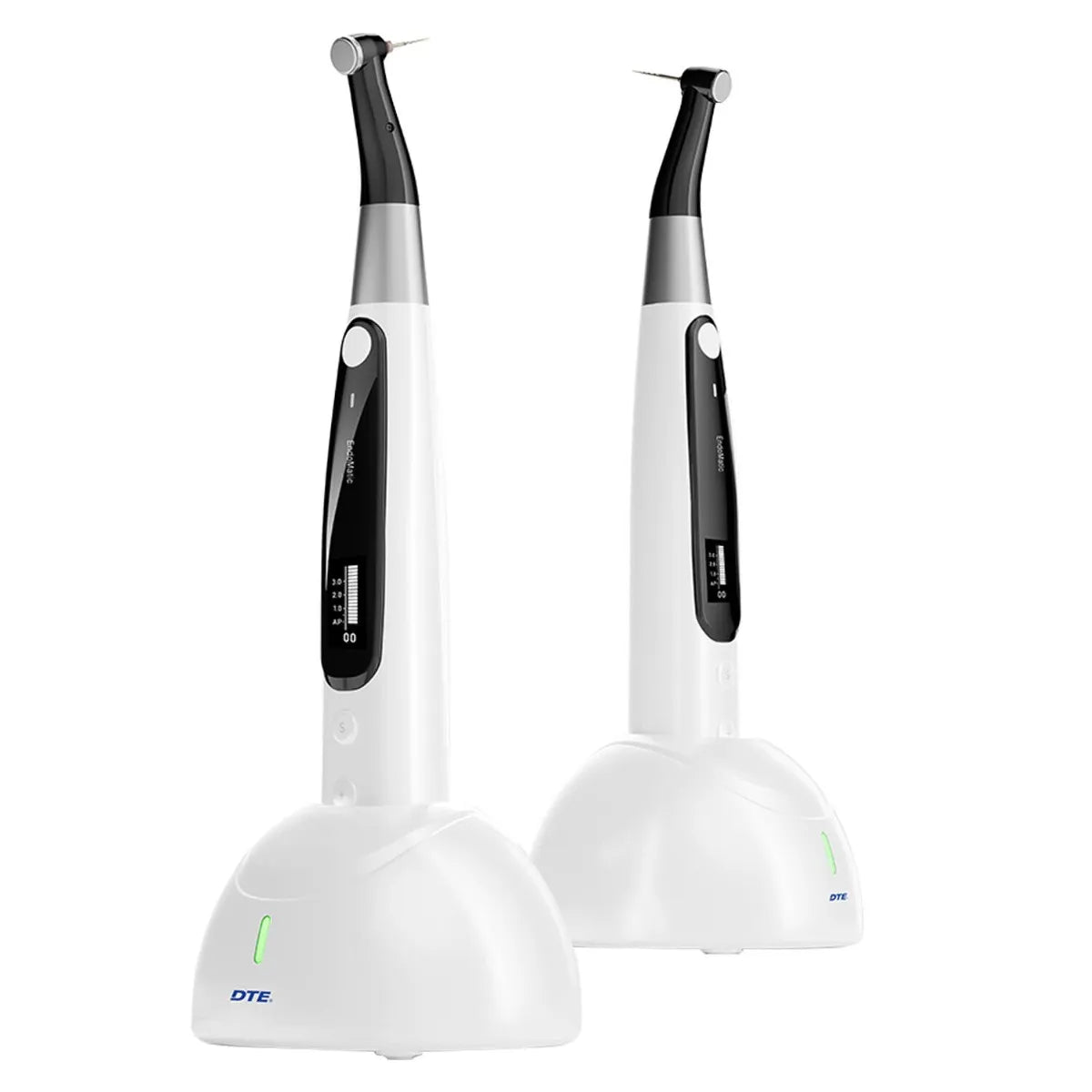

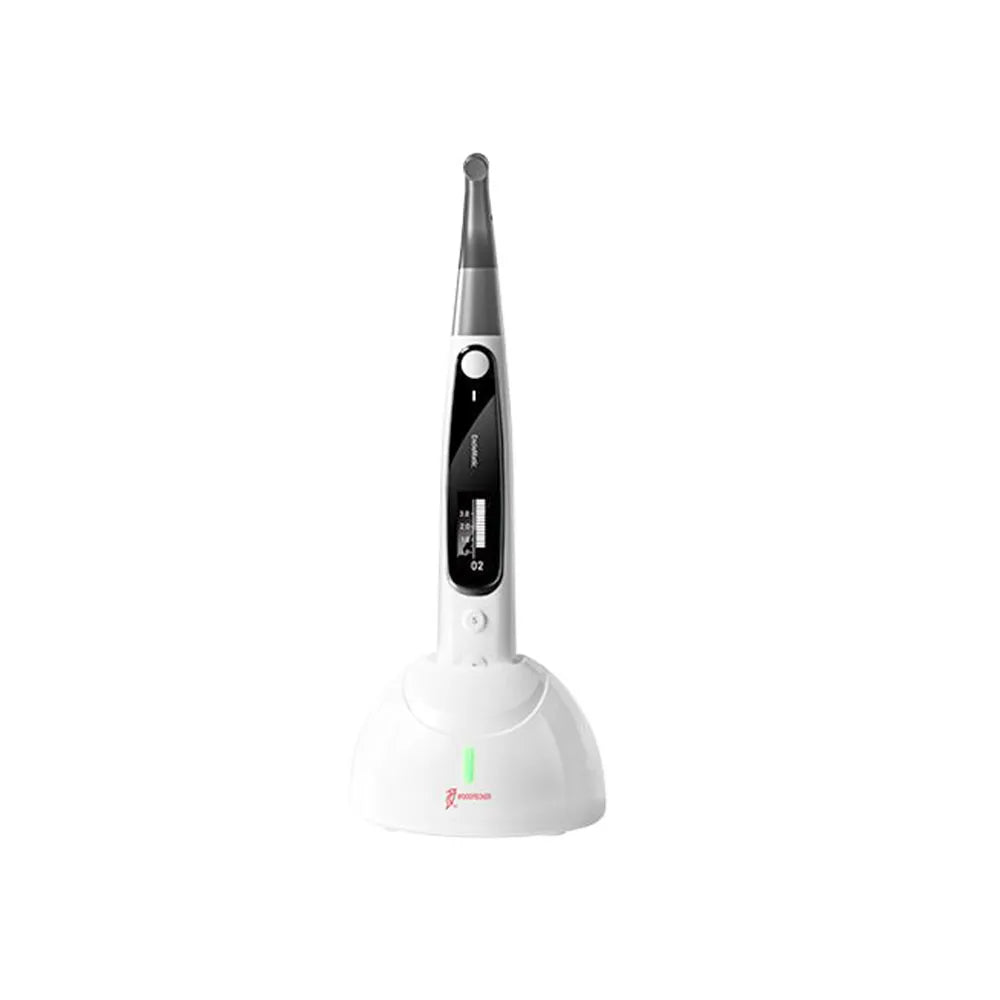

Woodpecker Endomatic Endomotor

• Cordless portable endo motor with combined length determination.

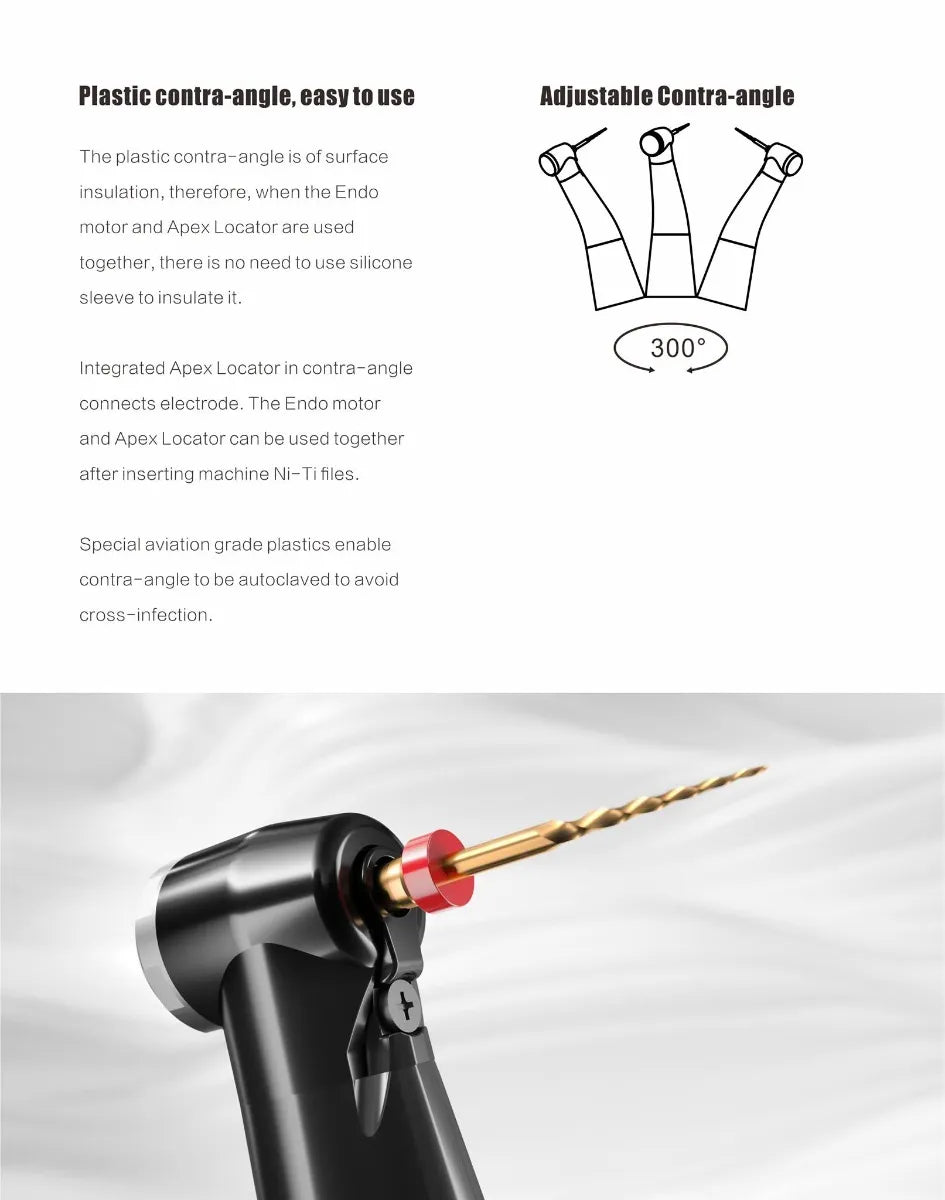

• Surface insulation of plastic contra angle, the built-in electrode of
  canal measurement, easy to use.
• 300 degrees rotation of contra-angle.
• Adopt real-time feedback technology and dynamic torque control,
  Effectively measurement, to use

• Battery (Lithium battery in motor handpiece) :  3.7V /2000mAh
• Power adapter: Input (100V-240V 50Hz/60Hz 400mA Max), Output (DC5V/1A)
• Torque range: 0.4Ncm-5.0Ncm
• Speed range: 100rpm~1000rpm
• Environment temperature: +5℃ ~ +40℃
• Relative humidity: 30% ~ 75%
• Atmospheric pressure: 70kPa ~ 106kPa

Display Screens for 5 Operation Modes and Standby

• CW Mode: The motor handpiece rotates forward 360º, clockwise direction. Used
• CCW Mode: The motor handpiece rotates counterclockwise direction only. This mode is used to inject calcium hydroxide and other mendicant. When this mode is being used, double-beep sounds continuously
• REC Mode: Reciprocating mode.
• ATR Mode: Adaptive Torque Reverse function
• EAL Mode: This mode is for canal measurement. The motor handpiece does not run in this mode.

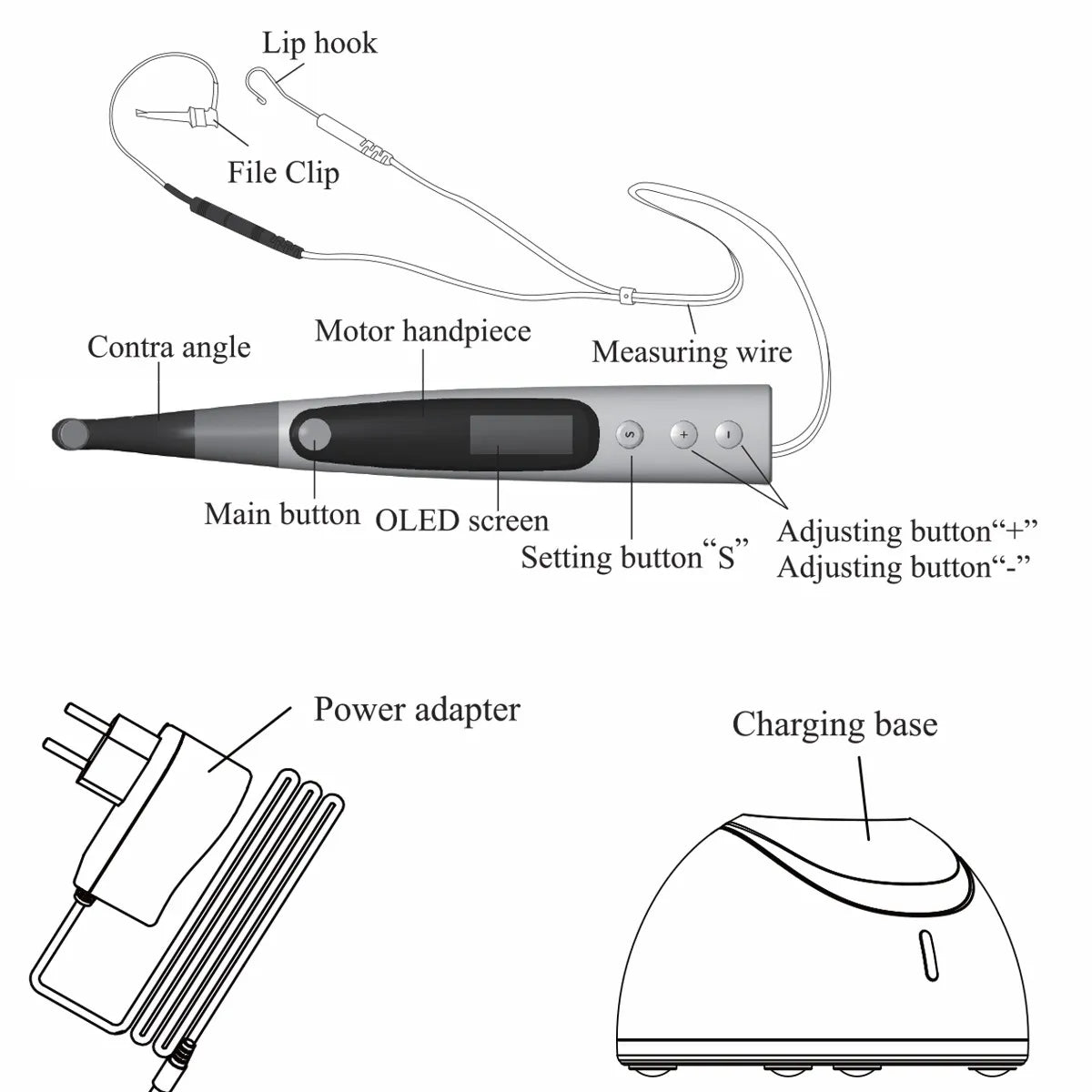

• 1 x Motor handpiece
• 1 x Contra-angle
• 1 x Charging base
• 1 x Measuring wire
• 1 x Lip hook
• 1 x File clip
• 1 x Power adapter
• 1 x Instruction manual

Charging the Device:

• Place the motor handpiece on the charging base.
• Ensure that the power adapter is connected to the charging base and plugged into a power outlet.
• The LED indicator on the charging base will illuminate, indicating that the device is charging.
• Allow the device to charge fully before use.

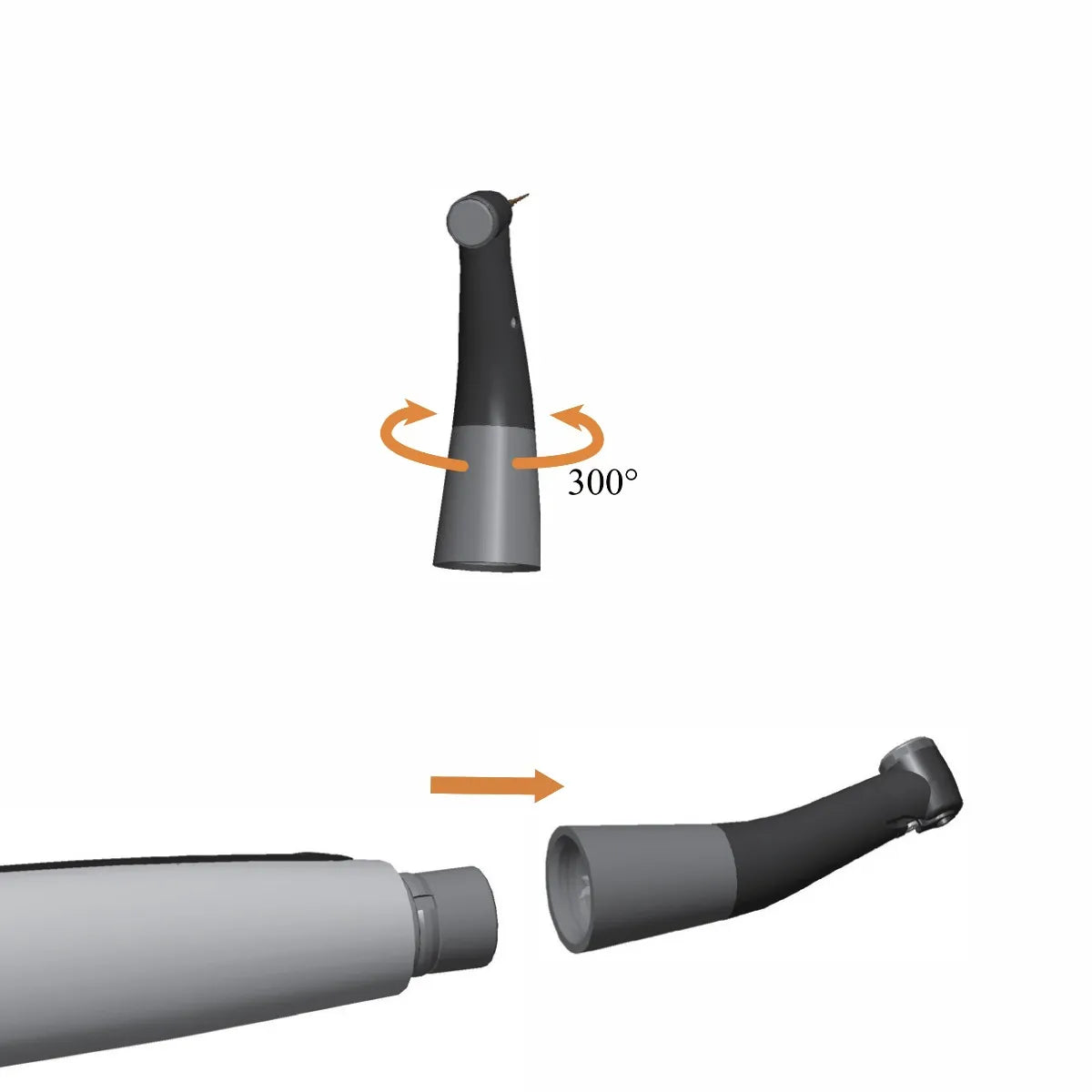

Assembling the Components:

• Attach the contra-angle to the motor handpiece firmly.
• Ensure that the contra-angle is securely fastened to avoid any movement during use.

Powering On the EndoMatic:

• Press the power button on the motor handpiece to turn on the device.
• The LED display will activate, indicating that the device is powered on and ready for use.

Adjusting the Settings:

• Use the buttons or controls provided on the device to adjust the speed and torque settings according to your requirements.
• Refer to the user manual for detailed instructions on adjusting specific settings.

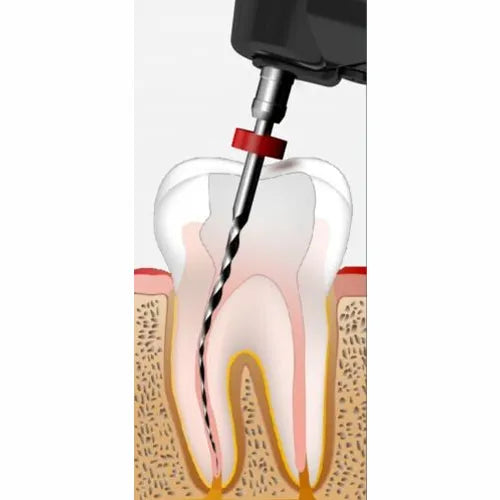

Using the EndoMatic for Root Canal Preparation:

• Select the appropriate file or instrument for root canal preparation.
• Gently insert the instrument into the canal, ensuring it is properly positioned.
• Activate the device by gently pressing the foot pedal or using the designated controls.
• Carefully maneuver the contra angle to navigate and prepare the root canal as needed.
• Monitor the progress and adjust the settings if necessary for optimal results.

Using the EndoMatic for Canal Length Measurement:

• Ensure that the built-in electrode of the contra-angle is in contact with the canal.
• Activate the measurement mode by selecting the appropriate setting on the device.
• Slowly insert the contra-angle into the canal until the desired measurement is obtained.
• Read the measurement displayed on the device's LED display.

Powering Off the EndoMatic:

• Once you have completed the treatment or measurement, deactivate the device by pressing the power button on the motor handpiece.
• Ensure that the device is turned off before disconnecting or storing it.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 Year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Can the EndoMatic be used for both root canal preparation and canal length measurement?
Answer: Yes, the EndoMatic is designed to serve as both an endo motor for the preparation and enlargement of root canals and a device for measuring canal length. It offers versatility and convenience by combining these two essential functions in a single cordless device.

Question: Is the EndoMatic compatible with different file systems?
Answer: Yes, the EndoMatic is compatible with various file systems commonly used in endodontic procedures, such as rotary and reciprocating file systems. It offers flexibility in selecting and utilizing the preferred file system according to the dentist's preference and patient's needs.

Question: Is the contra-angle of the EndoMatic adjustable?

Answer: Yes, the contra-angle of the EndoMatic offers a 300-degree rotation capability. This allows dental professionals to access and treat root canals from various angles, enhancing their ability to perform precise and effective procedures.

Question: Does the EndoMatic have real-time feedback technology?
Answer: Yes, the EndoMatic incorporates real-time feedback technology and dynamic torque control. This advanced feature provides dentists with instant feedback on the applied torque during root canal preparation, enabling them to adjust and control the procedure accurately.

Question: Can I use the EndoMatic for pediatric patients?

Answer: The EndoMatic is primarily designed for use in adult patients. When it comes to pediatric patients, the dentist should consider various factors, such as tooth development, size of the root canals, and patient cooperation, to determine the suitability of using the device. Pediatric cases may require additional expertise and specialized considerations.

Question: How long does the battery of the EndoMatic last?

Answer: The lithium battery in the motor handpiece has a capacity of 3.7V/2000mAh, providing sufficient power for extended use. The battery life can vary depending on the intensity and duration of usage. It is recommended to fully charge the device before each use to ensure optimal performance.
