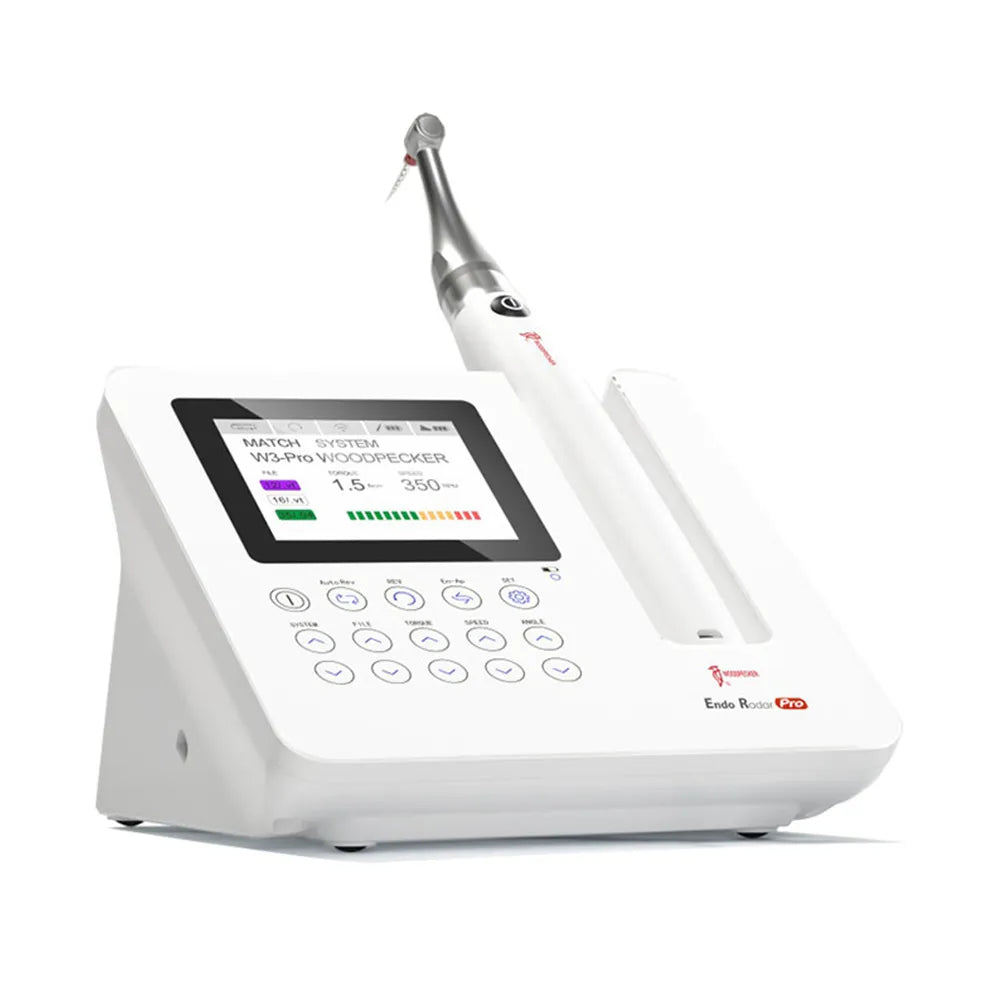

Woodpecker Endo Radar Pro - Brushless Endo Motor with Inbuilt Apex Locator

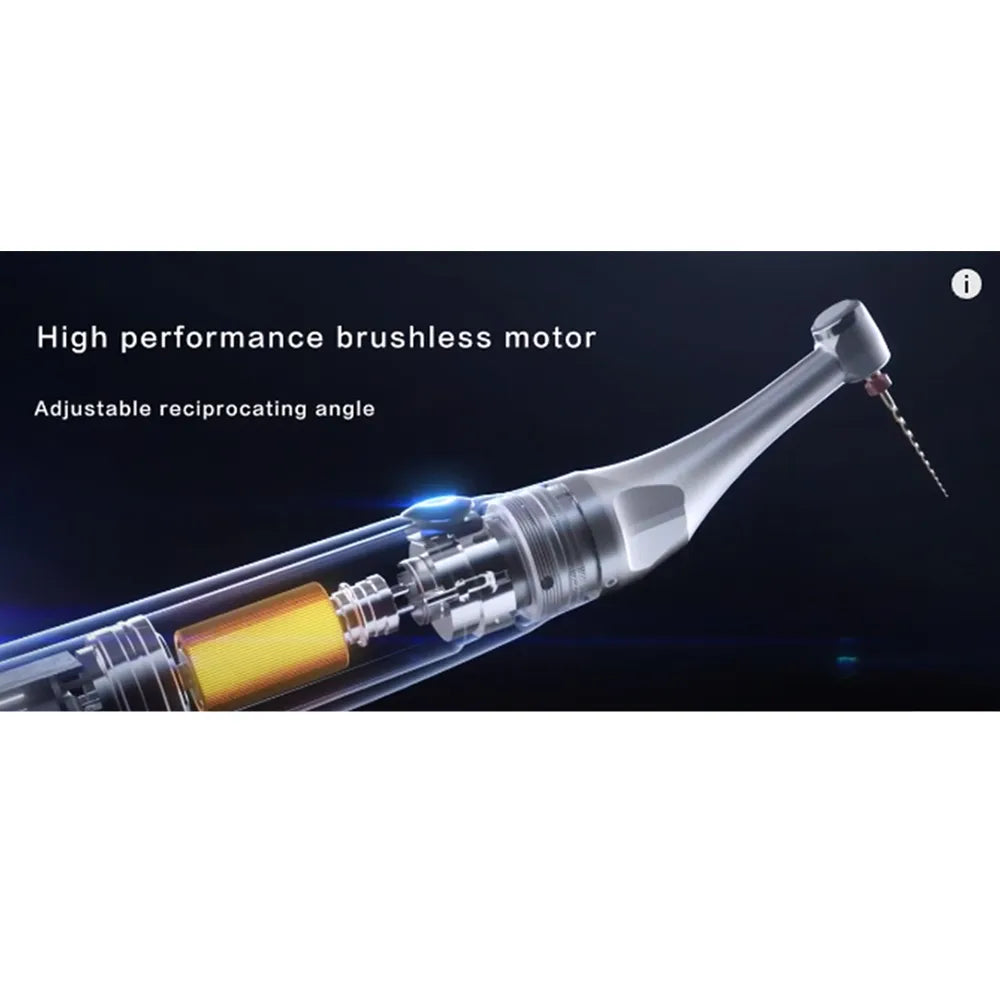

• High-performance brushless motor with reduced noise and vibrations for smooth operation.
• Two-in-One function with auto-apical reverse function to prevent any over-instrumentation.
• Integrated Apex locator provides a real-time display of files inside the canal for high-precision root canal therapy.
• Ultra-compact & Cordless handpiece for a better hand feeling and less hand fatigue.

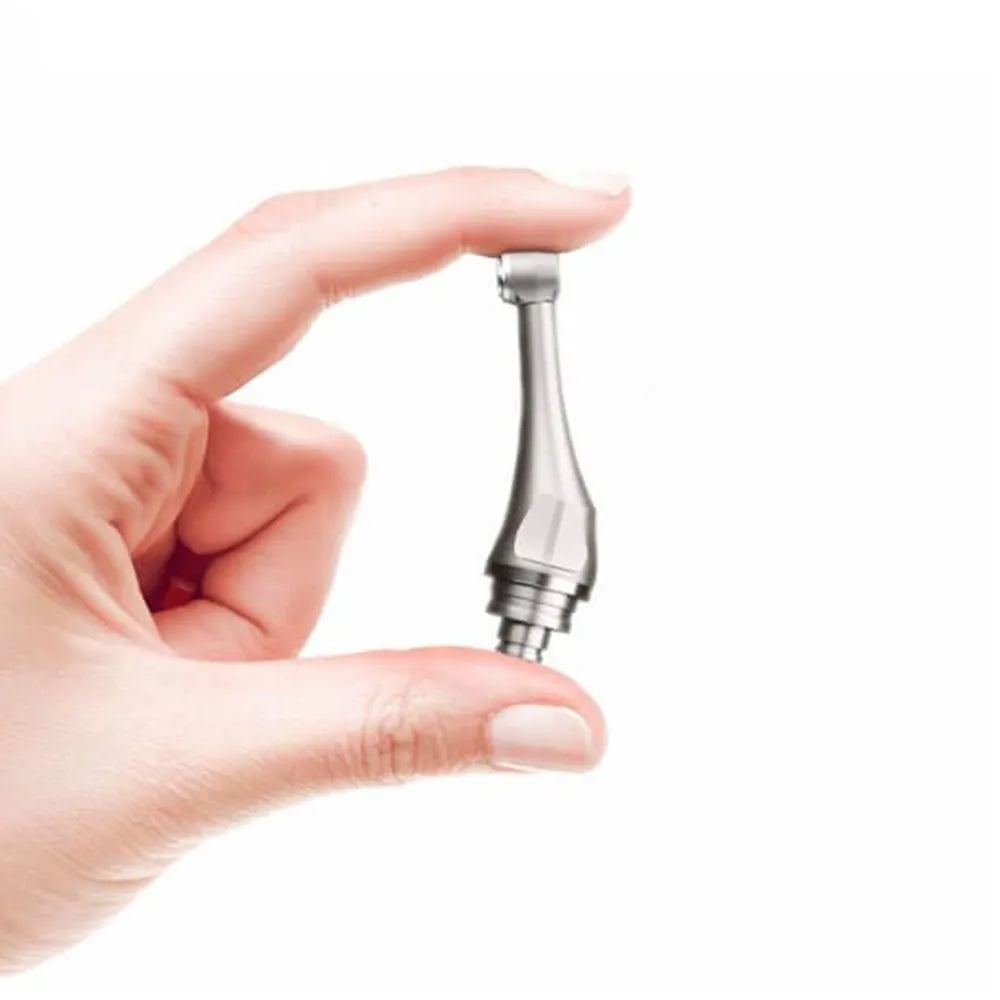

• Super mini contra-angle for enhanced accessibility to the last molar region.

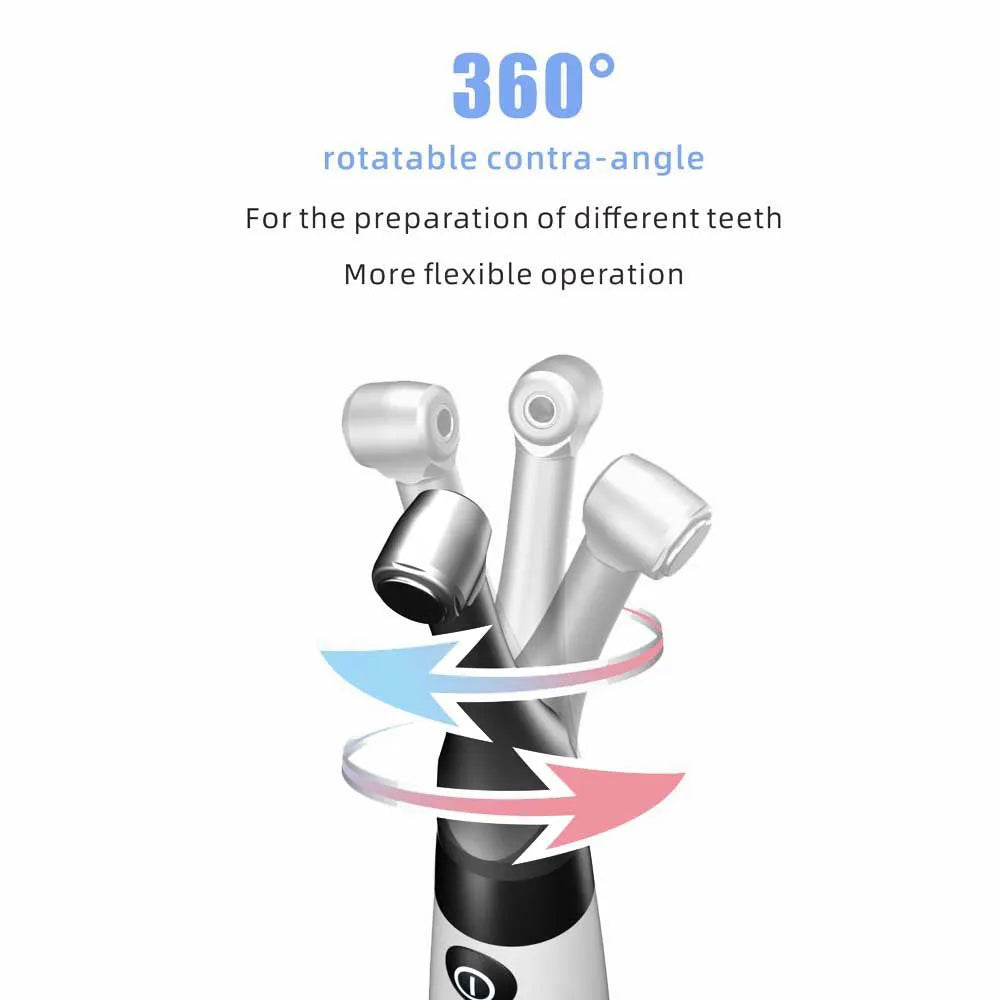

• 360° rotatable contra-angle provides the convenience of operation.
• 6:1 gear ratio ensures low speed and controlled rotation under high torque.

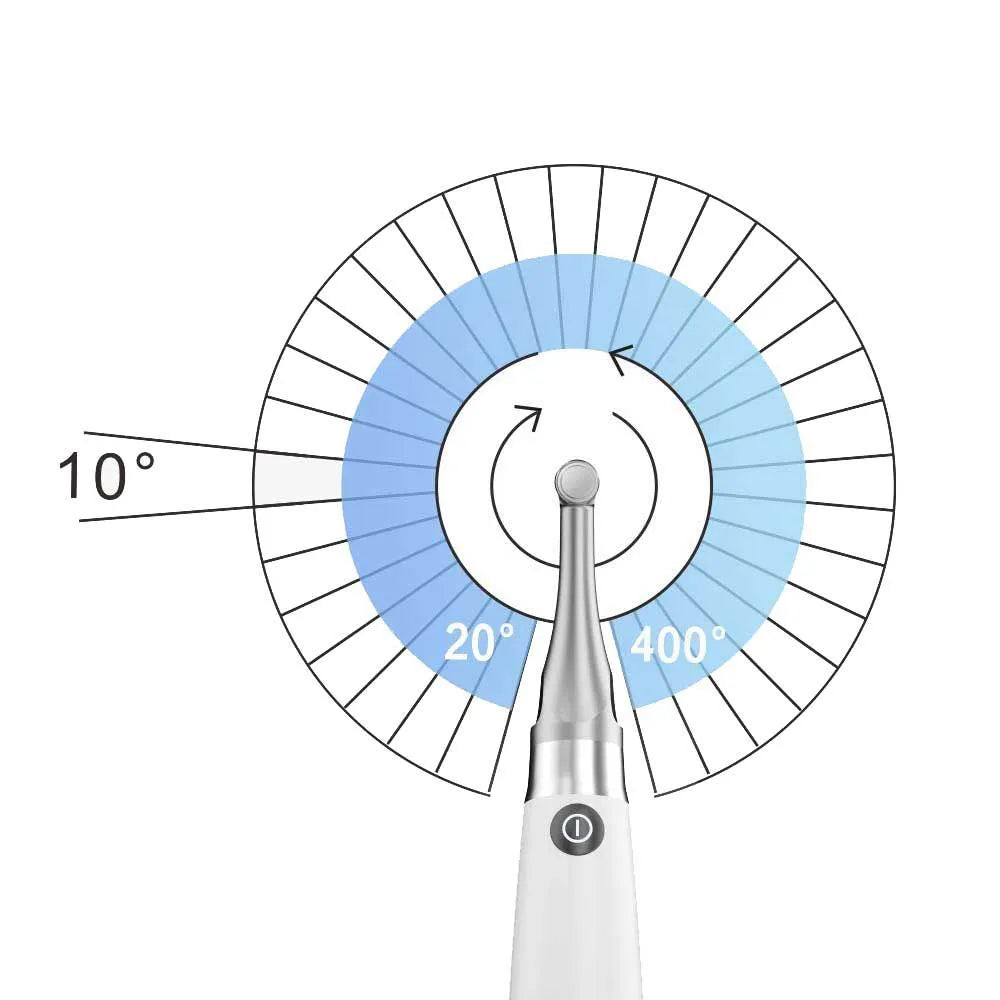

• Adjustable reciprocating angle range from 20° – 400° for accurate angle control.
• ATR Mode: The file will reciprocate to the set angle when it reaches the Pre-set torque value that enables more efficient and safer preparation.
• Touchable smart luminous panel for easy operation and easy maintenance.
• Wireless charging of the handpiece with a large-capacity battery.
• Built-in 1200mAh lithium battery in the handpiece enables wireless charging.
• 2600mAh large capacity battery built in the base.

• Lithium battery in base: 11.1V/2600mAh
• Lithium battery in motor handpiece: 3.7V/1200mAh
• Power adapter input: ~100V-240V 50/60Hz 800mA
• Output: DC 15V/1.6A
• Gear head ratio: 6:1
• Torque range: 0.4 – 5.0 Ncm (4mNm~50mNm)
• Speed Range: 100 – 2500 rpm
• Rotatable contra angle: 360°
• Functions: Auto-reverse/Apex Action/Auto-start
• Built-in User-Defined Modes: 11
• Handpiece Head Size: 9.7mm height

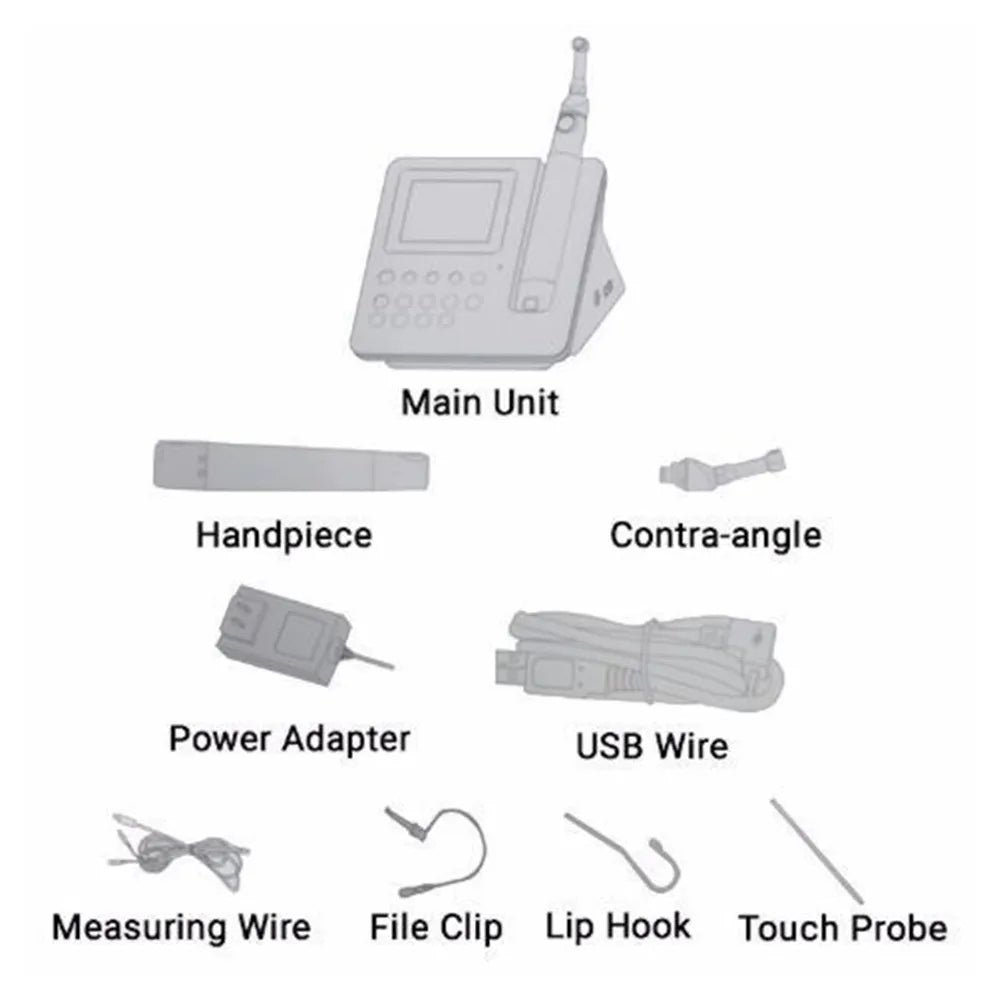

• 1 x Main unit(containing Apex Locator)
• 1 x Motor Handpiece
• 2 x Silicon cover
• 2 x "O" ring
• 1 x Contra Angle
• 1 x Power Adaptor
• 1 x USB Wire
• 1 x Lubricator
• 1 x Measuring Wire
• 4 x File Clip
• 2 x Lip Hook
• 2 x Touch Probe
• Instruction manual

• Ensure that the Woodpecker Endo Radar Pro is properly set up and connected to a compatible power source.
• Prepare the patient for the endodontic procedure, ensuring proper isolation and access to the tooth requiring treatment.
• Attach the appropriate endodontic file to the handpiece of the Woodpecker Endo Radar Pro.
• Activate the inbuilt apex locator feature by selecting the corresponding mode or activating the apex locator button on the device.
• Place the endodontic file into the root canal and gently advance it while monitoring the feedback provided by the inbuilt apex locator. Follow the visual and audible signals to accurately determine the position of the root apex.
• Use the brushless endo motor function of the Woodpecker Endo Radar Pro to precisely control the speed and torque of the endodontic file during the root canal treatment.
• Continuously monitor the position of the file tip using the inbuilt apex locator to ensure precise working length determination and avoid overextension or underfilling.
• Proceed with the root canal treatment, utilizing the brushless endo motor and apex locator features in a coordinated manner to achieve optimal results.
• Upon completion of the procedure, carefully remove the endodontic file from the root canal and sterilize or dispose of it appropriately.
• Clean and disinfect the Woodpecker Endo Radar Pro according to the manufacturer's instructions before storing it in a safe and suitable location.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 12 months warranty as applicable on this product and 5 year Warranty (from the date of invoice) on PCB (Power Circuit Board).
• Physical damage is not covered in any case.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Woodpecker Endo Radar Pro - Brushless Endo Motor with Inbuilt Apex Locator
Answer: Yes, the Woodpecker Endo Radar Pro, being compatible with all types of rotary files, including Dentsply WaveOne Gold Rotary Files, ensures versatility in endodontic procedures, accommodating various preferences and clinical needs.

Question: Why is a file clip & lip hook being provided if the apex locator is inbuilt?
Answer: When the Woodpecker Endo Radar Pro with in-built Apex Locator is used solely in the apex locator mode, the lip hook, file clip, and measuring cable are necessary for accurate apex measurement. However, when utilized in the combo mode for simultaneous apex locator reading and canal shaping with rotary files, only the lip hook and measuring cable are required, and the file clip is not needed.

Question: What is the weight of Woodpecker Endo Radar Pro endomotor ?

Answer: The Woodpecker Endo Radar Pro endomotor weighs approximately 109 grams. This lightweight design ensures ease of handling and maneuverability during endodontic procedures, enhancing user comfort and reducing fatigue during prolonged use.

Question: Can i use my woodpecker 5 apex locator with this endomotor ( inbuilt apex locator system) as a double check in determining apex?
Answer: No, the single-head measuring cable used for taking apex locator readings while shaping with the endomotor will not fit with the Woodpecker Woodpex 5 apex locator.

Question: What is the generation of apex locator in endo radar pro, And is it a DTE model ?
Answer: The Woodpecker Endo Radar Pro features a 5th generation apex locator, showcasing advanced technology for precise root canal measurements. It is indeed a Woodpecker model, not a DTE model. This combination of a brushless endo motor and inbuilt apex locator reflects cutting-edge innovation in endodontic equipment.

Question: Can LED light be fitted on the contra angle handpiece?
Answer: No, it is not possible to fit an LED light on the contra-angle handpiece of Woodpecker Endo Radar Pro. The design does not support the attachment of an LED light to the contra-angle handpiece.

Question: Which is best between endo radar pro or radar plus or only endo radar, please suggest me
Answer: "When comparing Woodpecker's Endo Radar Pro, Radar Plus, and the standard Endo Radar, it's essential to consider their specific features and performance. The Endo Radar, equipped with a 1:1 contra-angle handpiece, offers a speed range from 100 to 650 rpm and a torque range from 0.6 Ncm to 4 Ncm. However, the contra-angle handpiece cannot be rotated to different positions without removal and reattachment. To use the apex locator mode simultaneously with filing, a separate connector and LED holder are required. The motor handpiece comes with a 750mAh battery.
In contrast, the Endo Radar Plus comes with a mini 6:1 contra-angle handpiece that can be rotated in any position. It offers a wider speed range, from 100 to 1200 rpm, and a torque range from 0.4 Ncm to 5.0 Ncm. Notably, there's no need to attach a separate connector to use the apex locator mode while filing. The motor handpiece features a more substantial 2000mAh battery and is equipped with a brushless motor, ensuring smooth and efficient performance. This motor allows for 360° rotation of the contra-angle, enhancing flexibility during procedures.
Finally, the Endo Radar Pro offers a high-speed range, spanning from 100 to 2500 rpm, and a torque range from 0.4 Ncm to 5.0 Ncm. It features a 6:1 mini 360° rotatable contra-angle, allowing for precise and convenient positioning during procedures. The motor handpiece comes with a 1200mAh battery and has a 2mm smaller diameter compared to the Endo Radar Plus. These features collectively make the Endo Radar Pro an advanced choice for endodontic procedures, particularly when precision and flexibility are paramount."

Question: What is ATR mode in endoradar pro?
Answer: The file will automatically reciprocate to the set angles when the pre-set torque value is reached for a more efficient root canal preparation.

Question: What is the height of the handpiece head? Can it be accessible to the 3rd Molar?
Answer: Yes, the handpiece head can easily be accessible to the 3rd molar region as the height of the handpiece is 9.7mm.
