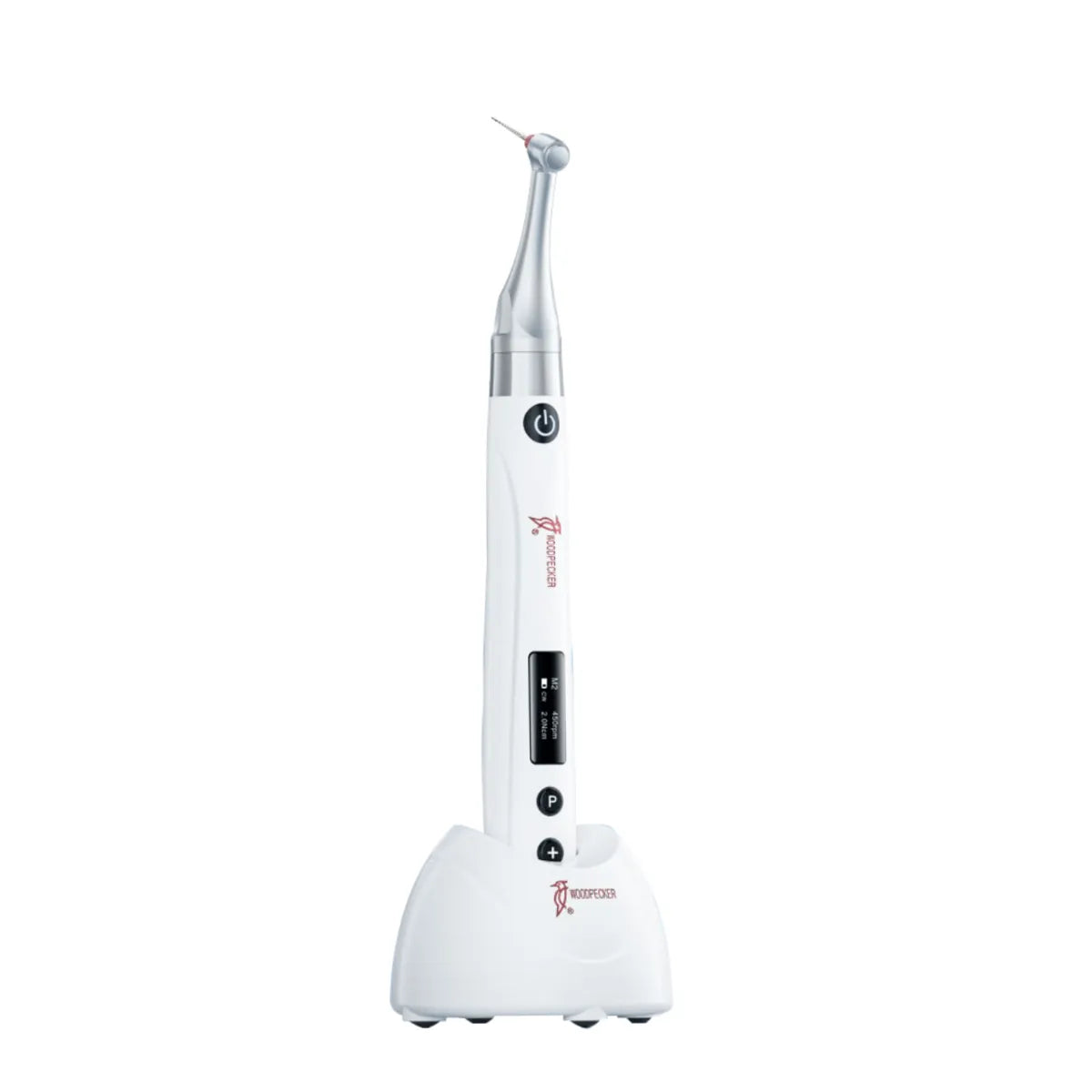

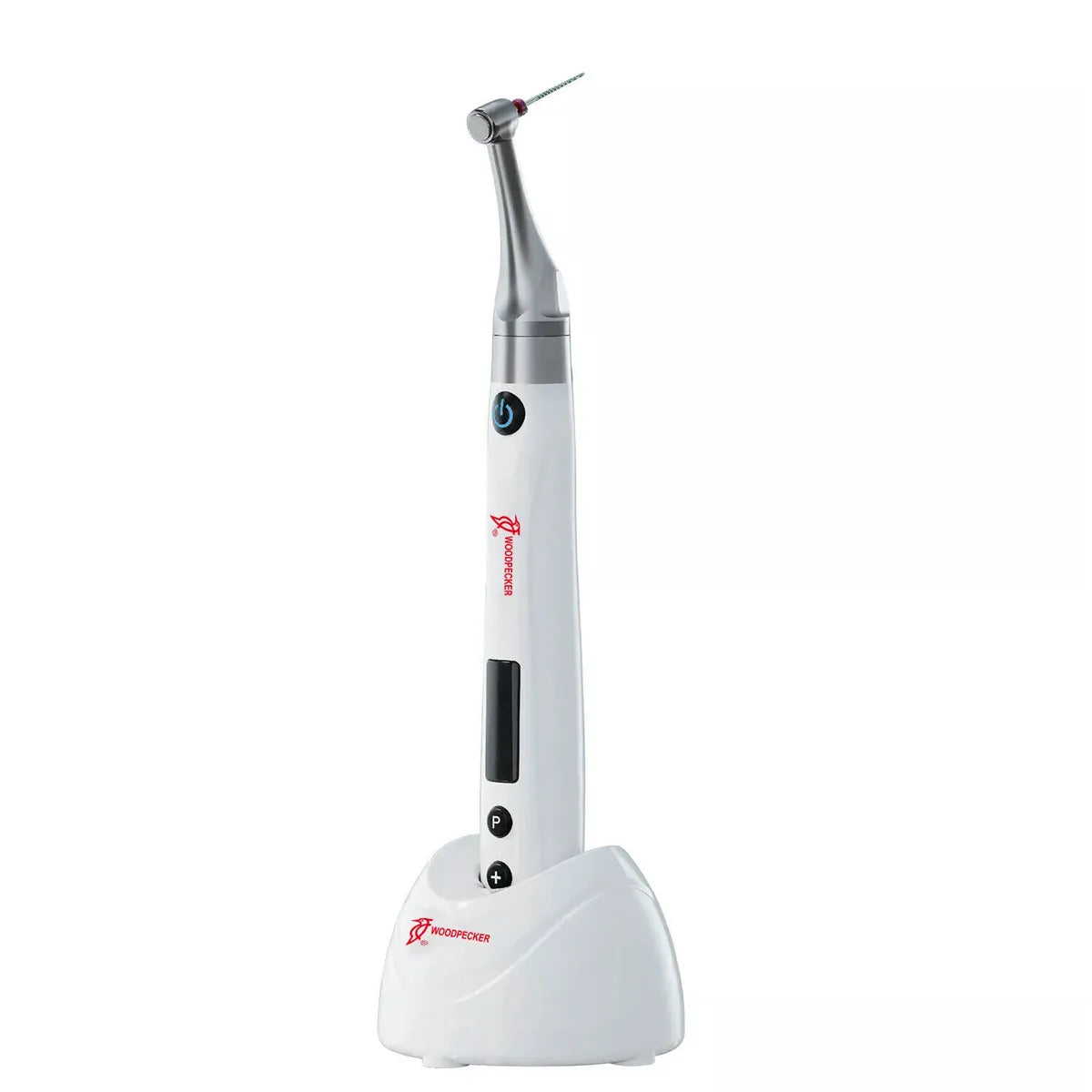

Woodpecker Endo Free Endomotor

• Cordless and portable design for ease of use.
• High-efficiency brushless motor ensures longer service life.

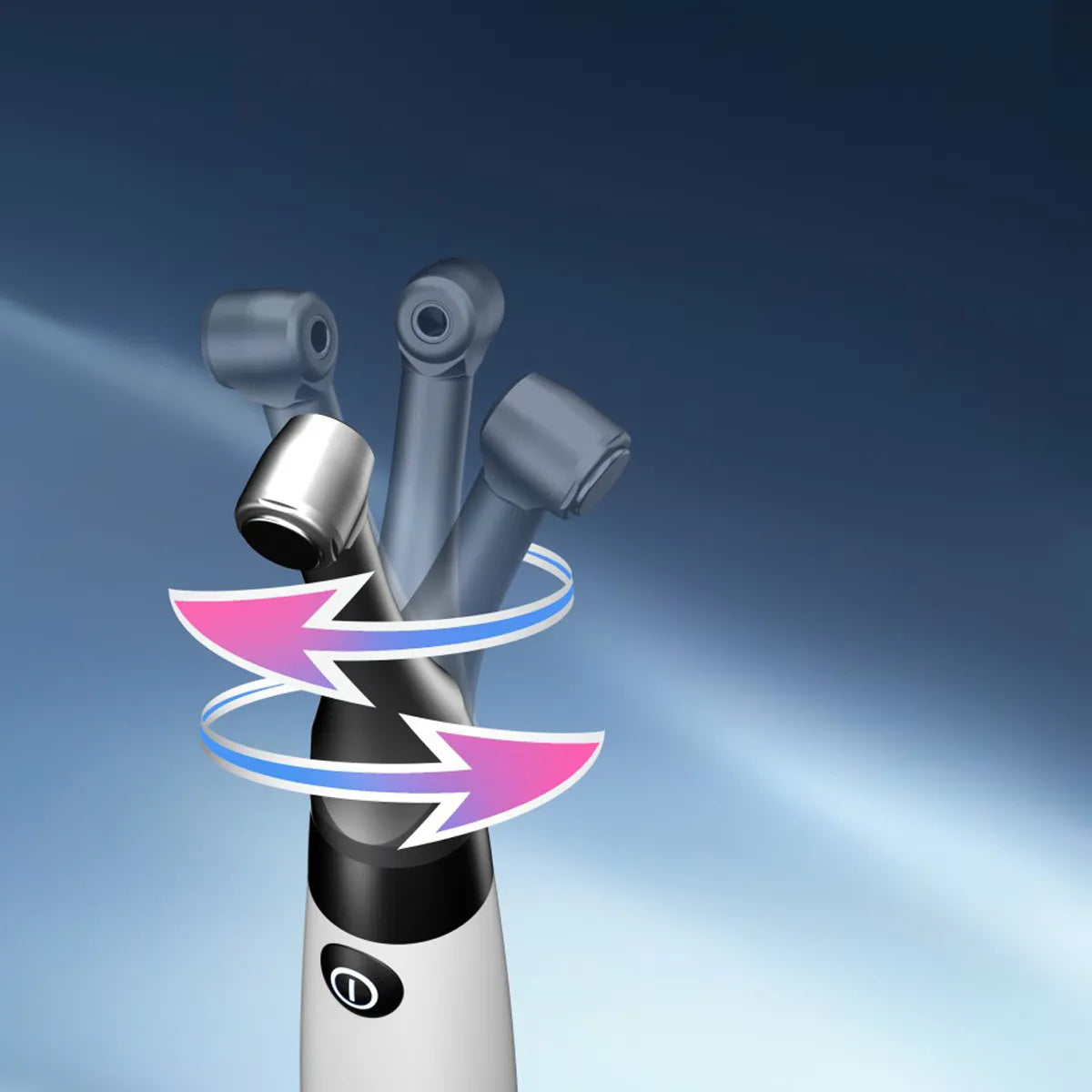

• 360° rotatable contra angle for optimal visibility.

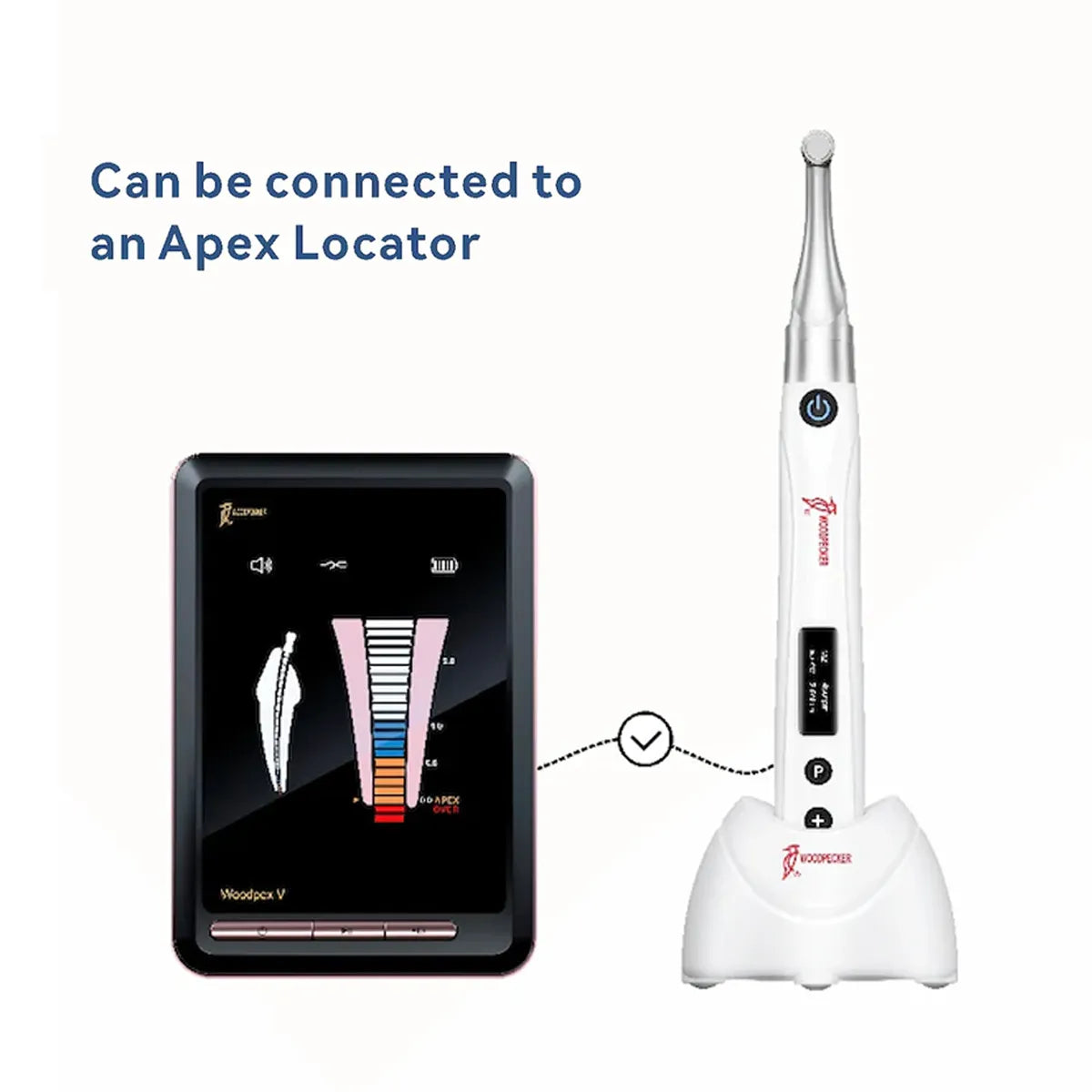

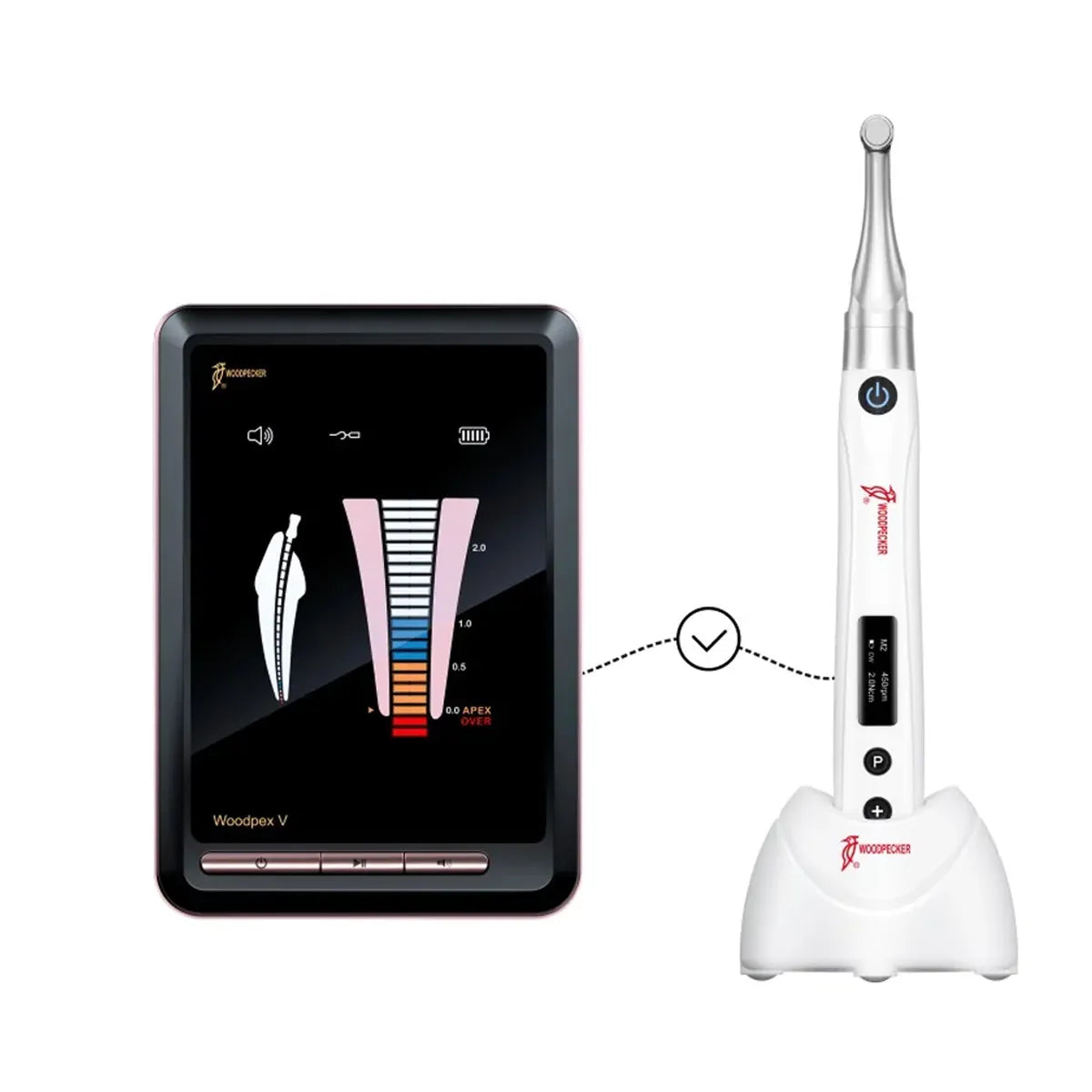

• Compatible with Apex locator for precise measurements.
• Adjustable speed and torque for customized operation.
• Automatic functions like Apical Slow Down for enhanced safety.

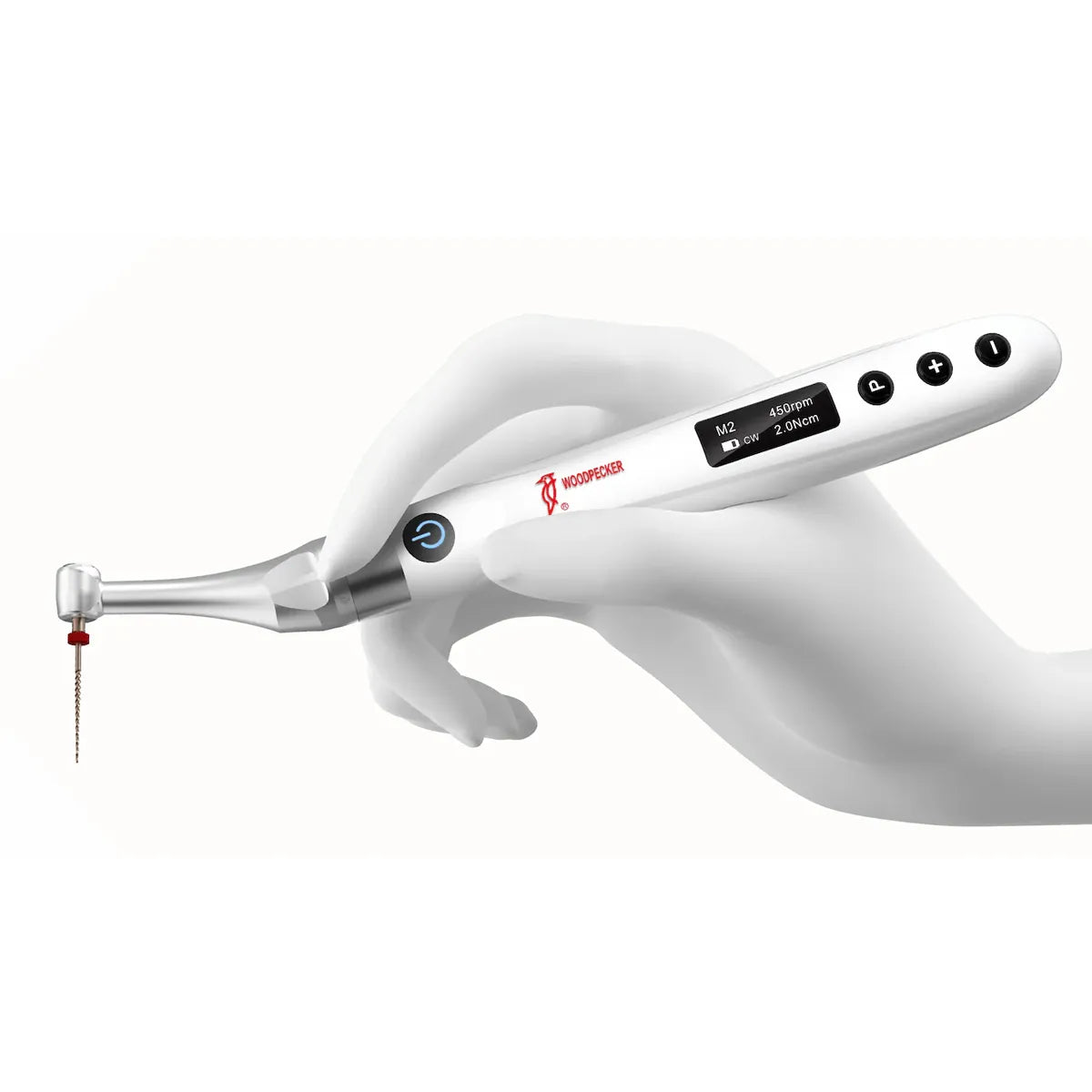

• Ergonomic and compact for comfortable handling.

• Battery: Lithium battery in motor handpiece: 3.6V / 850mAh
• Power Adapter Input: ~100V-240V 50Hz/60Hz 0.4A Max
• Power Adapter Output: DC5V/1A
• Torque Range: 0.4N·cm to 4.2N·cm
• Speed Range: 100 r/min to 1500 r/min

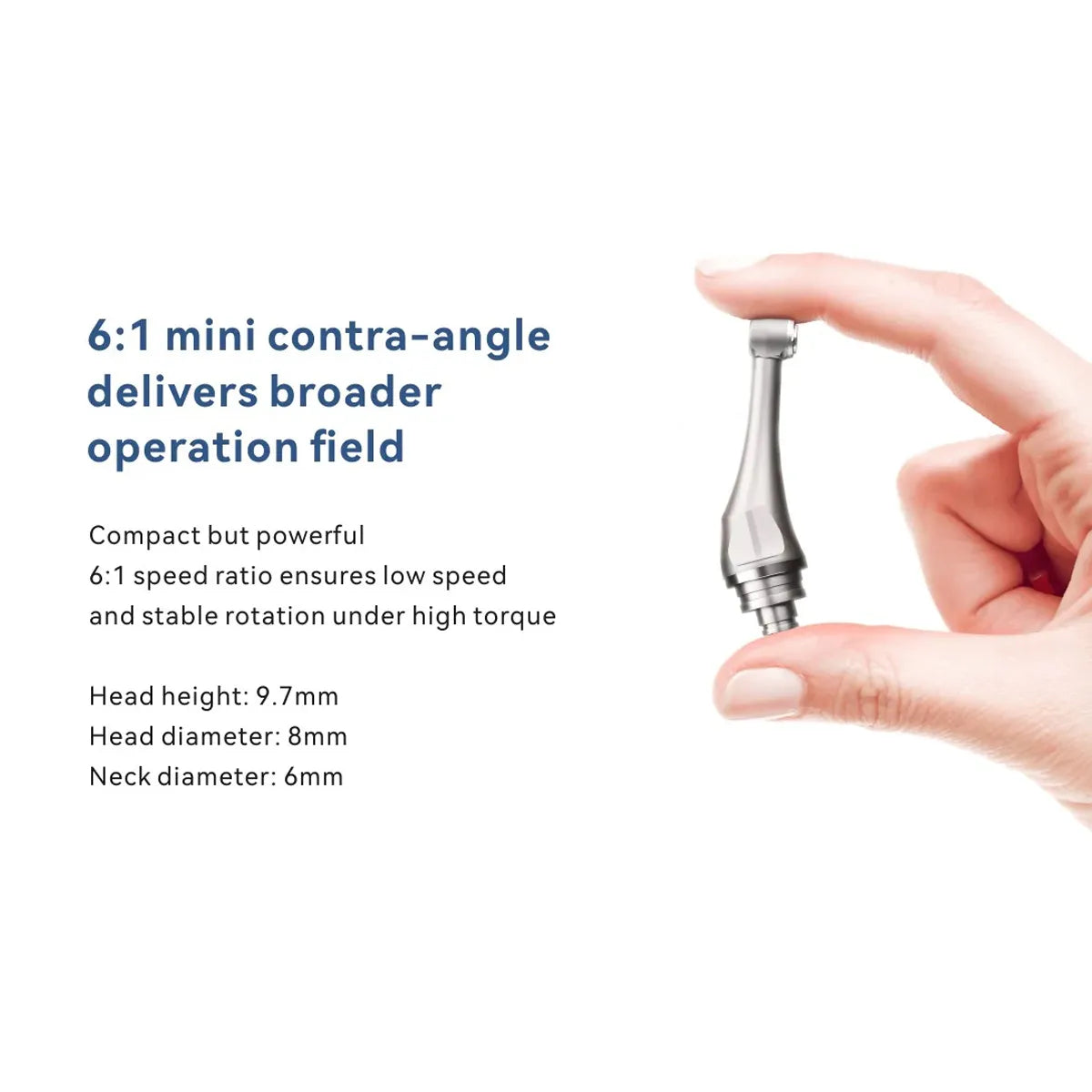

• Contra Angle Rotation: 360°
• Contra Angle Transmission Ratio: 6:1
• Contra Angle Head Height: 9.7mm
• Contra Angle Head Diameter: 8mm
• Contra Angle Neck Diameter: +5°C to +40°C
• Atmospheric Pressure: 70kPa to 106kPa
• Operation Mode Type: Continuous operating device
• Ingress Protection: Ordinary equipment (IPX0)

• 1 x Main Unit
• 1 x Contra angel
• 1 x charging base
• 1 x Charger
• 1 x Nozzel
• 1 x Usb Wire
• 1 x Protective silicon cover
• 1 x Disposable insulation sleeves

Setup and Preparation

Charging the Device:

• Ensure the motor handpiece is fully charged using the provided power adapter. Connect the adapter to a suitable power source (100V-240V 50Hz/60Hz 0.4A Max) and plug the USB wire into the handpiece.

Assembling the Contra Angle:

• Align any locating pin of the contra angle with the positioning slot on the motor handpiece.
• Push the contra angle horizontally until the four locating pins are securely in place. A "click" sound indicates proper installation.
• The contra angle can be rotated 360° to ensure the OLED display is always visible.

Installing the File:

• Before starting the device, plug the file into the hole of the contra angle head.
• Hold down the push button on the contra angle and insert the file. Rotate the file back and forth until it aligns with the interior latch groove and slips into place.
• Release the button to lock the file into the contra angle.

Operation

Turning On the Device:

• Press the Main button to turn on the motor handpiece. The device will enter Standby mode.
• Press the Main button again to switch to Working mode.

Selecting the Operation Mode:

• Ensure the correct operation mode is selected (CW, CCW, REC, or ATR) by pressing the Setting button “P” during Standby mode.
• Use the Adjusting buttons “+”/“-” to navigate through and select the desired mode.

Adjusting Parameters:

• Speed: Adjust the speed from 100 r/min to 1500 r/min using the Adjusting buttons. In ATR and REC modes, the speed range is 100 r/min to 500 r/min.
• Torque: Set the torque between 0.4N·cm to 4.2N·cm using the Adjusting buttons. In ATR mode, the trigger torque ranges from 0.4N·cm to 4.0N·cm. In REC mode, it ranges from 2.0N·cm to 4.2N·cm.

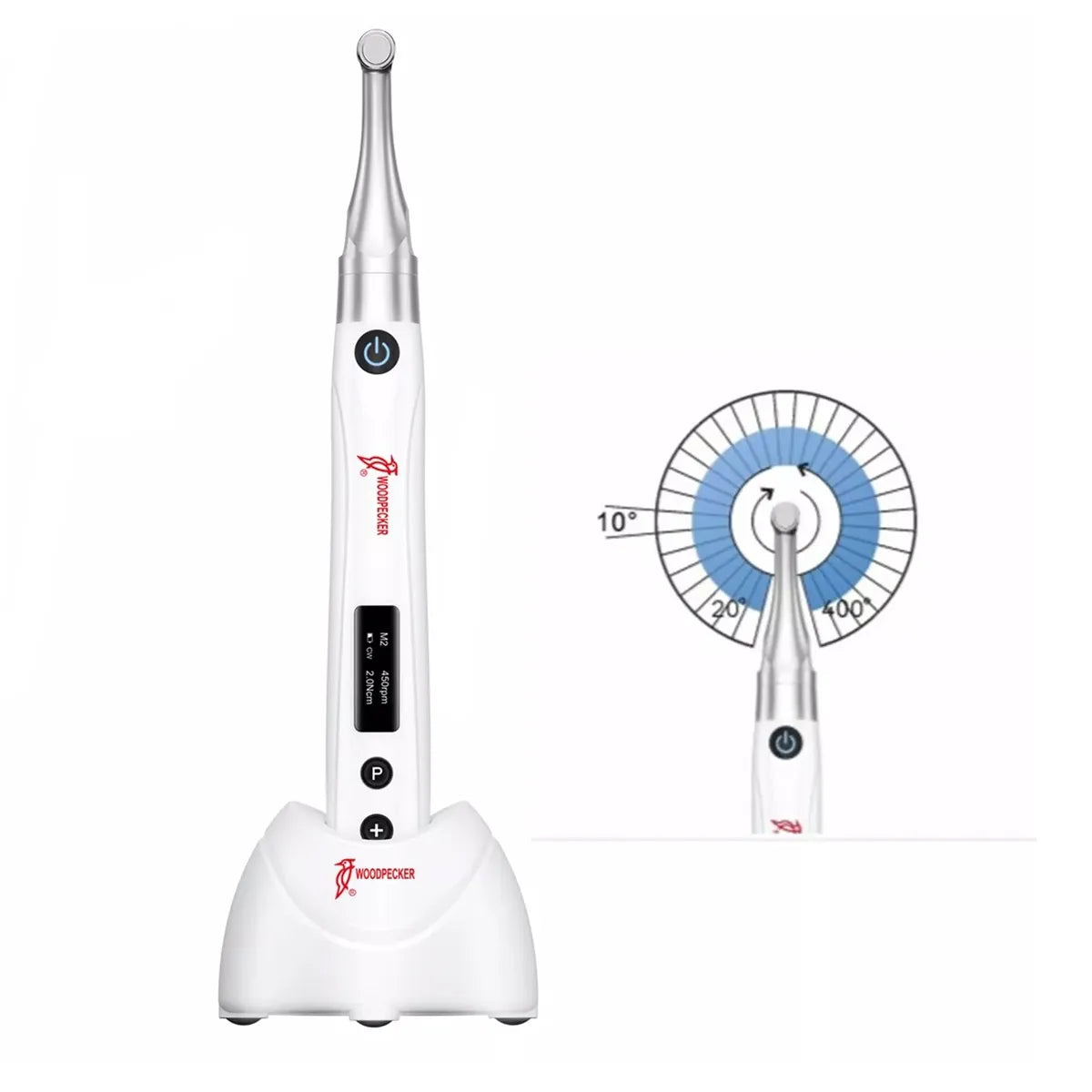

• Forward and Reverse Angles: Adjust the forward and reverse angles every 10 degrees as needed, ensuring effective cutting angles for the chosen files.

Using the Automatic Functions:

• If connected to a matched Apex locator, configure the automatic functions such as Apical Action, Auto Start, Auto Stop, and Apical Slow Down as required.

Starting and Stopping the Motor:

• To start the motor, press the Main button. The file will begin to rotate according to the set parameters.
• To stop the motor, press the Main button again. The device will revert to Standby mode.

Post-Use Procedures

Turning Off the Device:

• Hold down the Setting button “P” and then press the Main button to turn off the motor handpiece.

Removing the File and Contra Angle:

• To remove the file, hold down the push button on the contra angle and gently pull out the file.
• To remove the contra angle, pull it out horizontally when the motor handpiece is not running.

Cleaning and Sterilizing:

• Clean and disinfect the contra angle with a neutral pH disinfectant after each use.
• Lubricate the contra angle with specific cleaning oil.
• Sterilize the contra angle under high temperature and pressure (134°C, 2.0-2.3 bar).

Maintenance

• Regularly check the device for any signs of wear or damage.
• Perform a connection test before each use by touching the lip hook with the file in the contra angle. Ensure all bars on the meter light up and the motor reverses continuously.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services are only available in Delhi/NCR).
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer.
• Oralkart and the Buyer acknowledge that the Products purchased/used are the subject matter of the original Manufacturer/Importer’s warranties only.
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered with as the case may be.

Question: What is the weight of the Woodpecker Endo Free Endomotor?

Answer: The Woodpecker Endo Free Endomotor weighs 106.8 grams. This lightweight design enhances maneuverability during endodontic procedures, allowing for greater precision and comfort for both the dentist and the patient.

Question: Does it have apical stop and apical slow down functions?
Answer: Yes, the Woodpecker Endo Free Endomotor includes both Apical Action and Apical Slow Down functions. The Apical Action mode automatically responds when the file tip reaches the designated point inside the canal, with options for Reverse, Stop, or OFF, enhancing control during procedures. Additionally, the Apical Slow Down feature gradually reduces rotation speed as the file approaches the reference point, improving precision. Both functions contribute to safer and more efficient endodontic treatments.

Question: With which Apex locator is it compatible?
Answer: The Woodpecker Endo Free Endomotor is compatible with all 5th generation apex locators from the Woodpecker brand.

Question: Is it equipped with brushless endomotor?
Answer: Yes, the Woodpecker Endo Free Endomotor is equipped with a brushless endomotor. This advanced technology ensures smoother and more reliable operation, enhancing precision and reducing maintenance needs. The brushless motor contributes to greater durability and consistent performance, making it an excellent choice for efficient and effective endodontic treatments.

Question: What is the difference between Woodpecker Endo Free Endomotor and Woodpecker Endopace Endomotor?

Answer: While both the Woodpecker Endo Free Endomotor and Endo Pace are distinguished by their advanced cordless technology, they cater to different clinical needs. The Endo Free is notable for its versatile operational modes—CW, CCW, REC, and ATR—providing comprehensive flexibility for varied endodontic procedures. Conversely, the Endo Pace focuses on streamlined portability and efficient, silent operation, with integrated apex locator support for real-time file monitoring. Each device enhances precision and patient comfort.

Question: Does it have apical slow down feature?
Answer: Yes, the Woodpecker Endo Free Endomotor includes the apical slow down feature. This automatic function enhances safety during endodontic procedures by slowing down the file movement as it approaches the apex of the tooth.

Question: Is the Woodpecker Endo Free Endomotor portable?
Answer: Yes, it is cordless and designed for easy portability, allowing flexibility in dental practice.

Question: What modes does the Endo Free Endomotor offer?
Answer: It offers four modes: CW (Clockwise Rotation), CCW (Counterclockwise Rotation), REC (Reciprocating Motion), and ATR (Adaptive Torque Reverse).

Question: How do I adjust speed and torque settings?
Answer: Use the Adjusting buttons to set the speed from 100 to 1500 r/min and adjust torque between 0.4N·cm to 4.2N·cm, ensuring precise control during procedures.
