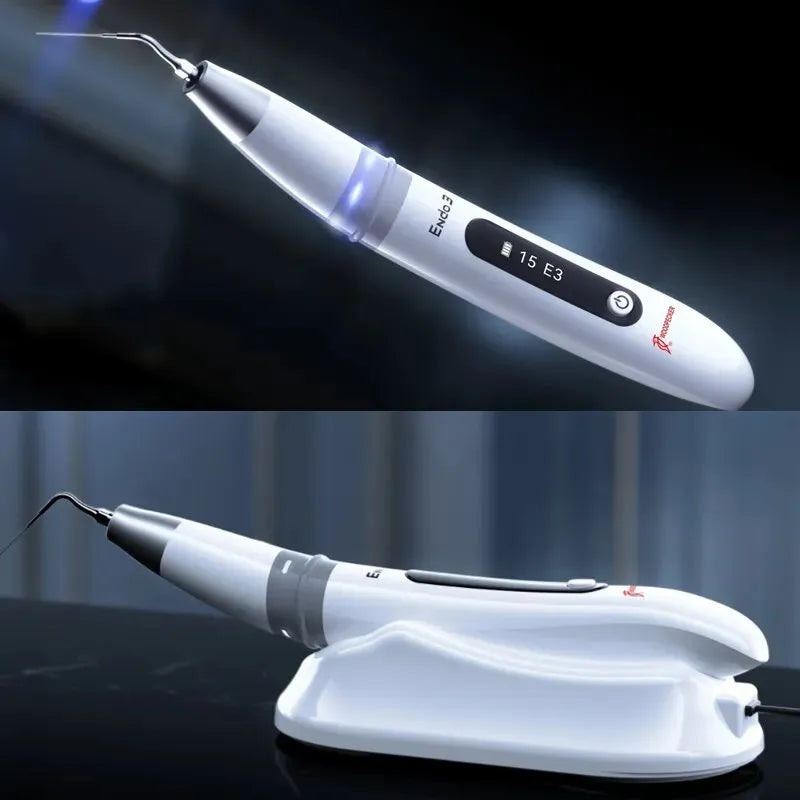

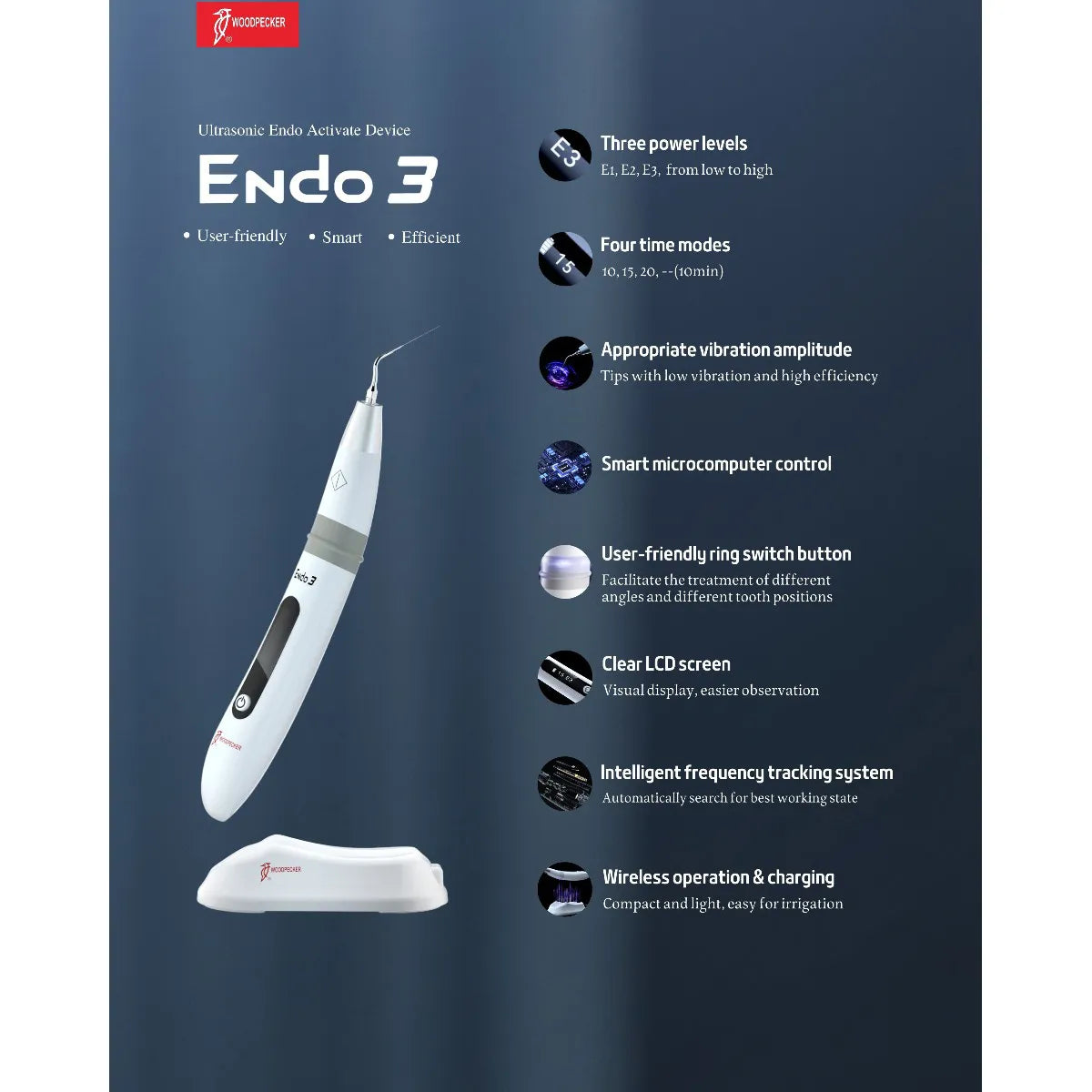

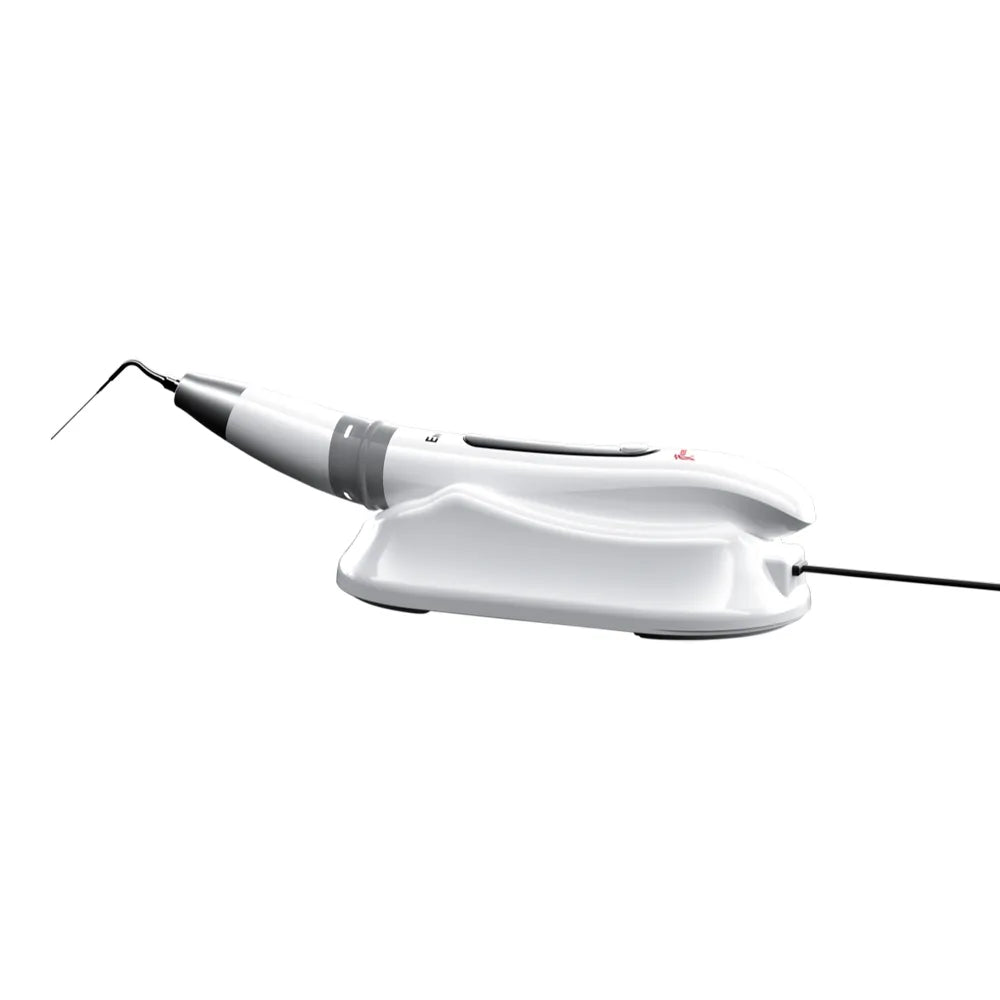

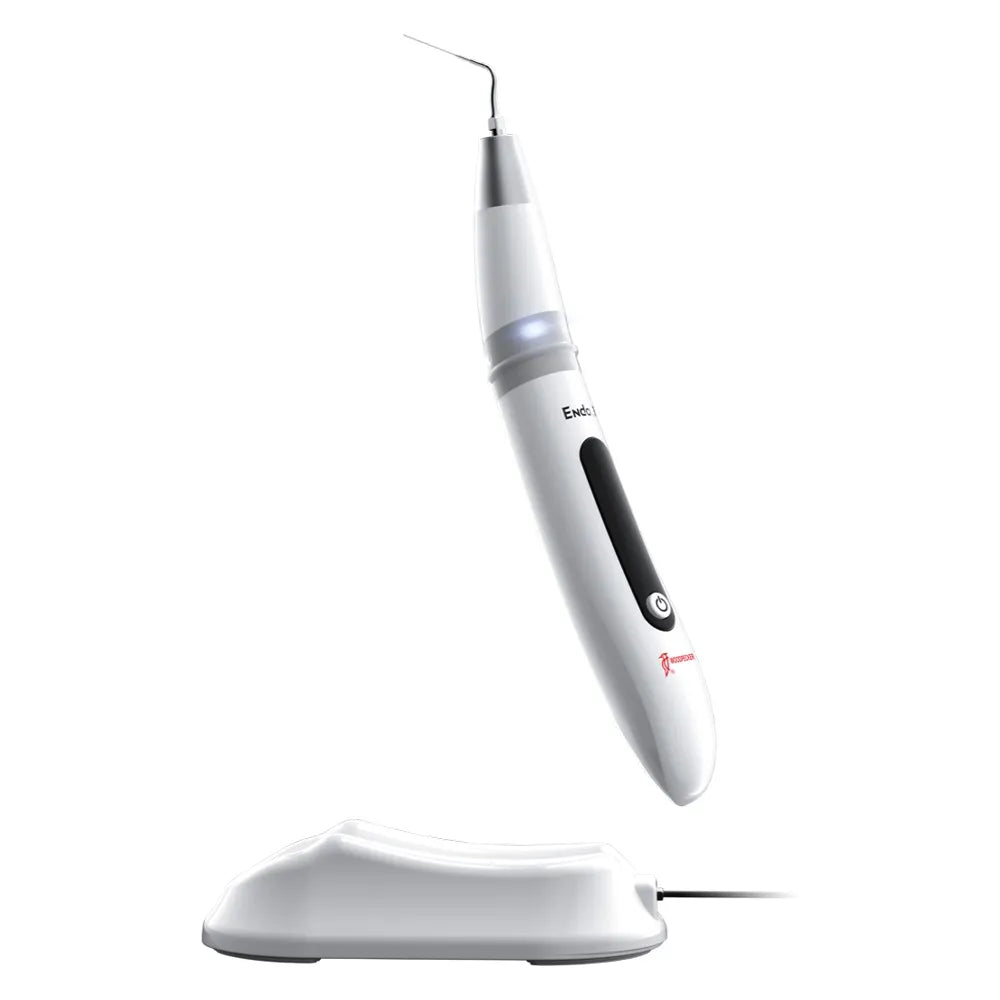

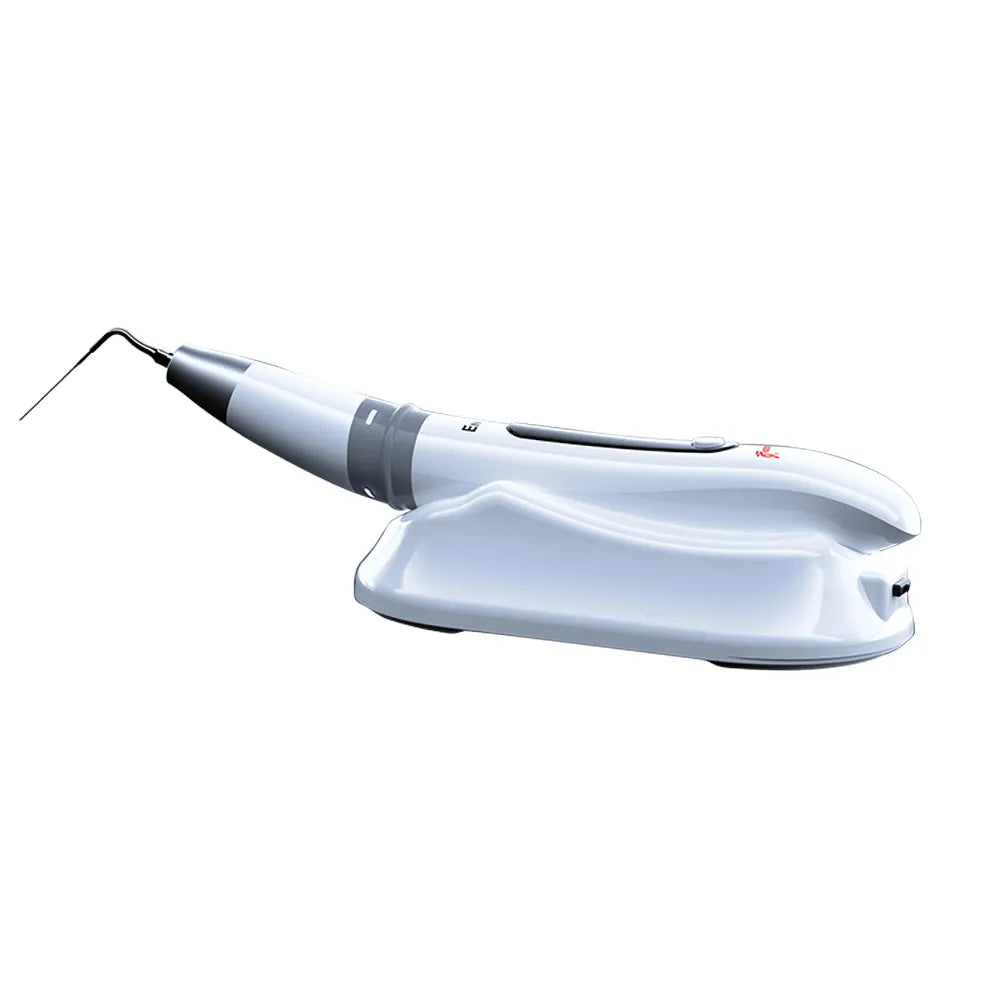

Woodpecker Endo 3 Ultrasonic Endo Activator

• Wireless and Ergonomic Design: The Endo 3 Ultrasonic Endo Activator is a wireless handpiece that provides ergonomic comfort and ease of use during root canal procedures.
• High-Frequency Ultrasonic Vibration: It emits high-frequency ultrasonic vibrations to effectively activate irrigation in the root canal, aiding in debridement and disinfection.
• Three Power Modes: The device offers three power modes (E1, E2, and E3) with adjustable power levels, allowing dentists to select the appropriate power setting for each treatment.
• Four Time Modes: The Endo 3 provides four customizable time modes, enabling dentists to set the duration of ultrasonic activation according to the specific requirements of the procedure.
• Larger LCD Screen: It features a larger LCD screen for clear and easy viewing, facilitating convenient monitoring of device settings during treatment.
• Adjustable Head: The handpiece has an adjustable head that can be rotated to the desired position, enhancing access and maneuverability in the oral cavity.
• Multi-Mode Setting: The handpiece comes with ring switch button & smart microcomputer control.

Tips Specifications :

• E71 - Smooth tip , 30#, 4.2 %taper, 18mm
• E72 - Smooth tip , 30#, 3.6 %taper, 21mm
• E73 - Smooth tip , 25#, 3.1 %taper, 18mm
• E74 - Smooth tip , 25#, 3.3 %taper, 21mm

Technical Parameters :

Dimensions : 173.8mmx25.8mmx35.8mm

Net Weight : 78gm

Rechargeable Lithium Battery :

• Battery mode: 14500
• Nominal voltage: 3.6V
• Capacity: 750mAh

Power Adaptor :

• Input: 100V-240V   50Hz/60Hz   0.4A MAX
• Output: DC 5V/1A
• Build-in fuse: T1AL 250V

Working Parameters :

• Output tip vibration frequency : 40KHz±10KHz

Relative Humidity at 30% - 75%

Atmospheric Pressure : 70kPa - 106kPa

• 1 x Main Unit
• 1 x Power Adaptor
• 1 x Pedestal Charger
• 2 x Scaling Tip E96
• 2 x Scaling Tip E99
• 1 x Scaling Tip E70
• 10 x Scaling Tip E71
• 3 x Silicone Sleeves
• 1 x Torque Wrench
• 1 x Disposable Isolation Sleeve
• 1 x Instruction Manual
• 1 x Qualified Certification
• 1 x Packing List

• Prepare the Device: Ensure that the Endo 3 is fully charged and the handpiece is properly connected to the base unit.
• Select the Power Mode: Choose the appropriate power mode (E1, E2, or E3) based on the treatment requirements. Start with the lowest power mode and adjust as needed.
• Choose the Time Mode: Select the desired time mode (10 seconds, 15 seconds, 20 seconds, or 10 minutes) to determine the duration of ultrasonic activation during the procedure.
• Attach the Tip: Select the autoclavable tip that suits the specific treatment needs and attach it securely to the handpiece.
• Position the Handpiece: Adjust the head of the handpiece to the desired position for optimal access to the root canal.
• Activate Irrigation: Activate the ultrasonic vibration by pressing the appropriate button or switch on the device. Gently place the activated tip into the root canal, allowing the ultrasonic vibrations to facilitate irrigation and aid in the removal of stains and debris.
• Monitor and Adjust: Continuously monitor the progress of the procedure and adjust the power level and time duration if necessary to achieve optimal results.
• Clean and Sterilize: After use, detach the tip and thoroughly clean and sterilize it according to recommended protocols. Follow proper infection control procedures for the handpiece and base unit

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 Year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Does it heat the Hypo solution so that hype can get activated at high temperatures ?
Answer: The Woodpecker Endo 3 Ultrasonic Endo Activator does not heat the sodium hypochlorite solution. It is designed to agitate the solution ultrasonically, aiding in cleaning and disinfection during endodontic procedures without altering its temperature.

Question: How much is its frequency?
Answer: The Woodpecker Endo 3 Ultrasonic Endo Activator operates at an output tip vibration frequency of 40KHz±10KHz, ensuring effective activation during endodontic procedures.

Question: Does it help in broken file retrieval?
Answer: The Endo 3 Ultrasonic Endo Activate Device by Woodpecker is not designed for broken file retrieval. Its main function involves generating high-frequency oscillating signals to drive liquid in the root canal, facilitating effective irrigation and debris removal.

Question: Can it be used for gp removal in root canal re treatment?
Answer: The Woodpecker Endo 3 Ultrasonic Endo Activator is mainly designed for irrigant activation and can assist in the removal of some remaining gutta-percha during re-treatment procedures. However, for the complete removal of gutta-percha points, additional instruments or techniques may be required.

Question: What is the Endo 3 Ultrasonic Endo Activator used for?
Answer: The Endo 3 Ultrasonic Endo Activator is used for activating irrigation during root canal procedures in dentistry. It aids in the debridement and disinfection of the root canal system by emitting high-frequency ultrasonic vibrations.

Question: Does the Endo 3 Ultrasonic Endo Activator come with different tips?
Answer: Yes, the Endo 3 unit comes with four types of autoclavable tips. These tips are smooth, non-cutting, resistant, and flexible. They also incorporate an anti-breakage system for increased durability.

Question: Is the Endo 3 Ultrasonic Endo Activator easy to use?
Answer: Yes, the Endo 3 Ultrasonic Endo Activator is designed to be ergonomic and user-friendly. It features an adjustable head for improved access and a larger LCD screen for better observation by the dentist.
