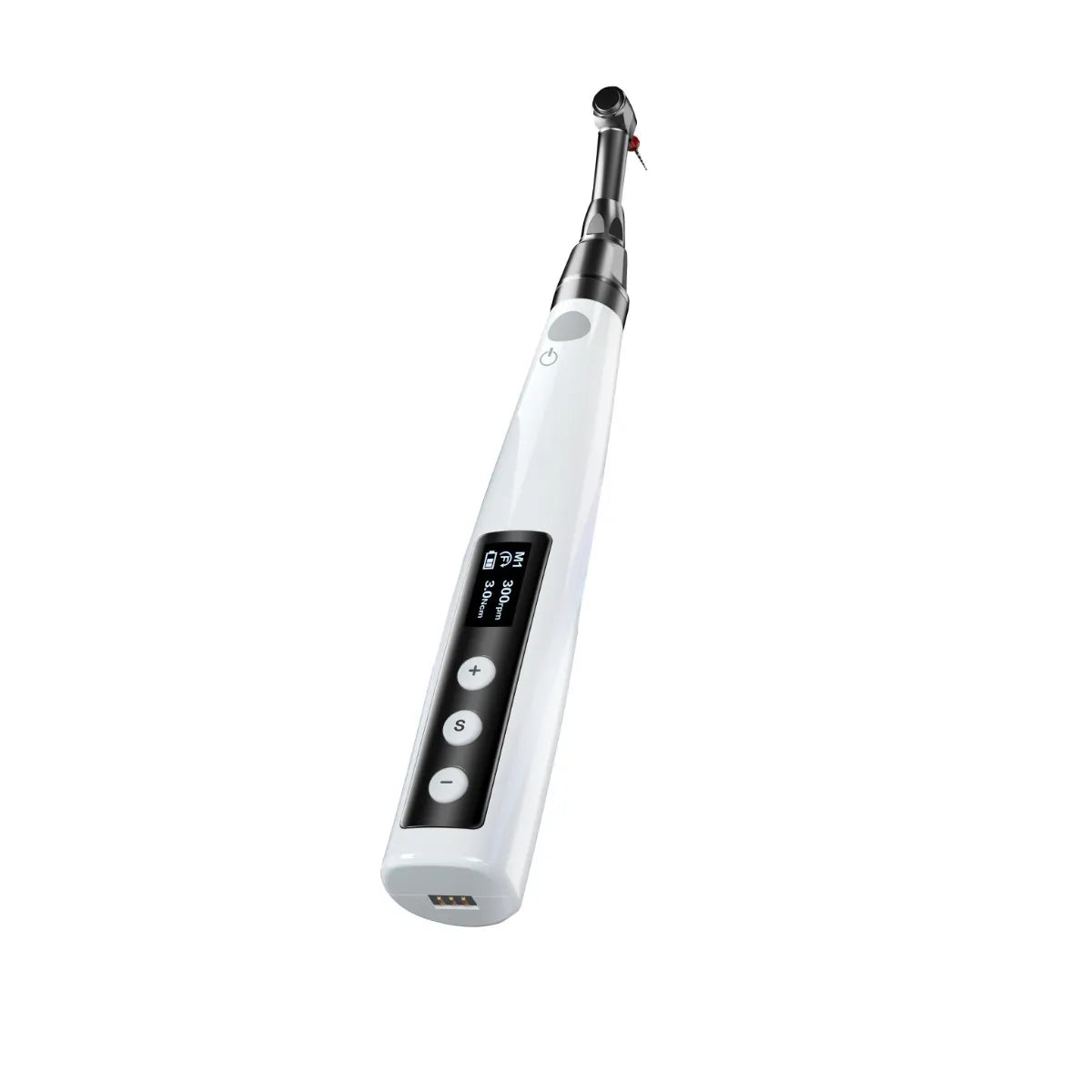

Woodpecker E-com Plus Cordless Endomotor

• User-Defined Modes: The device offers storage for 9 user-defined modes, allowing you to customize and save specific settings for different procedures. This feature promotes efficiency and adaptability in various treatment scenarios.
• Multiple Operation Modes: The E-Com Plus Cordless Endomotor supports different operation modes, including Continuous Rotation Mode, Reciprocating Motion Mode, and Reverse Rotation. These modes provide flexibility and adaptability to suit different treatment techniques and preferences.
• OLED Display: The handpiece features an OLED display that provides clear information about the program sequence, operation mode, battery consumption, speed, torque, and file system. This user-friendly interface enhances visibility and ease of use.
• High-Quality Components: The E-Com Plus Cordless Endomotor is composed of durable and reliable components, including the charging base, handpiece, contra-angle, power adapter, and other necessary accessories. These components contribute to the overall performance and longevity of the device.
• Apex Locator Compatibility: By connecting the device to a matched Apex locator, you can benefit from real-time monitoring of the file tip position inside the canal and activate automatic functions like Auto Apical Reverse.

• Battery (Lithium battery in handpiece) - 3.6V /750mAh
• Power adapter - Input( ~100V-240V 50Hz/60Hz 0.4A Max) and Output (DC5V/1A)
• Torque - 0.6Ncm-5.0Ncm
• Speed - 100rpm~1000rpm
• Environment temperature - +5℃ ~ +40℃
• Relative humidity - 30% ~ 75%
• Atmospheric pressure - 70kPa ~ 106kPa
• Contra angle gear ratio - 1:1

• 1 x Endomotor Unit
• 1 x Charging Unit
• 1 x Power Adapter
• Instructional Manual

Preparing the Device:

• Ensure that the E-Com Plus Cordless Endomotor is fully charged or connected to a power source according to the manufacturer's instructions.
• Attach the appropriate contra-angle to the motor handpiece securely.
• Place the handpiece on the charging base when not in use to maintain battery life.

Powering On and Selecting Modes:

• Press the power button on the handpiece or control panel to turn on the E-Com Plus Cordless Endomotor.
• Use the interface or control buttons to navigate through the available modes and select the desired mode for the procedure. Refer to the user manual for specific mode descriptions and indications.

Adjusting Speed and Torque Settings:

• Once the mode is selected, use the control buttons to adjust the speed and torque settings to the desired levels. Start with lower settings and gradually increase if necessary.
• Refer to the user manual for recommended speed and torque settings based on the procedure and file compatibility.

File Installation and Removal:

• Follow the provided instructions to install the endodontic file securely into the contra-angle.
• To remove the file, release any locking mechanism and gently pull the file out of the contra-angle.

Performing the Procedure:

• Hold the E-Com Plus Cordless Endomotor comfortably and ensure a firm grip.
• Position the endodontic file at the treatment area (root canal) while maintaining proper visibility.
• Activate the device using the appropriate control button, and gently guide the file into the canal, following the recommended techniques for root canal preparation and cleaning.

Monitoring and Adjusting:

• Pay close attention to the movement and progress of the file within the canal.
• Observe the real-time feedback displayed on the OLED screen, such as battery consumption, speed, torque, and program sequence.
• Adjust the speed and torque settings as needed to ensure safe and efficient operation.

Caution and Safety:

• Exercise caution during the procedure to avoid excessive pressure or force that could lead to file breakage.
• If excessive heating occurs or if any abnormal conditions are observed, stop the procedure immediately and seek professional assistance.
• Follow all safety precautions and warnings provided in the user manual to ensure safe and effective use.

Concluding the Procedure:

• Once the procedure is completed, deactivate the E-Com Plus Cordless Endomotor by pressing the power button or following the manufacturer's instructions.
• Remove the endodontic file from the canal carefully.
• Clean and sterilize the contra-angle and other reusable components according to the provided instructions.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 Year against manufacturing defect
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Is it compatible with all the file system?
Answer: Yes, the Woodpecker E-com Plus Cordless Endomotor is compatible with all rotary file systems, making it versatile and suitable for various brand rotary files.

Question: Does this endomotor feature brushless motor ?

Answer: No, the Woodpecker E-com Plus Cordless Endomotor does not feature a brushless motor.

Question: Can I connect 5th gen woodpecker Apex locator with it
Answer: The 5th gen Woodpecker Apex locator is compatible with the Woodpecker E-com Plus Cordless Endomotor. This allows seamless integration for precise and efficient root canal treatments, ensuring accurate apex location and controlled instrumentation. The compatibility enhances the overall endodontic workflow for dental professionals.

Question: Is this combo product of endomotor and apex locator or just endomotor is provided in the packaging ?

Answer: The Woodpecker E-com Plus Cordless Endomotor is not a combo product; it includes only the endomotor in the packaging. If you wish to use it with an apex locator, you need to purchase the compatible apex locator separately from the Woodpecker brand.

Question: Which all apex locators is it compatible with?

Answer: The Woodpecker E-com Plus Cordless Endomotor is specifically designed to be used with Woodpecker apex locators for optimal performance. It is recommended to use Woodpecker brand apex locators for compatibility and best results.

Question: Can Waldent rotary files be used with this endomotor?
Answer: Yes, Waldent rotary files can be used with the Woodpecker E-com Plus Cordless Endomotor.

Question: Does it come with apex locator?
Answer: No, the Woodpecker E-com Plus Cordless Endomotor does not come with an apex locator included. However, it is compatible with matching apex locators like the Woodpex V, which can be attached for combined functionality.
