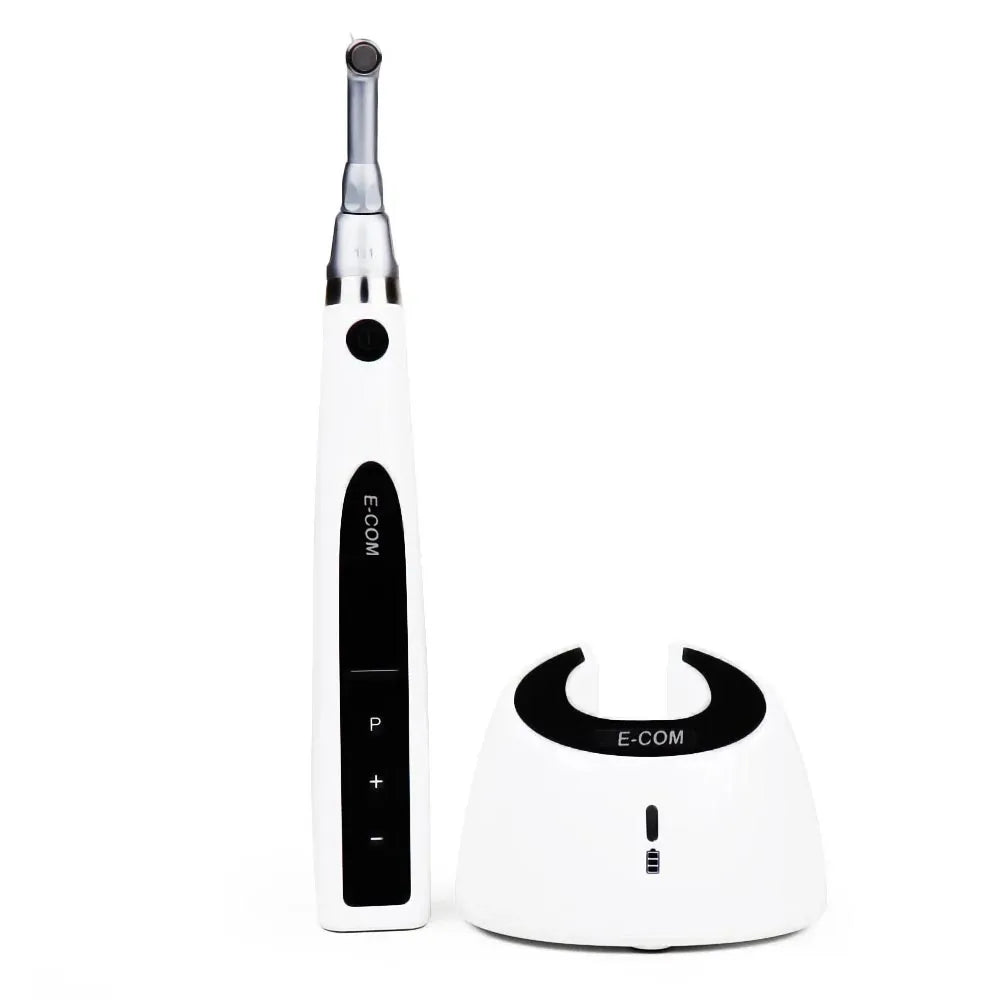

Woodpecker E-com Cordless Endomotor

• Dynamic torque control prevents needle breakage.
• Cordless design for flexible and easy use.
• Versatile compatibility with various file systems.
• Clear OLED screen for real-time feedback.
• Nine user-defined modes for personalized settings.
• Nimble autoclavable contra-angle for infection prevention.
• Imported motor for strong power and efficiency.

• Power Source: Lithium Battery (3.6V / 750mAh)
• Torque: 0.6Ncm-5.0Ncm(6mNm ~ 50mNm)
• Speed: 100rpm~1000rpm
• Screen Type: All-Angle OLED
• Contra-angle Gear Ratio: 1:1
• User Modes: 9 Customizable Modes
• Contra-Angle Features: Autoclavable, Adjustable Angle
• Motor Type: Imported (15.5:1 Reduction Ratio)
• Operating Environment: +5°C to +40°C, 30% to 75% humidity
• Storage Environment: -20°C to +55°C
• Sterilization: Autoclavable Contra-Angle
• Power Adapter: Input( ~100V-240V 50Hz/60Hz 0.5-0.2A Max) and Output (DC5V/1A)
• Environment Temperature: +5℃ ~ +40℃
• Atmospheric Pressure: 70kPa ~ 106kPa

Note: The handpiece cannot be autoclaved. Use disinfectant of neutral pH value or ethyl alcohol to wipe its surface.

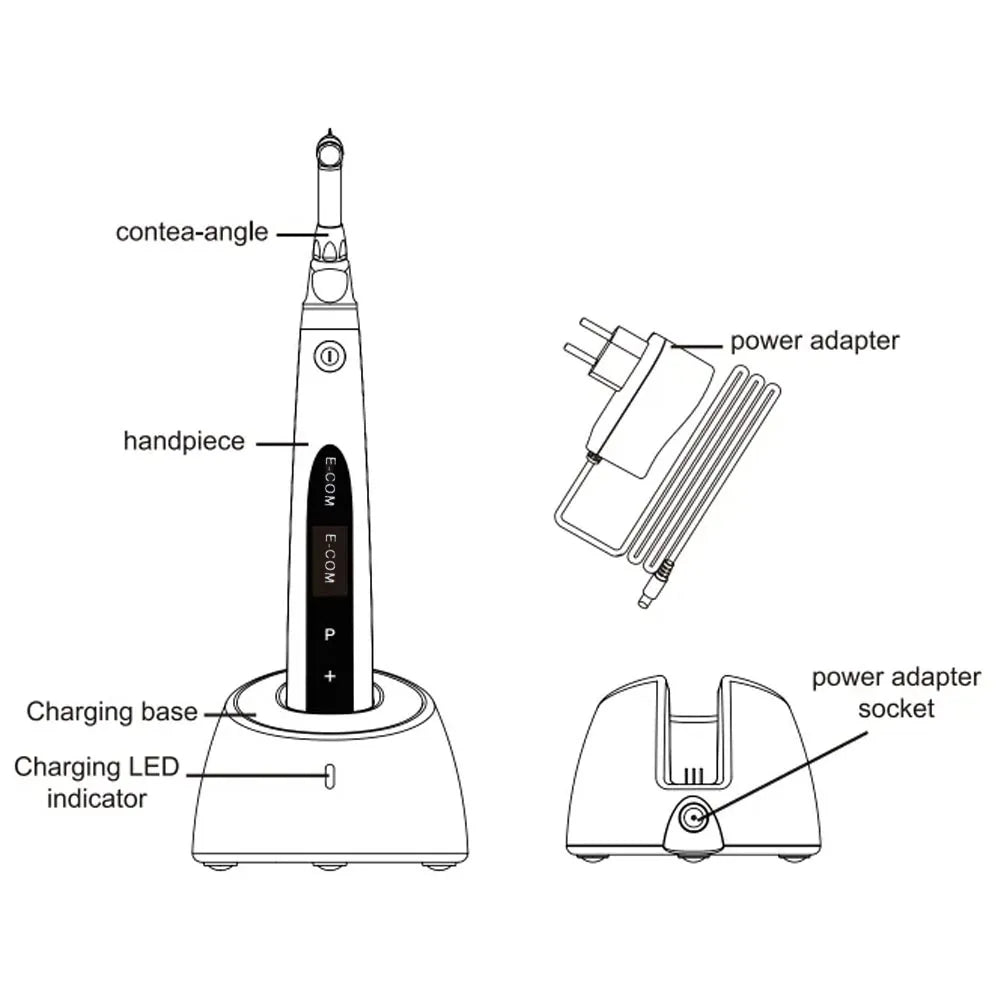

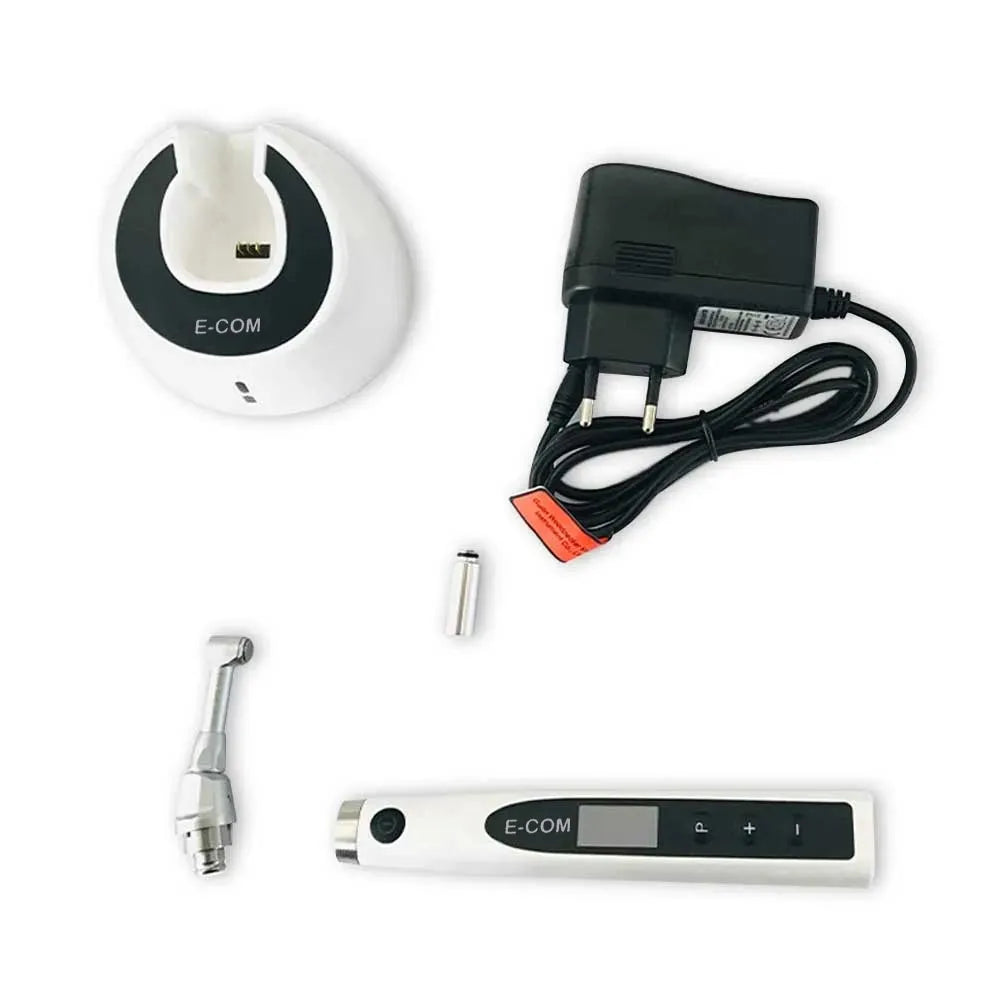

• 1 x Motor Handpiece
• 1 x Contra-angle
• 1 x Charging base
• 1 x Lubricator
• 1 x Power adapter
• Instructional Manual

Power On/Off:

• Press the key to power on.
• Long press setting key for 2s to power off.

Mode Selection:

• Press key or key to switch between modes.
• Long press for fast mode handover.

Memory Mode:

• Press key or key to select from 9 user-defined modes.

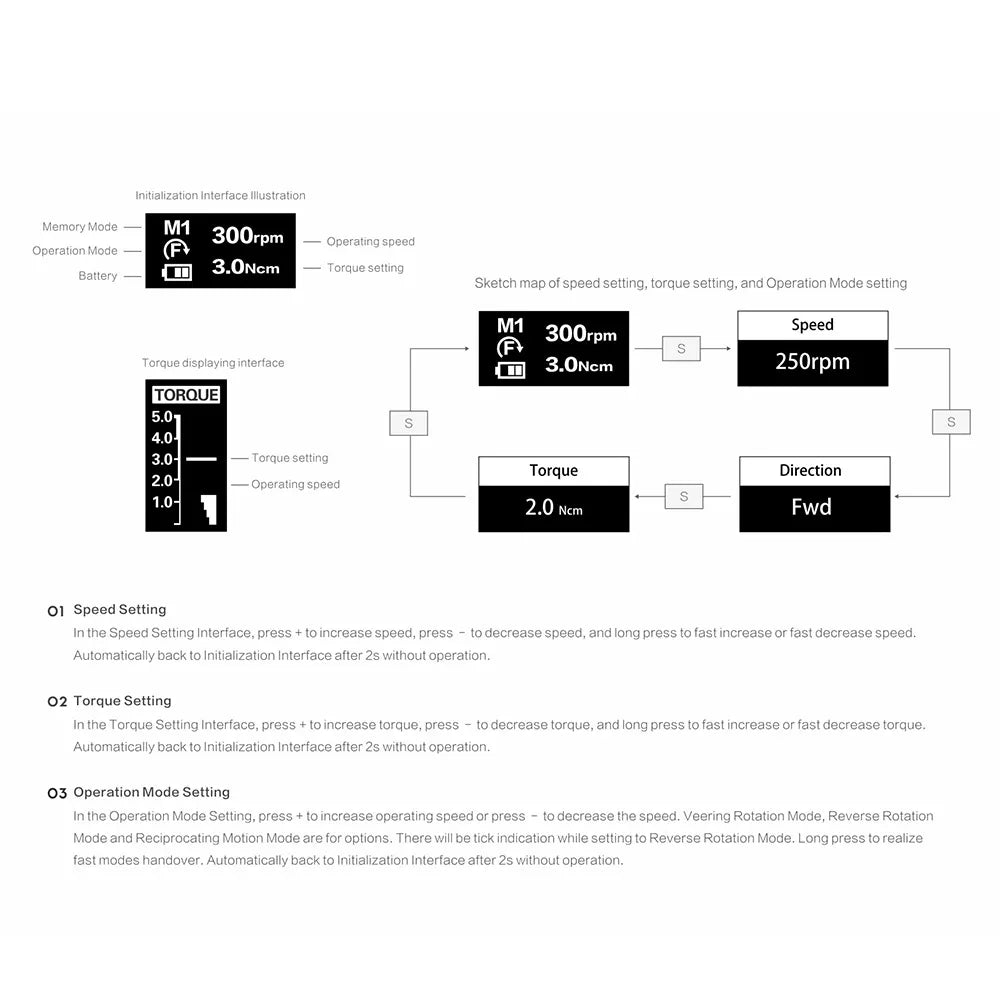

Speed Setting:

• In Speed Setting Interface:
• Press + to increase speed.
• Press - to decrease speed.
• Long press for fast adjustments.

Torque Setting:

• In Torque Setting Interface:
• Press + to increase torque.
• Press - to decrease torque.
• Long press for fast adjustments.

File Installation:

• Before starting, plug the file into the contra-angle.
• Slightly screw the file while pressing the contra-angle cover.

File Removal:

• Press the contra-angle cover and pull out the file.

Charging:

• Connect the power adapter to the base.
• Place the handpiece in the base.
• Charging indicator turns yellow (charging) or green (fully charged).
• Unplug after charging.

Contra-Angle Calibration:

• Long press setting key, then long press for 2s.
• Wait for successful calibration interface.

Automatic Torque Calibration:

• Choose Torque Calibrating mode.
• Reduces torque fluctuation after sterilization or replacement.

Oiling of Contra-Angle:

• Use original oil injection nozzle.
• Grease contra-angle for 2-3s.

Cleaning and Sterilization:

• Follow the step-by-step cleaning and sterilization procedure in the manual.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 Year against manufacturing defect
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of the original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered with as the case may be.

Question: Is this compatible with Woodpecker Apex Locator Woodpex III?

Answer: Yes, the Woodpecker E-com Cordless Endomotor is compatible with the Woodpecker Apex Locator Woodpex III.

Question: Is it a brushless endomotor ?

Answer: The Woodpecker E-com Cordless Endomotor is not equipped with a brushless motor.

Question: Does this motor have a preset function for waveone reciprocating file?

Answer: The Woodpecker E-com Cordless Endomotor does not have a preset function for WaveOne reciprocating files. Users need to manually select the reciprocating angles and speed based on the recommended parameters for Dentsply WaveOne Gold reciprocating files.

Question: Does it really have inbuilt apex locator or is it compatible with separate apex locator ?
Answer: The Woodpecker E-com Cordless Endomotor does not have an inbuilt apex locator, and it is not designed to be connected to a matched apex locator. On the other hand, the Woodpecker E-com plus Cordless Endomotor can be connected to the matched apex locator for enhanced endodontic procedures.

Question: Does this have Inbuilt LED ?

Answer: The Woodpecker E-com Cordless Endomotor does not have an inbuilt LED. Additionally, the LED attachment is not included in the packaging. LED functionality is present in the Woodpecker E-com Plus Cordless Endomotor.

Question: What is the Woodpecker E-com Cordless Endomotor?
Answer: The Woodpecker E-com Cordless Endomotor is a dental device designed for performing endodontic procedures, specifically root canal treatments, with advanced features and cordless operation.

Question: How should I clean and maintain the E-Com Cordless Endomotor?
Answer: The handpiece should not be autoclaved but can be disinfected with neutral pH disinfectant or ethyl alcohol. Additionally, follow the provided instructions for cleaning and sterilizing the contra-angle and other reusable components. Refer to the user manual for detailed maintenance guidelines.

Question: How many user-defined modes does the E-Com Cordless Endomotor offer?
Answer: The device provides storage for 9 user-defined modes that can be invoked at any time. These modes allow customization of settings for different procedures, such as Continuous Rotation Mode, Reciprocating Motion Mode, and Reverse Rotation.

Question: What are the advantages of using a cordless endomotor in root canal treatments?
Answer: Cordless endomotors offer greater maneuverability, customizable settings, and often feature built-in apex locators for precise control during root canal procedures.
