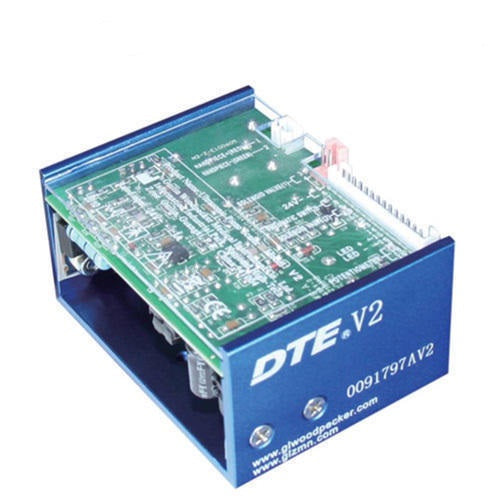

Woodpecker DTE Inbuilt Scaler V2 LED

Woodpecker DTE Inbuilt Scaler V2 LED

Rs. 10,000.00
Rs. 15,000.00 Rs. 10,000.00
Sale Sold out

The Woodpecker DTE Inbuilt Scaler V2 LED is a highly advanced, built-in ultrasonic dental scaler designed for direct integration into dental chair units. Providing an efficient, space-saving clinical solution, this scaling system offers dental professionals stable and reliable performance for routine calculus removal and periodontal treatments.

Featuring microcomputer control with automatic frequency tracking, the V2 LED scaler continuously monitors and adjusts operating frequency to ensure consistent power output. The detachable LED handpiece (HD-7L) provides excellent intraoral illumination for enhanced visibility, and can be fully autoclaved at up to 134°C to ensure the highest standards of infection control. It is compatible with all Satelec and NSK-style scaling tips, making it a highly versatile addition to any modern dental practice.

Features

  • Automatic Frequency Tracking: Equipped with microcomputer control that automatically tracks frequency to ensure stable, optimal scaling performance.
  • Detachable LED Handpiece: Features an autoclavable handpiece with built-in LED illumination for maximum visibility and high infection control standards (up to 134°C).
  • Versatile Compatibility: Fully compatible with Satelec-style and NSK-style scaling tips, providing flexibility in clinical setups.
  • Efficient Calculus Removal: Specially designed for scaling and periodontal procedures, ensuring quick and comfortable treatments.
  • Dental Unit Integration: Built-in scaler unit designed for seamless integration directly into a dental chair system.

Description

Specification

  • Brand: Woodpecker DTE
  • Product Name: DTE Inbuilt Scaler V2 LED
  • Model: V2 LED
  • Input Power: 24V~ 50Hz/60Hz, 1.3A
  • Output Power: 3W to 20W
  • Operating Frequency: 28kHz ± 3kHz
  • Water Pressure: 0.01MPa to 0.5MPa (0.1bar to 5bar)

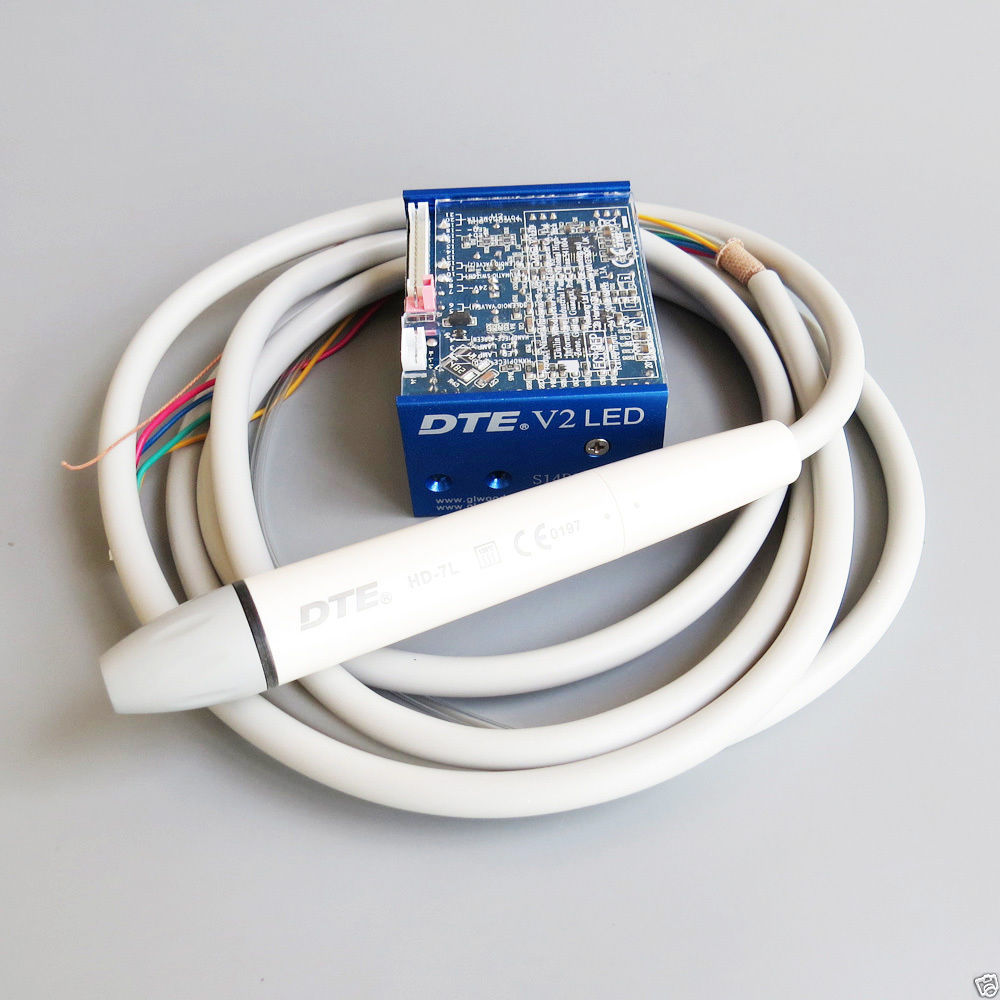

  • Handpiece Model: Detachable LED Handpiece (HD-7L)
  • Compatibility: Satelec / NSK tip designs
  • Applications: Scaling, Periodontal treatments
  • Main Unit Weight: 0.2 kg
  • Main Unit Dimensions: 74mm × 56mm × 38mm

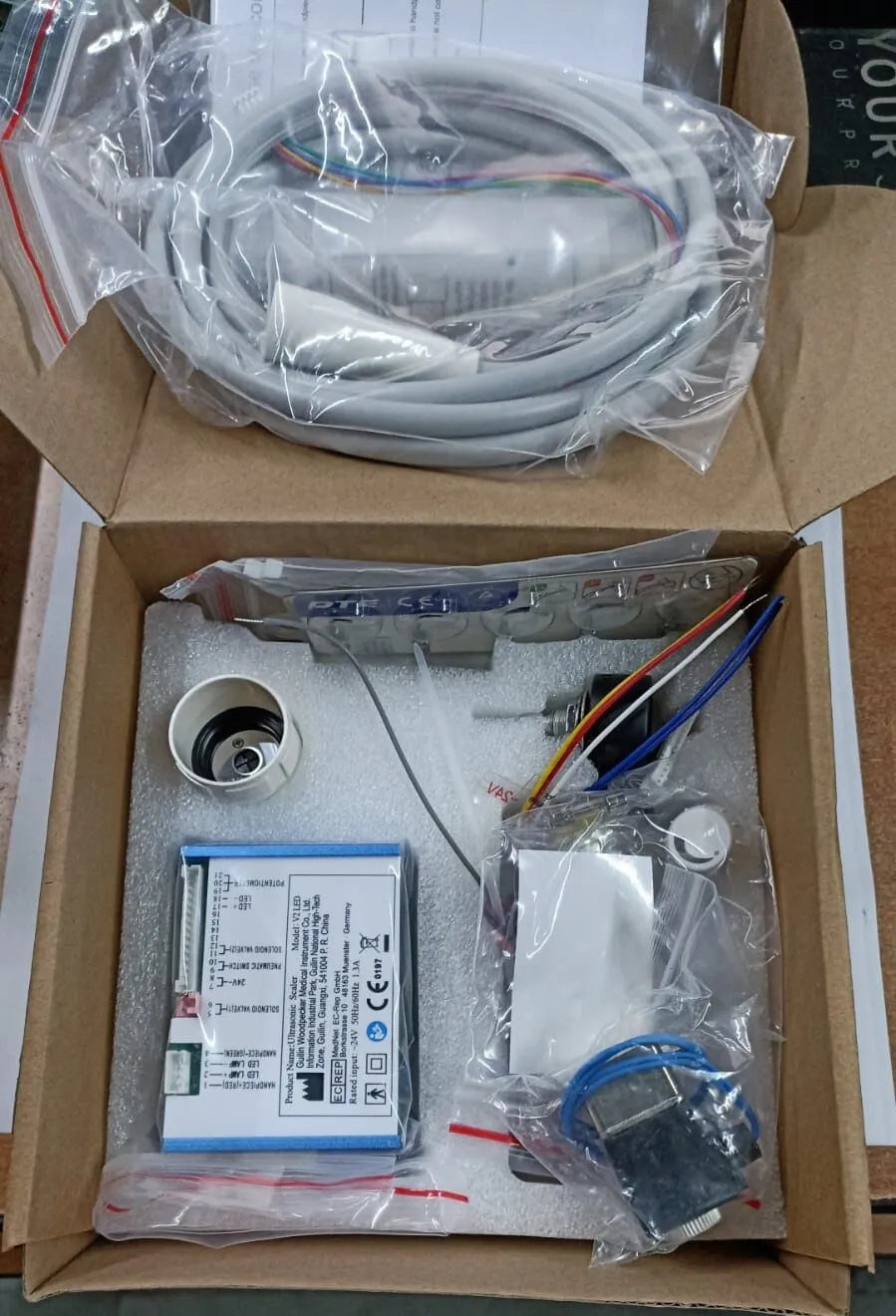

Packaging

  • 1 x Woodpecker DTE Inbuilt Scaler V2 LED Main Circuit Board
  • 1 x Detachable LED Handpiece (HD-7L)
  • 1 x Connection Cable / Tubing
  • 6 x Scaler Tips
  • 1 x Torque Wrench
  • 1 x User Manual

Direction to use

  • Installation: This inbuilt scaling unit must be installed inside the dental chair unit. Integration should be done by an authorized dental technician or service engineer.
  • Connection: Connect the scaler control board to the dental chair unit's 24V AC power supply, water line, and foot switch controls.
  • Handpiece Setup: Connect the detachable LED handpiece to the scaler tubing. Ensure it is firmly aligned and connected.
  • Tip Attachment: Use the torque wrench to secure a compatible Satelec-style scaler tip onto the handpiece.
  • Operation: Set the power output control on the dental unit. Copiously supply water and activate the scaling function using the dental unit's foot pedal.
  • Sterilization: Detach the handpiece after each clinical use, clean, and autoclave it at 134°C/135°C for infection control.
