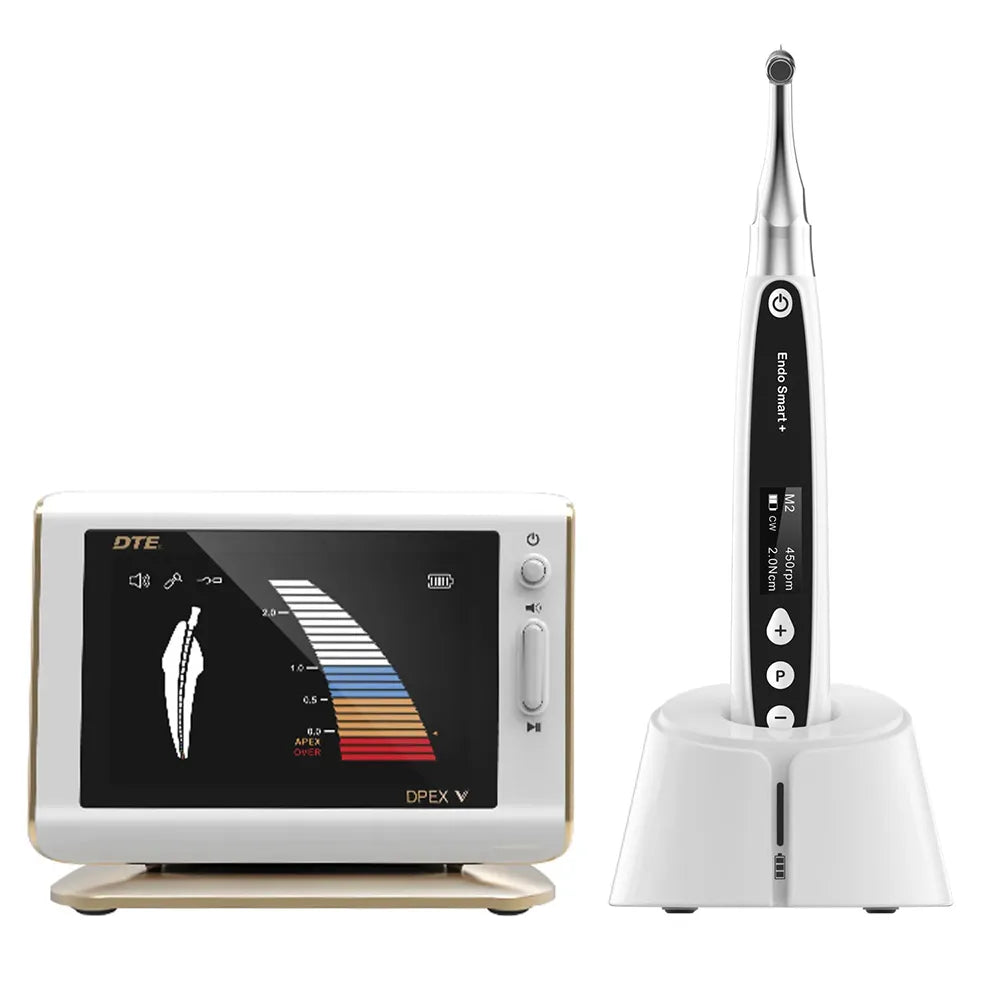

Woodpecker DTE Endo Smart Plus Endomotor And Dpex V Apex Locator Combo

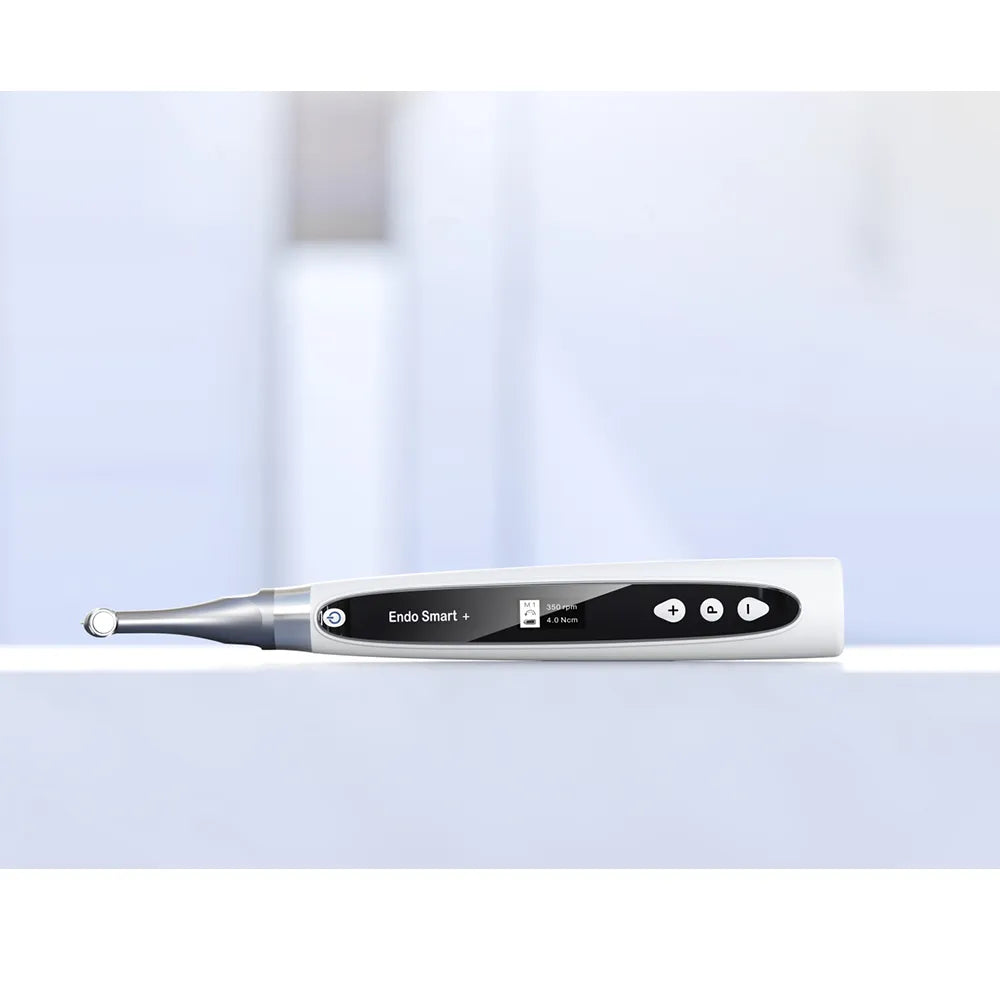

Woodpecker DTE Endo Smart Plus :-

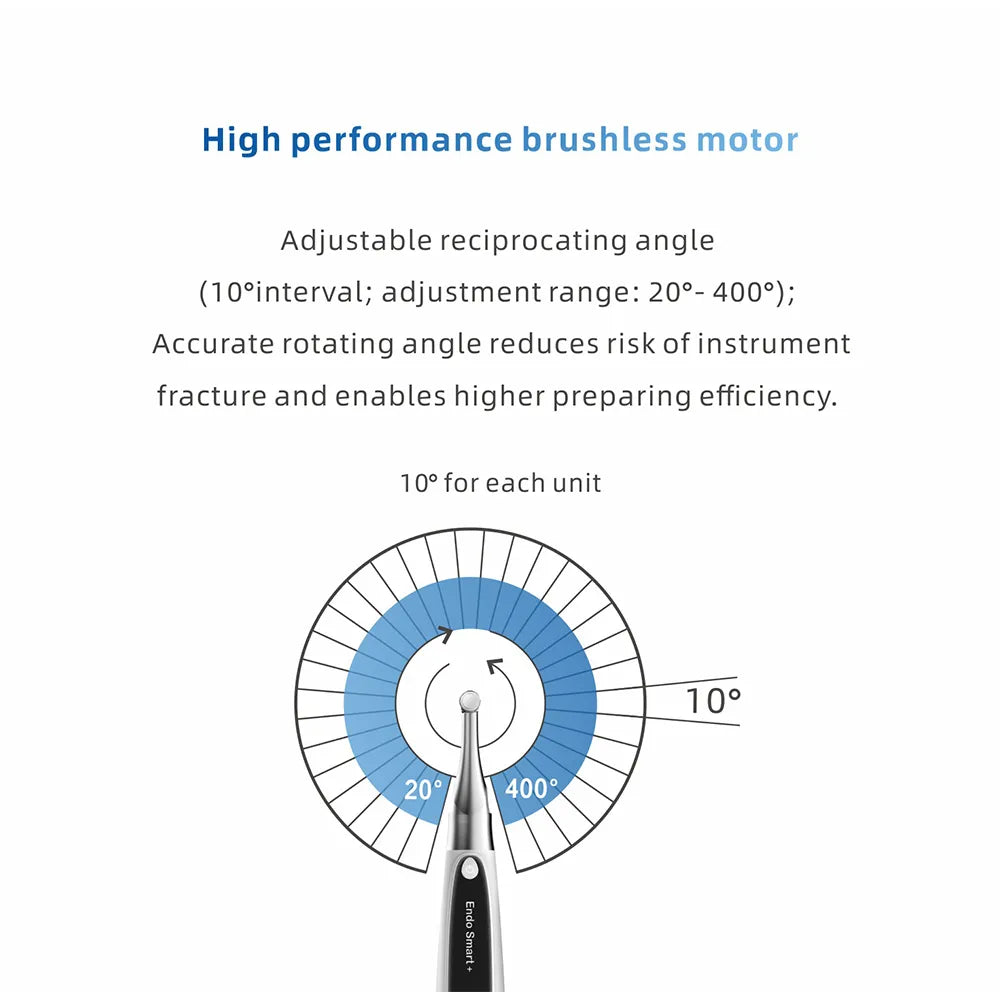

• High performance brushless motor.

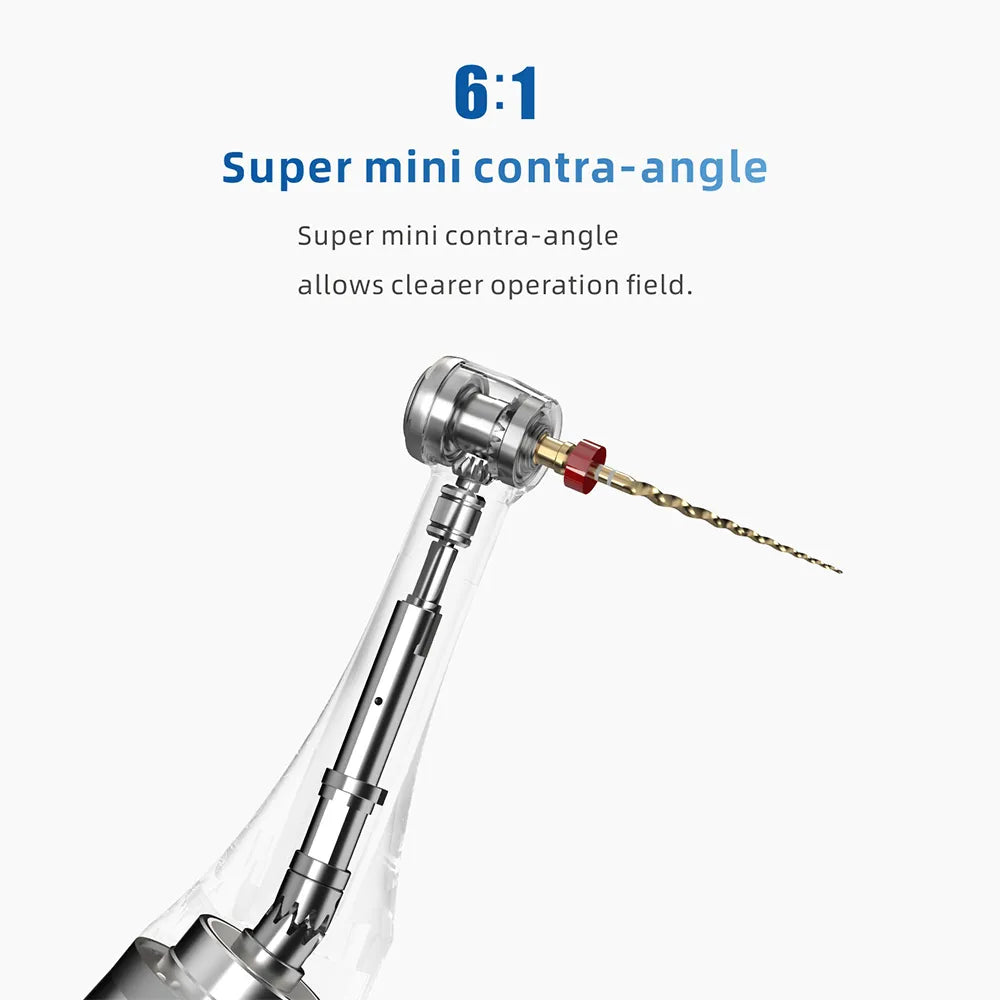

• 6:1 Super mini contra-angle.
• Adjustable reciprocating angle.
• Super high torque.
• Smooth rotations.
• Less noise with low vibrations.
• Wireless charging.
• Combined length determination mode.

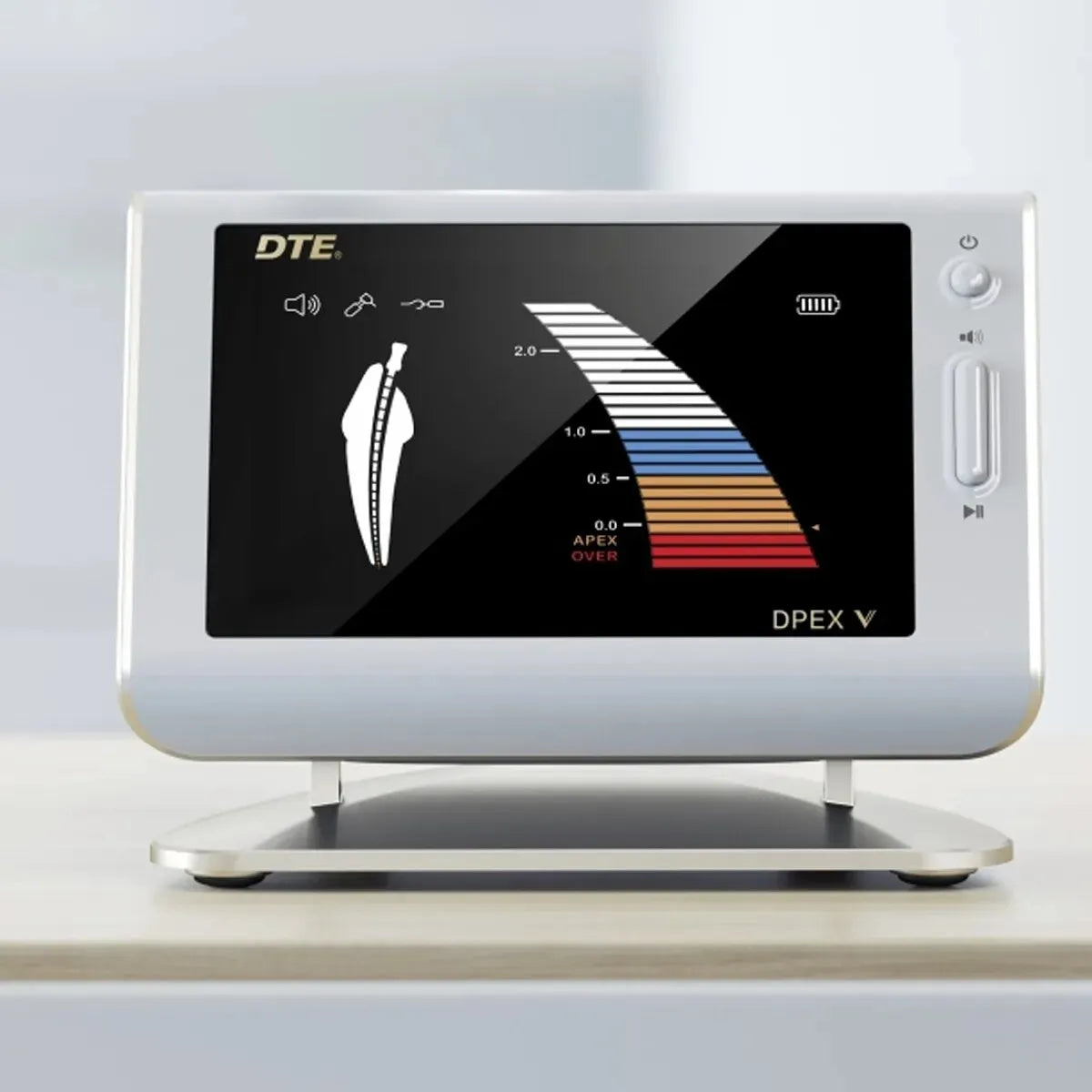

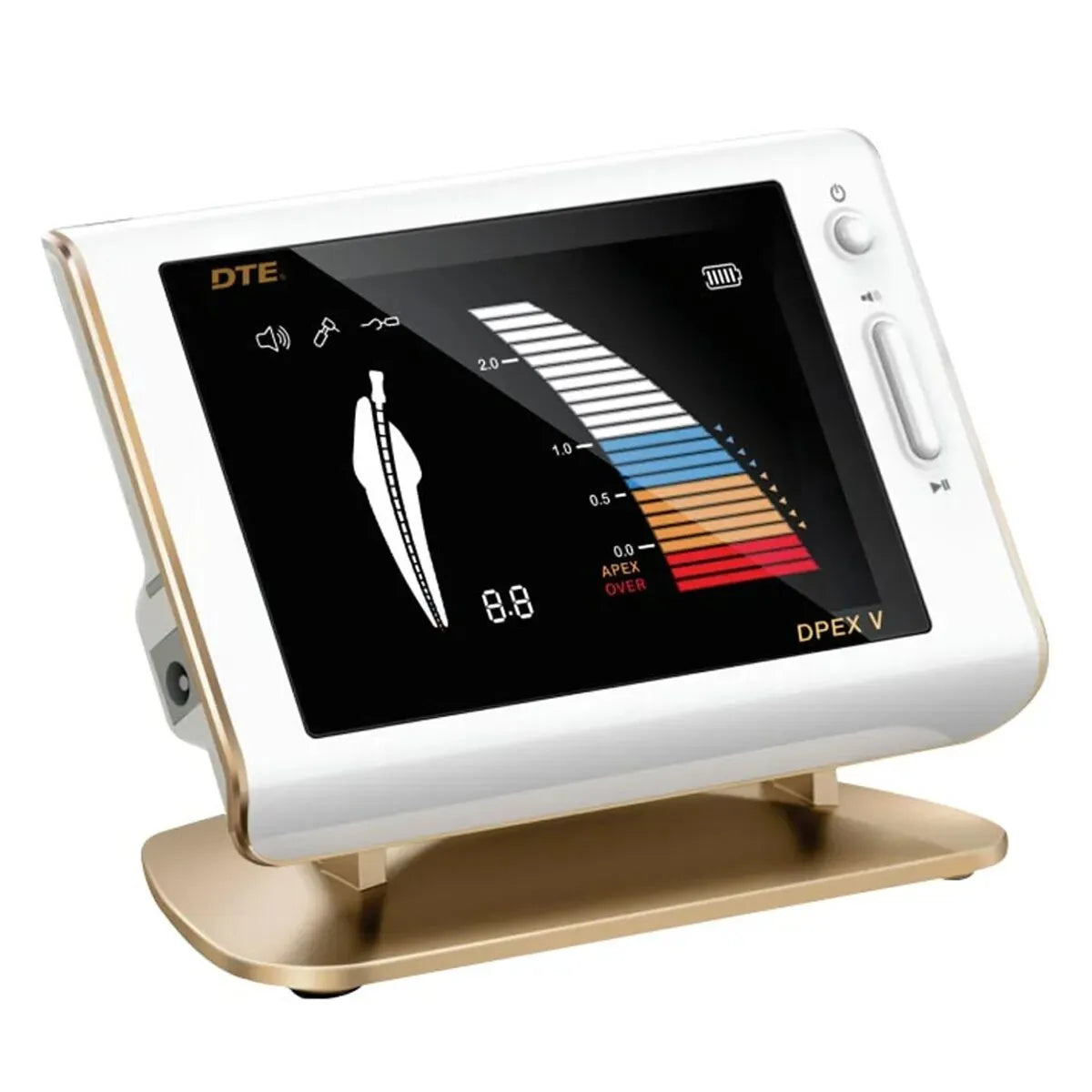

Woodpecker DTE Dpex V Apex Locator :-

• Mult-frequency technology for an accurate reading in the presence of blood or saliva or pulp.
• Measurement will not be affected by tooth type.
• More accurate than the traditional working length determination method.
• Multi-color LCD display with alarm function to easy operation.

Woodpecker DTE Endo Smart Plus:-

• Lithium battery in motor handpiece: 3.7V /2000mAh
• Power adapter (Model: ADS-6AM-06N 05050/UE08WCP- 050100SPA)
• Input: ~100V-240V 50Hz/60Hz 0.4A Max
• Output: DC5V/1A
• Torque range: 0.4Ncm-5.0Ncm（4mNm ~ 50mNm
• Speed range: 100rpm~1200rpm
• Wireless charging
• Frequency range: 112-205KHz
• Maximum RF output power of the product: 9.46dBuA/m@3m

Woodpecker DTE Dpex V Apex Locator:-

• Dimensions: 138mm(length) x (width) x 107mm (height)
• Weight: 385g
• Battery: 3.6V/750mAh (Model:14500)
• Adapter (Model: DJ-0500100-A5): Input: ~100V-240V 50Hz/60Hz 0.5-0.2A
• Output: DC5V/1A
• Generation: 5th generation apex locator
• Power consumption: < 0.5W
• Screen: 4.5" LCD

Woodpecker DTE Endo Smart Plus :-

• 1 X Charging Base.
• 1 X Motor Handpiece.
• 1 X Contra angle.
• 1 X Spray nozzle.
• 2 X "O" ring.
• 1 X Adapter.
• 1 X Disposable insulation sleeves.
• 2 X Protective silicon cover.
• 1 X Mini8P cable.
• 1 X Instruction manual.
• 1 X Qualified certificate.
• 1 X Warranty card.
• 1 x Packing List

Woodpecker DTE Dpex V Apex Locator :-

• 1 x Main unit
• 1 x Measuring wire
• 2 x File clip
• 2 x Lip hook
• 2 x Measuring file
• 1 x Adapter
• 1 x Tester
• 1 x Battery
• 1 x Instruction manual
• 1 x Qualified certificate
• 1 x Warranty Card
• 1 x Packing List

Woodpecker DTE Endo Smart Plus:-

Function and operation of product Button definition and settings:-

• Turn the power on Press the Main button to turn on the motor handpiece.
• Turn power off Hold down the Setting button “P”, then press the Main button to turn off the motor handpiece.
• Customized program change Press the Adjusting button “+”/“-” during the standby state.
• Parameter setting Press the Setting button “P” till target parameters, press the Adjusting button “+”/“-” to change, then press the Main button or wait 5 seconds to confirm.
• Preset program selection Long press the Setting button “P” to entry the preset program during the standby state, press the Adjusting button “+”/“-” to select the file system, press the Setting button “P” to enter select file number, press the Adjusting button “+”/“-” to select file number, then press Main button to confirm.

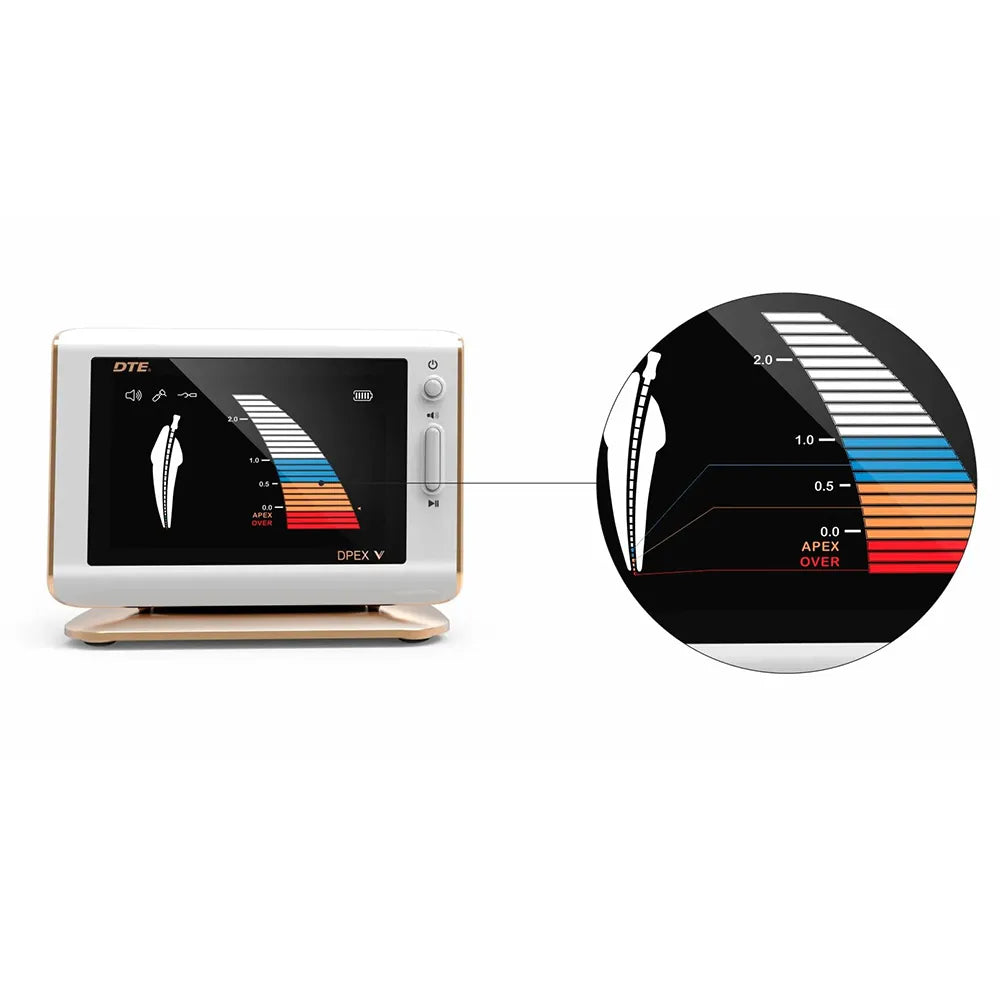

Woodpecker DTE Dpex V Apex Locator:-

• When the file reaches the front region of the apical foramen, the white bars are displayed.
• When the file has gone to the position nearby the apical foramen, the green bars are displayed.
• When the file has exceeded the apical foramen, the red bars are displayed. A continuous beep sound will be generated at the same time.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 year as applicable for this Woodpecker DTE Dpex V Apex Locator, 5 year warranty on PCB (Power Circuit Board)
• The Base, handpiece, power adapter of Woodpecker DTE Endo Smart Plus have two years of warranty period from the date of purchase. The contra angle has one year warranty period. Other spare parts have six months warranty period.
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What is the benefit of having a 5th-generation apex locator?

Answer: Dpex V, a 5th generation apex locator is perfect for measuring the working length without fluctuation even in the presence of blood, saliva, water, pus, or residual pulp due to multifrequency technology.

Question: Can Woodpecker Dpex V Apex locator be helpful in weeping canals?
Answer: Yes, as Dpex V is a 5th-generation apex locator, it can provide an accurate reading in weeping canals.

Question: When do we need to charge the battery of the Endomotor?
Answer: If the battery icon turns into the display as the picture shows,it indicates that the battery capacity is very low. Please charge. When the battery capacity is too low, the device may indicate “Low Battery!” and automatically power off.

Question: How to make sure that my Endomotor is charging?

Answer: Connect the power adapter with the base. Confirm that it is well connected, and then place the handpiece into the base. If the indicator light on the base turns yellow, it indicates that it is charging. If the indicator light on the base turns green, it indicates that the battery capacity is enough, and there is no need to charge. After charging, please unplug the power adapter.
