Woodpecker DTE Dpex V Apex Locator

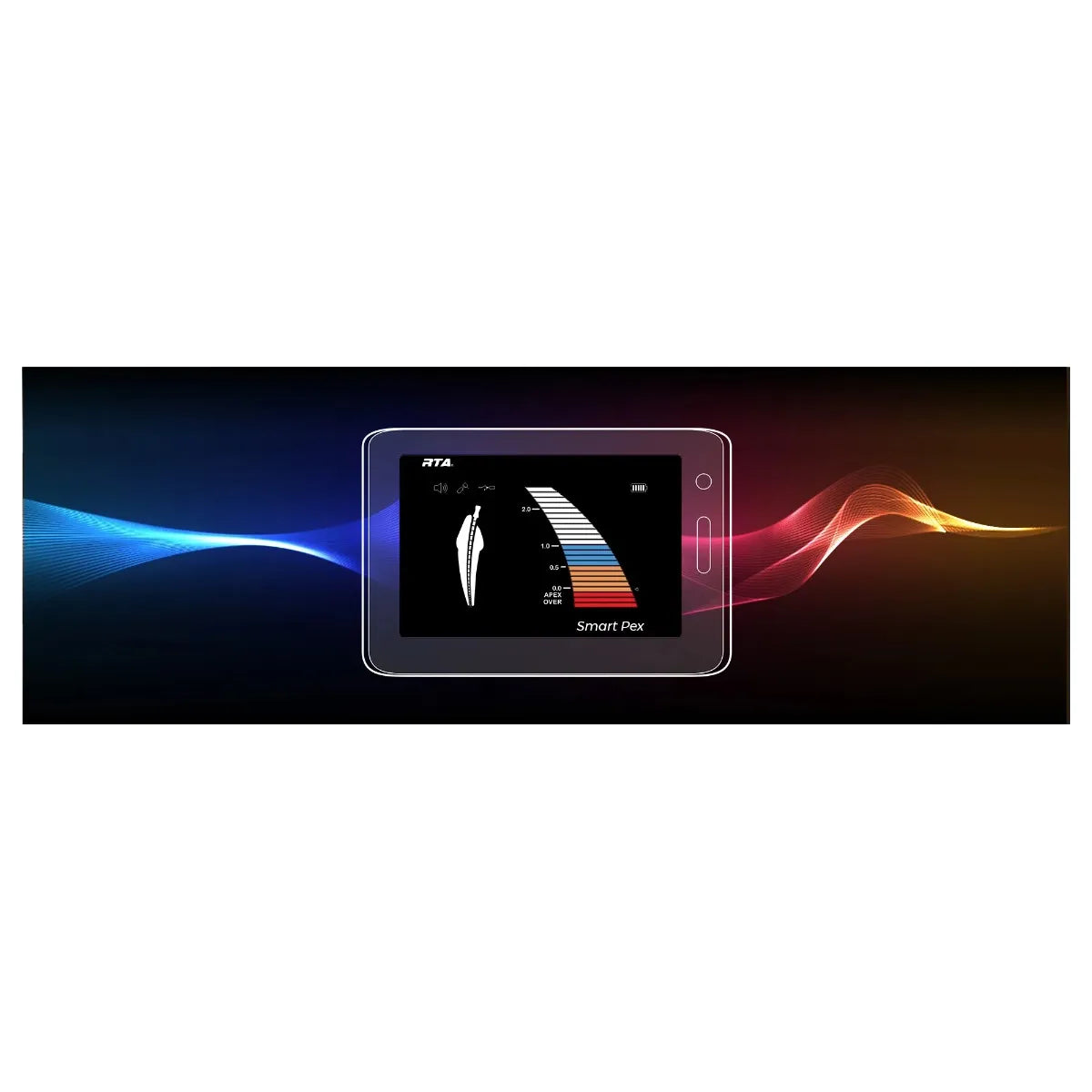

• Clear bright LCD for a clear image & different colors to clearly shape the trajectory of the file.
• Multi-frequency apical position technology for accurate measurement.
• Accurate reading even in the presence of blood or residual pulp in the root canal.
• Measurement will not be affected by the tooth type.
• Based on advanced multiple-frequency network impedance measurement technology and automatic calibration ensures that the measurements are accurate.
• Autoclavable file clip, lip hook, file probe.
• Avoiding cross-infection effectively.
• When doing the measurement, the changes in the sound can indicate the position of the file in the root canal.

• Power 3.7V/750mAh
• Power consumption < 0.5W
• Screen 4.5" LCD
• Main unit weight 385gm
• Dimensions 138mm x 77mm x 107mm

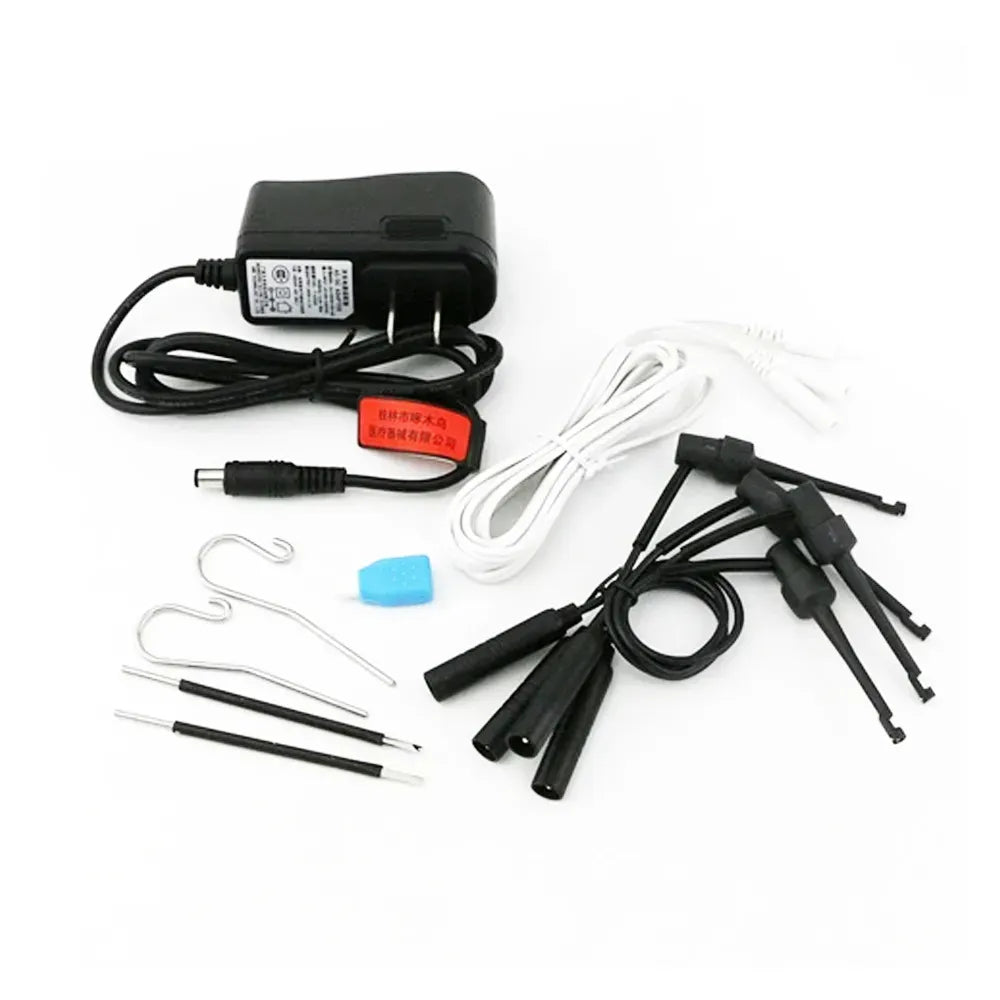

• 1 x Main Unit
• 1 x Measuring Wire
• 2 x File Clip
• 2 x Lip Hook
• 2 x Measuring File
• 1 x Adapter
• 1 x Tester
• 1 x Battery
• 1 x Instruction Manual
• 1 x Qualified Certificate
• 1 x Warranty Card
• 1 x Packing List

Preparation:

• Ensure that the device is fully charged or connected to a power source.
• Make sure the file clip, lip hook, and file probe are properly attached and autoclaved for sterilization.
• Check that the LCD screen is clean and in good condition for clear visibility.

Patient Preparation:

• Inform the patient about the procedure and obtain their consent.
• Ensure that the patient does not have a pacemaker, other implanted electrical devices, allergies to metals, or any contraindications mentioned in the user manual.
• Provide appropriate anesthesia to the patient before starting the endodontic procedure.

Device Setup:

• Turn on the Woodpecker DTE DPEX V Apex Locator by pressing the power button.
• Allow the device to go through the initialization process.
• Adjust the screen brightness if needed to ensure a clear image display.

Apical Positioning:

• Select the appropriate file size for the root canal treatment.
• Carefully insert the file into the root canal until the file tip reaches the apical constriction.
• Attach the file clip to the file handle and connect it to the device.
• Place the lip hook on the patient's lip to hold the file securely.

Measurement Procedure:

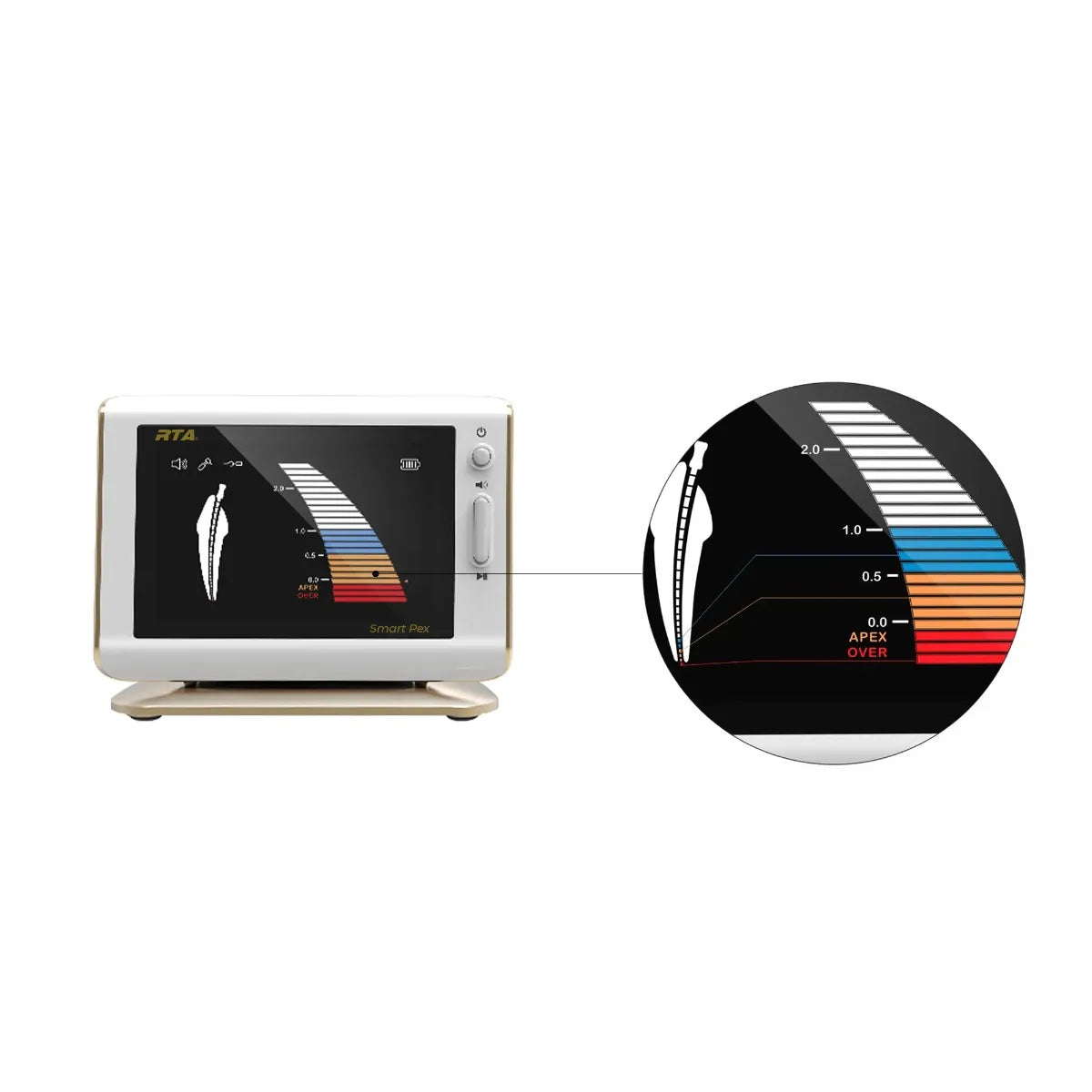

• Observe the real-time display on the LCD screen showing the moving file in the root canal.
• Listen to the sound emitted by the device during the measurement.
• Pay attention to any changes in the sound, as they can indicate the position of the file in the root canal.

Reading and Recording:

• Once the device indicates that the file tip has reached the apical constriction, note the measurement on the display.
• Carefully remove the file from the root canal, ensuring minimal disruption to the measurement.
• Record the determined working length for reference during the endodontic treatment.

Post-Procedure:

• Clean and disinfect the file clip, lip hook, and file probe following proper sterilization protocols.
• Turn off the Woodpecker DTE DPEX V Apex Locator and store it in a safe place.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 year as applicable for this product including on PCB (Power Circuit Board)
• Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services only available in Delhi/NCR )
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Is it compatible with endofree endomotar ?
Answer: No, the Woodpecker DTE Dpex V Apex Locator is not compatible with the Endofree Endomotor. They function independently and do not have integrated connectivity for synchronized operation.

Question: Can it be compatible with Endopace endomotor?
Answer: No, the Woodpecker DTE Dpex V Apex Locator is not compatible with the Endopace endomotor.

Question: Is this apex locator is 5th or 6th generation ?
Answer: The Woodpecker DTE Dpex V Apex Locator is a 5th generation apex locator, offering precise and reliable measurements for endodontic procedures, enhancing accuracy in root canal treatment.

Question: Can it used with x-smart endomotor?
Answer: The Woodpecker DTE Dpex V Apex Locator is not designed to be connected to the Dentsply X-Smart EndoMotor.

Question: Can it be use with endomotor ?

Answer: Yes, the Woodpecker DTE Dpex V Apex Locator can be used with matched endomotors.

Question: Can Woodpecker Dpex V Apex locator be helpful in weeping canals?

Answer: Yes, the Woodpecker Dpex V Apex Locator is effective in weeping canals. Its advanced technology ensures precise working length determination even in challenging conditions, including the presence of moisture or exudates in the canal.

Question: What all accessories are provided with the Dpex V apex locator?

Answer: Measuring wire – 1 Qty
File Clip – 2 Qty
Lip Hook – 2 Qty
Touch Probe – 1 Qty
Tester – 1 Qty

Question: How to sterilize measuring wire as it cannot be autoclaved?
Answer: Measuring wire cannot be autoclaved, it can be disinfected using medical alcohol.

Question: Sometimes when the file is put inside the canal, and it is very close to apical foramen, but the screen shows it is still very far from apical foramen or no indication on the screen, what maybe the problem?
Answer: It shows the root canal is too dry, so the root canals need to be irrigated with irrigating solution, so that electricity can be conducted properly and the working length can be measured accurately.
