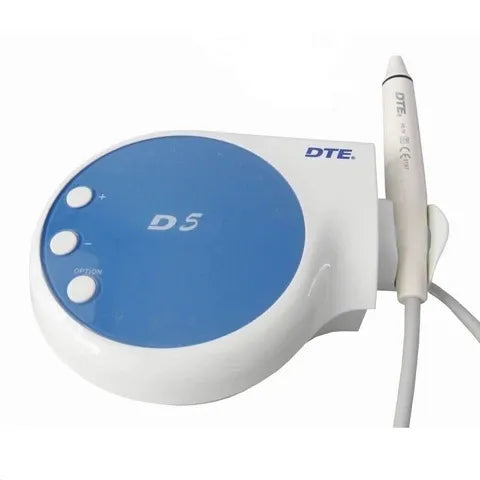

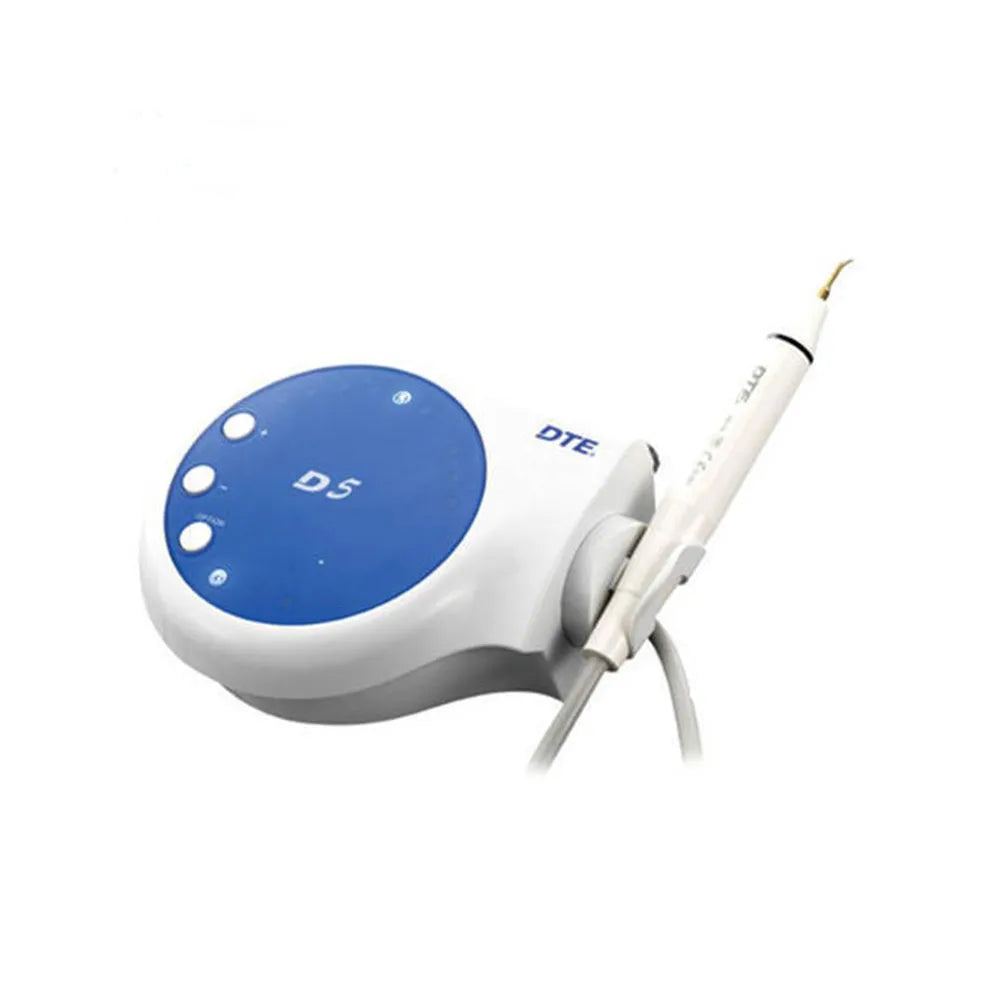

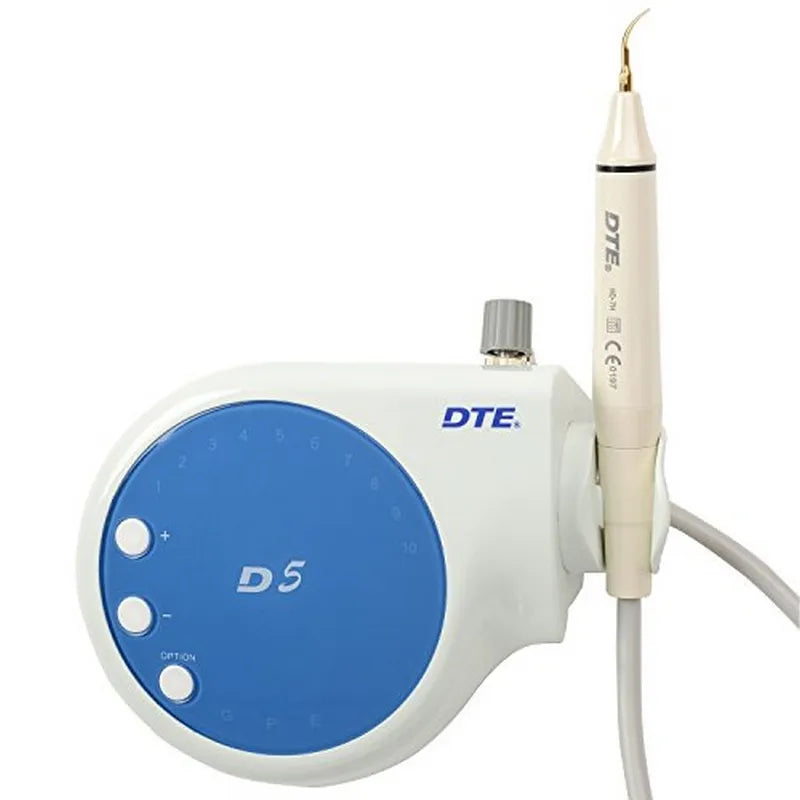

Woodpecker DTE D5 Ultrasonic Scaler With Handpiece

• Performs Multi-function, works on three modes(Scaling, perio, and endo).
• It has a feature of automatic frequency tracking which ensures that the machine always works on the best frequency.
• The handpiece is detachable and can be autoclaved to 135℃ and 0.22MPa.
• The cable is made from a silica gel tube which is soft and durable.
• The cavitation produced at the end of the scaling tip helps in easy cleaning of the teeth.
• It Eliminates dental calculus, bacterial plaque, and tea stains on the teeth quickly without hurting the gum or the enamel.
• Automatic frequency tracking ensures that the machine always works on the best frequency and performs functions more steadily.
• Digitally controlled, easy operation, and more efficient in scaling.
• Compatible with EMS, you could connect your EMS handpiece with this control box, and you could also connect this Woodpecker UDS handpiece with the EMS control box.
• CE and FDA certificated.

• Power supply input: 220-240V~ 50Hz/60Hz 150mA
• Main unit input: 24V~ 50Hz/60Hz 13A
• Output primary tip Vibration excursion: <100pm
• Output tip Vibration frequency: 28kHz+3kHz
• Output half-excursion force: <2N
• Output power: 3W to 20W
• Main unit fuse: T1.6AL 250V
• Power supply fuse: TO.5AL 250V
• Water pressure: 0.1 bar to 5 bar (0.01MPa to 0.5MPa)
• Weight of main unit: 0.65kg
• Weight of power supply: 1 kg

• 1 x Main unit
• 1 x Handpiece
• 1 x Footswitch
• 6 x Tips
• 1 x Adapter
• 1 x Torque wrench
• 1 x Operation manual

Preparing the Scaler:

• Ensure that the scaler and its components are clean and sterilized before each use. If necessary, refer to the manufacturer's instructions for proper cleaning and sterilization procedures.
• Connect the scaler to a suitable power supply (220-240V~ 50Hz/60Hz) using the provided power cord.
• Make sure the handpiece is securely attached to the main unit.

Selecting and Attaching Tips:

• Choose the appropriate tip for the desired dental procedure. The D5 scaler is compatible with a variety of tips designed for different applications.
• Insert the selected tip into the handpiece firmly until it clicks into place.

Adjusting Settings:

• Familiarize yourself with the scaler's digital controls. These controls allow you to adjust the settings for optimal performance.
• Use the control panel or buttons to set the desired power output, frequency, and scaling mode according to the specific requirements of the treatment.

Preparing the Patient:

• Ensure the patient is comfortably seated in the dental chair and properly positioned for the procedure.
• Consider applying a topical anesthetic or using other appropriate methods to minimize patient discomfort during the scaling process.

Scaling Procedure:

• Hold the scaler's handpiece in a comfortable grip, ensuring a secure hold during the procedure.
• Place the tip of the scaler gently on the tooth surface, angling it as needed to access the targeted area.
• Activate the scaler by pressing the appropriate button or control. Begin scaling with light, controlled movements, gradually increasing the pressure if necessary.
• Move the tip along the tooth surface, focusing on areas with tartar or plaque buildup. Use a sweeping motion and avoid applying excessive pressure to prevent discomfort or damage to the tooth enamel.

Rinse and Repeat:

• Periodically rinse the tooth surface and the scaler tip with water or an appropriate dental solution to remove debris and maintain visibility.
• Continue the scaling process, moving from tooth to tooth, until the desired level of cleanliness and treatment is achieved.

• Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board).
• Physical damage is not cover in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: It also help in irrigation in endo
Answer: Yes, the Woodpecker DTE D5 Ultrasonic Scaler with Handpiece can assist in irrigation during endodontic procedures, enhancing cleaning and debris removal from the root canal system.

Question: Can the D5 scaler be used on patients with dental implants or orthodontic appliances?
Answer: Yes, the D5 scaler can be used on patients with dental implants or orthodontic appliances. However, caution must be exercised to avoid damaging or dislodging any dental restorations or appliances. Adjust the settings and technique accordingly to ensure safe and effective treatment.

Question: Is the D5 scaler safe to use?

Answer: Yes, the D5 scaler is safe to use when operated according to the provided instructions. It is designed with patient comfort and safety in mind, featuring non-LED technology that minimizes heat generation and reduces the risk of tooth sensitivity.

Question: Can the D5 scaler be used on patients with sensitive teeth?
Answer: Yes, the D5 scaler's non-LED technology makes it suitable for patients with sensitive teeth. It operates at lower temperatures, reducing the likelihood of tooth sensitivity during the scaling process.

Question: Is it necessary to undergo training before using the D5 scaler?

Answer: While the D5 scaler is designed for user-friendly operation, it is recommended to receive training on its usage and techniques for optimal results. Consult the manufacturer or consider attending dental education programs to enhance your skills.
