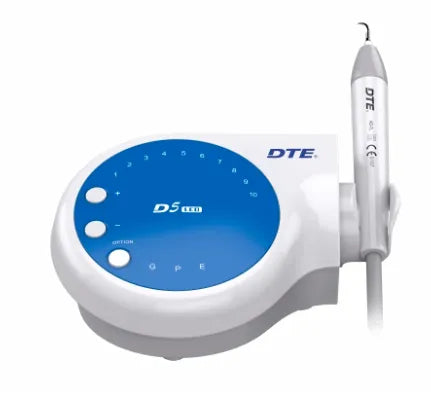

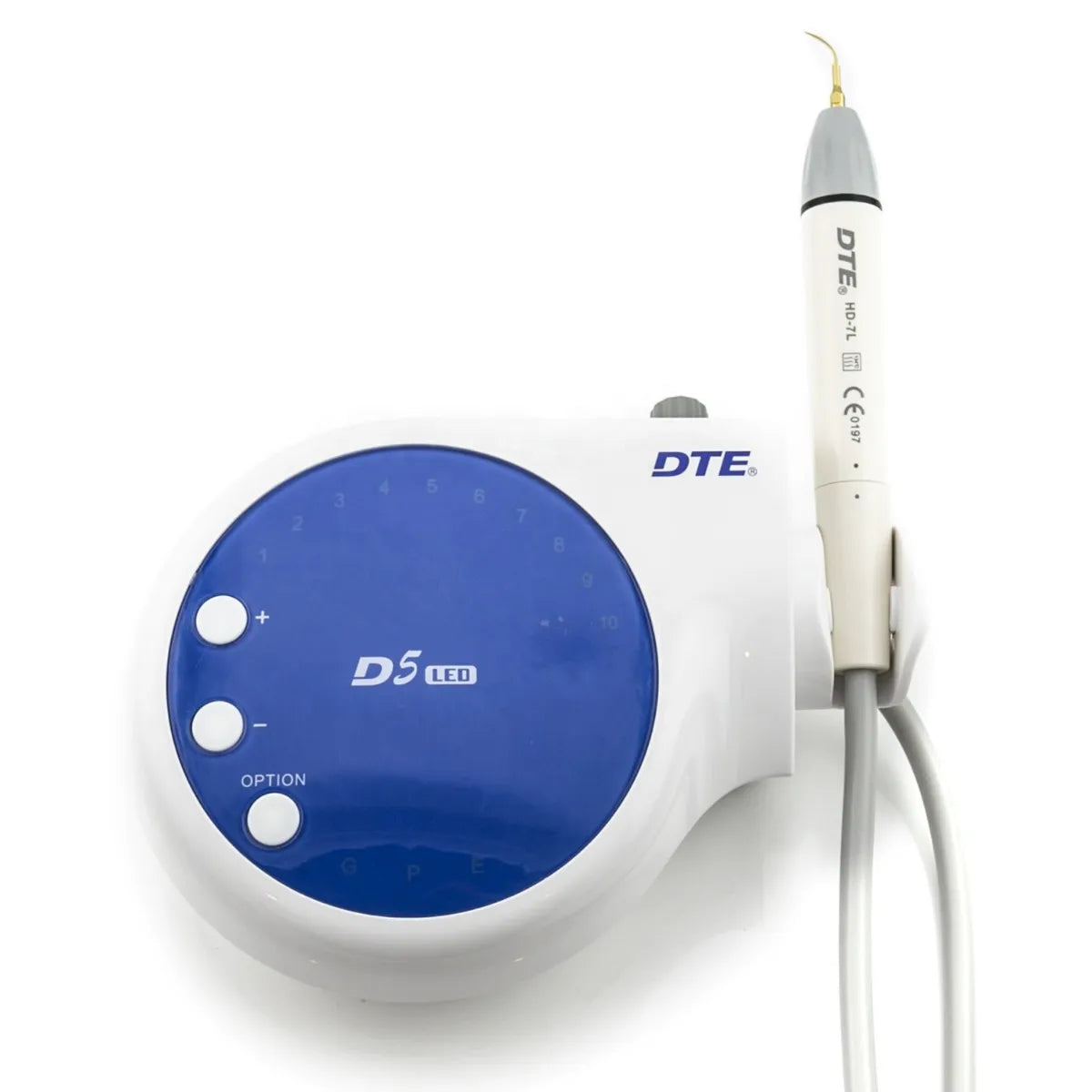

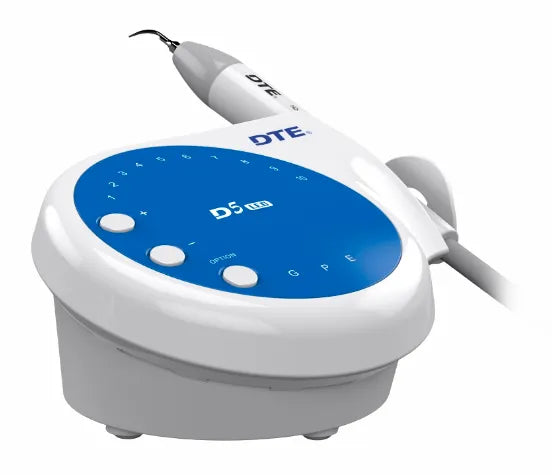

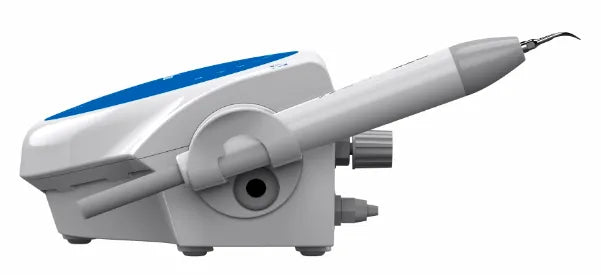

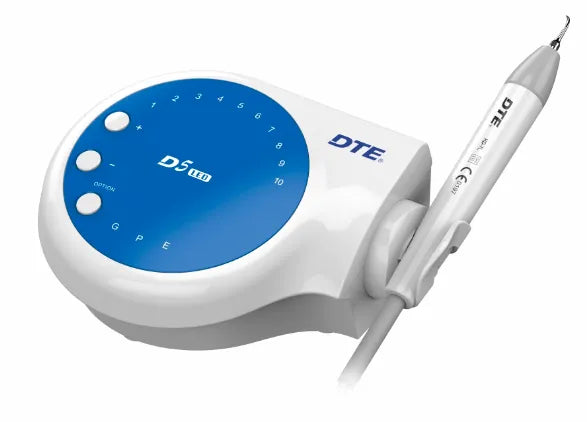

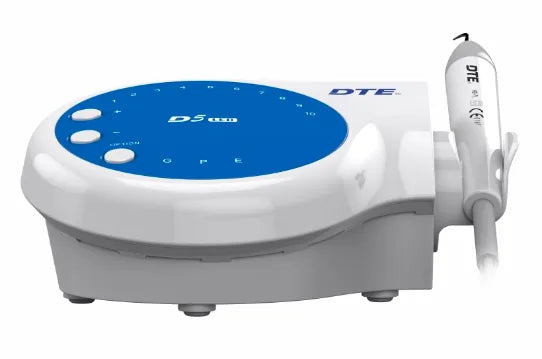

Woodpecker Dte D5 Scaler With Optic Handpiece

• Performs Multi-function: Scaling, perio, and endo.

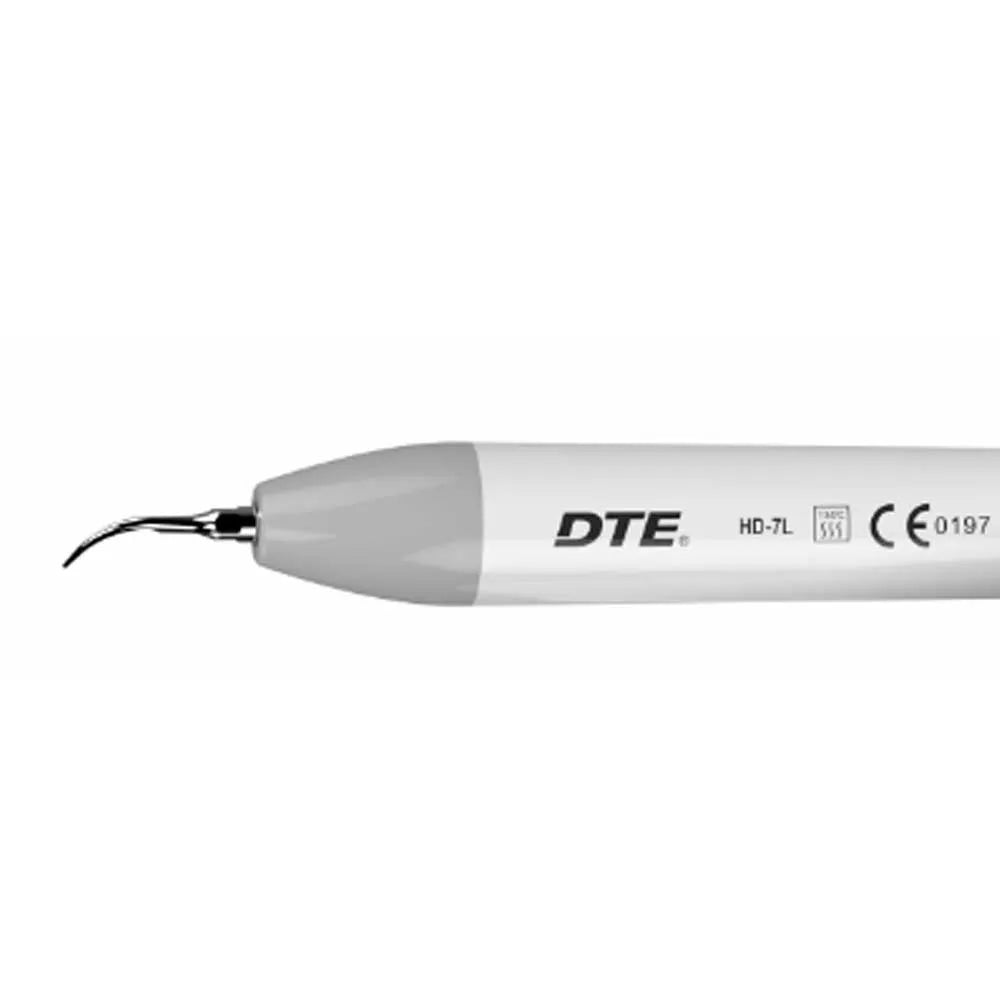

• Optical handpiece, more convenient for clinical operation.
• The cable is made from a silica gel tube which is soft and durable.
• The cavitation produced at the end of the scaling tip helps in easy cleaning of the teeth.
• It Eliminates dental calculus, bacterial plaque, and tea stains on the teeth quickly without hurting the gum or the enamel.
• Automatic frequency tracking ensures that the machine always works on the best frequency and performs functions more steadily.
• Digitally controlled, easy operation, and more efficient in scaling.
• Compatible with Woodpecker Scaler Tips for DTE & Satelec Scalers.
• CE and FDA certificated.

• Main unit input: 24V-50Hz/60Hz  1.3A
• Output power: 3W-20W
• Frequency: 28kHz ± 3kHz
• Water pressure: 0.1bar ~ 5bar(0.01MPa ~ 0.5MPa)
• Main unit weight: 1kg
• Dimensions: 188mm×159mm×81mm

• 1 x Main unit
• 1 x Detachable handpiece
• 1 x Adapter for power supply
• 1 x Footswitch
• 6 x Scaling tip (ED1T, GD1Tx2, GD2T, GD4T, PD1T)
• 1 x Torque Wrench
• 1 x Waterpipe
• 4 x Waterproof “O” ring
• 1 x Qualified certificate
• 1 x Packing list
• 1 x Instruction manual
• 1 x Warranty card

• Preparation: Ensure the scaler and handpiece are clean and sterilized before use. Check that all connections are secure.
• Power On Connect the scaler to a compatible power source (110V-240V~) and switch it on. The scaler will start vibrating at a default frequency of 25kHz±10%.
• Scaling Mode: Select the appropriate scaling mode based on the patient's needs. The scaler offers multiple scaling modes for customization.
• Handpiece Assembly: Attach the optic handpiece securely to the scaler's main unit. Make sure it clicks into place.
• Illumination: Activate the LED light source on the handpiece for clear visibility of the treatment area. Adjust the light intensity if necessary.
• Scaling Technique: Hold the handpiece comfortably and maneuver it gently over the teeth and gumline. Maintain proper angulation to avoid tissue damage.
• Tip Selection: Choose the appropriate scaler tip for the specific treatment. Attach and tighten it securely to the handpiece.
• Scaling Procedure: Apply light pressure and move the tip in a controlled motion to remove tartar and plaque effectively. Adjust the tip vibration excursion if needed.
• Safety Measures: Monitor the handpiece temperature to prevent overheating. Take breaks as necessary to avoid excessive heat buildup.
• After Use: Disconnect the scaler from the power source. Detach the handpiece for cleaning and sterilization following the manufacturer's instructions.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board).
• Physical damage is not cover in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Which scaler tips are compatible with this unit?
Answer: The Woodpecker DTE D5 Scaler with Optic Handpiece is compatible with Woodpecker scaler tips designed for DTE and Satelec scalers. To buy, you need to search for Woodpecker Scaler Tips for DTE & Satelec Scalers on Oralkart.

Question: Can the scaler be used with different power sources?
Answer: Yes, the Woodpecker DTE D5 Scaler with Optic Handpiece is designed to operate on a power supply input of 110V-240V~ with a frequency of 50Hz/60Hz, making it compatible with various power sources.

Question: Are there different scaling modes available?
Answer: Yes, the scaler offers multiple scaling modes, allowing dentists to customize the intensity of the treatment based on the specific needs of each patient.

Question: What is the frequency and vibration excursion range of the scaler?

Answer: The scaler operates at a frequency of 25kHz±10% and has an adjustable tip vibration excursion ranging from 30µm to 40µm, providing efficient scaling and tartar removal.

Question: How often should I clean and sterilize the handpiece?
Answer: It is recommended to clean and sterilize the handpiece after each use. Follow the manufacturer's instructions for proper cleaning and sterilization procedures.

Question: How does the optic handpiece improve visibility during treatment?

Answer: The optic handpiece is equipped with a LED light source that provides clear illumination of the treatment area, enhancing visibility for precise and accurate targeting of areas of concern.

Question: How can I ensure the safety and hygiene of the scaler?
Answer: The scaler is designed with a detachable handpiece, making it easy to clean and sterilize. Additionally, it is designed to prevent overheating during prolonged use, ensuring the comfort and safety of both the dentist and the patient.

Question: Can I use the scaler on sensitive teeth?
Answer: It is important to assess the patient's dental condition and sensitivity levels. Adjusting the scaling mode and tip vibration excursion can help cater to the patient's comfort and minimize sensitivity.
