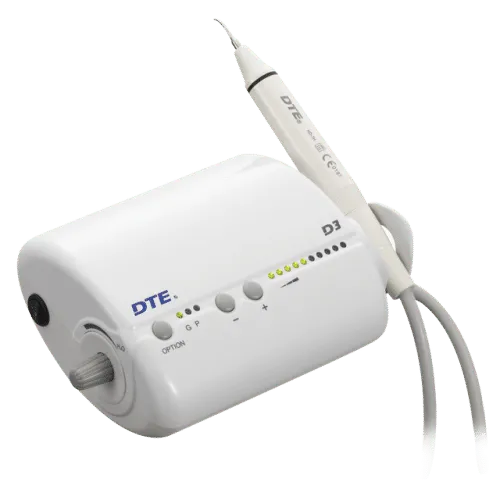

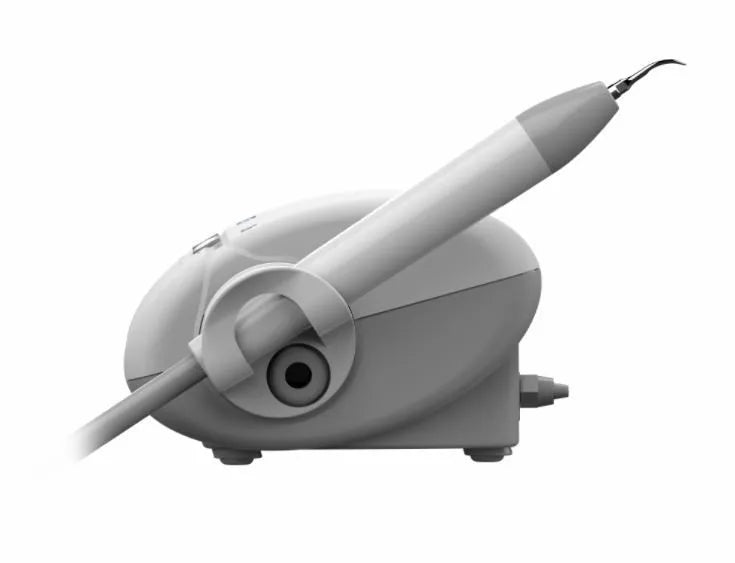

Woodpecker DTE D3 Ultrasonic Scaler With Fixed H/P With 5 Tips

• Digitally controlled.
• Different functions i.e general, perio.
• The cable is made from a silica gel tube which is soft and durable.
• The cavitation produced from the end of the scaling tip helps in easy cleaning of teeth.
• Digitally controlled and automatic frequency tracking ensures that the machine always works on the best frequency and functions more steadily.
• It helps in eliminating the dental calculus, bacterial plaque, and tea stains on the teeth quickly without hurting gums or the enamel.
• Small and light for easy operation

Technical parameter:

• Main unit input: 24V-50Hz/60Hz  1.3A
• Output power: 3W-20W
• Frequency: 28kHz ± 3kHz
• Water pressure: 0.1bar ~ 5bar(0.01MPa ~ 0.5MPa)
• Main unit weight: 1kg
• Dimensions: 198mm×134mm×80mm
• Compatible Handpiece: HD-1 Handpiece

• 1 x Main unit
• 1 x Fixed handpiece
• 1 x Adapter of power supply
• 1 x Footswitch
• 5 x Scaling tips
• 1x Torque Wrench
• 1x Waterpipe
• 4x Waterproof “O” ring
• 1x Qualified certificate
• 1x Packing list
• 1x Instruction manual
• 1x Warranty card

• Connect the scaler to a suitable power source and ensure it is properly grounded.
• Select the appropriate tip for the desired dental procedure.
• Gently insert the selected tip into the handpiece until it securely locks in place.
• Adjust the scaler settings according to the specific treatment requirements (e.g., power level, mode selection).
• Prior to starting the procedure, ensure the patient is comfortable and properly positioned.
• Hold the scaler in a comfortable grip, maintaining a firm but gentle grasp on the handpiece.
• Position the tip at the desired treatment area, ensuring proper angulation for effective scaling.
• Activate the scaler by pressing the foot pedal or the designated power button.
• Move the tip in a controlled, overlapping motion, gradually removing calculus, plaque, or stains.
• Monitor the patient's comfort throughout the procedure, adjusting power levels or technique as necessary.
• After completing the treatment, deactivate the scaler and remove the tip from the handpiece

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board).
• Physical damage is not cover in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Does it have LED?
Answer: No, the Woodpecker DTE D3 Ultrasonic Scaler with Fixed Handpiece and 5 Tips does not have LED functionality.

Question: Can we use it for ultrasonic irrigation ?
Answer: No, Woodpecker DTE D3 with Fixed H/P and 5 Tips - Non LED is not suitable for ultrasonic irrigation as it lacks the necessary endo mode required for such procedures. While it features gingival and periodontal modes, which are beneficial for scaling tasks, the absence of the endo mode limits its functionality for ultrasonic irrigation.

Question: What are the main functions of the Woodpecker DTE D3 scaler?
Answer: The Woodpecker DTE D3 scaler is primarily used for a dental cleaning and scaling procedures, removing calculus, plaque, and stains from the teeth. It offers versatile functionality with different modes such as general and periodontal, allowing for a wide range of dental treatments.

Question: Can I use the Woodpecker DTE D3 scaler on all patients?
Answer: The Woodpecker DTE D3 scaler is suitable for most patients; however, it is important to assess individual patient factors, such as oral health conditions and sensitivity levels, before using the scaler. Consulting with a dental professional and following proper treatment protocols is recommended.

Question: How often should I clean and sterilize the scaler and tips?
Answer: Typically, after each use, the scaler and tips should be thoroughly cleaned using recommended disinfectants or autoclaving methods to ensure proper hygiene and infection control.

Question: Can I replace the tips of the Woodpecker DTE D3 scaler?
Answer: Yes, the Woodpecker DTE D3 scaler is designed to allow easy tip replacement. The scaler comes with five different tips that provide versatility for various dental procedures.

Question: What precautions should I take while using the Woodpecker DTE D3 scaler?
Answer: It is important to follow safety guidelines and precautions when using the scaler. Some key precautions include wearing appropriate personal protective equipment, ensuring proper handpiece and tip insertion, using the scaler at the recommended power levels, and maintaining proper patient positioning and comfort throughout the procedure.

Question: Can the Woodpecker DTE D3 scaler be used on patients with dental restorations?
Answer: The scaler can generally be used on patients with dental restorations; however, caution should be exercised to avoid damaging or dislodging the restorations.
