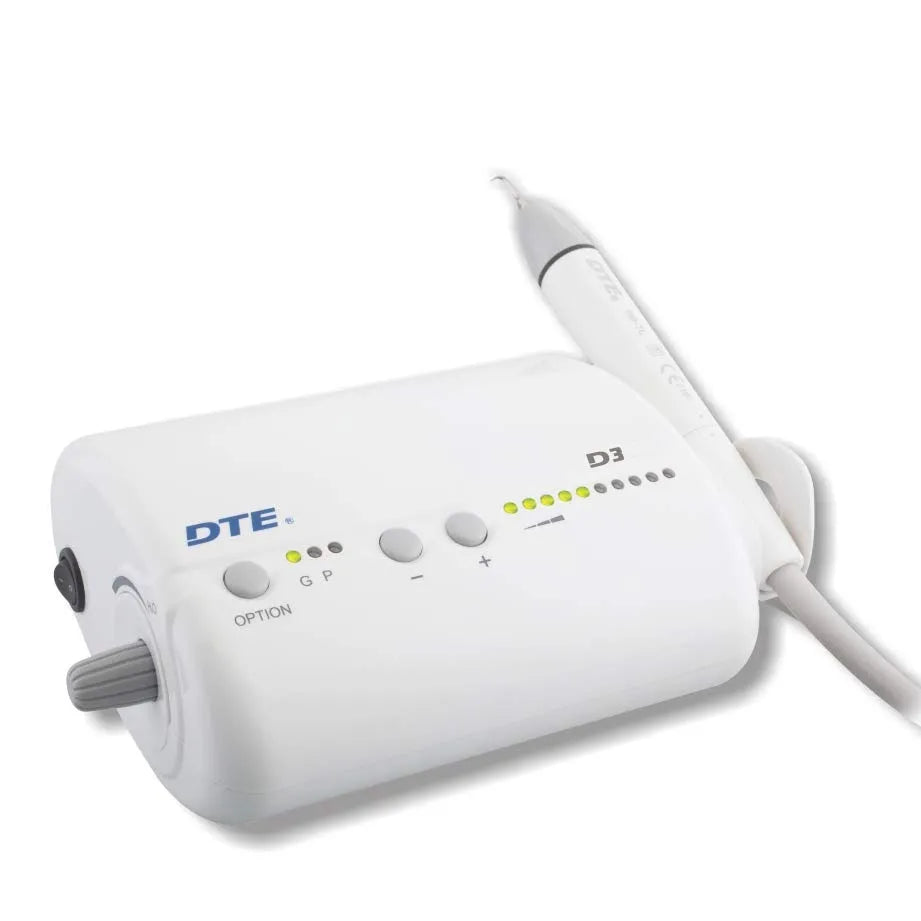

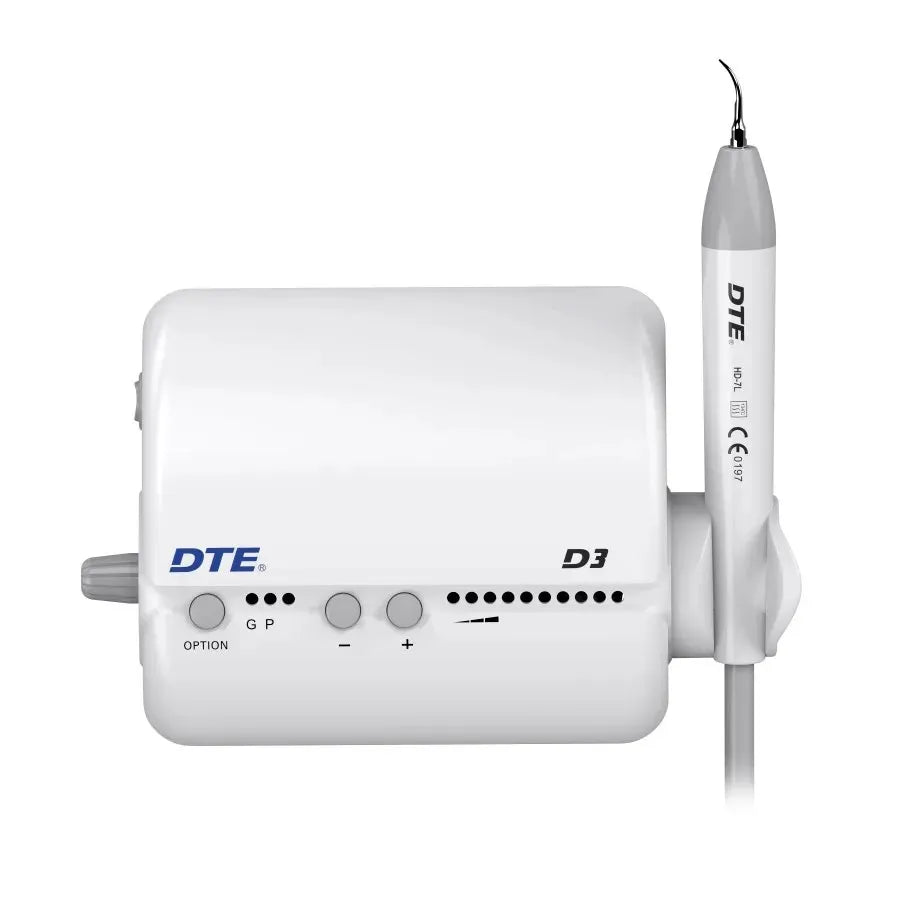

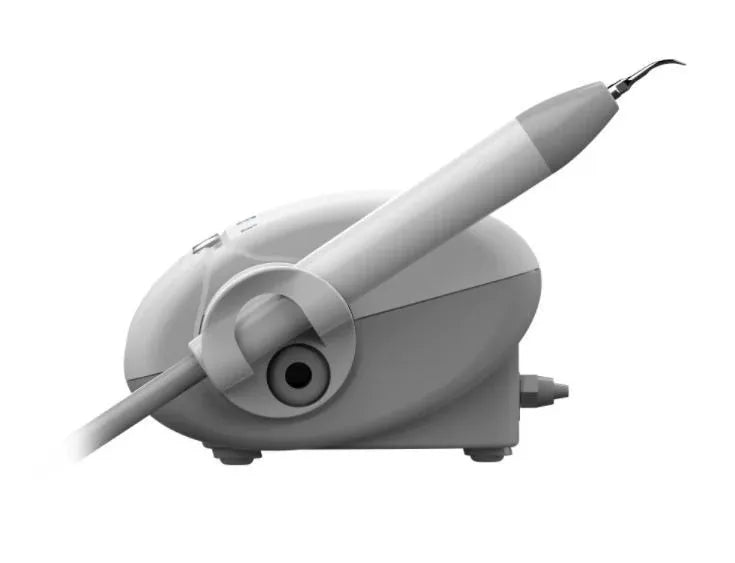

Woodpecker DTE D3 Ultrasonic Scaler With 5 Tips

• Digitally controlled.
• The handpiece can be autoclaved under the high temperature of 135oC and the pressure of 0.22MPa.
• Compatible with Satelec handpiece and tips.
• Different functions i.e general, perio.
• The material of the handpiece made in America which is appointed as aero plastic components in Europe and America, which is FDA and NSF certificated.
• The cable is made from a silica gel tube which is soft and durable.
• The cavitation produced from the end of the scaling tip helps in easy cleaning of teeth.
• Digitally controlled and automatic frequency tracking ensures that the machine always works on the best frequency and functions more steadily.
• It helps in eliminating the dental calculus, bacterial plaque, and tea stains on the teeth quickly without hurting gums or the enamel.
• Small and light for easy operation.
• Detachable & autoclavable handpiece

Technical parameter:

• Works on 2 modes: General & Perio
• Automatic frequency tracking

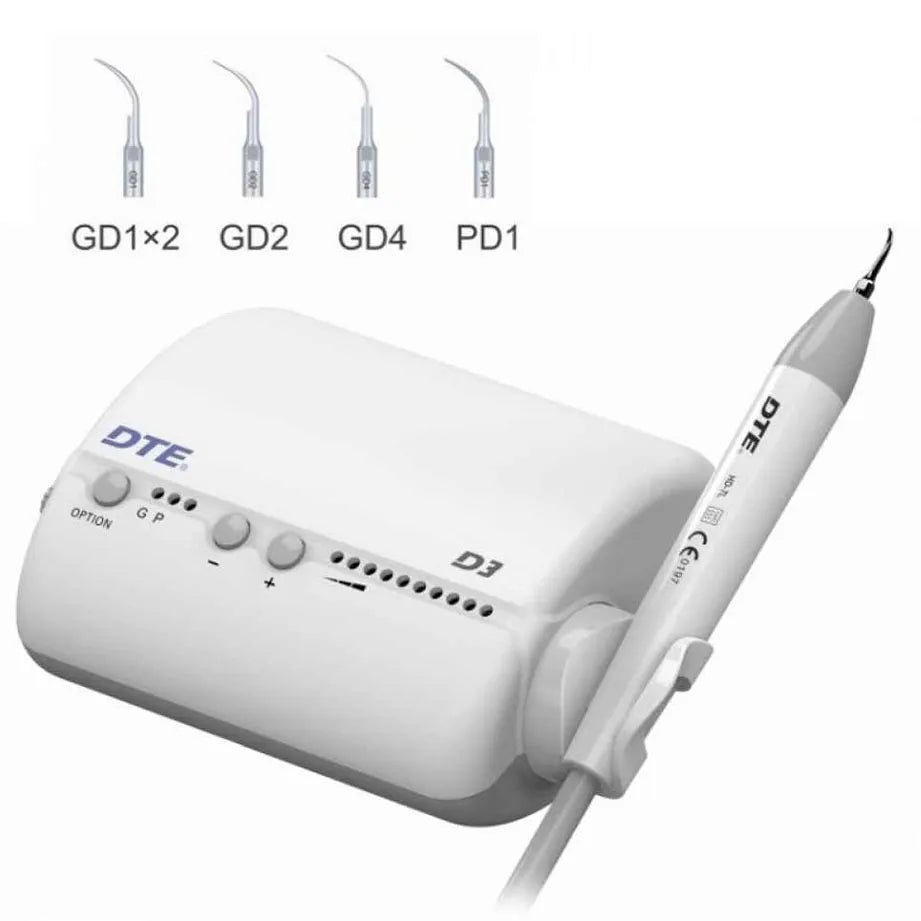

• With 5 Tips (GD1 x 2, GD2, GD4, PD1)
• Main unit input: 24V-50Hz/60Hz  1.3A
• Power input : 100V to 240V~ 50Hz/60Hz 1.2A (Max)
• Output power: 3W to 20W
• Water pressure: 0.1bar ~ 5bar(0.01MPa ~ 0.5MPa)
• Frequency : 28kHz + 3kHz
• Dimension : 196 mm X 134 mm X 80 mm
• Main unit weight: 1kg

• 1 x Main unit
• 1 x Detachable handpiece
• 1 x Adapter of power supply
• 1 x Footswitch
• 5 x Scaling tips
• 1x Torque Wrench
• 1x Waterpipe
• 4x Waterproof “O” ring
• 1x Qualified certificate
• 1x Packing list
• 1x Instruction manual
• 1x Warranty card

• Ensure the device is properly connected to a power source and the handpiece is securely attached.
• Select the desired mode of operation (general & perio) using the control panel.
• Adjust the power level according to the specific dental procedure and patient's comfort.
• Apply a suitable amount of water or dental solution to the treatment area to ensure proper cooling and lubrication.
• Gently guide the scaler tip along the tooth surface, maintaining light and controlled pressure.
• Use a sweeping motion to remove plaque, tartar, or stains, moving from the gum line towards the tooth crown.
• Pay attention to sensitive areas and adjust the power level or technique accordingly for patient comfort.
• Periodically rinse the treatment area to remove debris and monitor the progress of the procedure.
• After completing the treatment, switch off the device and disconnect the handpiece.
• Clean and disinfect the handpiece according to the manufacturer's instructions, ensuring proper sterilization for future use.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board).
• Physical damage is not cover in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Is this scaler compatible with ultrasonic endo irrigating tips and retrieval tips?
Answer: No, the Woodpecker DTE D3 Ultrasonic Scaler with 5 Tips is not compatible with ultrasonic endo irrigating tips as it does not include the Endo mode.

Question: Is handpiece detachable or is it non-detachable ?

Answer: Yes, the handpiece of the Woodpecker DTE D3 Scaler Non-LED With 5 Tips is detachable. This feature allows for convenient maintenance, cleaning, and potential replacement of the handpiece when needed.

Question: How does the automatic frequency tracking system work?
Answer: The automatic frequency tracking system ensures that the scaler always operates at the best frequency for optimal performance, stability, and efficiency.

Question: What are the different modes of operation, and when should they be used?
Answer: The scaler offers general & perio modes. General mode is suitable for routine scaling, perio mode is specifically designed for periodontal treatment, and endo mode is used for endodontic procedures.

Question: How should I clean and maintain the scaler?

Answer: Follow the manufacturer's instructions for cleaning and maintenance. Typically, it involves wiping the device with a soft, damp cloth and using recommended cleaning solutions. Do not immerse the scaler in water.

Question: Can the scaler be used on dental implants or orthodontic appliances?
Answer: It is important to consult with your dental professional to determine if the scaler is suitable for use on specific dental implants or orthodontic appliances, as certain materials may require alternative cleaning methods.

Question: What precautions should be taken during scaler use?
Answer: Always follow the instructions provided with the scaler and exercise caution to avoid injury. Maintain proper handpiece control, ensure adequate water flow, and avoid applying excessive pressure on teeth or gums.

Question: Can the handpiece of the scaler be sterilized?

Answer: Yes, the handpiece is designed to be autoclavable, allowing for sterilization at high temperatures and pressures to maintain proper hygiene.

Question: Is the scaler suitable for sensitive teeth or patients with dental anxiety?
Answer: Yes, the scaler allows for power level adjustments, making it customizable for individual patient needs, including those with sensitive teeth. It is advisable to communicate any concerns to your dental professional.
