Woodpecker Apex Locator Woodpex III

Name: Woodpecker Apex Locator Woodpex III
Brand: Woodpecker
Price: 8000.00 INR
Availability: InStock

Rs. 8,000.00

~~Rs. 27,000.00~~ Rs. 8,000.00

Sale Sold out

Quantity

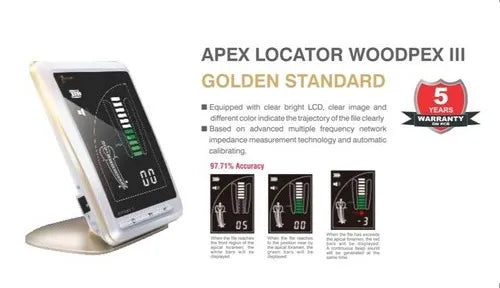

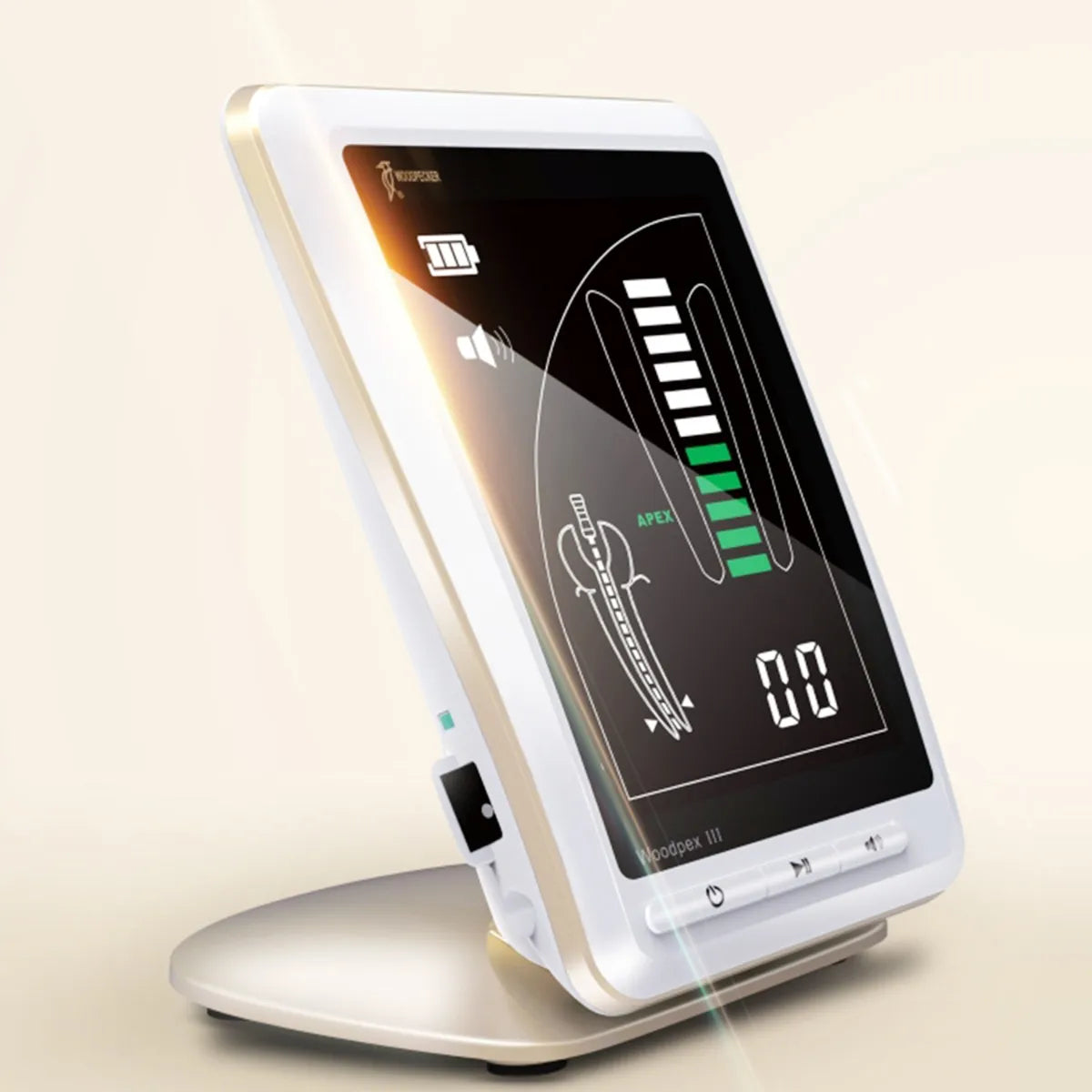

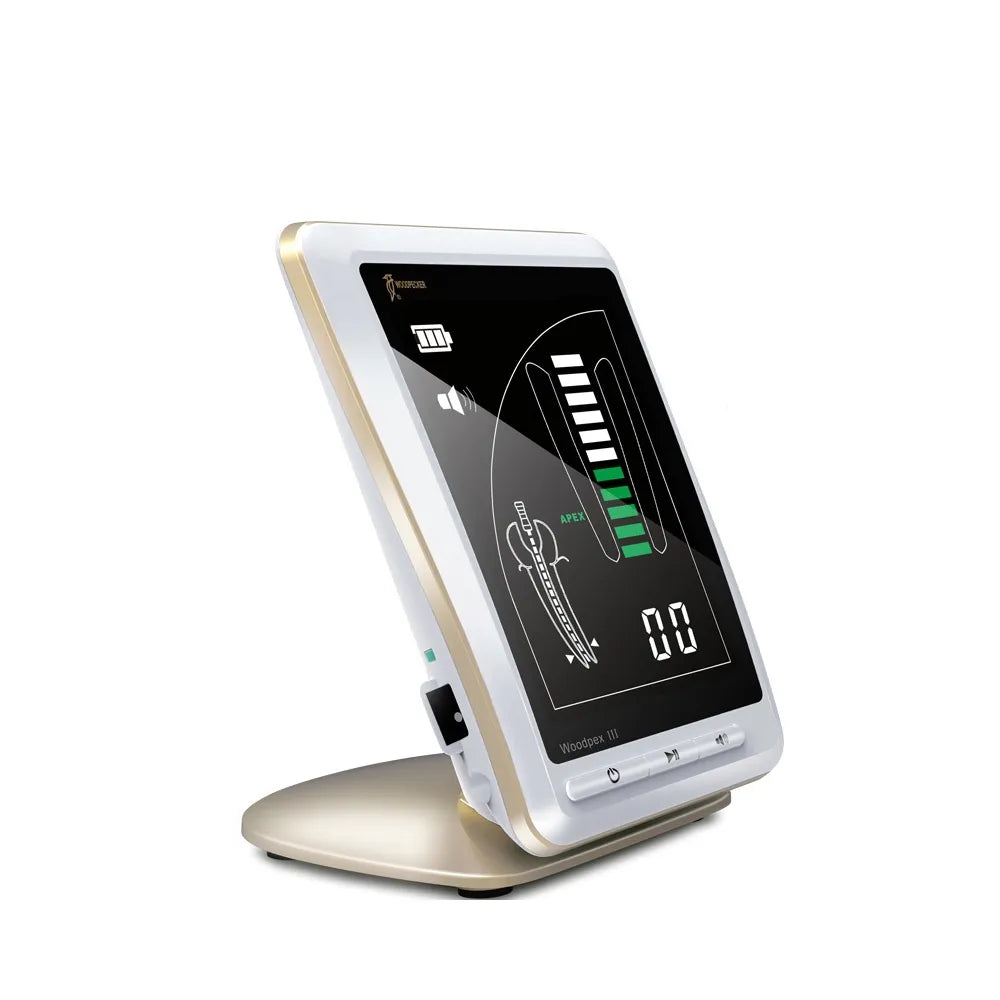

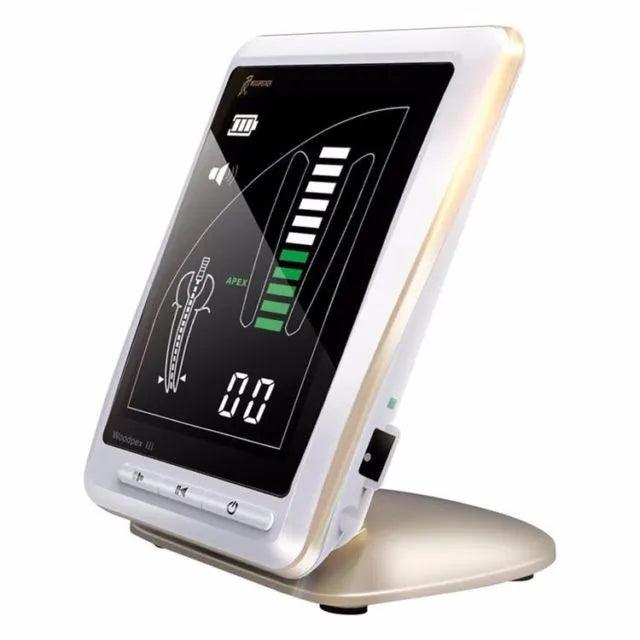

The Apex Locator Woodpex III L is an endodontic treatment by accurately measures the length of the apical teeth. The device offers several features and specifications that contribute to its effectiveness and ease of use The Apex Locator Woodpex III L is is equipped with a clear and bright LCD screen, providing a clear image and displaying the trajectory of the file in different colors, ensuring easy visualization. It utilizes advanced multiple-frequency network impedance measurement technology, along with automatic calibration, to ensure precise and accurate measurements.
One of the notable features of the Apex Locator Woodpex III L is the ability to autoclave its accessories, such as the measuring wire, file clip, and lip hook, under high temperature and pressure. This feature effectively prevents cross-infection and enhances the device's hygiene.

The device operates on a rechargeable battery, eliminating the need for frequent battery replacements. This ensures convenience and uninterrupted use during dental procedures. The main unit of the Apex Locator Woodpex III L features various indicators, including power and sound indicators, a length measurement indicator, and a power on/off button. The main accessories include the measuring wire, file clip, lip hook, measuring file, battery tester, and emulsion of enlarging apex.

The intended use of the Woodpex III includes the measurement of various dental conditions such as pulpitis, pulp necrosis, periapical periodontitis, tooth length before restoration of post crown, as well as tooth length of transplantation and retransplantation.

Please Note: Accuracy in readings for apex locators is claimed to be 97.7% accurate. Readings may vary from the conventional method of working length determination (radiographic method) & may fluctuate in cases where the precautions (recommended in user manual) are not followed

Features

Sound changes indicate file position in the root canal.
Measurement independent of file thickness.

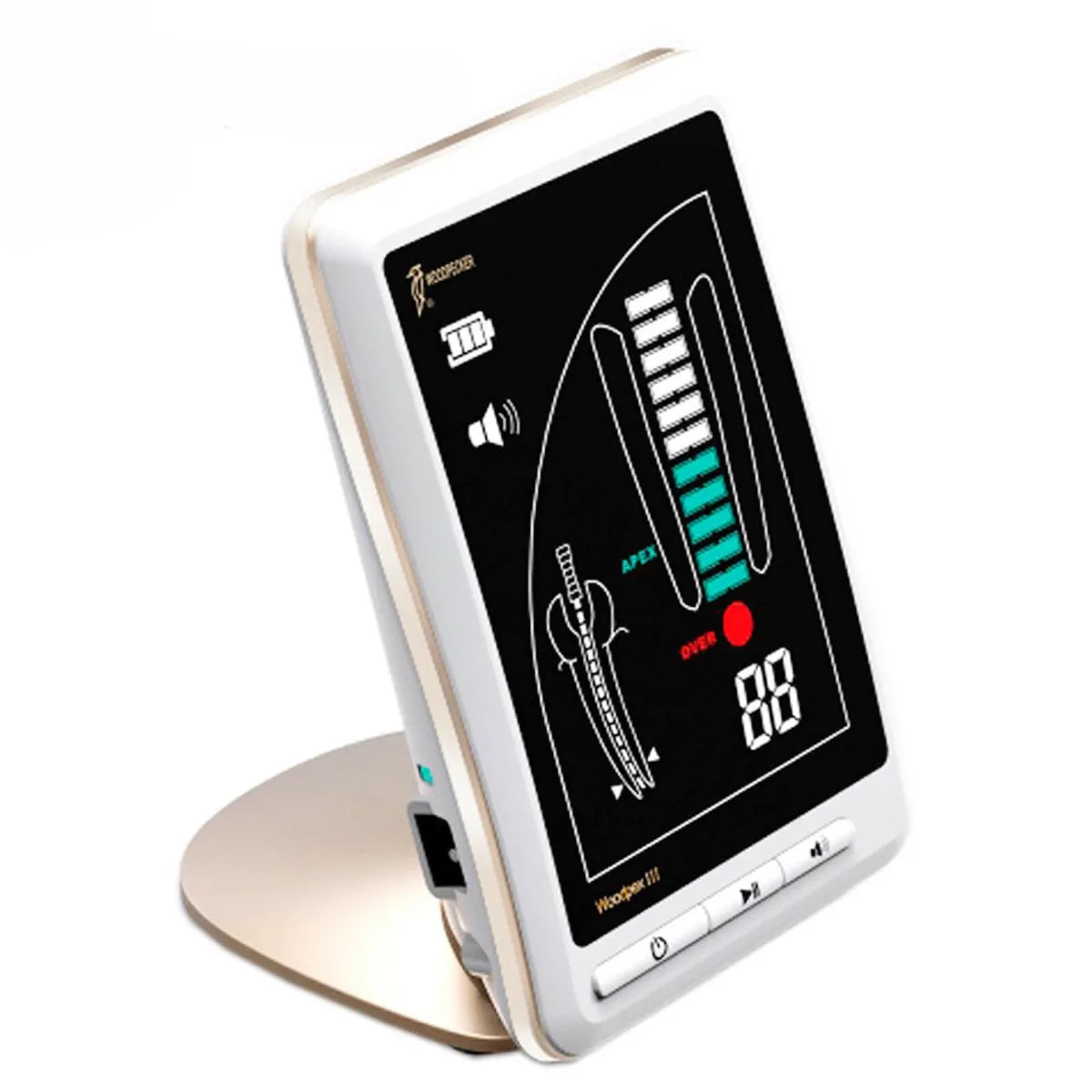

Clear bright LCD display with color-coded trajectory indication.
Advanced multiple frequency network impedance measurement for accurate results.
Autoclavable accessories for effective cross-infection prevention.
Rechargeable battery for convenient and cost-effective use.

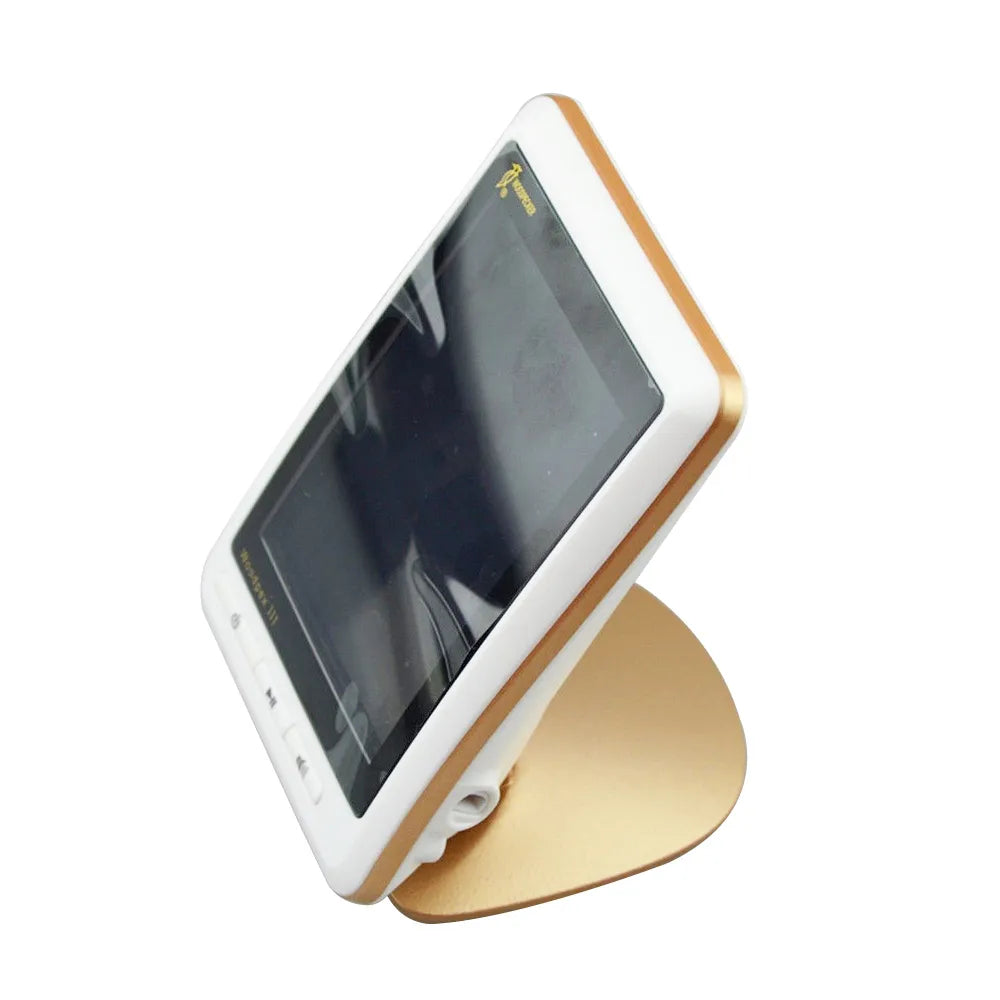

Folding design for easy adjustment of visual angle.

Description

Specification

Battery: 3.7V/750mAh
Adapter: 100V - 240V 501-Iz/60Hz
Power consumption: 50.5W
Screen: 4.5" LCD
Buzzer alert: The buzzer will alert when the endo file is less than 2mm to the apex
Environment temperature: +5°C to +40:C
Relative humidity: 580%
Atmosphere pressure: 50kPa to 106kPa
Main unit net weight: 336g
Main unit gross weight: 360g Unit
Dimension: 195mm x 137mm x 123mm

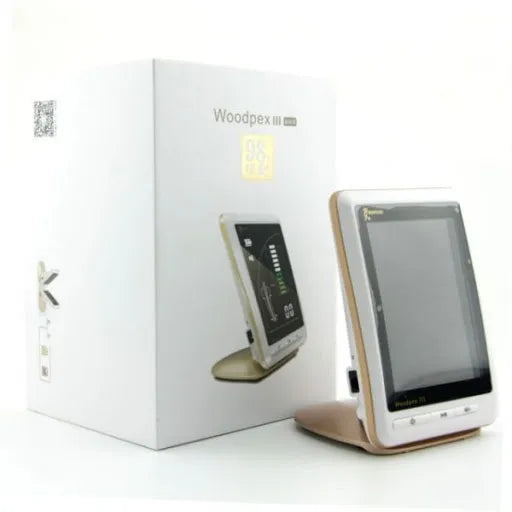

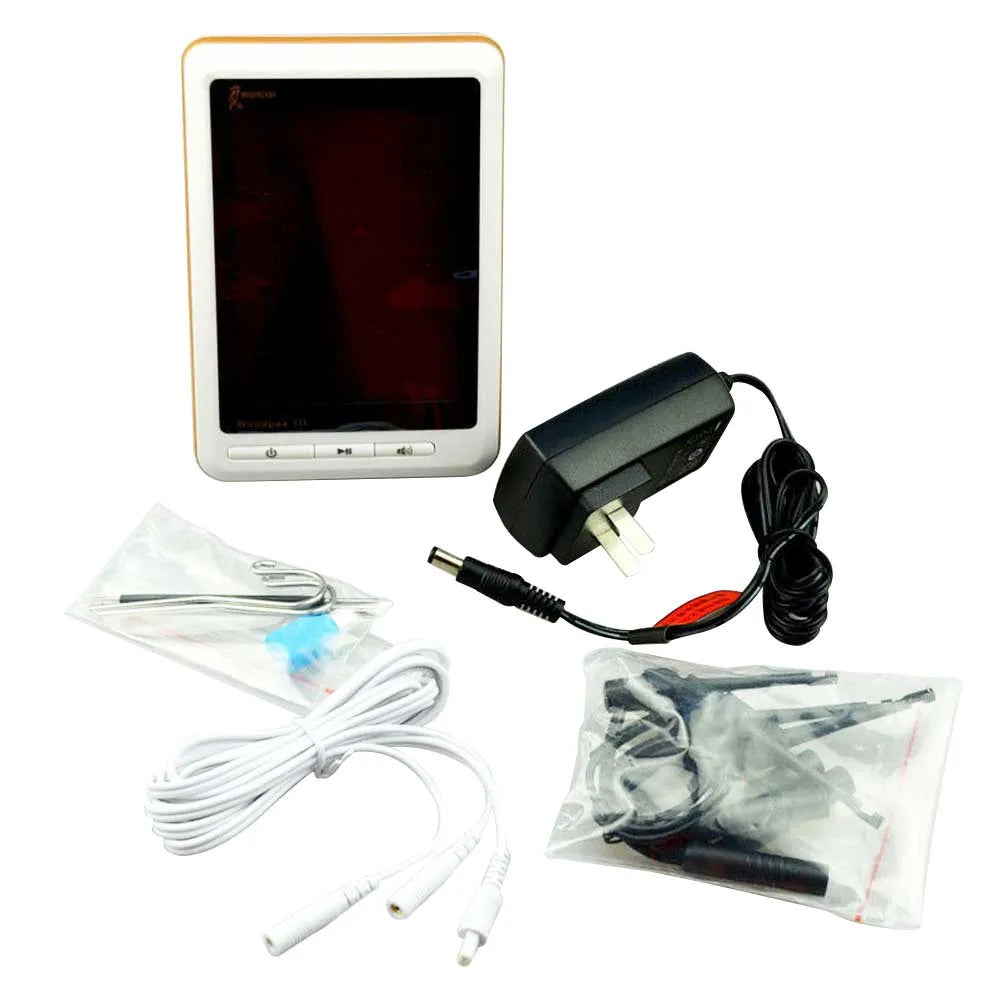

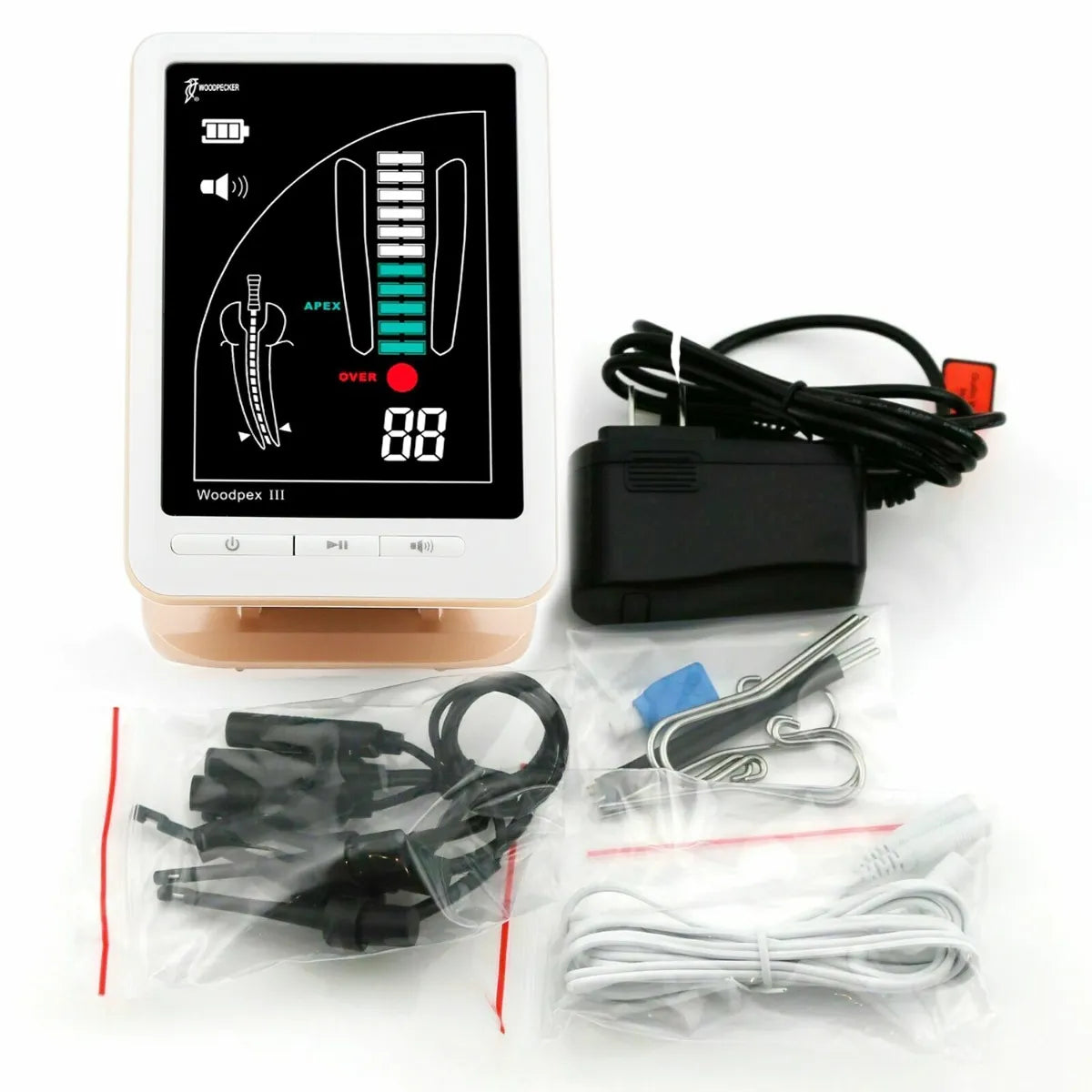

Packaging

1 X Main Unit
1 X Measuring Wire
2 X File Clip
2 X Lip Hook
2 X Measuring File
1 X Adapter
1 X Tester
1 X Battery
1 X Instruction Manual
1 X Qualified Certificate
1 X Warranty Card
1 X Packing List

Direction to use

Preparation:

Ensure the device is fully charged before use.
Autoclave reusable accessories (measuring wire, file clip, lip hook) for hygiene.

Powering On the Device:

Press the power button on the main unit to turn on the Woodpex III Gold.

Setting up the Measurement File:

Attach the measuring file to the file clip securely.
Connect the measuring wire to the file clip.

Locating the Apex:

Isolate the tooth with a dental dam.
Apply conductive gel to the measuring file's tip.
Gently insert the measuring file into the root canal until resistance is felt.
Advance the measuring file slowly while observing the LCD screen.

Interpreting the Measurement:

Pay attention to the length measurement indicator and color display.
Adjust file position based on displayed colors.

Alert Function:

Be cautious when the buzzer alert sounds (file less than 2mm from the apex).

Powering Off the Device:

Press and hold the power button to shut down the Woodpex III Gold.

Cleaning and Storage:

Clean accessories with a disinfectant solution after each use.
Store the device in a clean and dry environment.

Additional info

Country of Origin: PRC
Manufacturer: Woodpecker

Warranty

Manufacturer/Importer warranty of 1 year as applicable for this product, 5 year warranty on PCB (Power Circuit Board)
Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services only available in Delhi/NCR )
Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Product Related Questions

Question: Is it compatible with Woodpecker E com endomotor?
Answer: The Woodpecker E-Com Endomotor is not designed to be attached to any apex locator. However, the Woodpecker E-Com Plus Endomotor model is compatible with this apex locator.

Question: Is the Woodpecker Apex Locator Woodpex III compatible with the Woodpecker Endo Gold Endomotor?

Answer: Yes, the Woodpecker Apex Locator Woodpex III is compatible with the Woodpecker Endo Gold Endomotor. This compatibility facilitates streamlined workflows in endodontic procedures, enhancing efficiency and accuracy during root canal treatments.

Question: Can I connect the Woodpecker Apex Locator Woodpex III with the Woodpecker Endopace Endomotor?

Answer: No, the Woodpecker Apex Locator Woodpex III is not compatible with the Woodpecker Endopace Endomotor. For optimal integration, the Endopace Endomotor can be paired with a compatible apex locator, such as the Woodpecker Woodpex V. Ensuring compatibility between devices is crucial for efficient and effective endodontic procedures.

Question: How to claim warranty? Where we have to contact?
Answer: To claim warranty for the Woodpecker Apex Locator Woodpex III, please contact support@oralkart.com. The dedicated team will provide you with the necessary guidance and assistance regarding the warranty process.

Question: Will it work in bleeding/ pus filled canals?
Answer: While the Woodpecker Apex Locator Woodpex III is designed to accurately measure root canal length, using it in bleeding or pus-filled canals may pose challenges to its functionality. It's advisable to manage canal conditions before attempting electronic apex location for optimal results.

Question: How long do the batteries last in the Woodpex III Gold?
Answer: The battery life of the Woodpex III Gold may vary depending on usage. On average, the batteries can last for several months with regular use before needing replacement.
