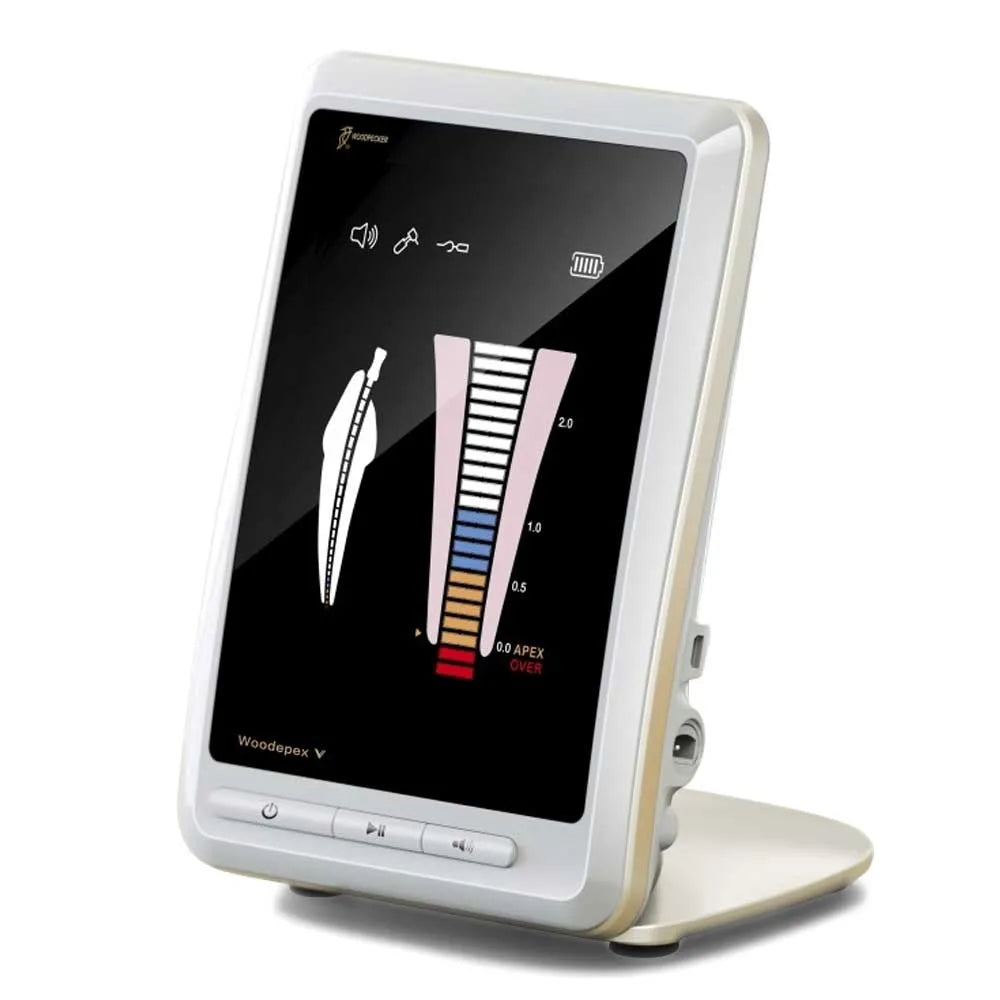

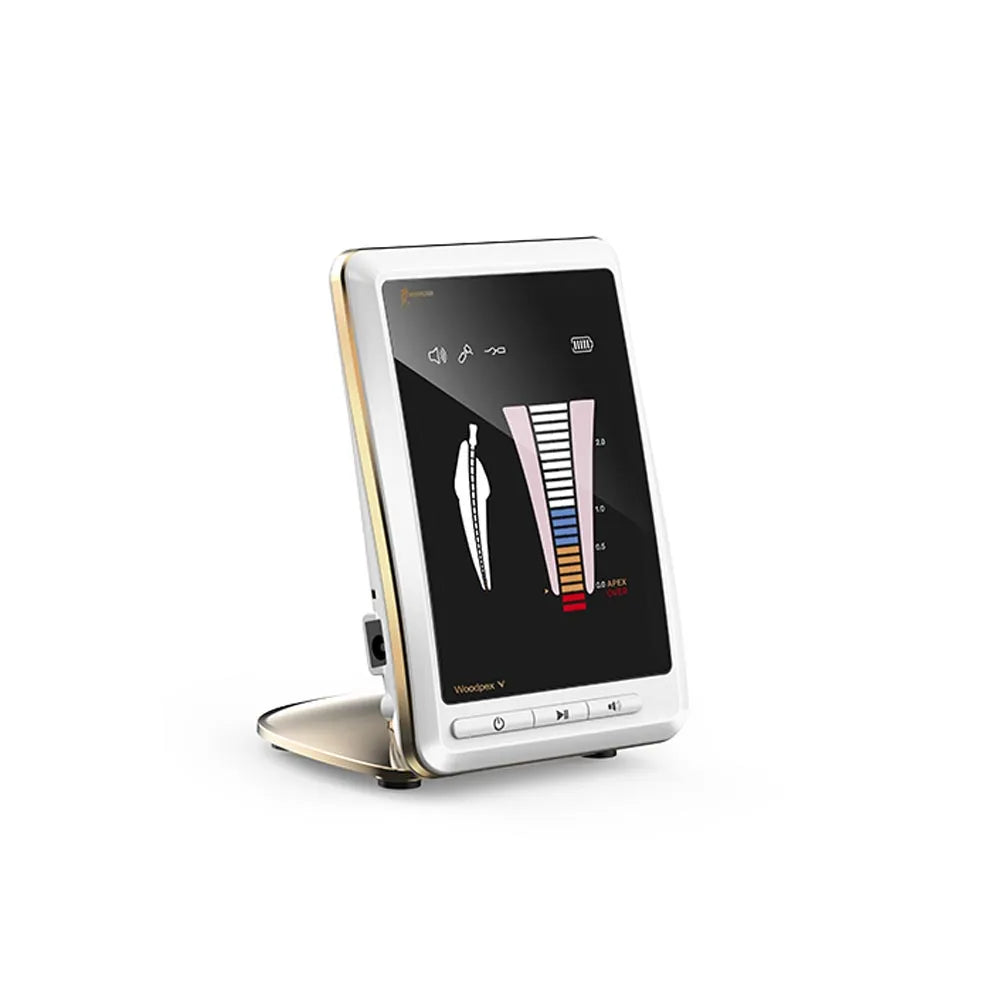

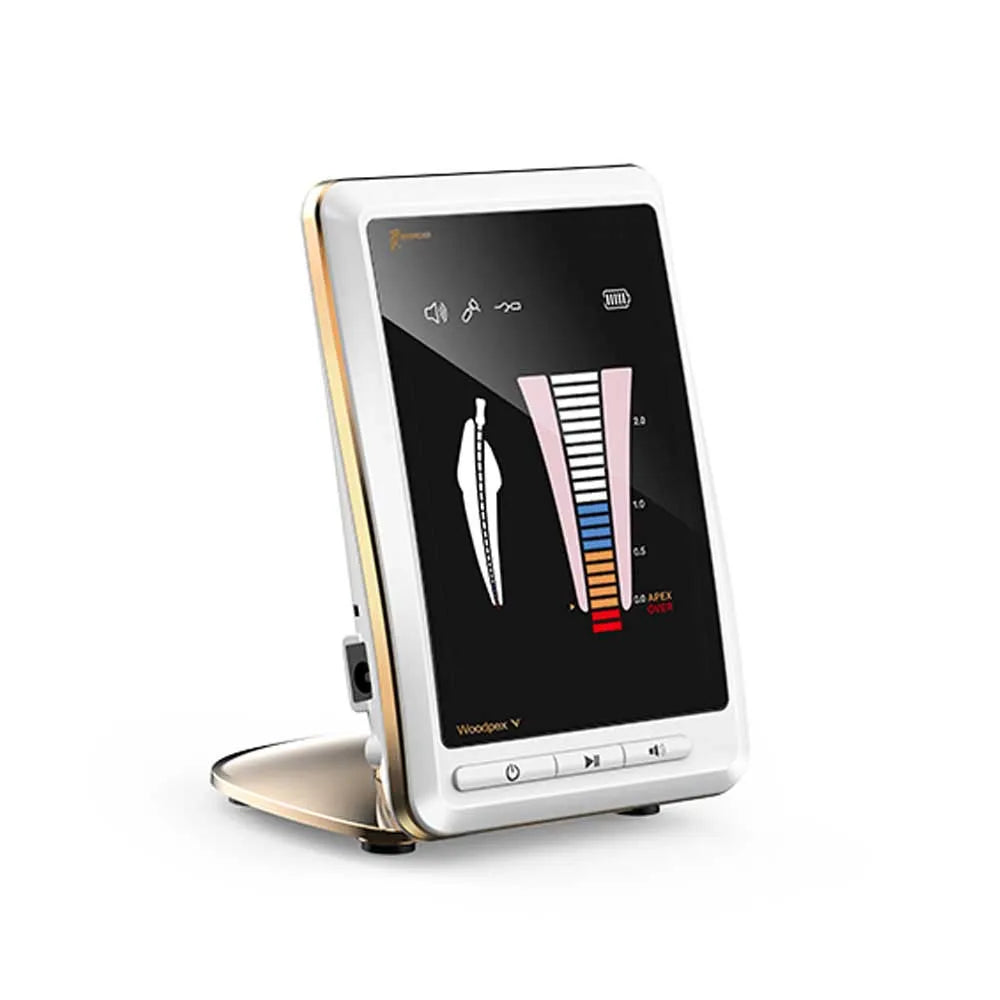

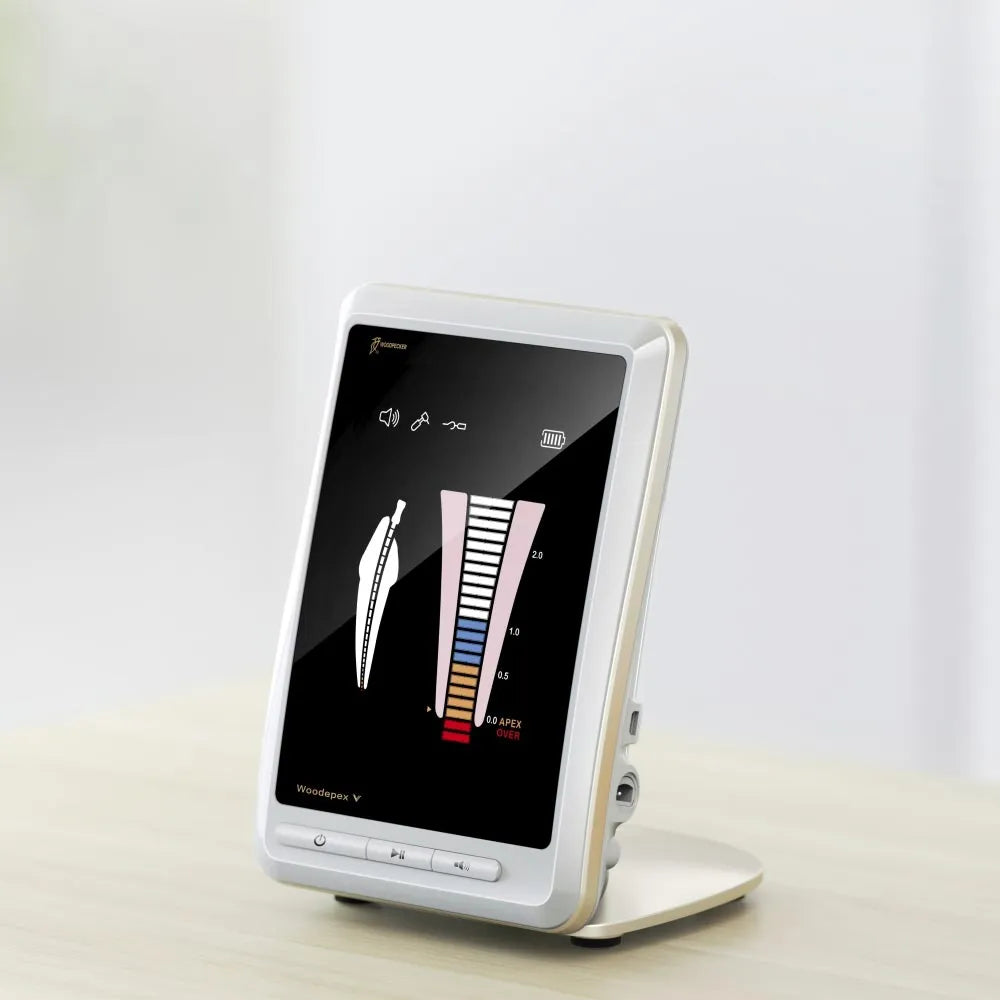

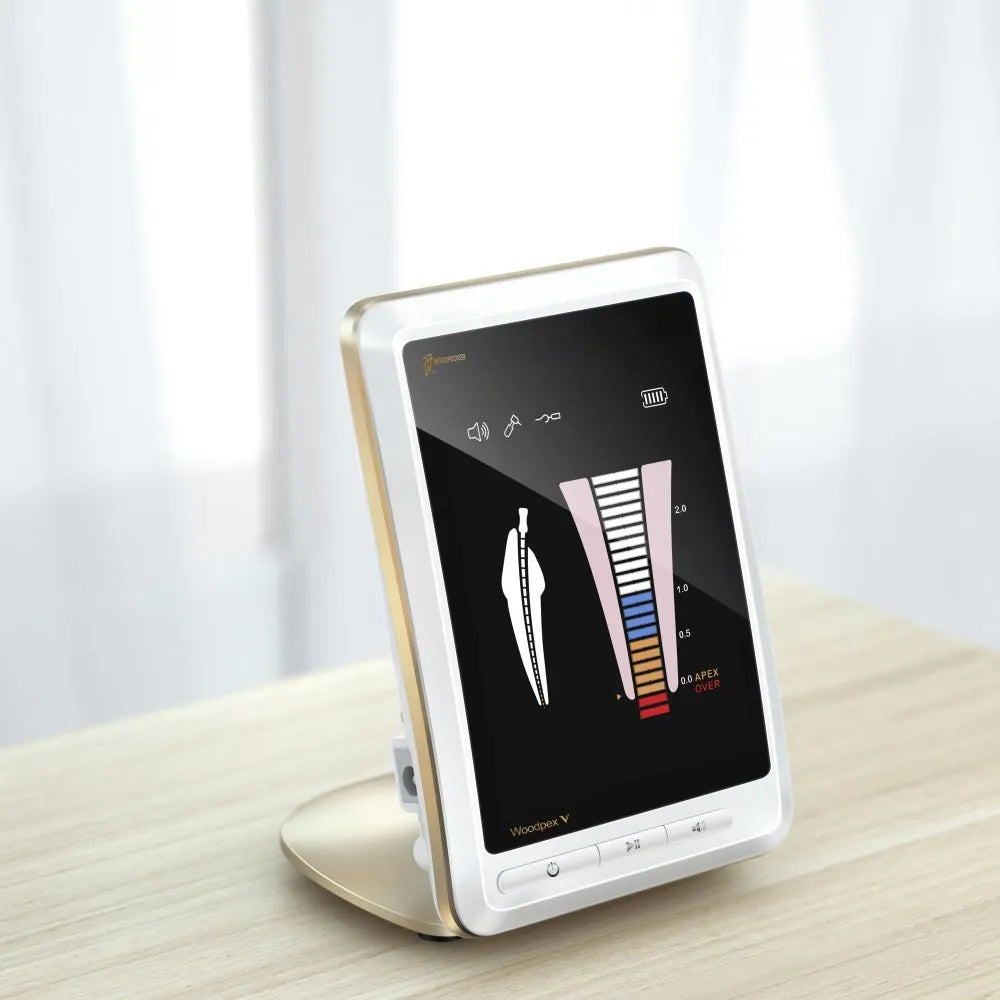

Woodpecker Apex Locator Woodpex Five

• Equipped with clear bright LCD, clear image and different colors indicate the trajectory of the file clearly.
• Based on advanced multiple frequency network impedance measurement technologies and automatic calibrating ensure the measurements are accurate.
• The battery is rechargeable, so don't need to replace the battery repeatedly.
• Folding, easy to adjust the visual angle.

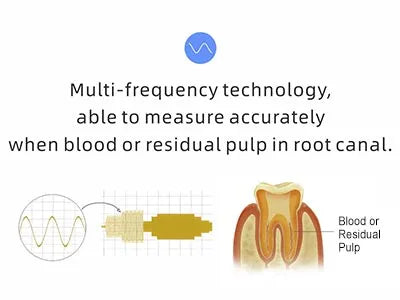

• Adopting the fifth generation circuit in the area of apex locator, based on the multi-frequency closed circuit human body's oral cavity.
• Whether the root canal is dry or filled with electrolyte. blood or physiological brine will not affect the measuring result.
• Autoclavable accessories to avoid cross infection.
• Equipped with self-check circuit to guarantee the accuracy by adjusting the program data beforehand!
• Compact, stable, ergonomic design for easy handling.
• Colored LCD screen and piezoelectric buzzer.
• DC battery-operated.
• Fully guaranteed for one year.
• When measuring, the changes of the sound can indicate the position of the file in the root-canal.
• The measurement is free from the thickness of the file.

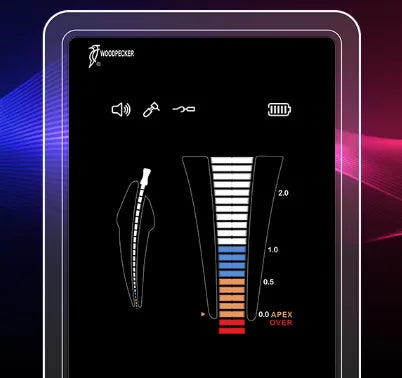

• High resolution color LCD display enables exact visualization of the file tip position.
• Battery power is indicated on the LCD screen
• The contact point of root canal file is made from high-quality metal.

• Battery: 3.7V/750mAh
• Adapter: 100V - 240V 501-Iz/60Hz
• Power consumption: 50.5W
• Screen: 4.5" LCD
• Buzzer alert: The buzzer will alert when the endo file is less than 2mm to the apex
• Environment temperature: +5°C to +40:C
• Relative humidity: 580%
• Atmosphere pressure: 50kPa to 106kPa
• Main unit net weight: 336g
• Main unit gross weight: 360g Unit
• Dimension: 195mm x 137mm x 123mm

• 1 X Main Unit
• 1 x Measuring Wire
• 2 X File Clip
• 2 X Lip Hook
• 2 X Measuring File
• 1 X Adapter
• 1 X Tester
• 1 X Battery
• 1 X Instruction Manual
• 1 X Qualified Certificate
• 1 X Warranty Card
• 1 X Packing List

Measurement Preparation:

• Insert the plug of the measuring wire into the right-side socket of the main unit.
• Connect the file clip and lip hook to their respective sockets on the measuring wire. Ensure a secure connection.

Testing the Wire Connection:

• Power on the device and verify that the scene of measuring the root canal length is displayed on the LCD screen.
• Check if the measuring wire plug is properly inserted.
• Confirm that the file clip and lip hook are connected well to the measuring wire.
• Touch the lip hook to the bent wire of the file clip to ensure a stable connection. The connection icon on the LCD screen should be steady.

Determining the Working Length:

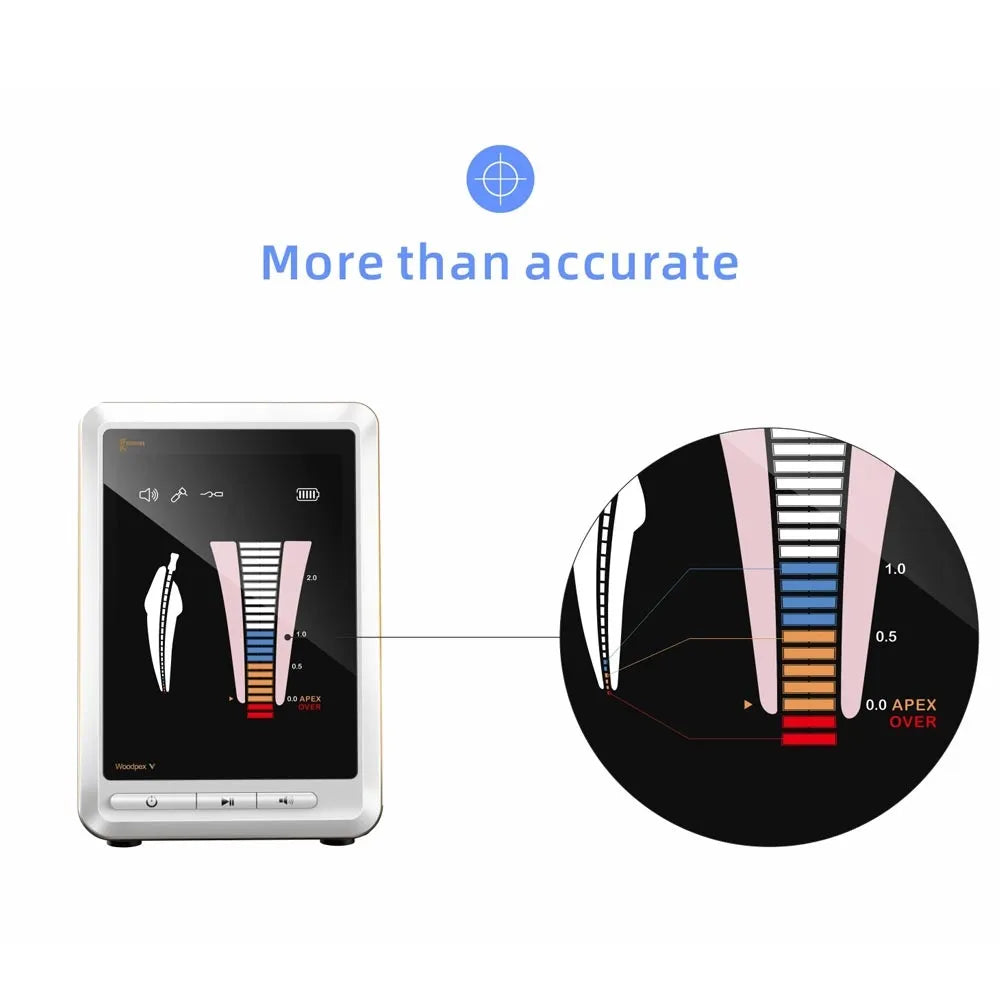

• As you navigate the endo file through the root canal, observe the indicating bar on the screen.
• When the indicating bar reaches the position of the dial 0.0, and "APEX" is displayed, the endo file has reached the anatomical apical foramen.
• Subtract 0.5-1.0 mm from the measured length to determine the working length.

Enlarged Display of Apical Foramen (optional):

• To examine the apical foramen more closely, refer to the enlarged display mode on the LCD screen.

Testing the Device by Tester: To ensure proper functionality, use the provided tester every two weeks:

• Disconnect the measuring wire and turn off the device.
• Insert the tester and power on the device.
• Check if the indicating bar falls within ±3 bars of the dial 0.5. If not, contact the authorized distributor or manufacturer for assistance.

Connecting to Compatible Endo Motor (optional):

If using the Woodpex V with an Endo Motor, connect one end of the USB line to the USB socket on the device and the other end to the compatible Endo Motor. The Contra-angle icon on the screen will indicate successful communication between the devices.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 year as applicable for this product, 5 year warranty on PCB (Power Circuit Board)
• Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services only available in Delhi/NCR )
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: Is the Woodpecker Apex Locator Woodpex Five compatible with the Woodpecker Endomotor ECOM Plus?

Answer: Yes, the Woodpecker Apex Locator Woodpex Five is compatible with the Woodpecker Endomotor ECOM Plus. As a fifth-generation airotor, it seamlessly integrates with the ECOM endomotor, enhancing your endodontic procedures by providing precise measurements and efficient performance.

Question: Is the Woodpecker Apex Locator Woodpex Five compatible with the Woodpecker RTA MiniMotor Brushless Endomotor?
Answer: Yes, the Woodpecker Apex Locator Woodpex Five is fully compatible with the Woodpecker RTA MiniMotor Brushless Endomotor. This connection enhances efficiency during endodontic procedures, allowing for seamless integration and improved workflow in your practice.

Question: Can the Woodpecker Apex Locator Woodpex Five be charged with an adapter from a different brand?
Answer: Yes, the Woodpecker Apex Locator Woodpex Five can be charged using an adapter from a different brand. This flexibility allows for convenient charging options while ensuring the device remains operational.

Question: What is the difference between DTE gen 5 and Woodpex Five apex locator?
Answer: The primary difference between the DTE Gen 5 and Woodpex Five apex locators lies in their design. The DTE Gen 5 features a horizontal-type design, while the Woodpex Five adopts a vertical-type design. Both apex locators offer comparable accuracy in apex determination, ensuring reliable performance in endodontic procedures. While their designs vary, both models are renowned for their precision and effectiveness in locating the apex accurately, contributing to successful root canal treatments.

Question: Can it be used for pulp testing?
Answer: No, the Woodpecker Apex Locator Woodpex Five cannot be used for pulp testing. This device is specifically designed as an apex locator, not a pulp tester. Apex locators like the Woodpecker Apex Locator Woodpex Five are used by dentists to accurately determine the working length during endodontic treatments by locating the apical constriction within the root canal.

Question: How is it different from woodpex 3 apex locator?
Answer: The Woodpecker Woodpex Five Apex Locator differs from the Woodpex 3 in terms of its user interface and design. While both devices serve the purpose of determining the apex accurately during root canal procedures, the Woodpex Five features a distinct user interface and design compared to the Woodpex 3. These differences may include variations in display screens, button layouts, and overall ergonomics, offering practitioners options that best suit their preferences and workflow requirements.

Question: Can it be connected to woodpecker endomotor?
Answer: Yes, the Woodpecker Apex Locator Woodpex Five can be connected to Woodpecker endomotors that facilitate connection with apex locators, such as the Woodpecker E-com Plus Cordless Endomotor, Woodpecker DTE Endo Smart Plus Endomotor. This compatibility allows for seamless integration and enhanced functionality during endodontic procedures.

Question: What is the difference between DTE Dpex apex locator and Woodpex Five?
Answer: The Woodpecker Apex Locator Woodpex Five and DTE Dpex 5 are both advanced 5th generation apex locators. The primary distinction lies in their design aesthetics; Woodpex Five features a vertical type display screen, whereas DTE Dpex 5 is equipped with a horizontal type display screen. Both offer precise apex measurements with ergonomic variations.

Question: Can it used with Endo gold endomotor?
Answer: No, the Woodpecker Apex Locator Woodpex Five cannot be directly connected to the Endo Gold Endomotor. They are separate devices designed for different purposes and functionalities.
