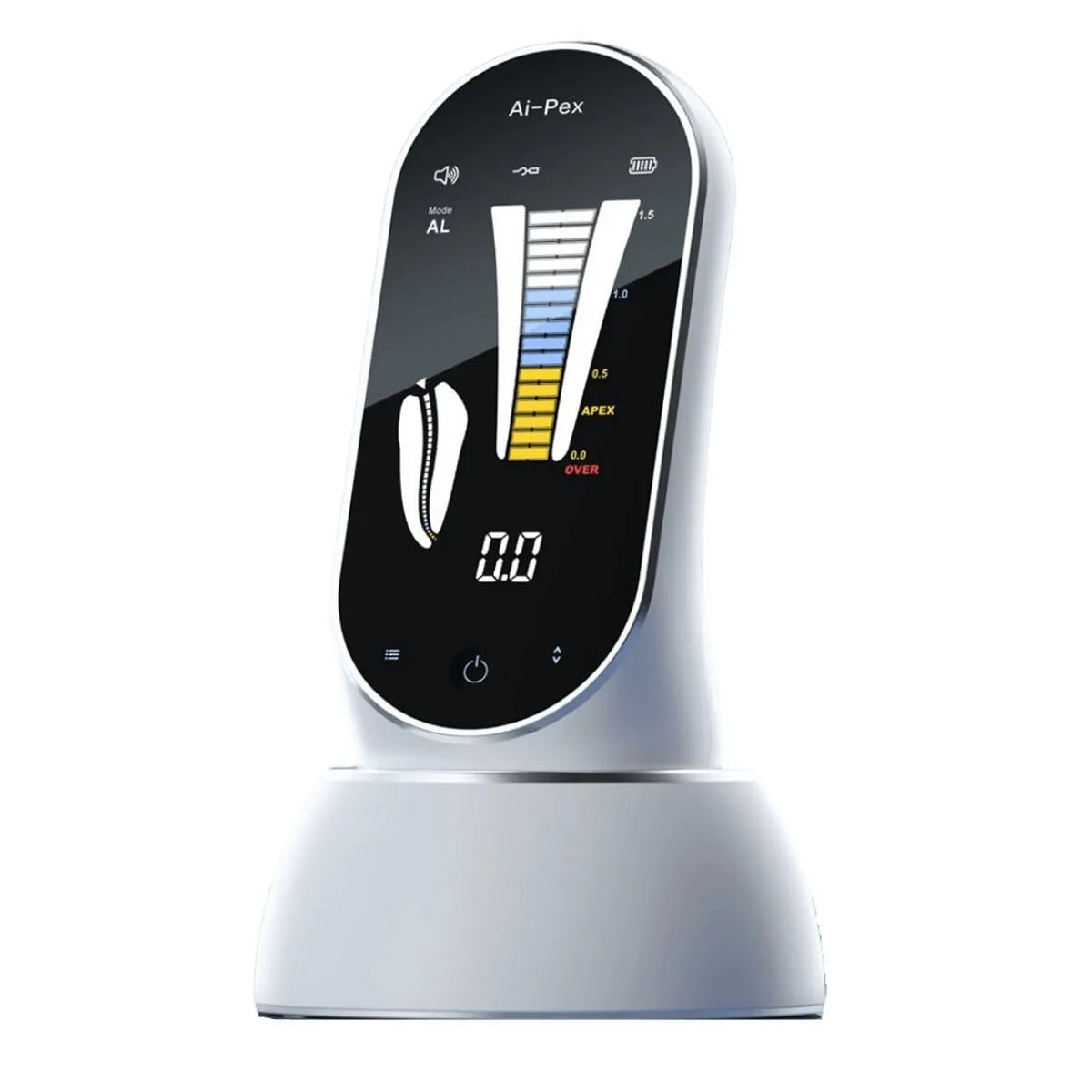

Woodpecker Ai-Pex Apex Locator with Pulp Tester

• 7 Generation Apex Locator With high Accuracy.
• 3.8" LCD Touch Screen.
• Adjustable sound recognition.
• Over 5h wireless working time on full charge.
• Constant current source-Electric pulp testing.
• Anti-inteference software for increased acuracy.
• Unique magnetic swivel stand for 360 rotation and viewing.
• Automatic calibration on startup.

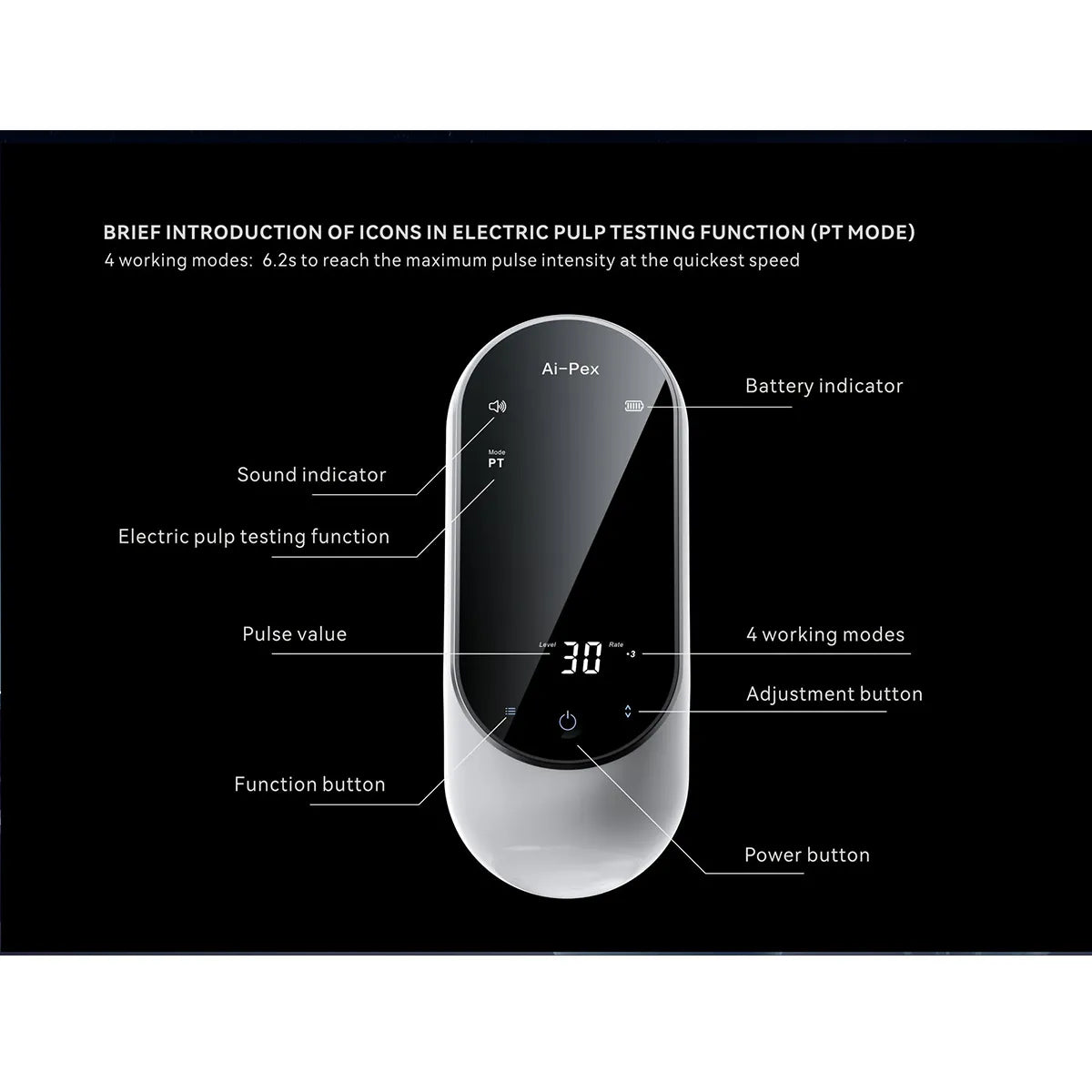

• 4 working modes.

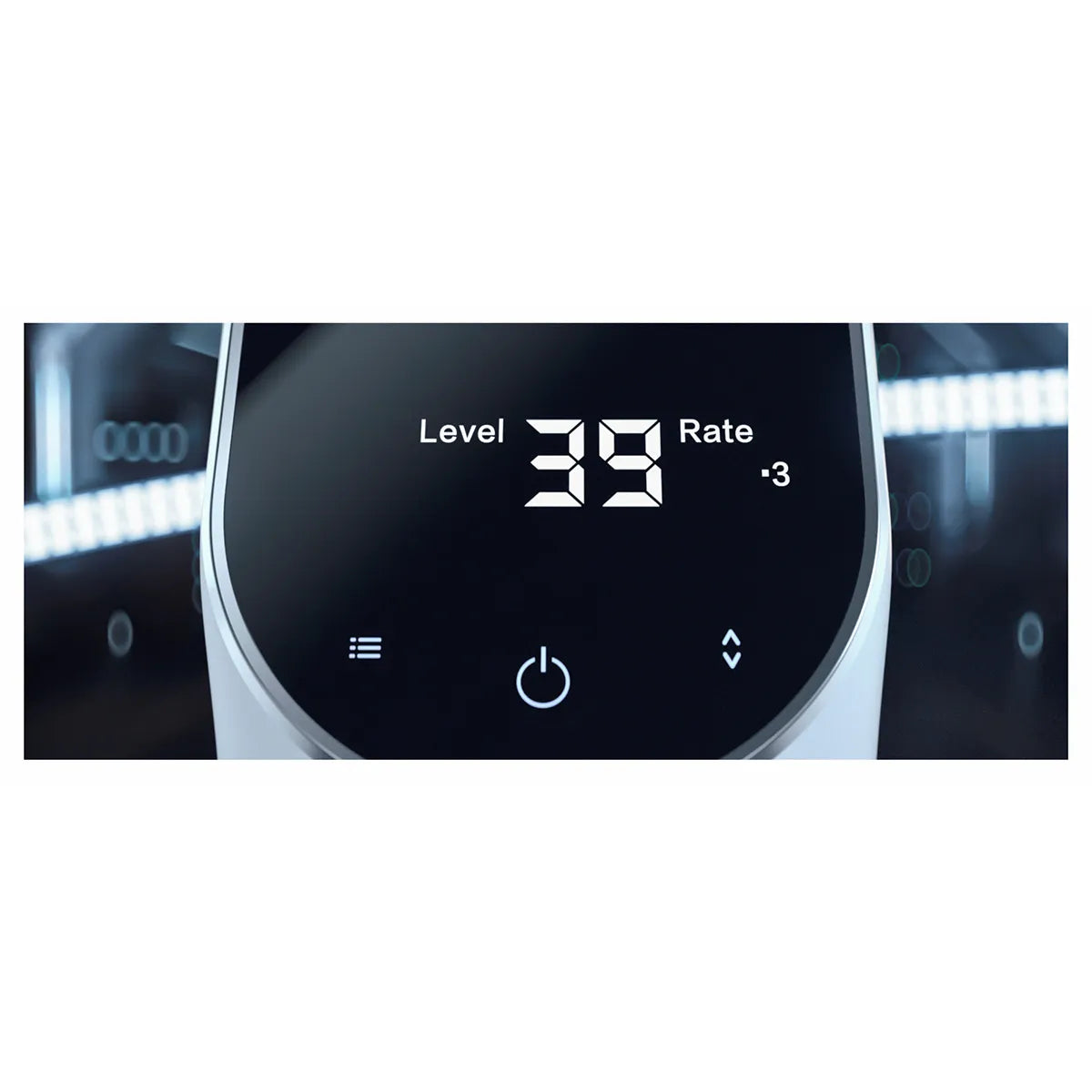

• 6.2s to reach maximum pulse intensity.

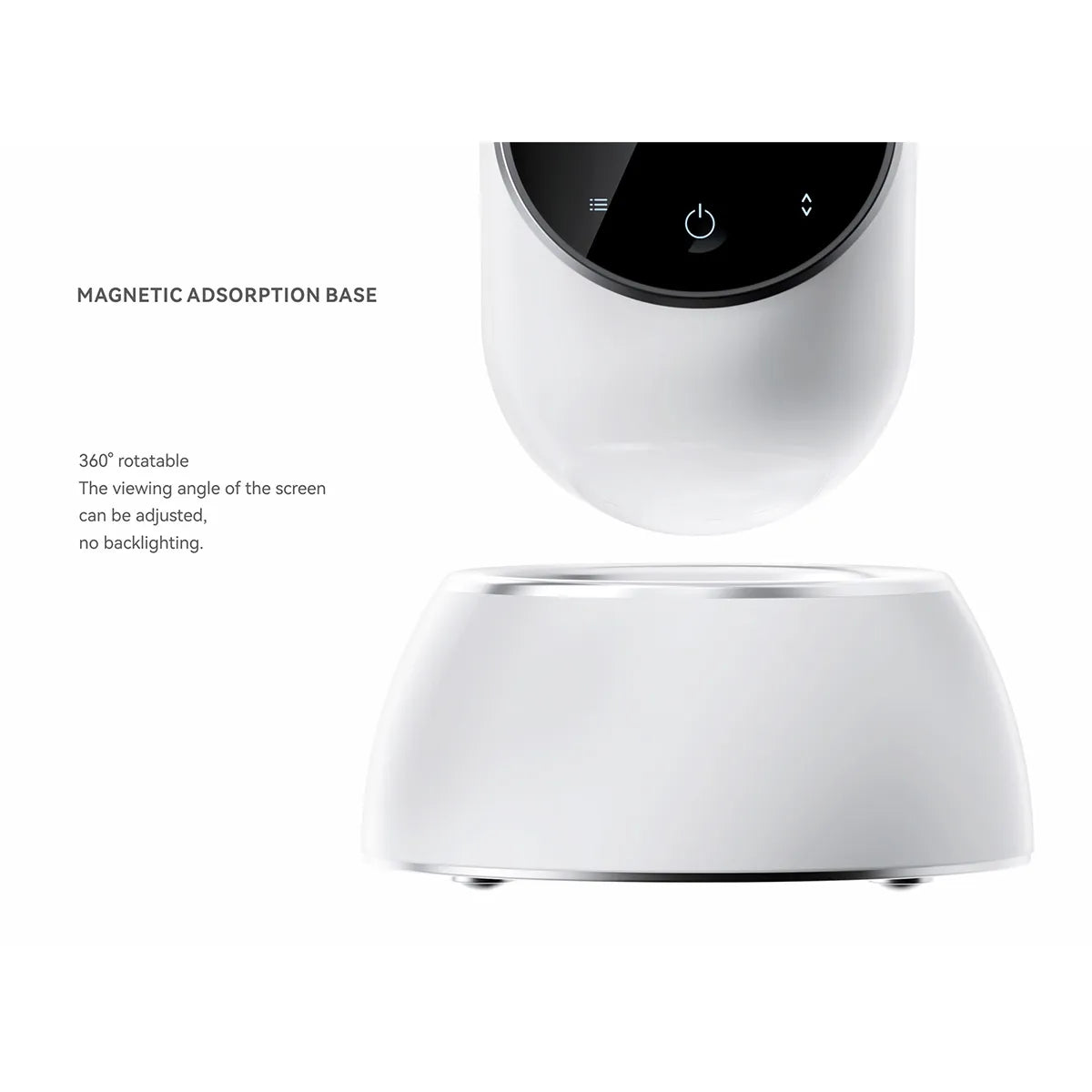

• Magnetic absorption-Unique base design.
• Root canal apex finder and pulp vital measurment.
• Multi frequency design, exact accurate.

• Working time: 5hr 20min
• Charging time: 3 hours
• Battery: 3.7v/2000mAh
• Input: ∼100v-240v 50Hz/60Hz 0.4A
• Consumption power: 0.5W
• Screen: 3.8-InchLCD Screen

Operation Condition:-

• Environment temperature: -5°C-+40°C
• Relative humidity: 30%∼75%
• Atmosphere Pressure: 70kP∂-106k

• 1 x Ai-Pex Main Unit
• 1 x Measuring Wire
• 4 x File Clips
• 5 x Hooks
• 2 x Touch Probes
• 2 x Pulp Tester Probes
• 1 x Adapter
• 1 x Tester
• 1 x Power Lead

• Prepare the device by inserting the plug of the measuring wire into the right-side socket of the main unit.
• Ensure that the device is stable and avoid any impact or damage during use.
• Connect the appropriate accessories to the measuring wire. For Apex Locator mode, connect the white end of the wire to the lip hook and the gray end should be suspended
• Test the wire connection before each use. Press the power switch to turn on the device and make sure the scene of measuring the length of the root canal is displayed on the LCD screen. Ensure that the plug of the measuring wire is inserted correctly and that the file clip and lip hook are connected well to the measuring wire. Verify that the connection icon on the LCD screen shows steadily.
• Once the device is properly connected and the measurements are displayed, proceed to determine the working length of the root canal.

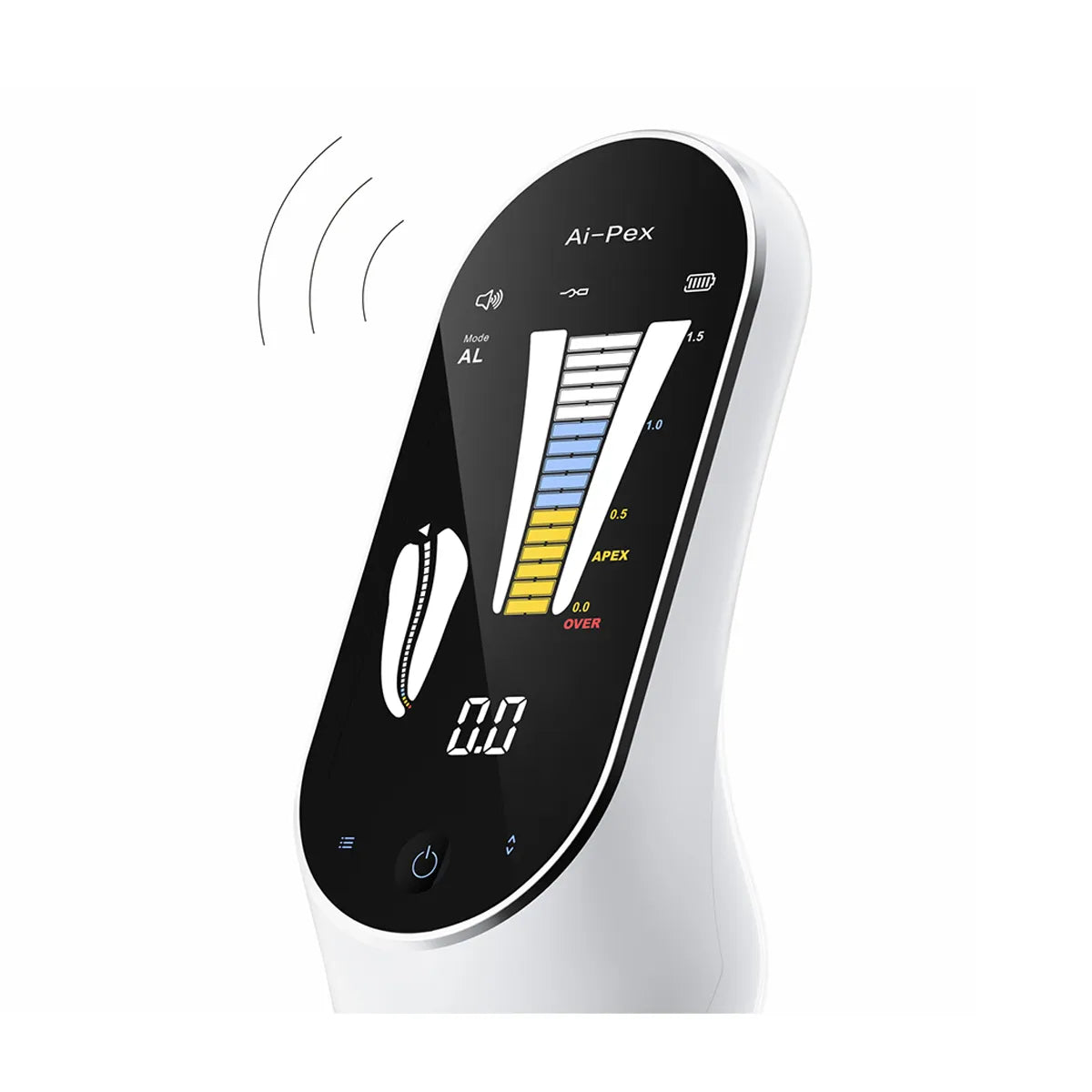

1. Observe the indicating bar on the screen. When it reaches the position of the dial 0.0 and the word "APEX" is displayed, it indicates that the endo file has reached the anatomical apical foramen. Subtract 0.5-1.0 mm from the measured length to obtain the working length.
2. If the indicating bar reaches the red area labeled "OVER," it means that the file has extended beyond the apex. In this case, carefully move the file slightly towards the apex until the signal returns to normal.

• Before each use, ensure that the access cavity is dry to prevent leakage or interference between the root canal and inaccurate measurements. Use a cotton pellet or air-blower to dry the cavity.
• Follow all sterilization procedures for the accessories, such as autoclaving the File clip, Lip hook, Touch probe, and Pulp tester probe before each use.

• Country of Origin: PRC
• Manufacturer: Woodpecker

• Manufacturer/Importer warranty of 1 Year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims concerning returns and replacement shall be made to the concerned Manufacturer/Importer only. Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered with as the case may be.

Question: What generation is the Woodpecker Ai-Pex Apex Locator with Pulp Tester?

Answer: The Woodpecker Ai-Pex Apex Locator is a 7th generation apex locator. It features an integrated pulp tester, enhancing its functionality by providing reliable apex location while simultaneously assessing pulp vitality. This advanced design improves clinical efficiency and accuracy during endodontic procedures.

Question: Can apex locators be used for testing pulp vitality?

Answer: Yes, apex locators can also be used to test pulp vitality by using the pulp tester probe accessory. It helps in determining the vitality or health of the dental pulp.

Question: What are the components of an apex locator?

Answer: The main components of an apex locator typically include the main unit, measuring wire, lip hooks, file clip, touch probe, adapter, and pulp tester probe.

Question: How does an apex locator work?

Answer: Apex locators use advanced multiple-frequency network impedance measurement technology. They measure the electrical resistance and impedance in the root canal to determine the position of the file or instrument tip.

Question: How should I care for and maintain an apex locator?

Answer: It is important to follow the manufacturer's instructions for cleaning and sterilizing the autoclavable accessories. Ensure proper storage and avoid disassembling the device unless necessary. Keep the device away from impacts and remove the battery if not in use for a long time.
