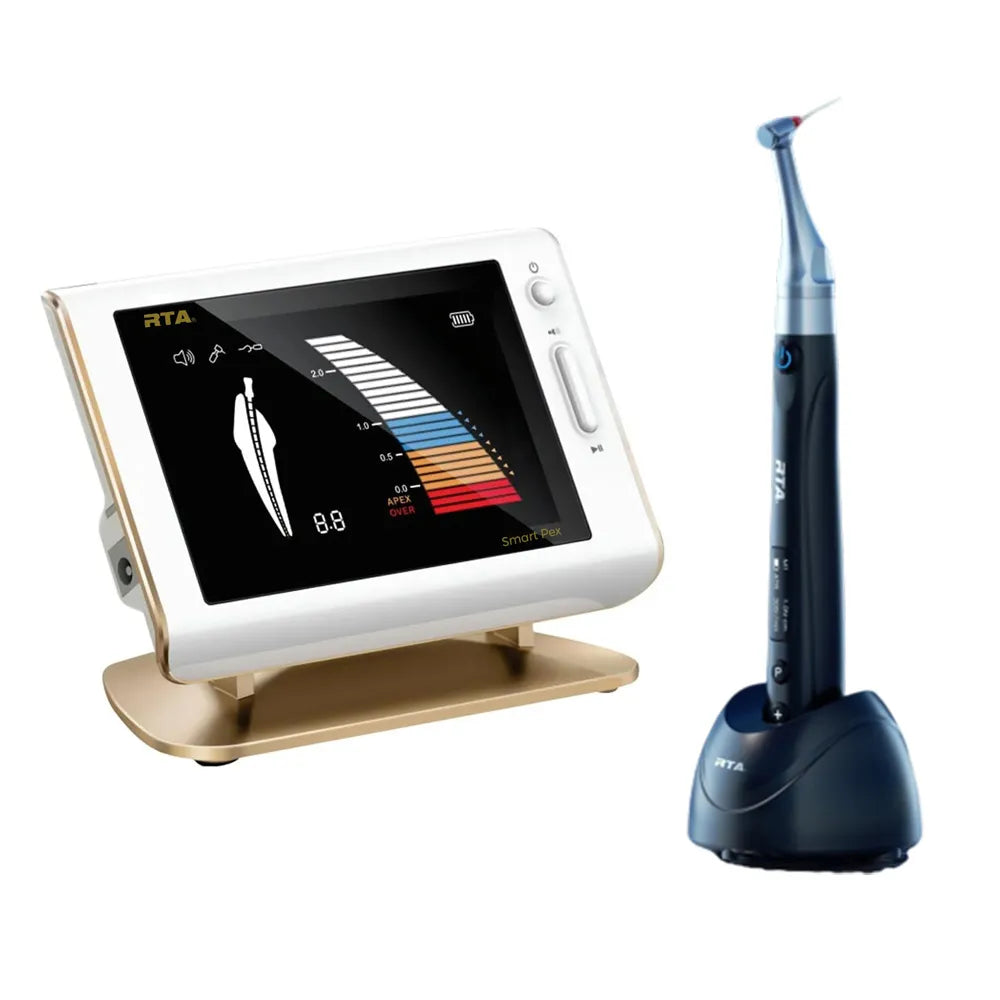

Waldent Smart-Pex Apex Locator + RTA MiniMotor Brushless Endomotor By Woodpecker

Name: Waldent Smart-Pex Apex Locator + RTA MiniMotor Brushless Endomotor By Woodpecker
Brand: Woodpecker
Price: 25800.00 INR
Availability: InStock

Rs. 25,800.00

~~Rs. 78,200.00~~ Rs. 25,800.00

Sale Sold out

Quantity

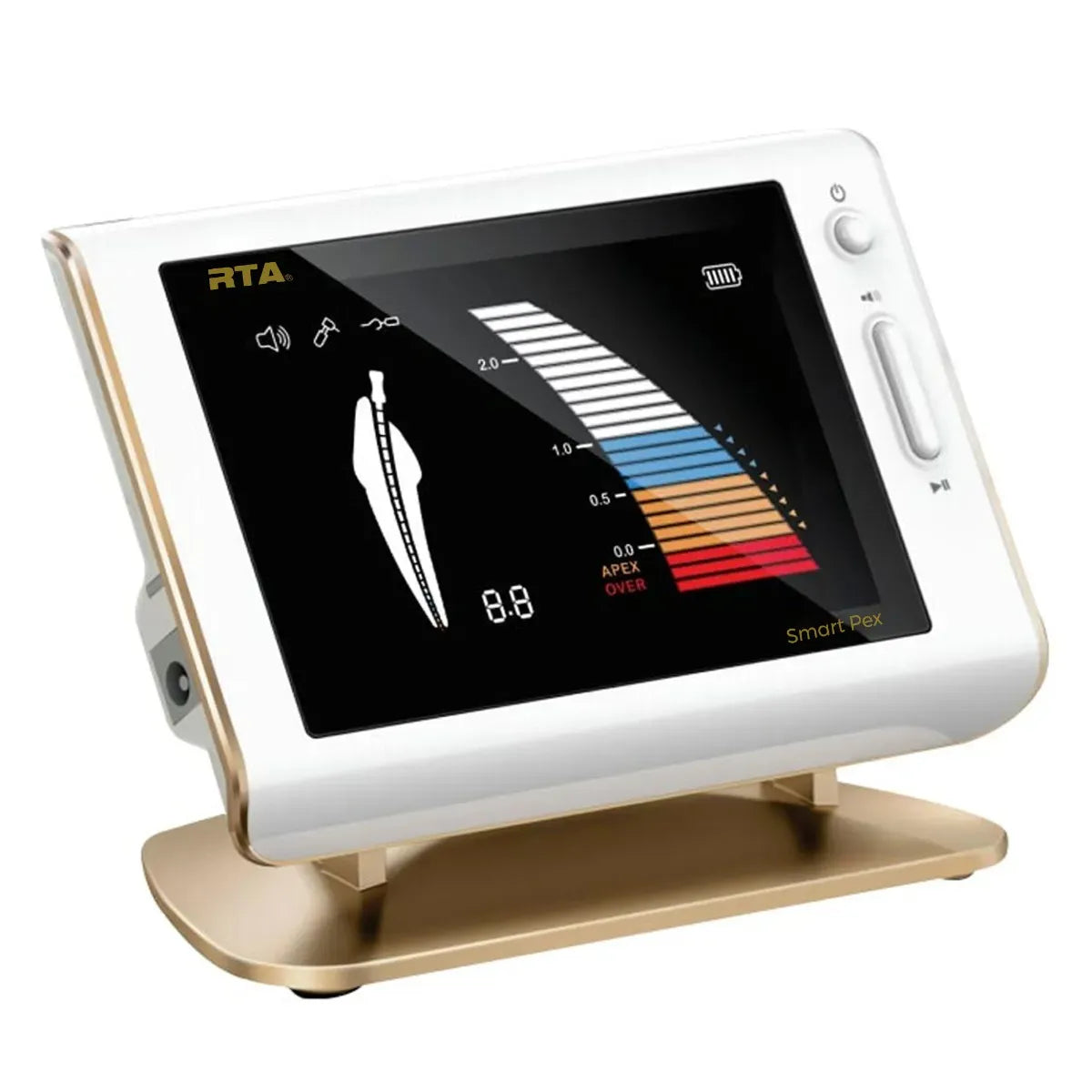

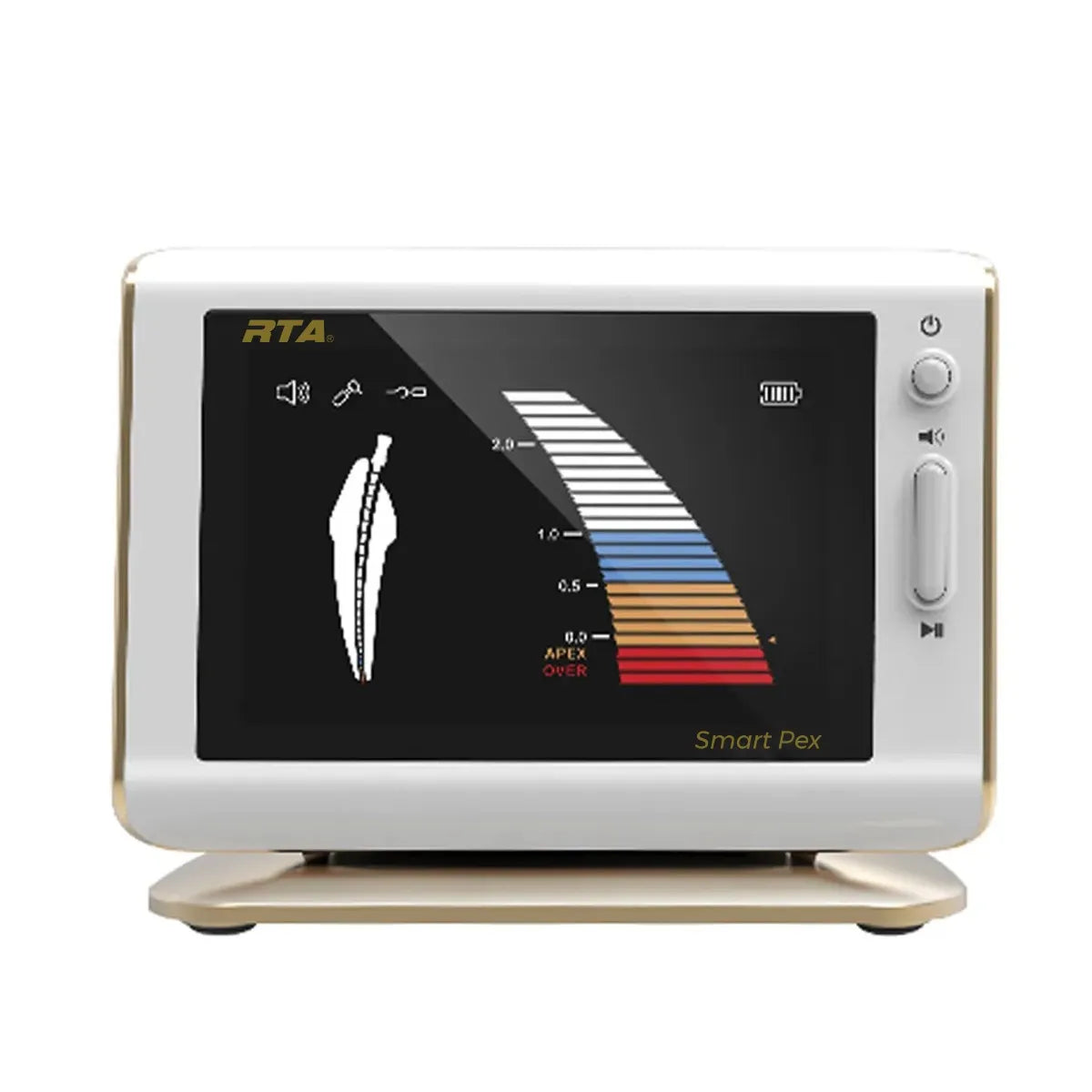

Waldent RTA Smart-Pex Apex Locator by Woodpecker, a cutting-edge device designed to revolutionize endodontic procedures. This apex locator boasts state-of-the-art technology, including a clear bright LCD screen, ensuring optimal visibility and precise measurements of the root canal length. The smart-pex feature enhances accuracy by minimizing the influence of subjective factors, guaranteeing reliable results regardless of tooth type or canal conditions. With its compact design and intuitive interface, the Waldent RTA Smart-Pex Apex Locator offers ease of use and efficiency in every procedure. Trusted by professionals worldwide, this apex locator ensures superior outcomes, making it an indispensable tool in modern endodontics. Upgrade your practice with the Waldent RTA Smart-Pex Apex Locator and experience unparalleled precision and performance.

ADVANTAGE:

Clinical data matching, the accuracy rate has been improved to 98%
Upgraded chip, real-time response. The sensitivity has been improved to double.
The innovative algorithm, multi-frequency measurement & anti-interference.
LCD Screen, the trajectory of the file can be clearly shown in different colors.
Multi-frequency apical positioning technology,
Avoiding the influence of subjective factors for measurement results.
Measurement results will not be affected by tooth type,
Root canal’s internal environment does not hamper its effectiveness.

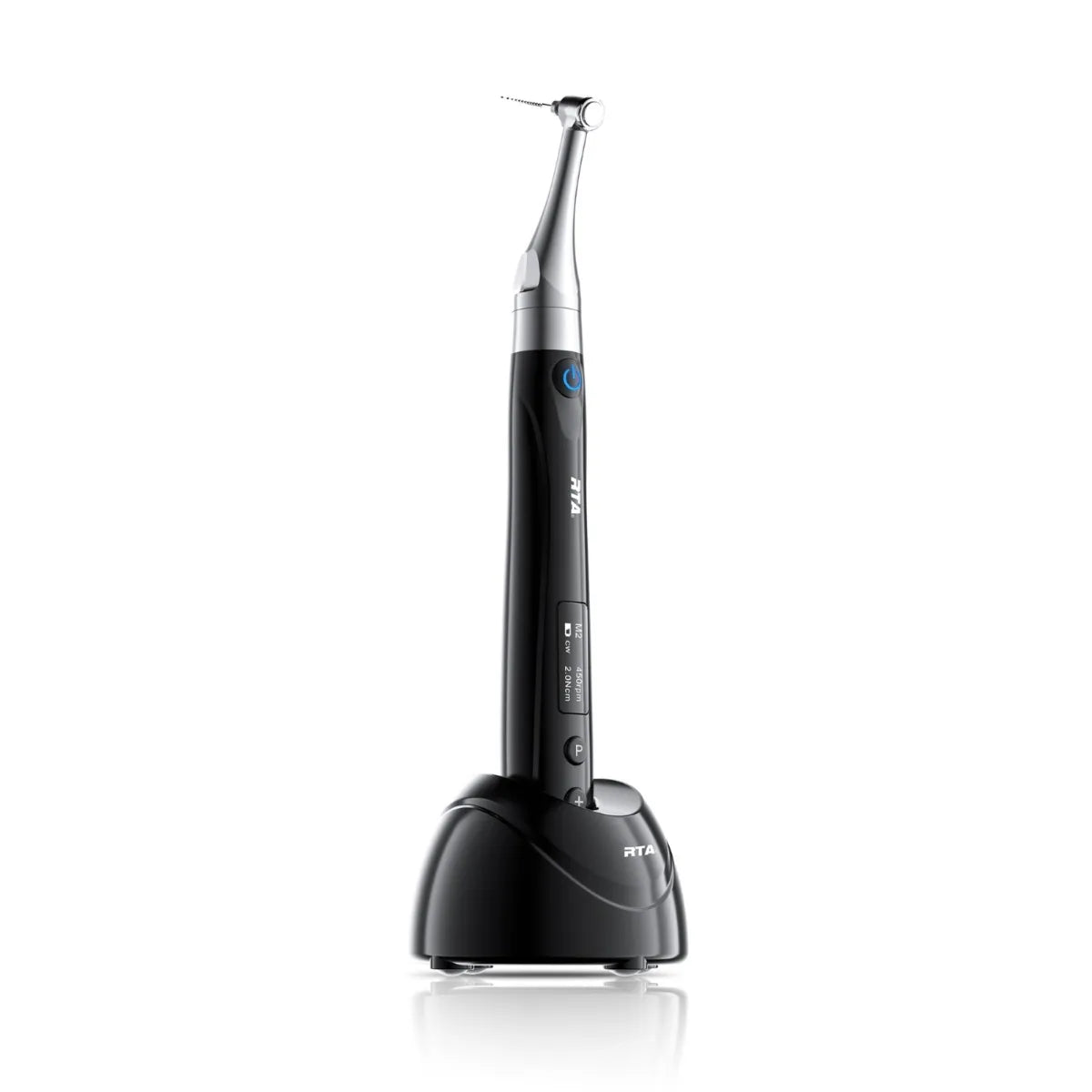

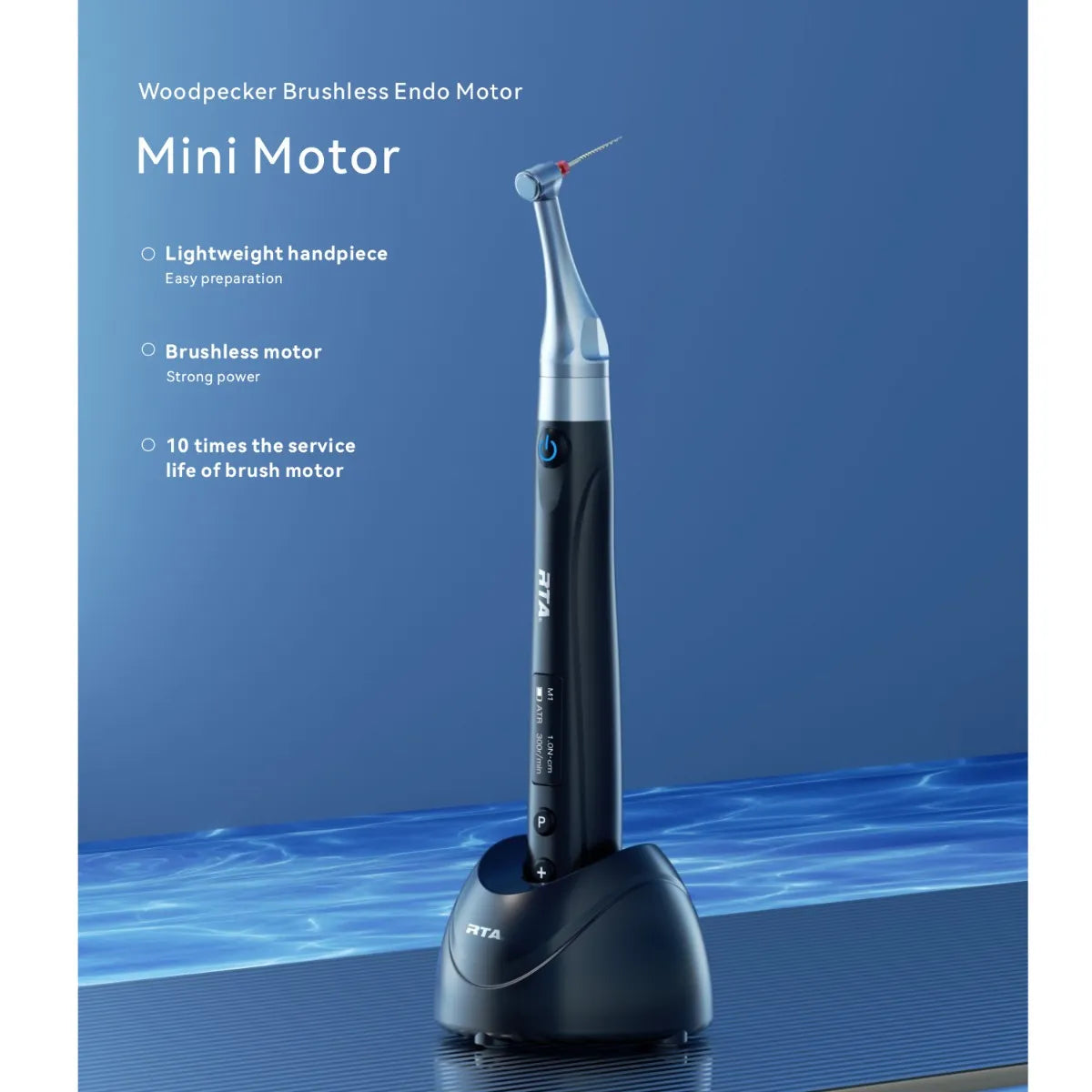

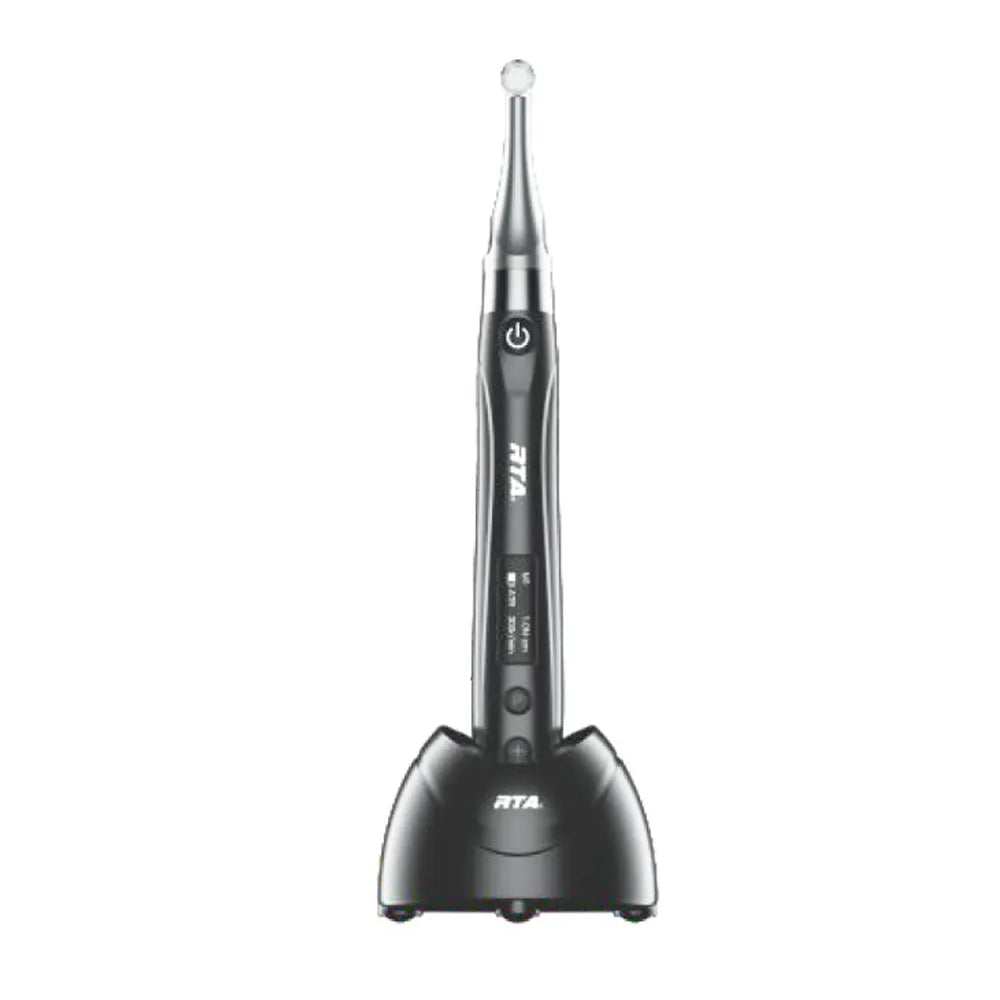

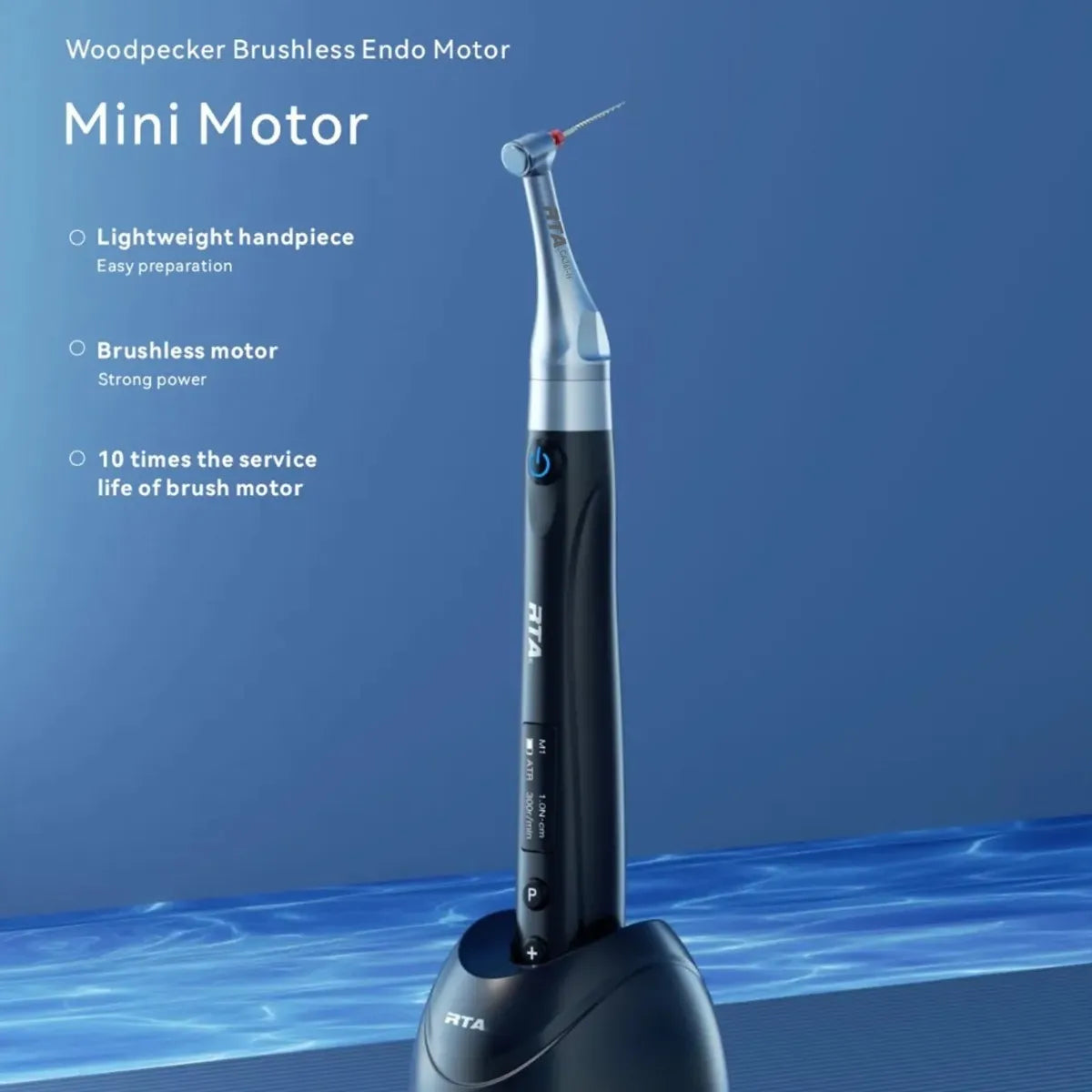

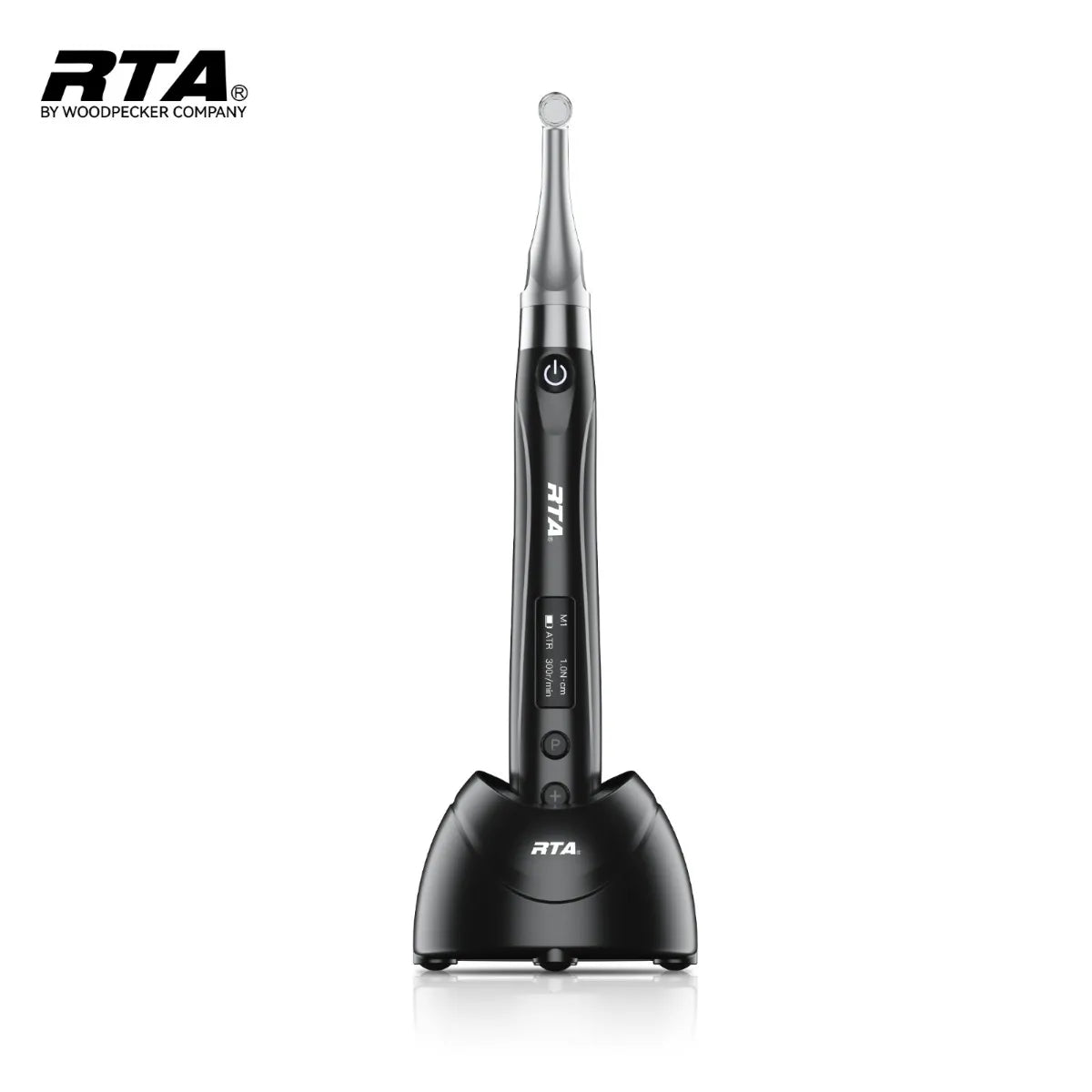

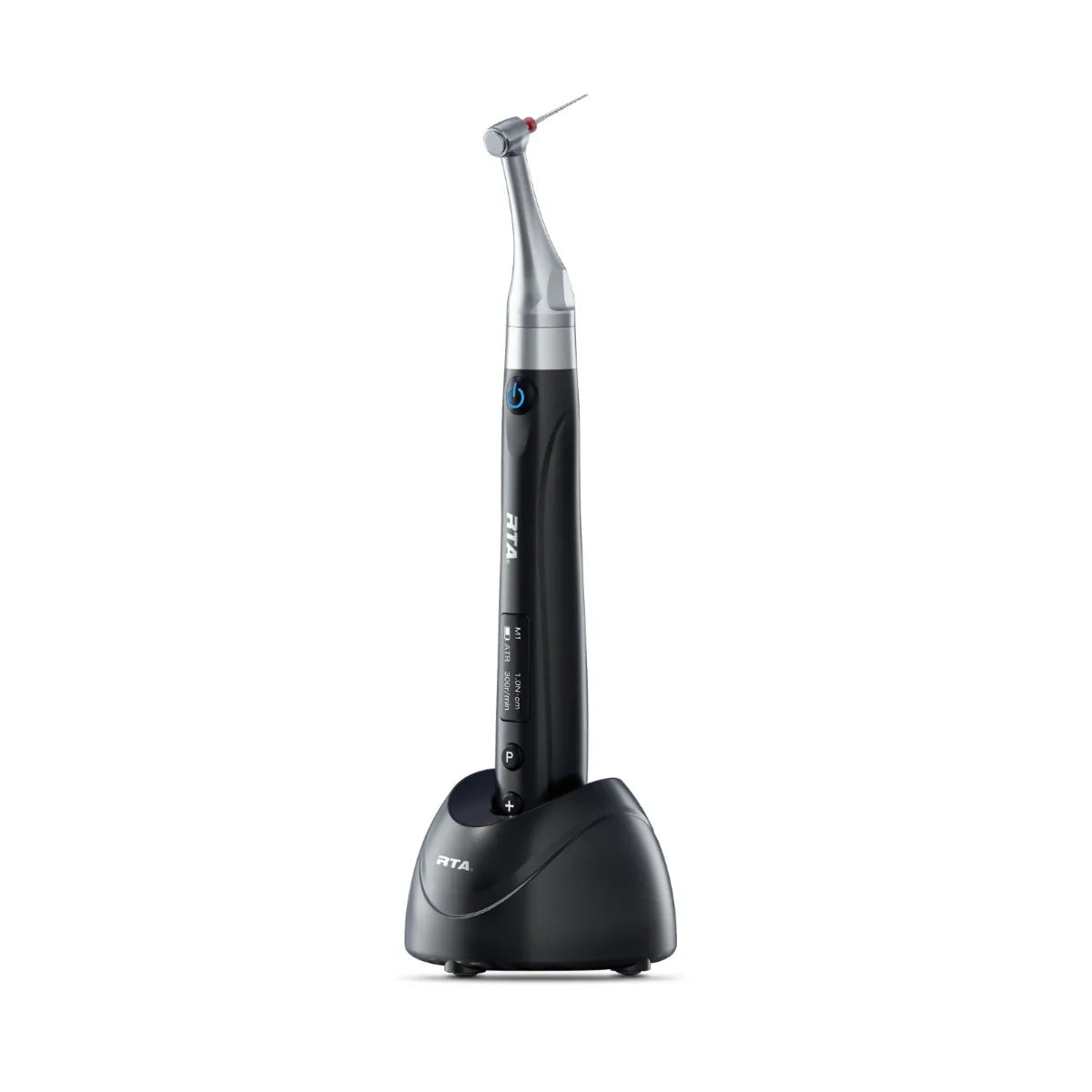

Woodpecker RTA MiniMotor Brushless Endomotor is designed for easy and efficient dental preparation. Powered by a high-performance brushless motor, it offers strong power, high torque, and fast response, ensuring more accurate and stable output. The motor's service life is 10 times longer than that of traditional brush motors, providing low wear, low heat, and smoother rotation with lower noise. Its speed ranges from 100r/min to 1500r/min, with a torque range of 0.4N·cm to 4.2N·cm, ensuring stable cutting even at the narrow or curved apex.

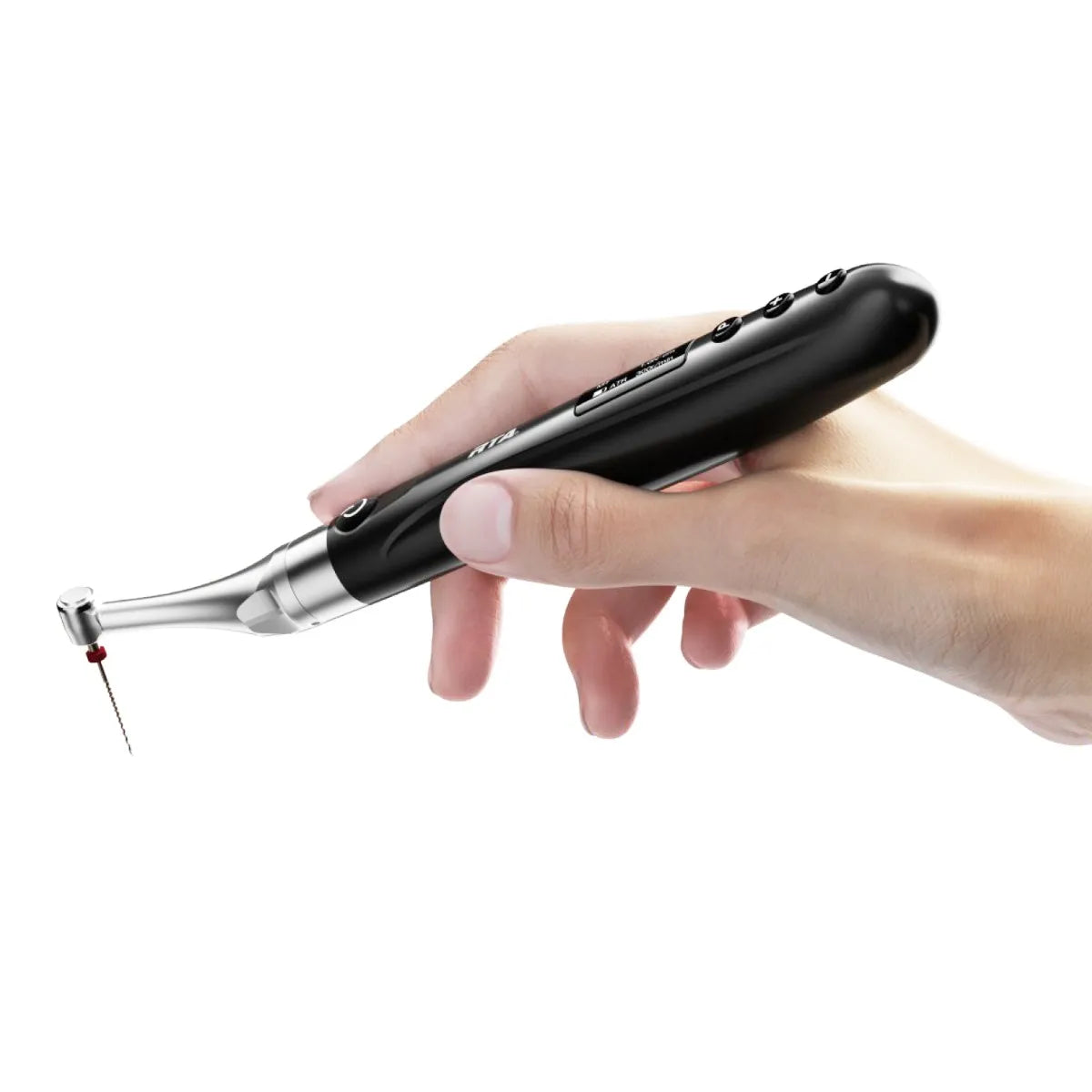

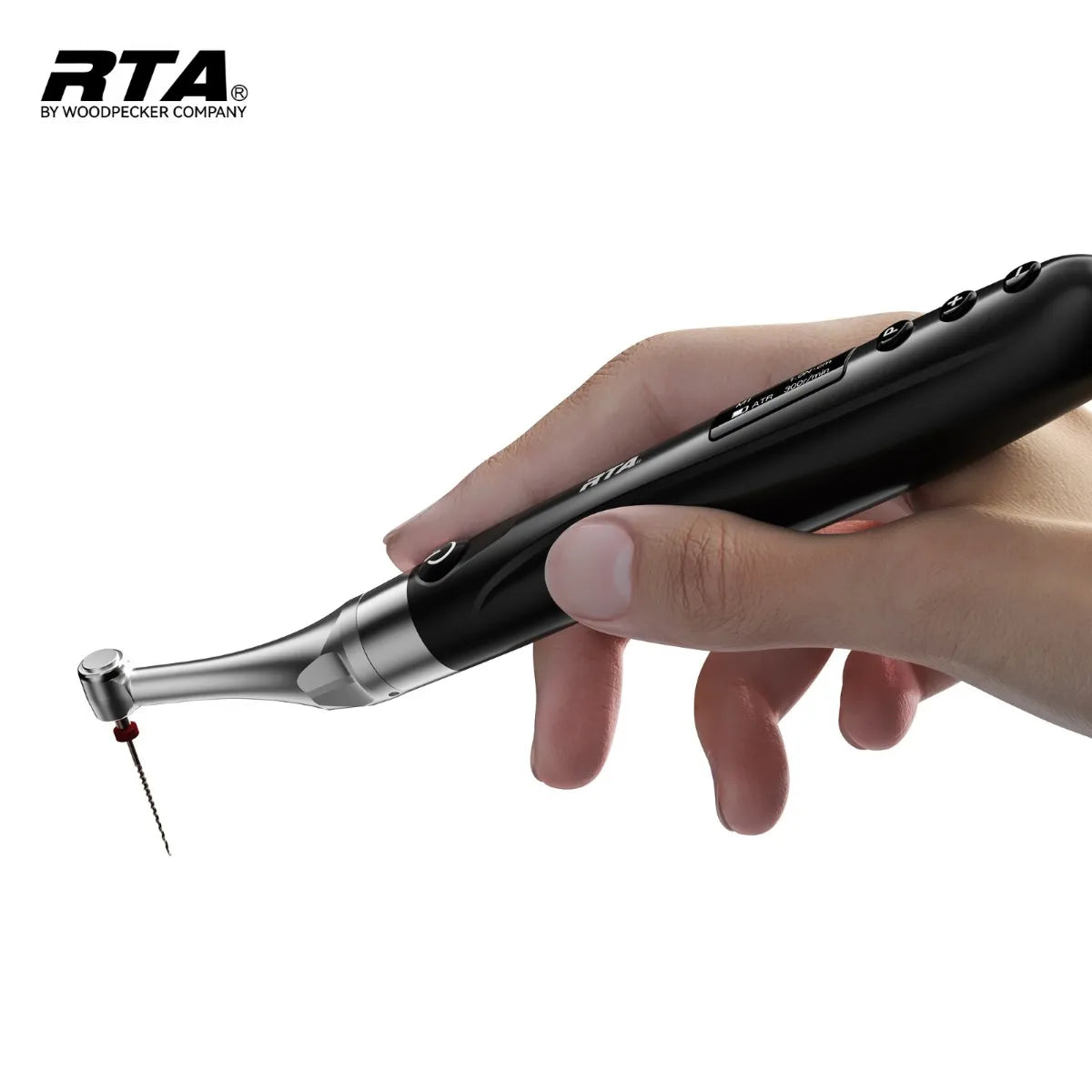

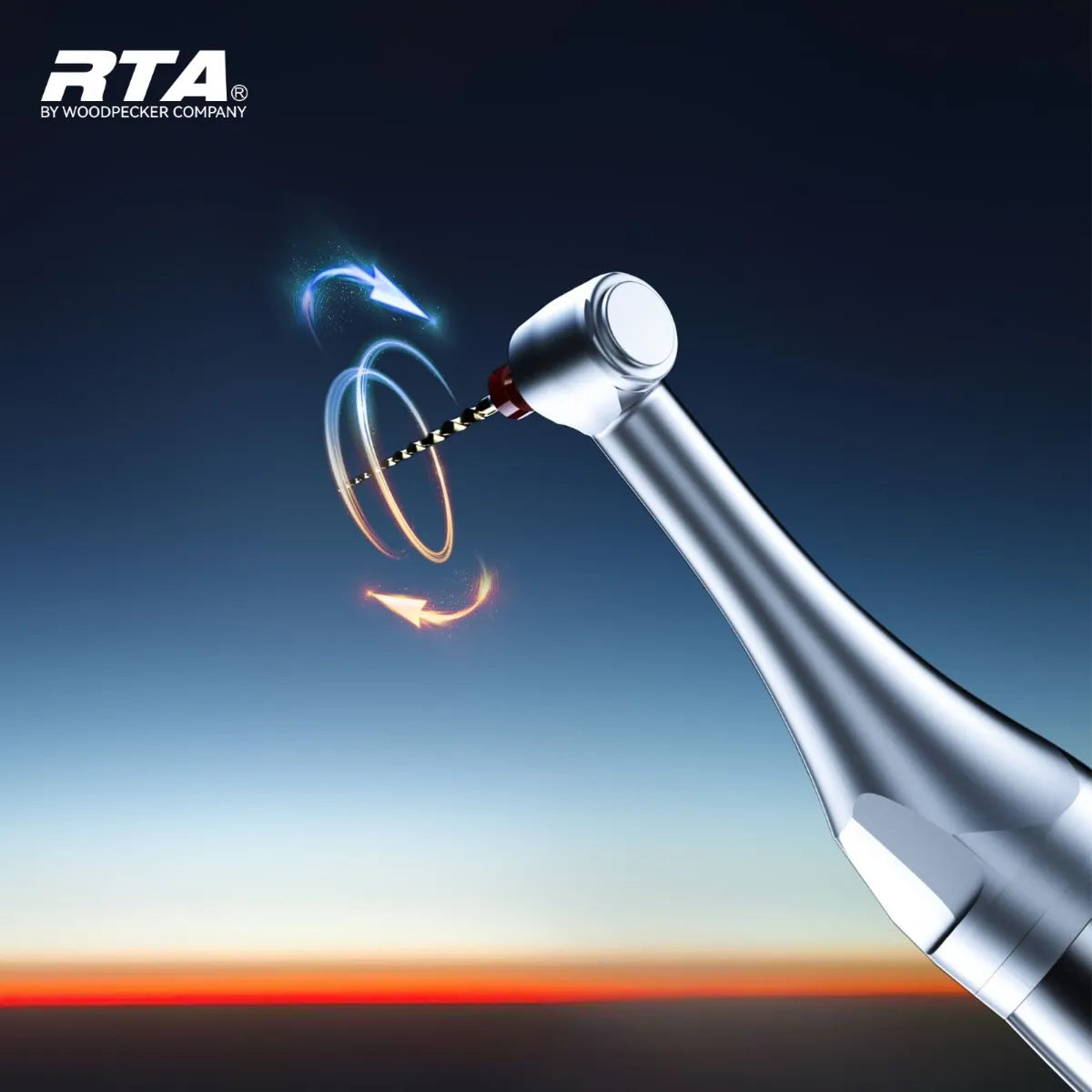

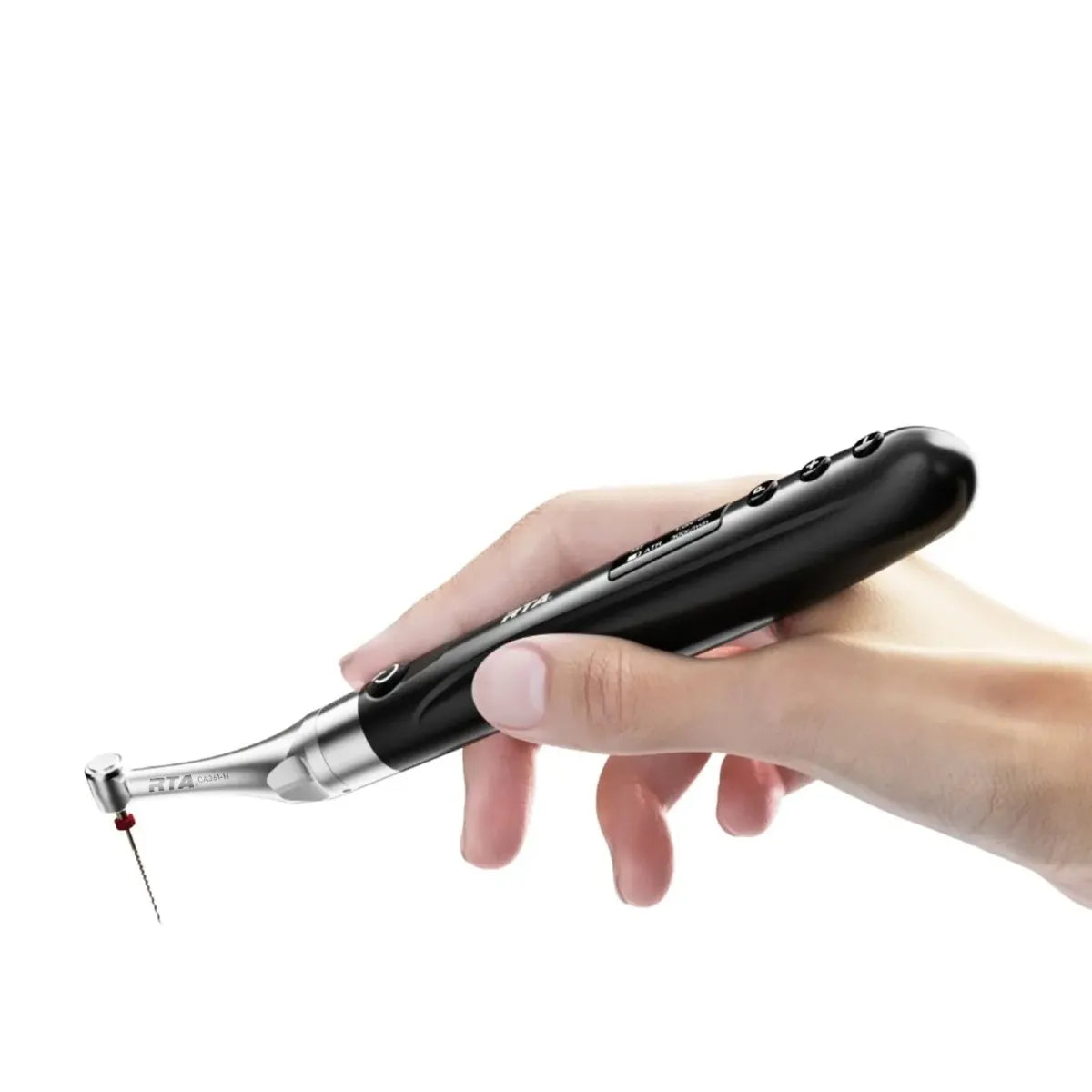

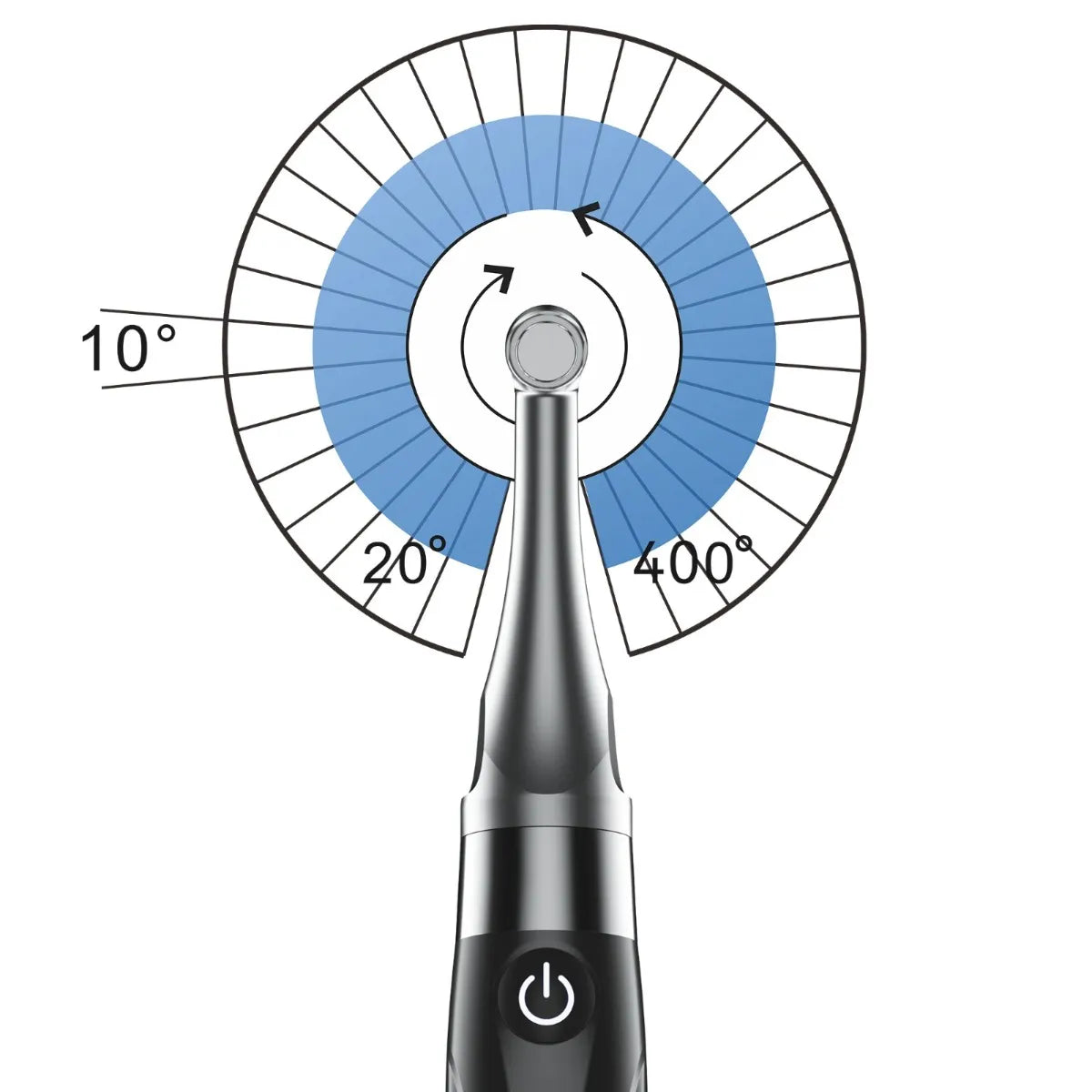

The handpiece features an adjustable reciprocating angle with a 10° interval, allowing for a forward and reverse angle adjustment range of 20° to 400°. This accurate control reduces the risk of instrument separation, enhancing preparation efficiency and safety. The 6:1 mini contra-angle provides a broader operation field with a compact yet powerful design, ensuring low speed and stable rotation under high torque. With a head height of 9.7mm, head diameter of 8mm, and neck diameter of 6mm, it offers flexible operation, facilitating the preparation of teeth in different positions. The lightweight cordless handpiece is well-balanced, allowing for easier preparation and can be controlled wirelessly, free from the restraint of a tail cord.

Features

Waldent RTA Smart-Pex Apex Locator By Woodpecker

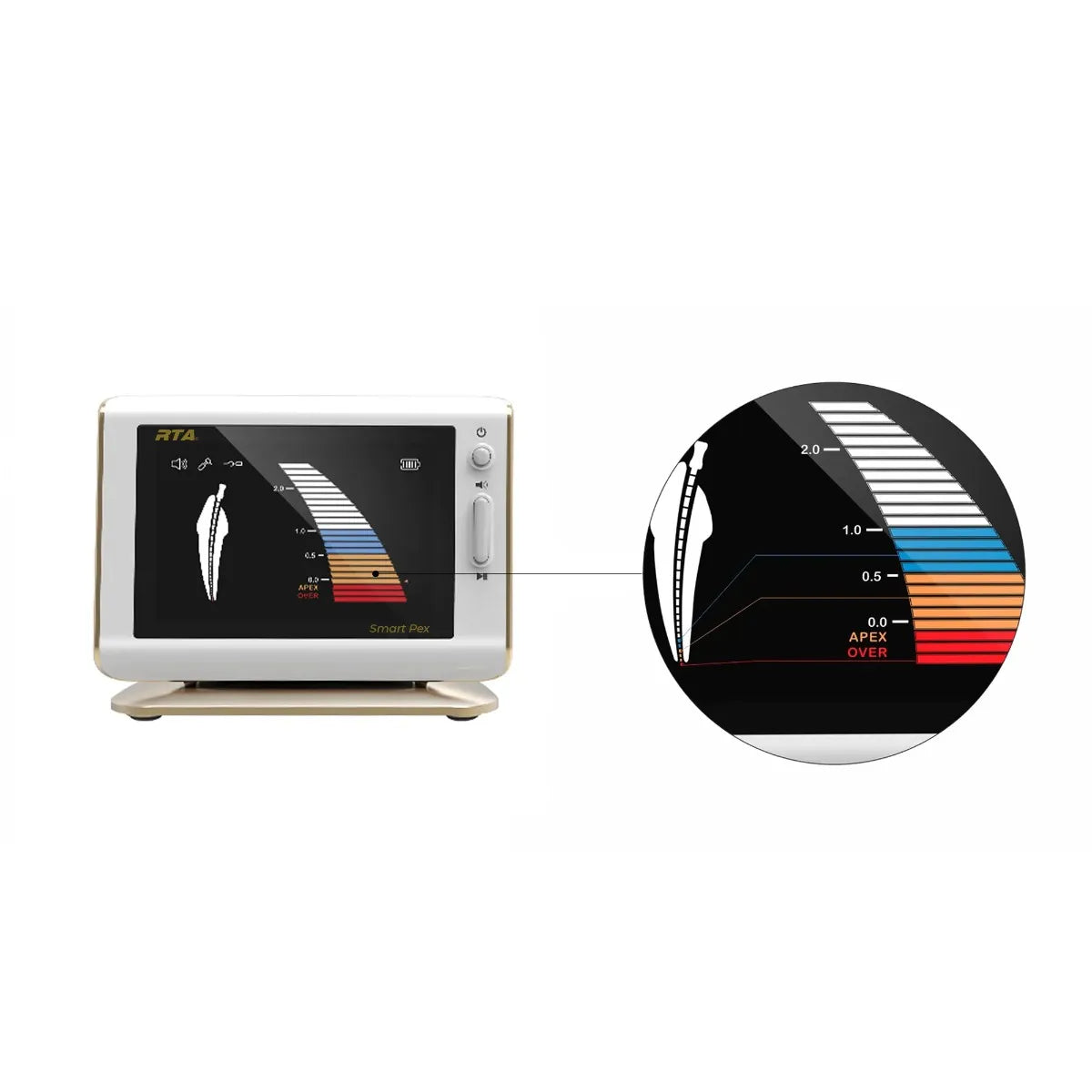

Clear bright LCD for a clear image & different colors to clearly shape the trajectory of the file.
Multi-frequency apical position technology for accurate measurement.
Accurate reading even in the presence of blood or residual pulp in the root canal.
Measurement will not be affected by the tooth type.
Based on advanced multiple-frequency network impedance measurement technology and automatic calibration ensures that the measurements are accurate.
Autoclavable file clip, lip hook, file probe.
Avoiding cross-infection effectively.
When doing the measurement, the changes in the sound can indicate the position of the file in the root canal.

Woodpecker RTA MiniMotor Brushless Endomotor

High-performance brushless motor for strong power.
Extended service life, 10 times longer.
Low wear and heat for durability.
Adjustable reciprocating angle for precision.
Compact 6:1 contra-angle for flexibility.
Wireless, cordless operation for convenience.
Four working modes for versatile use.
Apex Locator compatible for enhanced accuracy.

Description

Specification

Waldent RTA Smart-Pex Apex Locator by Woodpecker

Battery: 3.6V/750mAh
Dimensions: 185mm x 160 x 105mm
Main unit weight: 385gm
Input: 100V-240V 50Hz/60Hz 0.4A Max
Output: 5V___1A
Screen: 4.5" LCD

Woodpecker RTA MiniMotor Brushless Endomotor

Motor Type: Brushless motor
Speed Range: 100r/min - 1500r/min
Torque Range: 0.4N·cm - 4.2N·cm
Service Life: 10 times longer than brush motors
Rotation: Smoother, lower noise
Adjustable Reciprocating Angle: 10° intervals
Forward & Reverse Reciprocating Angle: 20° - 400°
Speed Ratio: 6:1
Head Height: 9.7mm
Head Diameter: 8mm
Neck Diameter: 6mm
Contra-angle Rotation: 360° rotatable
Working Modes: Forward, Reverse, Reciprocating, ATR
Control: Wireless
Operation Field: Broader with 6:1 speed ratio
Apex Locator Compatibility: Yes
Design: Lightweight, cordless, well-balanced
Preparation Efficiency: High torque and fast response
Safety Features: Accurate angle control, reduced instrument separation risk.

Packaging

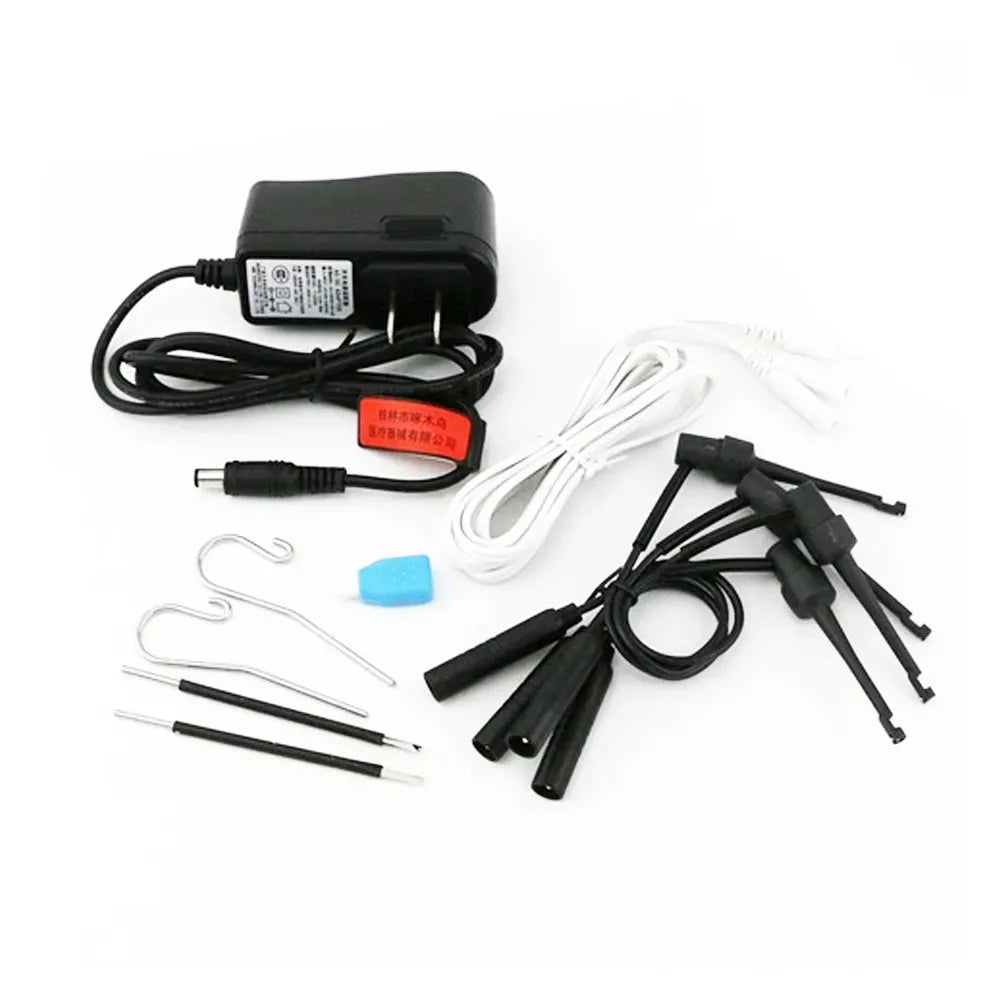

Waldent RTA Smart-Pex Apex Locator By Woodpecker

1 x Main Unit
1 x Measuring Wire
2 x File Clip
2 x Lip Hook
2 x Measuring File
1 x Adapter
1 x Tester
1 x Battery
1 x Instruction Manual
1 x Qualified Certificate
1 x Warranty Card
1 x Packing List

Woodpecker RTA MiniMotor Brushless Endomotor

1 X Base
1 X Motor Handpiece
1 X Contra angle head
1 X Spray nozzle
1X Adapter
1 X Disposable insulation sleeves
2 X Protective silicone cover
1 X Cable
1 X Instruction Manual

Direction to use

Waldent RTA Smart-Pex Apex Locator By Woodpecker

Preparation:

Ensure the device is fully charged or connected to a power source.
Attach and autoclave the necessary accessories for sterilization.
Clean the LCD screen for clear visibility.

Patient Preparation:

Inform the patient about the procedure and obtain consent.
Confirm absence of contraindications such as pacemakers or metal allergies.
Administer appropriate anesthesia.

Device Setup:

Turn on the apex locator and allow initialization.
Adjust screen brightness as needed.

Apical Positioning:

Select suitable file size for treatment.
Gently insert the file into the root canal until reaching the apical constriction.
Attach the file clip and secure with the lip hook.

Measurement Procedure:

Observe real-time display on the LCD screen.
Listen for sound changes indicating file position.

Reading and Recording:

Note measurement once apex reached.
Carefully remove file and record working length.

Additional info

Country of Origin: Made in PRC

Warranty

Manufacturer/Importer warranty of 1 year as applicable for this product including on PCB (Power Circuit Board)
Service and Warranty are handled by the manufacturer/importer directly for this product (Currently OnSpot Services only available in Delhi/NCR )
Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Product Related Questions

Question: Can the Waldent Smart-Pex Apex Locator and RTA MiniMotor Brushless Endomotor by Woodpecker be connected to each other, or do they need to be used separately?
Answer: The Waldent Smart-Pex Apex Locator and RTA MiniMotor Brushless Endomotor by Woodpecker can be used together or separately, depending on user preference. They are compatible and can be connected for seamless operation during endodontic procedures, but can also be used independently if preferred. This flexibility allows for customized workflow according to the clinician's needs.

Question: What generation is the apex locator in the Waldent Smart-Pex Apex Locator + RTA MiniMotor Brushless Endomotor by Woodpecker?
Answer: The apex locator in the Waldent Smart-Pex system is a 5th generation apex locator. This advanced technology enhances accuracy in root canal procedures, improving clinical outcomes and patient care.

Question: Is the device suitable for all types of root canals?
Answer: Yes, the Fifth Generation Apex Locator is designed to be compatible with various types of root canals, providing accurate measurements regardless of canal anatomy or conditions.

Question: How long does the battery last on a single charge?
Answer: The battery life of the Fifth Generation Apex Locator depends on usage, but it typically lasts for multiple procedures before needing to be recharged.

Question: Is training required to use the Fifth Generation Apex Locator?
Answer: While basic training in endodontic procedures is recommended, the Fifth Generation Apex Locator is designed to be user-friendly, with intuitive controls and clear instructions for use.

Question: How often should the device be calibrated?
Answer: The Fifth Generation Apex Locator typically requires calibration according to manufacturer guidelines, which may vary depending on usage and environmental factors. Regular calibration ensures accurate and reliable measurements.
