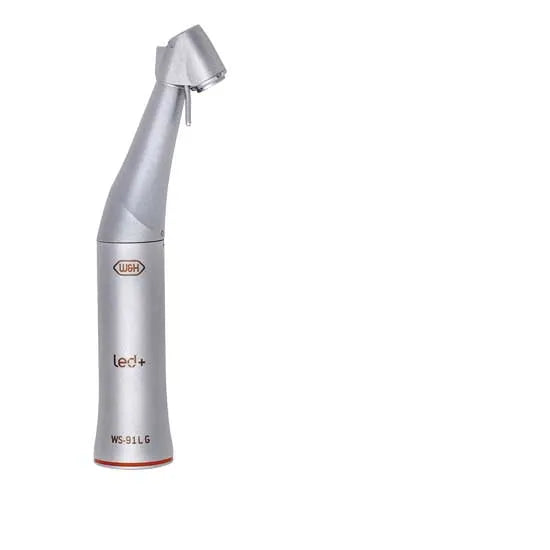

W&H WS - 91 LG Surgical Contra Angle 1:2.7 Handpiece - WH115

• Considerably better visibility of the treatment site thanks to the 45° head
• Unite the advantages of a straight and contra-angle handpiece
• Makes access to the maxillary and mandibular molars much simpler
• A triple spray guarantees sufficient cooling of the rotary instrument and the tooth

• Contra-angle design with 45° head.
• Dismantlable structure with ISO 3964 coupling.
• Performance: 1:2.7 ratio, 135,000 RPM, Mini LED+.
• Construction: Durable materials, precision engineering.
• Compatibility: FG shank Ø 1.6 mm, ISO 3964 coupling.

• 1 x Surgical Contra Angle 1:2.7 Handpiece

Preparation:

• Ensure that the handpiece is clean, lubricated (if required), and in good condition.
• Confirm compatibility with your dental unit and the rotary instruments you plan to use.

Handpiece Connection:

• Connect the handpiece to the dental unit using the ISO 3964 coupling system.
• Secure the connection to prevent any wobbling during use.

Rotary Instrument Attachment:

• Choose a rotary instrument with an FG shank diameter of Ø 1.6 mm.
• Insert the rotary instrument into the handpiece, making sure it is securely in place.

Water and Spray Adjustments:

• Adjust the water flow and spray settings on your dental unit according to the procedure.
• Confirm that the triple spray system is functioning properly to ensure adequate cooling.

Illumination Setup:

• If your handpiece has a Mini LED+ feature, activate it for improved visibility.
• Adjust the illumination intensity based on your preferences and the needs of the procedure.

Patient Preparation:

• Communicate with the patient, explaining the procedure and addressing any concerns.
• Ensure the patient is comfortable and the treatment area is properly isolated.

Procedure Execution:

• Start the dental procedure with the Surgical Contra Angle Handpiece.
• Utilize the 45° head for improved visibility and access, especially in challenging areas like molars.
• Maintain a steady hand, proper angulation, and controlled movements for precision.

Monitoring and Adjustments:

• Monitor the cooling system throughout the procedure to prevent overheating.
• Make any necessary adjustments to the handpiece settings, water flow, or illumination as needed.

Rotary Instrument Removal:

• After completing the procedure, carefully detach the rotary instrument from the handpiece.

Question: Can current contra-angles be attached to new motors?
Answer: Yes. All W&H surgical contra-angles and handpieces can be attached to the new motor EM-19.

Question: Can the new contra-angles be attached to old motors?
Answer: No. In order to deliver the best balance we shortened the inner coupling length. Therefore contra-angles with only an L suffix cannot be attached to old motors.

Question: Can our customers disassemble the new contra-angles?
Answer: Yes. At W&H the letter "S" always communicates, that the surgical contra-angle is disassemble. The letter "I" communicates, that the surgical contra-angle cannot be disassembled (e.g. WS-75 L vs. WI-75)

Question: Why doesn't the light on my LED G contra-angle handpiece work when I am positioning an implant?
Answer: The generator in the contra-angle handpiece requires at least 300 rpm to produce enough electricity for the LED. The rotary speed is between 15 and 50 rpm when positioning an implant.

Question: Can my W&H handpiece be processed via sterilizer.?
Answer: Yes, providing that your W&H handpiece carries the relevant sterilization symbol.

Question: Which material is used at W&H surgical instruments?
Answer: Internal and external parts are of high quality stainless steel (including the contra-angle handpiece head).

Question: Can LED instruments with generator be sterilized?
Answer: Yes, W&H handpieces with LED and generator are both sterilizable and thermo disinfectable .

Question: Is the removable spray clip of my surgical hand piece sterilizable?
Answer: Yes. In order to extend the live span of the clip, W&H recommends to remove the clip from the hand piece and sterilize it separately (hand piece and clip in one pouch but separated).

Question: What is the difference between WI-75 and WS-75?
Answer: Both assure maximum performance. The WS-75 can be dismantled and therefore it can be cleaned more thoroughly.
