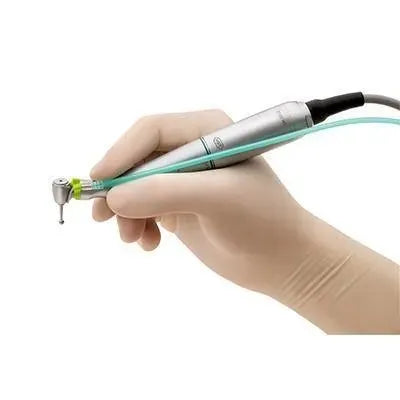

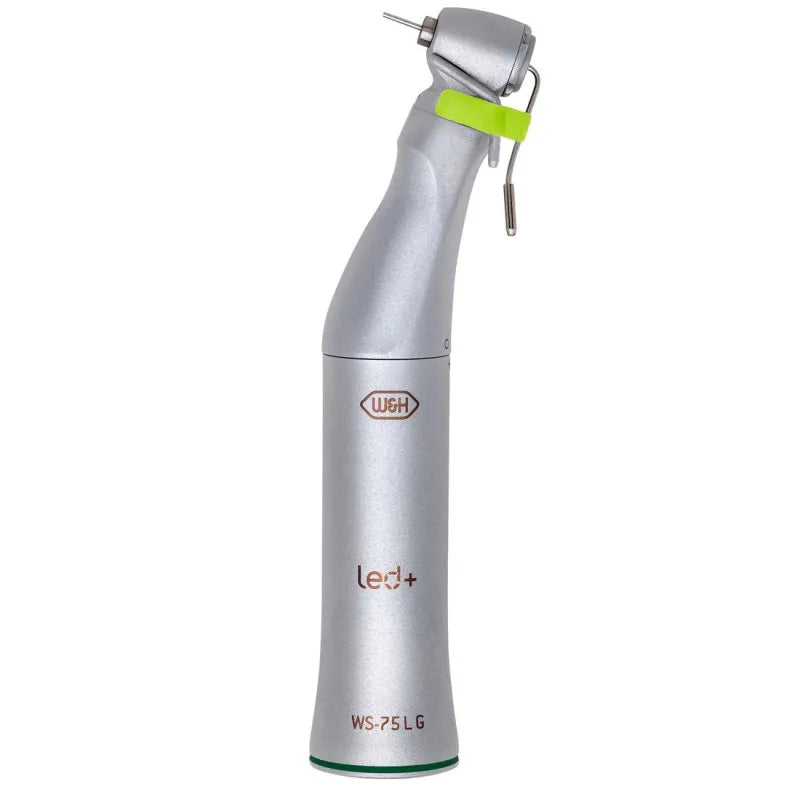

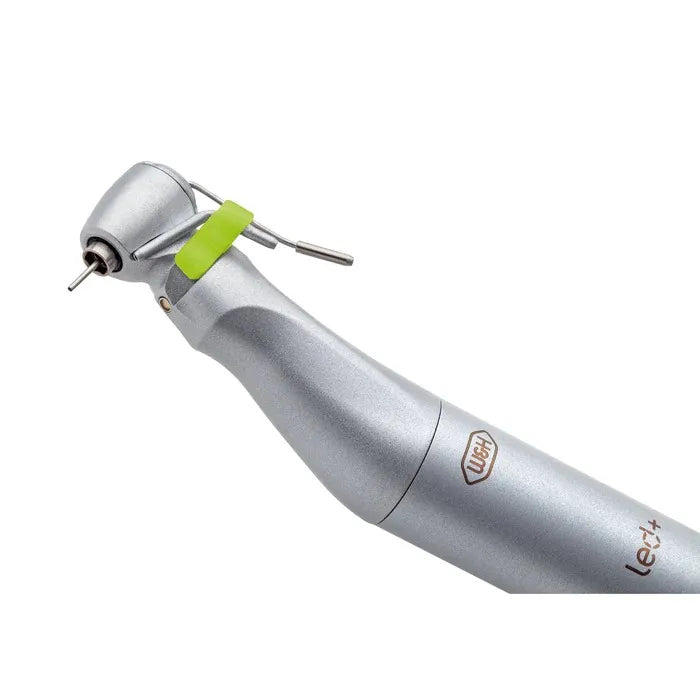

W&H Ws-75lg Surgical Contra Angle Handpiece 20:1 (Fiber Optic) - WH113

• Natural reproduction of red tones
• Independent power supply with integrated generator
• Longer life compared to conventional halogen bulbs
• Fatigue-free working thanks to optimal ergonomics
• Durable and robust due to high-quality stainless steel and scratch-resistant coating
• Can be dismantled for thorough cleaning
• Thermo washer disinfectable and sterilizable

• Transmission ratio: 20:1
• Coupling system: ISO 3964 (DIN 13940)
• Lighting system: mini LED+
• Power supply: via independent generator
• Light quality: daylight

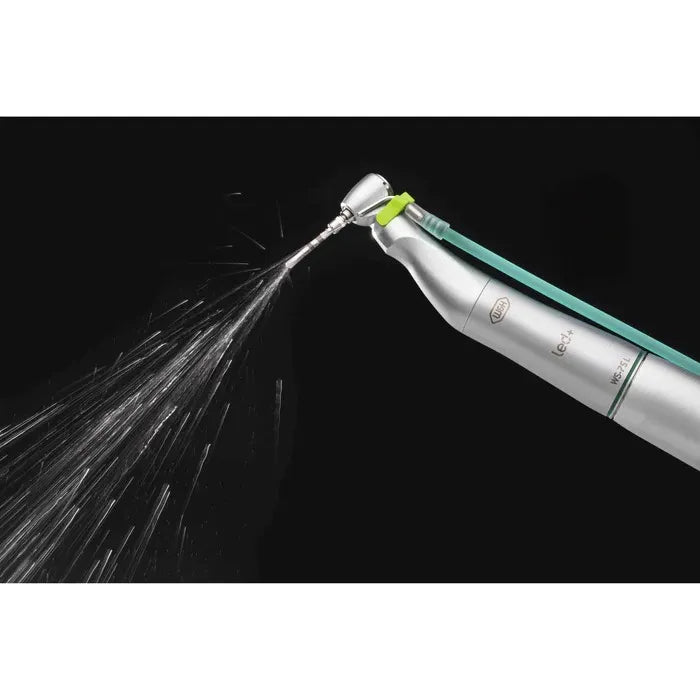

• External spray: single
• Chucking system: push-button chuck
• Rotary instruments: for surgical burs and cutters with contra-angled shank Ø 2.35 mm
• Maximum drive speed: 40,000 min -1
• Can be dismantled: yes

1 x Surgical Contra Angle Handpiece 20:1

Setup:

• Ensure that the handpiece is clean and sterilized according
• Connect the handpiece to the dental unit or surgical device using the specified ISO 3964 (DIN 13940) coupling system.

Inserting Instruments:

• Use rotary instruments such as surgical burs and cutters with a contra-angled shank diameter of Ø 2.35 mm.
• Insert the instrument into the chuck of the handpiece.

Power Supply:

• Connect the handpiece to the power supply. In the case of the W&H WS-75LG, it uses an independent generator for power.

Illumination:

• Ensure that the LED light source is functioning properly. The mini LED+ in this model provides high-quality, daylight-like illumination. If there are adjustable settings for the light, adjust them as needed.

Operation:

• Operate the handpiece at the recommended speed, not exceeding the maximum drive speed of 40,000 min-1.
• Use the handpiece for the intended indications, such as implantation and osteotomy. Follow standard dental and surgical procedures for these applications.

Cleaning and Maintenance:

• Thoroughly clean and sterilize the handpiece according to the recommended procedures.

Storage:

• Store the handpiece in a designated, clean, and dry area.

• Country Of Origin: Austria
• Manufacturer: W&H Dentalwerk

• Manufacturer/Importer warranty of 6 months as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product.
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer.
• Oralkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only.
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What are the indications W&H Ws-75lg Surgical Contra Angle Handpiece 20:1 (Fiber Optic) - WH113?
Answer: Implantation and osteotomy indications for using the W&H WS-75LG Surgical Contra Angle Handpiece.

Question: Is the WS-75 LG easy to clean and maintain?
Answer: Yes, it can be dismantled for thorough cleaning, and it is thermo washer disinfectable and serializable.

Question: How is the WS-75 LG powered, and what sets it apart from halogen bulbs?
Answer: It has an independent power supply with an integrated generator, offering a longer lifespan compared to traditional halogen bulbs.

Question: What kind of lighting does the W&H WS-75 LG surgical contra-angle handpiece 20:1 use?
Answer: The WS-75 LG uses mini LED+ technology for high-contrast, natural light during surgery.
