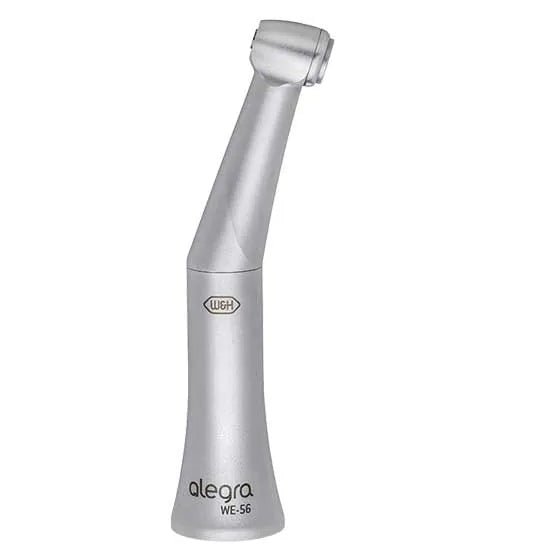

W&H We-56 Contra Angle Handpiece - HP333

• Robust and durable
• Ergonomic design
• Simple bur changing with the push-button chucking system
• Thermo washer disinfectable and sterilizable
• External coolant supply (spray clip, coolant hose, nozzle cleaner) available as accessories

• Drive speed: 40,000 min-1
• Motor connection according to standard: ISO 3964
• Outer diameter of the sheath: 20 mm
• Contra-angle handpiece 1:1

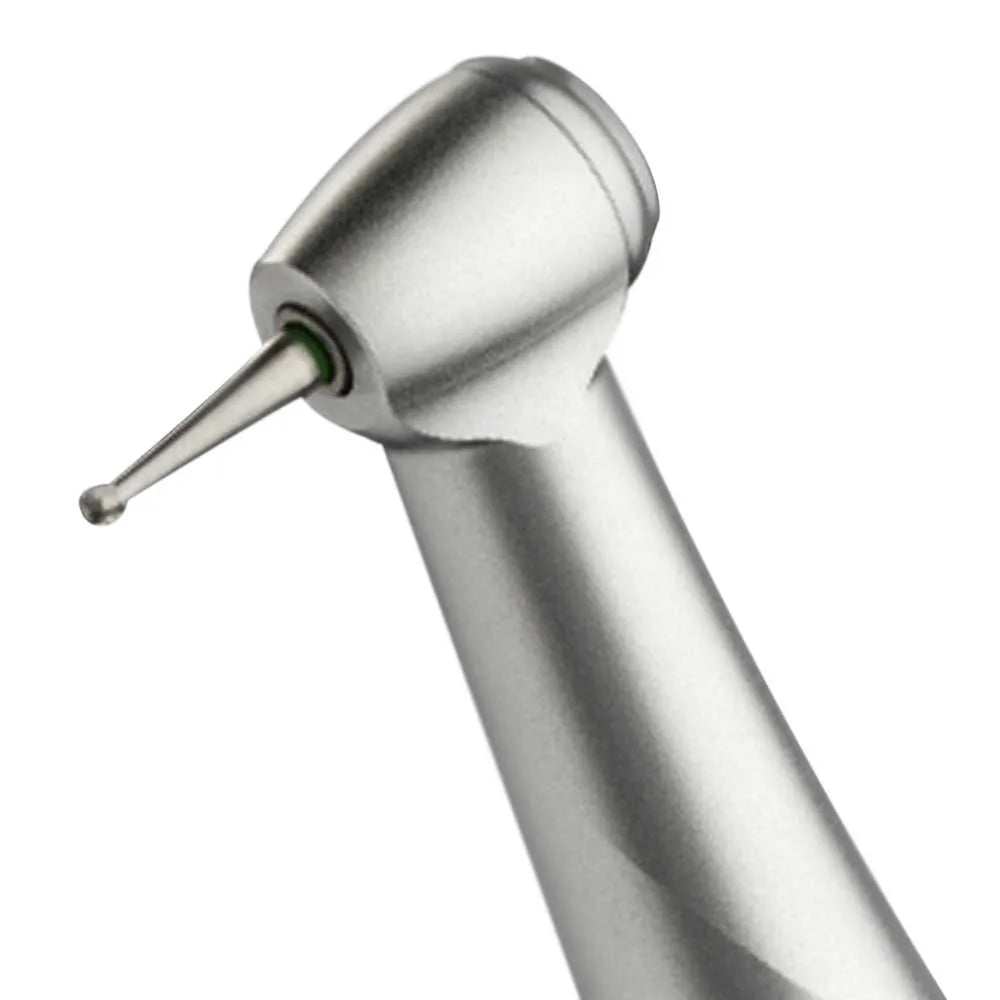

• Head size: Ø 10.1 mm
• Head height (with 19 mm bur): 20.8 mm
• Maximum permitted bur length: 34 mm

• 1 x Contra Angle Handpiece - HP333

Preparation:

• Ensure that the handpiece is clean and sterilized before use. Follow manufacturer guidelines for sterilization methods.
• Check that the bur (cutting tool) to be used is compatible with the handpiece and has the correct diameter (Ø 2.35 mm).

Inserting the Bur:

• Press the release button on the handpiece to open the chuck.
• Insert the bur into the chuck until it clicks into place.
• Release the button to secure the bur in the chuck.

Connecting to the Motor:

• Connect the contra-angle handpiece to the dental motor, ensuring a secure and proper fit.

Adjusting Speed:

• Set the desired speed on the dental motor according to the procedure requirements. The typical operating speed for these handpieces is around 40,000 min-1.

Procedure:

• Begin the dental procedure, using the contra-angle handpiece as needed for tooth preparation, polishing, or other tasks.

Changing Bur:

• If a different bur is needed during the procedure, press the release button to open the chuck, replace the bur, and secure it in place.

Post-Procedure:

• After completing the procedure, detach the contra-angle handpiece from the motor.

Cleaning and Sterilization:

• Thoroughly clean the handpiece according to the manufacturer's instructions.
• Sterilize the handpiece using an appropriate method, such as autoclaving.

• Manufacturer/Importer warranty of 6 months as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product.
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer.
• Oralkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only.
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What's the speed of W&H We-56 Contra Angle Handpiece - HP333?
Answer: The speed of the W&H We-56 Contra Angle Handpiece - HP333 is 40,000 min-1.

Question: What is Advantages of short contrangle head?
Answer: Advantages of the short contra-angle head include comfort, ergonomic design preventing hand strain, and optimal visibility in dental procedures.

Question: What's the contra-angle head size?
Answer: The contra-angle head has a diameter of 10.1 mm and a height of 20.8 mm with a 19 mm bur.
