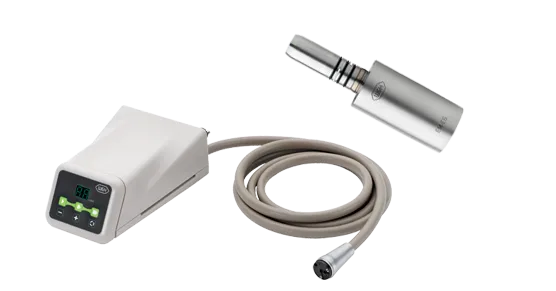

W&h Em-e6 Tabletop Control Unit With Em-e6 Electric Motor (Inter.l Spray) - Wh118

• Motor fully sterilizable
• Light weight
• Exceptionally powerful
• Brushless – therefore maintenance-free
• Long life
• Lifetime bearing lubrication
• Wide range of applications

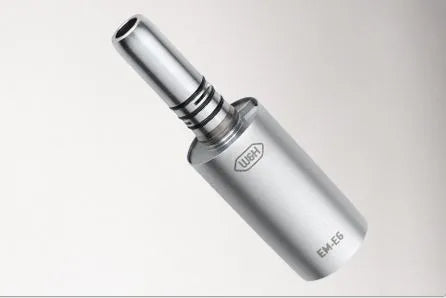

Electric Motor EM-E6

Spray: Internal

Hose-side coupling: W&H screw coupling

Coupling instrument: ISO 3964 (DIN 13.940)

Speed range: 2,000 – 40,000 rpm

Maximum power: 55 W

Torque: 3 Ncm

Coolant air: 6–8 Nl/min

Direction of rotation: Forward/reverse operation

Weight: 64 g

Guarantee: 24 months

Length without ISO connection: 38.6 mm

Tabletop control unit:- EM-E6 TP

Weight: 445 g

Dimensions (L x W x H): 146 x 99 x 59 mm

Motors that can be used: EM-E6

Guarantee: 12 months

Power pack voltage/frequency: 100–240 V, 50–60 Hz

• Tabletop control EM-E6 TP
• Electric motor EM-E6,
• Supply hose
• Power pack

Preparation:

• Ensure that the tabletop control unit and electric motor are properly connected to the power source using the external power pack.
• Make sure the turbine supply hose is connected securely to the tabletop control unit.

Power On:

• Switch on the power supply to the tabletop control unit using the external power pack.

Motor Setup:

• Place the EM-E6 electric motor in a convenient position for your procedure.
• Check that the motor is securely attached to the tabletop control unit.

Adjust Settings (if necessary):

• Depending on the procedure and your preferences, adjust the speed
  and direction of rotation using the controls on the tabletop unit.
• Ensure that the spray function is activated if needed for cooling and irrigation during procedures.

Perform Procedure:

• With the motor ready, proceed with your dental procedure, such as fillings, prosthetics, or prophylaxis.
• Use appropriate dental instruments and techniques in conjunction with the electric motor.

Monitoring and Control:

• Throughout the procedure, monitor the speed, torque, and spray function as necessary.
• Adjust settings as needed to ensure optimal performance and patient comfort.

Power Off and Cleaning:

• Once the procedure is complete, switch off the power to the tabletop control unit.
• Disconnect the electric motor and clean.

• Manufacturer/Importer warranty of 1 year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Oralkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Oralkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Oralkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question: What is the main application of the EM-E6 electric motor?
Answer: The EM-E6 electric motor is primarily used for fillings, prosthetics, and prophylaxis due to its compact size and exceptional power.

Question: Is the EM-E6 electric motor heavy?Answer: No, the motor is lightweight, making it ergonomic and comfortable to use for extended periods.

Question: How is the EM-E6 electric motor powered when used as a tabletop model?
Answer: The tabletop control unit connects easily to the turbine supply hose and is powered by an external power pack, allowing for "Plug and Go" functionality without the need to modify the dental control unit.
